 Posted: Tue Sep 01, 2009 7:10 am Post subject: Rear Seat Heater Outlet Kick Panel |
 |
|
I need some help trying to figure out how the rear seat heater outlets on my '63 Beetle and the kick panels go together.
I have the kick panels with the round outlets in them and a rubber outlet ring attached to the kick panel. Then there is the actual metal heater channel outlet on the floor, nioce and solid.
THen I have these round metal collars with clips on them.
Sorry no pics, but, how or where do these metal collars go? On the outside of the kick panel or on the inside of the kick panel?
thanks
_________________
enjoy the journey,
Gary
Watch us on YouTube, VW Life AND
listen in to the VW Life Good Time Hour on VDub Radio, every Tuesday! |
|
| Back to top |
|
 |
glutamodo
The Android
Joined: July 13, 2004
Posts: 26530
Location: Douglas, WY
|
| Posted: Tue Sep 01, 2009 2:54 pm Post subject: |
|
|

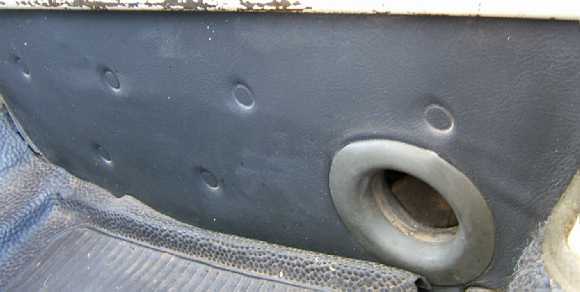

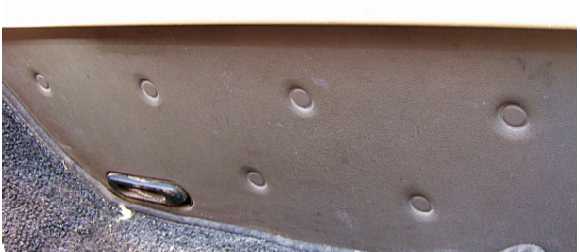

The kick panels and the rear heater outlets changed mid-year 1963, so I take it you have the later 1963 heater outlets, or since you say you have an outlet on the floor, are you trying to use the later kick panels with the early heater outlet?
|
|
| Back to top |
|
|
GB2S
Samba Member
Joined: October 27, 2003
Posts: 1008
Location: Omaha
|
| Posted: Tue Sep 01, 2009 6:49 pm Post subject: |
|
|
| If anybody needs them I have the early kick panel, the metal outlet piece and the metal tube in the picture. Let me know< I want them gone CHEAP. |
|
| Back to top |
|
|
GB2S
Samba Member
Joined: October 27, 2003
Posts: 1008
Location: Omaha
|
| Posted: Tue Sep 01, 2009 6:50 pm Post subject: |
|
|
| If anybody needs them I have the early kick panel, the metal outlet piece and the metal tube in the picture. Let me know< I want them gone CHEAP. |
|
| Back to top |
|
|
cm2469
Samba Member
Joined: January 02, 2011
Posts: 2
Location: UK
|
| Posted: Tue Dec 31, 2013 5:27 am Post subject: Beetle kick panels |
|
|
Do you still have the early kick panels? I know it's been a while, but it's worth asking.
Chris |
|
