 Posted: Thu Jun 15, 2023 2:09 pm Post subject: Vent window rubber orientation |
 |
|
I am installing window seals on my '66 and the old ones were so crusty and broken that I couldn't tell which way they were supposed to go. This is the piece that seals the vent window to the post.

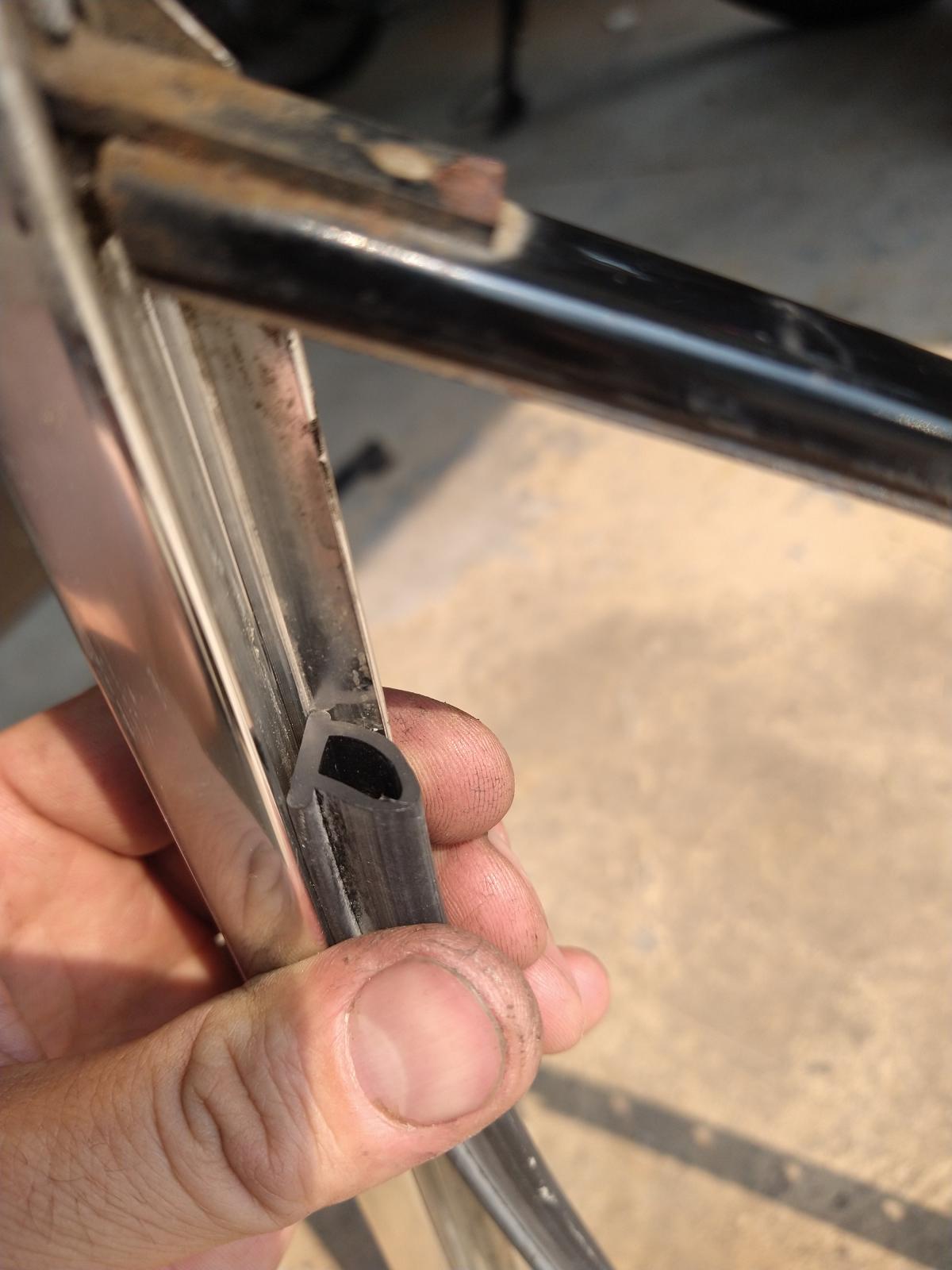

Does it go like this...

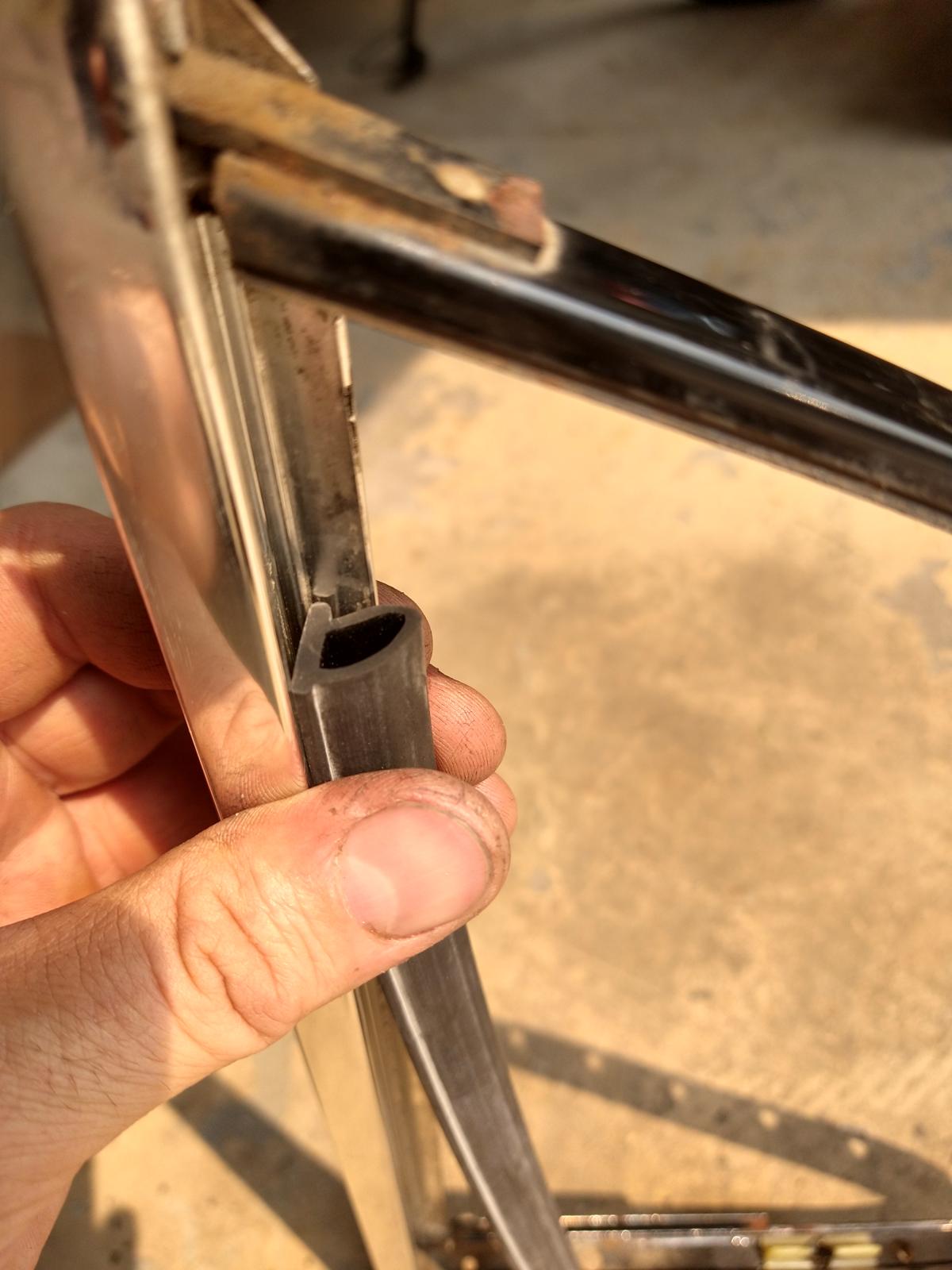

...or like this?
|
|
| Back to top |
|
 |
wdfifteen
Samba Member
Joined: January 26, 2019
Posts: 696
Location: Ohio
|
| Posted: Fri Jun 16, 2023 6:49 am Post subject: Re: Vent window rubber orientation |
|
|
| Like you, I had no original parts to go on. I installed my '65s as shown in the bottom picture. They work perfectly. |
|
| Back to top |
|
|
67conv
Samba Member
Joined: July 10, 2005
Posts: 445
Location: Simi Valley, California
|
| Posted: Fri Jun 16, 2023 7:56 am Post subject: Re: Vent window rubber orientation |
|
|
The rear vertical edge of the vent glass will rest / lock-up against the "flat" part of the rubber seal when installed correctly in the frame. The rounded side faces inwards, (towards interior) to give the seal a finished look.
_________________
1967 VW Convertible, owned 35 years.
1957 DKW 3=6, owned 21 years.
PREVIOUS: 1972 "Baja Champion SE" Spec. Edition Beetle bought NEW @ Pierce VW in Denver; 1979 Super Beetle Convertible bought NEW @ Downtown LA VW; 1967 type 1 savanna beige; 1967 Porsche 2.0 911S; 1973 Porsche 2.4 911T; 1963 356 T6 B Cabriolet; 1964 356 SC sunroof coupe; 1972 Type-3 Squareback; 1968 + 1969 Type-3 Fastbacks; 1987 Vanagon GL Weekender |
|
| Back to top |
|
|
Sigurd
Samba Member
Joined: April 18, 2006
Posts: 2639
Location: Rockford, IL
|
| Posted: Fri Jun 16, 2023 1:33 pm Post subject: Re: Vent window rubber orientation |
|
|
| 67conv wrote: |
| The rear vertical edge of the vent glass will rest / lock-up against the "flat" part of the rubber seal when installed correctly in the frame. The rounded side faces inwards, (towards interior) to give the seal a finished look. |
Just for fun, I got off the phone with Wolfsburg West, and he said the opposite, that the seal has a "lean" to it and that it "leans" towards the inside of the car.
Now what? Install one of each and see what works? |
|
| Back to top |
|
|
Busstom
Samba Member
Joined: November 23, 2014
Posts: 4578
Location: San Jose, CA
|
| Posted: Fri Jun 16, 2023 3:09 pm Post subject: Re: Vent window rubber orientation |
|
|
This would be an "outside" view, yeah? ^^^
This seems like it would give you a much better seal, and this looks opposite what WW said.
_________________
My name's Steve and it's pronounced "Bust 'em" (cuz people think I'm Tom)
| cory464 wrote: |
| if you aren't perfectly centered in the hole you will have issues when you tap it. |
|
|
| Back to top |
|
|
Sigurd
Samba Member
Joined: April 18, 2006
Posts: 2639
Location: Rockford, IL
|
| Posted: Fri Jun 16, 2023 3:12 pm Post subject: Re: Vent window rubber orientation |
|
|
| Yes, that's the outside view. I tried it both ways here this afternoon, and it does seem to close better with the rounded part pointing inward like they said, but neither allows the vent window to close fully at the top. Maybe that would change with the frame installed in the door. |
|
| Back to top |
|
|
67conv
Samba Member
Joined: July 10, 2005
Posts: 445
Location: Simi Valley, California
|
| Posted: Mon Jun 19, 2023 7:00 am Post subject: Re: Vent window rubber orientation |
|
|
Oh wow, my bad! For some reason, I was thinking in terms of the '64 and earlier vent window division bar rubber seal - which is of a different design entirely! The seal in question here is for the redesigned '65 and up vent windows. A much simpler design. My apologies for any confusion or misleading anyone in my earlier post above...
_________________
1967 VW Convertible, owned 35 years.
1957 DKW 3=6, owned 21 years.
PREVIOUS: 1972 "Baja Champion SE" Spec. Edition Beetle bought NEW @ Pierce VW in Denver; 1979 Super Beetle Convertible bought NEW @ Downtown LA VW; 1967 type 1 savanna beige; 1967 Porsche 2.0 911S; 1973 Porsche 2.4 911T; 1963 356 T6 B Cabriolet; 1964 356 SC sunroof coupe; 1972 Type-3 Squareback; 1968 + 1969 Type-3 Fastbacks; 1987 Vanagon GL Weekender |
|
| Back to top |
|
|
wdfifteen
Samba Member
Joined: January 26, 2019
Posts: 696
Location: Ohio
|
| Posted: Mon Jun 19, 2023 11:37 am Post subject: Re: Vent window rubber orientation |
|
|
| Sigurd wrote: |
Just for fun, I got off the phone with Wolfsburg West, and he said the opposite, that the seal has a "lean" to it and that it "leans" towards the inside of the car.
Now what? Install one of each and see what works? |
That's the way I installed mine and it works perfectly. |
|
| Back to top |
|
|
|
