1950split
Samba Member


Joined: December 08, 2005
Posts: 484

1950split is offline

PostPosted: Fri Mar 31, 2023 7:08 am    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

Hi Rustavenger,

How does this CSP competition evo system compare vs a A1 sidewinder or a CSP Python ? Have you had one of those on your engine before to give a comparison ?

I have a CSP python. It is soooo loud that even with noise insulation in the car it gets annoying for longer drives.

I like the competition evo but don't want to give up performance.

My engine : 2276, 86b, 44x38 mid-D heads and IDAs

Any quality issues on the competition evo ?

Thanks,

Phil
Back to top
View user's profile Send private message Gallery Classifieds Feedback
67rustavenger
Samba Member


Joined: February 24, 2015
Posts: 10922
Location: Oregon
67rustavenger is offline

PostPosted: Fri Mar 31, 2023 7:35 am    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

1950split wrote:
Hi Rustavenger,

How does this CSP competition evo system compare vs a A1 sidewinder or a CSP Python ? Have you had one of those on your engine before to give a comparison ?

I have a CSP python. It is soooo loud that even with noise insulation in the car it gets annoying for longer drives.

I like the competition evo but don't want to give up performance.

My engine : 2276, 86b, 44x38 mid-D heads and IDAs

Any quality issues on the competition evo ?

Thanks,

Phil

Phil,
The EVO installation is pretty straight forward. The only issue I had was with the 1/3 lower exhaust fasteners. The exhaust bend is rather tight right off the head. I used m8x10mm hex flare nuts to clear the tubes.
Otherwise, the exhaust was a bolt on deal, no fiddling with ill fitting exhaust flanges.

In the video I posted, The engine at t time was a 2180, Tims S2 heads, 86b.
All you are really hearing in the video, is the roar of the 45 Dellorto's at full throttle. The Jetta I was racing against was completely stock.

CSP designed the EVO exhaust based off the Wasp system. What quiets the exhaust down is the dual muffler system post collector.
When driving the car, it's quieter than the old EMPI cheapy hideaway header and muffler I had originally installed.
We have a 103db noise limit at PIR Saturday night drags. I have never been called out for being too loud. Wink
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!

There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin! Wink
Back to top
View user's profile Send private message Gallery Classifieds Feedback
1950split
Samba Member


Joined: December 08, 2005
Posts: 484

1950split is offline

PostPosted: Sat Apr 01, 2023 12:26 am    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

Hi,

Thanks for your feedback.

Do you have to remove the mufflers to adjust valve play?

I like the peeshooter look of it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
67rustavenger
Samba Member


Joined: February 24, 2015
Posts: 10922
Location: Oregon
67rustavenger is offline

PostPosted: Sat Apr 01, 2023 5:52 am    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

1950split wrote:
Hi,

Thanks for your feedback.

Do you have to remove the mufflers to adjust valve play?

I like the peeshooter look of it.

Short answer, No.

But it takes 5-10 minutes to remove the mufflers for better access.
Three allen collector flange fasteners, four rubber vibration hangers, and the mufflers are on the ground.
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!

There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin! Wink
Back to top
View user's profile Send private message Gallery Classifieds Feedback
toxicavenger70
Samba Member


Joined: July 28, 2019
Posts: 882
Location: CO
toxicavenger70 is offline

PostPosted: Thu Apr 06, 2023 2:05 pm    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

Mug Bug wrote:
To the original poster of this thread........ Now that you've had the CSP for a while, are you still happy with it? Getting ready to order one and thought I would see what you thought first! Thank you.

I really like it. The only thing that I added is I had heater box flanges welded to the muffler.

Bug53 wrote:
I want an exhaust that will come out the back of the car through the pea shooter cut-outs, connect to heater boxes, and offer some flow for a 1900

The CSP does all of this.

Glenn wrote:
67rustavenger wrote:
But the mugbug was asking about the OP's system. Not the CSP EVO Competition system.

The OP was complaining about the welds... I can say that they are really nice on the system I worked on.

On a system that required me to sell my kidneys I would hope it would be perfect. Laughing I did not exactly expect perfect welds on the one I bought.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
boxer74
Samba Member


Joined: July 03, 2011
Posts: 855
Location: Ontario, Canada
boxer74 is offline

PostPosted: Fri Sep 13, 2024 7:35 am    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

toxicavenger70 wrote:
Alstrup wrote:
CSP or VS. The main difference is the manufacturer and the way they weld

I got to see a VS muffler last week and I agree the welds are nicer on the VS.

I have been running the CSP muffler for a week. It is slightly more throaty than the stock Kadron. My butt dyno says I have a little more grunt with the addition of this muffler. The CIP1 hardware sucked, but I believe the muffler was worth the cost.


Still running this exhaust and still happy with it?

Considering it for a 1776 with single 40 IDF, so it's nice that it has provisions for good manifold heating. I don't expect this engine to produce more than 90HP anyways, so it should work out well and retain the stock look. Currently have a 1-3/8 header and quiet pack but don't like the look and reduced ground clearance.
_________________
74 Super
84 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
early
Samba Member


Joined: January 19, 2012
Posts: 255
Location: Glen Carbon, IL
early is offline

PostPosted: Fri Sep 13, 2024 9:45 am    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

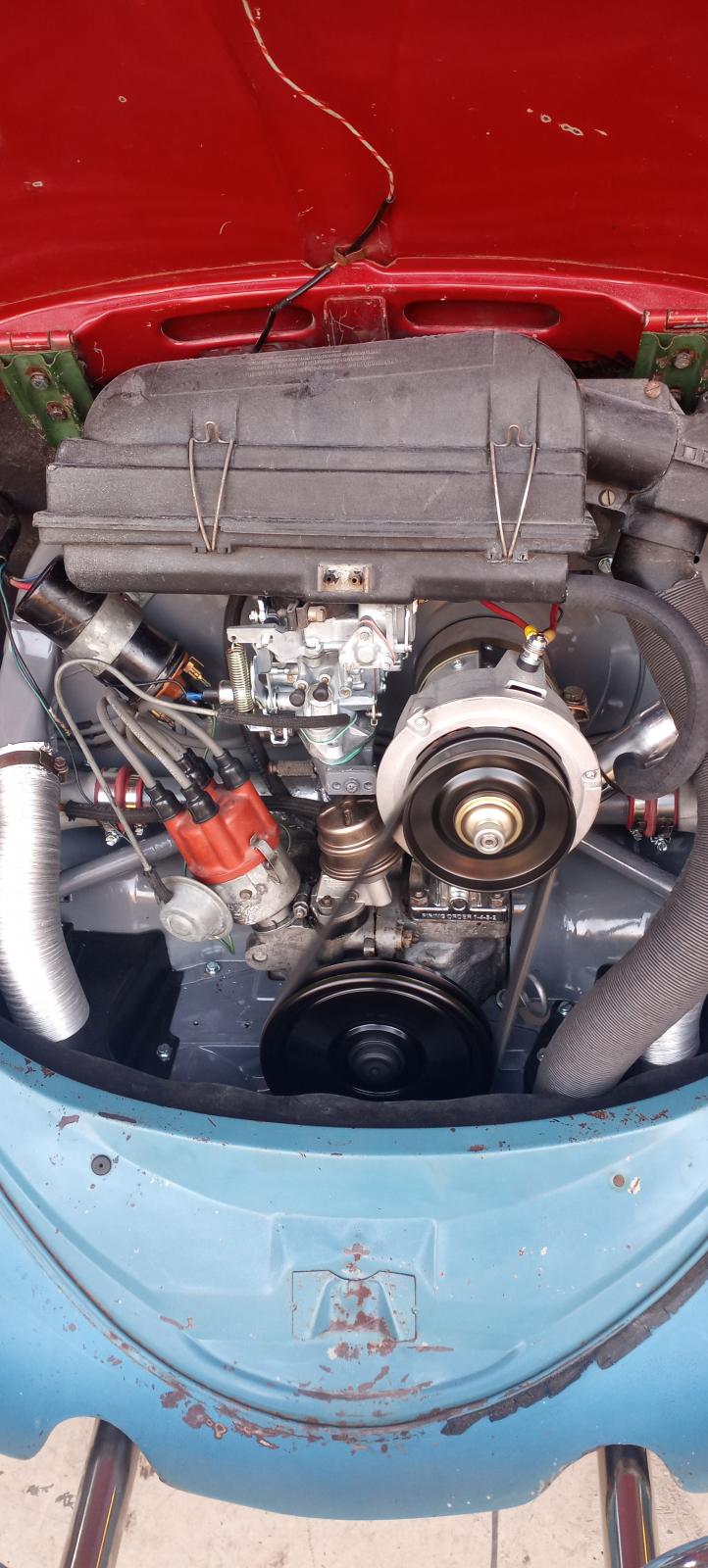

I happen to like this exhaust system, manifold heat is good, it has a pleasant exhaust note thru my TDE tailpipes. I cut the intake manifold heat pipes, drilled the carbon out with a long 3/8 drill bit and re-welded them back on.works great. Fits great, tips exit correctly

Image may have been reduced in size. Click image to view fullscreen.




Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bruce
Samba Member


Joined: May 16, 2003
Posts: 17560
Location: Left coast, Canada
Bruce is offline

PostPosted: Sun Sep 15, 2024 1:25 pm    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

You have the vacuum advance hose hooked up at the wrong location on the carb. It should be on the left side, forward of the spring.
_________________
overheard at the portland Swap Meet... wrote:
..... a steering wheel made from a mastadon tusk.....
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
early
Samba Member


Joined: January 19, 2012
Posts: 255
Location: Glen Carbon, IL
early is offline

PostPosted: Sun Sep 15, 2024 2:05 pm    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

Bruce wrote:
You have the vacuum advance hose hooked up at the wrong location on the carb. It should be on the left side, forward of the spring.



Yup, it's a brosol/solex H30/31 carb. These carbs do not have the
Proper vacuum signal at the normal side position.
The rear vacuum position has nearly the right amount of vacuum.


It's been covered here on the samba.
Edit. I plan to try a 1500 style distributor which requires less vacuum
Which this carb supplies, but this project is on the back burner for now
As I finish tuning the bus engine.


Good eye but it's not a 34pict3.

Cheers and thanks
Back to top
View user's profile Send private message Gallery Classifieds Feedback
boxer74
Samba Member


Joined: July 03, 2011
Posts: 855
Location: Ontario, Canada
boxer74 is offline

PostPosted: Mon Sep 16, 2024 4:58 am    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

early wrote:
I happen to like this exhaust system, manifold heat is good, it has a pleasant exhaust note thru my TDE tailpipes. I cut the intake manifold heat pipes, drilled the carbon out with a long 3/8 drill bit and re-welded them back on.works great. Fits great, tips exit correctly


Thanks for the feedback. It seems you had no issue clearing the #2 and #4 runners with heater hoses. That's good.
_________________
74 Super
84 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
eljimberino
Samba Member


Joined: February 27, 2023
Posts: 7

eljimberino is offline

PostPosted: Fri Mar 21, 2025 6:56 am    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

Hi -

Can anyone with a CSP exhaust of any model please tell me how far the closest tube gets to the pulley please?

I have a custom engine mount that is 3-4cm from the pulley...

Thank you
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Murt
Samba Member


Joined: October 01, 2017
Posts: 529
Location: Kent, England
Murt is offline

PostPosted: Fri Mar 21, 2025 9:10 am    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

I've just recently mocked up a CSP Bus exhaust.

Image may have been reduced in size. Click image to view fullscreen.


Note, the pulley is not fully on
Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 VW Beetle ‘Jules’
1967 Kombi Splitscreen ‘Barney’
2018 VW Caddy Maxi R Line
2017 Golf GTD saloon
2008 VW EOS 2.0 TFSi
Back to top
View user's profile Send private message Gallery Classifieds Feedback
eljimberino
Samba Member


Joined: February 27, 2023
Posts: 7

eljimberino is offline

PostPosted: Fri Mar 21, 2025 9:23 pm    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

Okay - that's the competition...

Won't work for me.

I wonder about the wasp.



Image may have been reduced in size. Click image to view fullscreen.
[/img]
Back to top
View user's profile Send private message Gallery Classifieds Feedback
67rustavenger
Samba Member


Joined: February 24, 2015
Posts: 10922
Location: Oregon
67rustavenger is offline

PostPosted: Sat Mar 22, 2025 1:22 am    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

eljimberino wrote:
Okay - that's the competition...

Won't work for me.

I wonder about the wasp.



Image may have been reduced in size. Click image to view fullscreen.
[/img]

Please tell us, what the issue is that you are having with the pulley clearance to header is.
It appears that there is plenty of room to clear the header based on the image above.

By the way, That's some Mastercraft tin fitment you have done on your engine mockup. Applause
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!

There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin! Wink
Back to top
View user's profile Send private message Gallery Classifieds Feedback
eljimberino
Samba Member


Joined: February 27, 2023
Posts: 7

eljimberino is offline

PostPosted: Sat Mar 22, 2025 8:20 am    Post subject: Re: CSP stainless steel stock style muffler pics and impression Reply with quote

Hello sir

Thank you for your reply

The image I posted isn't my engine.

I have a 1916cc going in a 912 Porsche. The rear mount I have is 3-4cm from the pulley and connects to the bottom of the case via a crossmember that straddles between the chassis rails up top in the engine bay.

Now I need a exhaust upgrade and I don't even know if a stock muffler will fit!
Back to top
