| Author |
Message |
redhot
Samba Member
Joined: February 05, 2005
Posts: 447
|
 Posted: Sun Aug 17, 2008 11:36 pm Post subject: |
 |
|
| How is the type 3 part attached to the tank? And the type1? Are they welded or brazed? |
|
| Back to top |
|
 |
oldbug
Samba Member
Joined: September 02, 2003
Posts: 380
Location: Port Orchard WA
|
| Posted: Mon Aug 18, 2008 9:10 am Post subject: |
|
|
Type 1 after you take off the fuel reserve tap just screws on. Contact Marty Staggs he is here on the samba. Here is his web page http://www.M-Specmotorsports.com
He can proably help you out with a Type 3 fitting also |
|
| Back to top |
|
|
redhot
Samba Member
Joined: February 05, 2005
Posts: 447
|
| Posted: Mon Aug 18, 2008 10:19 am Post subject: |
|
|
Do I understand you correctly:
the male part that sticks out of the tank is screwed in? (left hand thread?)
And then the fuel reserve tap screws on to that again? |
|
| Back to top |
|
|
oldbug
Samba Member
Joined: September 02, 2003
Posts: 380
Location: Port Orchard WA
|
| Posted: Mon Aug 18, 2008 2:38 pm Post subject: |
|
|
No it is actually part of the tank itself. I just bought an AN adaptor to contact my new braided line to. Here is a part number at www.jegs.com
JEGS #555-100222
This part screws right to the bottom of the tank. This one is just an example of what the part looks like Marty has the correct threaded one for an oval tank |
|
| Back to top |
|
|
redhot
Samba Member
Joined: February 05, 2005
Posts: 447
|
| Posted: Sun Nov 02, 2008 3:16 pm Post subject: |
|
|
| Do anyone know where to get an M18x1.0 die? I have looked, but not found anything. |
|
| Back to top |
|
|
redhot
Samba Member
Joined: February 05, 2005
Posts: 447
|
|
| Back to top |
|
|
redhot
Samba Member
Joined: February 05, 2005
Posts: 447
|
| Posted: Thu Dec 11, 2008 9:41 am Post subject: |
|
|
Just found this post:
http://www.thesamba.com/vw/forum/viewtopic.php?t=300050&highlight=m18
Where it claims to be a M18 x 1.5 thread. Here it is said to be M18 x 1.0
Do anyone know if the thread type changed over the years and when, and also is it left of right hand thread? I don`t have the tank here with me, so can`t check before I buy a tap. |
|
| Back to top |
|
|
Kjell Roar
Samba Member
Joined: December 08, 2008
Posts: 1331
Location: Norway
|
| Posted: Fri Sep 18, 2009 1:01 am Post subject: |
|
|
I think it is left on either the crane, or the tank. Probably the crane?
The nut is links in one end, and recht in the other.
_________________
I got a historic car, every scratch got a history...
My car, Aug. 4th, 1955 / an early 56: http://www.thesamba.com/vw/forum/album_page.php?pic_id=610438 |
|
| Back to top |
|
|
nlorntson
Crazy VW Lady
Joined: March 13, 2004
Posts: 3852
Location: Twin Cities, MN
|
| Posted: Thu May 10, 2012 6:38 pm Post subject: |
|
|

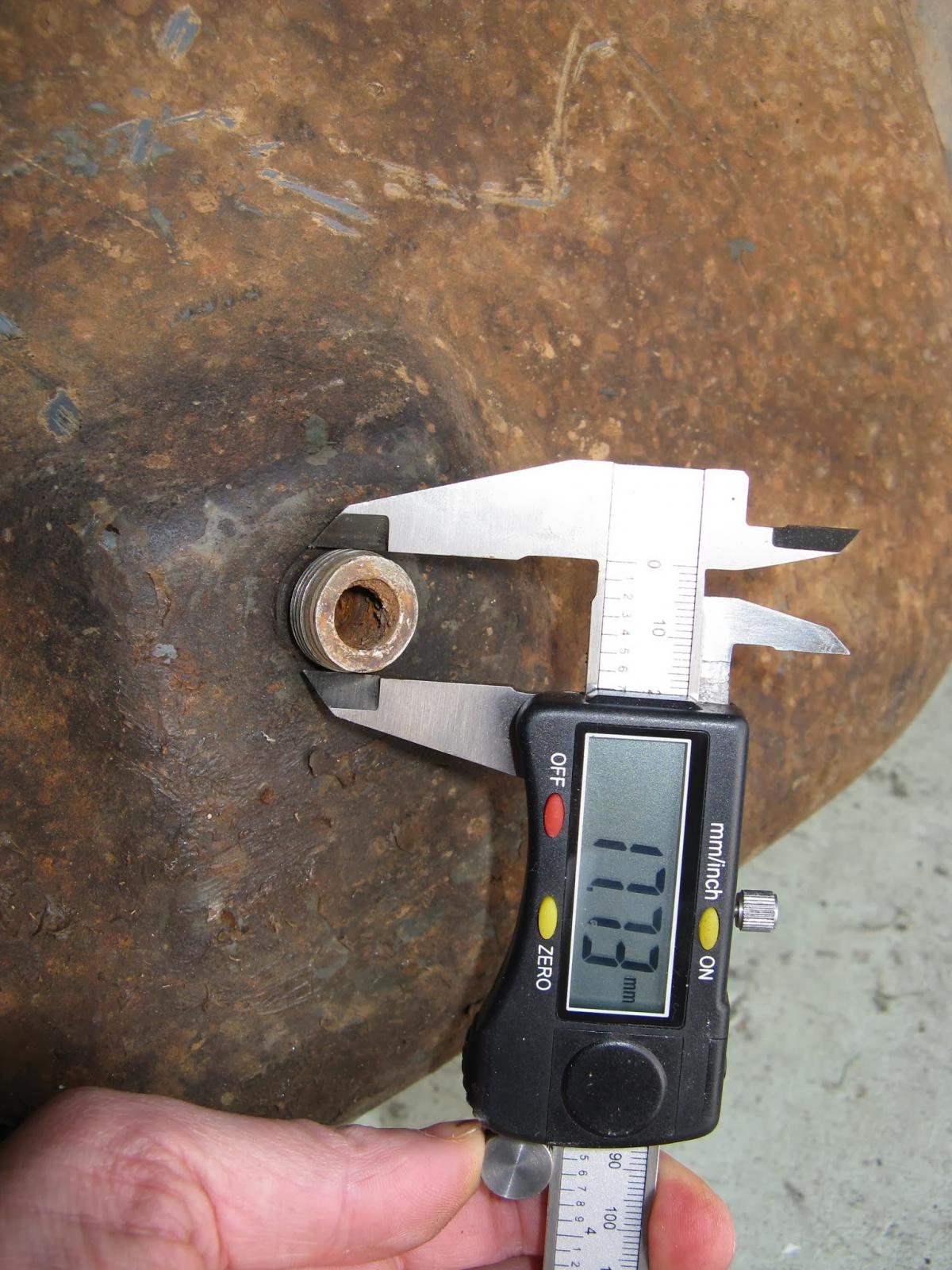

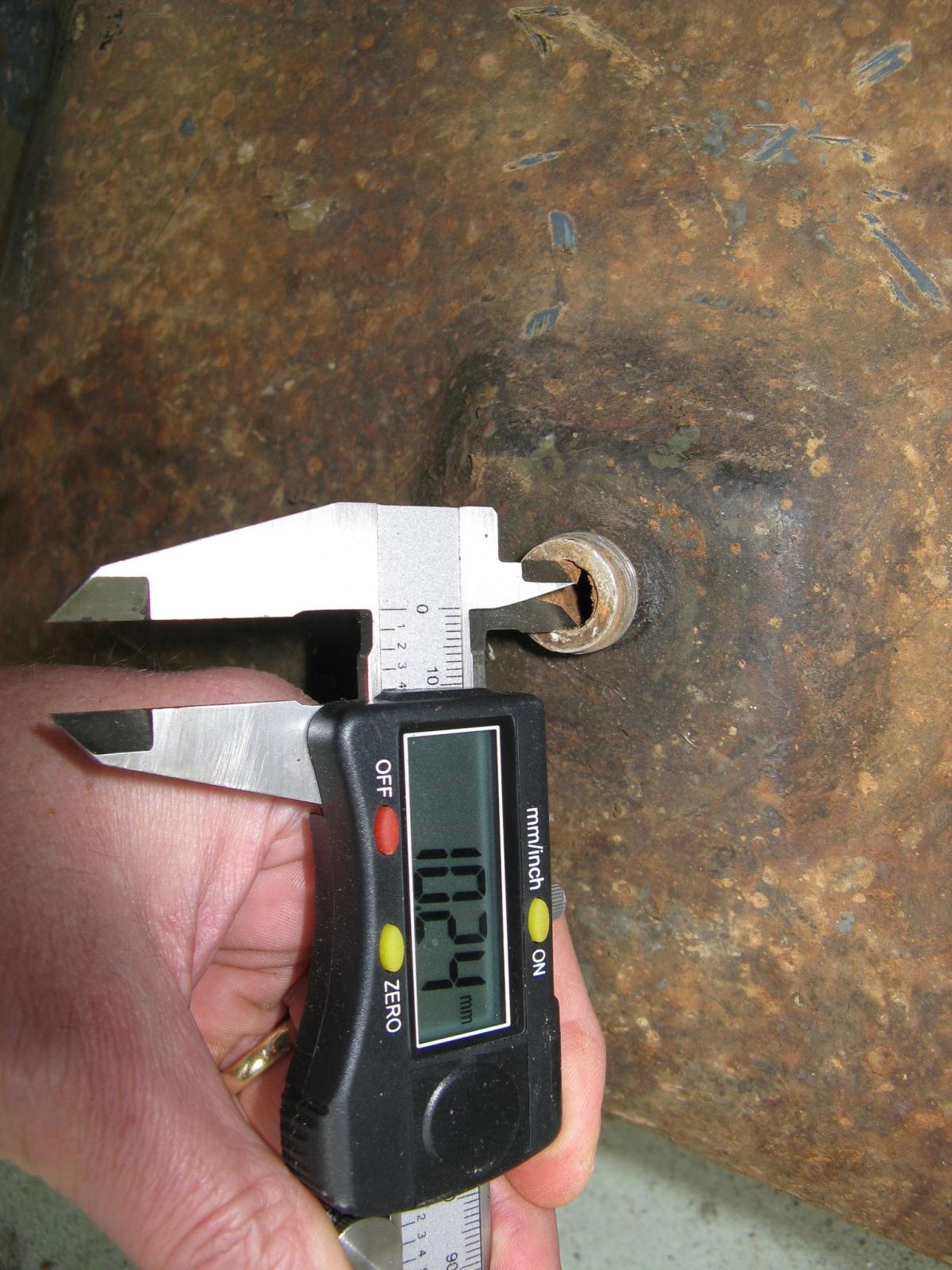

Old post, but while I was measuring, I thought I would share:

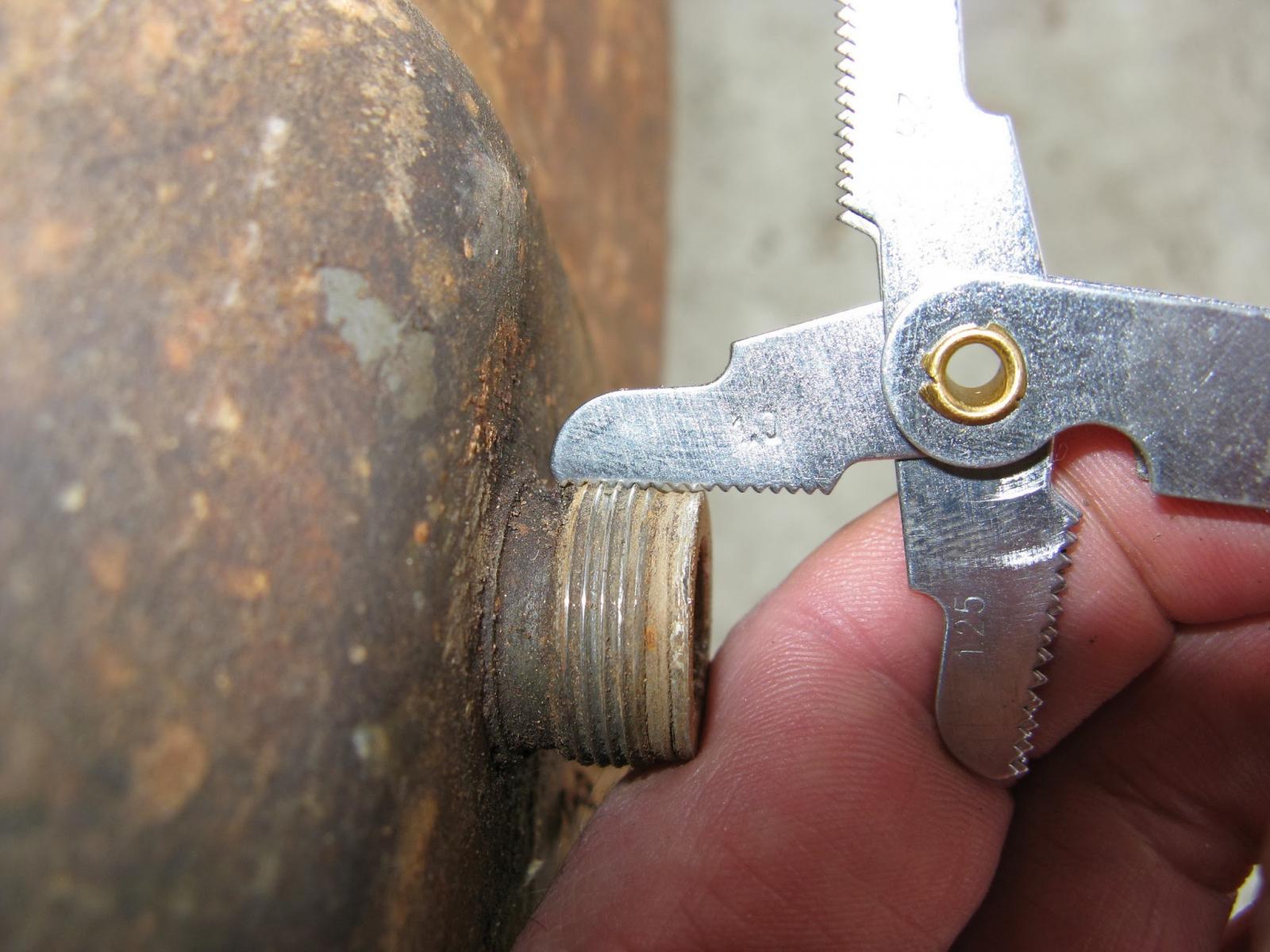

Looking at an early 1955 tank, the threads on the tank are M18 x 1.0 pitch right hand.
The fuel tap that attaches to it has the same size and pitch but the threads on the tap are left hand. |
|
| Back to top |
|
|
mynameismud
Samba Member
Joined: October 23, 2002
Posts: 5937
Location: Middle of a corn field
|
| Posted: Mon Nov 20, 2023 11:32 am Post subject: Re: Thread size on tank |
|
|

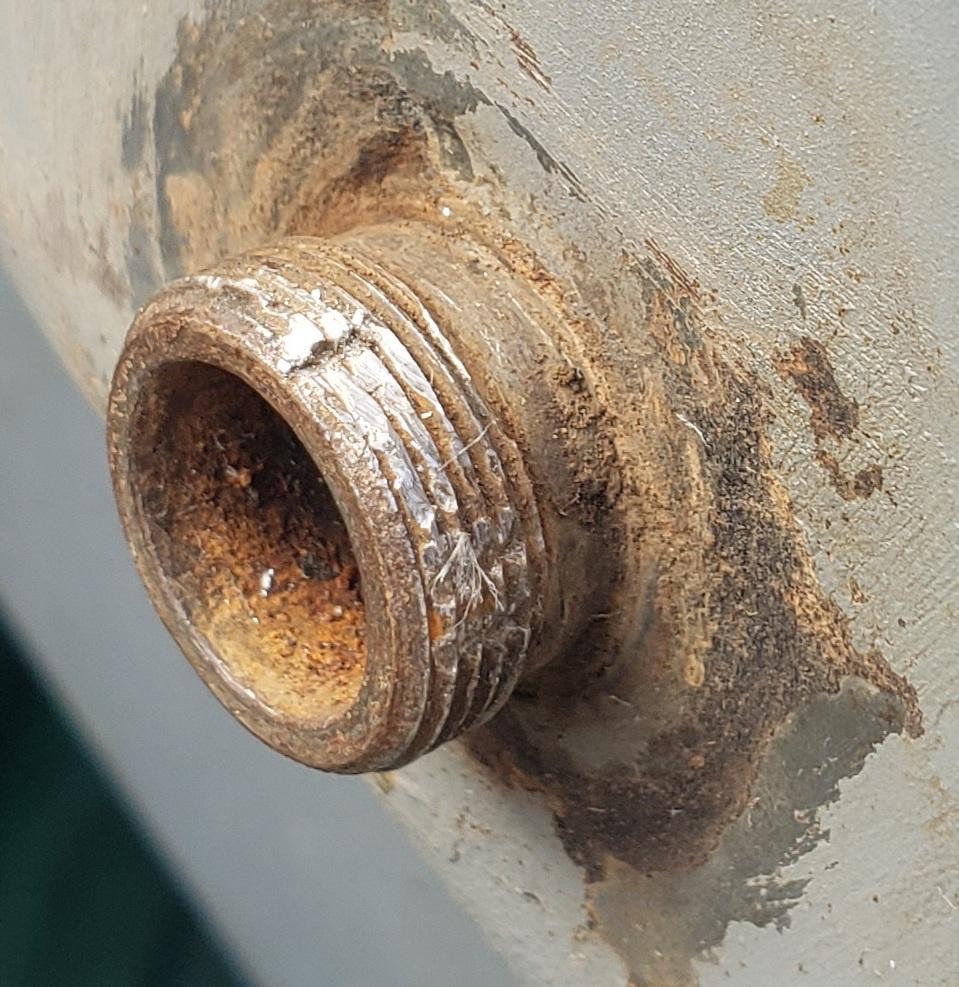

Quick question..I noticed this weekend that the fuel tap seemed to be slightly leaking so, I proceeded to remove the tank & tap (been in there since I purchased) and found the threads to be bunged up. Any thoughts on if these can be salvaged or am I up a creek and need to search for tank?
Thanks.
_________________
Even YOU can prevent FIRES!
Click to view image |
|
| Back to top |
|
|
Riff Raff
Shivering Sambian
Joined: October 25, 2004
Posts: 3097
Location: Alberta
|
| Posted: Tue Nov 21, 2023 8:46 pm Post subject: Re: Thread size on tank |
|
|
Hey Mud
Pretty sure you can clean those up.
If you don't have a metric thread file - well, go buy one - OR just use a small triangular file and judiciously go round and round with it and I bet you can clean those up to a point where they will hold fast.
Make sure to use new gaskets on top and bottom of the screen when you reassemble.
_________________
The greatest obstacle to discovery is not ignorance, but the illusion of knowledge
- Daniel Boorstin |
|
| Back to top |
|
|
mynameismud
Samba Member
Joined: October 23, 2002
Posts: 5937
Location: Middle of a corn field
|
| Posted: Thu Nov 23, 2023 12:55 pm Post subject: Re: Thread size on tank |
|
|
| Riff Raff wrote: |
Hey Mud
Pretty sure you can clean those up.
If you don't have a metric thread file - well, go buy one - OR just use a small triangular file and judiciously go round and round with it and I bet you can clean those up to a point where they will hold fast.
Make sure to use new gaskets on top and bottom of the screen when you reassemble. |
Thanks, I ordered up a Die and took my time to get the threads lined and looks like it worked out well. Threaded on the petcock and it's sitting over a container with gas to look for leaks. I did find a nice used tank that i picked up..just for the spare in case.
_________________
Even YOU can prevent FIRES!
Click to view image |
|
| Back to top |
|
|
Volumex
Samba Member
Joined: October 11, 2007
Posts: 532
Location: Sarnia, ON
|
| Posted: Mon Dec 04, 2023 1:25 pm Post subject: Re: Thread size on tank |
|
|
Let's try this again.
|
|
