| Author |
Message |
heimlich
VWNOS.com
Joined: November 20, 2016
Posts: 7502
Location: Houston, Texas
|
 Posted: Mon Nov 20, 2023 10:08 am Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
 |
|
That looks like a nice car. Being covered in oil is a good thing. That would have been a nice oxidation preventative for sitting so long.
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OE/OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here) |
|
| Back to top |
|
 |
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Tue Nov 21, 2023 10:46 am Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
| heimlich wrote: |
| That looks like a nice car. Being covered in oil is a good thing. That would have been a nice oxidation preventative for sitting so long. |
Yes, I'm quickly learning this is a good problem to have had.
I'm going to throw a couple of quarts of cheap oil in it today and let it sit for awhile.
Anyone see any harm in putting a tablespoon of Marvel Mystery oil directly in the spark plug openings? While the crank turns by hand, it does eventually catch. Figured MM couldn't hurt to soften things up.
It finally crossed my mind to check end play on the crank. Really solid, so hoping that's a good omen. |
|
| Back to top |
|
|
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Tue Nov 21, 2023 2:41 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
| carcrazed wrote: |
| summerof78 wrote: |
| rcroane wrote: |
| Is the motor seized? Can you put a wrench on the pulley nut and turn it by hand? |
Sorry, should have mentioned that. Unbelievably, it turns by hand. Oil is still in the crankcase, but just enough to register on the low end of the dipstick. |
My 61 still has the original engine that sat since 1979. It still turned and fired up with no trouble. somehow I believe that old waxy, sludgy oil from the 60s and 70s preserved the inside from moisture taking over. |

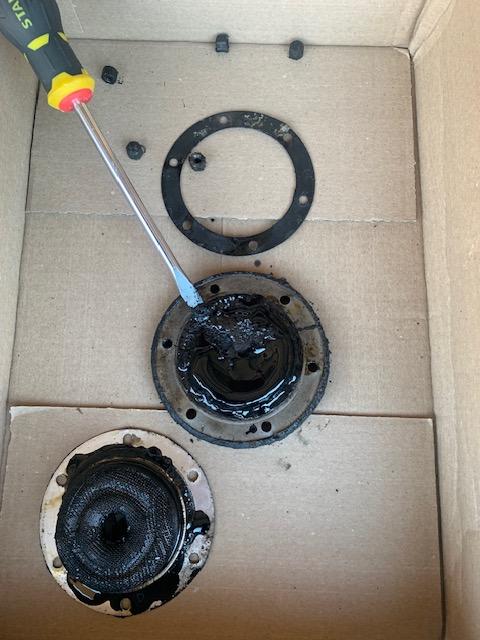

Here's your sludge.
First of many surprises. Can you name what's wrong with this picture? Well, besides the fact there was only one gasket instead of two.
|
|
| Back to top |
|
|
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Wed Nov 29, 2023 10:20 am Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
| 67rustavenger wrote: |
The Bentley manual IMO is a must have for the home mechanic. It contains all the procedures and specifications for your year vw.
As stated above, the Muir Idiot book is a good guide as well. Plus it's a fun read.
I prefer the older Muir books, as I don't care for the later books that cover watercooled models. |
RE the Muir book: The blue cover (non-spiralbound) seems to be easier to find cheap. Do you not like it due to irrelevant info, or is it missing some things from the earlier edition? |
|
| Back to top |
|
|
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Thu Dec 07, 2023 2:50 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
Took a couple of hours this morning to scrape out the tar board on the driver's side. I don't know if I'd call it fun, but it was satisfying to see the end result.
Really couldn't ask for a better outcome. These pans are in terrific shape and the channels are too.
Really grateful the PO paid the extra $25 bucks for the undercoating!
|
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 35909
Location: Conejo Valley, CA
|
| Posted: Thu Dec 07, 2023 3:55 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
Is that a date stenciled on the tunnel? |
|
| Back to top |
|
|
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Thu Dec 07, 2023 4:06 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
| Yep, May, 18 1966. Is that unusual? |
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 35909
Location: Conejo Valley, CA
|
| Posted: Thu Dec 07, 2023 5:49 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
| I've had a dozen VWs from that era stripped down that far, and I've never seen it. |
|
| Back to top |
|
|
wcfvw69
Samba Purist
Joined: June 10, 2004
Posts: 13682
Location: Arizona
|
| Posted: Thu Dec 07, 2023 6:46 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
| summerof78 wrote: |
| Yep, May, 18 1966. Is that unusual? |
Both my bugs have that painted date stamp on the tunnel. One was under the tar board that I removed.
You have a very nice, unmolested engine there. Still has an original "short" coil. It has the correct 205K distributor with dark brown cap and the correct square top fuel pump. Those original German Square top fuel pumps are a high quality part that can be rebuilt. They are much better than the cheap chinese fuel pumps sold today. The distributor can also be serviced/restored to work like new again as long as the vacuum canister still hold vacuum w/out leaking down.
Congrats on buying that nice survivor.
_________________
Contact me at [email protected]
Follow me on instagram @sparxwerksllc
40+ years of VW repair, and VW parts and vehicle restoration experience.
The Samba member since 2004.
**Now rebuilding throttle bodies for VW's and Porsche's**
**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours** |
|
| Back to top |
|
|
ryans65
Samba Member
Joined: February 16, 2016
Posts: 1345
Location: Yulee FL
|
| Posted: Fri Dec 08, 2023 7:10 am Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
| I say just refresh it as-is and enjoy! Any sort of resto would be a disgrace to a survivor such as yours! I don't want to sound preachy and it's your car to do with as you please but as time goes on there's just not many left like this. |
|
| Back to top |
|
|
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Fri Dec 08, 2023 6:11 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
| wcfvw69 wrote: |
You have a very nice, unmolested engine there. Still has an original "short" coil. It has the correct 205K distributor with dark brown cap and the correct square top fuel pump. Those original German Square top fuel pumps are a high quality part that can be rebuilt. They are much better than the cheap chinese fuel pumps sold today. The distributor can also be serviced/restored to work like new again as long as the vacuum canister still hold vacuum w/out leaking down. Congrats on buying that nice survivor. |
Thanks, it's very gratifying to hear this from a pro.
I will very likely be in touch with you in the near future. |
|
| Back to top |
|
|
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Fri Dec 08, 2023 6:13 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
| ryans65 wrote: |
| I say just refresh it as-is and enjoy! Any sort of resto would be a disgrace to a survivor such as yours! I don't want to sound preachy and it's your car to do with as you please but as time goes on there's just not many left like this. |
No mods happening here. Not touching the original paint either. |
|
| Back to top |
|
|
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Fri Dec 08, 2023 6:19 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
Passenger side scraped today. A bit more problematic.
Significantly more rust, and a huge bubble where he must have bottomed out on something [doesn't really show much in the photos].
Now I get why it was such a PITA getting that seat out. Must have taken me an hour!
|
|
| Back to top |
|
|
iowegian
Samba Curmudgeon
Joined: February 16, 2005
Posts: 9946
Location: Somewhere between Dubuque and Keokuk
|
| Posted: Fri Dec 08, 2023 6:40 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
| summerof78 wrote: |
| ryans65 wrote: |
| I say just refresh it as-is and enjoy! Any sort of resto would be a disgrace to a survivor such as yours! I don't want to sound preachy and it's your car to do with as you please but as time goes on there's just not many left like this. |
No mods happening here. Not touching the original paint either. |
Good decision.
|
|
| Back to top |
|
|
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Thu Dec 14, 2023 5:05 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
Finally got the bug on stands, dealt with the floor pan bulge (mostly), and got a real good look at the busted oil strainer stud, which is probably what led to it being parked back in the year of the bicentennial.
I plan to cut a groove in the stud, and see if I can back it out with a screwdriver. Hitting it with PB Blaster for now.
|
|
| Back to top |
|
|
iowegian
Samba Curmudgeon
Joined: February 16, 2005
Posts: 9946
Location: Somewhere between Dubuque and Keokuk
|
| Posted: Tue Jan 09, 2024 1:41 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
Looks like a Hurst trigger shifter. You're gonna love it.
Check with Samba member "glandnut" for a knob.
https://www.thesamba.com/vw/classifieds/detail.php?id=512669
Last edited by iowegian on Tue Jan 09, 2024 1:53 pm; edited 1 time in total |
|
| Back to top |
|
|
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Tue Jan 09, 2024 1:52 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
It was there when I bought it at auction. Some a-hole stole it somewhere between PA and KS.
I was going to replace the Hurst shifter. What's so special about them? |
|
| Back to top |
|
|
iowegian
Samba Curmudgeon
Joined: February 16, 2005
Posts: 9946
Location: Somewhere between Dubuque and Keokuk
|
| Posted: Tue Jan 09, 2024 2:00 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
| summerof78 wrote: |
I was going to replace the Hurst shifter. What's so special about them? |
That shifter is quite collectable and worth some good coin. It is spring loaded to prevent accidentally hitting 2nd gear when trying for 4th, for example. And you have to pull up on the trigger to intentionally put it in reverse.
If your shift rod bushing and coupler are in good shape, it will be as smooooth as buttah. |
|
| Back to top |
|
|
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Tue Jan 09, 2024 2:10 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
Cool, I will definitely try it out before deciding on anything. Thanks!
edit: just saw what they go for on eBay.....
Think I'll leave it right where it is. |
|
| Back to top |
|
|
summerof78
Samba Member
Joined: March 31, 2023
Posts: 173
Location: Wichita, Kansas
|
| Posted: Wed Jan 24, 2024 2:47 pm Post subject: Re: 1966 Ruby Red Sedan Restoration - Sat for 47 years |
|
|
I finally got a really good look at the carpet in the back. Spent a few minutes vacuuming and voila. Really don't see what would be gained by ripping it out.
|
|
| Back to top |
|
|
|
