NOTEK German Military Convoy Light

[2type2]

Any progress to report?
_________________
"A life of peace and happiness depends on your own gratefulness"

[volkaholic1]

i've been working on it, but going slow, got the helmet cleaned up
bought some LED 6v ans 12v bulbs and holders
designing the base
bought the stuff to build the mount
need to think about seals to keep the water out
_________________
Volkaholic

[2type2]

Good to hear. Perhaps you could source some type of silicone sheet to cut gaskets from. Are you attempting a light up function, or trying for actual " black-out" functionality? Maybe someone with a lathe can help with the stem parts (in aluminum?). Keep us informed please as you go along.
_________________
"A life of peace and happiness depends on your own gratefulness"

[volkaholic1]

my plan is to offer both 12v and 6v, i think 3 LED lights will do it
i want to offer either clear white light, or be able to install colored film
for example
yellow - good for fog
blue - supposedly better on the eyes than white
red - to keep you night vision - i think this make the most sense under real war conditions
_________________
Volkaholic

[2type2]

Any new developments since last post?
_________________
"A life of peace and happiness depends on your own gratefulness"

[volkaholic1]

i am making slow progress, but i have had a set back, my scanner died, super mad about that paid $400 bucks to creality, i sent it back for repair/replacement = nothing, just gone, so i will get a different brand, i am done with those guys, what a rip off!
_________________
Volkaholic

[volkaholic1]

finally getting close! got the prototype built, will send to my son for scanning so i can 3d print it

so far is 3 parts
easy part the panel the holds the glass (but i will use plexiglass)

my plan is to offer 2 color filter you can add yellow and red
yellow give you better visibility in fog
red give you better night vision (important when bad guys might be hiding around)

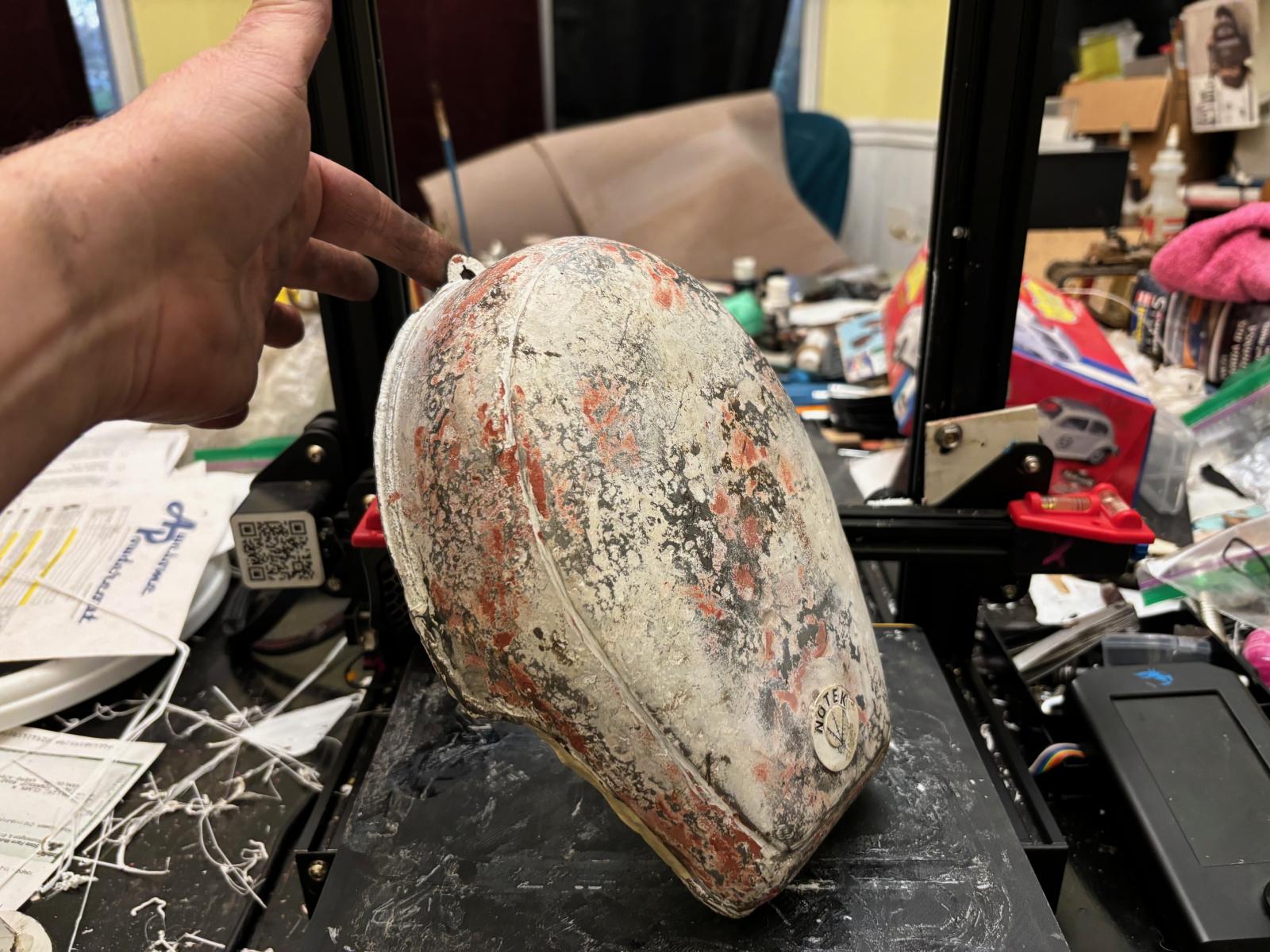

the actual top, from Latvia, i painted it primer gray, then white, then filled in all the rust spots with red body putty, left it this way so you can see all the work that went into it

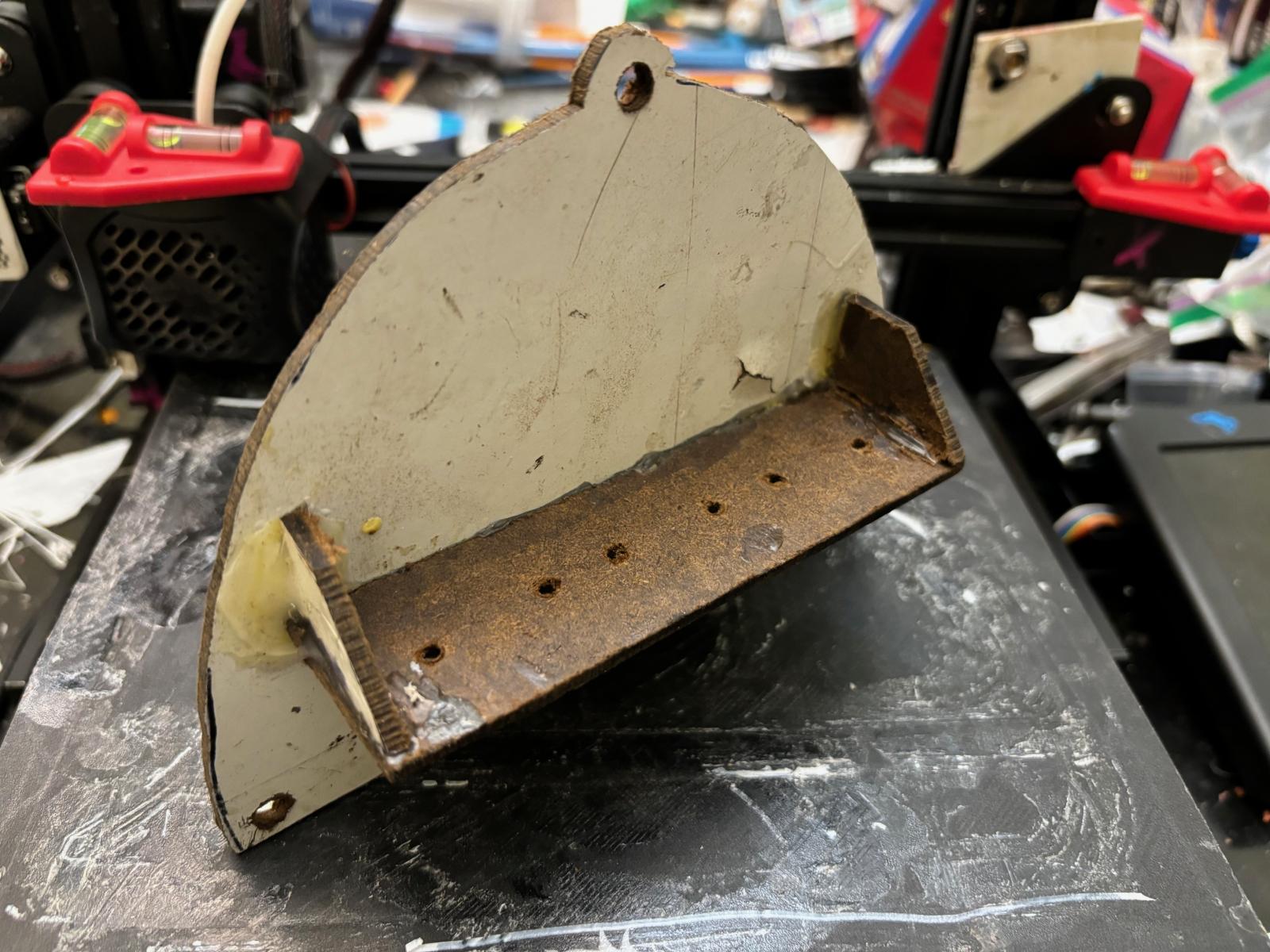

the inside you can see the mount for the window

i was glad to have that 1:35 part i blew up to life size, to see all the imporant details on the base

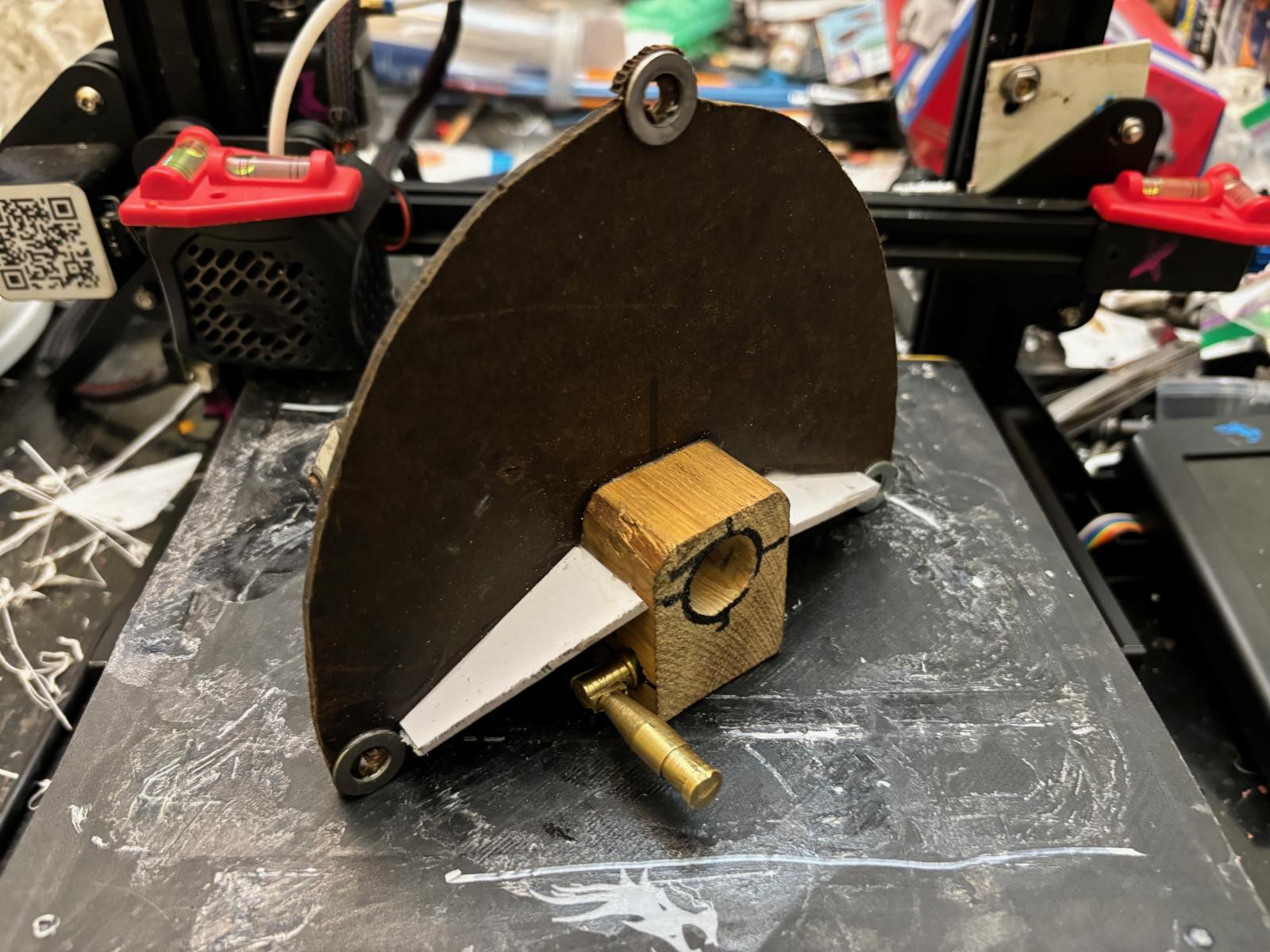

for the outside, bottom, you can see the all bracing around the shaft, i spent time making the brass clamp, it is for looks only, not functional, but looks cool

on the inside, i put a mount for 3 LED lights, i will i offer both 6V and 12V

the wire will run throught the mount shaft, so nothing visible now i have seen 2 different bases, on this dissucssion, the bases are round but i have seen square bases, so not sure which to offer, your thoughts?

this is a big print job, so might take 2-3 days to complete 1 build.
_________________
Volkaholic

[finster]

looking good, a lot of work but hopefully worth it. turned out to be quite the project!
_________________
"we're here on Earth to fart around" kurt vonnegut

nothing lasts, nothing is finished, and nothing is perfect...

[volkaholic1]

yep. and that is why it will be priced accordingly
_________________
Volkaholic

[volkaholic1]

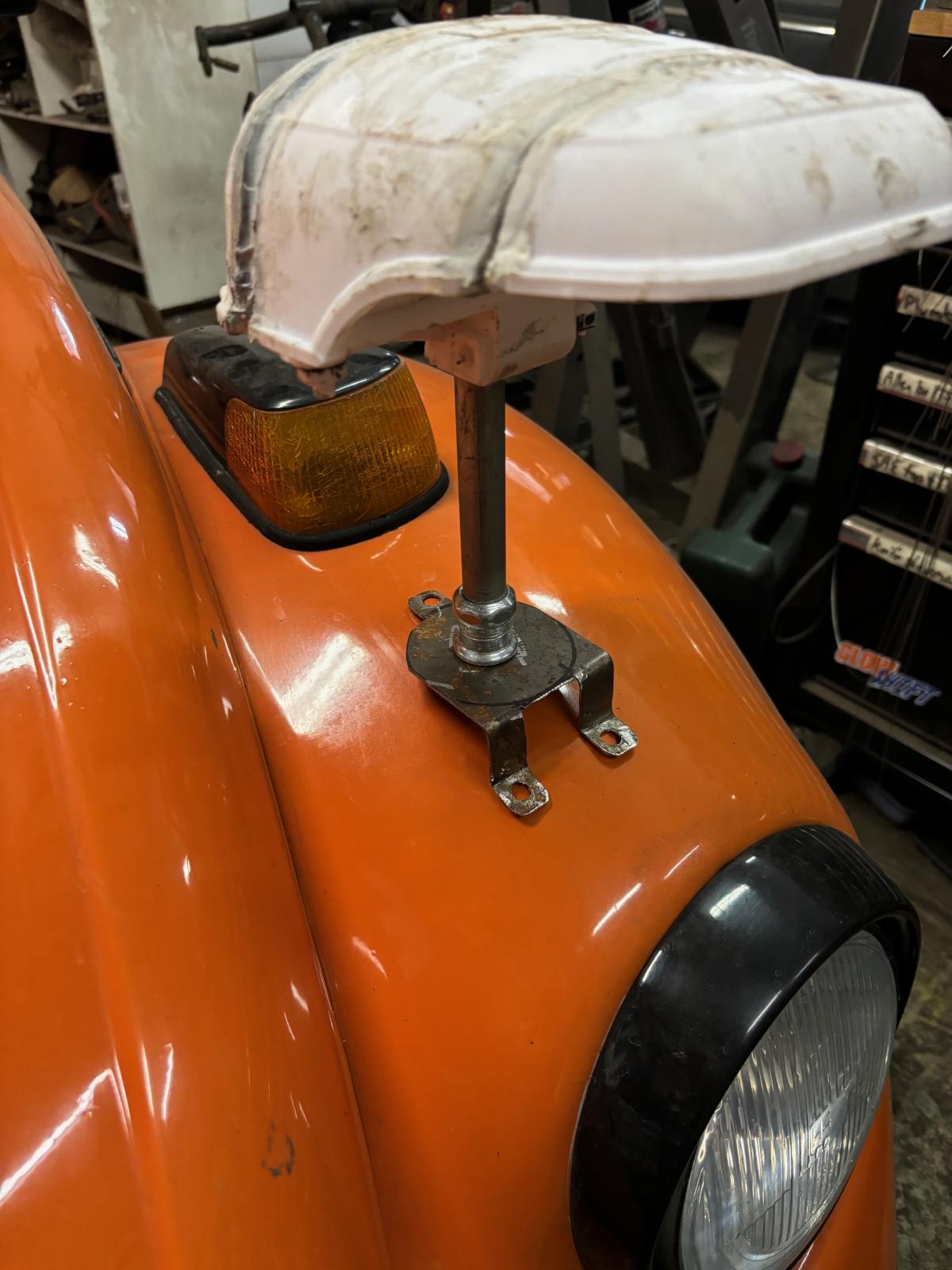

making progress, made the mounting bracket, used 20 gauge steel plate and 3/4" conduit

has 3 mounting bolts, i used 3/4 conduit for the vertical, one question, i made the shaft 6" but i think it is too tall, what about you? would 4" be better?

advantage of this mount is that you can bend the legs as needed, depending on the vehicle and the exact mounting location.

_________________
Volkaholic

[finster]

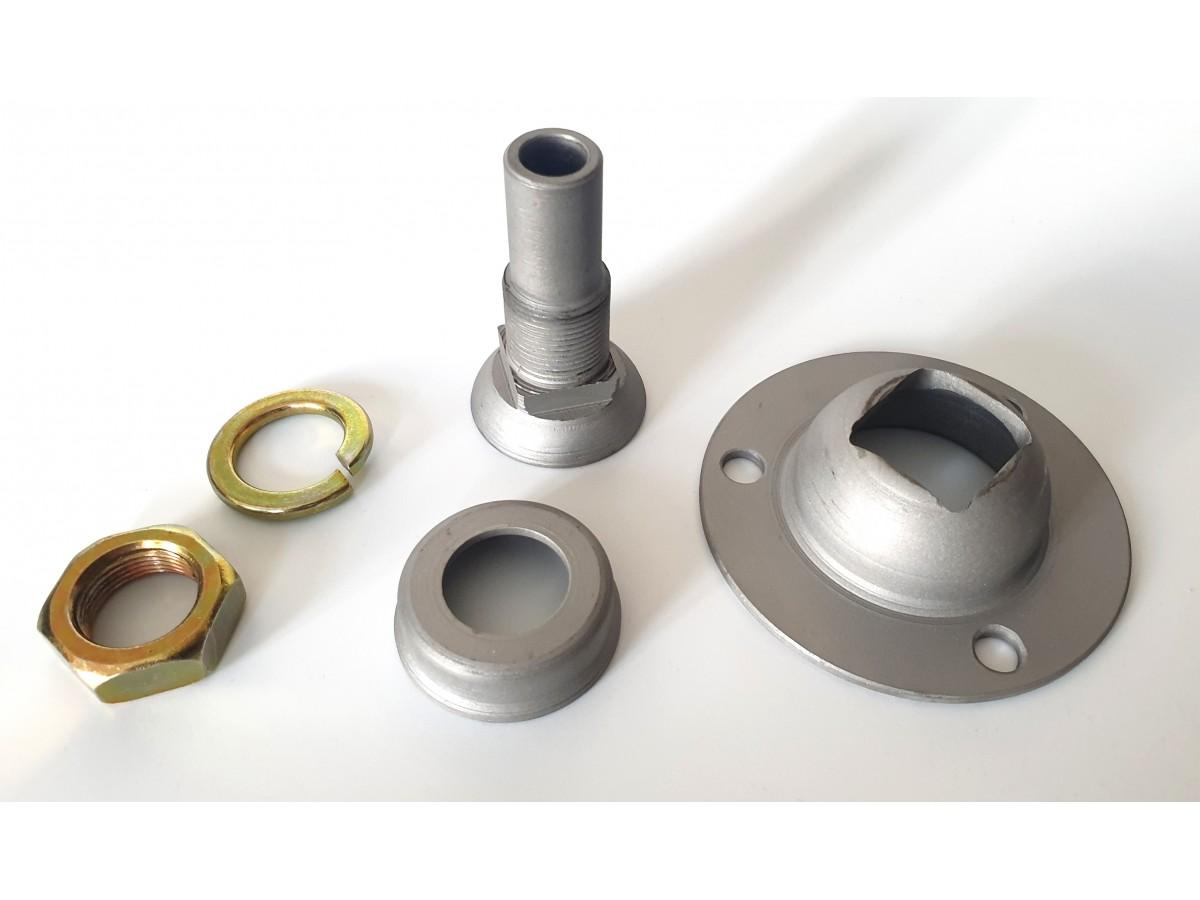

the mounting is way too tall, even at 4". the notek sat just above the base plate so the tube only needs to be short enough for the clamp with a little clearance. here are the parts (repro)

https://www.oldtimerteile-s.de/militaria-zubehor/6...ks750.html

_________________
"we're here on Earth to fart around" kurt vonnegut

nothing lasts, nothing is finished, and nothing is perfect...

[volkaholic1]

interesting, ok 4" too tall, let me try 3", now some baseplates are round, like you show, but some are like mine, evidently they had more than 1 design, i tried to make the round base plate, like what you show, but just could not get it right, so i went with the other design, both work, both take 3 bolts, so not that much different really.
_________________
Volkaholic

[volkaholic1]

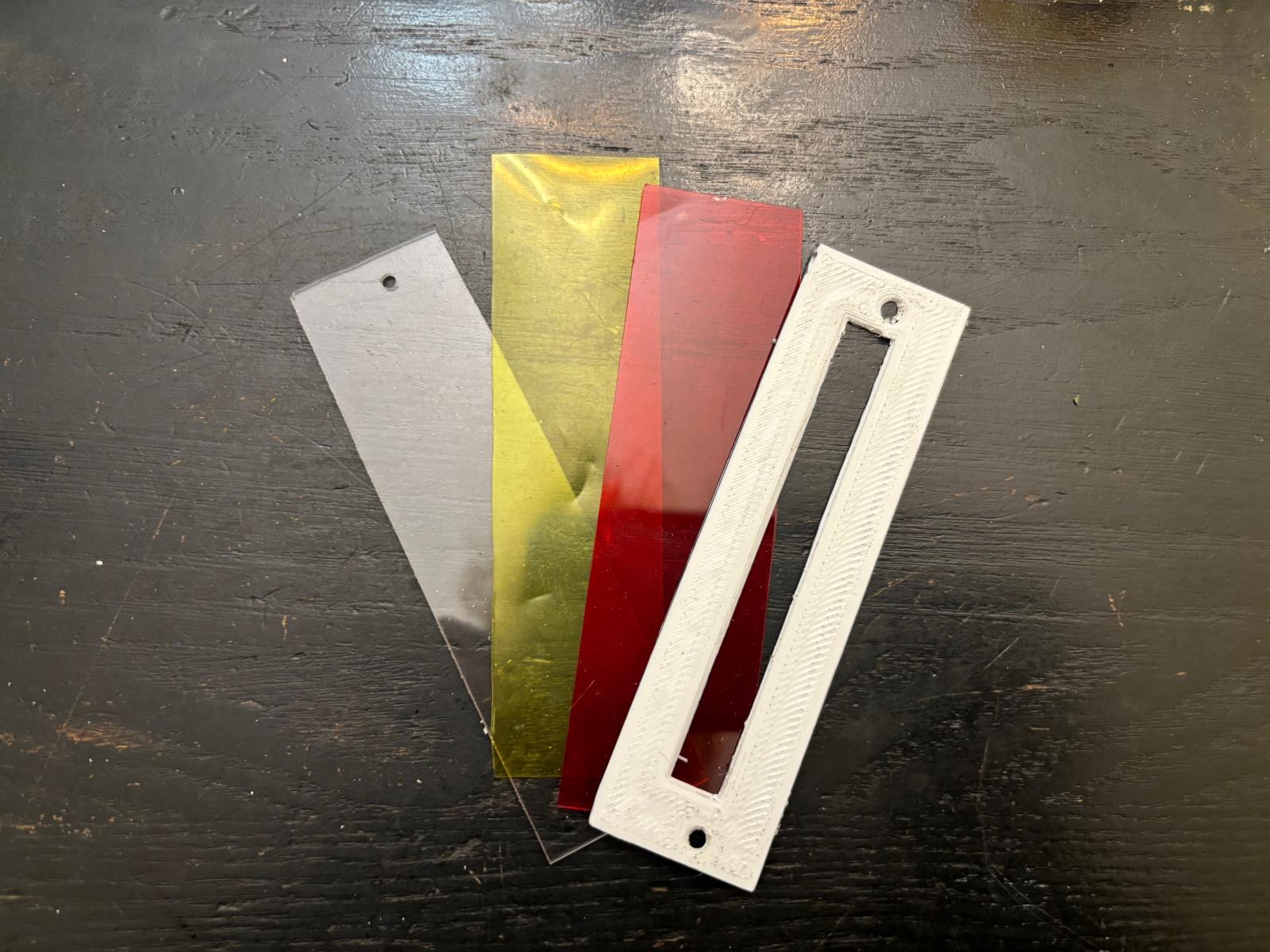

made a little progress, this is the 3D printed lens cover, i cut out a little plexiglass window, then got 2 films, 1 for yellow light and 1 for red, slowly coming together

_________________
Volkaholic

[VWNYCMike]

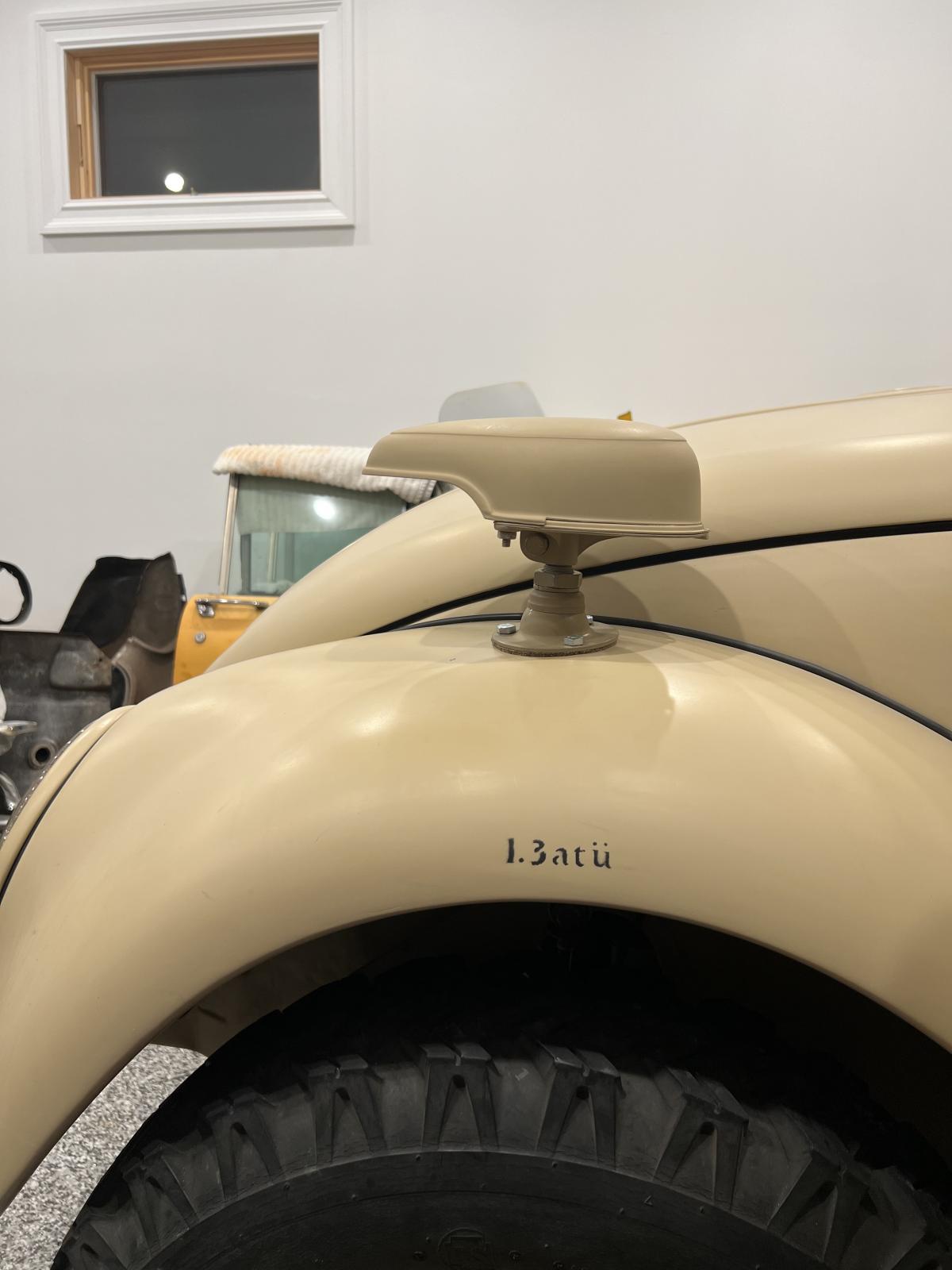

After much deliberation and honestly not having either the skills or the technical resources to make my own, I purchased an original NOTEK that was in dire need of work. This particular one was intact but needed some work after years of exposure to the elements. After disassembly, sandblasting (extremely low pressure with fine grit), painting I was left with a very nice period correct piece.

Viewed several war era photos here on The Samba and settled on a final mounting position more or less along the center axis of the front wheel.

Cut my own natural cork gasket and added some aftermarket stainless steel metric bolts.

Next up is 12v conversion and wiring.

[volkaholic1]

wow, nice job, i hope my 3D printed version comes out as nice,,,,
_________________
