Lever shock mount bolts
Forum Index -> Split Bus - Barndoor Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
redmain
Samba Member


Joined: December 13, 2008
Posts: 10
Location: england
redmain is offline
PostPosted: Sat Dec 14, 2024 10:37 am    Post subject: Lever shock mount bolts Reply with quote

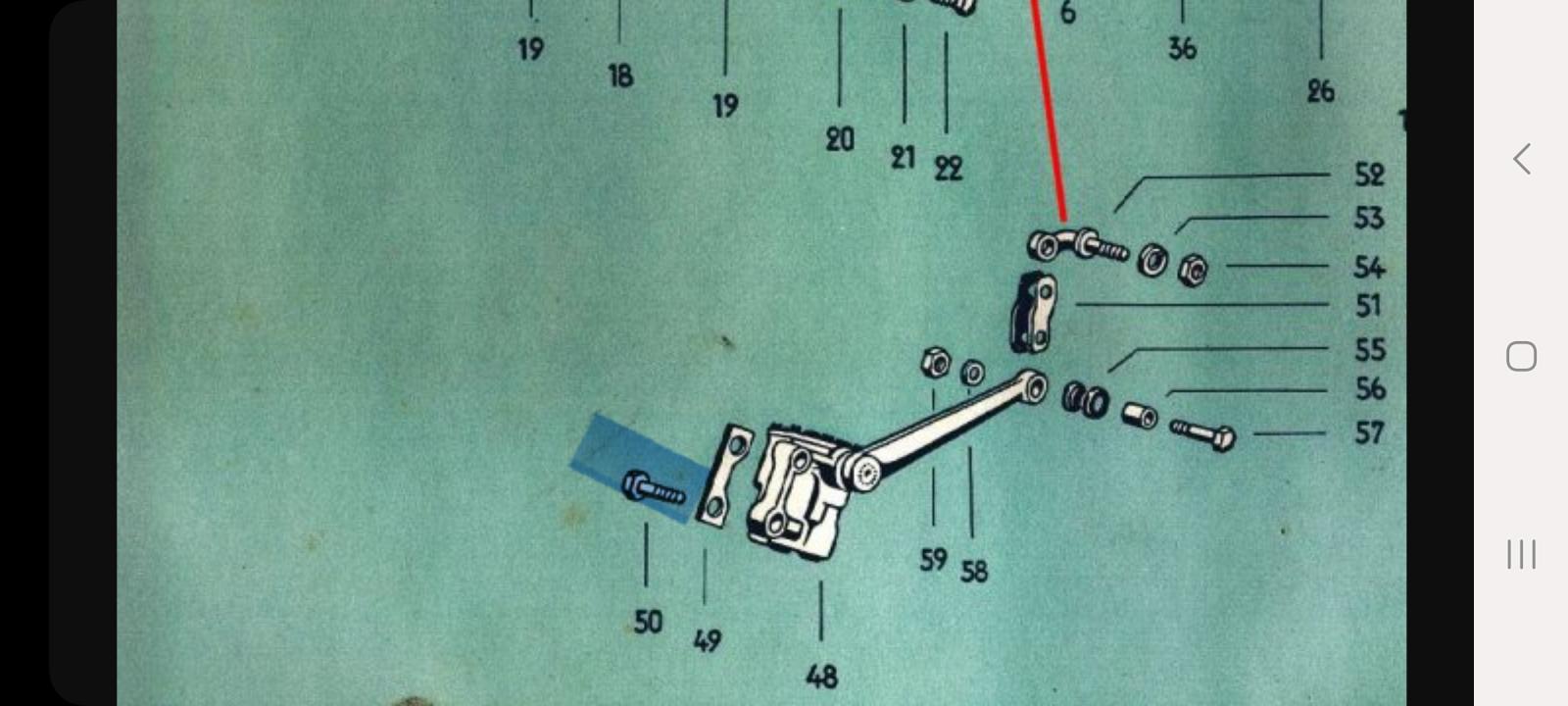

Hi, I'm looking for the specs of the lever shock mount bolts, no 50 in the image, can anyone help.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 71954
Location: Phoenix 602
EverettB is offline
PostPosted: Sat Dec 14, 2024 5:59 pm    Post subject: Re: Lever shock mount bolts Reply with quote
Here's the parts book page to match that image:
Image may have been reduced in size. Click image to view fullscreen.


Is this what you need or ?

M12 x 1.5 pitch x 40mm long

DIN 960 description with some specs
https://www.fasteners.eu/standards/din/960/
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
redmain
Samba Member


Joined: December 13, 2008
Posts: 10
Location: england
redmain is offline
PostPosted: Sun Dec 15, 2024 1:40 am    Post subject: Re: Lever shock mount bolts Reply with quote
Awesome thank you
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
RockStock
Samba Member


Joined: November 26, 2004
Posts: 4249
Location: England
RockStock is offline
PostPosted: Sun Dec 15, 2024 1:43 am    Post subject: Re: Lever shock mount bolts Reply with quote
Image may have been reduced in size. Click image to view fullscreen.

To add to EBs post….Kamax, 19mm head, M12, 48mm length total including head, 23mm of thread
Part number N10140a

For those that seek original, I have these Kamax bolts that can be used with slight trimming:
https://www.thesamba.com/vw/classifieds/detail.php?id=2651893
I used these for 3 of my bolts, as I only had one…hard to find.

Mark carries the lock plates (item 49):
https://www.thesamba.com/vw/classifieds/detail.php?id=2718683
