PostPosted: Tue Jan 21, 2025 7:41 pm    Post subject: How to choose and engine Reply with quote

For a completely unrelated reason... Wink I was wondering how to choose between the different engine sizes.

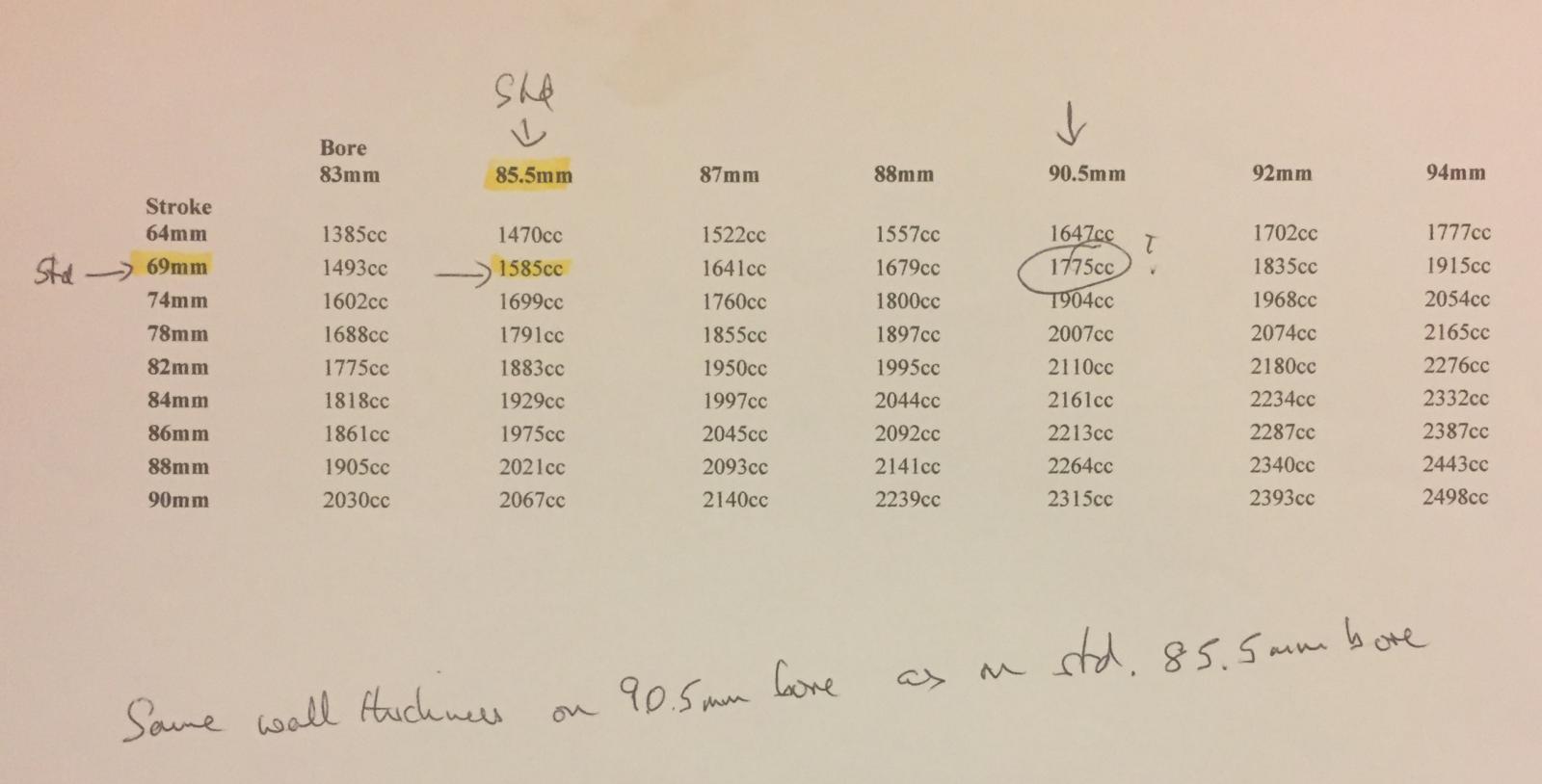

Image may have been reduced in size. Click image to view fullscreen.



There are a lot of choices. Why not pick the biggest engine you can afford? Does reliability start to suffer the larger the bore or stroke goes? I would assume that if everything was equal the bigger the motor the more power it makes, the more power it makes the less you have to wring it out, all adding up to more longevity.

I have more experience with Chevy motors and if you try to make a 305 push a truck with a trailer it may explode whereas if you do the same job with a 632ci big block it will hardly notice it.

Matt

PS I assume that there is something I'm missing.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 78540
Location: Sneaking up behind you
Glenn is offline

PostPosted: Tue Jan 21, 2025 7:45 pm    Post subject: Re: How to choose and engine Reply with quote

Depends on the vehicle and your intended use.

Bigger is not always better.

Budget is always a limiting factor.

For example, Busses ruin hotter than Beetles, they also weight more.

Larger displacement doesn't always mean more power. You can build a 1600 that ill have more hp than a 2332. For example a 1600 with forged pistons and a turbo and a 2333 with stock heads, cal and very small carb.

Both can have 125hp.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
BFB
Samba Member


Joined: November 03, 2014
Posts: 2205

BFB is offline

PostPosted: Tue Jan 21, 2025 7:51 pm    Post subject: Re: How to choose and engine Reply with quote

+ old vw “ common knowledge” like if you dont go with thick walls the engine will melt down and that strokers wont last long.. etc
_________________
Forced induction can overcome a lot of obsticles that gets in it's way
"You are the Engineer and the Mechanic.
Build it your way not the way someone else does it. Their way might not work for you." - clonebug
An interesting thing happens in forums where everyone starts parroting the same thing and "common knowledge" takes over.
“ The monkey see monkey do mentality seems to run deep in VW people. "Gene Berg said it was so 30 years ago so thats the way it is" “ - bdkw1
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
johnnyvw164
Samba Member


Joined: July 27, 2020
Posts: 598
Location: South of Raleigh
johnnyvw164 is offline

PostPosted: Tue Jan 21, 2025 8:01 pm    Post subject: Re: How to choose and engine Reply with quote

Lot's of factors. Piston sets are typically made for either 69 mm or 82 mm strokes. In between sizes require extra work. AFAIK, 74mm stroke is the largest you can use without clearancing the inside of the case. 1776, 1835, 1914 are the "easy" builds because there is (theoretically) less fitting to do as they are based on the stock 69mm stroke. Of course if you buy a complete engine kit from say, CB Performance, I guess those would already be clearanced.
The old saying..."speed costs money, how fast do you want to go".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 78540
Location: Sneaking up behind you
Glenn is offline

PostPosted: Tue Jan 21, 2025 8:04 pm    Post subject: Re: How to choose and engine Reply with quote

johnnyvw164 wrote:
AFAIK, 74mm stroke is the largest you can use without clearancing the inside of the case

I thought that until I installed a EMPI 69mm CW crank and found that it hit the case.

Image may have been reduced in size. Click image to view fullscreen.


johnnyvw164 wrote:
The old saying..."speed costs money, how fast do you want to go".

CHEAP - FAST - RELIABLE
You can only have two of the above.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 27301
Location: Colorado Springs
modok is offline

PostPosted: Tue Jan 21, 2025 8:28 pm    Post subject: Re: How to choose and engine Reply with quote

moab wrote:
Why not pick the biggest engine you can afford? Does reliability start to suffer the larger the bore or stroke goes? I would assume that if everything was equal the bigger the motor the more power it makes, the more power it makes the less you have to wring it out, all adding up to more longevity.

PS I assume that there is something I'm missing.


the main thing you are missing is the transmission.

Most of the popular engine combos the small CC engines are undercammed and the big CC engines are overcammed, to match common gearing.

If you can actually afford to fix the gear ratios that opens up a lot more good possibilities.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
moab
Samba Member


Joined: August 28, 2013
Posts: 16
Location: Moab
moab is offline

PostPosted: Tue Jan 21, 2025 9:26 pm    Post subject: Re: How to choose and engine Reply with quote

All of this makes sense. It's kind of what I suspected but I wasn't sure. Most things have compromises the sizes with the least compromises or the ones that you are willing to live with get chosen the most.

Thanks, Matt
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
johnnyvw164
Samba Member


Joined: July 27, 2020
Posts: 598
Location: South of Raleigh
johnnyvw164 is offline

PostPosted: Wed Jan 22, 2025 4:17 am    Post subject: Re: How to choose and engine Reply with quote

@Glenn; shows there's always an exception to every rule. Rolling Eyes
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 78540
Location: Sneaking up behind you
Glenn is offline

PostPosted: Wed Jan 22, 2025 4:46 am    Post subject: Re: How to choose and engine Reply with quote

johnnyvw164 wrote:
@Glenn; shows there's always an exception to every rule. Rolling Eyes

Don't make the same mistake I made.

I had to tear a new engine apart to clearance the case because I assumed.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
