Hood crest install

[Hot Air]

How do these hood crest attach to the hood. O know I will need shorter moulding. Picks of a hood with the crest on and missing showing attachment holes.

_________________
73' Bug
85' Porsche 911 Carrera 3.2

[Dan22]

Carefully bend those tabs up on the back, and poke them through the holes in the hood. Then flatten back down. This assumes you hood has the two slotted holes.

Hopefully they are not fatigued so bad that they break.
_________________
1-0900722 die langsame grüne Schildkröte
https://www.thesamba.com/vw/forum/viewtopic.php?t=765074

[my3bugs]

looks to be an early what is called a 4 brick emblem . count the second row of bricks from the bottom .

[finster]

as stated above there were slotted holes for mounting the crest.
this is a later car but shows the slots (can I assume their position didn't change?)

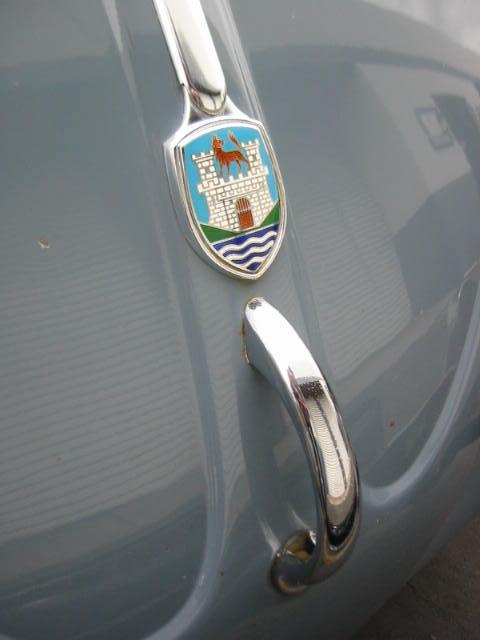

this is how it should look when fitted - note the trim strip has a 'cut out' so it fits nicely over the crest mounting

this is how not to do it!

_________________
"we're here on Earth to fart around" kurt vonnegut

nothing lasts, nothing is finished, and nothing is perfect...

[Hot Air]

Thank you. That's what I needed.
_________________
73' Bug
85' Porsche 911 Carrera 3.2

[stale air]

Dont forget the "seals" that go on the backside.

_________________
WANTED: Henry Veale Santa Rosa plate frames
WANTED: Brittsan Motors Fresno plate frames
WANTED: Any Georgia plate frames

[finster]

[stale air]

[Dan22]

Would someone share how the seals install. Are they just putty, or do they get poked through with the bend over pins?

And who sells the seals?
EDIT: I see WW has them!

Thanks!
_________________
1-0900722 die langsame grüne Schildkröte
https://www.thesamba.com/vw/forum/viewtopic.php?t=765074

[Eric&Barb]

Would also use some butyl rubber (A clay like sealant) between the base and hood to seal the water from those mounting holes.
_________________
In Stereo, Where Available!
