 Posted: Tue May 13, 2025 9:33 am Post subject: Re: Question: What to look for when buying a used engine stand |
 |
|
Reviving this thread because I came across this samba classified. Looks like someone is making and selling a mount strong enough for T4 engine now. Anyone using one of these can comment?
https://www.thesamba.com/vw/classifieds/detail.php?id=2712920
_________________
-----------------------------------------
Restoring a 1972 Bay Window Bus that has not be registered for the road since 1981.
Sugar Land, Texas |
|
| Back to top |
|
 |
Kudagra
Samba Member
Joined: March 22, 2007
Posts: 126
Location: Baldwin City KS. Just a wee bit South of KC
|
| Posted: Tue May 13, 2025 12:07 pm Post subject: Re: Question: What to look for when buying a used engine stand |
|
|
Yeah thats Brian E at Type E motorsports in South Dakota. I was going to copy it and make one on a plasma table but I decided that was a jerk move and I just bought one from him. Its heavy duty and I wont even blink at putting a full dress vanagon engine on it. Its built with plenty of room to install the flywheel (one issue I had with my 4arm yoke). Its a superb piece and I couldnt be happier with it.
BTW...look at his other ads...all kinds of goodies that I feel compelled to purchase.
_________________
Everything burns if you get it hot enough. |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42037
Location: at the beach
|
| Posted: Tue May 13, 2025 4:34 pm Post subject: Re: Question: What to look for when buying a used engine stand |
|
|
It looks like there is even room to add the clutch while it is off. Only caveat I would give is that make sure the engine stand it is used in will support the weight because it is longer than the other stands. I have a 4 yoke made 10 - 15 years ago by the Porsche guy who passed away a while back, and fully dressed a T4 causes my hefty engine stand to flex. Adding length would make it worse. But, that looks like a really nice product.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin |
|
| Back to top |
|
|
poundman
Samba Member
Joined: April 05, 2024
Posts: 335
Location: Sugar Land, Texas
|
| Posted: Sat May 31, 2025 6:25 am Post subject: Re: Question: What to look for when buying a used engine stand |
|
|
| olafwagner wrote: |

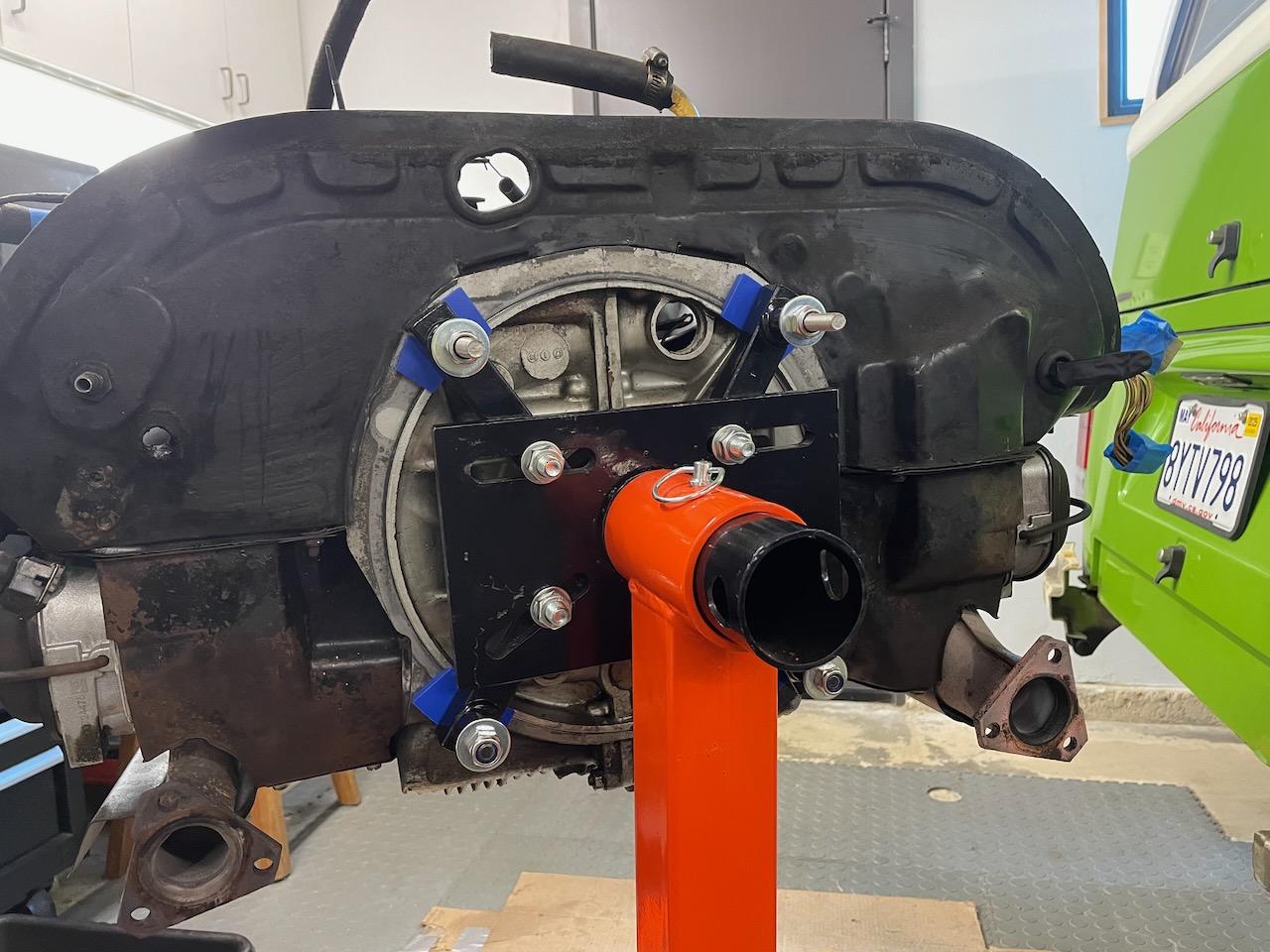

I purchased the 'Vevor' engine stand from Amazon. I got the 1300 lbs version, not because of its carrying capacity, but rather because this one specifically has the 'U-shaped' footprint, which allows me to put something directly underneath to catch oil/dirt etc.

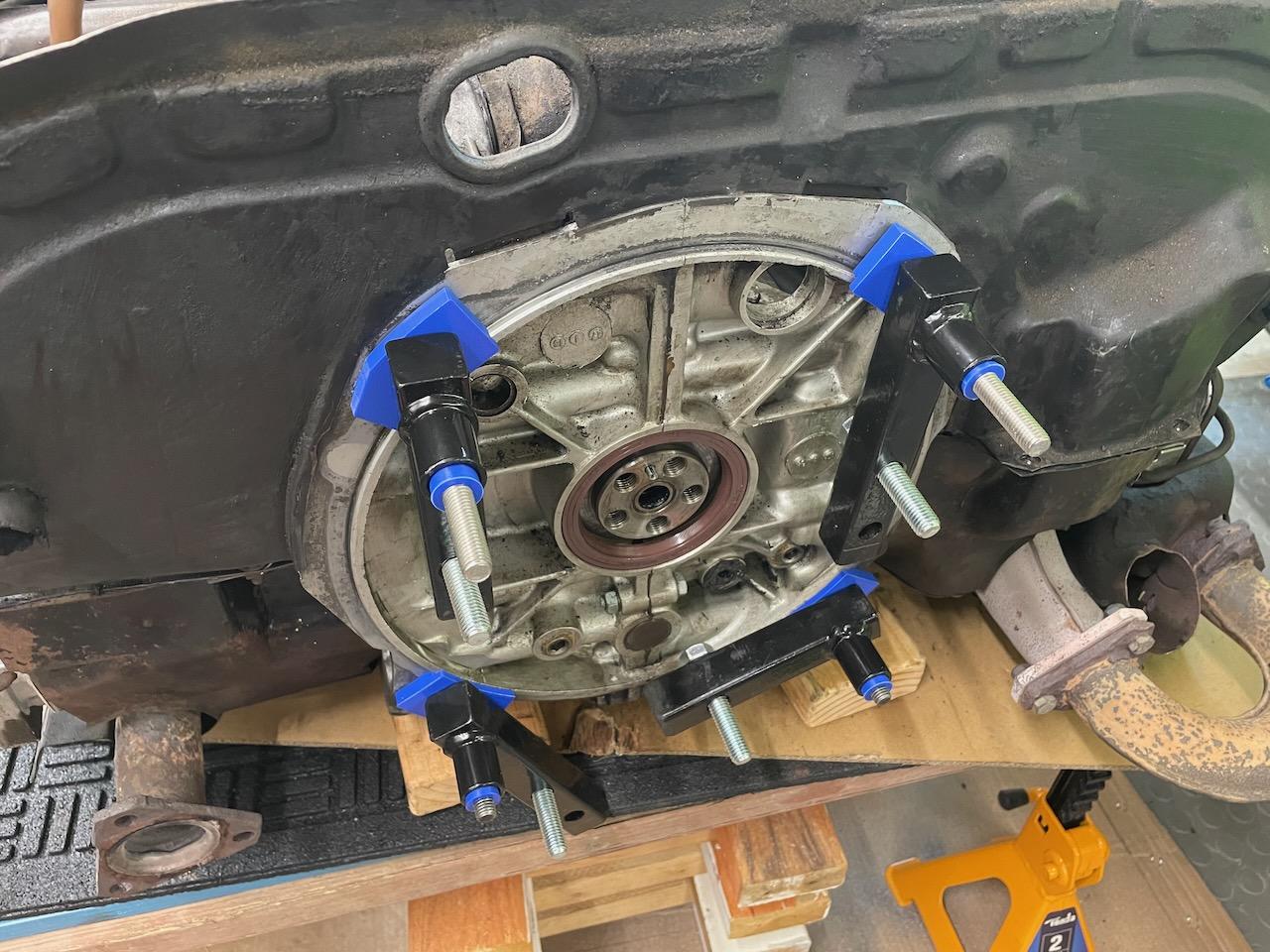

This stand, however, doesn't fit well onto the VW engine as is. So I 3D printed some spacer tabs that fit perfectly onto the case, and over the protruding lip as well. (I printed these with basic PLA, but with 100% infill). (Yes, I can already feel many people on this forum's eyes rolling, but seriously under compression these parts are more than strong enough).
The next problem was that the holes in the black arms are much bigger than M10 bolts, so I 3D printed some sleeves to fill this space. (also in basic PLA with 100% infill).
The final piece was that with the original hole locations, the mounting arms were spread too far out, so I drilled a second set of holes more 'inward' on the mounting arms.
I purchased two M10x120mm bolts for the two upper holes, and use the existing M10 studs for the two lower holes, and mounted the engine. Everything is very sturdy.
Here are the pics...
|
Olaf has sent me the files to try.
_________________
-----------------------------------------
Restoring a 1972 Bay Window Bus that has not be registered for the road since 1981.
Sugar Land, Texas
Last edited by poundman on Sat May 31, 2025 4:12 pm; edited 1 time in total |
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17590
Location: San Diego, California
|
| Posted: Sat May 31, 2025 9:04 am Post subject: Re: Question: What to look for when buying a used engine stand |
|
|
I’m not digging that idea.
