Sleeving 4th idler gear
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
scotty timmerman
Samba Member


Joined: January 10, 2010
Posts: 1035
Location: gigharbor W.A
scotty timmerman is offline
PostPosted: Tue May 13, 2025 6:09 pm    Post subject: Sleeving 4th idler gear Reply with quote

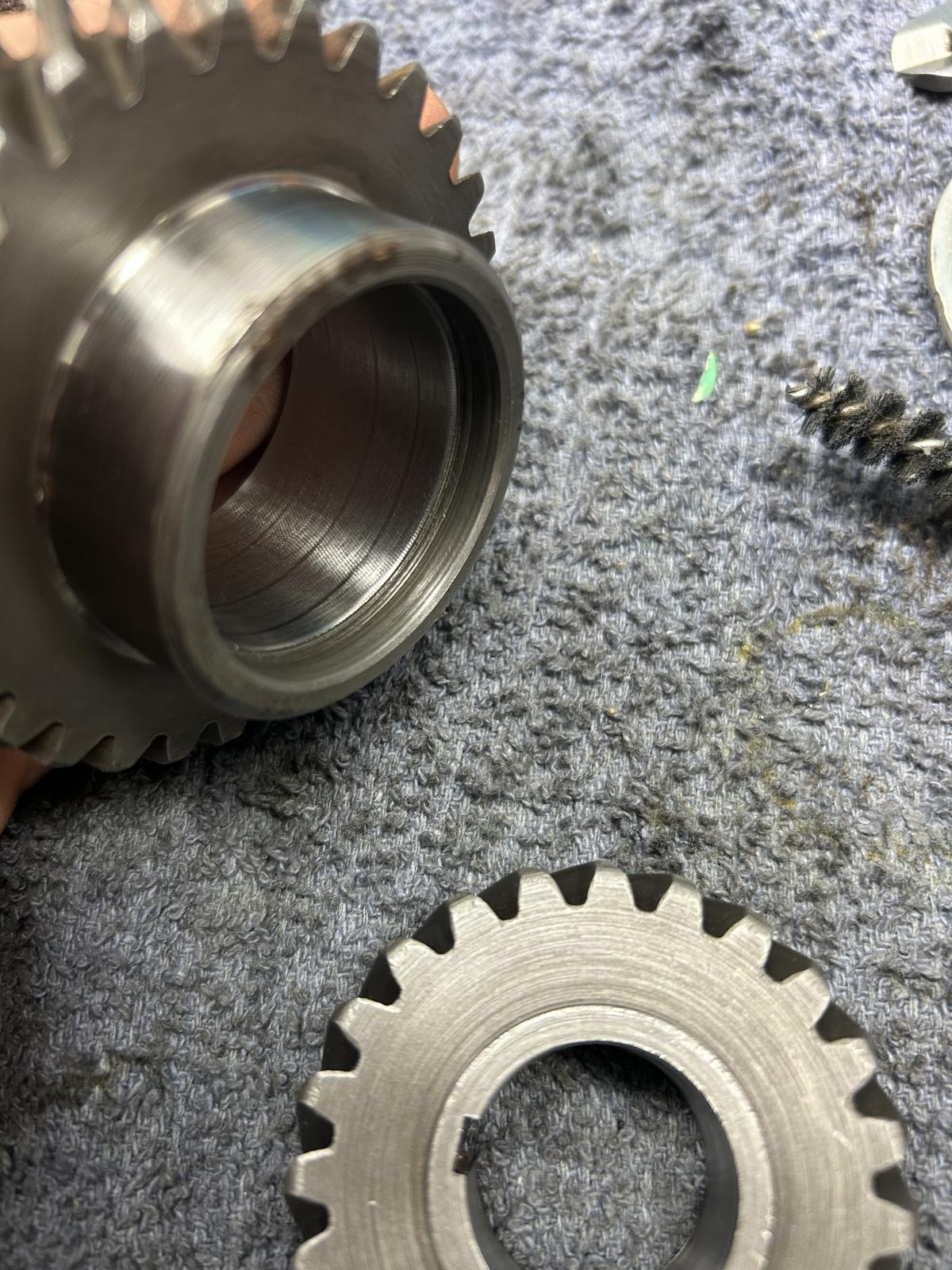

I just received a .77 4th gear set and have found that the inner bore of the idler gear was poorly machined. The surface is rough and there is a corkscrew pattern that feels like it’s high. The bore is .005” larger compared to other gear sets I have measured with calipers. I think if it was honed out it would then be to large. Does anyone know the tolerance for this bore? I’m thinking it needs to be bored out and have a sleeve installed To be usable. Sleeve would be a type of bronze and be press fit. This gear will be used as a 5th on a berg 5 speed. What do others think?


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
71 ghia coupe: Build thread http://www.thesamba.com/vw/forum/viewtopic.php?t=511738&highlight=
71 type 3 fastback auto
71 type 3 fastback manual
73 super beetle
57 oval: build thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8616563#8616563
63 beetle reassembly: http://www.thesamba.com/vw/forum/viewtopic.php?p=7458619#7458619
2332cc engine build: https://www.thesamba.com/vw/forum/viewtopic.php?p=8608429&highlight=#8608429
84 vanagon westfalia wolfsburg edition
Back to top
View user's profile Send private message Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 27560
Location: Colorado Springs
modok is offline
PostPosted: Tue May 13, 2025 7:31 pm    Post subject: Re: Sleeving 4th idler gear Reply with quote
Perhaps.... oversize roller bearings?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bruce
Samba Member


Joined: May 16, 2003
Posts: 17551
Location: Left coast, Canada
Bruce is offline
PostPosted: Wed May 14, 2025 1:41 am    Post subject: Re: Sleeving 4th idler gear Reply with quote
scotty timmerman wrote:
Sleeve would be a type of bronze and be press fit.

I wouldn't use bronze. It needs to be hardened to withstand the contact pressure of the narrow edge of the rollers.
If you want to make a sleeve, make it from an old damaged VW gear. That way it's the right steel and the right hardness. Then make it a press fit. Use the freezer for the sleeve and heat the gear before pressing together. Then you can tack it with the TIG in a couple of spots.
_________________
overheard at the portland Swap Meet... wrote:
..... a steering wheel made from a mastadon tusk.....
