 Posted: Mon May 19, 2025 11:30 am Post subject: Need help figuring out hoses |
 |
|
This is my first post, hope I’m doing it correctly.
I’m trying to figure out what these 2 hoses are for. This is an 84 Vanagon. The first photo are the hoses coming up under the front driver side wheel well, and the second photo is what they look like from the inside underneath and behind the drivers seat. Whatever they are, it appears maybe they were cut. I have so far not been able to find any information. I would appreciate any assistance or ideas. Thank you. |
|
| Back to top |
|
 |
MsTaboo
Samba Member
Joined: June 02, 2006
Posts: 4502
Location: East Kootenay, British Columbia
|
| Posted: Mon May 19, 2025 12:03 pm Post subject: Re: Need help figuring out hoses |
|
|
Hi, welcome to the Samba.
How long have you owned the Vanagon? Any info from the previous owner?
It looks to me like that is a POs attempt to move the rear heater up to behind the driver's seat.
Trace the hoses under the bus back towards the engine, I think you will find some connections where the original heater hoses used to go to the stock location under the rear seat.
Maybe provide some more pictures. A shot of the rear seat bulkhead from inside and underneath vehicle.
We love pictures, it helps to identify the model and what's been done to it over time. A lot of things can happen in 42 years!
_________________
Currently:
'90 Syncro Westy 3 knob w/Zetec
The information age has morphed into the age of disinformation and willful ignorance. Agnotology!
Defend Ukrainian democracy & autonomy.
Resist Kleptocratic Oligarchy (and Idiocracy)! |
|
| Back to top |
|
|
scotty timmerman
Samba Member
Joined: January 10, 2010
Posts: 1035
Location: gigharbor W.A
|
|
| Back to top |
|
|
MsTaboo
Samba Member
Joined: June 02, 2006
Posts: 4502
Location: East Kootenay, British Columbia
|
| Posted: Mon May 19, 2025 2:56 pm Post subject: Re: Need help figuring out hoses |
|
|
| scotty timmerman wrote: |
| possibly from early overhead A/C. Any holes from screws in the ceiling?... |
Hmmm...good guess, that would explain the two different size hoses and the wire.
JJESSUP, any signs of other A/C equipment?
_________________
Currently:
'90 Syncro Westy 3 knob w/Zetec
The information age has morphed into the age of disinformation and willful ignorance. Agnotology!
Defend Ukrainian democracy & autonomy.
Resist Kleptocratic Oligarchy (and Idiocracy)! |
|
| Back to top |
|
|
ALIKA T3
Samba Member
Joined: July 30, 2009
Posts: 7105
Location: Honolulu,Hawaii and France
|
| Posted: Mon May 19, 2025 3:51 pm Post subject: Re: Need help figuring out hoses |
|
|
| MsTaboo wrote: |
| scotty timmerman wrote: |
| possibly from early overhead A/C. Any holes from screws in the ceiling?... |
Hmmm...good guess, that would explain the two different size hoses and the wire.
JJESSUP, any signs of other A/C equipment? |
It is definitely a CCC Cool hose route. You can also see the vertical mark left on the beige leatherette, by the hose cover, on the forward edge/corner.
A ceiling picture will confirm this.
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget |
|
| Back to top |
|
|
jlrftype7
Samba Member
Joined: July 24, 2018
Posts: 4435
Location: Chicago
|
| Posted: Tue May 20, 2025 6:09 am Post subject: Re: Need help figuring out hoses |
|
|

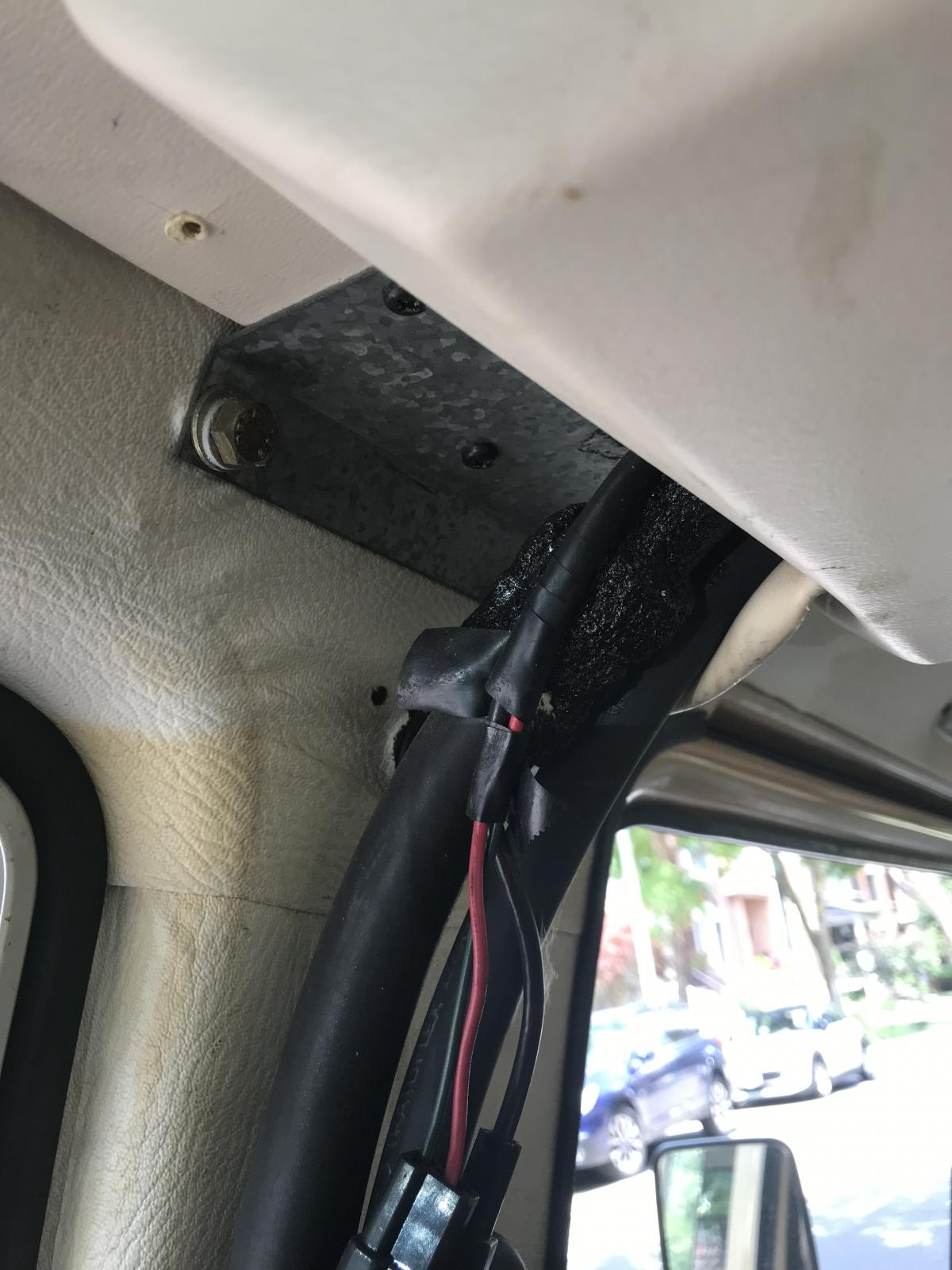

And once upon a time they ran up to the Ceiling like this.
_________________
'68 Westy- my first VW and vehicle/Bus- long gone.- sold it to a traveling Swiss couple....
'67 Type 3 Fastback, my 2nd car- gone
'69 Semi-Auto Stick Shift Beetle-gone
2017 MINI Coopers, our current DDs
‘84 Tin Top - Hilga....Auto |
|
| Back to top |
|
|
dhaavers
Samba Member
Joined: March 19, 2010
Posts: 8264
Location: NE MN (tinyurl.com/dhaaverslocation)
|
| Posted: Tue May 20, 2025 9:28 pm Post subject: Re: Need help figuring out hoses |
|
|
| scotty timmerman wrote: |
| possibly from early overhead A/C. Any holes from screws in the ceiling? |
Ding ding ding ding! We have a winner. Definitely AC hoses & wiring in the stock position for an 84 van.
Our work here is done.
- Dave
