 Posted: Wed Mar 19, 2025 3:34 pm Post subject: Re: Possible Engine Rebuild |
 |
|
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
 |
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 191
|
| Posted: Thu Mar 20, 2025 6:42 pm Post subject: Re: Possible Engine Rebuild |
|
|

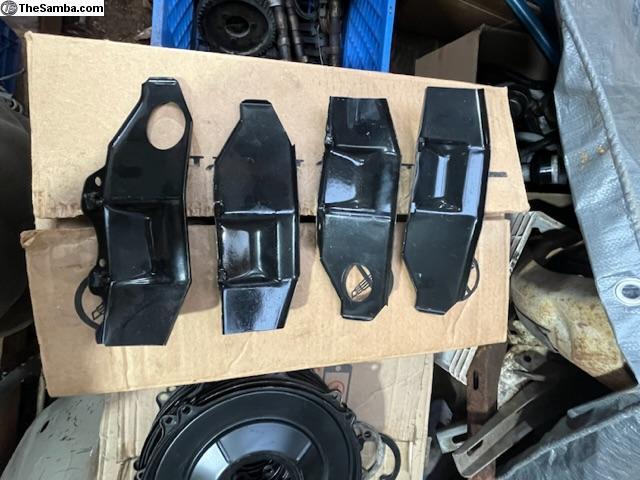

I believe I found them. Do I get both with cut outs or solids? Is there a right and left?
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79269
Location: Sneaking up behind you
|
| Posted: Thu Mar 20, 2025 6:49 pm Post subject: Re: Possible Engine Rebuild |
|
|
Those all look like left side.
The hole is for the preheat hose to the air cleaner. Does your air cleaner have a fitting for a preheat hose?
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Rome
Samba Member
Joined: June 02, 2004
Posts: 10440
Location: Pearl River, NY
|
| Posted: Thu Mar 20, 2025 8:17 pm Post subject: Re: Possible Engine Rebuild |
|
|
| DAWG, once you find the right side piece, run an M6 x 1.0 tap through each of the screw holes to clean out the inevitable dirt or often cross-threads from POs. |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 191
|
| Posted: Fri Mar 21, 2025 6:54 am Post subject: Re: Possible Engine Rebuild |
|
|
| Glenn wrote: |
Those all look like left side.
The hole is for the preheat hose to the air cleaner. Does your air cleaner have a fitting for a preheat hose? |

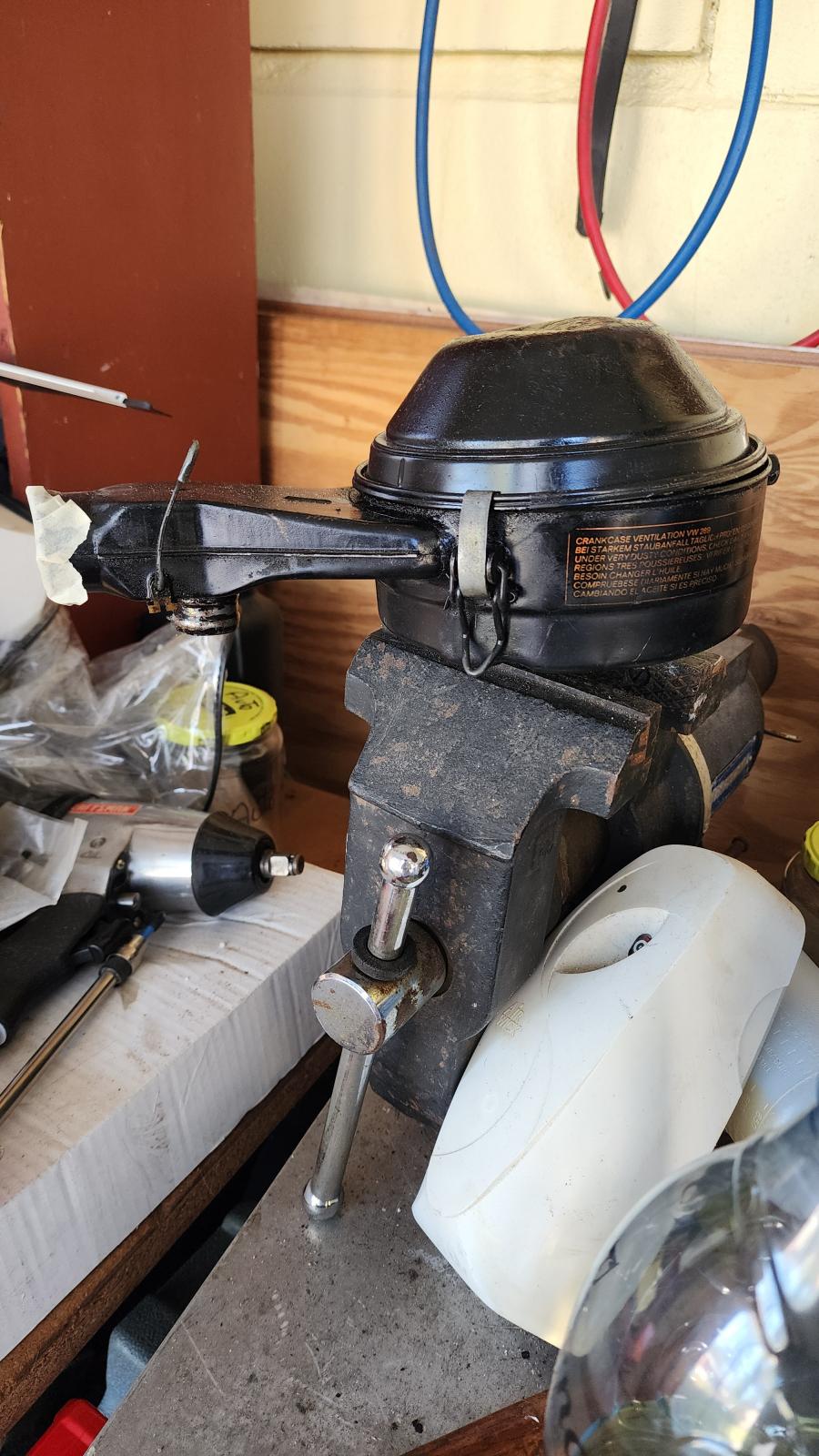

This is the air cleaner that I am using. Don't really know I thought the hose that came of that fitting ran to the hole on the tin shown in the second picture
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 191
|
| Posted: Sat Apr 05, 2025 6:42 am Post subject: Re: Possible Engine Rebuild |
|
|

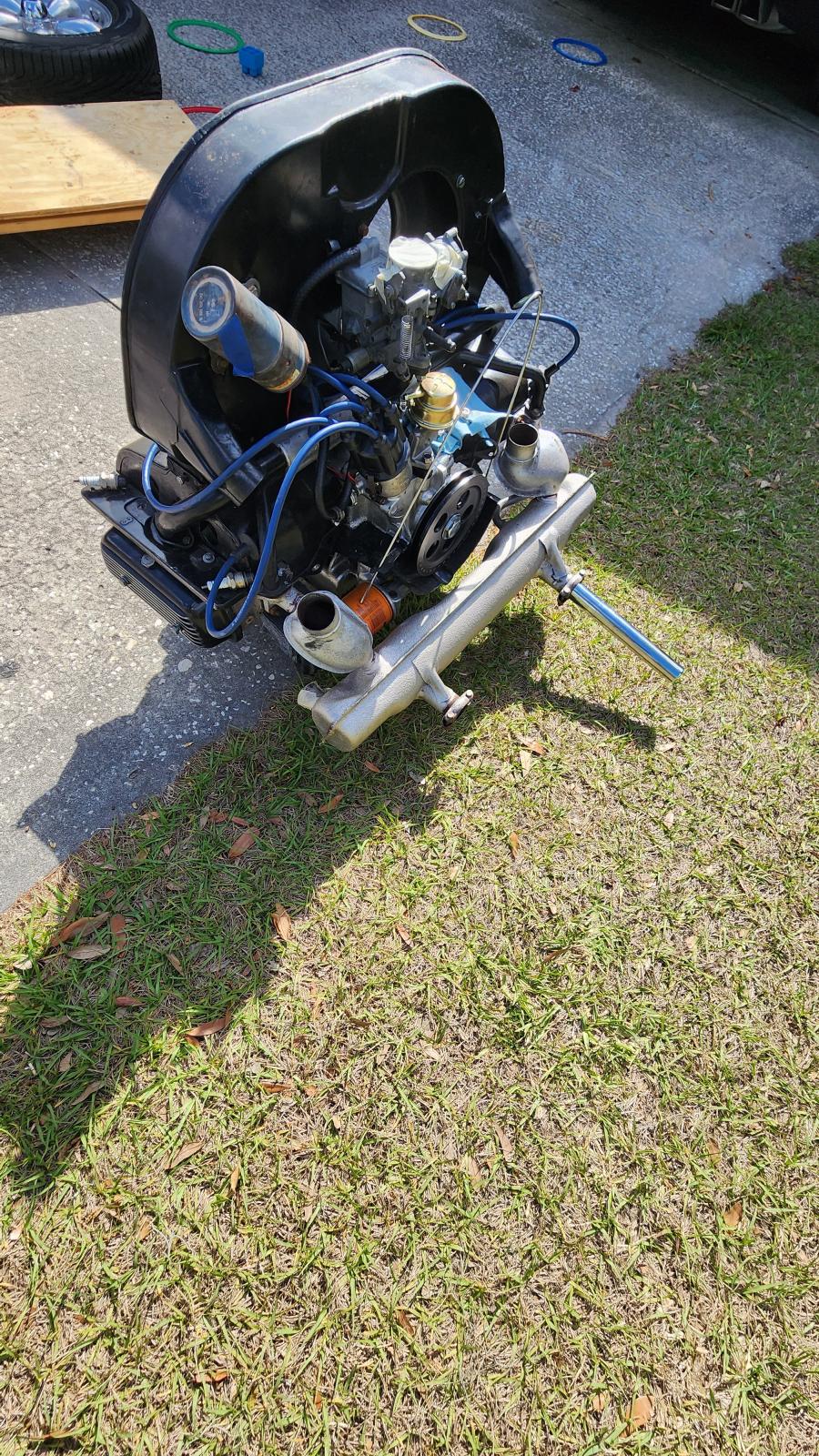

I tried to fine those air deflector tins but no one has them both so while waiting on them to come in I decided to go ahead and install the engine anyway hoping that I would be able to install them after. As everyone knows in the VW world it's not all plug and play you have to make adjustments. The engine had to be taken out a couple of times to shave the tranny, so the engine didn't want to rotate freely also the spacer I had for the carburetor was to tall so it shortens the length of the accelerator cable. I need to find a shorter spacer or grind away at the ALT is what I don't want to do. Sharing some pictures
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY
Last edited by DAWGNME on Sat Apr 05, 2025 9:01 am; edited 2 times in total |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 32873
Location: Hot Arizona
|
| Posted: Sat Apr 05, 2025 7:09 am Post subject: Re: Possible Engine Rebuild |
|
|
| DAWGNME wrote: |
| the spacer I had for the carburetor was to tall so it shortens the length of the accelerator cable. I need to find a shorter spacer or grind away at the ALT is what I don't want to do. |
1. I'd look for, or make, a shorter spacer.
2. Did you check different-year Beetles accelerator cable lengths? Sites like JBugs.com list the actual lengths.
3. I have a single Weber 40DCNF in my 1971, and I've been using an accelerator cable extender since back in 1976 with no issues. https://www.jbugs.com/product/3171.html
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 191
|
| Posted: Sun Apr 20, 2025 11:54 am Post subject: Re: Possible Engine Rebuild |
|
|
Took he out for Easter ride around the Hood and the clutch hook snapped then trying to push it back to the house I noticed the deck lid was extremely hot, I couldn't lay my hands on it. Does the engine have an overheating problem or I am over thinking things. Don't touch lid with the palm of your hands after 50 mph for 10 min... I think is time to do the pedal shaft upgrade.
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 191
|
| Posted: Tue May 20, 2025 1:47 pm Post subject: Re: Possible Engine Rebuild |
|
|

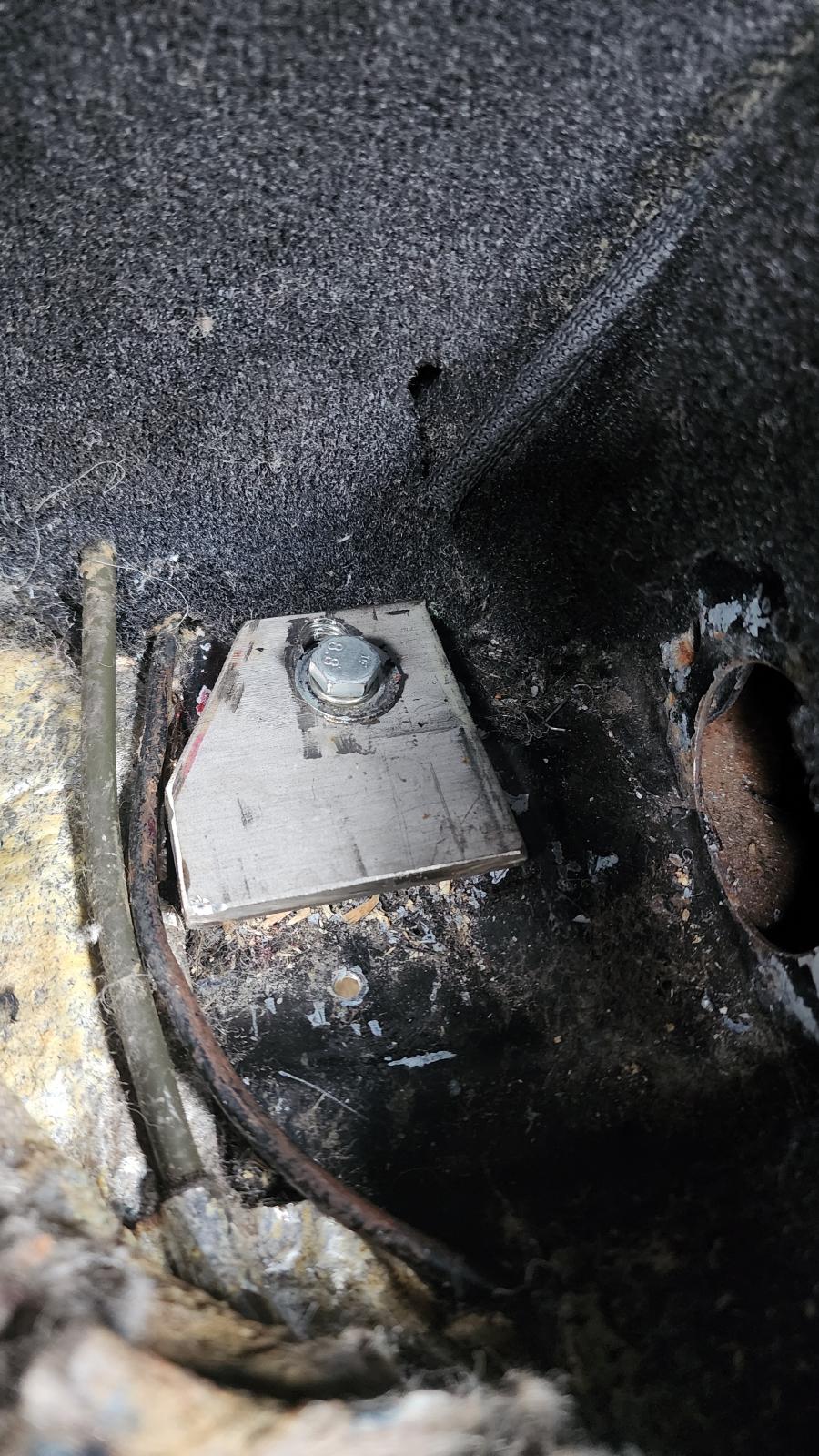

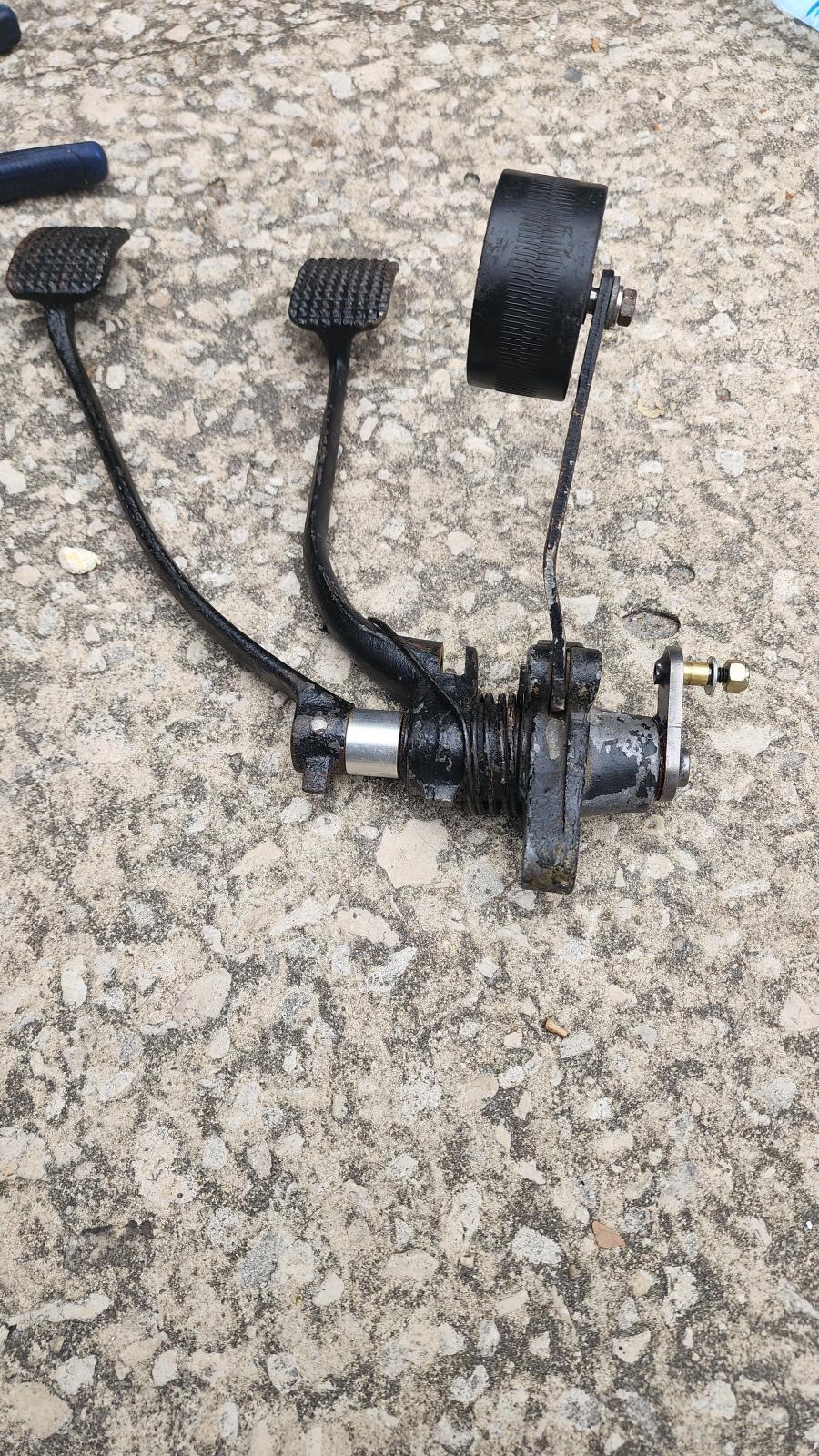

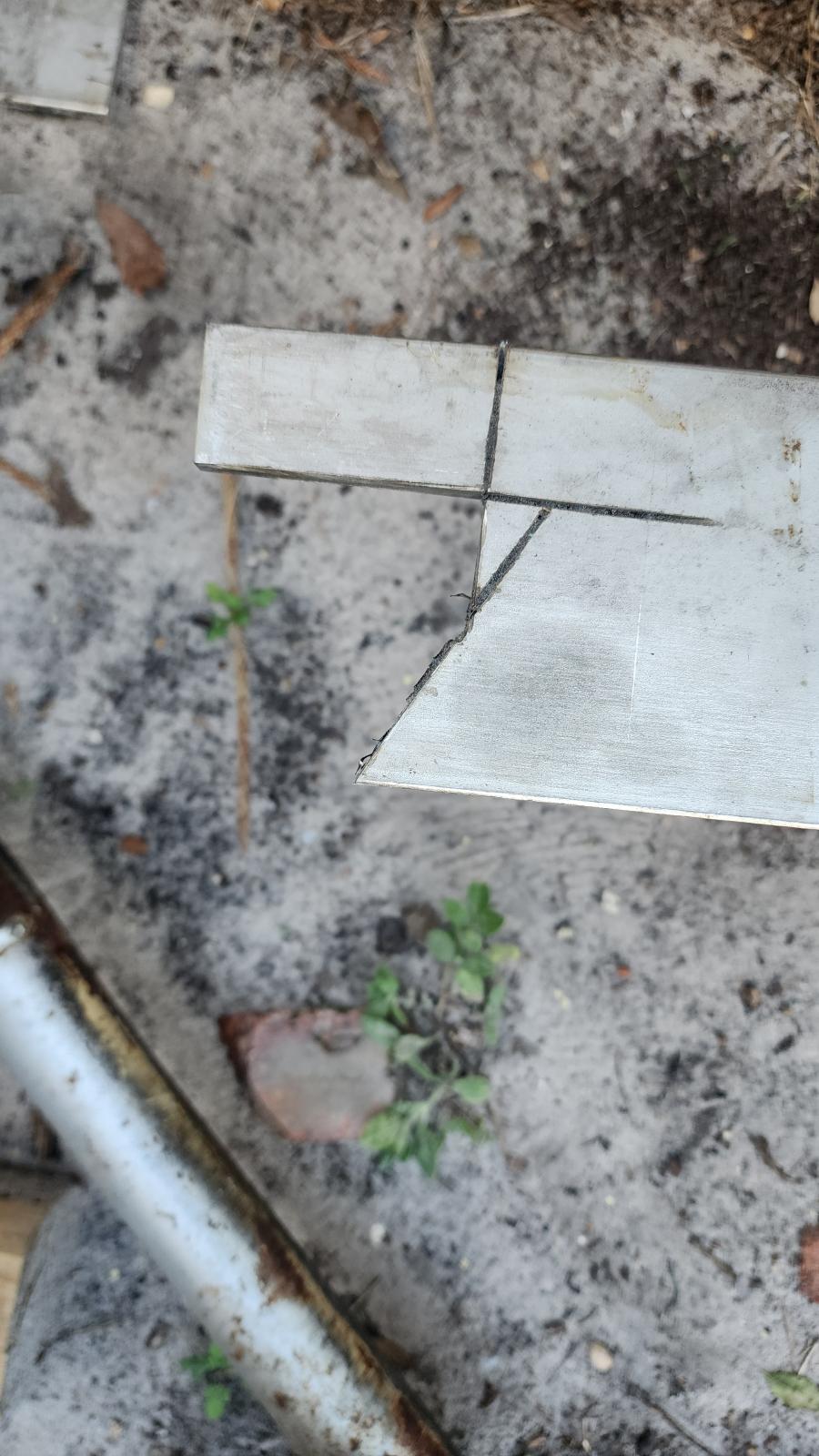

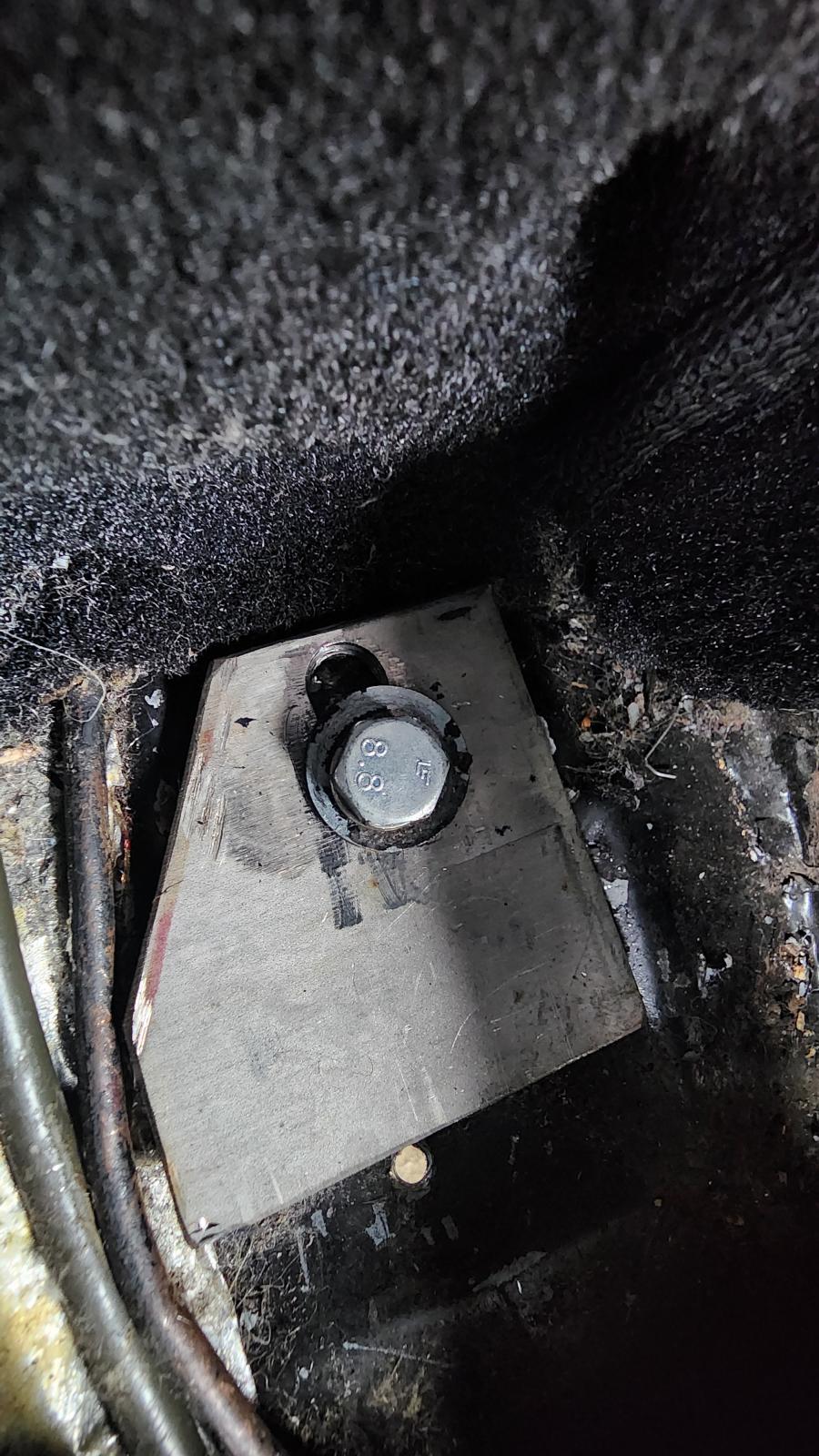

The pedal stop that the Big Boy was shipped with didn't work for me, so I had to make one. I was also looking around in the tunnel area and found some other stuff that need to be fixed.
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 191
|
| Posted: Thu May 22, 2025 11:33 am Post subject: Re: Possible Engine Rebuild |
|
|
| Cusser wrote: |
| DAWGNME wrote: |
| the spacer I had for the carburetor was to tall so it shortens the length of the accelerator cable. I need to find a shorter spacer or grind away at the ALT is what I don't want to do. |
1. I'd look for, or make, a shorter spacer.
2. Did you check different-year Beetles accelerator cable lengths? Sites like JBugs.com list the actual lengths.
3. I have a single Weber 40DCNF in my 1971, and I've been using an accelerator cable extender since back in 1976 with no issues. https://www.jbugs.com/product/3171.html
|

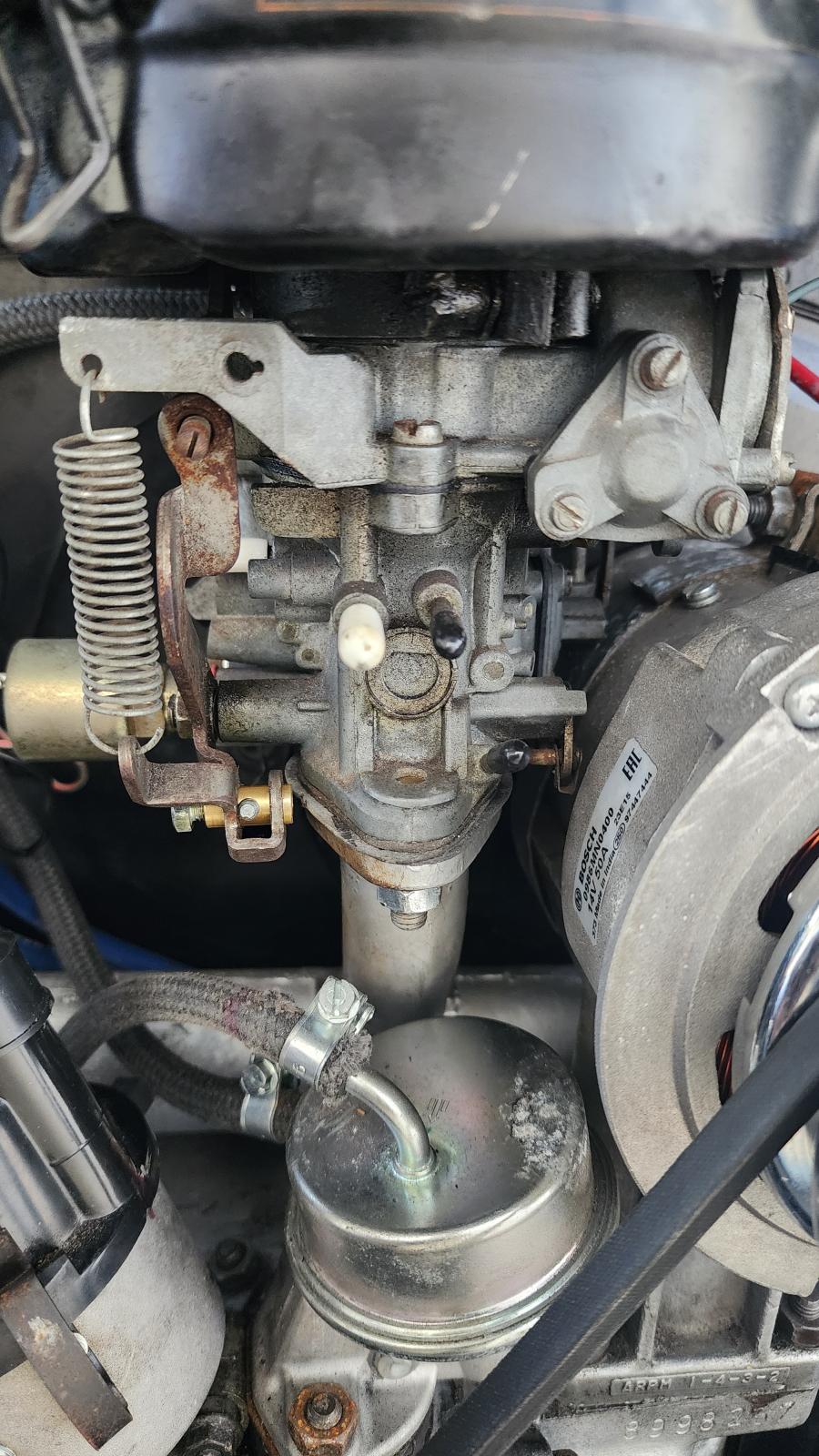

I removed the spacer, and I was able to connect the cable now with no problem and it looks like nothing is hitting anywhere right now so I should be good. The spacer was on there when I got the engine, thought there was some kinda clearance issue.
Got some other things done needed a bushing
