Knackered '66 double-door Microbus project.

[brothernumberone]

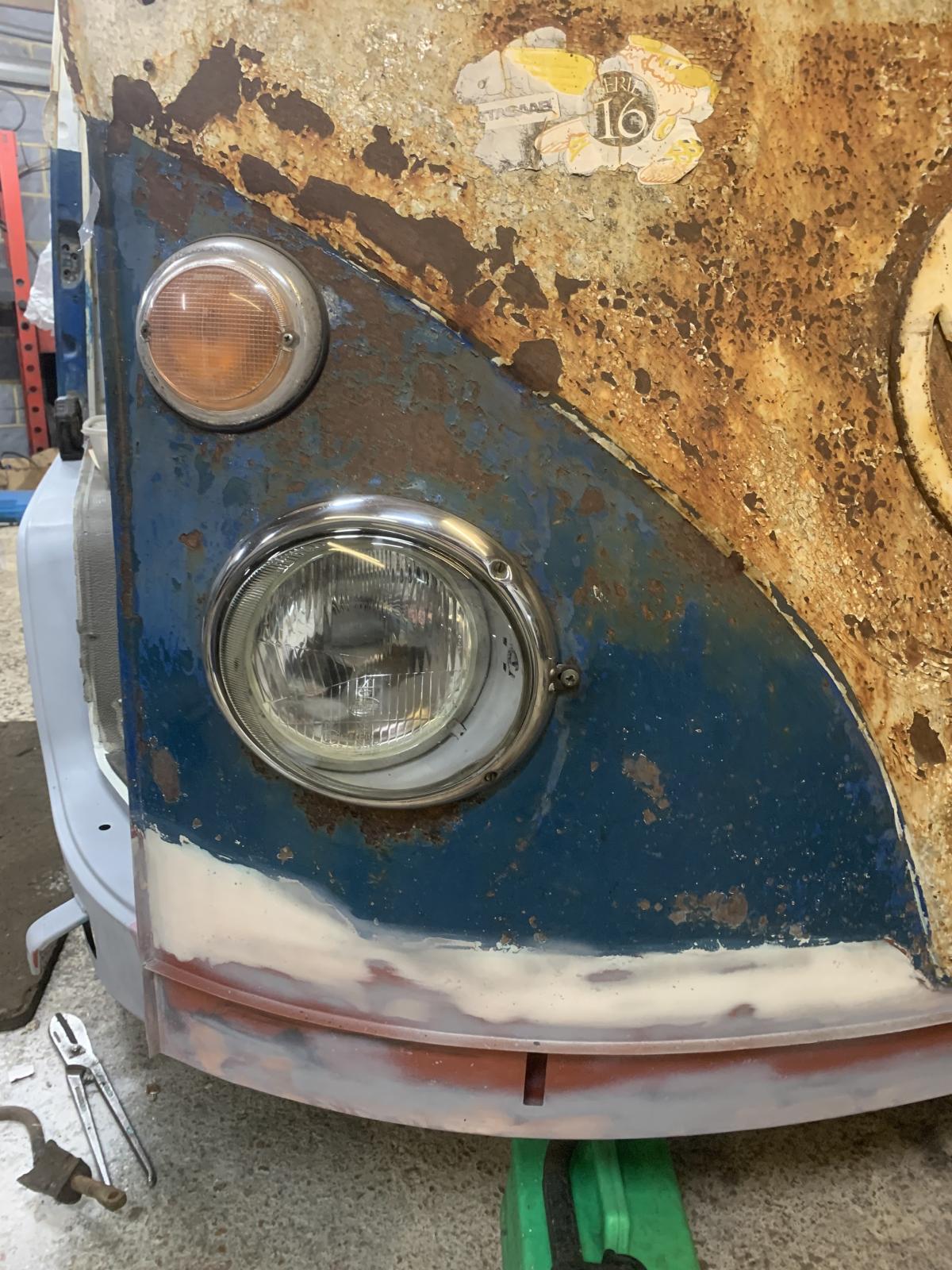

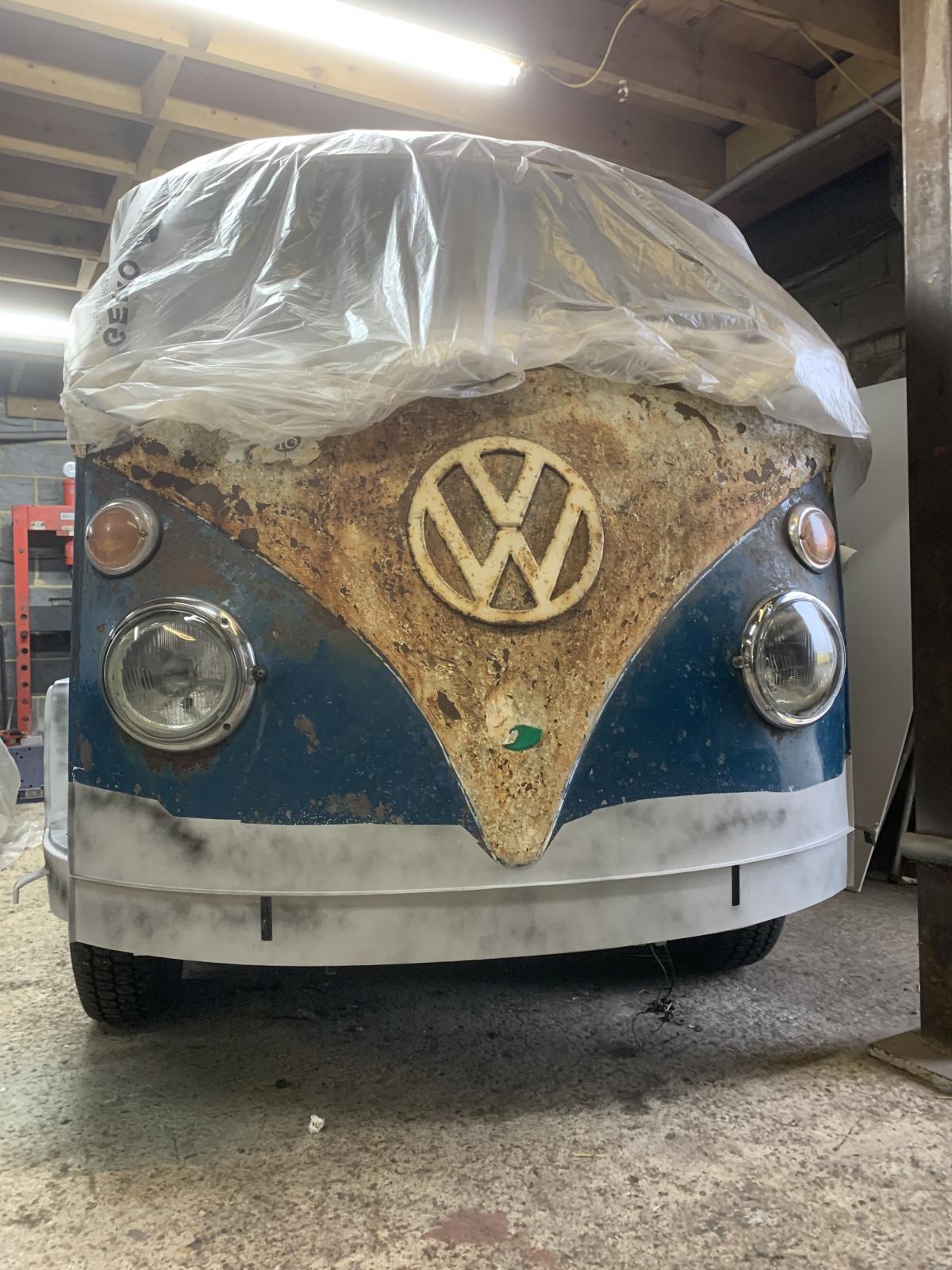

Hello again. It’s been nearly a year, so time for an update. Not much to report really. I’ve finished the dash wiring now and just rebuilt the headlights.

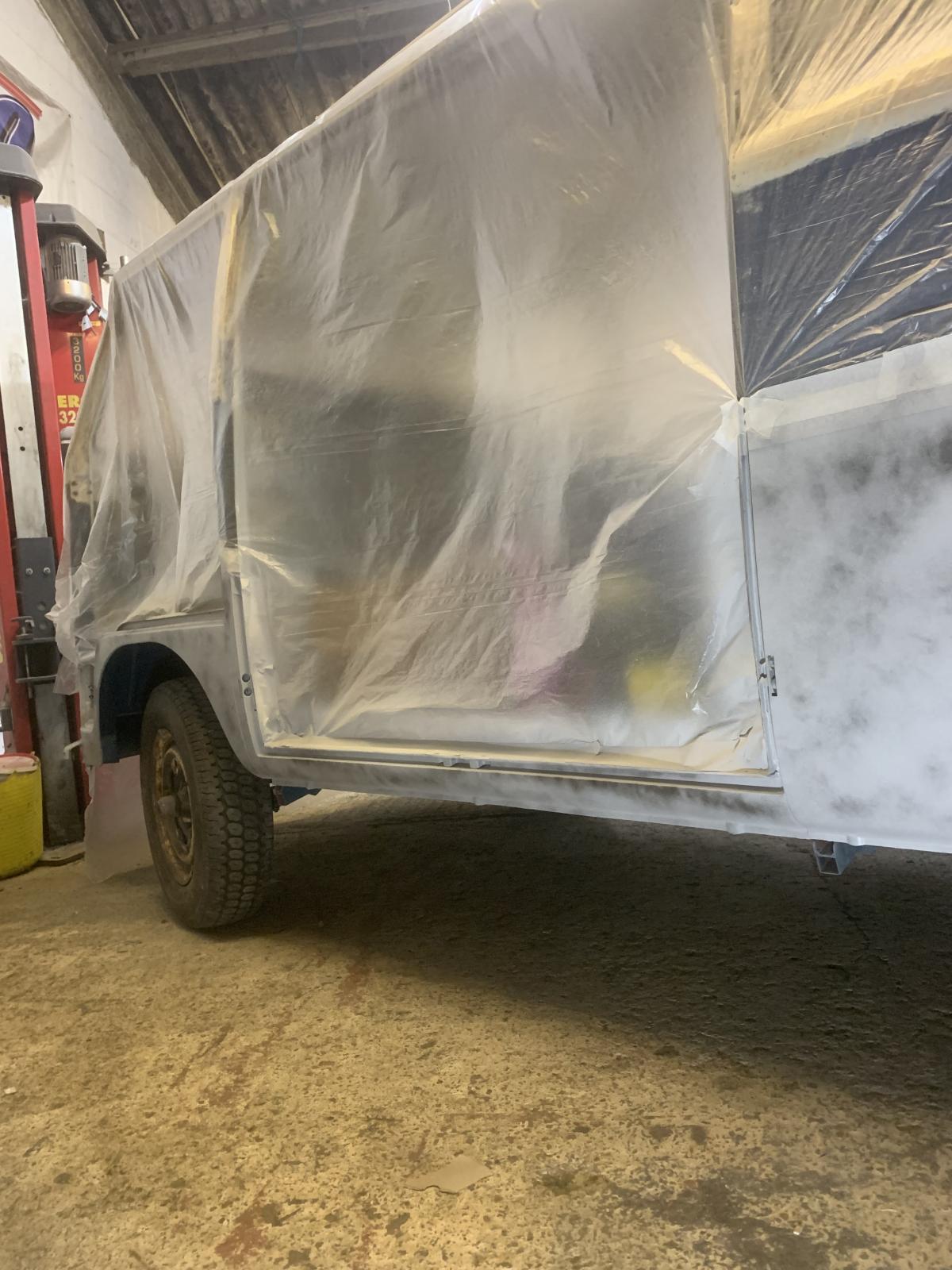

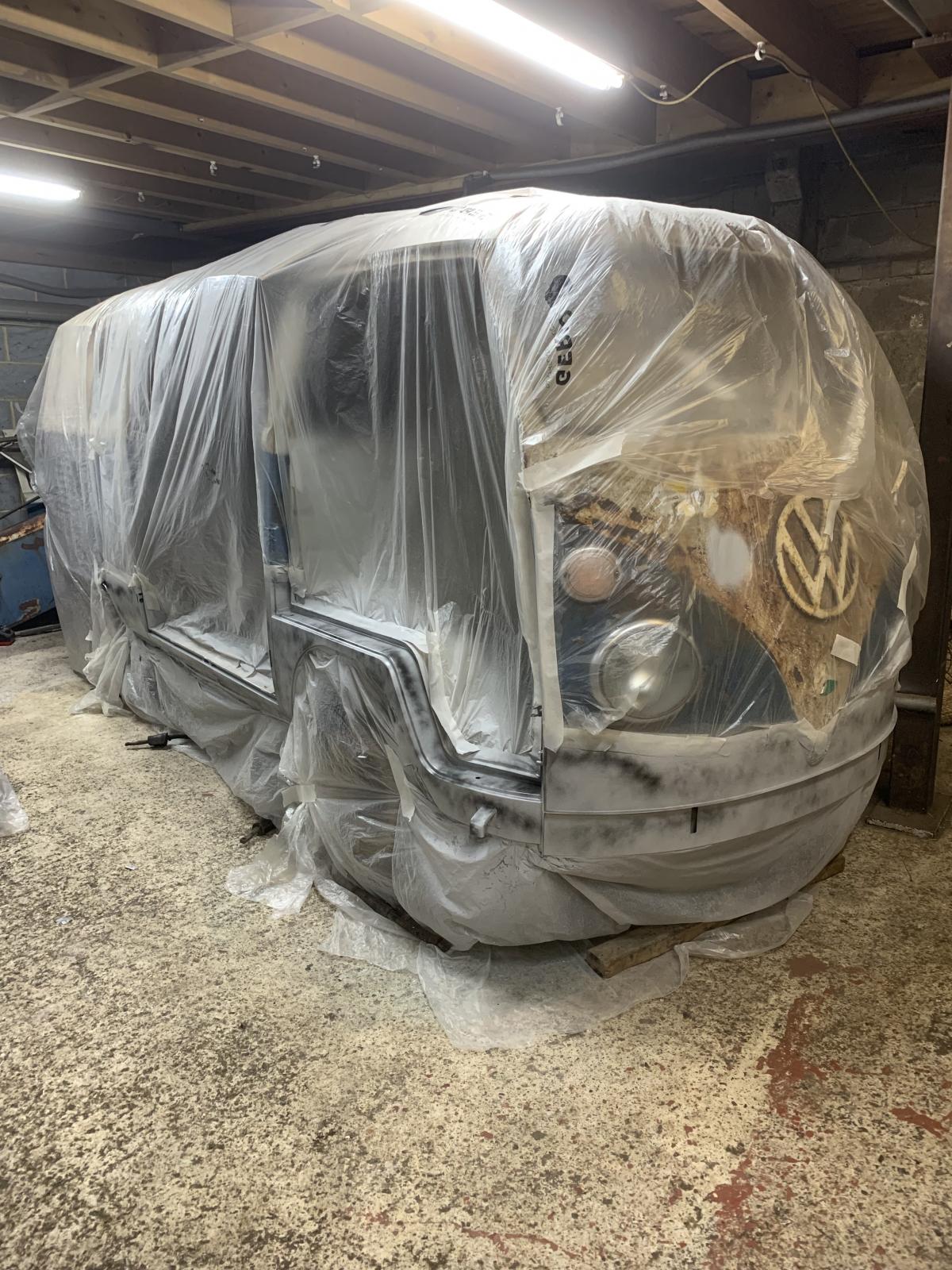

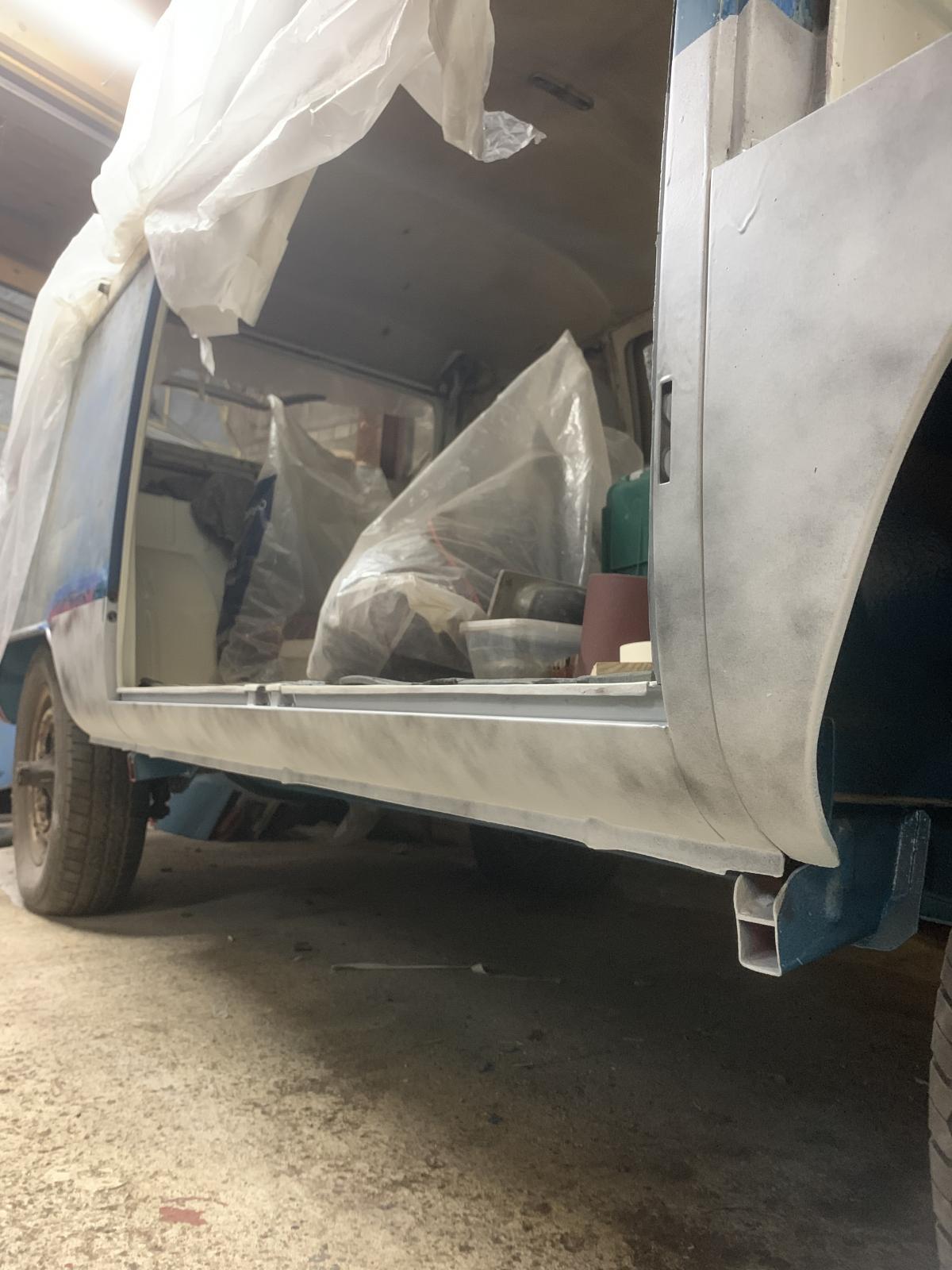

I’ve also started filling and priming.

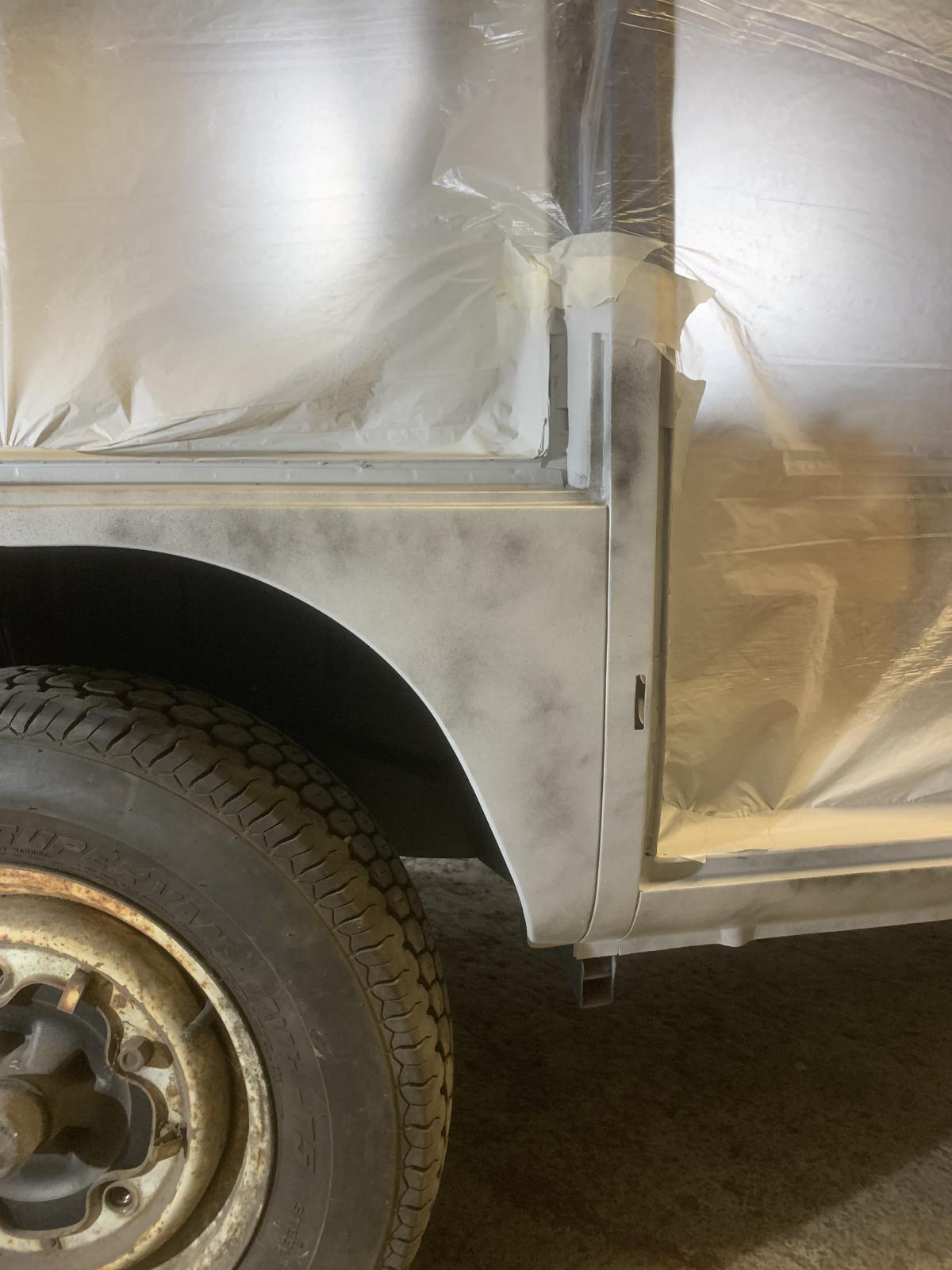

So annoying, but I realised the captive plate for the lower cargo door hinge behind the front arch in the last pic has slipped out of place and dropped down inside the pillar. I guess I’ll have to cut a hole from inside for access.

_________________
http://vintageautorepair.co.uk/

[brothernumberone]

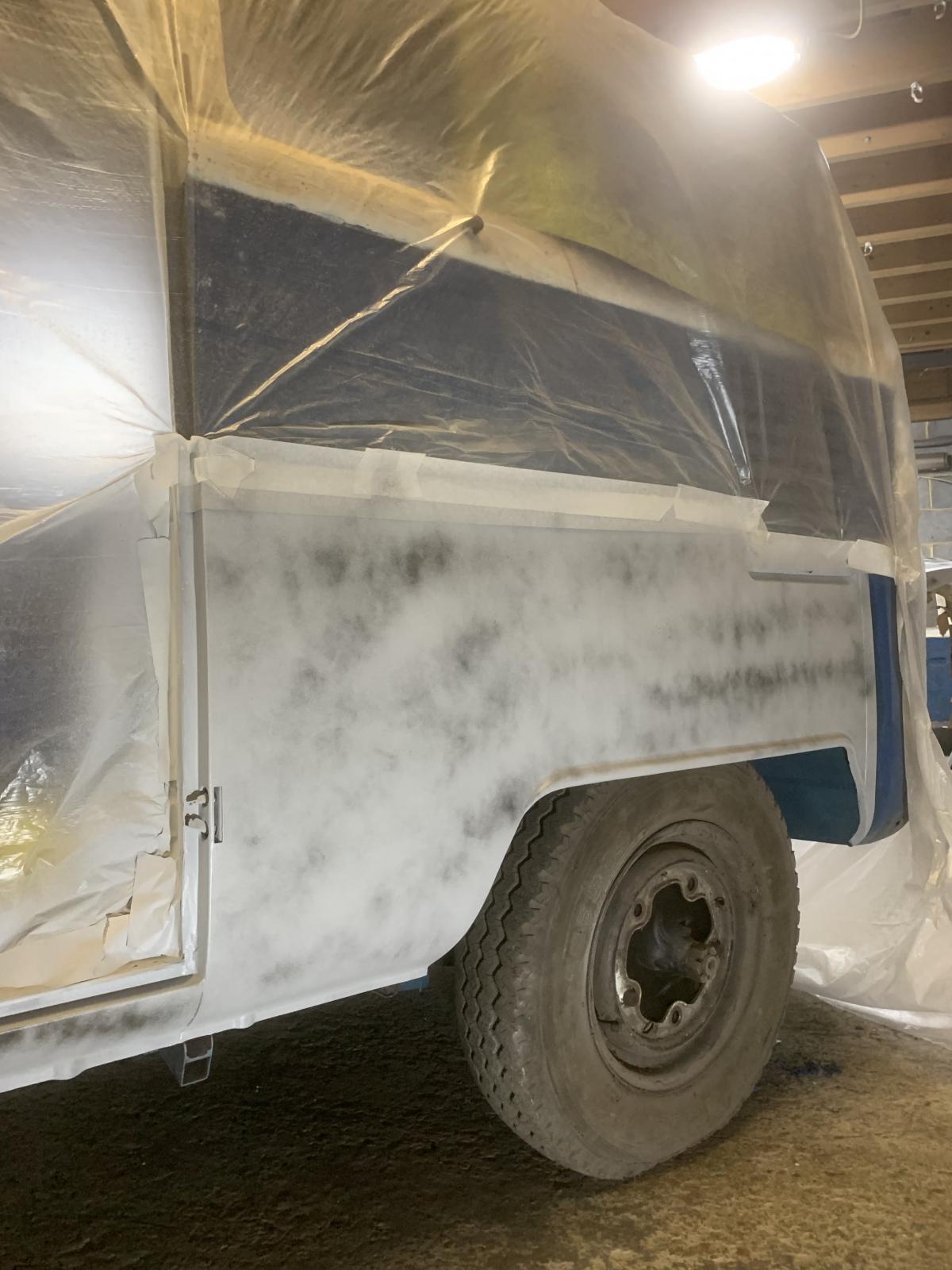

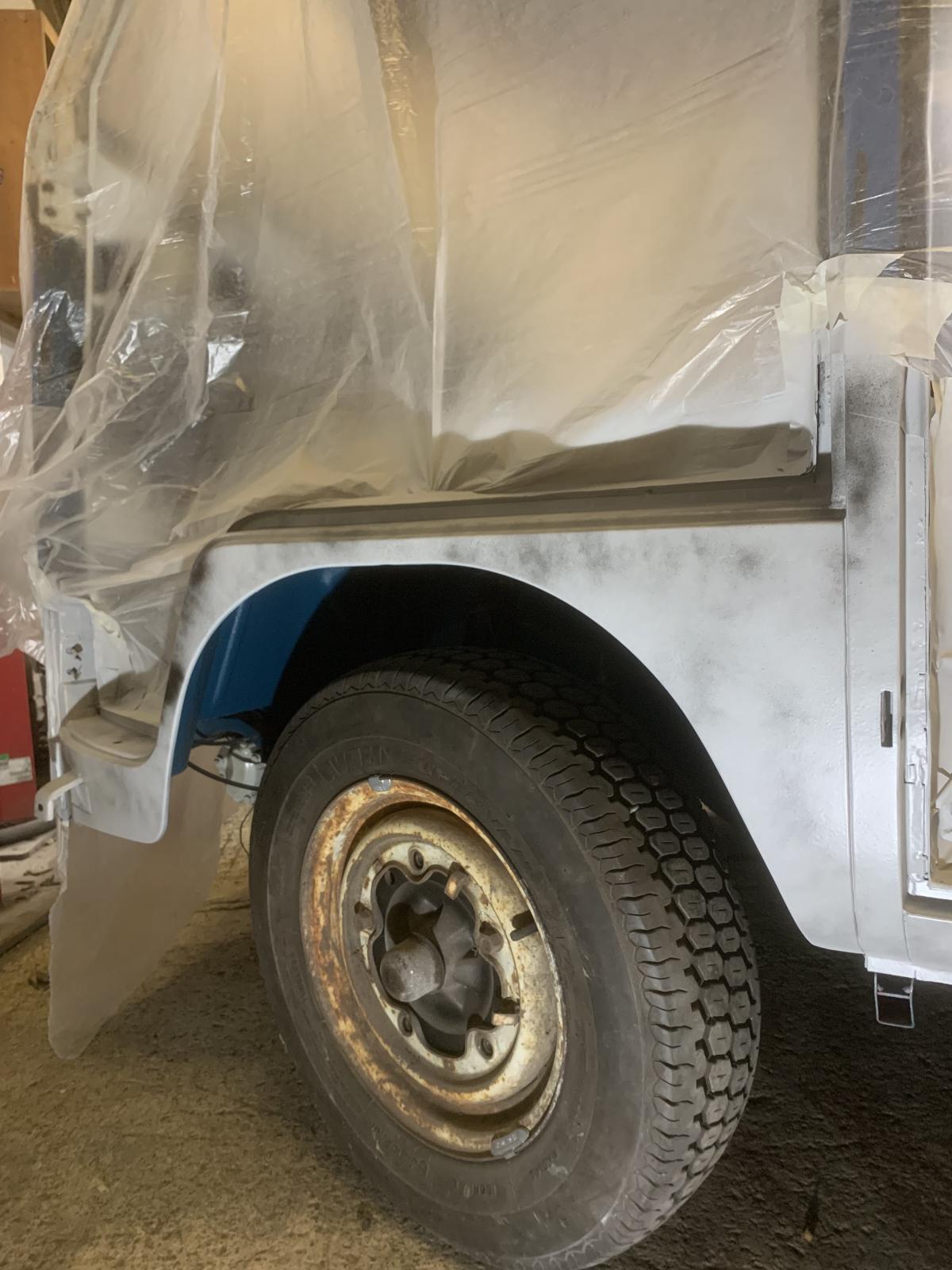

Hi, a few extra pics here. One of the engine bay and valance painted and a couple of the primered bits with the plastic off.

_________________
http://vintageautorepair.co.uk/

[brothernumberone]

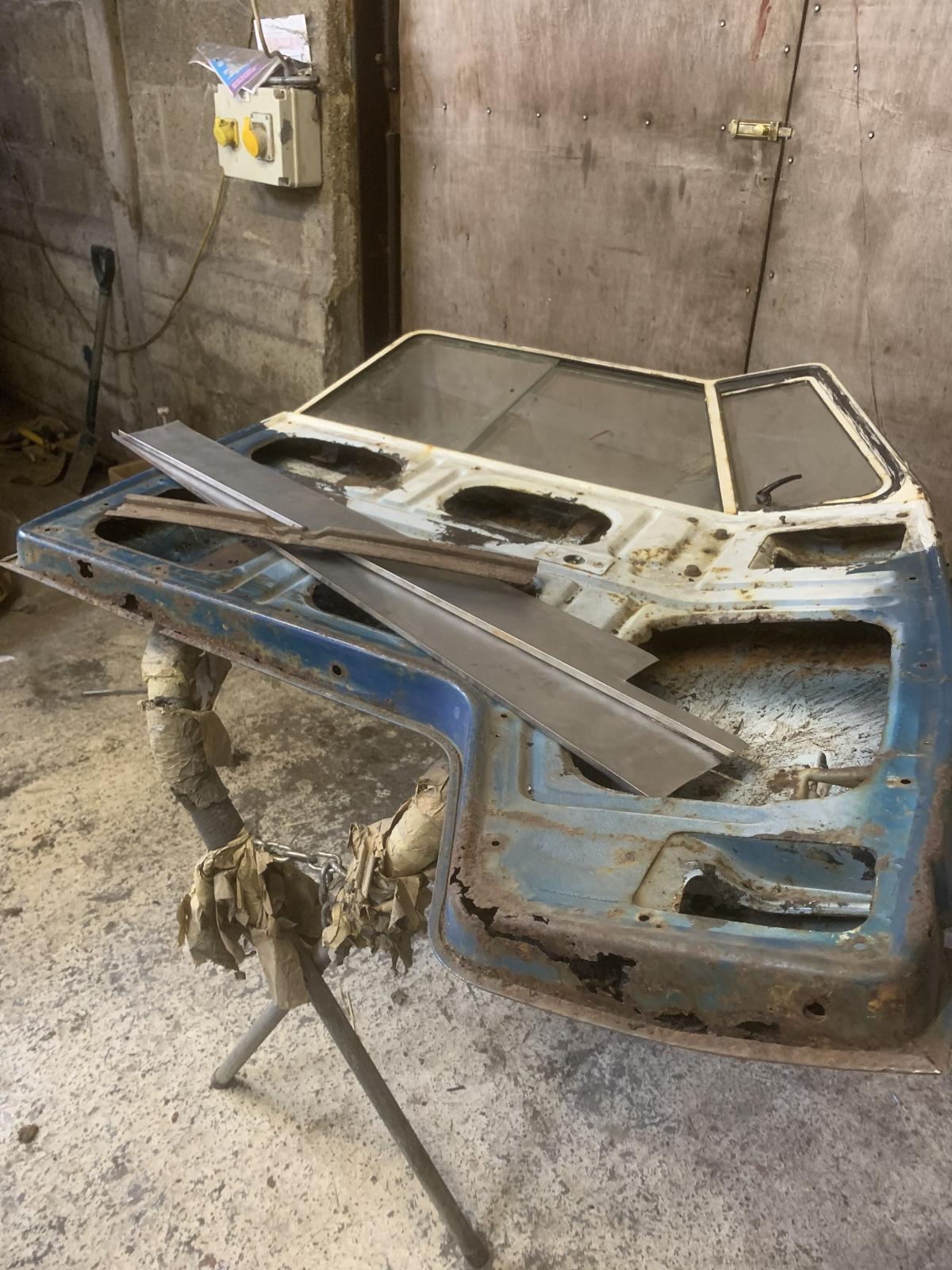

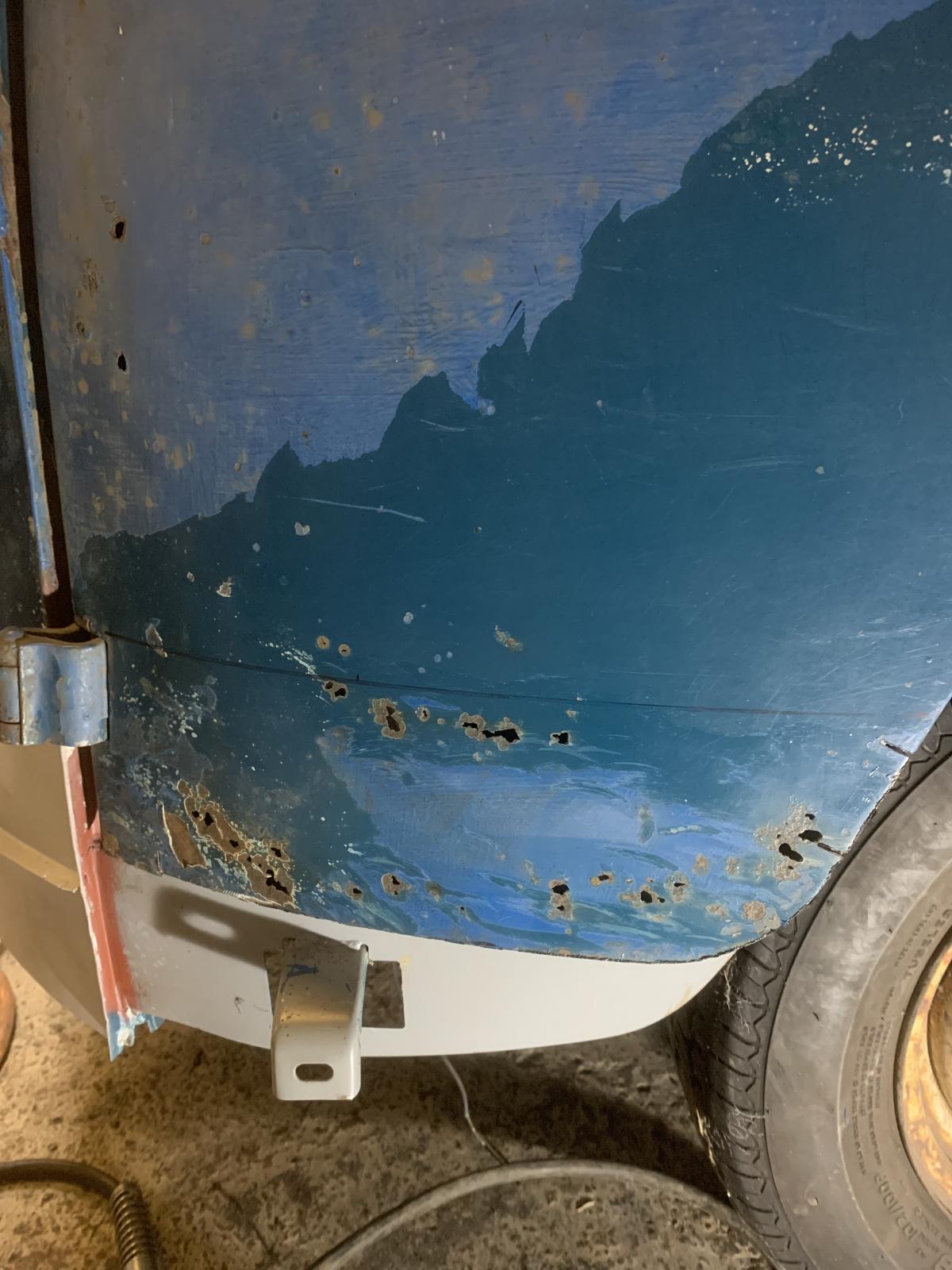

Hello. I’ve made a start on the can door repairs. A bit of rot on the bottom edge of the inner part of the door as usual, but also a load of small holes in the skin caused by moisture being trapped on the inside by the tar type stuff someone had painted all over it. Took me ages to scrape it all off.

_________________
http://vintageautorepair.co.uk/

[brothernumberone]

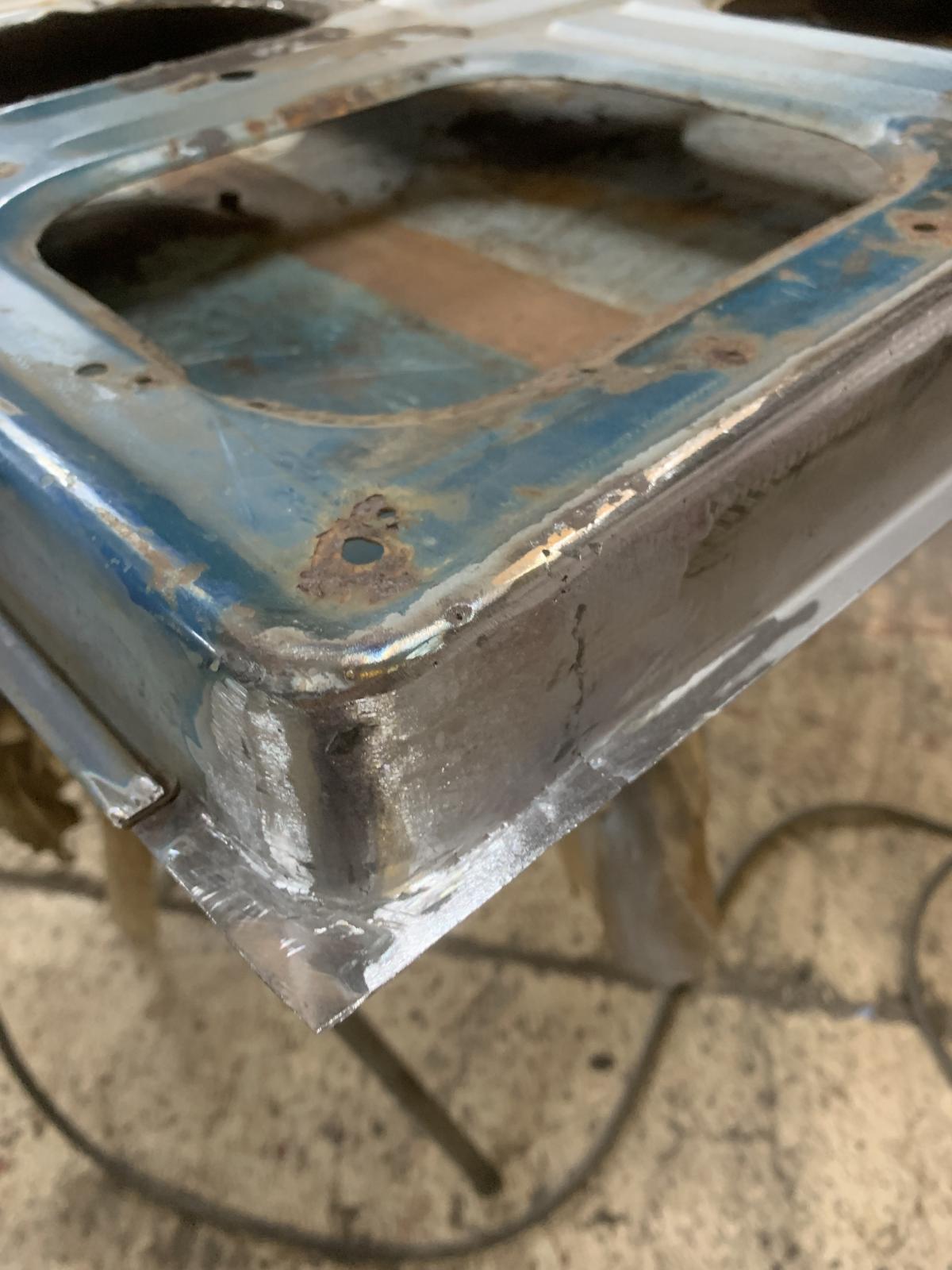

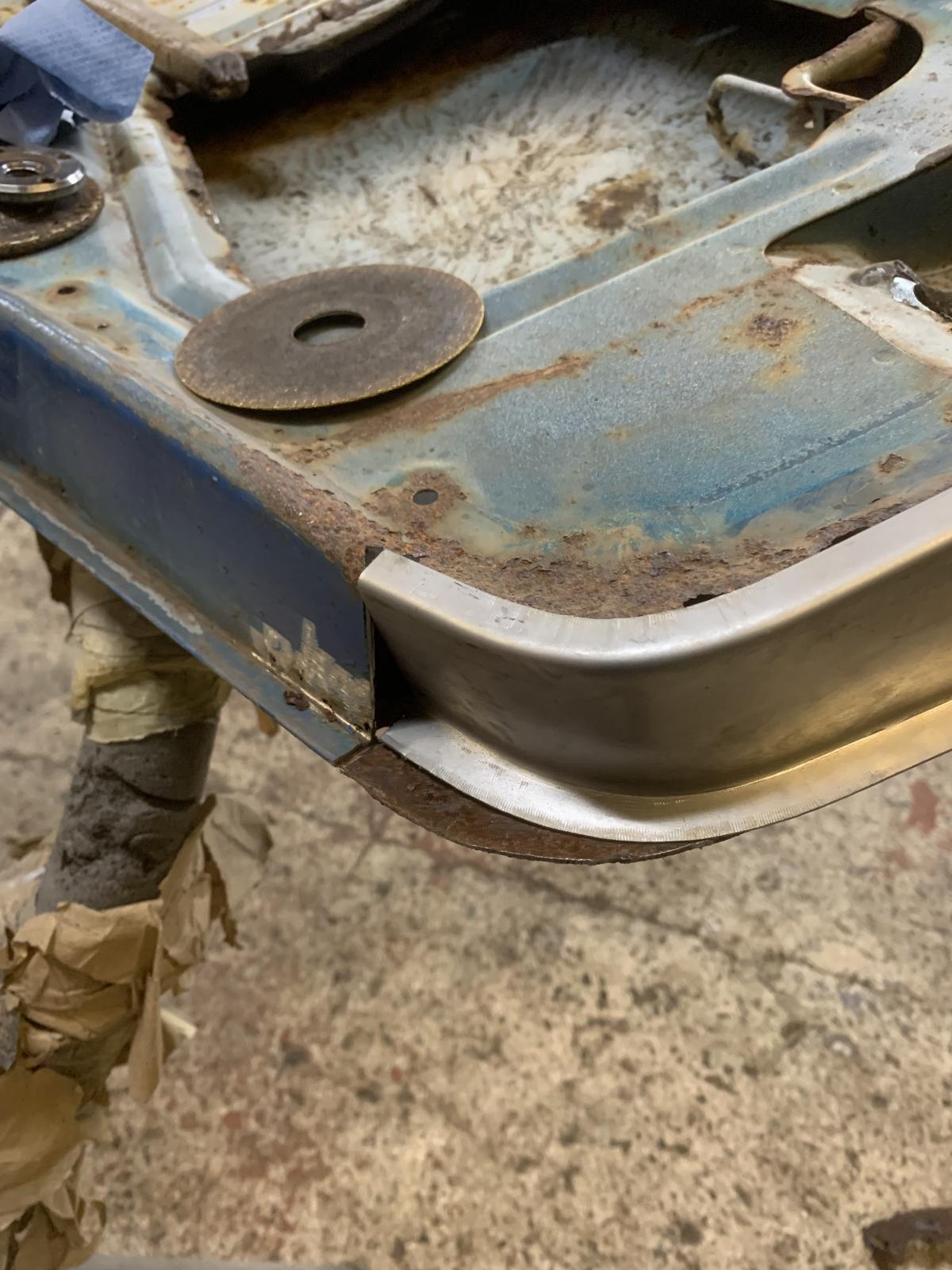

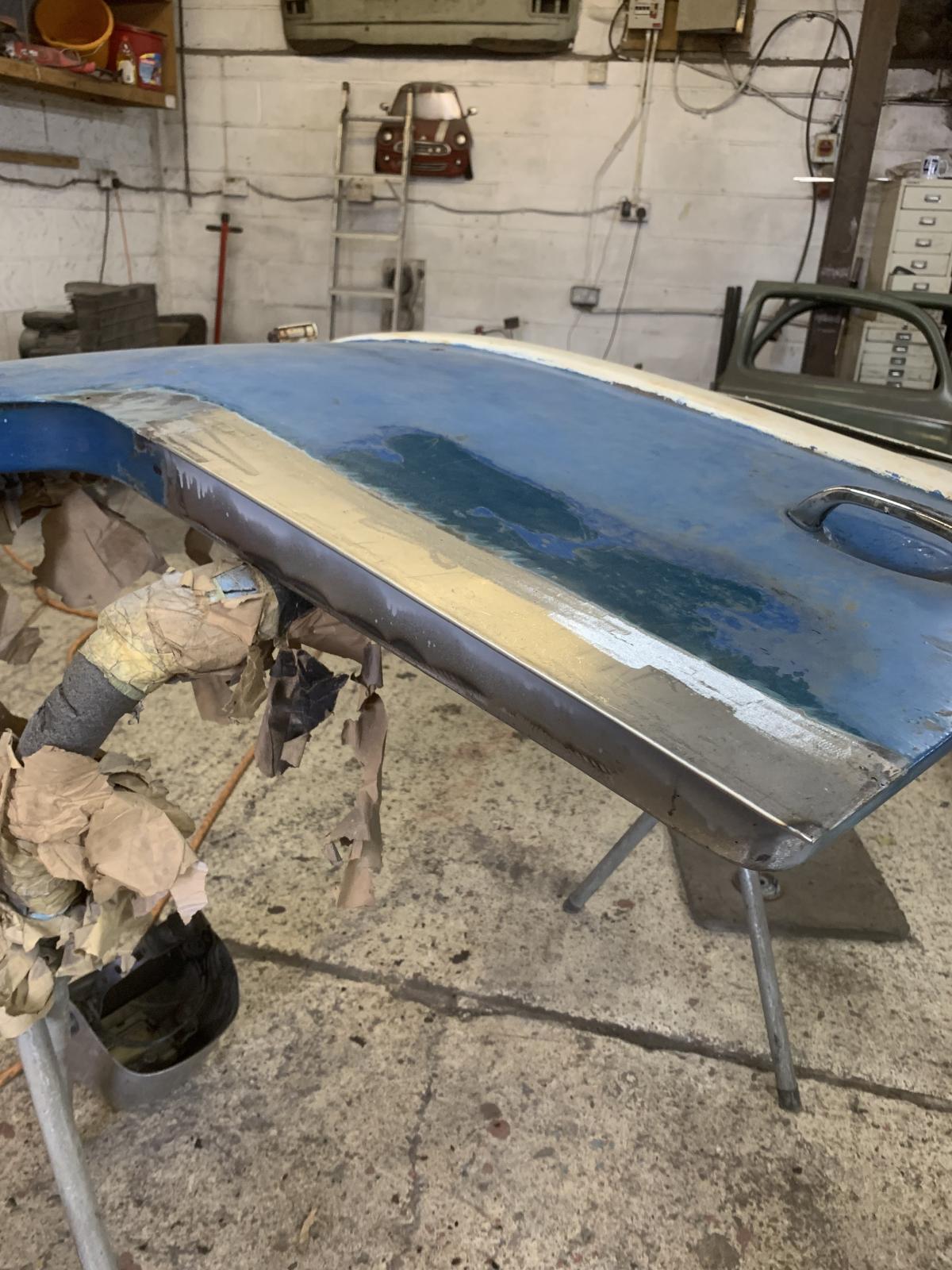

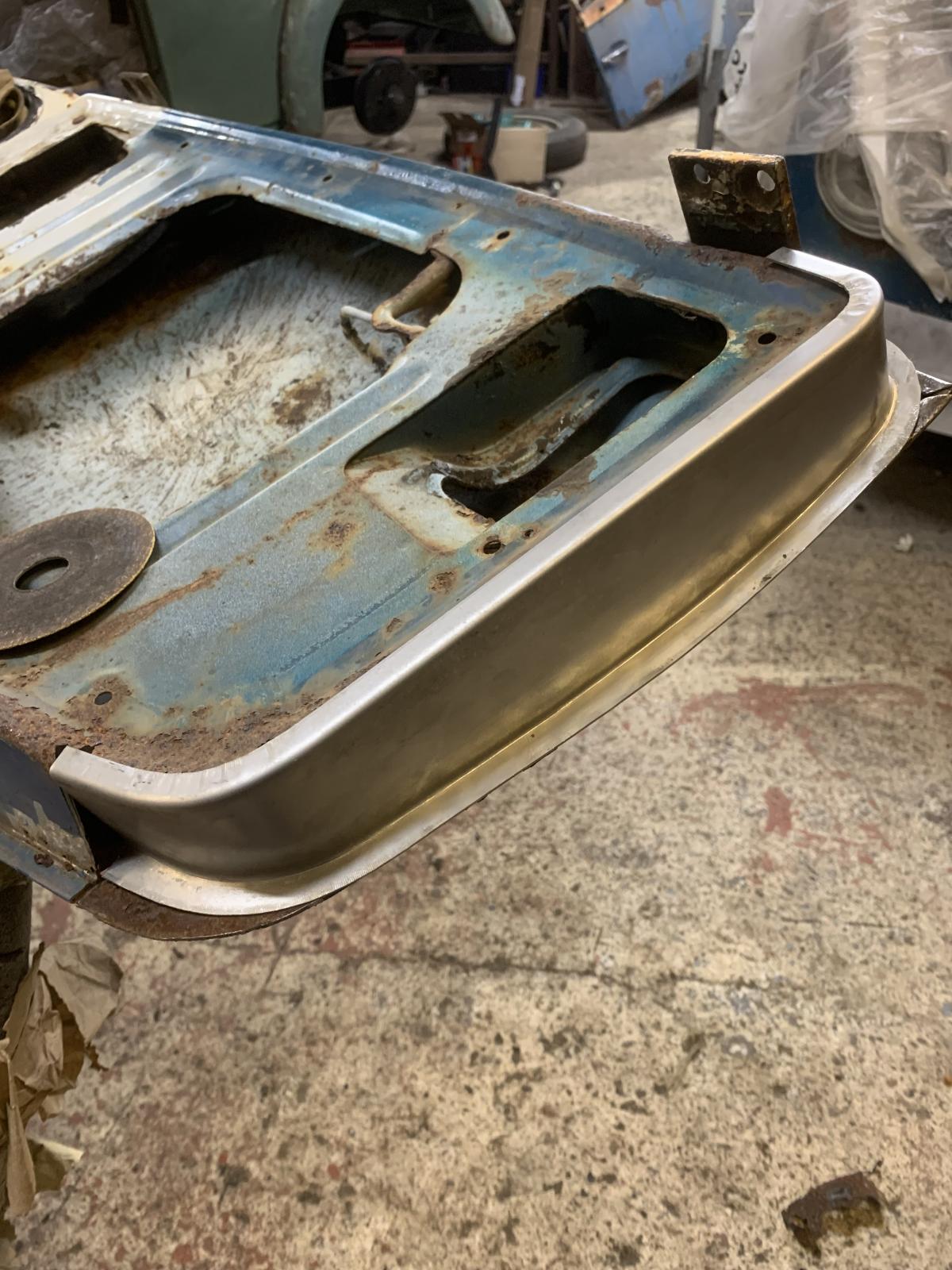

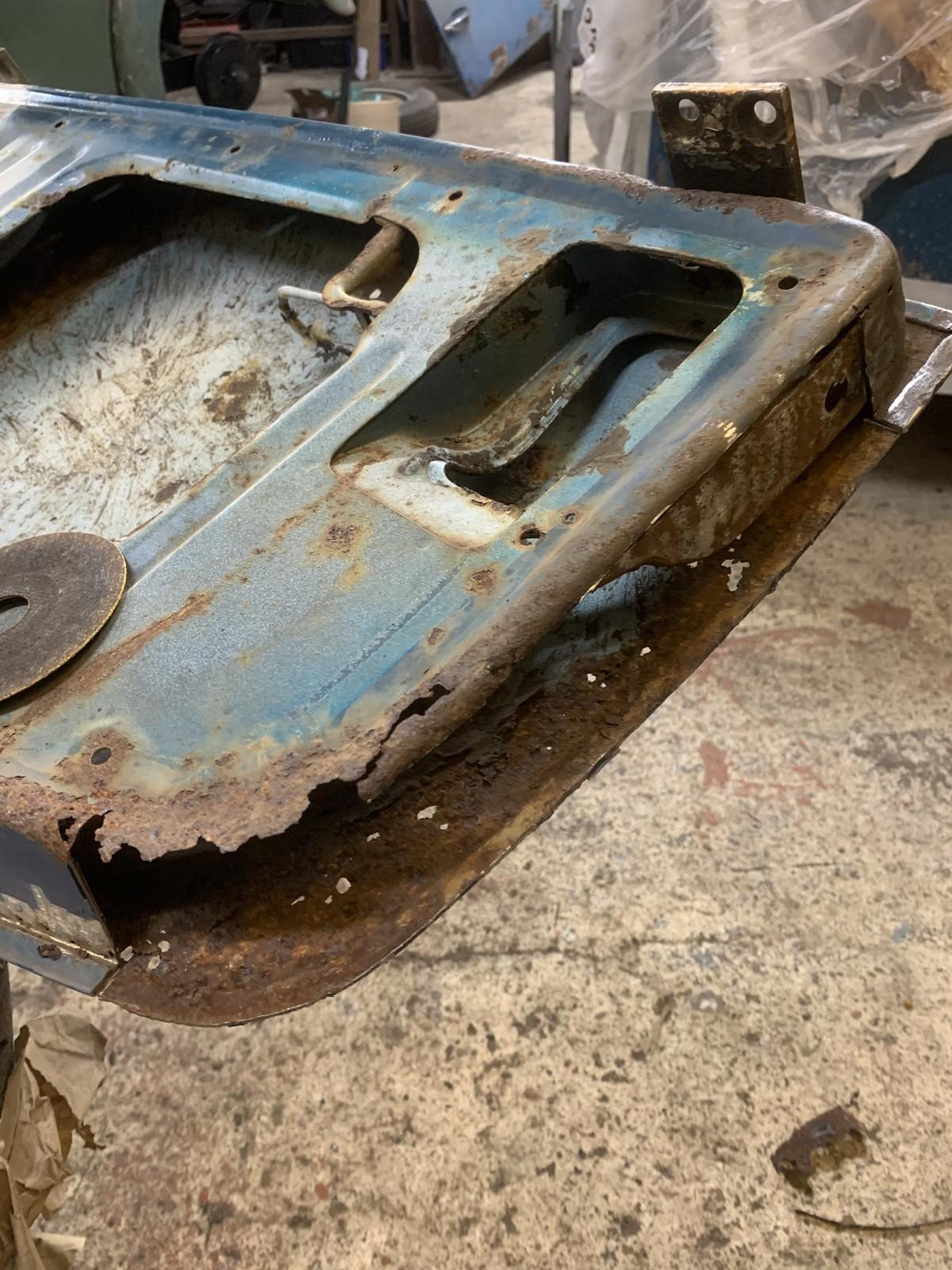

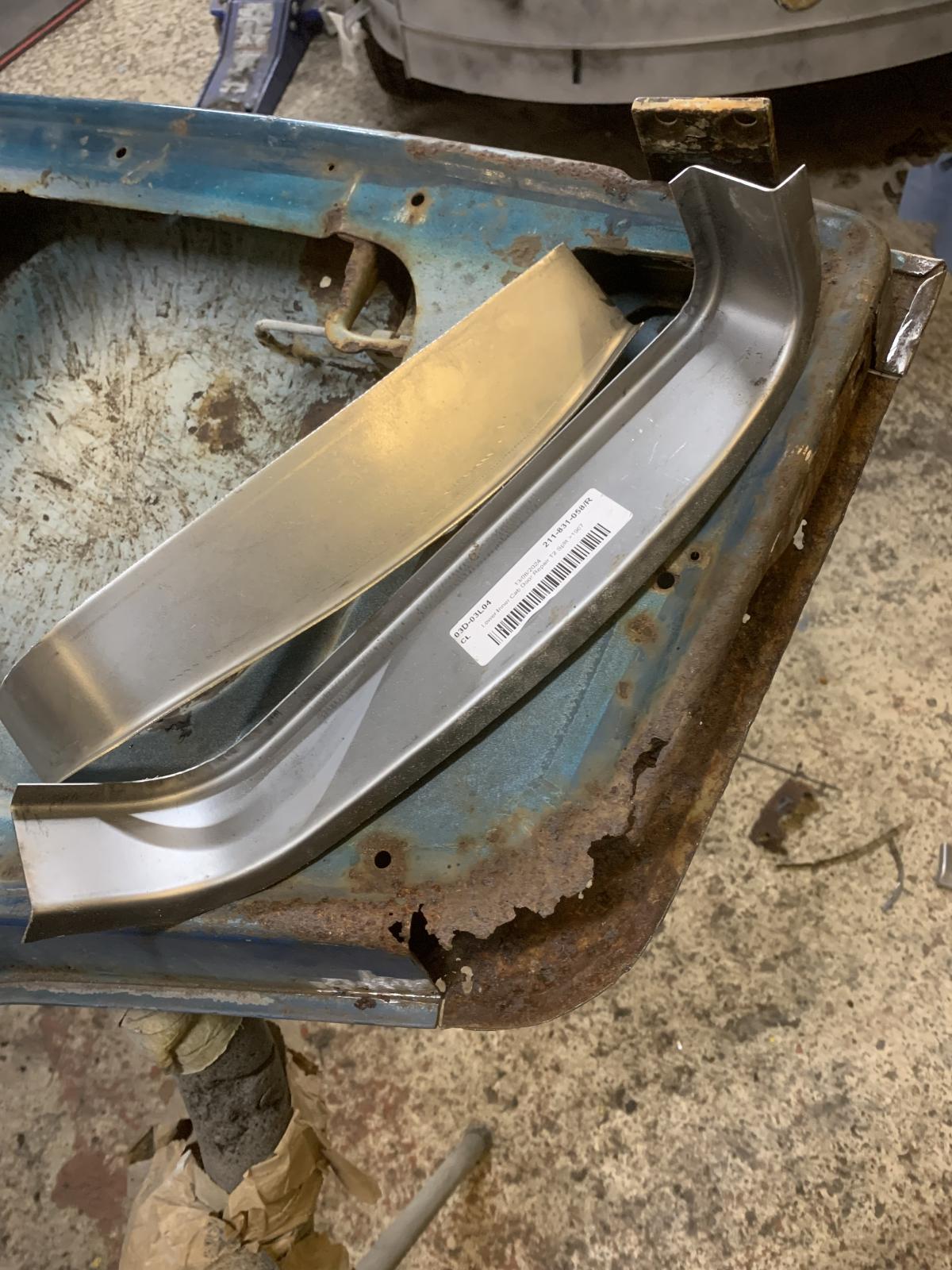

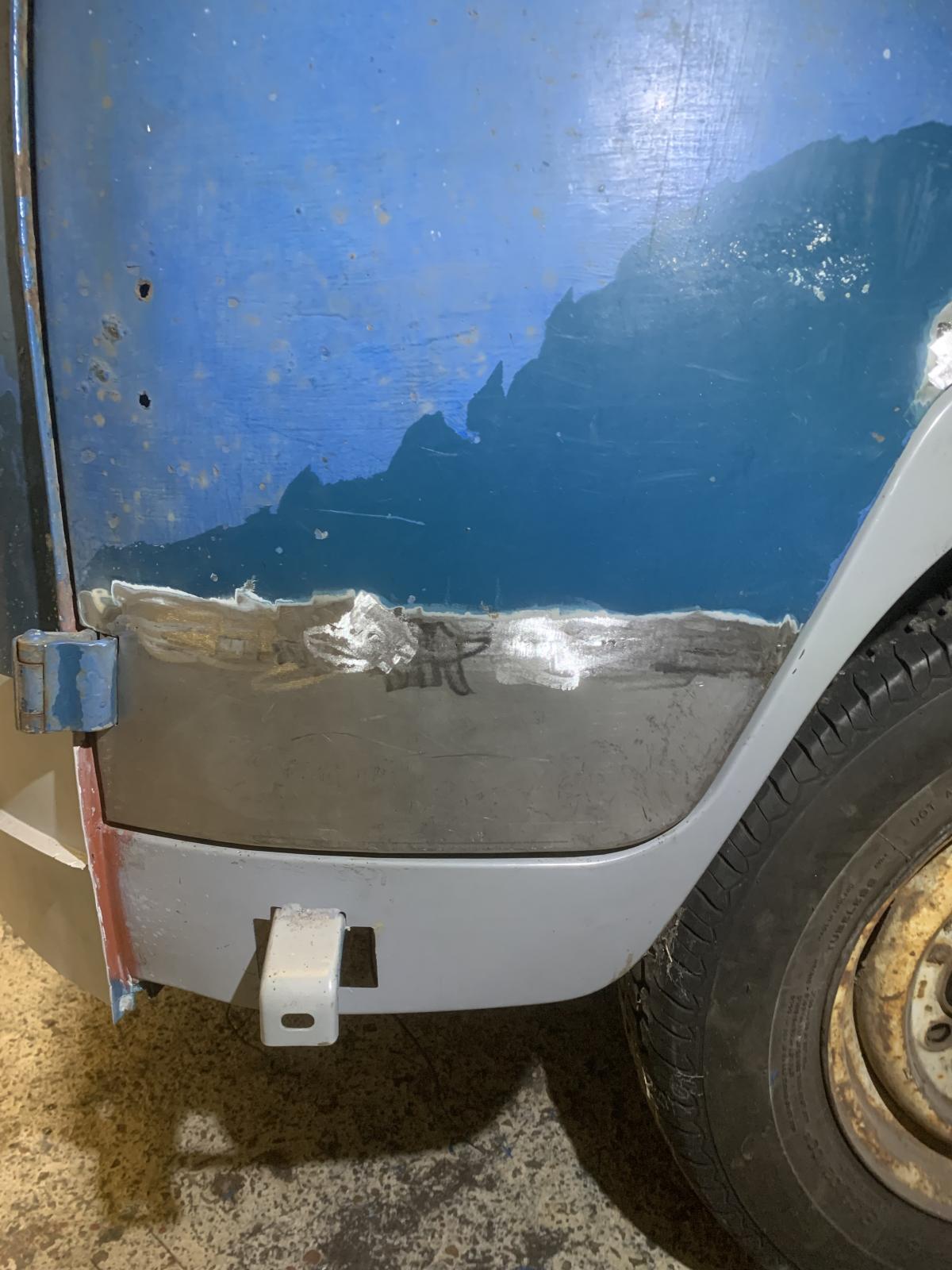

Cab door lower section repairs. The inner repair sections are shite, they don’t even vaguely fit, I had to cut and weld it in several places. The outers are better though, but still took some work.

_________________
http://vintageautorepair.co.uk/

[brothernumberone]

A few more. That’s repairs to both sides primered now.

_________________
http://vintageautorepair.co.uk/

[brothernumberone]

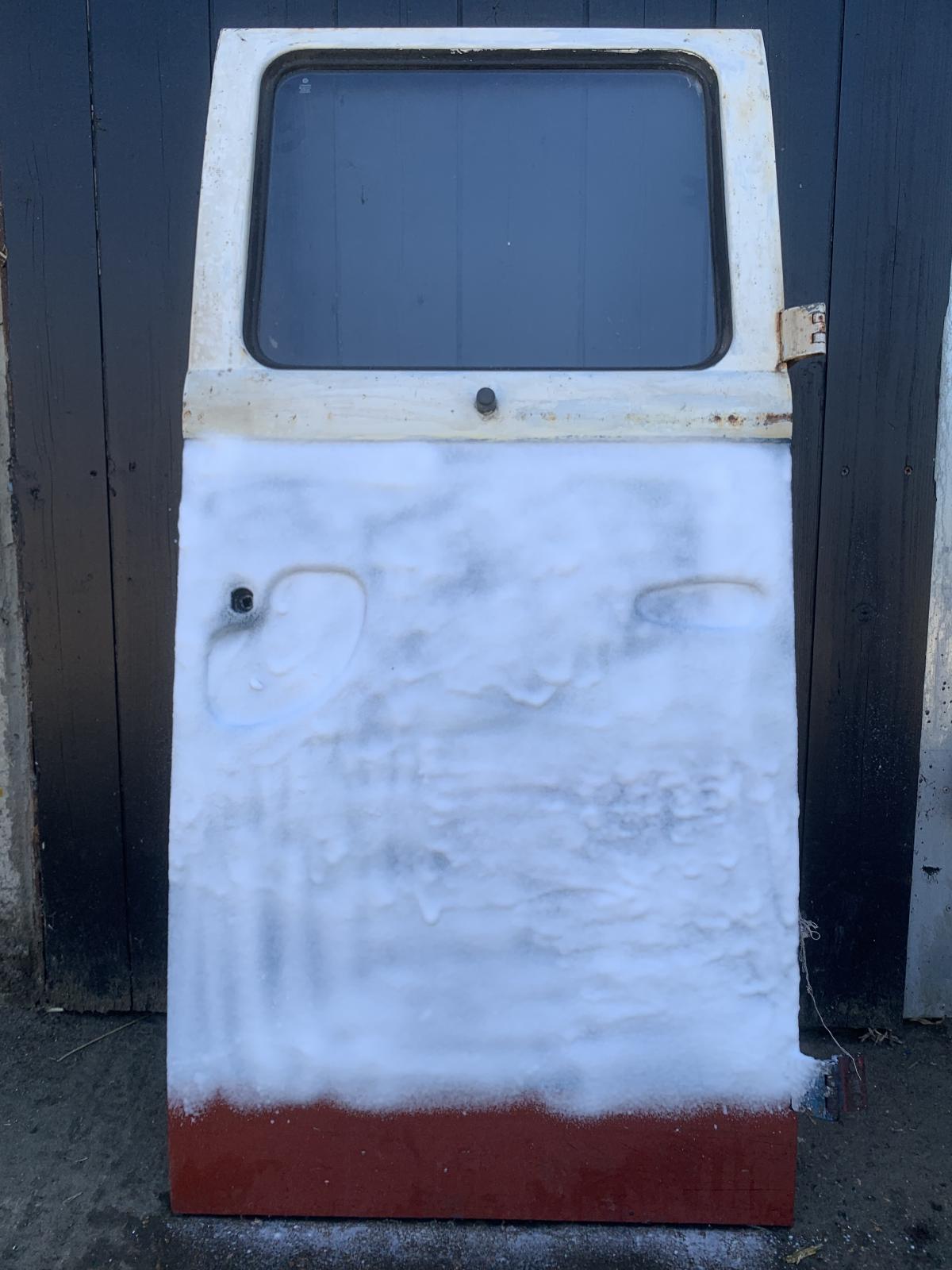

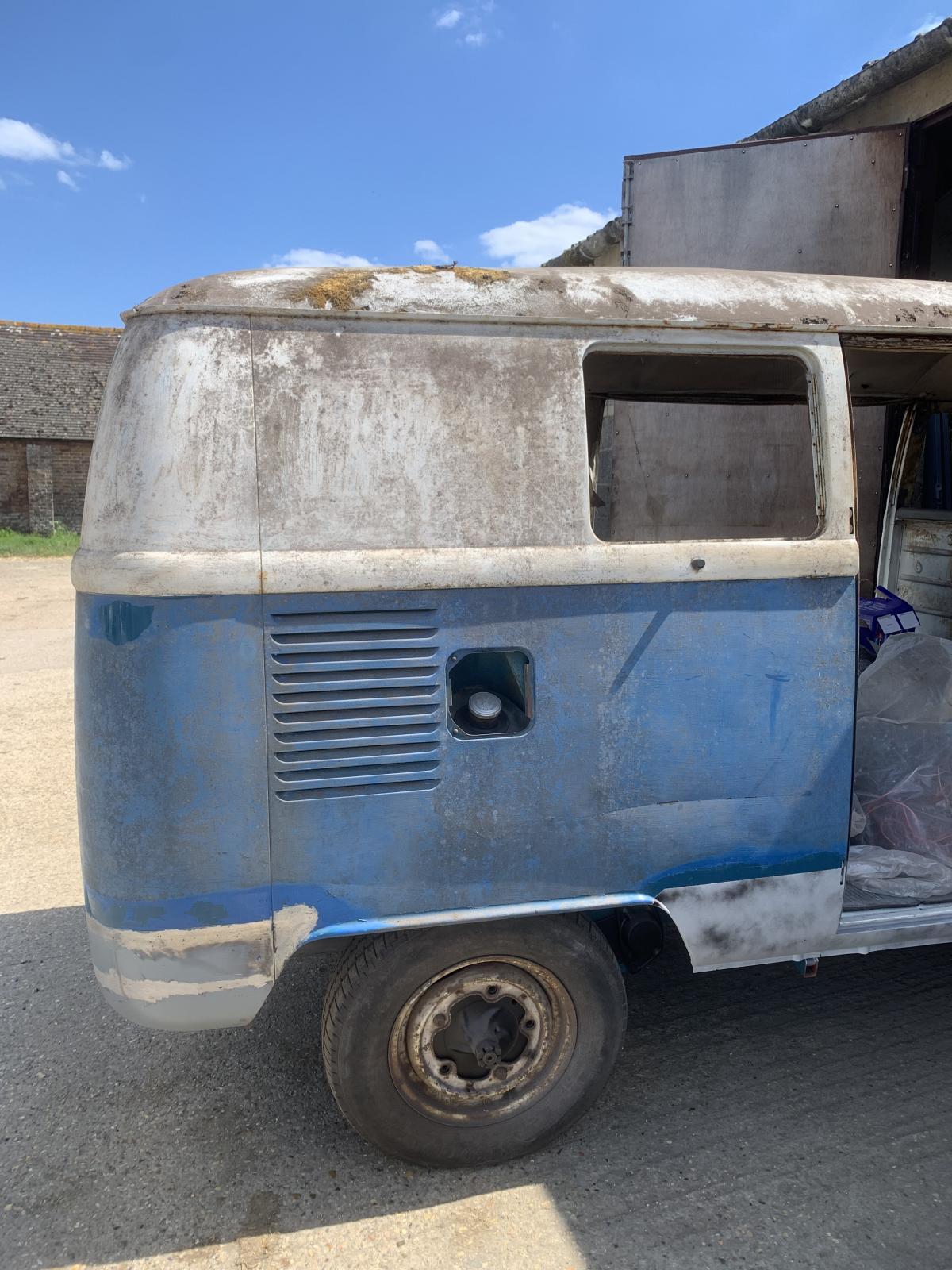

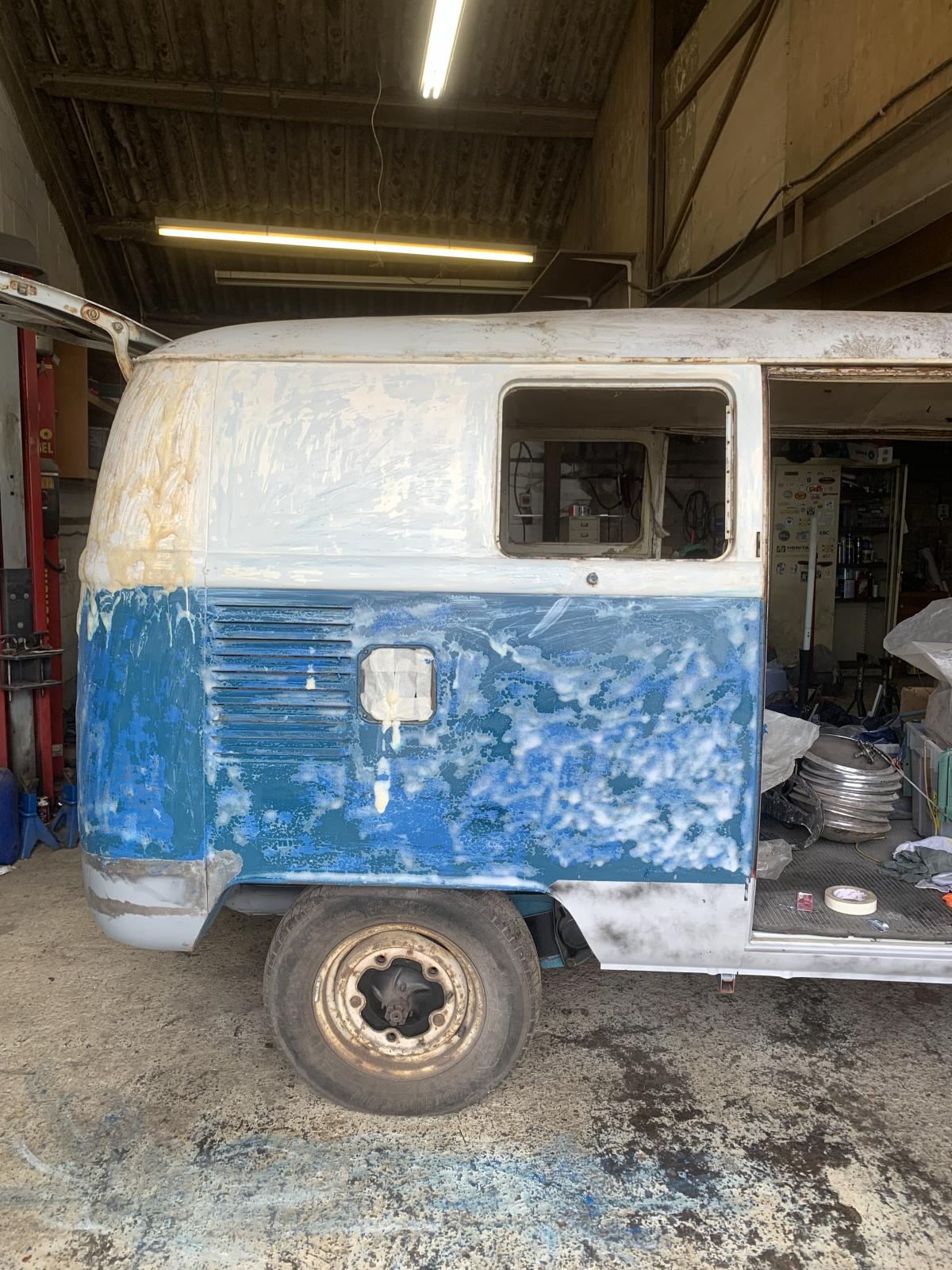

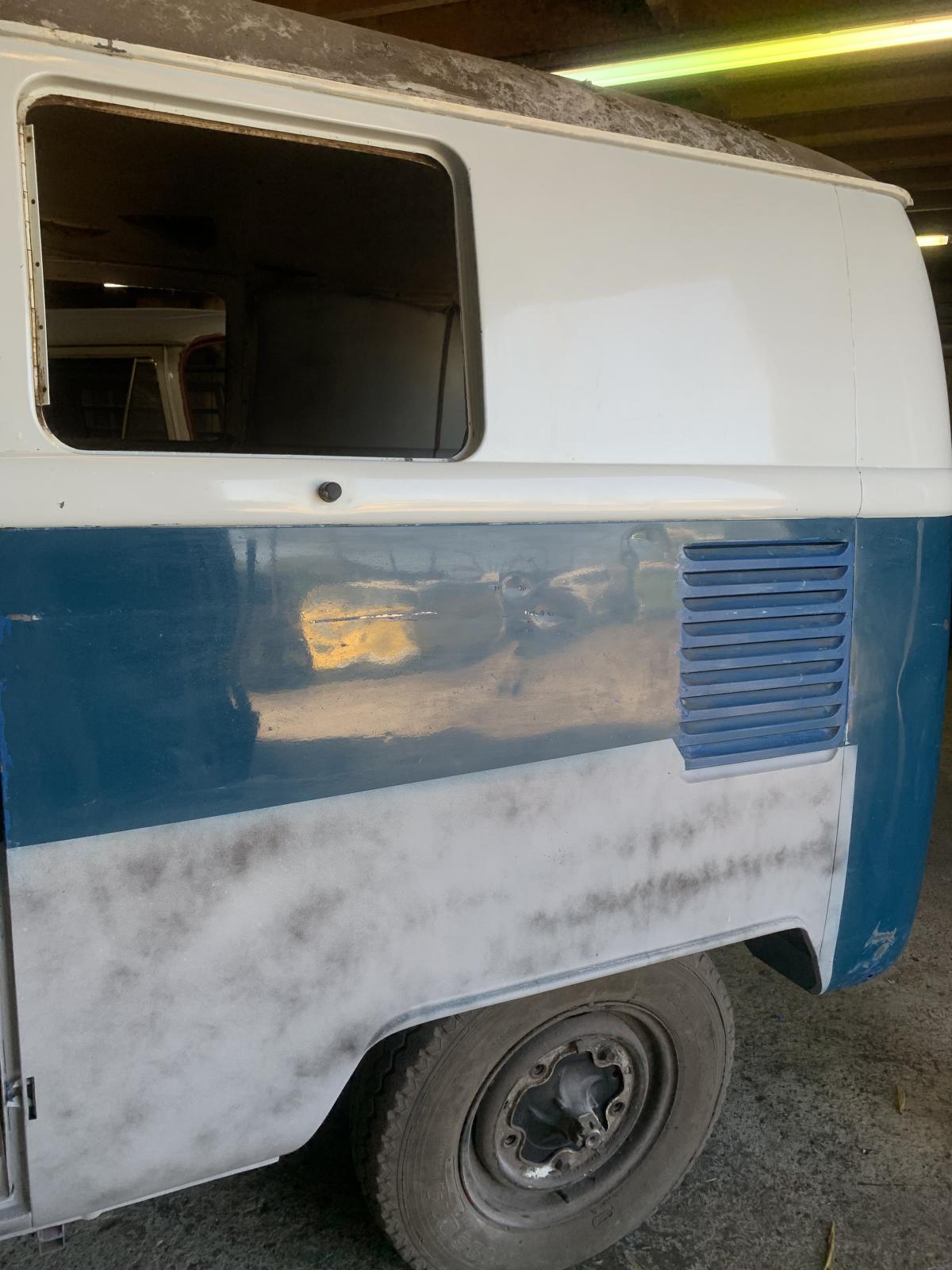

Hi all. Not a huge amount to report, but I have started to strip the hand painted blue off. I’m using oven cleaner. It works quite well. The original Sea Blue is in good condition mostly apart from dents and scrapes. Luckily, whoever hand painted it didn’t key the original stuff. Also, the oven cleaner seems to not damage the original paint, just the top stuff.

_________________
http://vintageautorepair.co.uk/

[brothernumberone]

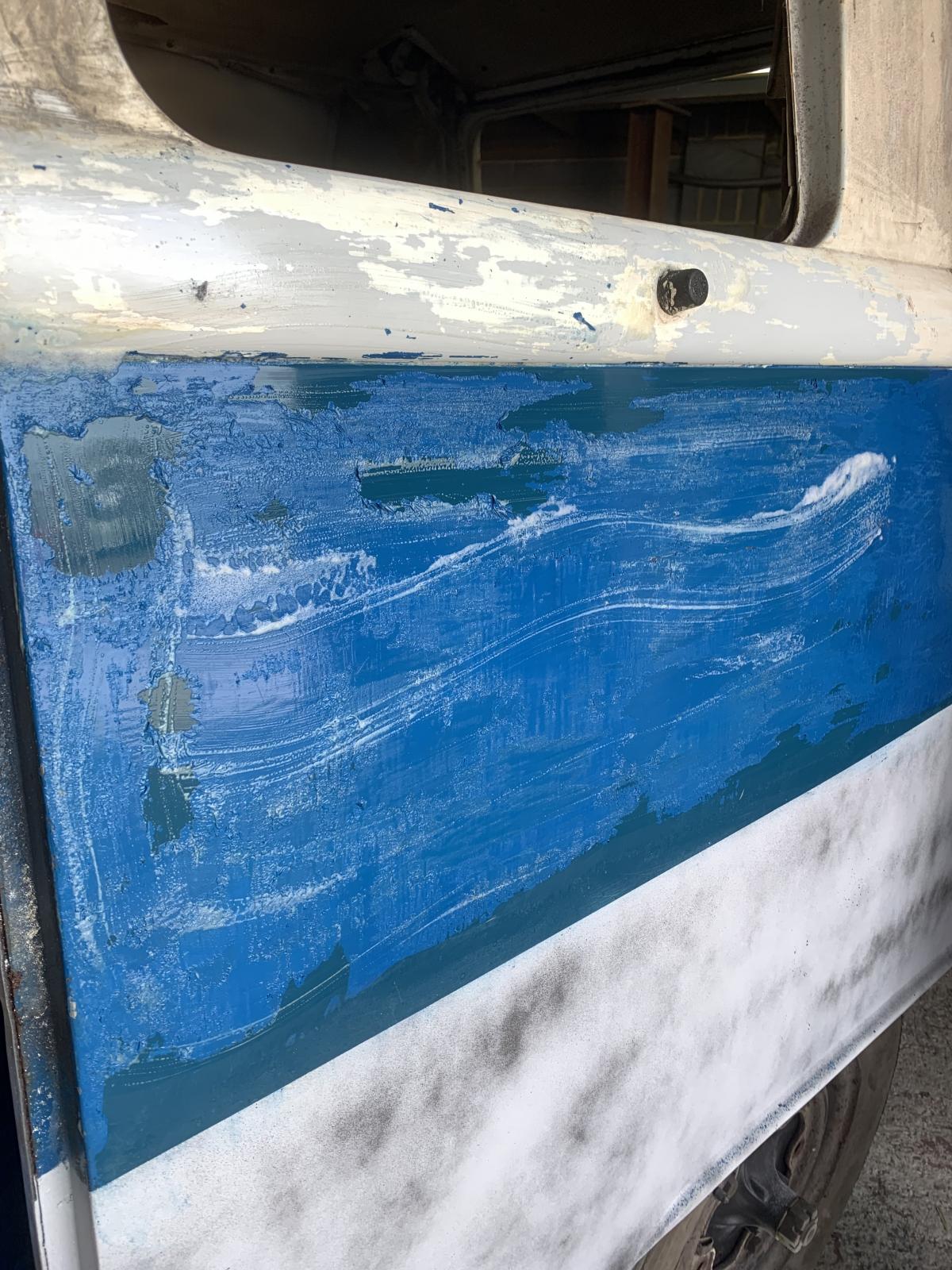

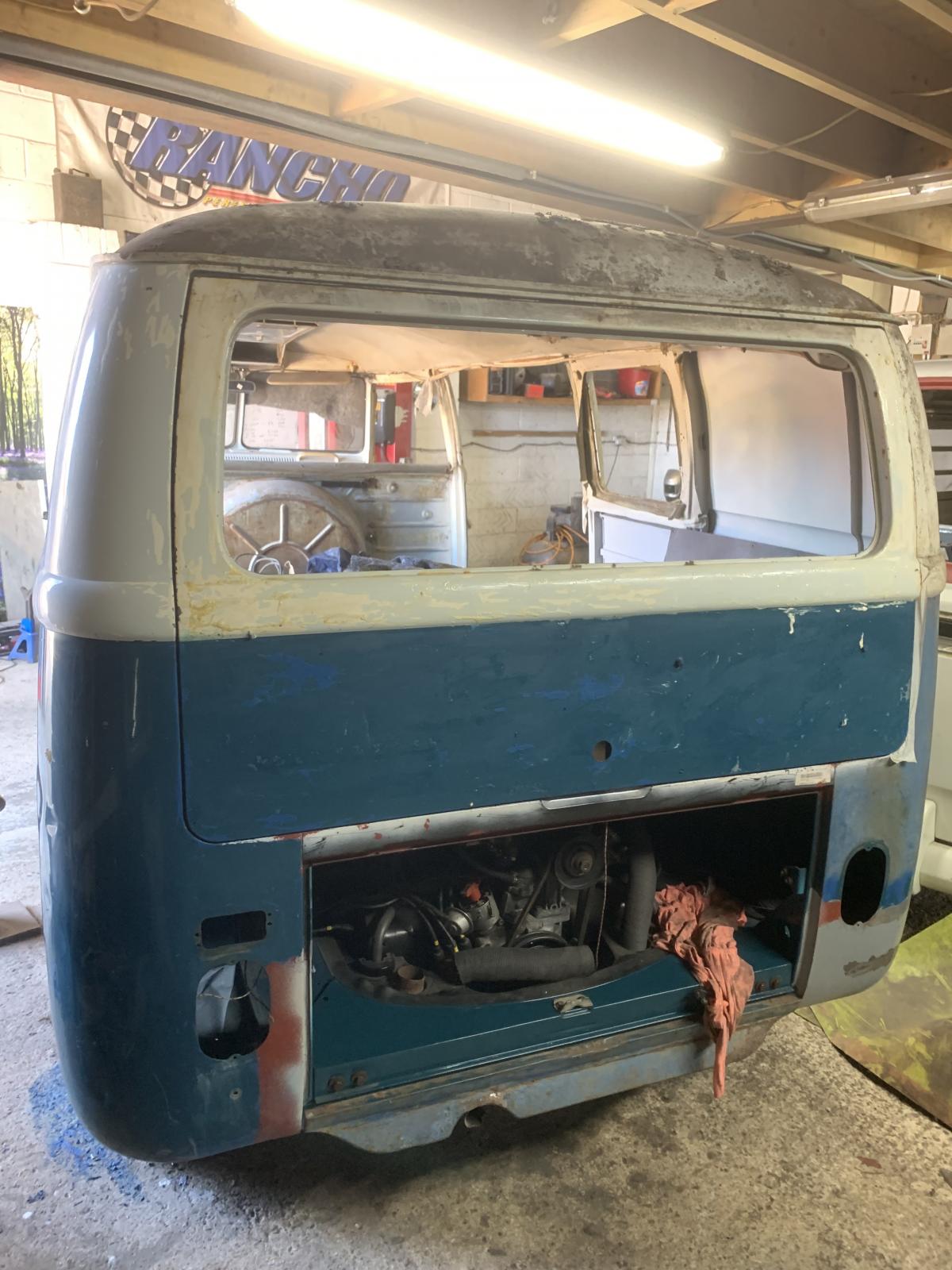

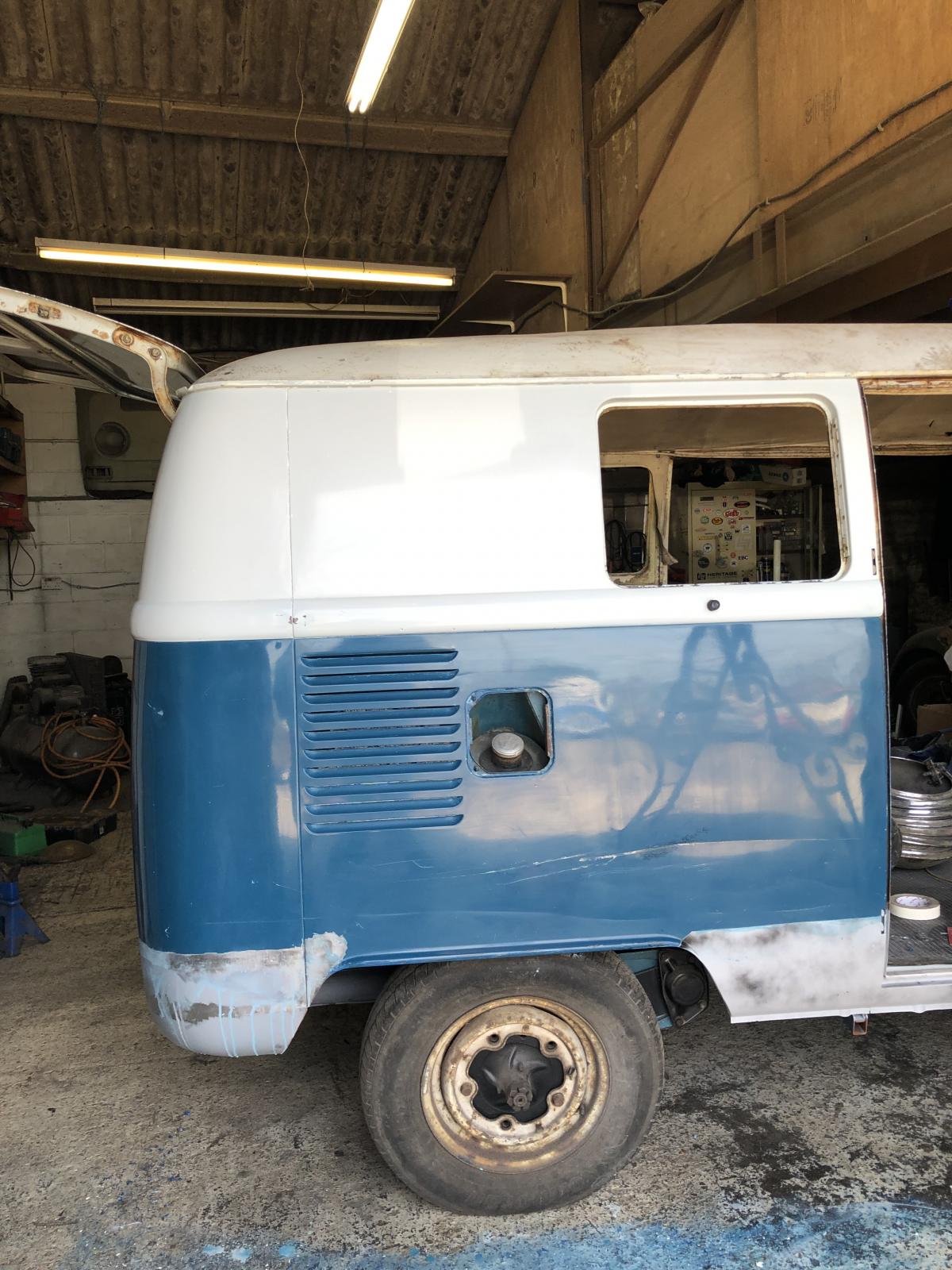

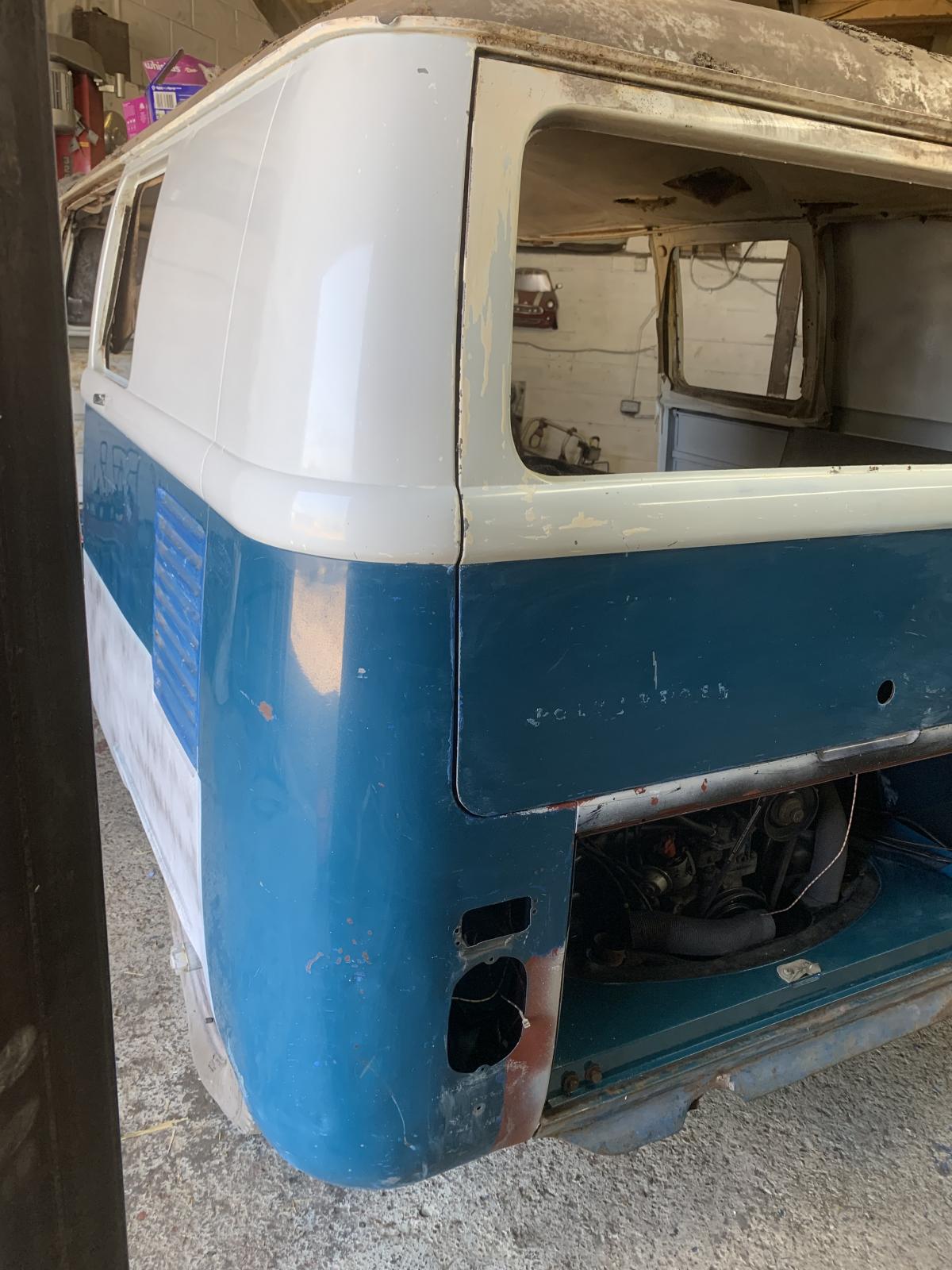

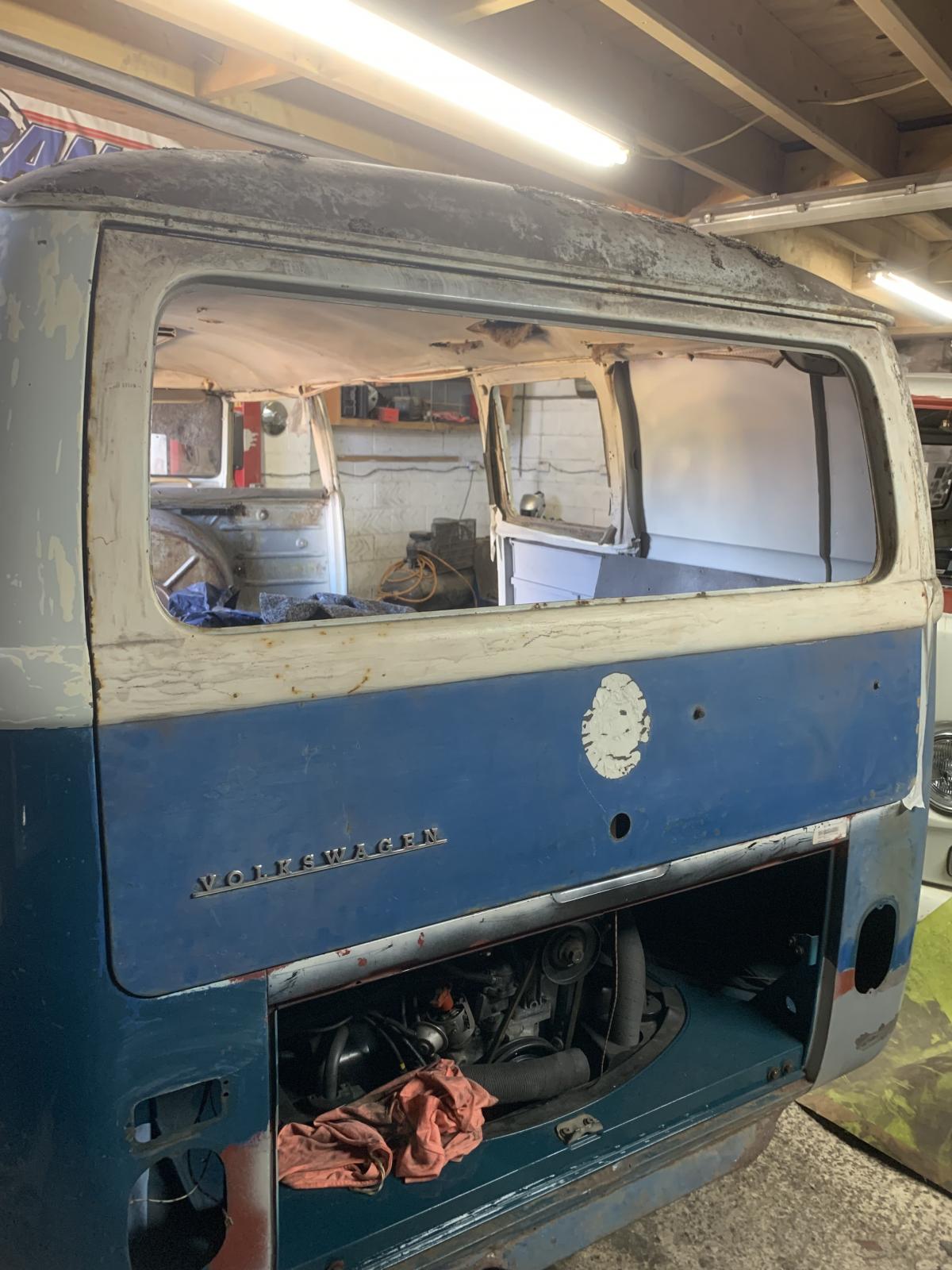

More paint stripping done. I’m using Mr Muscle oven cleaner. It’s working quite well. It seems to take about 3 coats to get back to the sea blue.

_________________
http://vintageautorepair.co.uk/

[pondoras box]

It’s awesome you’re saving this bus. Just because they aren’t barn doors doesn’t mean that we shouldn’t save them with the same amount of love.
_________________
Looking for anything from Hal Casey Motors out of Hamburg New York, from license plate surrounds to matchbooks.

1961 23 Window (Bobo)
1965 11 Window (Zelda). https://www.thesamba.com/vw/forum/viewtopic.php?t=563183
1965 13 Window (Lucas)
1957 Oval ragtop
1960 hardtop
1964 hardtop
1965 hardtop
1988 Cabriolet VR6 conversion
Plus a lot of other rusty junk

[brothernumberone]

[EverettB]

Wow, the original paint came out really nice!
