1984 Vanagon - Suspension work needed
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
netforest
Samba Member


Joined: August 01, 2006
Posts: 14

netforest is offline

PostPosted: Sat Jul 12, 2025 7:13 pm    Post subject: 1984 Vanagon - Suspension work needed Reply with quote

I am thinking about investing in suspension work on my Vanagon that I have owned for 20 years or maybe I should sell it. The body and engine are in good condition, but driving it feels pretty rough on the road. Feel every bump.

I know front and rear end work can involve a lot of cost and work depending on what is needed. Front shocks/struts, Upper & lower control arm bushings, Ball joints (upper/lower), Tie rods (inner & outer), Steering rack (if needed), Sway bar bushings & links. My question is how much smoother will the ride be if I decide to address what is needed?
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 8378
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Sat Jul 12, 2025 8:04 pm    Post subject: Re: 1984 Vanagon - Suspension work needed Reply with quote

netforest wrote:
…how much smoother will the ride be if I decide to address what is needed?

A) “ALL THE WAY” smoother.

Laughing Wink

First of all, if we’re talking about ”ride”, what tires are you running? My old D rated tires were WAY lumpier & bumpier than my current, lighter LT tires. Unsprung weight makes a difference, as does inflation. Maybe try a slightly lower tire pressure, see what happens? (Within reason, say 5% to 10%.) FWIW: Recommended front tire pressure is usually 5%-10% lower than rear on these rigs. So yeah…what you running?

After that, look at your shocks. What brand are they? How old are they? Do a quick & dirty test by putting your foot on one end of the bumper, drop your weight on it & let it go. If the van bounces back up more than once, that’s probably a bad shock. Test all 4 corners to verify. If indicated, put new in & see what you think.

You can certainly do a visual check of all the suspension rubber bits & related hardware, but that may not tell you all you need to know. With good shocks you should not get any real hard metallic bumps or clunks while driving…if those are present, the rubber bits &/or hardware are suspect. Try to pin down the offending bit & try to see why.

What else? Everything…but start with this.

Cool

- Dave
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sanchius Premium Member
Samba Member


Joined: May 03, 2007
Posts: 1559
Location: IN
sanchius is offline

PostPosted: Sun Jul 13, 2025 6:10 am    Post subject: Re: 1984 Vanagon - Suspension work needed Reply with quote

netforest wrote:
I know front and rear end work can involve a lot of cost and work depending on what is needed ... My question is how much smoother will the ride be if I decide to address what is needed?

You will get the biggest bang for the buck replacing your shock absorbers, the rears are dead simple, the fronts require more care: https://www.thesamba.com/vw/forum/viewtopic.php?p=8604067&highlight=easiest#8604067

When I fully renewed & upgraded my 2WD suspension, my goal was to remove the slop from all the aged/expired bushings. I wasn't expecting the ride to be smoother, just more precise. I went with the poly bushings because I knew I would be spending a lot of time off road. However, now that most/all of my driving is on-road, I might choose stock over poly for a less stiff/harsh ride quality.

While not the simplest job, it is quite doable yourself. I did all the work myself in my garage, save for the final alignment. Just use an overabundance of caution when working with the springs and underneath the vehicle.

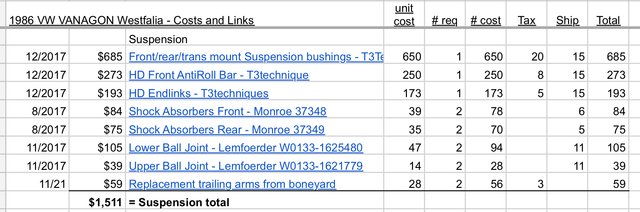

As far as costs goes, what I spent in 2017 (with links to the parts) is in the spreadsheet link in my .sig at the bottom of this post. Here's a screenshot of the suspension portion of the spreadsheet, unfortunately these are pre-pandemic/pre-tariff prices:

[ Link fixed, thanks Dave! ]
Image may have been reduced in size. Click image to view fullscreen.

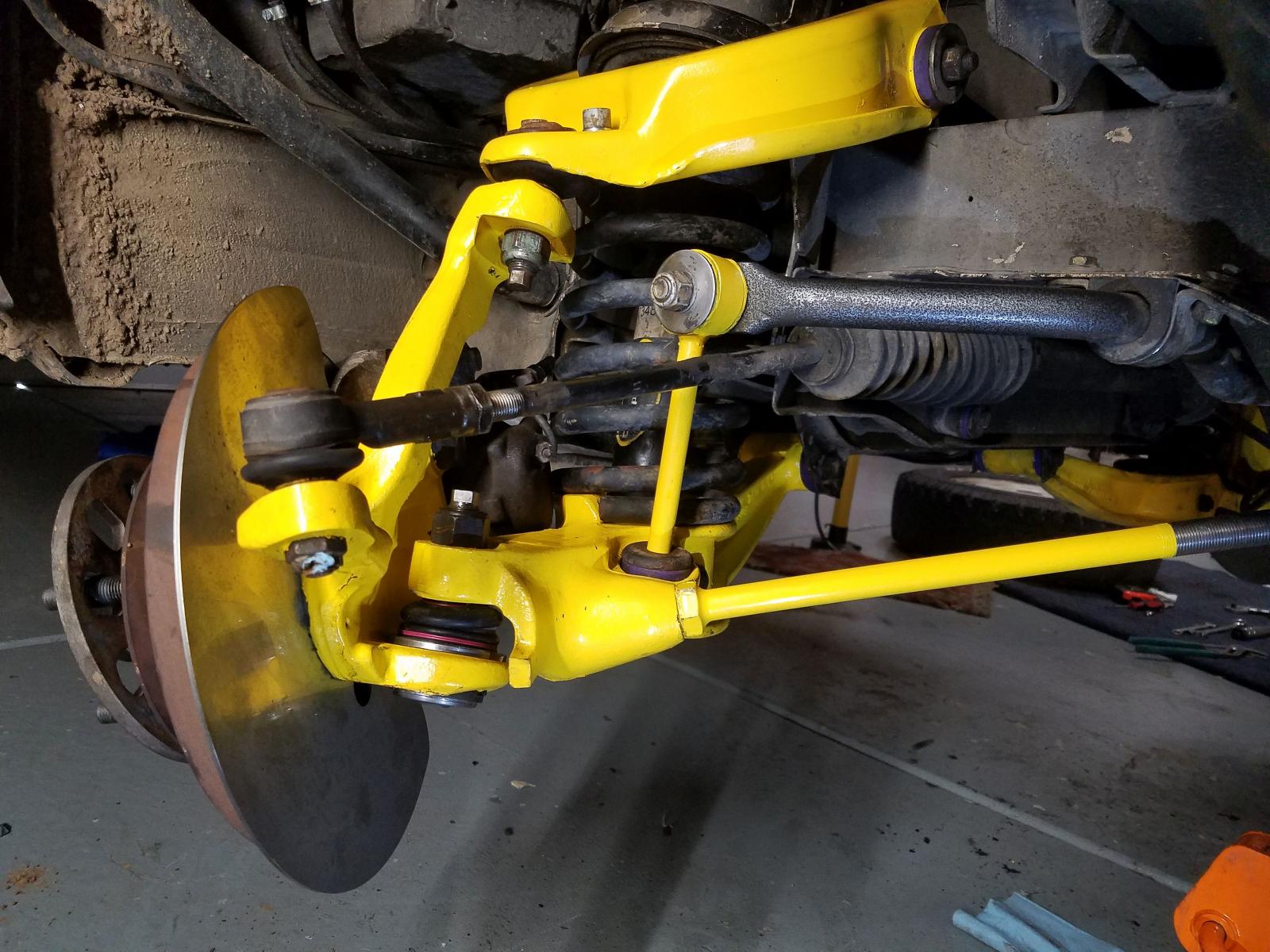

I like to paint the big parts I touch Tonka Truck yellow. Wirebrushing and cleaning the parts allows me to examine them closely for any damage. Now, whenever I see that familiar flash of yellow under the vehicle, even years later, it always makes me smile and reminds me that, "Yeah, I fixed/renewed that right."

Image may have been reduced in size. Click image to view fullscreen.

Two items missing from the costs above are a heavy-duty 6" bench vise and a 20-ton press. While the press was not absolutely essential, it proved very handy for many different applications. These tend to be very affordable used and when I was finished with the press, I sold it for $200 more than I had into it, which allows me to buy more fun stuff for the van.

Image may have been reduced in size. Click image to view fullscreen.

_________________
The Syncro years (2005-16) - The 2WD years (2017-23) - In Hoosierland (2023-now)
Westy & WBX rebuild spreadsheet - Sanchius & Tuna: The Video
Your gold star membership keeps this awesome list going!


Last edited by sanchius on Mon Jul 14, 2025 3:42 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 8378
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Sun Jul 13, 2025 7:23 am    Post subject: Re: 1984 Vanagon - Suspension work needed Reply with quote

sanchius wrote:

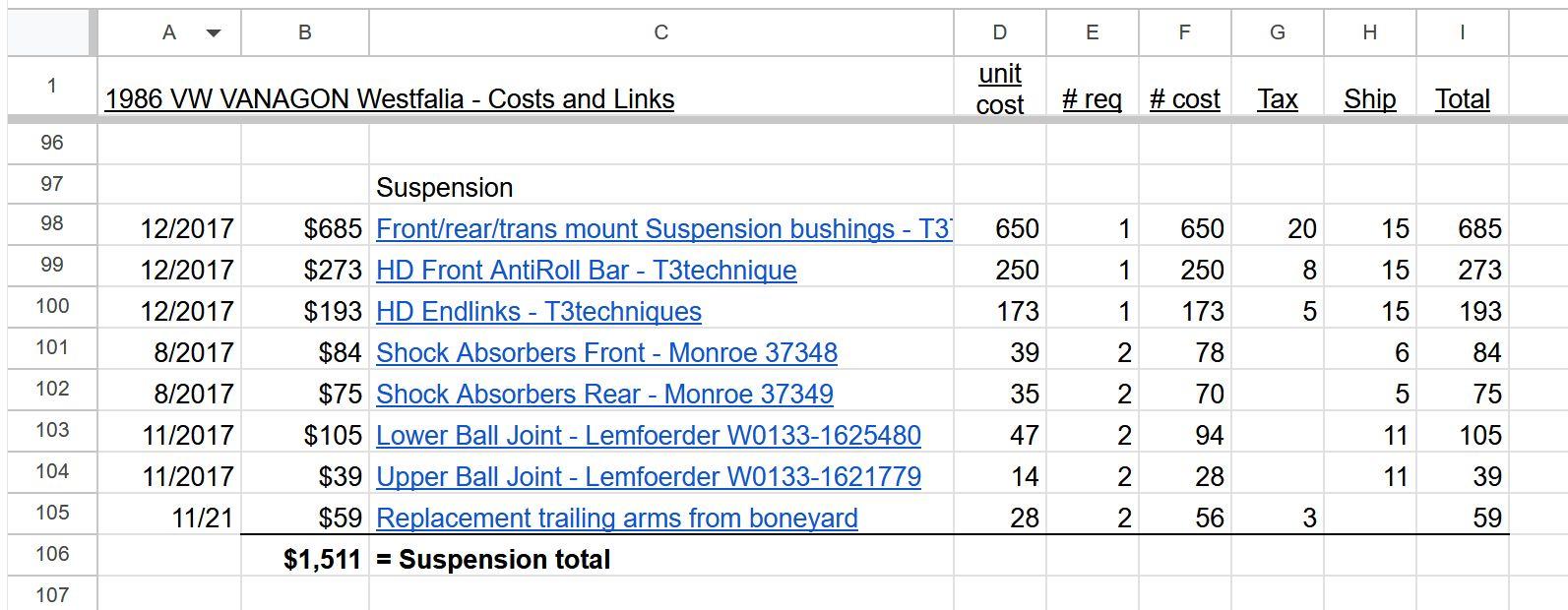

… Here's a screenshot of the suspension portion of the spreadsheet,
unfortunately these are pre-pandemic/pre-tarriff prices:

Image may have been reduced in size. Click image to view fullscreen.

No pic (inadequate VW content?) but I fixed it:

Image may have been reduced in size. Click image to view fullscreen.

Cool

- Dave
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dieseltdi
Samba Member


Joined: September 07, 2006
Posts: 769
Location: Grapevine, Texas
dieseltdi is offline

PostPosted: Sun Jul 13, 2025 7:46 am    Post subject: Re: 1984 Vanagon - Suspension work needed Reply with quote

Just finished an entire rebuild of the front suspension on my 82 hightop. I had already done ball joints, new steering rack and new heavy duty sway bar set up but the squeaks and knocks were still present. Soooo I did all the front bushings: upper control arm, radius rod bushings and lowered control arm bushings and new heavy duty shocks. After the alignment, I could not believe how much quieter and smoother and tighter everything was. I did all the work myself so my cost was simply parts and back pain. Very Happy Well worth it though.
_________________
When a clown moves into a palace he doesn’t become a king, the palace instead becomes a circus. — Turkish proverb

Those who will willingly sacrifice freedom for security, deserve neither.

Currently:
1982 Vanagon Westy TDI conversion with Coast Mt. Hightop - SKYE
2025 Hyundai Ioniq 6 EV
2015 Golf Sportwagen S TDI
Way too many previously owned to list!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dieseltdi
Samba Member


Joined: September 07, 2006
Posts: 769
Location: Grapevine, Texas
dieseltdi is offline

PostPosted: Sun Jul 13, 2025 7:48 am    Post subject: Re: 1984 Vanagon - Suspension work needed Reply with quote

Duplicate post
_________________
When a clown moves into a palace he doesn’t become a king, the palace instead becomes a circus. — Turkish proverb

Those who will willingly sacrifice freedom for security, deserve neither.

Currently:
1982 Vanagon Westy TDI conversion with Coast Mt. Hightop - SKYE
2025 Hyundai Ioniq 6 EV
2015 Golf Sportwagen S TDI
Way too many previously owned to list!


Last edited by dieseltdi on Tue Jul 15, 2025 6:19 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
AndyBees
Samba Member


Joined: January 31, 2008
Posts: 2623
Location: Southeast Kentucky
AndyBees is offline

PostPosted: Sun Jul 13, 2025 8:02 am    Post subject: Re: 1984 Vanagon - Suspension work needed Reply with quote

Tires and pressure as dhaavers stated are extremely important.

I rebuilt the front suspension on my 84 Tin-top in 2011/12. However, the mistake I made was not paying attention to the quality of the parts I got. I purchased and never opened the boxes for almost a year. Wow! Most of those famous name brands were made in China. At that point, I was in a hurry and installed them anyway............ less than 30k miles later, most of them needed to be replaced.

Later, I installed OE hydraulic shocks .......... way too soft and tippy when cornering. So, I'm going back to something a little more robust.

These 40+ year old contraptions are tired. But, we can bring them back.

Keep us posted.
_________________
'84 Vanagon Tin-top, ALH TDI, two trips to Alaska, 2014 & 16. 1989 Tin-top unmolested.
1983 Air-cool, 225k miles, 180k miles mine, seven trips to Alaska from 1986 thru 2003. 1975 Bay hopeful.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Ahwahnee
Samba Member


Joined: June 05, 2010
Posts: 10214
Location: Mt Lemmon, AZ
Ahwahnee is offline

PostPosted: Sun Jul 13, 2025 8:20 am    Post subject: Re: 1984 Vanagon - Suspension work needed Reply with quote

I'd start with the low-hanging fruit... shocks and anything obviously broken or failing.

My Westy was all original when I got it and in the 36 years since the only suspension work I've done has been the shocks, upper ball joints and new boots on the lower ball joints. Seems to ride and handle fine, though rough roads (which everywhere in Tucson) will still feel rough.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 52301

Wildthings is offline

PostPosted: Sun Jul 13, 2025 6:28 pm    Post subject: Re: 1984 Vanagon - Suspension work needed Reply with quote

I just rented a brand new pickup truck from a leading rental company and could barely keep it on the roadway while going down the interstate, especially over concrete sections. The truck was empty except for me and a knapsack, but the tires were pumped up to the full rated pressure, wheras an empty truck needed only half as much.

On my both my '91 with P215/75r14s and my '83 1/2 with 27x8.5r14s I run in the mid 20 psi for my front tires and in the mid 30s for my rear tires when I am not hauling much.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
4Gears4Tires
Samba Member


Joined: October 08, 2018
Posts: 4157
Location: MD
4Gears4Tires is offline

PostPosted: Mon Jul 14, 2025 7:31 am    Post subject: Re: 1984 Vanagon - Suspension work needed Reply with quote

On my Syncro that I have had on the road for 7 years now, it handles really nicely and it's very planted. It's on 27x8.5x16 (close to 215/65/16), all bushings are in good shape, and it's on Fox suspension. I've taken care of everything. I really enjoy driving it.

The Westy I literally just got on the road this weekend, which sat for 25 years, needs all the suspension work. I've only replaced the rear shocks and the tires (185R14, no mention of the sidewall but they are tiny). Bushings are cracked, front shocks are certainly blown, the front passenger tire looks like it has way too much camber, etc etc... It drives straight but once I hit a bump... oof. Doesn't feel great.

I can tell you first hand, from yesterday, if you replace all your suspension you are going to be blown away with the difference.
_________________
'87 Syncro Ferric Oxyhydroxide Superleggera Edition
'85 Westy Sciuridae Domus Edition
Back to top
View user's profile Send private message Gallery Classifieds Feedback
hardway
Samba Member


Joined: January 03, 2012
Posts: 485
Location: Fidalgo Island
hardway is offline

PostPosted: Tue Jul 15, 2025 2:16 pm    Post subject: Re: 1984 Vanagon - Suspension work needed Reply with quote

Rubber is usually the weak link in any system on any vehicle. Suspension bushings fail in multiple ways. Shock and spring rates are a personal preference. On modern vehicles play in ball joints should not exist.

Is your complaint harshness in general or feeling every bump? The Vanagon was designed to be an economy truck with good handling. A soft and cushy ride is not part of the design criteria.

I have done a lot of suspension and steering work through the years. For a long time any Polyurethane bushings were made for the boy racer crowd. They were way too stiff and squeaked like hell.

So I have stuck with with factory or aftermarket rubber for a long time. A few years ago I was so disappointed with the available rubber bushes for Vanagons that I actually tried the PowerFlex poly bushings. Cristopher at T3 Technique assured me that they would not squeak with the "bushing snot" he supplies.

So I gave it a try. I have fitted several vans with the PowerFlex bushings. Each of them has been transformed. The difference is remarkable. They are now much quieter on imperfect pavement. They are much more "comfortable" to drive. I do not know how they will age. But they can't be as bad as the current aftermarket rubber bushings. And so far no squeaks! They obvious downside is that the snot attracts dirt and grit.

My Uber Van with a 1.8t, PowerFlex bushes, big Mercedes wheels and large modern tires now almost feels like a modern vehicle, almost. And it still feels like a precise German vehicle.
