Questions on tins.

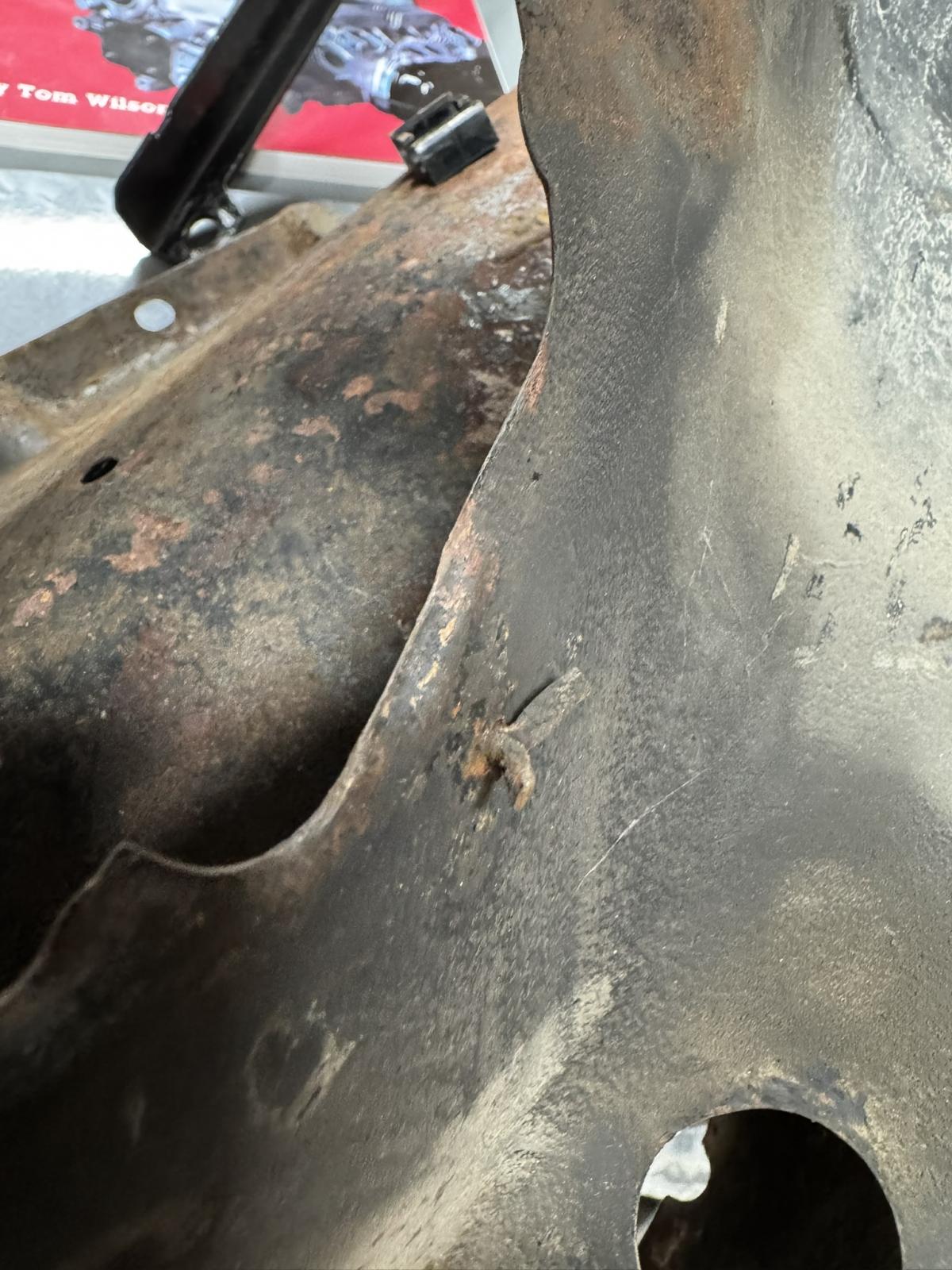

Can someone help me determine where this tin goes?
On both the top tins I have these cotter pins going thru right about the intake manifold. Is this normal. Only reason I could determine is to have the tin offset the head a little bit.
Thanks
_________________
-----------------------------------------
Restoring a 1972 Bay Window Bus that has not be registered for the road since 1981.
Sugar Land, Texas |
|
| Back to top |
|
 |
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52829
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Tue Jul 15, 2025 8:43 pm Post subject: Re: Engine/Transmission removed where and how would you start? |
|
|
The tin with the ribs is the support for the front end of the heater tube with the valve on the top, don't know what side, it sticks out horizontally from the joint between the lower tin and the front bellhousing tin.
The cotter pins are the anchors for the throttle return springs.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52379
|
| Posted: Tue Jul 15, 2025 10:25 pm Post subject: Re: Engine/Transmission removed where and how would you start? |
|
|
| busdaddy wrote: |
The tin with the ribs is the support for the front end of the heater tube with the valve on the top, don't know what side, it sticks out horizontally from the joint between the lower tin and the front bellhousing tin.
The cotter pins are the anchors for the throttle return springs. |
This would have originally been tacked to the riser pipe for the flapper valve, but a band clamp will secure it to the pipe very well. |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42624
Location: at the beach
|
| Posted: Wed Jul 16, 2025 2:34 pm Post subject: Re: Engine/Transmission removed where and how would you start? |
|
|

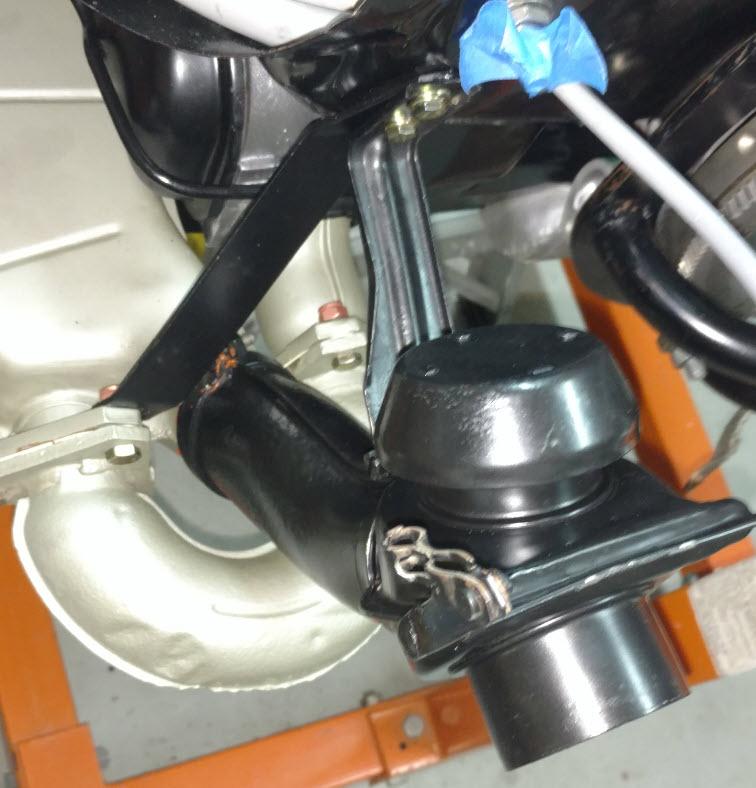

best photos of my 1977. Has the U-burner style late heat exchangers 75-78
