Megasquirt 2165 turbo ghia

[Vegaphred]

Greetings! I just got my project going after trying every combo known to man or me anyway. Right now I have a issue with the fuel system. I'm about to go out and tear into that. I think I have the pump too far from the tank (14,16") I'm getting cavitation in the pump. It'll be running great, hit a bump goes to missing afr goes into the 20's! My question is what are the alcohol injection diy'ers doing for intercooler? I'm not really far enough into my tuning to see any boost yet. So I have a 7lb fixed gate on my turbo. As soon as I get this fuel problem sorted out I'm sure the boost will follow! So anybody with a megasquirted vw let me know what yall are doing!
Thanks
John

[67rustavenger]

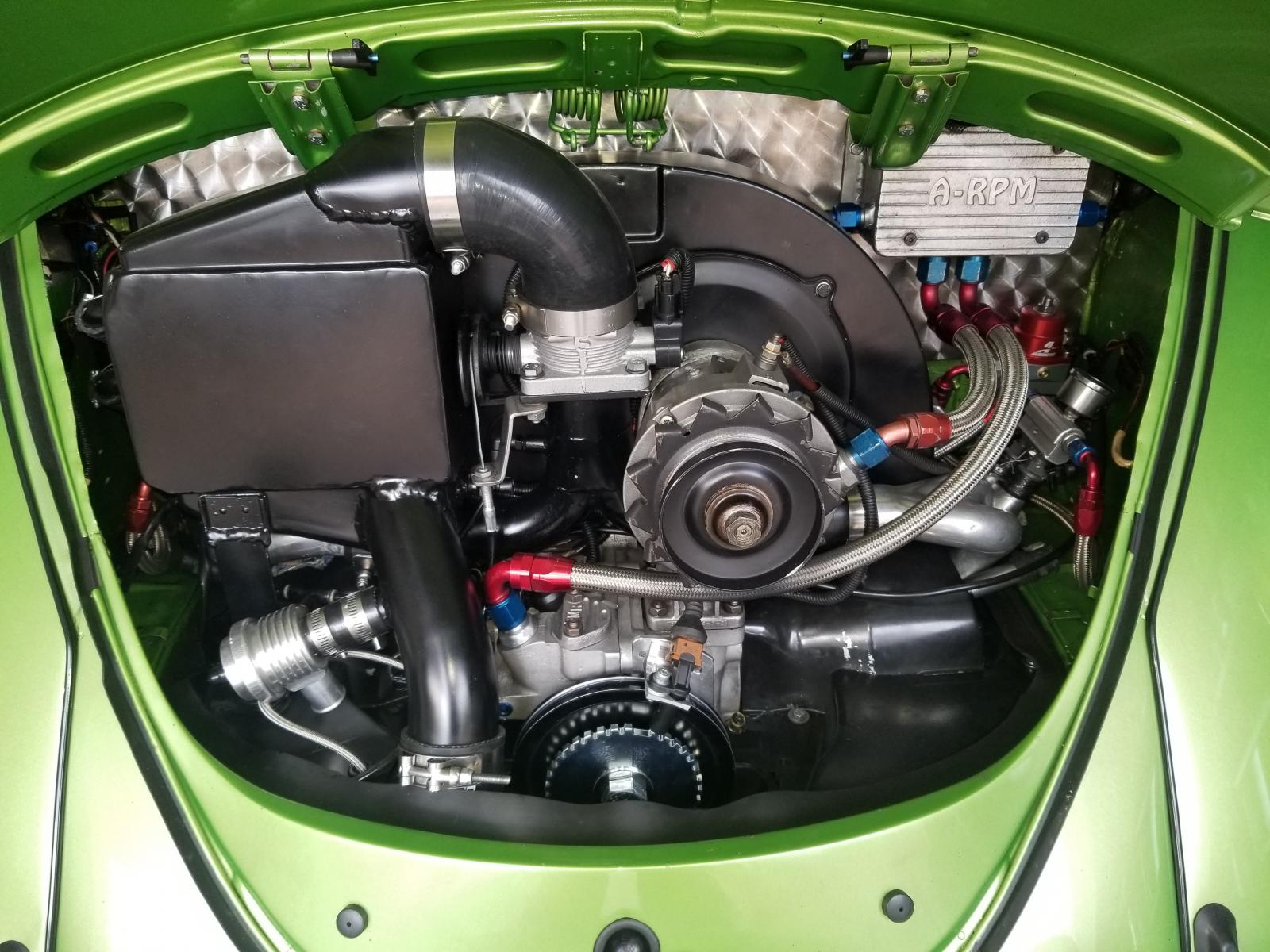

This pic is not my car but, I do own this Turbo Intercooled EFI setup. I bought it from the builder a few years back.
I just haven't been able to get around to fitting the system on my engine.

_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!

There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin!
Don't let your bad ideas remain, ideas!

[Brian_e]

[Michaellatini]

I had the same problem with 2 different fuel pumps, changed pre-pump filters, post filters, hose sizes, mounting locations, etc, etc... Finally purchased a fuel pump that sucks fuel vs. gravity fed and put the return line into the filler neck of the fuel tank and have never had an issue since. Several thousand miles and 17 psi of boost.

Just sayin' if you are interested.

M

[Brian_e]

Lots of issues with trying to return the fuel into the feed line.

You should be returning the fuel back deep into the tank so it have a chance to cool, and work the bubbles out.

Brian
_________________
So more or less the lazier and stupider you want to be, the nicer quality parts you need to buy.
-Modok

Narrowed beams, Drop adjustable spring plates, Bus disk brake and IRS kits.
www.type-emotorsports.com

Type E Engine Parts and Supplies
https://type-emotorsports.com/collections/engine-parts

[Chip]

[mikedjames]

Another idea you could look into is using a low pressure feed pump and a swirl pot near the engine with the HP return to the pot. The fuel return to the tank comes from the top of the pot, the fuel feed to the HP pump comes from the bottom. So any air bubbles are returned before they reach the HP feed.

Alternatively just make sure the fuel return goes back somewhere any air bubbles can not reach the intake to the HP pump.


I am going to return to the fuel filler on my RusEFI setup.
_________________
Ancient vehicles and vessels

1974 VW T2 : Devon Eurovette camper with 1641 DP T1 engine, Progressive carb, full flow oil cooler, EDIS crank timed ignition.
Engine 1: 40k miles (rocker shaft clip fell off), Engine 2: 30k miles (rebuild, dropped valve). Engine 3: a JK Preservation Parts "new" engine, aluminium case: 26k miles: new top end.
Gearbox rebuild 2021 by Bears.

1979 Westerly GK24 24 foot racer/cruiser yacht Forethought of Gosport.
1973 wooden Pacer sailing dinghy

[BFB]

[Vegaphred]

I don't have room for an intercooler so I'm thinking water/meth injection operated by a Hobbs type pressure switch. Only comes on under boost. I'm looking for ideas as far as design of the spray nozzles. I have dual tbs.

[Vegaphred]

So I drilled a hole in my tank close to the fill inlet installed a -6 bulkhead fitting and ran my return to that! Everything working as it should! No more gas fumes! Had a good day at the dyno, made 172hp! I'm looking at the water/methanol injection system from snow. What is anybody using on theirs?

[sidemarkers]
