brake oil leak. what's wrong with this unit?
Page: 1, 2  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
targis58
Samba Member


Joined: July 11, 2006
Posts: 529
Location: sunnyvale,ca
targis58 is offline

PostPosted: Wed Apr 15, 2009 5:32 pm    Post subject: brake oil leak. what's wrong with this unit? Reply with quote

I've noticed my brake oil level was getting low too soon after fill up. I looked around under the reservoir and found where the leak was happening. Can you tell me what gets wrong with this unit usually so I can check on it? This unit is located right behind the brake pedal as you can see in the pictures. Thanks in advance.

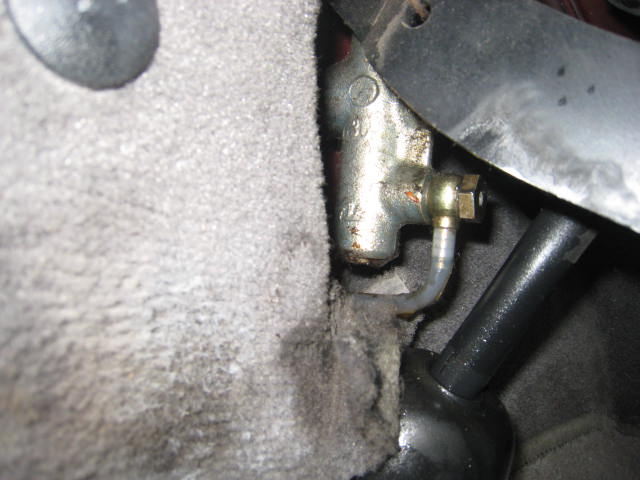

right side view
Image may have been reduced in size. Click image to view fullscreen.


left side view
Image may have been reduced in size. Click image to view fullscreen.

_________________
90 westy 2wd w/ TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6188
Location: Portland, Oregon
mightyart is offline

PostPosted: Wed Apr 15, 2009 5:36 pm    Post subject: Reply with quote

That's the clutch master cylinder, if it's leaking you replace it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
targis58
Samba Member


Joined: July 11, 2006
Posts: 529
Location: sunnyvale,ca
targis58 is offline

PostPosted: Wed Apr 15, 2009 5:54 pm    Post subject: Reply with quote

mightyart wrote:
That's the clutch master cylinder, if it's leaking you replace it.


no repair?
_________________
90 westy 2wd w/ TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6188
Location: Portland, Oregon
mightyart is offline

PostPosted: Wed Apr 15, 2009 5:59 pm    Post subject: Reply with quote

Well if it's leaking out the boot:
http://www.busdepot.com/details.jsp?partnumber=251721401A
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tangstadt
Samba Member


Joined: December 07, 2008
Posts: 90
Location: Atlanta, GA
tangstadt is offline

PostPosted: Wed Apr 15, 2009 6:02 pm    Post subject: Reply with quote

You can buy a rebuild kit with new o-rings and stuff for about 5 bucks...But you gotta ask yourself one question "do I feel lucky?"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 2921
Location: The Topless Bar On Mustafar
Captain Pike is offline

PostPosted: Wed Apr 15, 2009 6:35 pm    Post subject: Reply with quote

tangstadt wrote:
You can buy a rebuild kit with new o-rings and stuff for about 5 bucks...But you gotta ask yourself one question "do I feel lucky?"

Waste of time___get a new one. Wonder where the fluid went? Look under your carpet. All that fluid will start to eat the paint on the floor. Have fun cleaning that mess.
It's a right of passage___we have all gone thru it.
_________________
Parrots,parrots everywhere but none ever stopped to think.
GET A FRAKIN BENTLEY__ Don't post without one.
In the time it takes to post___learning your BENT and trying a solution???WTF?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
targis58
Samba Member


Joined: July 11, 2006
Posts: 529
Location: sunnyvale,ca
targis58 is offline

PostPosted: Wed Apr 15, 2009 7:05 pm    Post subject: Reply with quote

Bill W wrote:
tangstadt wrote:
You can buy a rebuild kit with new o-rings and stuff for about 5 bucks...But you gotta ask yourself one question "do I feel lucky?"

Waste of time___get a new one. Wonder where the fluid went? Look under your carpet. All that fluid will start to eat the paint on the floor. Have fun cleaning that mess.
It's a right of passage___we have all gone thru it.

Yeah! I was able to find the leaking area quick because the carpet was wet on the floor.
_________________
90 westy 2wd w/ TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 42680

Wildthings is offline

PostPosted: Wed Apr 15, 2009 9:48 pm    Post subject: Reply with quote

I kitted mine not too long ago, but I can't remember where I found the kits. They were pretty cheap, like $10 or $11 apiece for the master and slave. A little hard to get the piston back in with the new seal, but not impossible. Should last as long as new.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 8158
Location: Where?
?Waldo? is offline

PostPosted: Wed Apr 15, 2009 10:46 pm    Post subject: Reply with quote

It's hard to tell from the pics exactly where the leak is coming from. If it is coming from the boot on top, then get another clutch master cylinder. If it is leaking from that fitting then the fix could be as simple as a new copper washer on either side of that banjo fitting. Clean that area and watch while the clutch pedal is depressed.

Andrew
_________________
Anyone want to swap their van from Automatic to Manual? I would like to do the reverse and would be interested in trading parts. PM if interested.
Back to top
View user's profile Send private message Classifieds Feedback
targis58
Samba Member


Joined: July 11, 2006
Posts: 529
Location: sunnyvale,ca
targis58 is offline

PostPosted: Thu Apr 16, 2009 9:12 am    Post subject: Reply with quote

Andrew A. Libby wrote:
It's hard to tell from the pics exactly where the leak is coming from. If it is coming from the boot on top, then get another clutch master cylinder. If it is leaking from that fitting then the fix could be as simple as a new copper washer on either side of that banjo fitting. Clean that area and watch while the clutch pedal is depressed.

Andrew
I checked to see where it s leaking. It doesn't show in the picture but there is a rectangular box thingy above the clear hose. Looks like two bolts are holding it and the bottom bolt is squirting the oil out when I pumped the pedal.
_________________
90 westy 2wd w/ TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 8158
Location: Where?
?Waldo? is offline

PostPosted: Thu Apr 16, 2009 11:18 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


If I'm not mistaken, then the two left bottom holes simply mount the clutch master. The bottom right is the banjo hyd connection and the top rubber fitting is where the fluid enters from the reservoir. I'm pretty sure the two mounting holes were blind and didn't enter the hyd area at all. If you think the fuel is coming from the bottom of those holes, I would clean it off thoroughly and check again. Perhaps it is leaking from the boot area in a non-visible way and collecting at the bolt.

Andrew
_________________
Anyone want to swap their van from Automatic to Manual? I would like to do the reverse and would be interested in trading parts. PM if interested.
Back to top
View user's profile Send private message Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 42680

Wildthings is offline

PostPosted: Thu Apr 16, 2009 11:44 am    Post subject: Reply with quote

Is it dripping or squirting? If it is actually squirting around a bolt hole then there is a crack or casting flaw and total replacement would be the only option. Replacements are available through many sources.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
targis58
Samba Member


Joined: July 11, 2006
Posts: 529
Location: sunnyvale,ca
targis58 is offline

PostPosted: Thu Apr 16, 2009 6:41 pm    Post subject: Reply with quote

Andrew A. Libby wrote:
Image may have been reduced in size. Click image to view fullscreen.


If I'm not mistaken, then the two left bottom holes simply mount the clutch master. The bottom right is the banjo hyd connection and the top rubber fitting is where the fluid enters from the reservoir. I'm pretty sure the two mounting holes were blind and didn't enter the hyd area at all. If you think the fuel is coming from the bottom of those holes, I would clean it off thoroughly and check again. Perhaps it is leaking from the boot area in a non-visible way and collecting at the bolt.

Andrew

You are right
I checked again. It was very hard to see upthere from the pedal area but found the leaking hole on the boot. oil pumped out of a small hole on the boot... what to do now? replace the whole thing?
_________________
90 westy 2wd w/ TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 42680

Wildthings is offline

PostPosted: Thu Apr 16, 2009 6:51 pm    Post subject: Reply with quote

Since you don't seem real familiar with this part of a car, you would probably be way ahead just to order and install a new master cylinder. Swapping them out is very easy, takes little time, and only a few tools.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 8158
Location: Where?
?Waldo? is offline

PostPosted: Thu Apr 16, 2009 6:56 pm    Post subject: Reply with quote

Yes, new clutch master is in order. You'll also want to bleed the system of air after replacement.

Andrew
_________________
Anyone want to swap their van from Automatic to Manual? I would like to do the reverse and would be interested in trading parts. PM if interested.
Back to top
View user's profile Send private message Classifieds Feedback
targis58
Samba Member


Joined: July 11, 2006
Posts: 529
Location: sunnyvale,ca
targis58 is offline

PostPosted: Thu Apr 16, 2009 9:01 pm    Post subject: Reply with quote

ok! thanks for all your help guys...
_________________
90 westy 2wd w/ TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kenmag
Samba Member


Joined: March 12, 2007
Posts: 275
Location: Toronto, Canada
kenmag is offline

PostPosted: Fri Apr 17, 2009 5:09 am    Post subject: Reply with quote

I recommend an OEM stealership unit. Tried an aftermarket one and it failed after 3 months.
_________________
87GL Westy/suby ej22
87GL tintop/suby ej22
05 Golf TDI
95 jetta GLX
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
dcaver01
Samba Member


Joined: February 23, 2009
Posts: 99
Location: Los Angeles
dcaver01 is offline

PostPosted: Tue Nov 03, 2009 12:49 pm    Post subject: Reply with quote

Looks like I have the same thing going on with my '86 Vanagon, but I am a bit confused. Why would the clutch master cylinder be leaking brake fluid? I checked the reservoir and it was at the min, so I assume the fluid on my carpet is brake fluid. Also, assuming I do need a new clutch master cylinder, should I also go ahead and install a clutch slave cylinder as the busdepot suggests...

"It's been our experience that if your clutch master cylinder has failed, your clutch slave cylinder is not far behind..."

or are they just trying to sell me an extra part?

I'm not very mechanically inclined, but I have been learning alot so far between reading the forums here and looking through my bently manual. Anyway, any help or advice would be greatly appreciated, and in the mean time is it alright to drive? The brakes seem to be working just fine, but if there is a chance the brakes could give out, I would rather keep it parked until I get this fixed.

Thanks!

-Dave
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 12277
Location: Palm Beach County, Florida
MarkWard is offline

PostPosted: Tue Nov 03, 2009 1:29 pm    Post subject: Reply with quote

Dave, the brakes and clutch share the same resevoir. Should you replace both the clutch master and slave at the same time? I would. They can be a bitch to bleed. Both operate the same amount. If you replace both, you can mark them off your to do list. If you don't mind redoing the clutch bleeding when the slave lays down, then replacing only the defective part is fine.
_________________
1982 Vanagon Camper with ALH TDI conversion.
1990 Vanagon Camper Syncro conversion.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dcaver01
Samba Member


Joined: February 23, 2009
Posts: 99
Location: Los Angeles
dcaver01 is offline

PostPosted: Tue Nov 03, 2009 1:42 pm    Post subject: Reply with quote

rsxsr,
Thanks for the reply, I suppose I will go ahead and replace both. Have you ever replaced either of these parts? If so, how difficult was the job?
Back to top
