| Author |
Message |
Maxdog2
Samba Member
Joined: August 06, 2009
Posts: 208
Location: Grand Junction, Colorado
|
 Posted: Sun Apr 10, 2011 10:18 pm Post subject: |
 |
|
| Nice job! |
|
| Back to top |
|
 |
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Thu Apr 14, 2011 7:17 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
Wheels and chassis are finished, time to start with the body work!
|
|
| Back to top |
|
|
bigluelok
Samba Member
Joined: January 28, 2009
Posts: 55
Location: Altadena, CA 91001
|
| Posted: Fri Apr 22, 2011 9:55 am Post subject: |
|
|
| nice work man |
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Fri Apr 22, 2011 11:35 am Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
| Thanks! |
|
| Back to top |
|
|
flierbob
Samba Member
Joined: August 21, 2008
Posts: 538
Location: Silverdale WA
|
| Posted: Mon Apr 25, 2011 12:08 pm Post subject: |
|
|
Love your build, keep up the good work.
Like all the photos also.
Bob |
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Tue Apr 26, 2011 5:37 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
Built a body cradle so we can roll it around in the shop and get under it.
|
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Tue Apr 26, 2011 5:40 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|

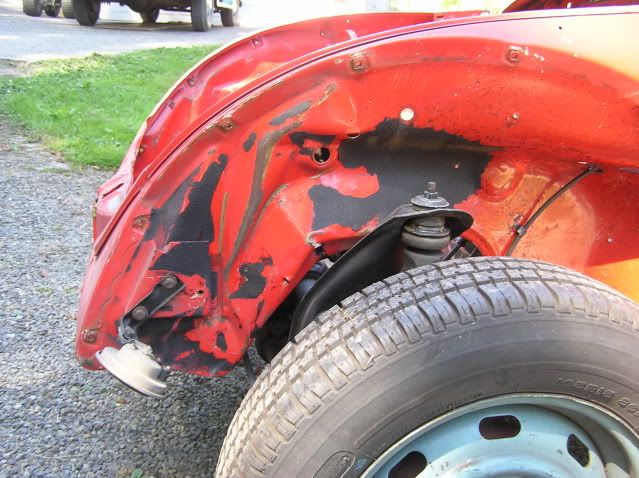

Repairing rust on the inner fender.
|
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Tue Apr 26, 2011 5:44 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
Ouch, discovered rust on the lower passenger side bottom plate. Wolfburg West has these for sale, $24.00, can anyone help with pictures or description of the best way to tackle replacement?
Noah
|
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Tue Apr 26, 2011 6:06 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|

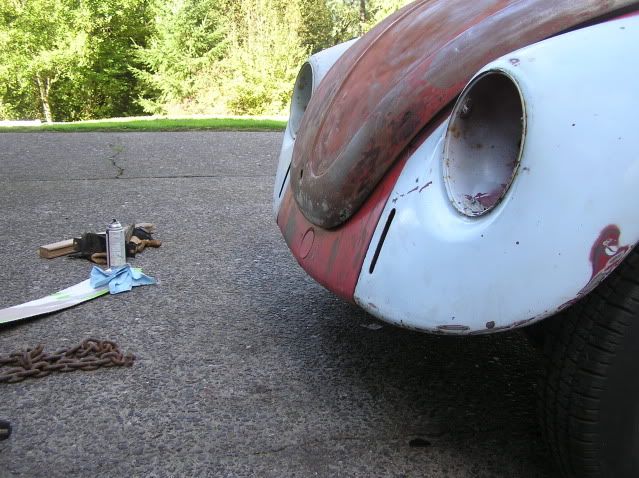

It appears that this car had a front end accident at some point in its journey. It looks like the inner fender may be pushed back. What do you think?
Noah
|
|
| Back to top |
|
|
Maxdog2
Samba Member
Joined: August 06, 2009
Posts: 208
Location: Grand Junction, Colorado
|
| Posted: Wed Apr 27, 2011 1:12 pm Post subject: |
|
|

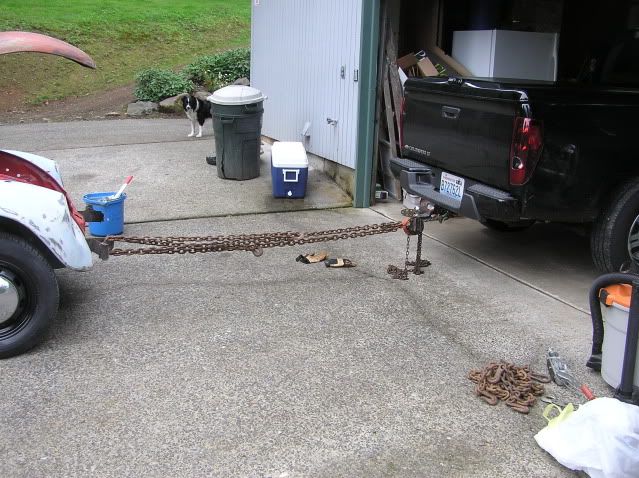

Mine was tapped in the front similar to your's. I was able to pull with a come along and a little heat.
|
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Sat Jul 09, 2011 8:23 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
Started removal of the RH lower plate. I cut the spot welds using a chisel. This method did not work due to the spot welds being very hard and the metal being a very thin gauge. I then tried to drill the spot welds, they were so hard it was almost impossible to drill them.
|
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Sat Jul 09, 2011 8:25 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
I exposed the spots welds and attempted to drill them out. After two drill bits I decided this was not the way to do it.
|
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Sat Jul 09, 2011 8:28 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
Notice the rust at the front of the RH plate.
|
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Sat Jul 09, 2011 8:30 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
How not to repair the lower plate, the PO had used bondo and screen wire. Most of the middle portion of the plate was gone! Nothing but filler and screen wire.
|
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Sat Jul 09, 2011 8:35 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
Decided the best way to remove the RH lower plate was to cut inside the heater channel using a right angle grinder. Once most of the plate is removed the remaining can be removed using the grinder. This method worked very well!
|
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Sat Jul 09, 2011 8:36 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
RH heater channel with RH Plate removed. It is in very good condition with the rust being confined to the bottom plate.
|
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Sat Jul 09, 2011 8:39 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
Note! When using this method be very careful where the heater channel exits at the front floor vent. Do not cut very deep or you will grind into the heater channel.
|
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Sat Jul 09, 2011 8:41 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
Notice the primer on the top of the heater channel. Still in very good condition.
|
|
| Back to top |
|
|
lovethatconvertible
Samba Member
Joined: August 22, 2008
Posts: 1434
Location: Las Vegas N. V.
|
| Posted: Sat Jul 09, 2011 8:52 pm Post subject: |
|
|
| Clean Work There. Keep em Coming |
|
| Back to top |
|
|
AirDirect
Samba Member
Joined: November 03, 2010
Posts: 431
Location: Powderly TX
|
| Posted: Sat Aug 20, 2011 9:41 pm Post subject: Noah's 1972 VW Type 1 Sedan Restoration |
|
|
Finally got going again, boy it is hot in Texas, hard to get motivated with 100 plus temps. Primed heater channel with Rust-Oleum rusty metal primer.
|
|
| Back to top |
|
|
|
