Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 8687
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Sun Apr 29, 2012 9:23 pm    Post subject: Reply with quote

Some time ago I replaced my inop stock digital clock with one I'd lifted from a late-'80's Golf. It worked fine for several years, but eventually died. I got tired of leaving all of that dash real estate to dead space, so I finally broke down and just installed an analog clock from a 944

Image may have been reduced in size. Click image to view fullscreen.

_________________
Casey--
'89 Westfalia Bluestar mTDI (ALH)
'01 Westfalia Weekender VR6 (AXK)
Volkswagens powered by Volkswagen
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GreenMachineVW
Samba Member


Joined: August 08, 2008
Posts: 623

GreenMachineVW is offline

PostPosted: Mon May 07, 2012 11:22 pm    Post subject: Reply with quote

Finally got around to installing my stock of gauges left over from the Volvo 240 days:

Image may have been reduced in size. Click image to view fullscreen.

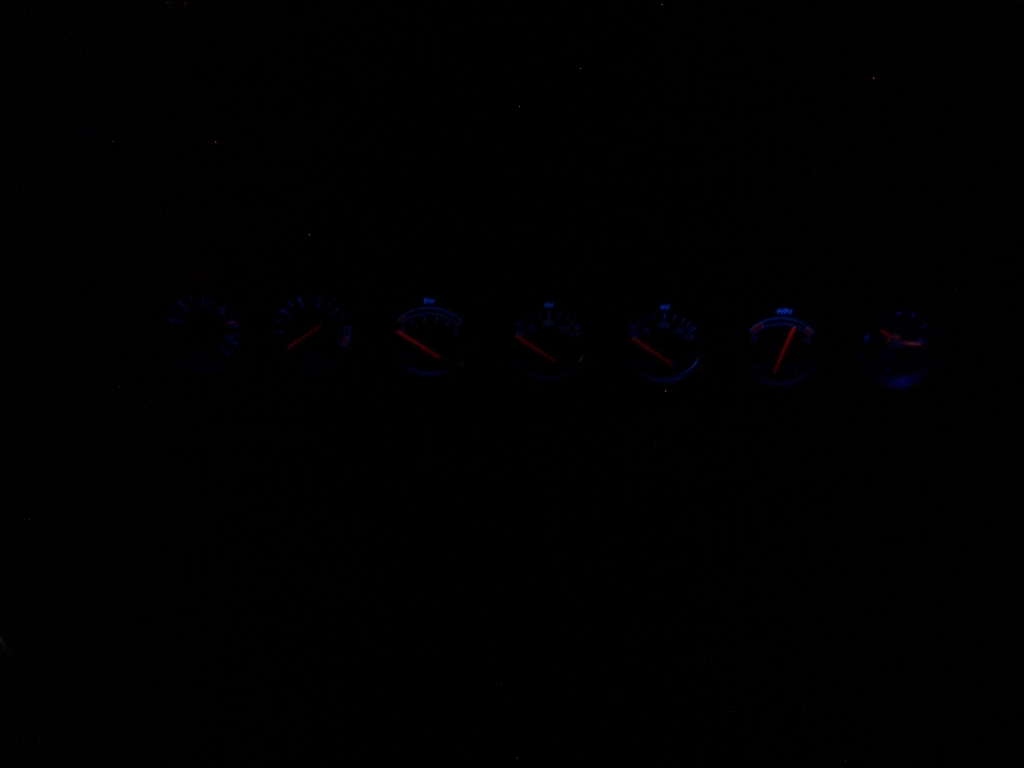

They were already lit blue, so I added blue LEDs:

Image may have been reduced in size. Click image to view fullscreen.


They are, left to right, Exterior Temperature, RPM, Oil Pressure, Engine Oil Temperature, Transmission Oil Temperature, Volt Meter, and clock. I still have to add the engine sensors, and wiring for the tach, pressure and two oil temp gauges. Obviously, a little tough to see from the drivers seat, but they can be read when needed. Does give the copilot something to look at.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sub-hatchtim
Samba Member


Joined: September 19, 2006
Posts: 2409
Location: Phoenix AZ
sub-hatchtim is offline

PostPosted: Tue May 22, 2012 11:30 am    Post subject: Reply with quote

spent the past couple evening's doing this up, it will hold my boost gauge I will add more pics later after its fully installed "gotta wait for the paint to dry and maybe a second coat"

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
(o\!/o)

58' pg/sg sub hatch westy
90' doka 1.6td jx import from germany soon to be a bew tdi
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 6039
Location: NE MN (http://g.co/maps/zt72q)
dhaavers is offline

PostPosted: Tue May 22, 2012 2:10 pm    Post subject: Reply with quote

Zeitgeist 13 wrote:
Image may have been reduced in size. Click image to view fullscreen.

I've been looking at this spot for an oil gauge for quite a while but haven't got around to peeking behind.
Any tricks? I assume the cluster has to come out to work around/behind? Other words of wisdom?

Thanks in advance...
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 8687
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Tue May 22, 2012 3:12 pm    Post subject: Reply with quote

You have to do some trim work to the LED array above, and I actually cracked the clear plastic cover when I was using the hole saw. I ended up removing it completely, though I'm not too bothered by that result. It probably behooves you to try and pull it out prior to attempting the drilling. Given how easily a standard 2 1/16" gauge fits in that space, I'm a bit surprised more folks haven't opted for this mod.
_________________
Casey--
'89 Westfalia Bluestar mTDI (ALH)
'01 Westfalia Weekender VR6 (AXK)
Volkswagens powered by Volkswagen
Back to top
View user's profile Send private message Gallery Classifieds Feedback
summer samba
Samba Member


Joined: July 03, 2011
Posts: 72
Location: East coast
summer samba is offline

PostPosted: Tue May 22, 2012 5:16 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NWB
Samba Member


Joined: March 27, 2012
Posts: 23
Location: Lakewood,WA
NWB is offline

PostPosted: Tue May 22, 2012 6:38 pm    Post subject: Reply with quote

The new gauges Kirk is R&Ding in his Sycro 16. These are in an old dash he had laying around. This is just the test fit stage, he may try to fit them in the original gauge position.



Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
'85 Westy 2WD
'69 Chevelle SS
'00 Land Rover Discovery
Back to top
View user's profile Send private message Classifieds Feedback
sub-hatchtim
Samba Member


Joined: September 19, 2006
Posts: 2409
Location: Phoenix AZ
sub-hatchtim is offline

PostPosted: Wed May 23, 2012 7:35 am    Post subject: Reply with quote

installed

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
(o\!/o)

58' pg/sg sub hatch westy
90' doka 1.6td jx import from germany soon to be a bew tdi
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DAIZEE
Samba Member


Joined: January 26, 2010
Posts: 7552
Location: Greater Toronto Area Ontario West Side
DAIZEE is offline

PostPosted: Wed Jun 27, 2012 5:24 pm    Post subject: Reply with quote

My simple but effective gauges, right where I like them

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
'09 2.5L Jetta 5 cylinder, 5 spd, super turbo, see thread in H2O Cooled Jetta, etc...
83.5 Vanagon L Riviera Model with 98 1.9L TD AAZ 4 speed Daily Driver 3 out of 4 seasons (sold)
84 Vanagon GL Wolfsburg Westy WBX 4 speed (sold)
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
trailnewt
Samba Member


Joined: February 17, 2008
Posts: 248
Location: Northern California
trailnewt is offline

PostPosted: Tue Jul 24, 2012 7:22 pm    Post subject: Reply with quote

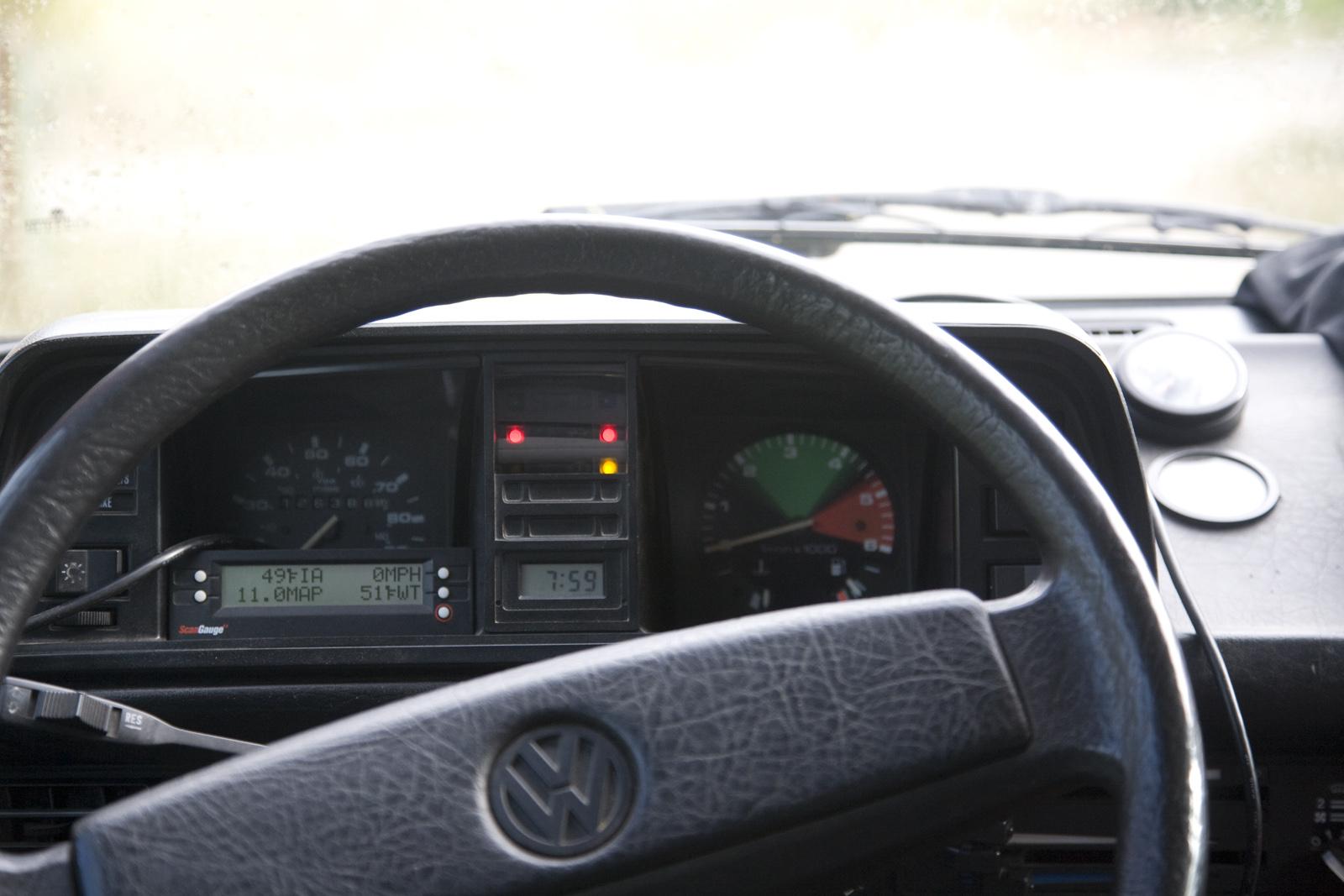

Scan Gauge
Image may have been reduced in size. Click image to view fullscreen.


EGT, Oil Pressure, Gauges
Image may have been reduced in size. Click image to view fullscreen.


Brent
_________________
'87 Syncro Westy TDI
Too many bicycles
Maybe an old unicycle around here somewhere
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DAIZEE
Samba Member


Joined: January 26, 2010
Posts: 7552
Location: Greater Toronto Area Ontario West Side
DAIZEE is offline

PostPosted: Wed Jul 25, 2012 5:09 am    Post subject: Reply with quote

Over simplified question but is there such a thing as a Diesel Fuel Gauge in the round format?
_________________
'09 2.5L Jetta 5 cylinder, 5 spd, super turbo, see thread in H2O Cooled Jetta, etc...
83.5 Vanagon L Riviera Model with 98 1.9L TD AAZ 4 speed Daily Driver 3 out of 4 seasons (sold)
84 Vanagon GL Wolfsburg Westy WBX 4 speed (sold)
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 11352
Location: Syracuse, NY
danfromsyr is online now

PostPosted: Wed Jul 25, 2012 5:53 am    Post subject: Reply with quote

there is a VDO gauge in the round format but it is not Diesel specific.
and the oversimplified question is you are only 50/50 it's the gauge not working vs the sender (most likely) so it's 60/40 it's the sender anyways.

here's 2 differant resistances in VDO fuel gauges from appletree a vw parts supplier, I forget which Ohms the stock sender delivers.
http://www.appletreeauto.com/VW-GAUGES/VDO-FUEL-LEVEL/

but what's the reason your indash one doesn't work..
in fact why doesn't your indash temp gauge work vs an add on aftermarket gauge? that's your real dilema..

in my case it's because my van was air cooled and had no coolant temp gauge stock, and at the time I wasn't smart enough to wire in the 10v regulator to power the gauge..
_________________
Vanagon List Archives
The only cheap thing in a classic VW sits behind the steering wheel
THE List ala Sanchius
syncroserge wrote:
The way these vans have shaped and enriched our family life would make one believe these darn things have a soul Cool
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
DAIZEE
Samba Member


Joined: January 26, 2010
Posts: 7552
Location: Greater Toronto Area Ontario West Side
DAIZEE is offline

PostPosted: Wed Jul 25, 2012 7:22 am    Post subject: Reply with quote

I don't know if the dash gauges work. At the time of the original conversion a round VDO temperature water and another one for oil temperature and oil pressure were added. I know nothing more except that my fuel gauge doesn't work and nor do I know what the reason behind that is. I am blind to any history, reasons, etc... before I acquired this van such as it was. Slowly one by one sytems going over problems and there have been many! So the trials and tribulations for Scooby & Daizee continue. Confused
_________________
'09 2.5L Jetta 5 cylinder, 5 spd, super turbo, see thread in H2O Cooled Jetta, etc...
83.5 Vanagon L Riviera Model with 98 1.9L TD AAZ 4 speed Daily Driver 3 out of 4 seasons (sold)
84 Vanagon GL Wolfsburg Westy WBX 4 speed (sold)
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
rc3
Samba Member


Joined: October 14, 2011
Posts: 52
Location: Texas
rc3 is offline

PostPosted: Wed Jul 25, 2012 11:08 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 11352
Location: Syracuse, NY
danfromsyr is online now

PostPosted: Wed Jul 25, 2012 12:25 pm    Post subject: Reply with quote

Right so my point was not to ask about adding a new fuel gauge, but to sort out and fix your existing fuel gauge..
the same mantra could be used for the coolant temp gauge as well. (but I stare at a blank temp gauge in my own van, so can't preach that proactive work just yet)

DAIZEE wrote:
I don't know if the dash gauges work. At the time of the original conversion a round VDO temperature water and another one for oil temperature and oil pressure were added. I know nothing more except that my fuel gauge doesn't work and nor do I know what the reason behind that is. I am blind to any history, reasons, etc... before I acquired this van such as it was. Slowly one by one sytems going over problems and there have been many! So the trials and tribulations for Scooby & Daizee continue. Confused

_________________
Vanagon List Archives
The only cheap thing in a classic VW sits behind the steering wheel
THE List ala Sanchius
syncroserge wrote:
The way these vans have shaped and enriched our family life would make one believe these darn things have a soul Cool
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 6039
Location: NE MN (http://g.co/maps/zt72q)
dhaavers is offline

PostPosted: Wed Jul 25, 2012 9:12 pm    Post subject: Reply with quote

Related content: Mini Tach installed

BrianDent wrote:
Image may have been reduced in size. Click image to view fullscreen.

_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dubbified
Samba Member


Joined: March 03, 2010
Posts: 1287
Location: Redmond, WA
dubbified is offline

PostPosted: Wed Jul 25, 2012 11:04 pm    Post subject: Reply with quote

Had Meisterguagefaces.com do mine up..

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Classifieds Feedback
dgogos
Samba Member


Joined: May 05, 2010
Posts: 3

dgogos is offline

PostPosted: Wed Oct 31, 2012 1:16 am    Post subject: Reply with quote

NWB wrote:
The new gauges Kirk is R&Ding in his Sycro 16. These are in an old dash he had laying around. This is just the test fit stage, he may try to fit them in the original gauge position.



Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I saw them in the original location on DasMule rig. From where can I purchase them? They are not listed on the Website.
And one more question: are they compatible with an AAZ 1.9 TD?
Back to top
View user's profile Send private message Classifieds Feedback
dgogos
Samba Member


Joined: May 05, 2010
Posts: 3

dgogos is offline

PostPosted: Wed Oct 31, 2012 1:18 am    Post subject: Reply with quote

They look like Gauges from AutoMeter. Are they?
Back to top
View user's profile Send private message Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 8687
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Wed Oct 31, 2012 9:03 am    Post subject: Reply with quote

I'm pretty sure those are customized Speedhut gauges
_________________
Casey--
'89 Westfalia Bluestar mTDI (ALH)
'01 Westfalia Weekender VR6 (AXK)
Volkswagens powered by Volkswagen
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... 10, 11, 12 ... 16, 17, 18  Next
Jump to:
Page 11 of 18


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
