Roof Skin Year Changes
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
VWsArent4Hippies
Samba Member


Joined: April 13, 2005
Posts: 2899
Location: The Bull City
VWsArent4Hippies is offline

PostPosted: Mon Dec 02, 2013 4:15 pm    Post subject: Roof Skin Year Changes Reply with quote

Does anyone know if later bays use the same roof skins as early bays? I need to put one on a '69 and a '72 is the latest hardtop bus I have to compare it to. Does anyone have an early bay and say a 77-79 to compare it to? Thanks
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
[email protected]
Samba Peckerhead


Joined: January 01, 2007
Posts: 11931
Location: sticksville, ct.
skills@eurocarsplus is offline

PostPosted: Mon Dec 02, 2013 4:22 pm    Post subject: Reply with quote

i think you will need a donor no later than 71. for some reason, i think there is a difference
_________________
gprudenciop wrote:

my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese.......
[email protected] wrote:
most VW enthusiasts are stuck in 80's price land.

Jake Raby wrote:
Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public.

Brian wrote:
Also the fact that people are agreeing with Skills, it's a turn of events for samba history
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VWsArent4Hippies
Samba Member


Joined: April 13, 2005
Posts: 2899
Location: The Bull City
VWsArent4Hippies is offline

PostPosted: Mon Dec 02, 2013 4:34 pm    Post subject: Reply with quote

[email protected] wrote:
i think you will need a donor no later than 71. for some reason, i think there is a difference


Yea, that's what i'm trying to confirm before I commit to buying one 2 states away Laughing

I was thinking they would change in '72 with the rear corners changing, but I really see no difference between the one I have here and the '69. I am just doing the gutter up.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Mobiltune
Samba Road Ranger


Joined: April 16, 2008
Posts: 499
Location: San diego county
Mobiltune is offline

PostPosted: Mon Dec 02, 2013 5:50 pm    Post subject: Reply with quote

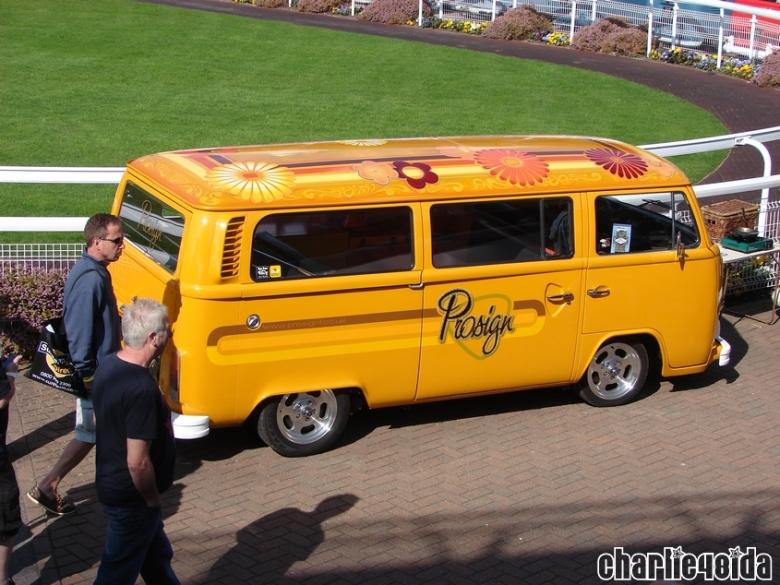

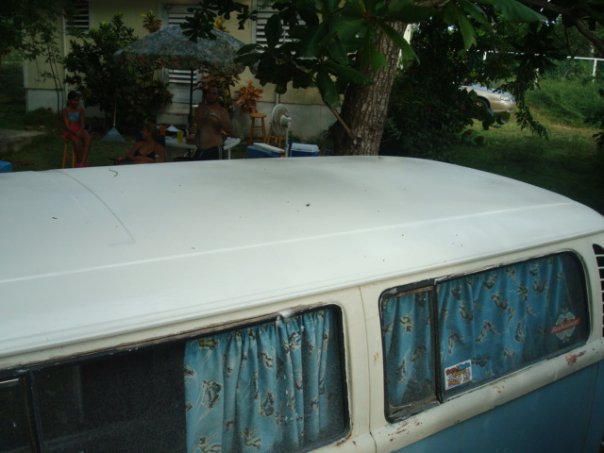

check out the gallery,,, I think there the same.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Roadster Bus
Back to top
View user's profile Send private message Gallery Classifieds Feedback
babysnakes
Samba Member


Joined: August 19, 2008
Posts: 6417

babysnakes is offline

PostPosted: Mon Dec 02, 2013 6:32 pm    Post subject: Reply with quote

I've read a few arguments that they taper towards the rear differently from early to late, I'm not buying it though. I think they are the same.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 42888
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Mon Dec 02, 2013 6:43 pm    Post subject: Reply with quote

babysnakes wrote:
I think they are the same.

As do I.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mattcuddy
Samba Member


Joined: October 22, 2003
Posts: 2029
Location: Philly, PA
mattcuddy is offline

PostPosted: Mon Dec 02, 2013 7:04 pm    Post subject: Reply with quote

[email protected] wrote:
i think you will need a donor no later than 71. for some reason, i think there is a difference


This is what I recall as well . Though certainly not certain, I think the later models are very slightly wider in the back.

For what it's worth, the early and late roof sections have different numbers in the parts books/microfiche.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
[email protected]
Samba Peckerhead


Joined: January 01, 2007
Posts: 11931
Location: sticksville, ct.
skills@eurocarsplus is offline

PostPosted: Mon Dec 02, 2013 7:11 pm    Post subject: Reply with quote

i honestly thought there was something different. i dunno. buy it and confirm it for the rest of us Very Happy
_________________
gprudenciop wrote:

my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese.......
[email protected] wrote:
most VW enthusiasts are stuck in 80's price land.

Jake Raby wrote:
Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public.

Brian wrote:
Also the fact that people are agreeing with Skills, it's a turn of events for samba history
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VWsArent4Hippies
Samba Member


Joined: April 13, 2005
Posts: 2899
Location: The Bull City
VWsArent4Hippies is offline

PostPosted: Tue Dec 03, 2013 4:10 pm    Post subject: Reply with quote

mattcuddy wrote:
For what it's worth, the early and late roof sections have different numbers in the parts books/microfiche.


What's the VIN cutoff?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 42888
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Tue Dec 03, 2013 5:47 pm    Post subject: Reply with quote

mattcuddy wrote:
[email protected] wrote:
i think you will need a donor no later than 71. for some reason, i think there is a difference


This is what I recall as well . Though certainly not certain, I think the later models are very slightly wider in the back.

For what it's worth, the early and late roof sections have different numbers in the parts books/microfiche.

I don't know about the wider part, the hatch opening is a little different as far as upper seam location on 72+'s, maybe the number difference reflects a stamped in step to clear a lapped seam that moved or something like that? I'm going to do a little rough pattern making and some testing when I get time.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rustbus
Samba Member


Joined: June 18, 2009
Posts: 2057
Location: alberta
rustbus is offline

PostPosted: Tue Dec 03, 2013 8:38 pm    Post subject: Reply with quote

busdaddy wrote:

I don't know about the wider part, the hatch opening is a little different as far as upper seam location on 72+'s, maybe the number difference reflects a stamped in step to clear a lapped seam that moved or something like that? I'm going to do a little rough pattern making and some testing when I get time.


Yeah i gotta disagree on the wider thing too. i've heard it mentioned around here, but never backed up with any proof - busdaddy if you present the facts, then this urban legend can be solved and linked to for the entire future of the internet Razz

seriously though, people put early belt trim on lates all the time, so thats not wider. all available body repair panels dont seem to indicate anything either as far as different parts for late vs early

i'd check but all i have here is a 72 and a 75....oh and that '78 storage box, out of town...and my 8' wide caliper is in the shop Mad

thanks B'daddy
_________________
May of '72 Deluxe. Red Bay Bus 2.0L L-Jet CS & 091 trans conversion
my Bus thread
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Joey
Samba Member


Joined: August 12, 2005
Posts: 5145
Location: Halifax, Nova Scotia, Canada
Joey is offline

PostPosted: Wed Dec 04, 2013 6:05 am    Post subject: Reply with quote

Wider? Nope. I have roof racks that been on a '66, '70, '74 and a '79 and they fit them all.
_________________
Joey

60 Kombi - '74 Bus - '79 Panel - '56 Beetle - '65 Beetle

vintagevdubbers.ca
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Dean Bradley
Samba Member


Joined: November 10, 2004
Posts: 429
Location: United Kingdom
Dean Bradley is offline

PostPosted: Wed Dec 04, 2013 6:17 am    Post subject: Reply with quote

As far as Im aware Colby there aren't any differences , but a roof closer to the intended model is always better due to the stamping presses wearing out over time etc ..... Yes it does happen , check the difference between a 68 frt wheel arch and a 70

The hardest bit is getting the damn skin off the substructure and then welding/grinding it down again afterwards

Post up some pics though my friend of your finished bus
_________________
The Original German Folks UK

The path of the Righteous is Never Smooth .....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 31497
Location: Nor Cal
SGKent is offline

PostPosted: Wed Dec 04, 2013 8:50 am    Post subject: Reply with quote

take a look from the last panel seam back to the corner. If there is a difference that is where it will be. I don't recall my 1971 tapering in a little from that last seam, however my 1977 does equally on both sides.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
mattcuddy
Samba Member


Joined: October 22, 2003
Posts: 2029
Location: Philly, PA
mattcuddy is offline

PostPosted: Wed Dec 04, 2013 8:31 pm    Post subject: Reply with quote

VWsArent4Hippies wrote:
mattcuddy wrote:
For what it's worth, the early and late roof sections have different numbers in the parts books/microfiche.


What's the VIN cutoff?


Not certain. This isn't one of the parts where it shows both numbers in the same parts book, one each for pre and post a vin.

The early paper parts book (this one is from around 73 or so) has a part number of 211-817-111C

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


The later microfiche (this one is from January of 1983) has a part number of 211-817-111G. I have not scanned this fiche in yet, so all I have is a pic of the reader screen.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


A different part number doesn't necessarily mean they were different dimensions, but something was likely different. VW wasn't really in the habit of issuing new parts numbers for no reason.

Will a later roof work on an earlier bus? Certainly, even if its different. And if for some reason its not direct plug and play, I'm sure you can make it work.

Joey wrote:

Wider? Nope. I have roof racks that been on a '66, '70, '74 and a '79 and they fit them all.


If they are different widths, it wouldn't be like one was 5 inches bigger than the other. If anything it'd be, what, an inch or something? Meaning your rack legs on each side would have to move around 1/2 an inch to still fit. Completely plausable, especially given how many racks have tweaked legs anyway.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
VWsArent4Hippies
Samba Member


Joined: April 13, 2005
Posts: 2899
Location: The Bull City
VWsArent4Hippies is offline

PostPosted: Wed Dec 04, 2013 8:47 pm    Post subject: Reply with quote

Matt Cuddy, you're my hero



Link





Too bad there isn't a progressive refinements for baywindows. I placed a wanted ad for a roof and pretty much everyone who responded has late bays. I will probably end up getting one and figuring it out.



Dean Bradley wrote:
Post up some pics though my friend of your finished bus


You got it! I will probably dig in over the winter, I need to get some other junk out of my garage to make room Rolling Eyes
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
mattcuddy
Samba Member


Joined: October 22, 2003
Posts: 2029
Location: Philly, PA
mattcuddy is offline

PostPosted: Wed Dec 04, 2013 8:52 pm    Post subject: Reply with quote

VWsArent4Hippies wrote:

I was thinking they would change in '72 with the rear corners changing, but I really see no difference between the one I have here and the '69. I am just doing the gutter up.


There is definitely some roof stuff that changed at end of 71 model year, so who knows. Like some rear roof frame stuff shown in #19 below (use the same early diagram as above)

Image may have been reduced in size. Click image to view fullscreen.


Colby, if you wanna make the drive, there are some early bays in junkyards up around here. As normal up here, bottoms are completely toast, but roofs are generally not rusted away.

Quote:

Too bad there isn't a progressive refinements for baywindows.


There are the listings in the Molenaar Specification Guide, but not nearly detailed as the early actual VW stuff.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Joey
Samba Member


Joined: August 12, 2005
Posts: 5145
Location: Halifax, Nova Scotia, Canada
Joey is offline

PostPosted: Thu Dec 05, 2013 6:09 am    Post subject: Reply with quote

mattcuddy wrote:
Joey wrote:

Wider? Nope. I have roof racks that been on a '66, '70, '74 and a '79 and they fit them all.


If they are different widths, it wouldn't be like one was 5 inches bigger than the other. If anything it'd be, what, an inch or something? Meaning your rack legs on each side would have to move around 1/2 an inch to still fit. Completely plausable, especially given how many racks have tweaked legs anyway.


Here's my roof racks...

Image may have been reduced in size. Click image to view fullscreen.


...they are very solid and don't flex or bend. The fit on each bus was identical.
_________________
Joey

60 Kombi - '74 Bus - '79 Panel - '56 Beetle - '65 Beetle

vintagevdubbers.ca
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
