Jetta dome light in a Vanagon (update July 18)
Page: Previous  1, 2
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Stellawesty
Samba Member


Joined: March 06, 2012
Posts: 1
Location: Vancouver island
Stellawesty is offline

PostPosted: Tue Mar 06, 2012 6:05 pm    Post subject: Interior light question Reply with quote

I'm in the process of installing 2 strands of LEDs in place of the stock interior light. I picked up a 3 position switch (on, off, on) with the hopes of still being able to have one position work with the door opening and closing. This is where I'm confused. I've only been successful hooking it up so that both on positions are steady but I can't get the door open and close to work at all... Anyone have any ideas on what I'm doing wrong??
Back to top
View user's profile Send private message Classifieds Feedback
Summers420us
Samba Member


Joined: June 14, 2010
Posts: 759
Location: Amissville, Virginia
Summers420us is offline

PostPosted: Fri Jan 24, 2014 12:25 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.




Image may have been reduced in size. Click image to view fullscreen.



Anyone know the part numbers for this type of light with a delay? I have been unable to locate one.
_________________
1997 EVC
1988 2WD Westfalia with OE 2.1 (R.I.P.)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Summers420us
Samba Member


Joined: June 14, 2010
Posts: 759
Location: Amissville, Virginia
Summers420us is offline

PostPosted: Fri Jan 24, 2014 12:33 pm    Post subject: Reply with quote

Could it be 191 947 111 like this site says? http://www.vanagonwiki.net/wiki/Delay_dim_interior_lights
_________________
1997 EVC
1988 2WD Westfalia with OE 2.1 (R.I.P.)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sandoz
Samba Member


Joined: November 17, 2007
Posts: 85
Location: Denver, CO
sandoz is offline

PostPosted: Fri Jan 24, 2014 10:46 pm    Post subject: Reply with quote

I put one of these lights in about three years ago and the dimmer function worked up until about a month ago.... It is on my maintenance punch list to investigate but since the light still works, brakes and seam rust take precedence! Once I have time, I will try and post about what I find....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rubbachicken
Samba Member


Joined: October 05, 2004
Posts: 3058
Location: socal
rubbachicken is offline

PostPosted: Fri Jan 24, 2014 11:12 pm    Post subject: Reply with quote

i changed out the original interior lights, for lights from new bugs, and mk iv golfs, the look much nicer, and don't have the nasty switch on them, you push on the light cover, to switch between the 3 positions.
_________________
lucy our westy

lucy's BIG adventure

meet 'burni'


markswagen {mobile mechanic} san diego area all early VW's cared for.

619 201 0310 or 617 935 4182
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
sandoz
Samba Member


Joined: November 17, 2007
Posts: 85
Location: Denver, CO
sandoz is offline

PostPosted: Fri Jan 24, 2014 11:56 pm    Post subject: Reply with quote

Hmmm, food for thought rubbachicken! Thanks for the beta, definitely gonna add one of them to my junkyard wish list....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Summers420us
Samba Member


Joined: June 14, 2010
Posts: 759
Location: Amissville, Virginia
Summers420us is offline

PostPosted: Sun Jan 26, 2014 7:19 am    Post subject: Reply with quote

rubbachicken wrote:
i changed out the original interior lights, for lights from new bugs, and mk iv golfs, the look much nicer, and don't have the nasty switch on them, you push on the light cover, to switch between the 3 positions.


Can you post a picture?
_________________
1997 EVC
1988 2WD Westfalia with OE 2.1 (R.I.P.)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 11247
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Sun Jan 26, 2014 12:20 pm    Post subject: Reply with quote

I originally installed this early MkII Jetta item, but at some point it developed a stress crack and fell apart.

Image may have been reduced in size. Click image to view fullscreen.


I then swapped in a later (MkIII?) unit in the overhead duct--much much nicer light and placement, and has the delay feature.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Casey--
Volkswagens powered by Volkswagen
'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052 -- coming soon: automatic w/3.08 R&P
'01 Weekender VR6 -->2.5 TDI Syncro?
'04 Passat Variant BHW. Perpetual limp mode. Wish it had a manual pump.
Oly Bulli
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11543
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Sun Jan 26, 2014 1:19 pm    Post subject: Reply with quote

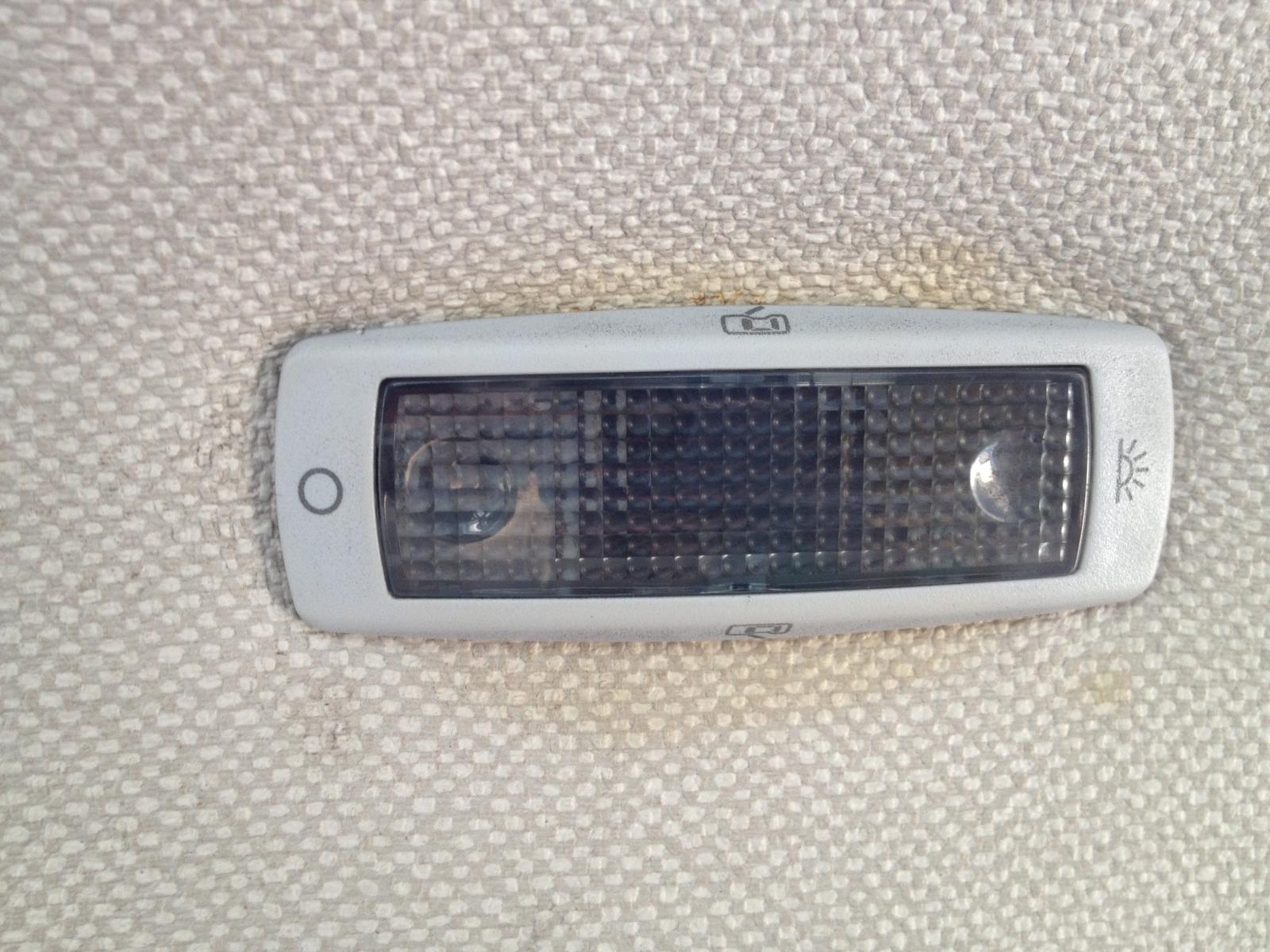

MK IV dome lights. To remove them you need to push on the metal clip at the top with the O icon.
They are available in this grey and a beige color depending on interior color.
Image may have been reduced in size. Click image to view fullscreen.


Last edited by syncrodoka on Sun Jan 26, 2014 1:22 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Summers420us
Samba Member


Joined: June 14, 2010
Posts: 759
Location: Amissville, Virginia
Summers420us is offline

PostPosted: Sun Jan 26, 2014 1:21 pm    Post subject: Reply with quote

syncrodoka wrote:
MK IV dome lights.


Those look really nice and appear to be similar in shape and size. Are they a direct replacement (besides a bit of wiring) or do you need to cut into the headliner?
_________________
1997 EVC
1988 2WD Westfalia with OE 2.1 (R.I.P.)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Steelhead
Samba Member


Joined: February 25, 2007
Posts: 1791
Location: Kentfield, CA
Steelhead is offline

PostPosted: Sun Jan 26, 2014 1:56 pm    Post subject: Reply with quote

Cool. And those have the delay?
_________________
'77 Bay Window / '89 Caratsburg (aka. the Stormtrooper)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Summers420us
Samba Member


Joined: June 14, 2010
Posts: 759
Location: Amissville, Virginia
Summers420us is offline

PostPosted: Sun Jan 26, 2014 2:47 pm    Post subject: Reply with quote

Would be cool to see these installed.
_________________
1997 EVC
1988 2WD Westfalia with OE 2.1 (R.I.P.)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rc3
Samba Member


Joined: October 14, 2011
Posts: 54
Location: Texas
rc3 is offline

PostPosted: Sun Jan 26, 2014 3:40 pm    Post subject: Reply with quote

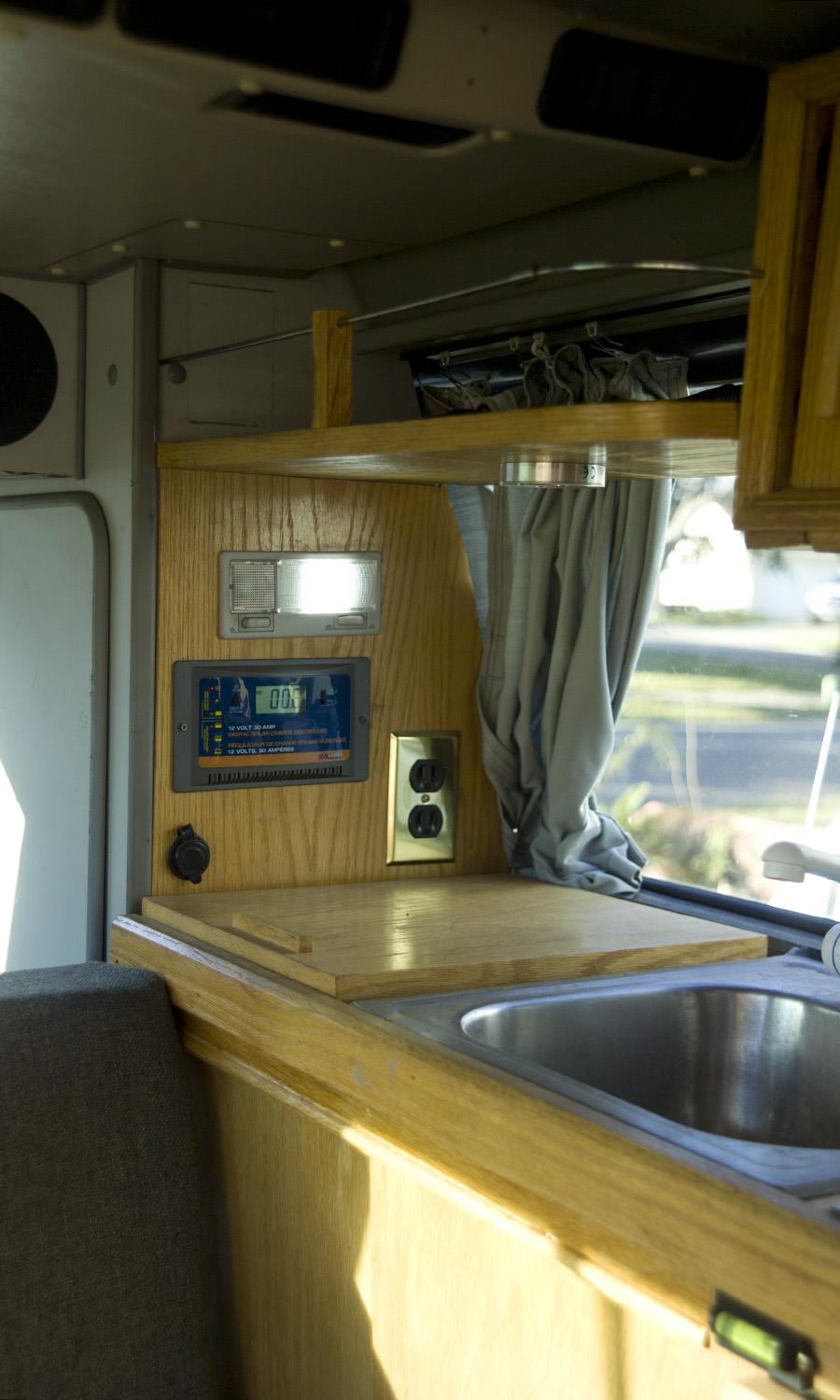

I installed four Jetta lights from 90's model I used led's for the bulb.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11543
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Sun Jan 26, 2014 5:04 pm    Post subject: Reply with quote

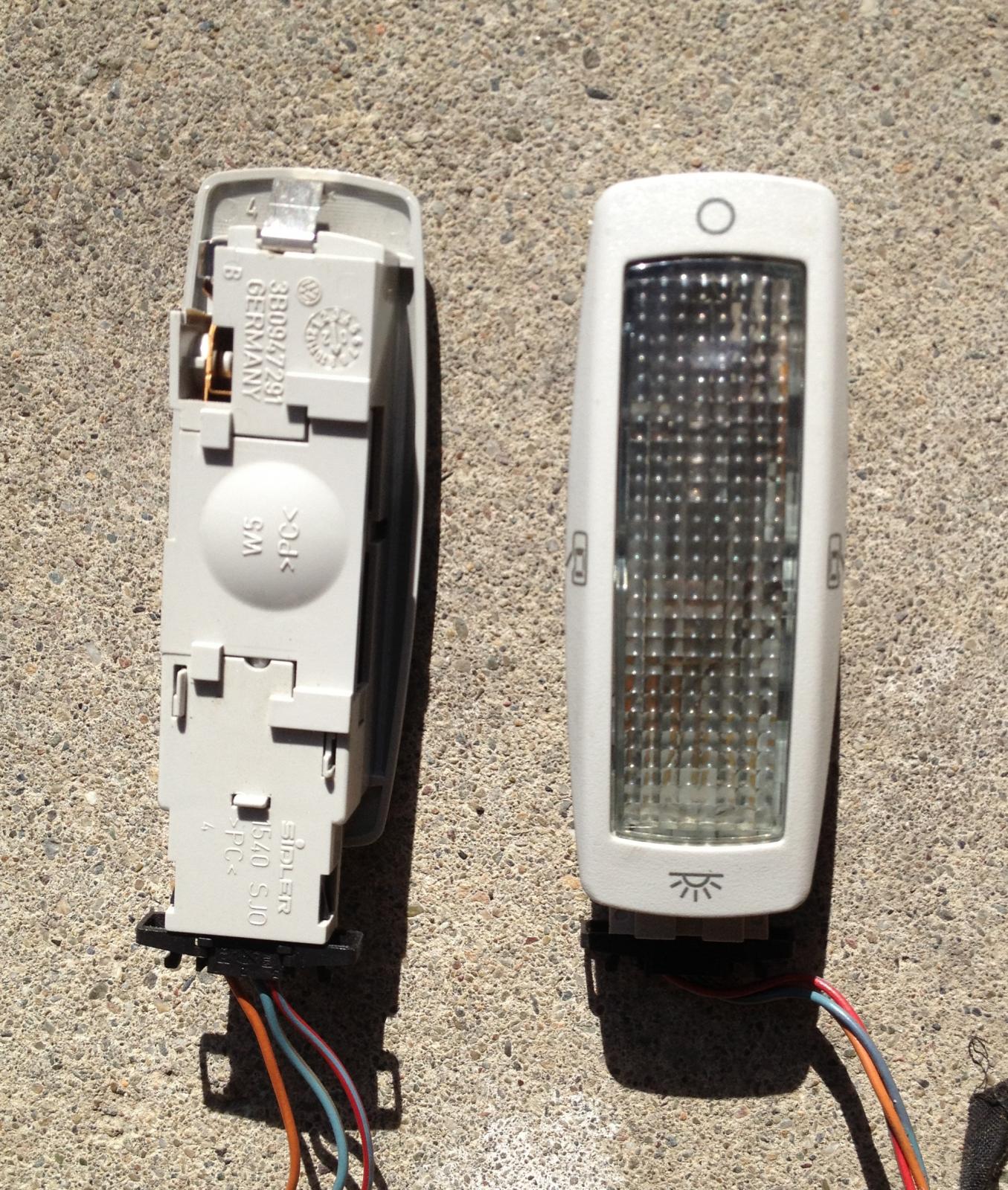

They don't dim but they are more durable than the stock clear units. I was at the junk yard earlier and I stuck this into a vanagon hardtop for the photo op while I was there.
Image may have been reduced in size. Click image to view fullscreen.


They work well in the rear where the kids can use them and they aren't found magically broken later.
The earlier dimming jetta unit is nice to have up front.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 7133
Location: Arizona
kamzcab86 is offline

PostPosted: Sun Jan 26, 2014 7:02 pm    Post subject: Reply with quote

syncrodoka wrote:
They don't dim...


...when removed from their original vehicles without all necessary hardware. Wink As an owner of a Jetta IV, I can tell you that the lights do dim on a time delay, but that function resides in the "comfort system central control module" (which is buried inside the dash).
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"I fear the day that technology will surpass our human interaction; the world will have a generation of idiots." ~Albert Einstein
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11543
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Sun Jan 26, 2014 7:21 pm    Post subject: Reply with quote

The lights don't dim like the earlier units that have to just be wired up. If there is some other module and associated wiring in the vehicle that can make it dim it isn't nearly as easy or obvious to make it happen as the earlier units. Adding complexity and expense to a simple system isn't something that many are looking for. The dimming isn't a function of the light and if one wanted to do it the hard way there are any number of modern cars that have a dim delay function module that could be added.

FWIW the lights are located in the rear passenger overhead area of the donor cars.


Last edited by syncrodoka on Wed Jan 29, 2014 9:35 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
luVWagn
Samba Member


Joined: February 21, 2008
Posts: 1335
Location: Snoqualmie (WA)
luVWagn is offline

PostPosted: Sun Jan 26, 2014 7:52 pm    Post subject: Reply with quote

rc3 wrote:

Image may have been reduced in size. Click image to view fullscreen.

Digging your custom cabinet modifications and extensions. Got a build-thread on that?
_________________
'91 Syncro 16 Reimo Hightop Conversion, eTDI
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 7133
Location: Arizona
kamzcab86 is offline

PostPosted: Sun Jan 26, 2014 7:57 pm    Post subject: Reply with quote

syncrodoka wrote:
The lights don't dim like the earlier units that have to just be wired up. If there is some other module and associated wiring in the vehicle that can make it dim it isn't nearly as easy or obvious to make it happen as the earlier units.


Yes, I know that; I was merely making a clarification of your post. The lights do, in fact, dim; but, as I said, that function resides in the comfort control module (which, admittedly, would be a bear to find a place for in a Vanagon, let alone wire up), not in the light itself. The light housing alone is a nice upgrade without the dimming feature. I was merely providing info in case anyone out there should want to attempt a full transplant.
Image may have been reduced in size. Click image to view fullscreen.

_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"I fear the day that technology will surpass our human interaction; the world will have a generation of idiots." ~Albert Einstein
