Cannot locate Type 4 engine code. Need some help.
Page: 1, 2  Next
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
FreedomBuild
Samba Member


Joined: September 21, 2010
Posts: 384
Location: Calgary, Alberta
FreedomBuild is offline

PostPosted: Sun Jul 13, 2014 11:12 am    Post subject: Cannot locate Type 4 engine code. Need some help. Reply with quote

I was looking for my engine code to make sure I get the right heads for it. I looked on the fan shroud and on the case just behind the fan shroud as Ratwell.com site suggests
http://www.ratwell.com/technical/FAQ/images/EngineID.jpg

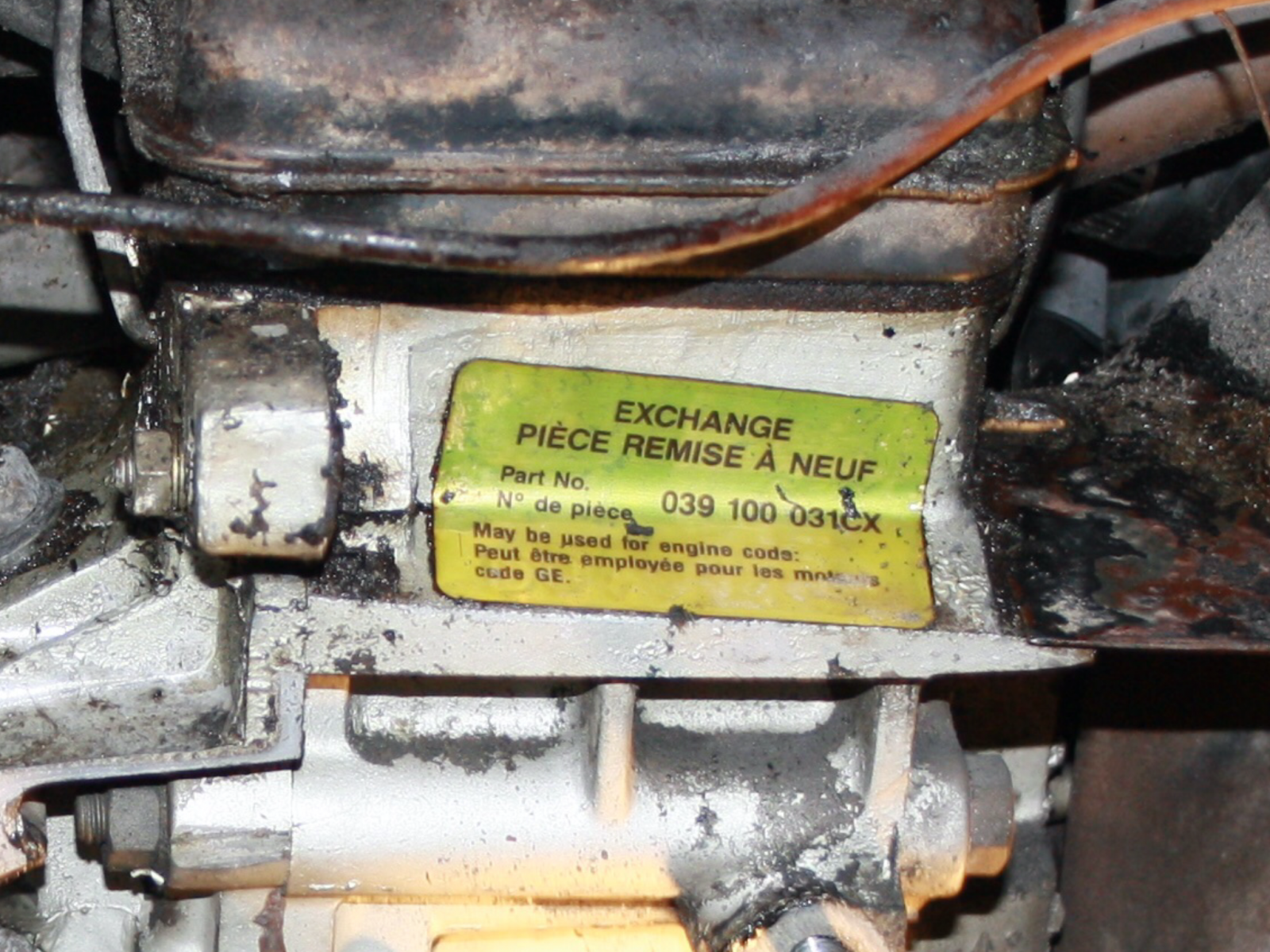

I did however find this on the left side towards the firewall. Any ideas?

Image may have been reduced in size. Click image to view fullscreen.


thanks once again for the help. Very Happy

_________________
1973 Campmobile rustoration in progress..

1700 Type 4 engine
Manual Transmission
Pertronix Mechanical advance distributor
Pertronix Flame Thrower coil
Weber Progressive

Come visit our Facebook page!
http://www.facebook.com/pages/Freedom-the-Campmobile/158775277473211

Click to view image
Back to top
View user's profile Send private message Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 19547
Location: Oklahoma City
raygreenwood is offline

PostPosted: Sun Jul 13, 2014 11:24 am    Post subject: Reply with quote

That case could have been anything when it was born so it makes no difference now. The VC means Volkswagen of Canada and as the sticker denotes its been remanufactured.
Save for small detail changes....all of the type 4 cases are fully interchangable. There are no specific heads that go with any particular engine case. It could be built any displacement. ..and can use any type 4 heads.

The question is.....if you are re-using everything but the heads.....what diameter of cylinders do you already have? That will tell you what stock head will fit....or what to have a head flycut to.

Also since its beeb remanufactured I would split the case and measure the bearing bores to see what was done and how well. Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
FreedomBuild
Samba Member


Joined: September 21, 2010
Posts: 384
Location: Calgary, Alberta
FreedomBuild is offline

PostPosted: Sun Jul 13, 2014 11:33 am    Post subject: Reply with quote

raygreenwood wrote:
That case could have been anything when it was born so it makes no difference now. The VC means Volkswagen of Canada and as the sticker denotes its been remanufactured.


That crossed my mind Ray but I didn't want to state the obvious. Laughing It's weird that they would not keep the original code on there so the engine could be identified for future reference. Seems weird to me. Might as well call the engine code JD or John Doe. lol

Is there markings on the heads to identify them? I haven't looked into that as of yet. They have dual inlets and oval exhaust ports (which may be a standard) but that's all I know about them. I have worked on VW water cooled uprights for years but I am pretty new to the air cooled game. It's been a pretty interesting learning curve so far.
_________________
1973 Campmobile rustoration in progress..

1700 Type 4 engine
Manual Transmission
Pertronix Mechanical advance distributor
Pertronix Flame Thrower coil
Weber Progressive

Come visit our Facebook page!
http://www.facebook.com/pages/Freedom-the-Campmobile/158775277473211

Click to view image
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 47386
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Sun Jul 13, 2014 11:55 am    Post subject: Reply with quote

Odd that the sticker doesn't include any series letters, usually it'll say G or C or something ahead of thier serial number. Have a close look at both sides of the sump, I've seen some VWC remans with things like 2.0 HYD stamped there.
As Ray says you'll still want to look inside, VWC's engine plant was only a few steps above GEX in build quality, they did the absolute bare minimum required to get it back to spec, the difference is they had quality parts to work with if they did replace something.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
FreedomBuild
Samba Member


Joined: September 21, 2010
Posts: 384
Location: Calgary, Alberta
FreedomBuild is offline

PostPosted: Sun Jul 13, 2014 12:17 pm    Post subject: Reply with quote

Thanks for the replies guys! I guess I will have to look more closely once the engine is out and on the stand.
_________________
1973 Campmobile rustoration in progress..

1700 Type 4 engine
Manual Transmission
Pertronix Mechanical advance distributor
Pertronix Flame Thrower coil
Weber Progressive

Come visit our Facebook page!
http://www.facebook.com/pages/Freedom-the-Campmobile/158775277473211

Click to view image
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Sun Jul 13, 2014 12:18 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


https://www.thesamba.com/vw/gallery/pix/1125766.jpg

http://www.thesamba.com/vw/archives/info/engine_letters.php
http://www.thesamba.com/vw/archives/info/chassisdating.php


Last edited by Tcash on Sun Jul 13, 2014 12:22 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
FreedomBuild
Samba Member


Joined: September 21, 2010
Posts: 384
Location: Calgary, Alberta
FreedomBuild is offline

PostPosted: Sun Jul 13, 2014 12:20 pm    Post subject: Reply with quote

Tcash wrote:
Image may have been reduced in size. Click image to view fullscreen.


https://www.thesamba.com/vw/gallery/pix/1125766.jpg


Interesting! Ratwell doesn't mention the location on the right. I'll check it out now!

Thanks Tcash!! Cool
_________________
1973 Campmobile rustoration in progress..

1700 Type 4 engine
Manual Transmission
Pertronix Mechanical advance distributor
Pertronix Flame Thrower coil
Weber Progressive

Come visit our Facebook page!
http://www.facebook.com/pages/Freedom-the-Campmobile/158775277473211

Click to view image
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Sun Jul 13, 2014 12:31 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


It is not on the right. That is a top view of the middle of the case.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
FreedomBuild
Samba Member


Joined: September 21, 2010
Posts: 384
Location: Calgary, Alberta
FreedomBuild is offline

PostPosted: Sun Jul 13, 2014 12:33 pm    Post subject: Reply with quote

LOL upon closer look of your picture Tcash the location on the right is a superimposed picture of the engine number by the crankcase. lol I got excited there thinking I missed a spot! But I already checked there. Sad

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

_________________
1973 Campmobile rustoration in progress..

1700 Type 4 engine
Manual Transmission
Pertronix Mechanical advance distributor
Pertronix Flame Thrower coil
Weber Progressive

Come visit our Facebook page!
http://www.facebook.com/pages/Freedom-the-Campmobile/158775277473211

Click to view image
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 47386
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Sun Jul 13, 2014 12:33 pm    Post subject: Reply with quote

Type 4 car (411/412) and Porsche motors have the number on the top of the case like that.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 19547
Location: Oklahoma City
raygreenwood is offline

PostPosted: Sun Jul 13, 2014 12:50 pm    Post subject: Reply with quote

busdaddy wrote:
Type 4 car (411/412) and Porsche motors have the number on the top of the case like that.



No sir....only Porsche motors. The type 4 cars (411, 412) had the engine codes in the same place as busses...on the oil filler chimney area.

VW of Canada.....would never put initials for John Doe.....TH for Tim Horton's or CT for Canadian Tire...sure! Laughing
Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 47386
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Sun Jul 13, 2014 1:00 pm    Post subject: Reply with quote

raygreenwood wrote:
busdaddy wrote:
Type 4 car (411/412) and Porsche motors have the number on the top of the case like that.



No sir....only Porsche motors. The type 4 cars (411, 412) had the engine codes in the same place as busses...on the oil filler chimney area.


Good to know....................damn, that 72 I used to have really did have a Porsche motor in it Shocked Razz
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Sun Jul 13, 2014 1:42 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


If this is the part number for the case, you can look it up. Where are the numbers on a Bus Type 4?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 46567

Wildthings is offline

PostPosted: Sun Jul 13, 2014 3:46 pm    Post subject: Reply with quote

As Ray said the case doesn't matter. What you need to know is the piston size and maybe the outside diameter of the jugs where they fit into the heads. A 1700 engine could easily have been built up to an 1800 or 2000, or a 1800 or 2000 could have been built down to a 1700. Any value in the original serial number disappeared with the first rebuild, at this point it is a Type 4 case interchangeable with any other Type 4 case.

In rare instances the case may have been bored out to take larger than 94mm P&C's, that is about all you need to worry about with the case and the serial number will not help.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
FreedomBuild
Samba Member


Joined: September 21, 2010
Posts: 384
Location: Calgary, Alberta
FreedomBuild is offline

PostPosted: Sun Jul 13, 2014 9:46 pm    Post subject: Reply with quote

raygreenwood wrote:

VW of Canada.....would never put initials for John Doe.....TH for Tim Horton's or CT for Canadian Tire...sure! Laughing
Ray


Would be better if they did because it would give me a place to start research! Laughing

Looks like I will measure the bores once I get the head(s) off.

Thanks for your input on this guys!
_________________
1973 Campmobile rustoration in progress..

1700 Type 4 engine
Manual Transmission
Pertronix Mechanical advance distributor
Pertronix Flame Thrower coil
Weber Progressive

Come visit our Facebook page!
http://www.facebook.com/pages/Freedom-the-Campmobile/158775277473211

Click to view image
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VeeDubb steppin
Samba Member


Joined: August 16, 2015
Posts: 73
Location: weast of eden
VeeDubb steppin is offline

PostPosted: Sun Nov 21, 2021 8:51 am    Post subject: Reply with quote

FreedomBuild wrote:
LOL upon closer look of your picture Tcash the location on the right is a superimposed picture of the engine number by the crankcase. lol I got excited there thinking I missed a spot! But I already checked there. :(

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


RIGHT ! Now I'm in the same boat as you were 7 years ago ...I have a 1972 VW Westy Bus/W an apparently rebuilt motor W/ NO code stamped in case ? The only visual clue to this engine that seems different is the oil fill is thru the Breather ? on top , unlike my other 73/74? Bus , and the dipstick is on the top and doesn't seem to function correctly i.e. " its too long to come out W/O hitting underside of rear floor pan . The engine now has a newer ? single carb setup . It runs strong ,now that I re- sorted a few things out ,But I'm clueless as to what this beast is ? A-N-Y , help is greatly appreciated ? Thanxz ! :?: :idea: :arrow:
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jeff Geisen
Samba Chaplain


Joined: December 21, 2004
Posts: 1762
Location: N.W. Georgia
Jeff Geisen is offline

PostPosted: Sun Nov 21, 2021 11:18 am    Post subject: Re: Cannot locate Type 4 engine code. Need some help. Reply with quote

Vanagon engine.
_________________
I Corinthians 4

I actually drive my bus and single cab. They run and drive great, and I maintain them myself. I don't merely own type IIs, I travel all over in them. Really, check my instagram link or gallery.

71 Westy rag top, 69 single cab Both driven daily
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 19547
Location: Oklahoma City
raygreenwood is offline

PostPosted: Sun Nov 21, 2021 1:26 pm    Post subject: Re: Cannot locate Type 4 engine code. Need some help. Reply with quote

Jeff Geisen wrote:
Vanagon engine.


Or a 411/412 or 914 engine....all of which had top mounted dipsticks.

Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
rottenkid
Samba Member


Joined: June 19, 2015
Posts: 226
Location: Warkworth, ontario
rottenkid is offline

PostPosted: Sun Nov 21, 2021 2:41 pm    Post subject: Re: Cannot locate Type 4 engine code. Need some help. Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

I had this label on my 78 bus. It was an original California vehicle, but somehow ended up in British Columbia.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 19547
Location: Oklahoma City
raygreenwood is offline

PostPosted: Sun Nov 21, 2021 3:12 pm    Post subject: Re: Cannot locate Type 4 engine code. Need some help. Reply with quote

rottenkid wrote:
Image may have been reduced in size. Click image to view fullscreen.

I had this label on my 78 bus. It was an original California vehicle, but somehow ended up in British Columbia.


That number..... 039 100 031....if you dig around you will find cryptic notes that it is a Porsche part number for a complete replacement or rebuilt engine assembly.

Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
