Author Message
scotty timmerman
Samba Member


Joined: January 10, 2010
Posts: 788
Location: gigharbor W.A
scotty timmerman is offline

PostPosted: Tue Feb 03, 2015 1:16 pm    Post subject: Reply with quote

i recently fixed an oil leak coming from that exact same nut on a 1600 in a bus. i had to knock up the tin thats on the cylinders with a screw driver and a hammer to get enough clearance to get it off. you should take it off, clean the area up and use silicon to seal it. then torque it with a 17mm wobble socket on an extension.
_________________
71 ghia coupe: Build thread http://www.thesamba.com/vw/forum/viewtopic.php?t=511738&highlight=
71 type 3 fastback auto
71 type 3 fastback manual
73 super beetle
57 oval: build thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8616563#8616563
63 beetle reassembly: http://www.thesamba.com/vw/forum/viewtopic.php?p=7458619#7458619
2332cc engine build: https://www.thesamba.com/vw/forum/viewtopic.php?p=8608429&highlight=#8608429
Back to top
View user's profile Send private message Gallery Classifieds Feedback
-Zodiac-
Samba Member


Joined: September 22, 2014
Posts: 782
Location: Pensacola/milton, florida
-Zodiac- is offline

PostPosted: Tue Feb 03, 2015 2:01 pm    Post subject: Reply with quote

Thanks scotty, I tapped on the tin slightly , but i'll jack it up tomorrow and fix it. funny i should install an oil temp sensor and then gain an oil leak Confused !

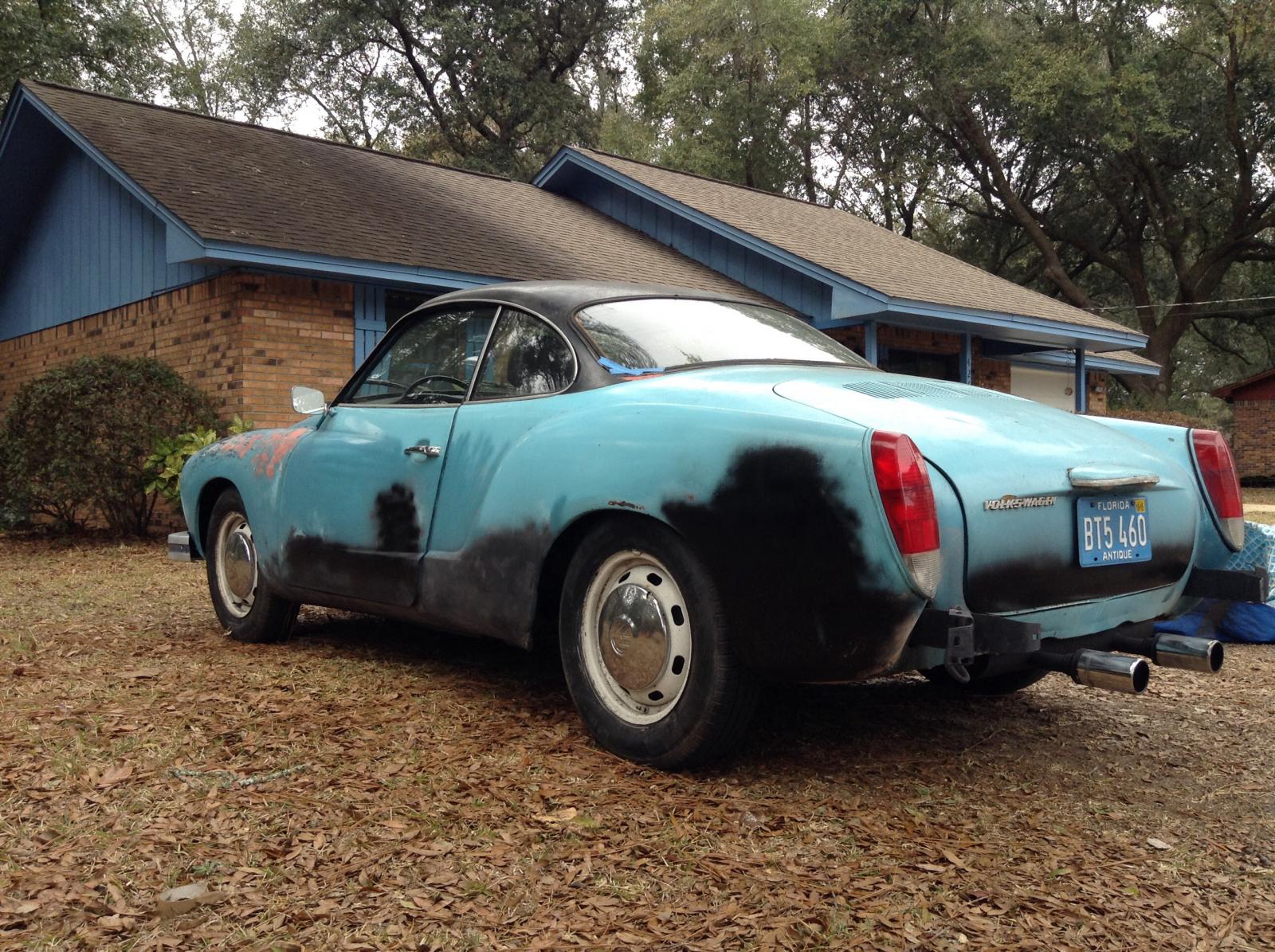

Here you go Bloku ~ some pics taken today. she isn't pretty - but we will get to that Wink

so here she is like a bruiser - black and blue
I'm going to re install the original turn signals.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

much more sinister plans for her tomorrow Twisted Evil
Image may have been reduced in size. Click image to view fullscreen.


suppose I should inform those who aren't aware of my game plan. the car will be flattish blue ( not glossy ) with a flat black top, black rims - going to find some hubcaps in decent shape ( mine have rust holes ). I'm going to leave the dash the original Olympic blue that was under the black vinyl face. Today I ghetto rigged a modern radio up to test it (and then left a CD in it d'oh! ) - I will make a box for it under the dash.

also I picked up some adhesive for the carpet so maybe i'll glue that all down tomorrow !
_________________
1973 karmann ghia - current, not the last VW.
1947 Chevy stylemaster - gone, but not forgotten.
1995 Ford F-150 - gone, hatred for it lives.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bloku
Expert Noob


Joined: April 09, 2013
Posts: 553
Location: Tulsa, Oklahoma
Bloku is offline

PostPosted: Tue Feb 03, 2015 2:20 pm    Post subject: Reply with quote

Looks good too me Smile. I would even drive it how it sits! I getto rigged a modern radio in my dash and got lazy and left it there. I do not want anything to do with wiring anymore.

Do you plan to do anything to it? different rims, ride height? If you want, I am pretty good at Photoshop (lowering stuff, that is about it Rolling Eyes )and I could do that for you if you want. Just name it and I can do it Smile.

To everyone - Has anyone ever seen when a bumper for a late style ghia that was pushed back? I have seen it in the bmw forums but almost nothing here at the vw world.
_________________
1971 Karmann Ghia


Last edited by Bloku on Tue Feb 03, 2015 2:50 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
c21darrel
Samba Member


Joined: January 22, 2009
Posts: 7337
Location: San Dimas
c21darrel is offline

PostPosted: Tue Feb 03, 2015 2:20 pm    Post subject: Reply with quote

Perfect, I was going to suggest you should invest in some lite blue primer. Smile
_________________
GhiaBuild
http://www.thesamba.com/vw/forum/viewtopic.php?t=481184
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
-Zodiac-
Samba Member


Joined: September 22, 2014
Posts: 782
Location: Pensacola/milton, florida
-Zodiac- is offline

PostPosted: Tue Feb 03, 2015 3:18 pm    Post subject: Reply with quote

Bloku wrote:
Do you plan to do anything to it? different rims, ride height? If you want, I am pretty good at Photoshop (lowering stuff, that is about it Rolling Eyes )and I could do that for you if you want. Just name it and I can do it Smile.

Thanks man! unfortunately I know you will hate this next part Wink i'm keeping the ride height, stock rims, and stock bumpers - but if you want for shits and giggles you can modify the car however you want! maybe you can hook me up with these?

Image may have been reduced in size. Click image to view fullscreen.
[/img]
ugh I have a soft spot for knockoffs !

I know it Darrel Laughing that's what I should have been using lol
Image may have been reduced in size. Click image to view fullscreen.

here you go darrel yer blue Primer! Thanks Bloku !! looks kind of nice as a panscraper Wink
_________________
1973 karmann ghia - current, not the last VW.
1947 Chevy stylemaster - gone, but not forgotten.
1995 Ford F-150 - gone, hatred for it lives.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Basketcase
Samba Member


Joined: August 10, 2011
Posts: 616
Location: Ohio
Basketcase is offline

PostPosted: Tue Feb 03, 2015 10:23 pm    Post subject: Reply with quote

great project!
_________________
'72 Karmann Ghia Coupe (the Boss's)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
-Zodiac-
Samba Member


Joined: September 22, 2014
Posts: 782
Location: Pensacola/milton, florida
-Zodiac- is offline

PostPosted: Wed Feb 04, 2015 4:11 pm    Post subject: Reply with quote

Basketcase wrote:
great project!


Thanks!! should be an interesting ride. sucked to read about your Ghias story, and the bad body shop.

Florida decided that it should rain today, so no work will be done - she sits under a tarp waiting. tomorrow I should be able to take the DA to it, and glue down some carpet.
_________________
1973 karmann ghia - current, not the last VW.
1947 Chevy stylemaster - gone, but not forgotten.
1995 Ford F-150 - gone, hatred for it lives.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Basketcase
Samba Member


Joined: August 10, 2011
Posts: 616
Location: Ohio
Basketcase is offline

PostPosted: Wed Feb 04, 2015 5:02 pm    Post subject: Reply with quote

yeah it sucked, but it's motivating me to maybe give it a shot myself.
_________________
'72 Karmann Ghia Coupe (the Boss's)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
-Zodiac-
Samba Member


Joined: September 22, 2014
Posts: 782
Location: Pensacola/milton, florida
-Zodiac- is offline

PostPosted: Wed Feb 04, 2015 5:33 pm    Post subject: Reply with quote

Basketcase wrote:
yeah it sucked, but it's motivating me to maybe give it a shot myself.


I say go Go for it! I look forward to seeing you start a thread, and getting your Ghia up going Cool

Goodluck
_________________
1973 karmann ghia - current, not the last VW.
1947 Chevy stylemaster - gone, but not forgotten.
1995 Ford F-150 - gone, hatred for it lives.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Basketcase
Samba Member


Joined: August 10, 2011
Posts: 616
Location: Ohio
Basketcase is offline

PostPosted: Wed Feb 04, 2015 5:43 pm    Post subject: Reply with quote

oh it goes (once the snow and road salt goes away) just doesn't look too good doing it.
_________________
'72 Karmann Ghia Coupe (the Boss's)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
-Zodiac-
Samba Member


Joined: September 22, 2014
Posts: 782
Location: Pensacola/milton, florida
-Zodiac- is offline

PostPosted: Wed Feb 04, 2015 9:44 pm    Post subject: Reply with quote

Smile welcome to the club

I just meant like getting the ball rolling on you doing the work.
_________________
1973 karmann ghia - current, not the last VW.
1947 Chevy stylemaster - gone, but not forgotten.
1995 Ford F-150 - gone, hatred for it lives.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kiwighia68
Samba Member


Joined: October 20, 2013
Posts: 2483
Location: Auckland, New Zealand
kiwighia68 is offline

PostPosted: Thu Feb 05, 2015 10:15 am    Post subject: Reply with quote

I need to see how you're doing the carpeting, please, because I'm going to have to do the same in a month or two.

Have you tried grey primer? It can make a car look good, even when it's still in pieces.

Image may have been reduced in size. Click image to view fullscreen.


Progress is progress, even when it's one small step at a time. We'll get there, you and I.
_________________
Festina lente - hasten slowly
1968 Ghia named Emiko
Resto completed Dec 2015


Last edited by kiwighia68 on Thu Feb 05, 2015 10:40 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NWGhiaGuy Premium Member
Samba Member


Joined: March 16, 2005
Posts: 688
Location: Bellingham, WA
NWGhiaGuy is offline

PostPosted: Thu Feb 05, 2015 10:24 am    Post subject: Reply with quote

-Zodiac- wrote:
I might be able to grind some of the wrench off - or some other modification that will allow me to turn it.


A word of caution. That nut should have a specific torque on it as it carries the main bearing for your crank. Too tight and it can pull the stud from the other half of the case or pinch your main bearing destroying your engine. Too loose, and well.. you get oil leaks and possibly extra play in the crank which too can destroy your engine.

To get in there and move it at all, you're taking a risk. It is a temporary fix at best.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
ZENVWDRIVER
Samba Member


Joined: November 07, 2008
Posts: 2238
Location: N.E. Oklahoma
ZENVWDRIVER is offline

PostPosted: Thu Feb 05, 2015 10:32 am    Post subject: Reply with quote

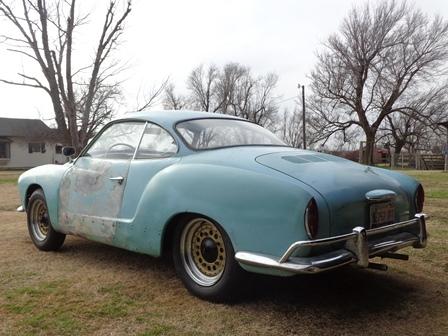

"Do you plan to do anything to it? different rims, ride height? If you want, I am pretty good at Photoshop (lowering stuff, that is about it Rolling Eyes )and I could do that for you if you want. Just name it and I can do it Smile. "

He did it to me :X

Image may have been reduced in size. Click image to view fullscreen.

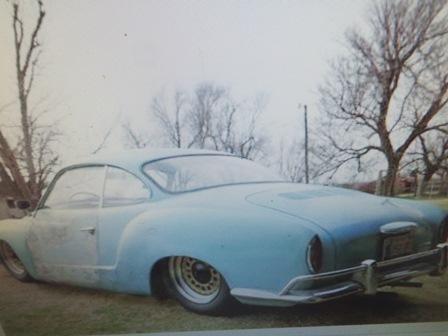

...thanks, appreciate the perspective, but I like normal height...
Image may have been reduced in size. Click image to view fullscreen.

_________________
5/50, pastel green 11G - SOLD
8/50, gray 11A Beetle
1954 Porsche, pre A, with VW 36 horse- SOLD
1/54, black 11C Beetle - TRADED
2/55 Iceland green Beetle, on a 1965 pan
3/55 113 Beetle, stratos silver
1955 Messerschmitt KR175 - SOLD, sadly
1960 single cab
1962 SO33, with SO 42 interior
9/63 Pacific blue, Ghia
'87 Toyota MR2
'91 NSX- wishful thinking

German sausage are the wurst.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Basketcase
Samba Member


Joined: August 10, 2011
Posts: 616
Location: Ohio
Basketcase is offline

PostPosted: Thu Feb 05, 2015 11:58 am    Post subject: Reply with quote

Have you tried grey primer? It can make a car look good, even when it's still in pieces.

I have completely embraced grey primer. My '69 road runner was supposed to be painted three years ago, but between the furnace died the day before last Thanksgiving, oldest daughter getting married,haven't had the $$ for paint. I tried to talk the wife into primer for her Ghia, but she wants shiney paint. Plus with primer, no worries about chips and scratches.
_________________
'72 Karmann Ghia Coupe (the Boss's)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bloku
Expert Noob


Joined: April 09, 2013
Posts: 553
Location: Tulsa, Oklahoma
Bloku is offline

PostPosted: Thu Feb 05, 2015 12:10 pm    Post subject: Reply with quote

Normal height is very good for people who like to drive their cars. The cars were made to function that at that height, and the geometry of the suspension was made for it to be that way also.
_________________
1971 Karmann Ghia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
-Zodiac-
Samba Member


Joined: September 22, 2014
Posts: 782
Location: Pensacola/milton, florida
-Zodiac- is offline

PostPosted: Thu Feb 05, 2015 3:06 pm    Post subject: Reply with quote

I will post up pics in just a bit. I have all of the carpet put in and I started to hit parts with the DA. I learned quite a bit from this, and kind of rushed through it - an important lesson is to take you TIME! Second lesson is to wear a friggen mask over your face - I did not... Another lesson for yourself chris is to not take example from a 19 year old Wink I didn't know what I was doing either, just kind of did.

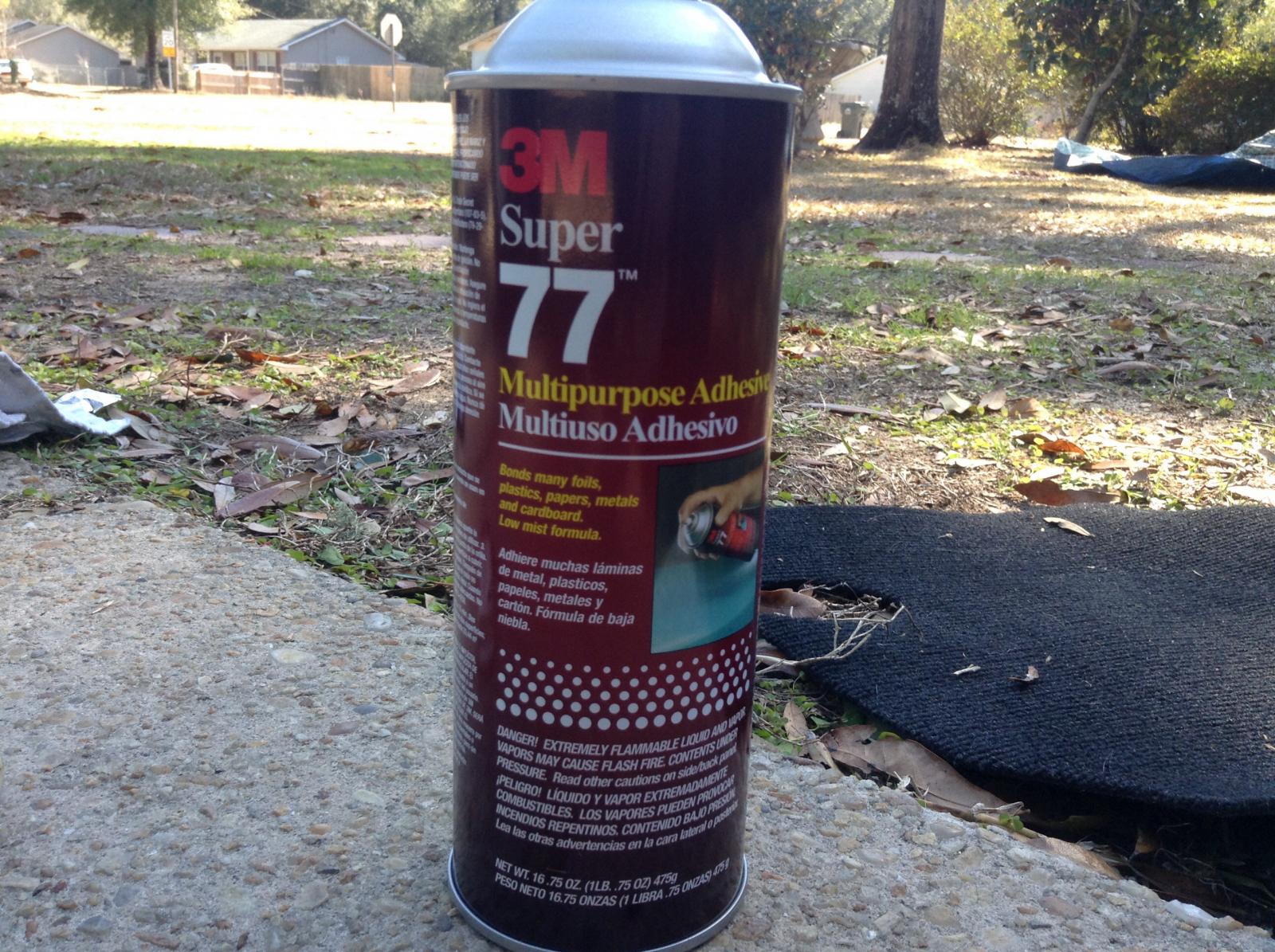

Here is the Glue that I used, I kind of rushed at home depot and just picked one, if I were to do it again I don't think I would go for a spray adhesive - although it did do its job rather well.
Image may have been reduced in size. Click image to view fullscreen.

the first part I put down was the tunnel, almost immediately it made wrinkles(my worst nightmare,I want it asflat as possible) so I had to lift it up, apply glue at times and fix it. I got it quite straight ,some parts not flat due to the padding underneath.

the part where the defrost tubes are, I cut a thin piece of cardboard and just shuved it in, nothing but glue holding it - that's apart of the things I rushed on.. here's some pics - I didn't take them as I went along - sorry for that.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Biggest regret is getting glue all over my freaking fingers, some spots if you look for it you might see it, but from a far, and not paying attention looks pretty good I suppose. also I didn't glue down the main floor pieces, just gravity holding them. I wanted my car to look different, so I left the brake line exposed, and the passenger footrest exposed, also the wire loom. overall I had around three hours invested, between sanding, carpet, cutting stuff, and a french fry break Cool

let me know what you guys thing, or ask any questions if needed !

Wish I would have joined this site before buying my karmann ghia..
Image may have been reduced in size. Click image to view fullscreen.


Primer is finer, she will get more sanding tomorrow.

NWghiaguy ~ are you suggesting that I just deal with the drip? I mean I know it takes alot of drips to amount to anything but it is a drip no less.
_________________
1973 karmann ghia - current, not the last VW.
1947 Chevy stylemaster - gone, but not forgotten.
1995 Ford F-150 - gone, hatred for it lives.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
-Zodiac-
Samba Member


Joined: September 22, 2014
Posts: 782
Location: Pensacola/milton, florida
-Zodiac- is offline

PostPosted: Thu Feb 05, 2015 10:26 pm    Post subject: Reply with quote

just made some VW floor mats to go over the driver-side carpet, might make a small mat for the passenger side as well.

so here we go, traced a template off of my VW sign
Image may have been reduced in size. Click image to view fullscreen.

moved it over to the backside of the carpet and cut
Image may have been reduced in size. Click image to view fullscreen.

placement isn't exact, ill figure it out tomorrow
Image may have been reduced in size. Click image to view fullscreen.

Cool
_________________
1973 karmann ghia - current, not the last VW.
1947 Chevy stylemaster - gone, but not forgotten.
1995 Ford F-150 - gone, hatred for it lives.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
aero3113
Samba Member


Joined: March 03, 2013
Posts: 196
Location: Setauket, NY (Long Island)
aero3113 is offline

PostPosted: Fri Feb 06, 2015 5:50 am    Post subject: Reply with quote

looks good. You should get the mats edge seamed to give it a finished look.
Back to top
View user's profile Send private message Classifieds Feedback
c21darrel
Samba Member


Joined: January 22, 2009
Posts: 7337
Location: San Dimas
c21darrel is offline

PostPosted: Fri Feb 06, 2015 2:22 pm    Post subject: Reply with quote

I think what NWGhiaguy is saying is that the nut should be at a specific torque (23-25lb and 14lb for the smaller 13 mm) . If you just tighten it w/o a torque wrench it could clamp down on the bearing the crank rides thru and pull it out of spec. That could eliminate the needed oil to lube it and catastrophic failure could be next. Thats what i get out of his post.
_________________
GhiaBuild
http://www.thesamba.com/vw/forum/viewtopic.php?t=481184
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Ghia All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5, 6  Next
Page 2 of 6


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
