| Author |
Message |
busworks
Samba Member
Joined: May 21, 2004
Posts: 202
Location: Moncks Corner,S.C.
|
 Posted: Thu Nov 13, 2014 3:59 pm Post subject: |
 |
|
Where's the like button?
I wanna see more of that bus. |
|
| Back to top |
|
 |
nfkk408
Samba Member
Joined: June 23, 2005
Posts: 53
Location: Wyoming
|
| Posted: Thu Nov 13, 2014 4:02 pm Post subject: |
|
|
I'll second that. More details and pictures please!
_________________
65 Riviera
65 Notchback 1500S
57 Oval - Gerald |
|
| Back to top |
|
|
21-window
Samba Member
Joined: March 23, 2004
Posts: 248
Location: out planting
|
| Posted: Thu Nov 13, 2014 5:19 pm Post subject: |
|
|
| This truck is finally finished. started back on page 3 or 4 of this thread |
|
| Back to top |
|
|
wardvwracer
Samba Member
Joined: July 19, 2002
Posts: 489
Location: De Pere, WI
|
| Posted: Fri Nov 14, 2014 6:29 pm Post subject: 63 Single Cab |
|
|

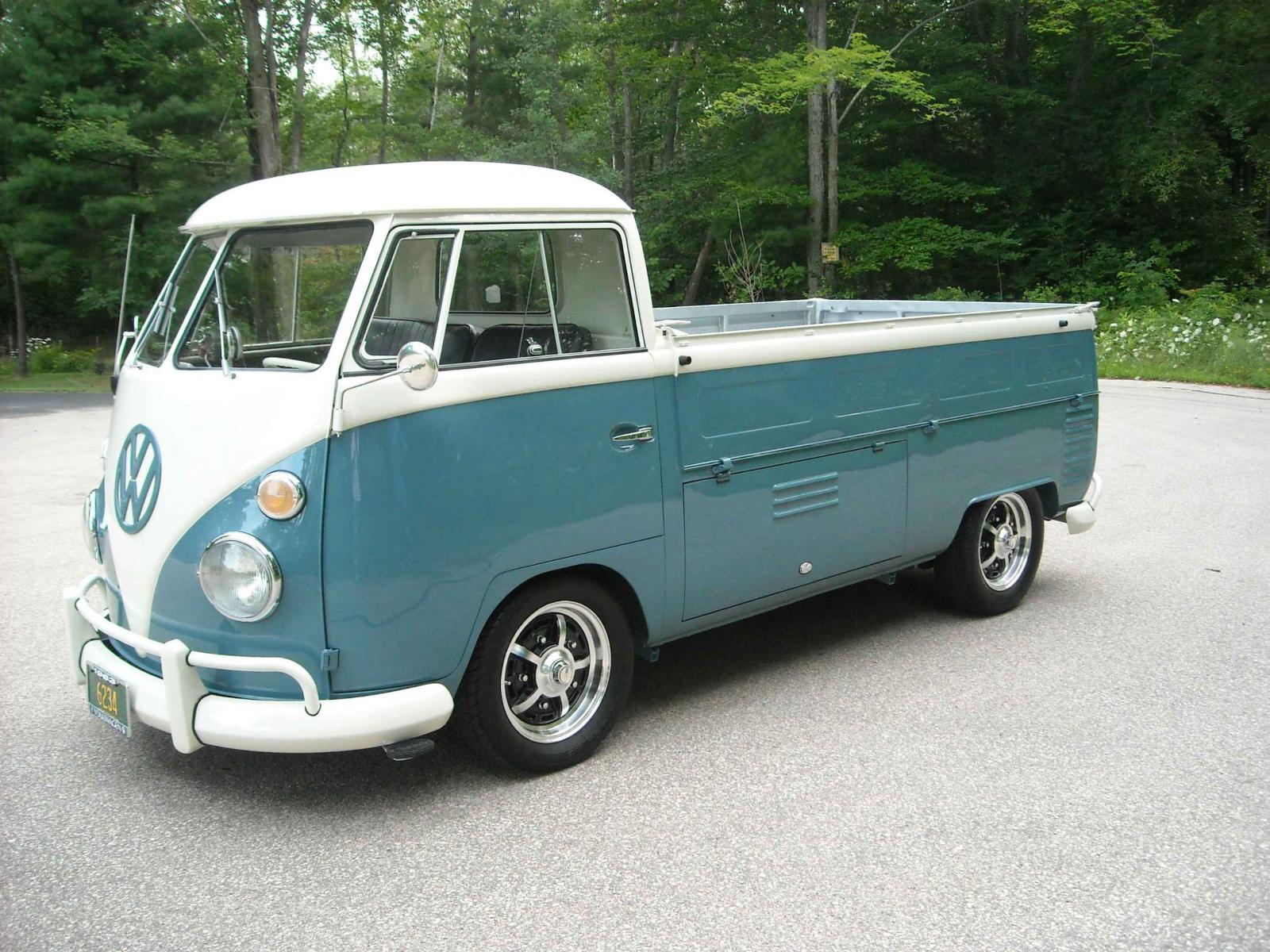

Here's a couple of pics of my 63 Single Cab. I did all the work except the body/paint work. Suspension changes include Wide 5 spindles, Wolfgang IRS kit, "built" gearbox that started as a '72 IRS beetle gearbox but now has a Weedle super-diff, 4.125 R&P, 3.78/2.06/1.32/.93 gearing and HD covers, Type 2 CV's and Wolfgang axles. Rolls on after-market Sprints.

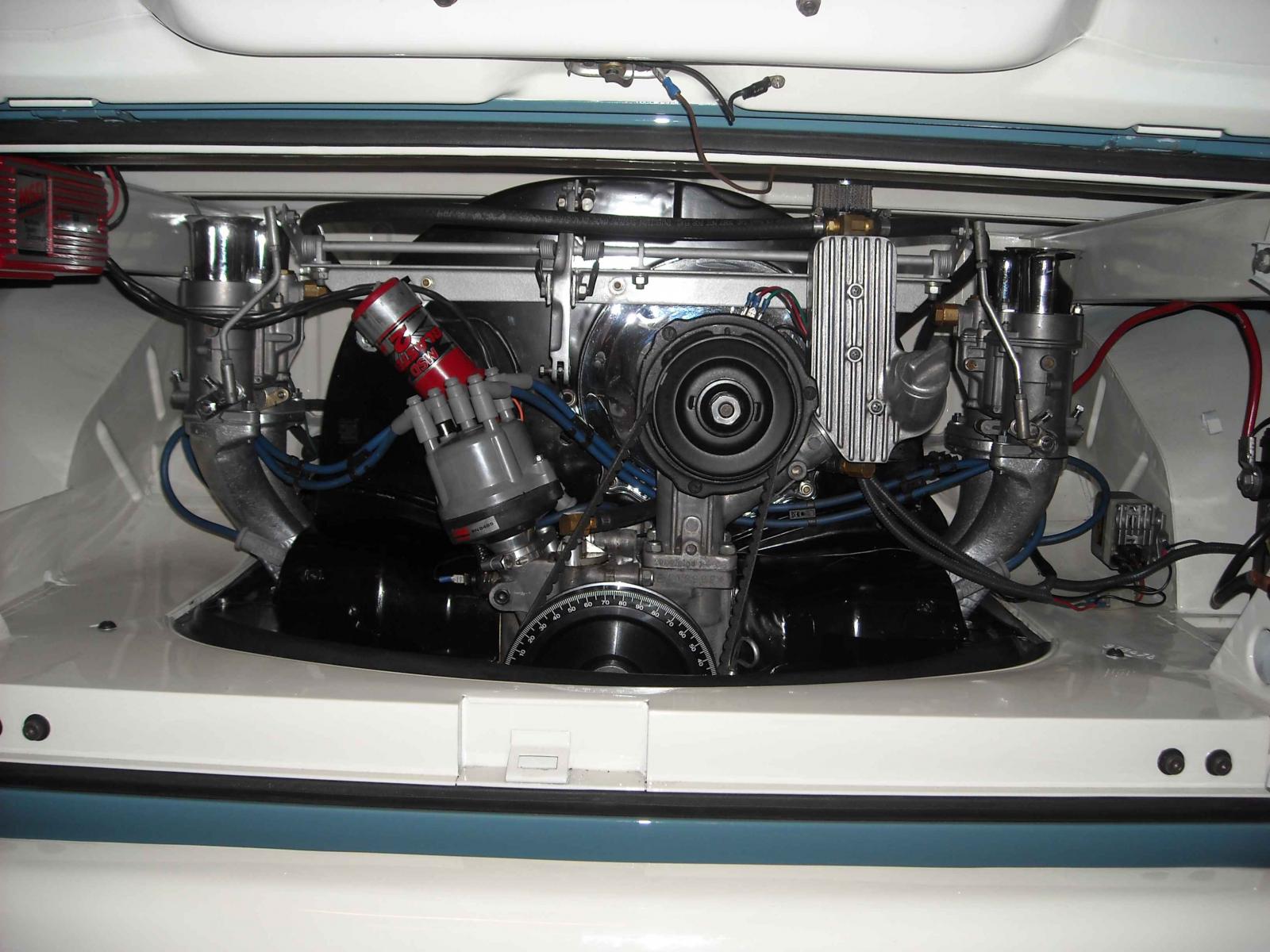

Power comes from a 2332cc combo that includes 4340 crank, H-beam 5.500" rods, CB Performance Super Pro CNC 44x37 heads, IDA's, FK10 cam, 10.3 to 1 compression, and a one-off Al's Headers side exit 1 5/8" merged exhaust and stainless chamber-style muffler.
_________________
David Ward
ACME Nostalgia Street/Strip '62 Buggy
1963 Single Cab
1969 Beetle Convertible
63 11-Window Kombi Bus
Cornpanzers |
|
| Back to top |
|
|
Low Bräu
Samba Member
Joined: December 12, 2003
Posts: 346
Location: Merritt Island, FL
|
| Posted: Mon Nov 24, 2014 5:06 pm Post subject: |
|
|

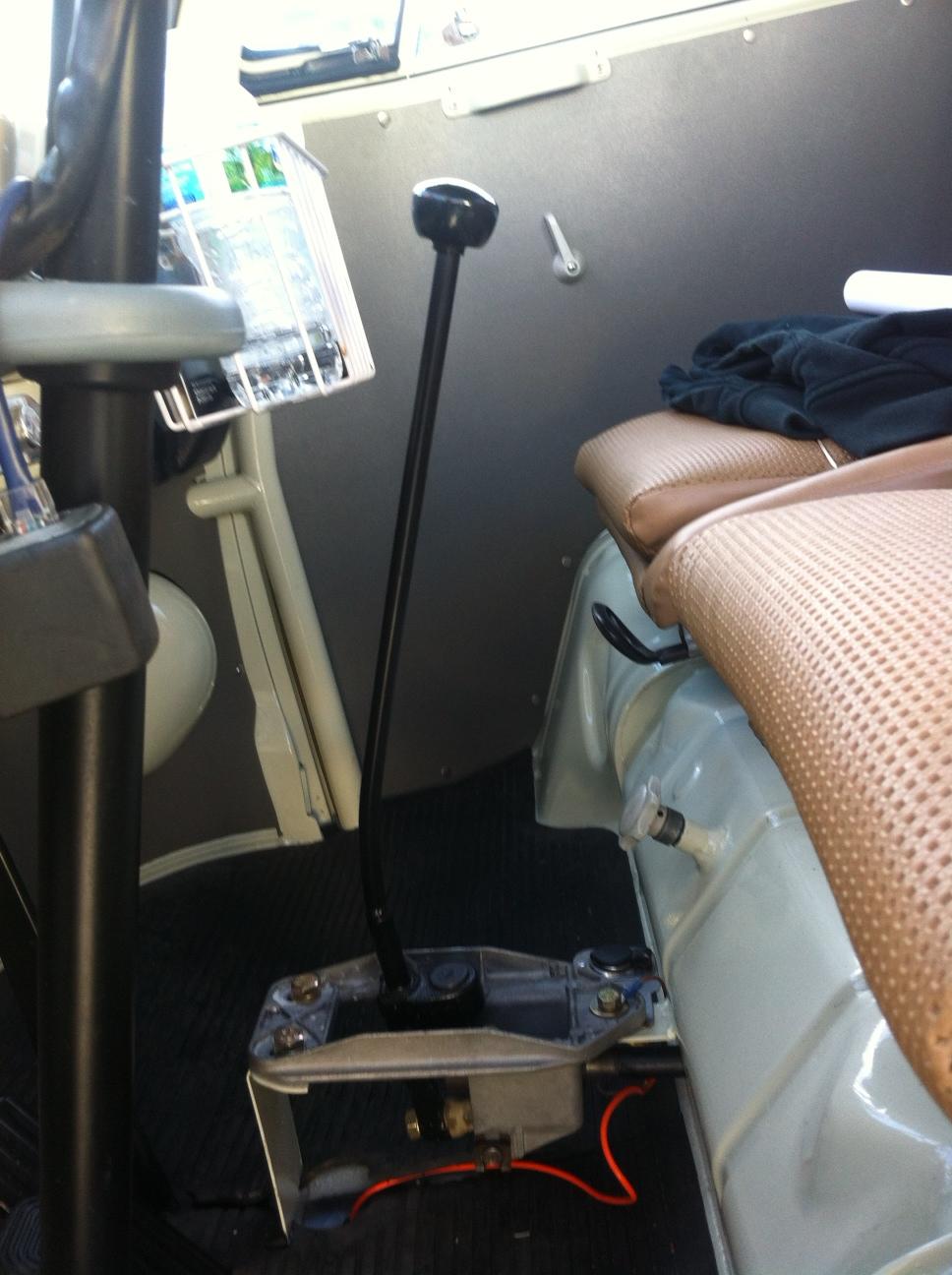

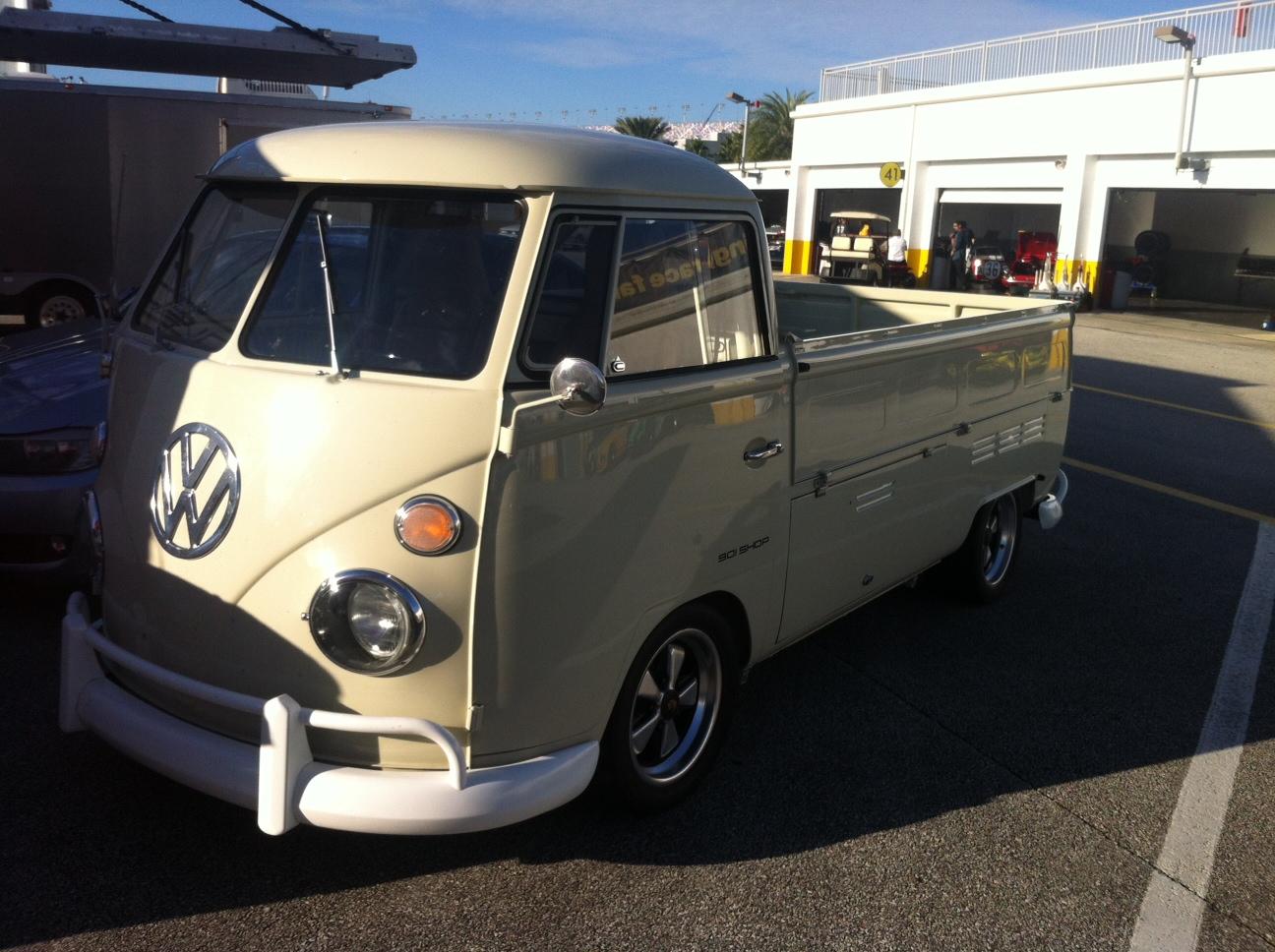

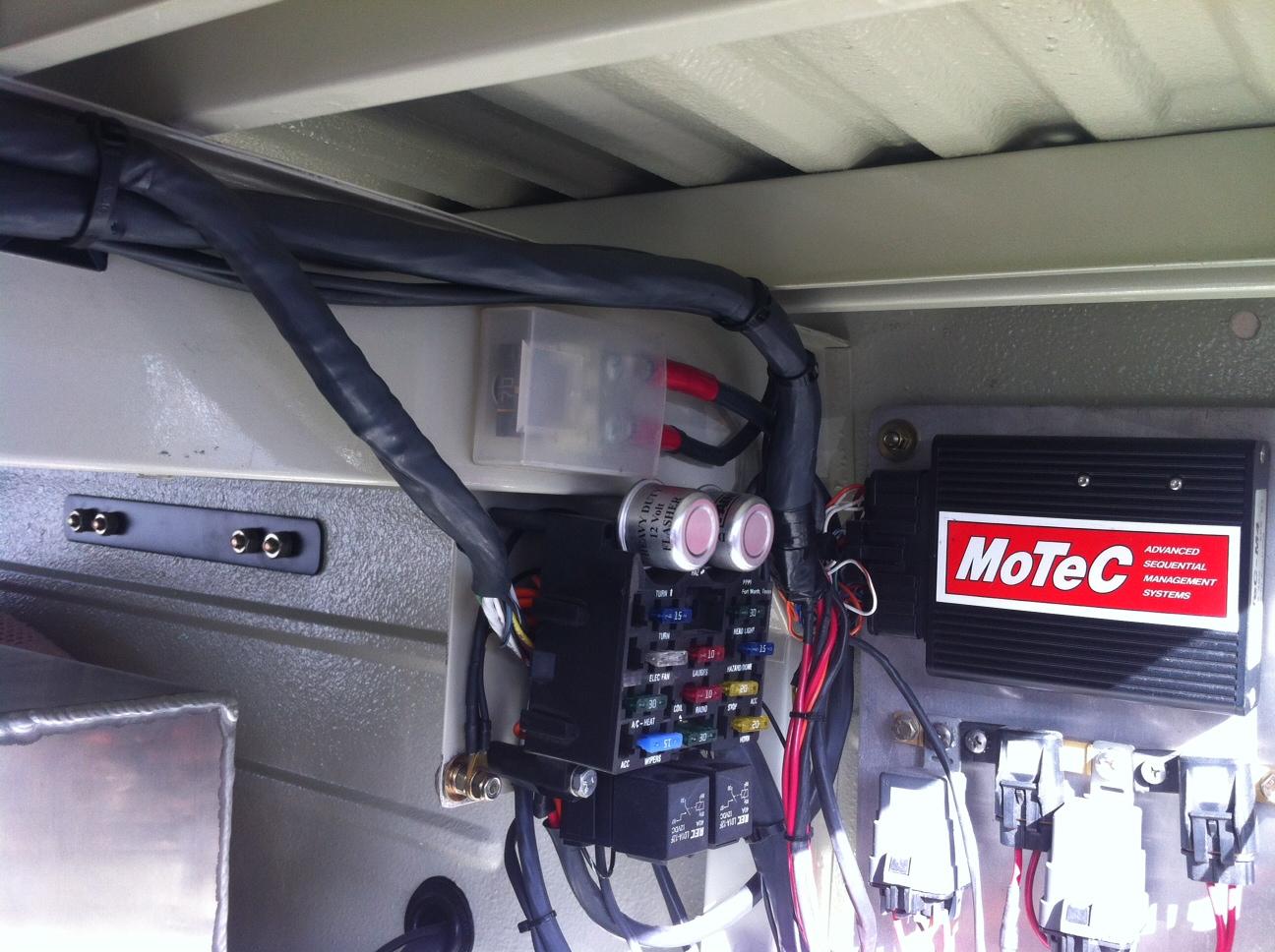

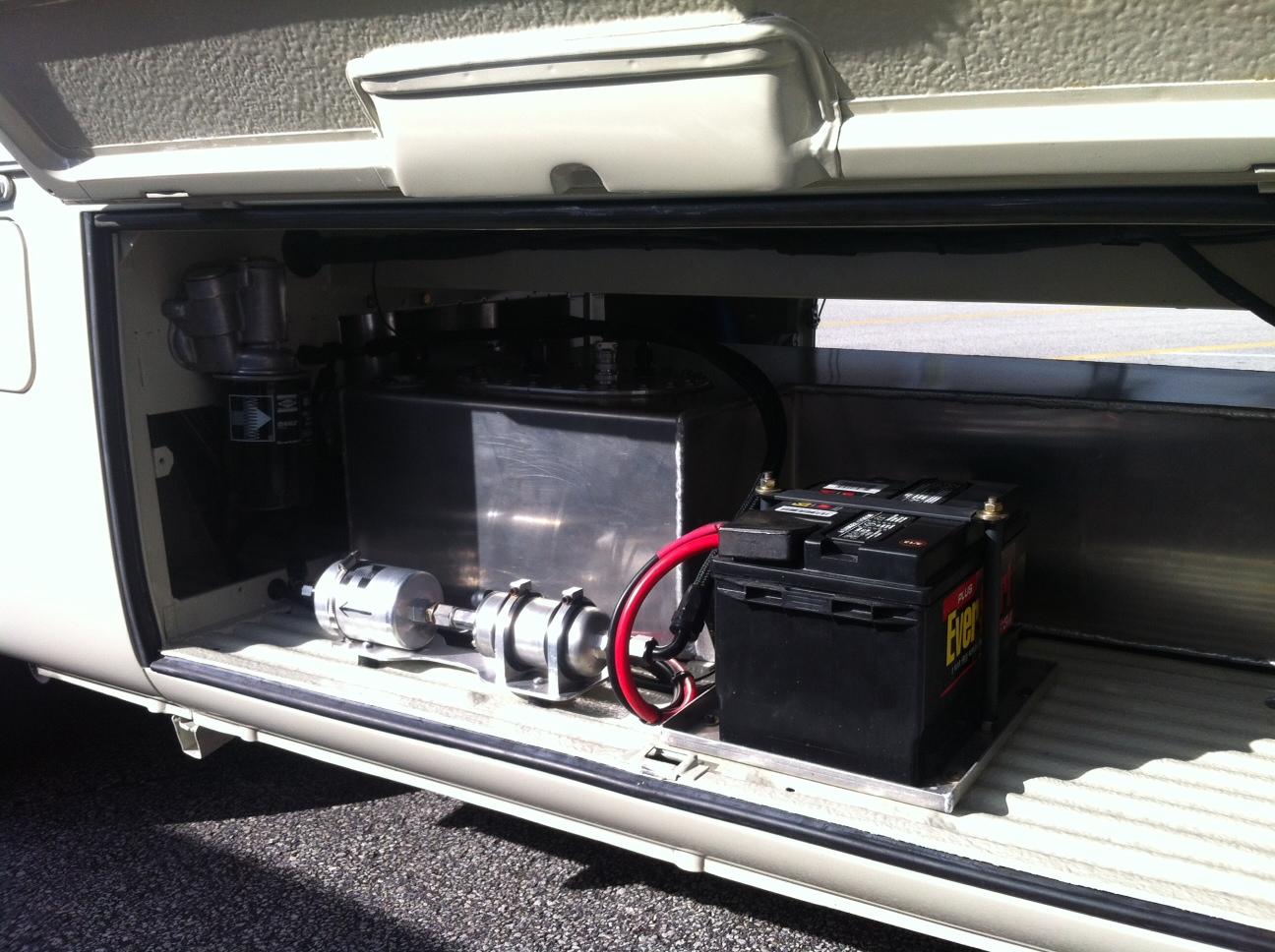

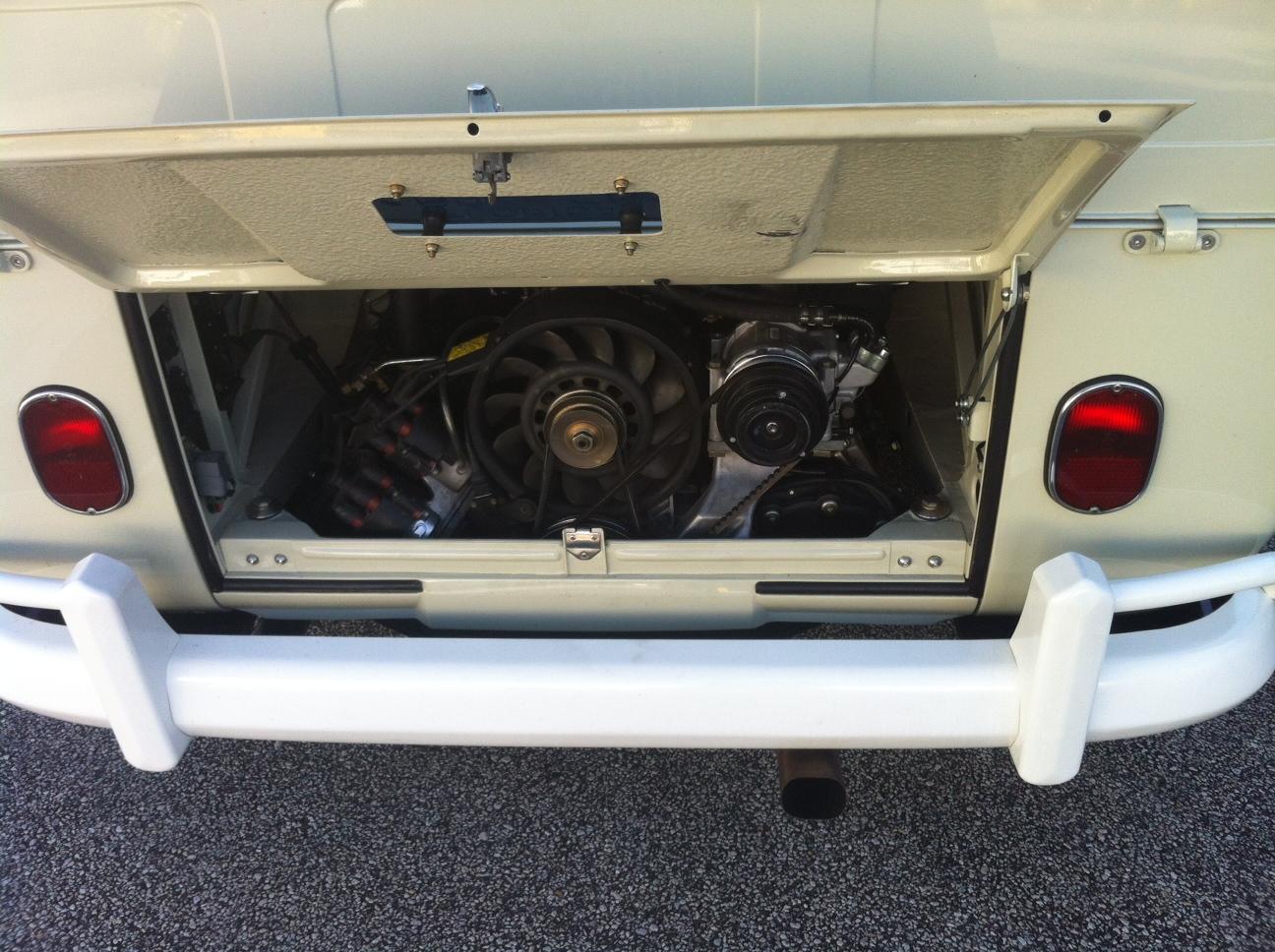

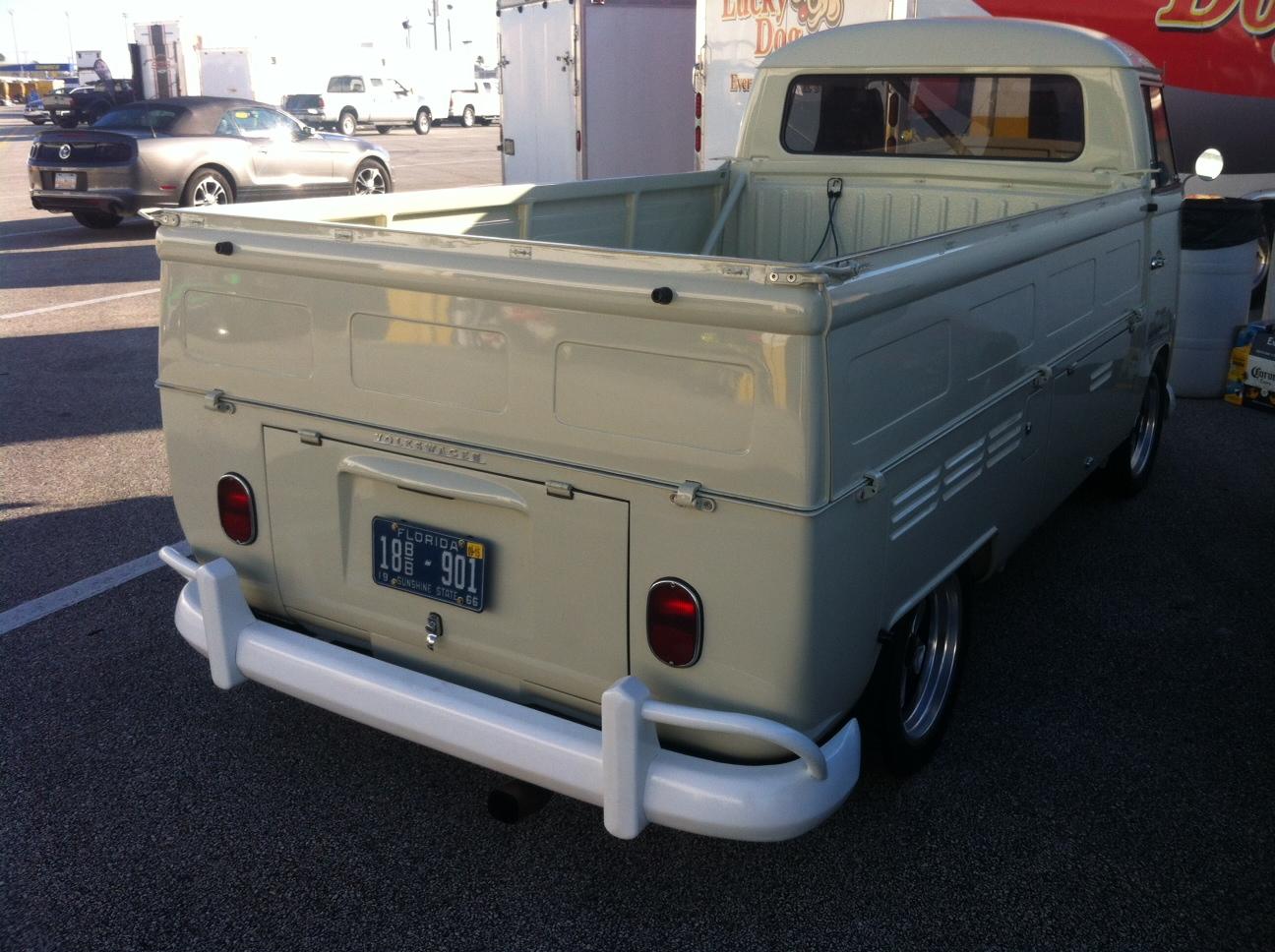

Here are some photos of the L87 pearl white 1966 Porsche 3.6 powered single cab above. Like Greg mentioned it was on page 3 or 4 earlier on in this thread. The truck was built and put on the road for a short time then pulled completely apart and restored. It's powered by a 3.6 twin plugged 964 engine with a short nosed G50 5 speed and turbo brakes. It weighs in around 2600lbs. As you might imagine, its FAST!
_________________
Independent German Auto
671 Fern Drive
Merritt Island, FL 32952
(321) 449-4665
Specializing in repair and maintenance for Porsche, BMW, Mini, Audi, and Volkswagen.
1952 Standard Beetle
1960 SO-23 Westfalia
1961 L-380 Turkis Deluxe Beetle
1985 Vanagon Country Homes Camper (work in progress - EG33 swap) |
|
| Back to top |
|
|
67dubcab
Samba Member
Joined: February 12, 2009
Posts: 214
Location: sebastopol C.A
|
| Posted: Tue Nov 25, 2014 12:50 am Post subject: |
|
|
That s.c 3.6 is looking good....
I noticed the front strut under the seat, would be great to see the suspension set-up, or a link to a build thread if there is one.

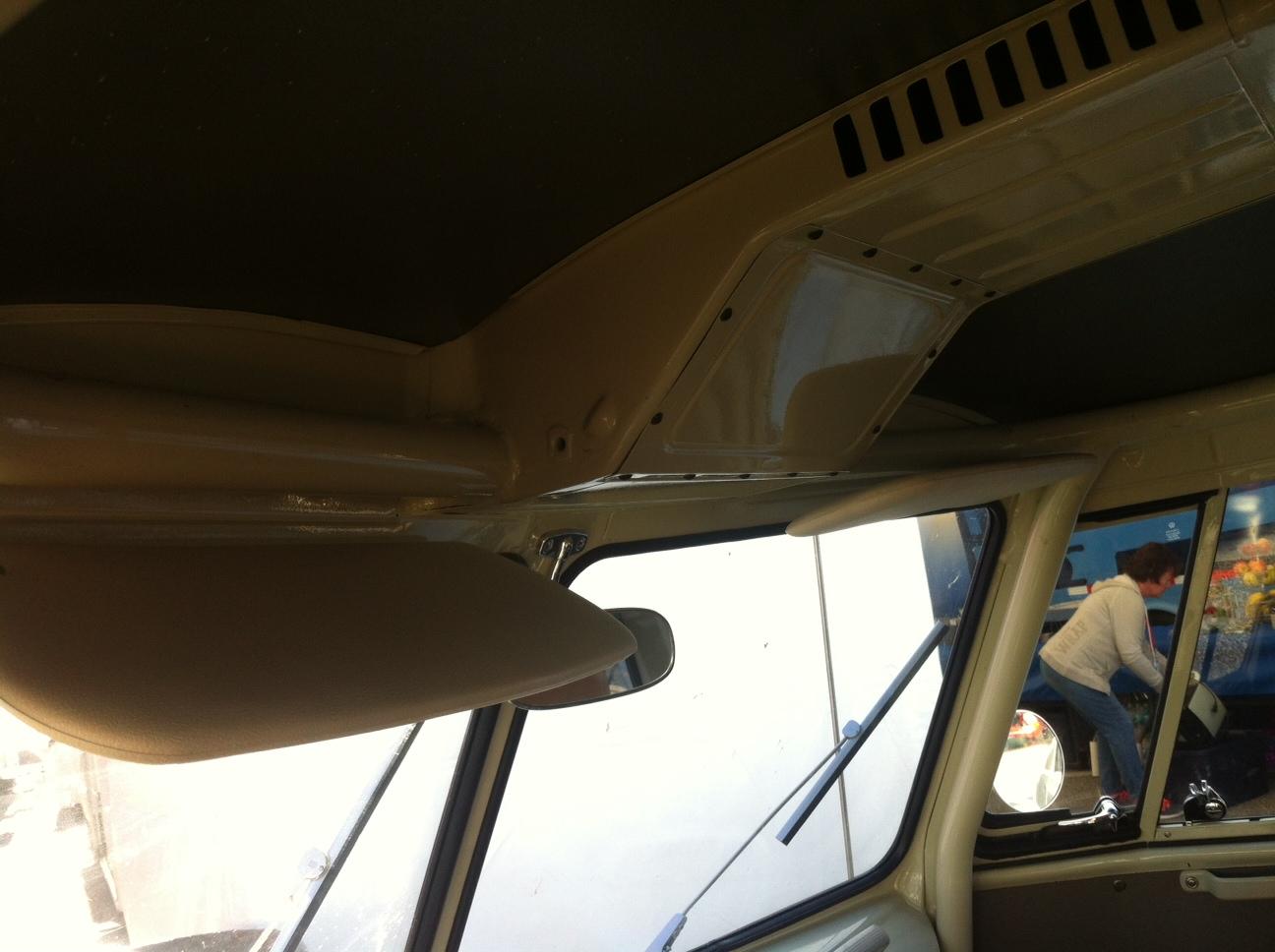

Also nice to see some details of the roll cage, I like the bar going through the vent, pondering that option myself, as running the bar below cuts off some of the front vis, though I am not sure I want to lose the vent function.
_________________
Porsche powered mid-engine double cab build
http://www.thesamba.com/vw/forum/viewtopic.php?t=3...highlight= |
|
| Back to top |
|
|
nikke911
Samba Member
Joined: March 12, 2011
Posts: 11
Location: Finland
|
| Posted: Wed Nov 26, 2014 11:17 am Post subject: |
|
|
| Beautiful work!! |
|
| Back to top |
|
|
Low Bräu
Samba Member
Joined: December 12, 2003
Posts: 346
Location: Merritt Island, FL
|
| Posted: Wed Nov 26, 2014 4:29 pm Post subject: |
|
|
| 67dubcab wrote: |
That s.c 3.6 is looking good....
I noticed the front strut under the seat, would be great to see the suspension set-up, or a link to a build thread if there is one.
Also nice to see some details of the roll cage, I like the bar going through the vent, pondering that option myself, as running the bar below cuts off some of the front vis, though I am not sure I want to lose the vent function. |

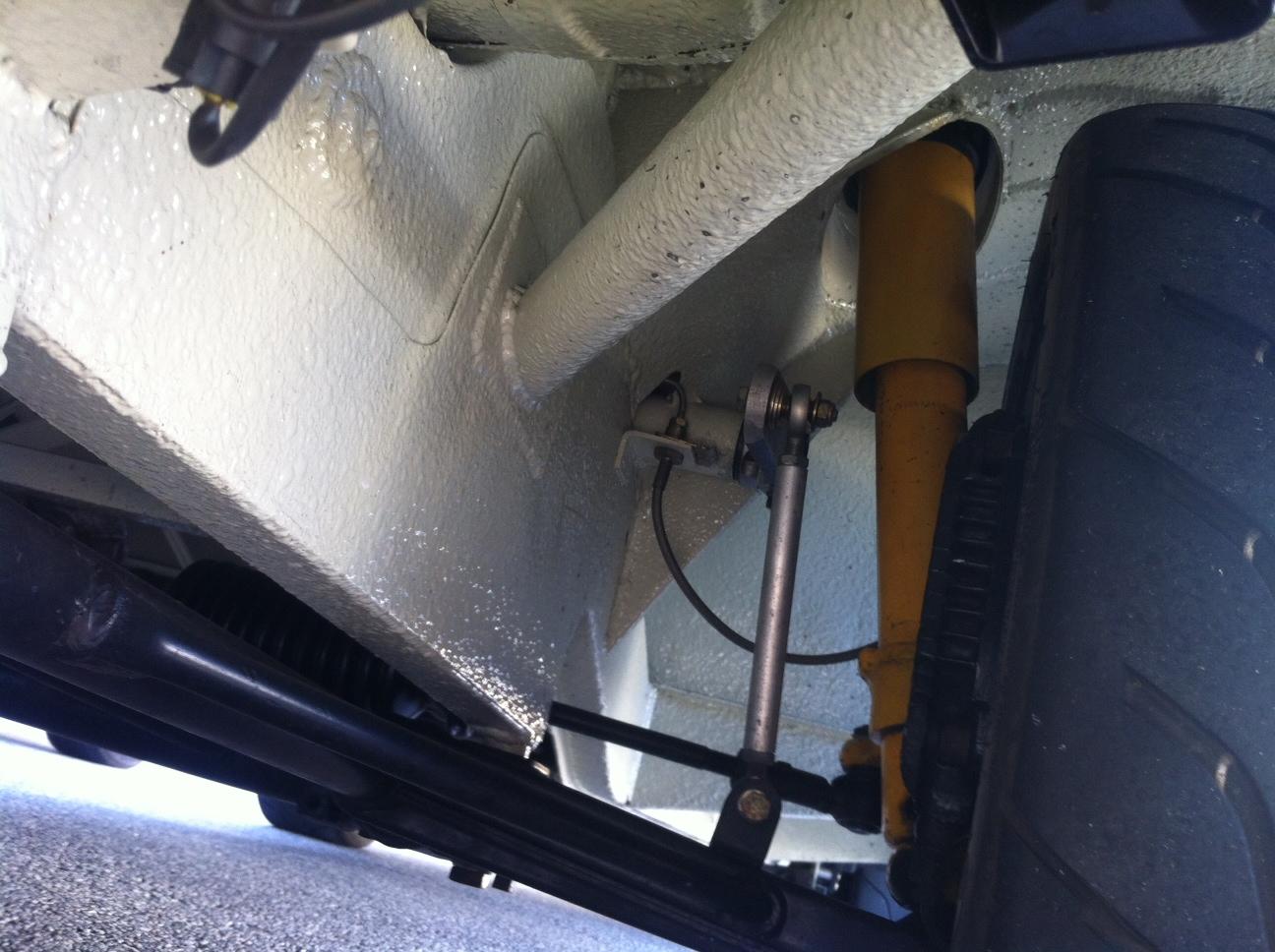

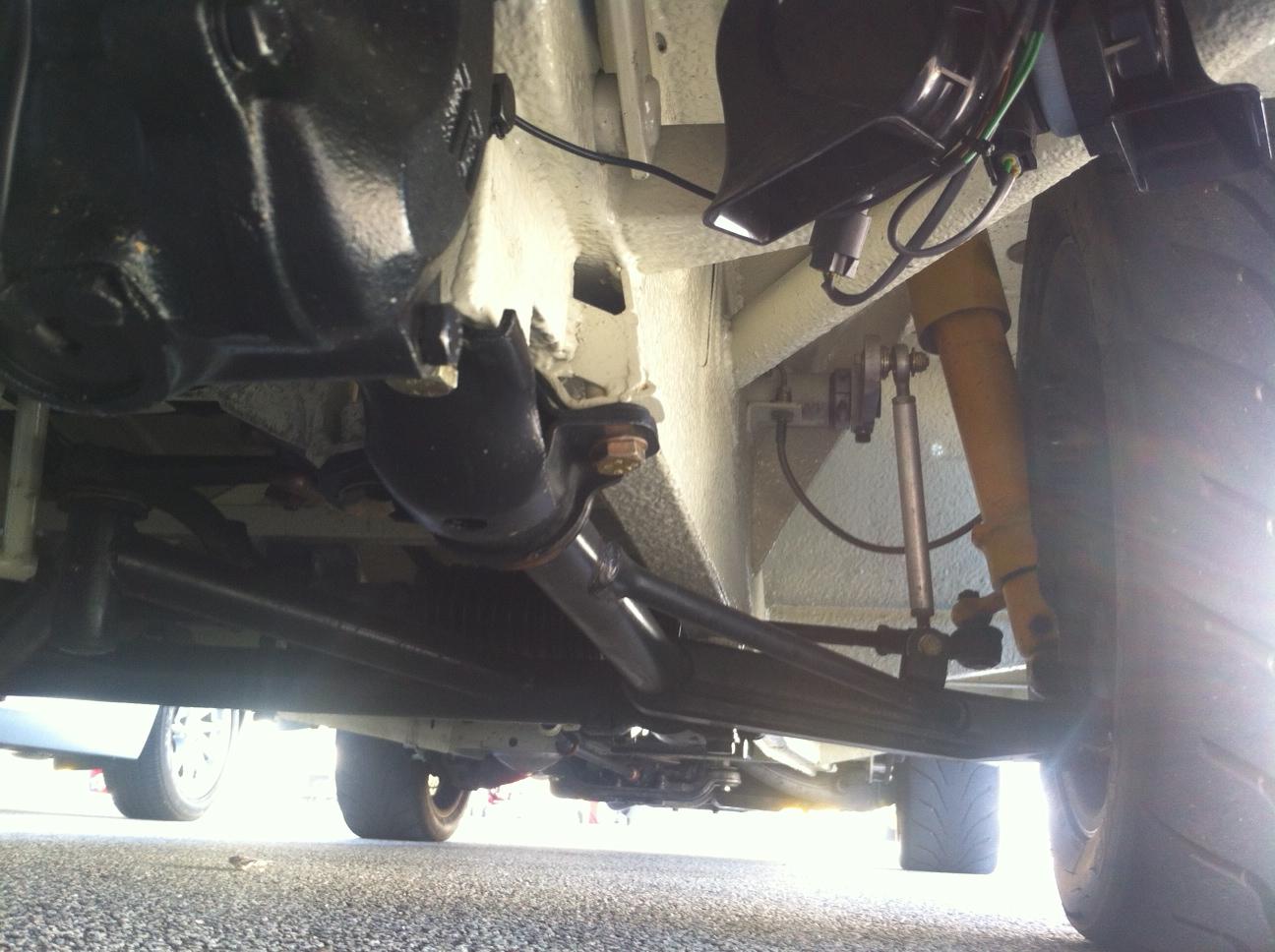

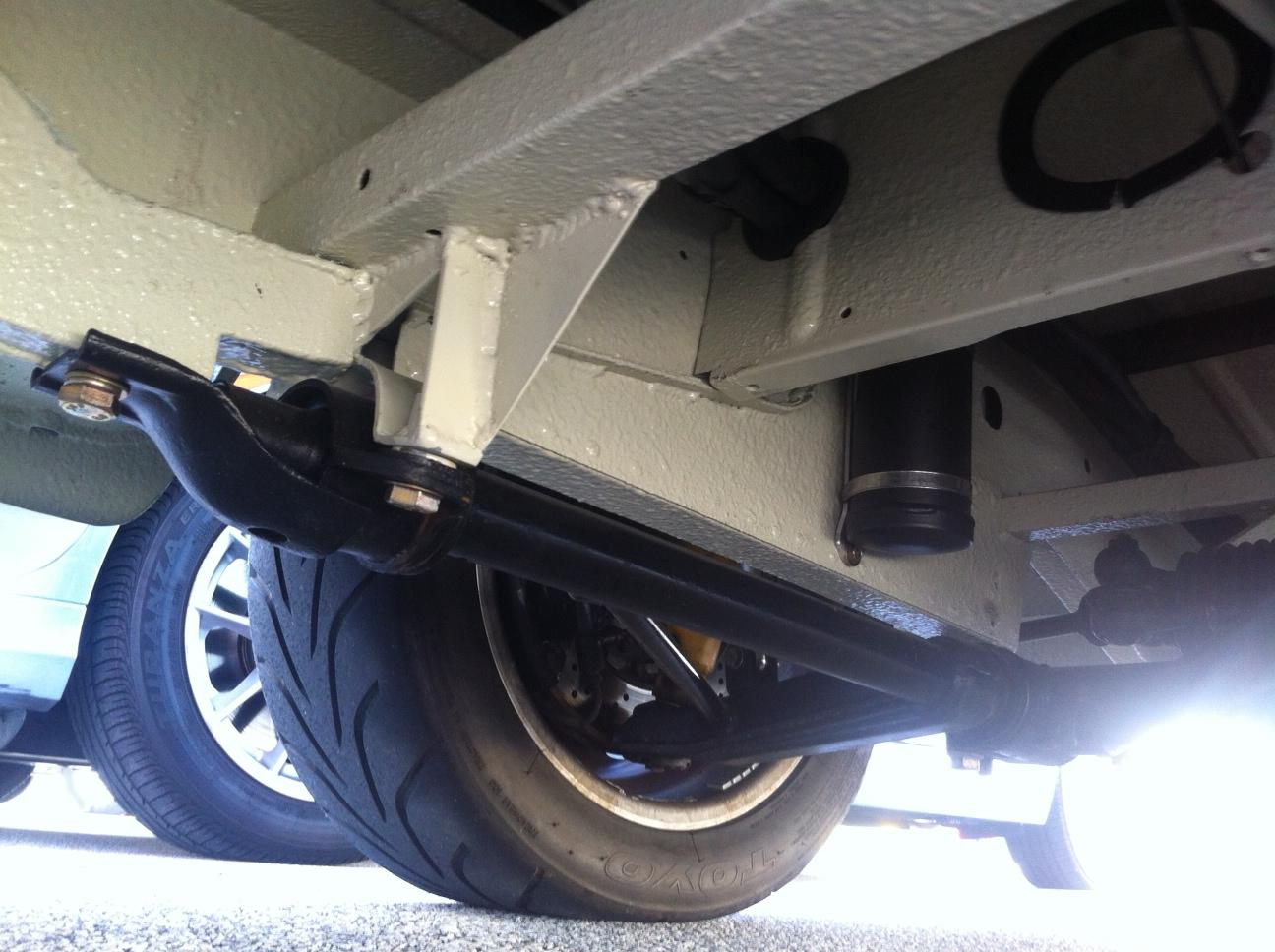

Yes, it has struts up front. I forgot to mention but the front end uses 911 control arms, struts, etc. and the rear has a torsion tube from an 87-88 Carrera with 911 control arms, sway bars, etc. It's basically all Porsche parts underneath. The upper vent has been deleted as it now has fully functional a/c so it's not really needed. I used to have photos from early on in the build but I lost them when my old macbook's hard drive took a dump. As far as I know there was no build thread, it took about 6 years for this thing to get finished. I'll see if I can get some better photos to post from the owner. It belongs to a friend who I used to work for full time before I opened my own shop. I'm just posting photos b/c I know you guys will appreciate them.
_________________
Independent German Auto
671 Fern Drive
Merritt Island, FL 32952
(321) 449-4665
Specializing in repair and maintenance for Porsche, BMW, Mini, Audi, and Volkswagen.
1952 Standard Beetle
1960 SO-23 Westfalia
1961 L-380 Turkis Deluxe Beetle
1985 Vanagon Country Homes Camper (work in progress - EG33 swap) |
|
| Back to top |
|
|
21-window
Samba Member
Joined: March 23, 2004
Posts: 248
Location: out planting
|
| Posted: Wed Nov 26, 2014 5:01 pm Post subject: |
|
|
Hey Josh. How have you been?
Thanks for posting all the pics of the 901 shop truck. Hard to get those guys to post pics when they're so busy with racing.
How's the new(ish) shop going for you? |
|
| Back to top |
|
|
pineapple_express
Samba Member
Joined: January 25, 2010
Posts: 105
Location: HI>WA
|
| Posted: Mon Feb 16, 2015 9:37 pm Post subject: |
|
|
_________________
[Fiddy Whip] |
|
| Back to top |
|
|
gumbajv
Samba Member
Joined: April 23, 2005
Posts: 217
|
| Posted: Mon May 25, 2015 4:38 pm Post subject: |
|
|

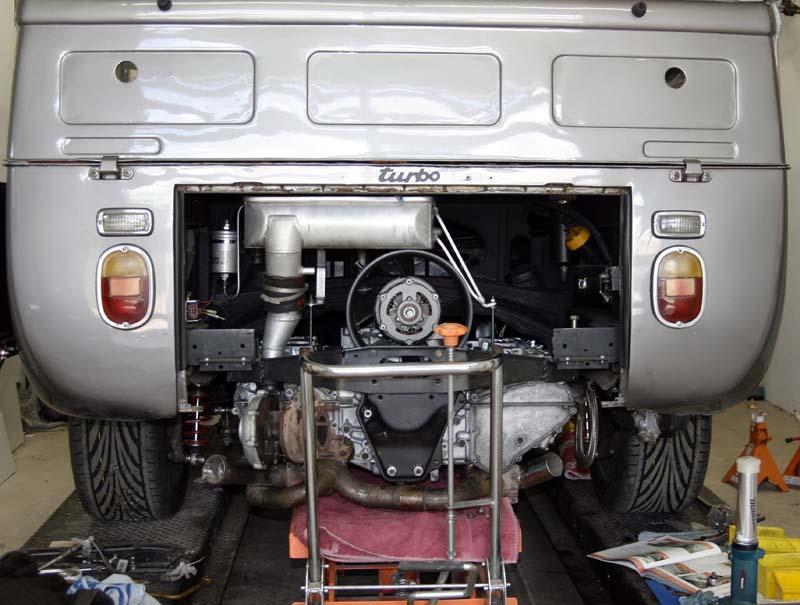

930 3.3 turbo test fit.
|
|
| Back to top |
|
|
gumbajv
Samba Member
Joined: April 23, 2005
Posts: 217
|
| Posted: Mon May 25, 2015 4:42 pm Post subject: |
|
|

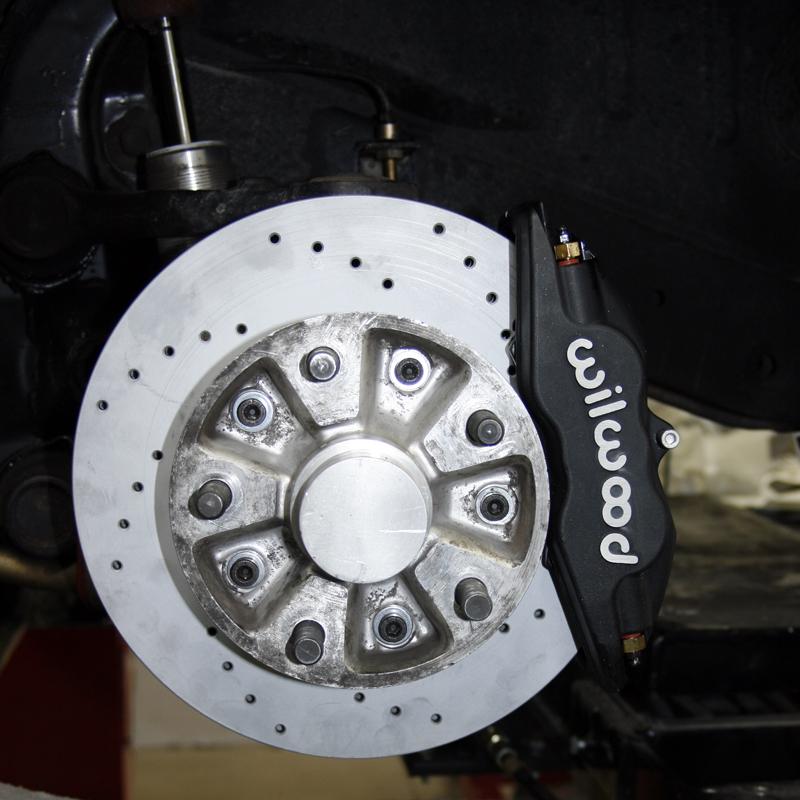

Front brake up grade. 911 vented & slotted rotors and a larger Wilwood calipers.
|
|
| Back to top |
|
|
67dubcab
Samba Member
Joined: February 12, 2009
Posts: 214
Location: sebastopol C.A
|
| Posted: Tue Jun 02, 2015 10:09 pm Post subject: |
|
|
Looking good Harold.
Now get that turbo engine installed so you can test those brakes out on some 120 to 0 stops!
I am as usual a bit behind you, but have a 911 rack&pinion and just got a vanagon bevel box today. Thinking of going to a 928 S4 front suspension. Any thoughts?
_________________
Porsche powered mid-engine double cab build
http://www.thesamba.com/vw/forum/viewtopic.php?t=3...highlight= |
|
| Back to top |
|
|
gumbajv
Samba Member
Joined: April 23, 2005
Posts: 217
|
| Posted: Wed Jun 03, 2015 6:41 am Post subject: |
|
|
The bus should be up and running in early July. Working on the engine bay. Had a custom intercooler made that will fit into the divider wall at the front of the motor for better airflow.
What's the advantage of the 928 s4 suspension? |
|
| Back to top |
|
|
67dubcab
Samba Member
Joined: February 12, 2009
Posts: 214
Location: sebastopol C.A
|
| Posted: Thu Jun 04, 2015 10:53 pm Post subject: |
|
|
Glad to hear your D.C. will be back on the road soon and boosted.
I have been researching the 928 front end and think it will be simpler to start with stock Porsche parts and fab the fitment side than to design the a-arms and geometry from scratch.
The 928 S4 front is rear steer and has the Brembo 4 piston calipers stock, which are slightly bigger than the 944 turbo brakes I have currently [though not needed].
The 928 is also no lightweight at around #3500 which should ensure it is strong enough for my rig.
I have not yet found a complete front end priced right and local but am open to leads.
Stephen
_________________
Porsche powered mid-engine double cab build
http://www.thesamba.com/vw/forum/viewtopic.php?t=3...highlight= |
|
| Back to top |
|
|
henk
Samba Member
Joined: June 28, 2006
Posts: 158
|
|
| Back to top |
|
|
gumbajv
Samba Member
Joined: April 23, 2005
Posts: 217
|
| Posted: Fri Jun 05, 2015 6:35 am Post subject: |
|
|
Our '75 Carrera race car originally came with S4 front calipers & Turbo 2 rear calipers (they are slightly bigger than the 930 rear calipers). I found it to be pretty unbalanced, too much front bias. I got rid of the set up and went back to 930 calipers. To get the balance right in the dc you should consider a dual master set up with front/rear adjuster, just my .02.
Just rolling the bus around in the driveway I noticed a big improvement in the steering. All the slop was gone, and it was easier to turn. You may want to install the steering rack first.
A very cool front set up might be the ERP 935 set up. The advantage being the adjustable wheel base. They've also come out with a power steering version. I still like the Smart Racing Fox Shocks strut set up, but not sure if it's still available. The advantage being the adjustable spindle height and single adjustable nitrogen shocks. |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15430
Location: Casa de Oro, California
|
| Posted: Fri Jun 05, 2015 11:39 am Post subject: |
|
|
| henk wrote: |
| the windsplit. |
Just plain baddass gnarly. |
|
| Back to top |
|
|
cdennisg
Samba Member
Joined: November 02, 2004
Posts: 20967
Location: Sandpoint, ID
|
| Posted: Sat Jun 06, 2015 6:25 pm Post subject: |
|
|
A wheelie poppin' high roof split bus. Awesome!
_________________
Confusious say it takes it takes two wipes to know you need three, but it takes three wipes to know it only needed two. |
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10261
Location: Petaluma, CA
|
| Posted: Sat Jun 06, 2015 10:17 pm Post subject: |
|
|
| cdennisg wrote: |
:shock:
A wheelie poppin' high roof split bus. Awesome! |
No kidding, that is cool.
Wasn't there a video of that bus falling on its side somewhere? |
|
