IRS Bolt on Like BusBoys (Are They Out of Biz?)
Page: Previous  1, 2, 3  Next
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
sambaphil
Samba Member


Joined: September 04, 2009
Posts: 205
Location: Bellingham, WA
sambaphil is offline

PostPosted: Fri Aug 19, 2016 11:41 am    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

Just to follow up on this thread, Joel did a fantastic job of installing the kit. No problems there at all.

The issue I am faced with is the new bay bus rear end sits even taller than stock height by about 1.5 inches. The stock bay bus CV joints don't like the large angle and are making clicking noises. I am replacing the cv joints with these dune buggy / larger angle CV joints.

https://www.amazon.com/gp/product/B003KKDANQ/ref=oh_aui_detailpage_o00_?ie=UTF8&psc=1

Hopefully this solves the clicking noise. BTW..as an experiment I loaded friends in the bus and no clicking noise since the angle was reduced. The other option I thought about is to go with an adjustable spring plate to get the angle I need but ??

Thanks again Joel...
_________________
Link to 1966 Samba Build
http://www.thesamba.com/vw/forum/viewtopic.php?t=607420
Link to 1971 Bay Bus - Clipper - L
https://www.thesamba.com/vw/forum/viewtopic.php?t=671945&highlight=

Single Port Samba Phil
[email protected]
Back to top
View user's profile Send private message Send e-mail Visit poster's website Yahoo Messenger Gallery Classifieds Feedback
sambaphil
Samba Member


Joined: September 04, 2009
Posts: 205
Location: Bellingham, WA
sambaphil is offline

PostPosted: Fri Aug 19, 2016 11:57 am    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

karl h wrote:
just found this:
http://www.thesamba.com/vw/forum/viewtopic.php?t=5...p;start=20
scroll to the middle of the page for the CV info


Karl...this is good info. My bus may need to go this route to be right. Or I just load 300 pounds of sandbags in the rear Smile.
_________________
Link to 1966 Samba Build
http://www.thesamba.com/vw/forum/viewtopic.php?t=607420
Link to 1971 Bay Bus - Clipper - L
https://www.thesamba.com/vw/forum/viewtopic.php?t=671945&highlight=

Single Port Samba Phil
[email protected]
Back to top
View user's profile Send private message Send e-mail Visit poster's website Yahoo Messenger Gallery Classifieds Feedback
Bulli Klinik
Samba Member


Joined: January 16, 2005
Posts: 1793
Location: Bulli Klinik, Colorado Springs
Bulli Klinik is offline

PostPosted: Sat Aug 20, 2016 9:01 am    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

Can't you simply adjust the spring plates?
_________________
I've never met a Bus I didn't like.
Mike K
Bulli Klinik
Colorado Springs
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
Harleyelf
Samba Member


Joined: April 23, 2009
Posts: 1572
Location: Appleton, WI
Harleyelf is offline

PostPosted: Sat Aug 20, 2016 1:47 pm    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

I use a couple of old crankcase studs mounted in the rear fender bracket bolt holes, with a steel bar joining them and supporting the engine. It draws the ride height down about an inch.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
cdennisg
Samba Member


Joined: November 02, 2004
Posts: 18418
Location: Sandpoint, ID
cdennisg is offline

PostPosted: Sat Aug 20, 2016 5:32 pm    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

Bulli Klinik wrote:
Can't you simply adjust the spring plates?


This.
_________________
Organization, although not always present, is unique to one's own perspective.

-AvE
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sambaphil
Samba Member


Joined: September 04, 2009
Posts: 205
Location: Bellingham, WA
sambaphil is offline

PostPosted: Sun Aug 21, 2016 8:14 am    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

Yeah..gonna put on dune buggy large angle bus cv joints and mess with spring plates to bring the height down about an inch or so. I will get there, just takes time. Once I get it all sorted with the right recipe, I will report back. Thanks all
_________________
Link to 1966 Samba Build
http://www.thesamba.com/vw/forum/viewtopic.php?t=607420
Link to 1971 Bay Bus - Clipper - L
https://www.thesamba.com/vw/forum/viewtopic.php?t=671945&highlight=

Single Port Samba Phil
[email protected]
Back to top
View user's profile Send private message Send e-mail Visit poster's website Yahoo Messenger Gallery Classifieds Feedback
tisius
Samba Member


Joined: July 11, 2011
Posts: 1531
Location: Rotterdam,NL (+Chicago,IL)
tisius is offline

PostPosted: Sun Aug 21, 2016 11:07 am    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

Harleyelf wrote:
I use a couple of old crankcase studs mounted in the rear fender bracket bolt holes, with a steel bar joining them and supporting the engine. It draws the ride height down about an inch.


?Huh?

Can you post a picture of what that looks like? I totally don't get your solution.... a split bus does not have fenders, are you talking about a VW bug?
_________________
drive it like you just robbed the bank
you don't have to be crazy to be into VW's, but it sure helps!!
.... if it ain't dutch, it ain't much!
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger Gallery Classifieds Feedback
Harleyelf
Samba Member


Joined: April 23, 2009
Posts: 1572
Location: Appleton, WI
Harleyelf is offline

PostPosted: Sun Aug 21, 2016 12:59 pm    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

Bumper mounts. Fender wells. Like a mustache bar for splits.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
cru62
Samba Member


Joined: December 31, 2002
Posts: 4080
Location: Margaritaville.....24/7
cru62 is offline

PostPosted: Sun Aug 21, 2016 1:48 pm    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

Unfortunately, that will have absolutely no effect on the ride height of a vehicle. It is commonly known as a "traction bar" and merely keeps the engine from moving under acceleration.
_________________
"My biggest worry is that when I die, my wife will sell all my parts for what I told her I paid for them"-Jon

Jokes about German sausage are the wurst.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sambaphil
Samba Member


Joined: September 04, 2009
Posts: 205
Location: Bellingham, WA
sambaphil is offline

PostPosted: Mon Aug 22, 2016 5:45 pm    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

cdennisg wrote:
Bulli Klinik wrote:
Can't you simply adjust the spring plates?


This.


Hey Guys,

So monkeying around with ride height, I have static spring plates. If I replace the spring plate just one spline north, it looks like it will drop the ride height a lot more than an inch. When you guys made the comment about simply adjusting the spring plate, were you assuming I had adjustable spring plates?

Thanks guys, I appreciate the input on this..
_________________
Link to 1966 Samba Build
http://www.thesamba.com/vw/forum/viewtopic.php?t=607420
Link to 1971 Bay Bus - Clipper - L
https://www.thesamba.com/vw/forum/viewtopic.php?t=671945&highlight=

Single Port Samba Phil
[email protected]
Back to top
View user's profile Send private message Send e-mail Visit poster's website Yahoo Messenger Gallery Classifieds Feedback
cdennisg
Samba Member


Joined: November 02, 2004
Posts: 18418
Location: Sandpoint, ID
cdennisg is offline

PostPosted: Mon Aug 22, 2016 7:01 pm    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

sambaphil wrote:
cdennisg wrote:
Bulli Klinik wrote:
Can't you simply adjust the spring plates?


This.


Hey Guys,

So monkeying around with ride height, I have static spring plates. If I replace the spring plate just one spline north, it looks like it will drop the ride height a lot more than an inch. When you guys made the comment about simply adjusting the spring plate, were you assuming I had adjustable spring plates?

Thanks guys, I appreciate the input on this..


No. There are splines on the inside end of that torsion bar, too. With one combo of up/down between the two, you can gain (or lose) about 3/16" ride height.
_________________
Organization, although not always present, is unique to one's own perspective.

-AvE
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sambaphil
Samba Member


Joined: September 04, 2009
Posts: 205
Location: Bellingham, WA
sambaphil is offline

PostPosted: Mon Aug 22, 2016 7:32 pm    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

Huge bulb just went on!! Idea Idea now I get it!

I can do the math on moving in inner one direction and the spring plate the other direction.

Learning as I go. Cool. Thanks.
_________________
Link to 1966 Samba Build
http://www.thesamba.com/vw/forum/viewtopic.php?t=607420
Link to 1971 Bay Bus - Clipper - L
https://www.thesamba.com/vw/forum/viewtopic.php?t=671945&highlight=

Single Port Samba Phil
[email protected]
Back to top
View user's profile Send private message Send e-mail Visit poster's website Yahoo Messenger Gallery Classifieds Feedback
cdennisg
Samba Member


Joined: November 02, 2004
Posts: 18418
Location: Sandpoint, ID
cdennisg is offline

PostPosted: Mon Aug 22, 2016 9:31 pm    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

sambaphil wrote:
Huge bulb just went on!! Idea Idea now I get it!

I can do the math on moving in inner one direction and the spring plate the other direction.

Learning as I go. Cool. Thanks.


Bingo! There are a different number of inner and out splines to allow for small increments of change. I believe it comes out to just between 1/8" and 3/16" of overall height change per inner/outer spline combination.
_________________
Organization, although not always present, is unique to one's own perspective.

-AvE
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sambaphil
Samba Member


Joined: September 04, 2009
Posts: 205
Location: Bellingham, WA
sambaphil is offline

PostPosted: Tue Aug 23, 2016 11:03 am    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

cdennisg wrote:
sambaphil wrote:
Huge bulb just went on!! Idea Idea now I get it!

I can do the math on moving in inner one direction and the spring plate the other direction.

Learning as I go. Cool. Thanks.


Bingo! There are a different number of inner and out splines to allow for small increments of change. I believe it comes out to just between 1/8" and 3/16" of overall height change per inner/outer spline combination.


Here is a video on YouTube. It looks to be a bay bus adjusting torsion bars and angles but same concept. The key ingredient I was missing is 5 minutes and 11 seconds into the video. I hope this helps others.

https://www.youtube.com/watch?v=xfcqkC4RkYI

Cheers!

SP
_________________
Link to 1966 Samba Build
http://www.thesamba.com/vw/forum/viewtopic.php?t=607420
Link to 1971 Bay Bus - Clipper - L
https://www.thesamba.com/vw/forum/viewtopic.php?t=671945&highlight=

Single Port Samba Phil
[email protected]
Back to top
View user's profile Send private message Send e-mail Visit poster's website Yahoo Messenger Gallery Classifieds Feedback
cdennisg
Samba Member


Joined: November 02, 2004
Posts: 18418
Location: Sandpoint, ID
cdennisg is offline

PostPosted: Tue Aug 23, 2016 10:19 pm    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

Bay bus, early/late beetle, type 3 are all the same setup in regards to torsion bar indexing to adjust ride height. I did not watch the entire video, but it seems like he has the right idea.
_________________
Organization, although not always present, is unique to one's own perspective.

-AvE
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Fredrok
Samba Member


Joined: July 06, 2014
Posts: 227
Location: Under the evergreens. CO
Fredrok is offline

PostPosted: Wed Aug 24, 2016 7:35 am    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

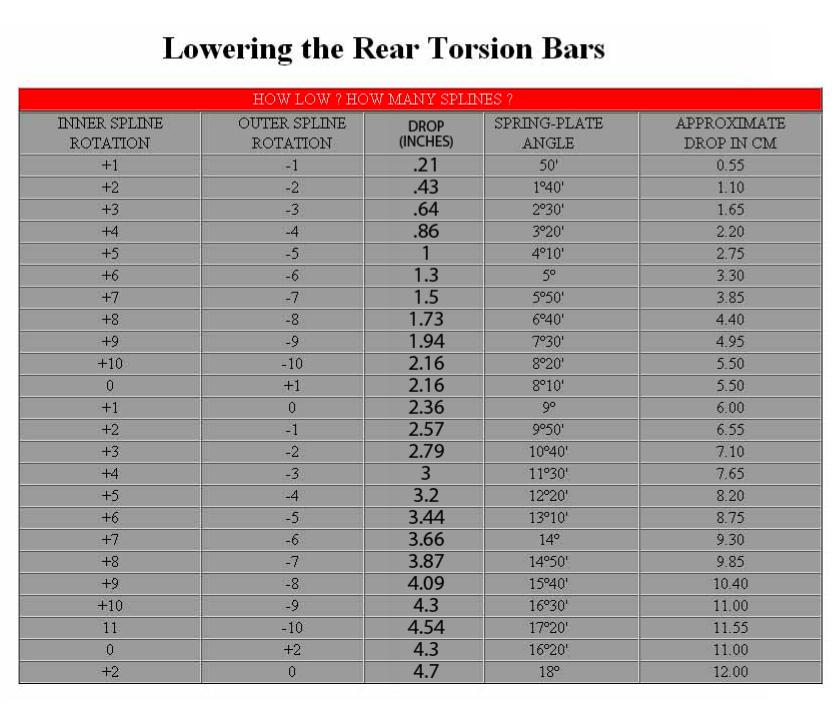

From the gallery:
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sambaphil
Samba Member


Joined: September 04, 2009
Posts: 205
Location: Bellingham, WA
sambaphil is offline

PostPosted: Thu Aug 25, 2016 8:30 am    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

OK...looks like I have the math. My approach, do math, measure from floor, eyeball, make fine adjustments, and get as close as I can to stock height. Roll the bus around the block a few times, see if all is good.

Thanks again for all the input from the community. Super helpful. I love videos so I will make a video of the highlights and post it. Work slated with my friends for Sunday. Need to research the best way to get the spring plates off safely.

Cheers,

SP
_________________
Link to 1966 Samba Build
http://www.thesamba.com/vw/forum/viewtopic.php?t=607420
Link to 1971 Bay Bus - Clipper - L
https://www.thesamba.com/vw/forum/viewtopic.php?t=671945&highlight=

Single Port Samba Phil
[email protected]
Back to top
View user's profile Send private message Send e-mail Visit poster's website Yahoo Messenger Gallery Classifieds Feedback
cru62
Samba Member


Joined: December 31, 2002
Posts: 4080
Location: Margaritaville.....24/7
cru62 is offline

PostPosted: Thu Aug 25, 2016 10:58 am    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

Spring plates on a bus are a breeze. They aren't preloaded against the bottom stops like a bug. Just pry them off making sure not to pull out the torsion bar from the housing. Of course, this after marking the original orientation of the bar to plate and plate to housing.
_________________
"My biggest worry is that when I die, my wife will sell all my parts for what I told her I paid for them"-Jon

Jokes about German sausage are the wurst.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
cdennisg
Samba Member


Joined: November 02, 2004
Posts: 18418
Location: Sandpoint, ID
cdennisg is offline

PostPosted: Thu Aug 25, 2016 7:24 pm    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

cru62 wrote:
Spring plates on a bus are a breeze. They aren't preloaded against the bottom stops like a bug. Just pry them off making sure not to pull out the torsion bar from the housing. Of course, this after marking the original orientation of the bar to plate and plate to housing.


Yes. I usually make a vertical line top to bottom over the whole thing. That way, If things get wonky, you can always go back to your starting point.
_________________
Organization, although not always present, is unique to one's own perspective.

-AvE
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sambaphil
Samba Member


Joined: September 04, 2009
Posts: 205
Location: Bellingham, WA
sambaphil is offline

PostPosted: Fri Aug 26, 2016 3:48 pm    Post subject: Re: IRS Bolt on Like BusBoys (Are They Out of Biz?) Reply with quote

I am good at wonky. i will be marking things up to get back to where i was. I bought a "white" sharpie which is pretty cool.

Can't be too bad though, its just angles. Crap...just jinxed myself. Smile
_________________
Link to 1966 Samba Build
http://www.thesamba.com/vw/forum/viewtopic.php?t=607420
Link to 1971 Bay Bus - Clipper - L
https://www.thesamba.com/vw/forum/viewtopic.php?t=671945&highlight=

Single Port Samba Phil
[email protected]
Back to top
View user's profile Send private message Send e-mail Visit poster's website Yahoo Messenger Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3  Next
Page 2 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
