Reverse Camera Install - No more tree dents.
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
ehoff
Samba Member


Joined: May 22, 2013
Posts: 65
Location: Raleigh, nc
ehoff is offline

PostPosted: Fri Feb 07, 2014 3:12 pm    Post subject: Reverse Camera Install - No more tree dents. Reply with quote

We all know you can't see squat out the rear of our Westy's. I decided that regularly having several nice bikes on the back of my van warranted some investigation into a reverse camera. I also drive an ambulance all day that is equipped with one, leaving me keen to their usage in the first place. I looked fairly extensively here on thesamba, well, because thats what I do, and to my suprise, found little to no info. I figured I would throw this out there for anyone in my shoes.

Anyway, I went with this.

I started with a heavy duty RV camera. I chose the heavy duty housing, the HD upgrade, and a 270 degree viewing angle. I figured I could use the beefier housing.

Image may have been reduced in size. Click image to view fullscreen.


I decided to go with a completely wired system as to avoid any bluetooth interference with phones, mp3 players, or window tinting. We also have a ton of sweet places to hide wires so I wasn't too worried about it. As for monitors I chose this sweet little flip up model because it stores out of the way, is plenty big for my needs, and has a period specific 90s look to it to match the dash.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I used a wire that I was able to purchase with the camera and monitor that included a positive and negative power wire (18GA) in a casing with an AV cable. This was a nice way to run power to both devices, from one source, with one wire to run from camera to monitor.

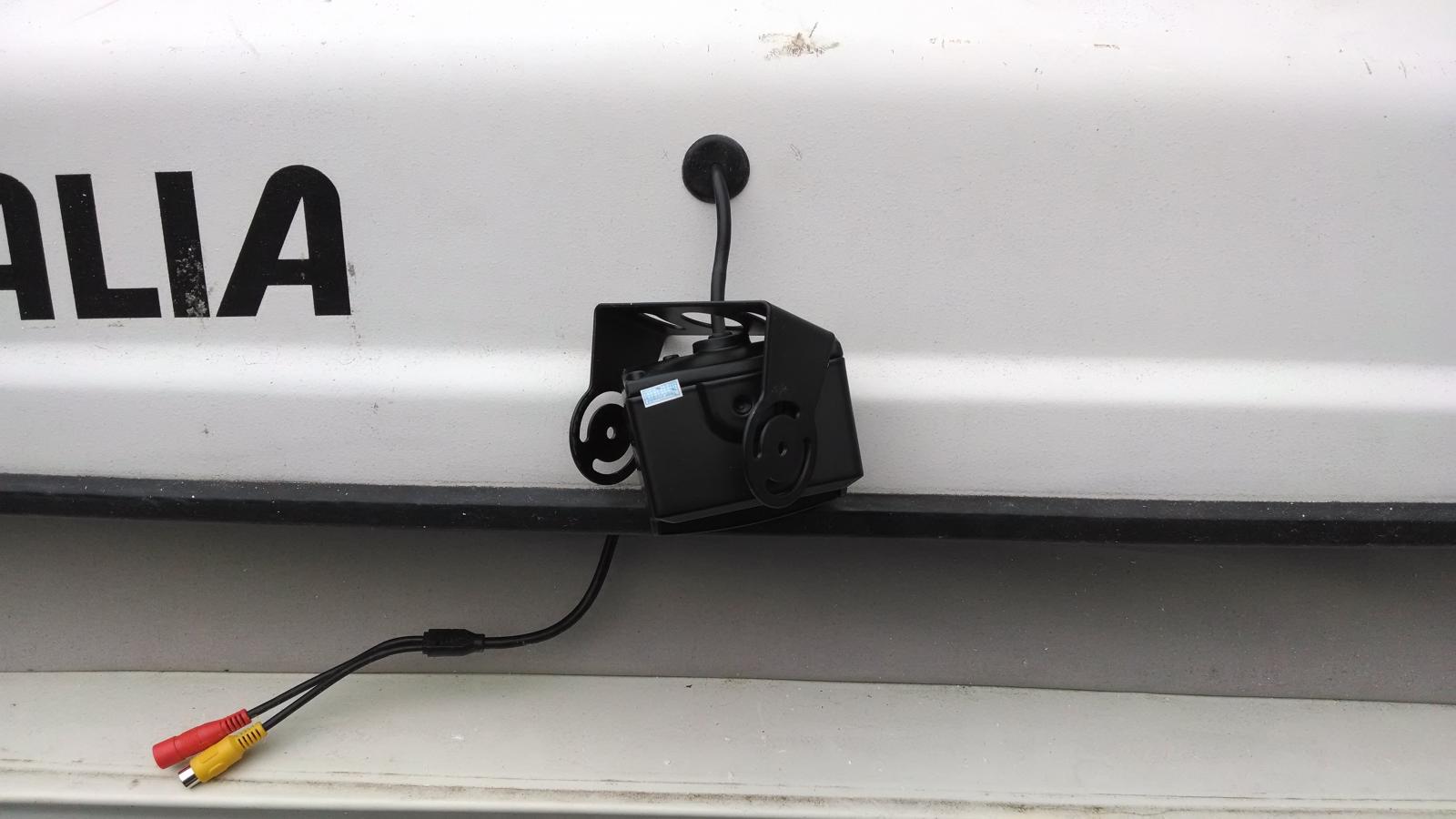

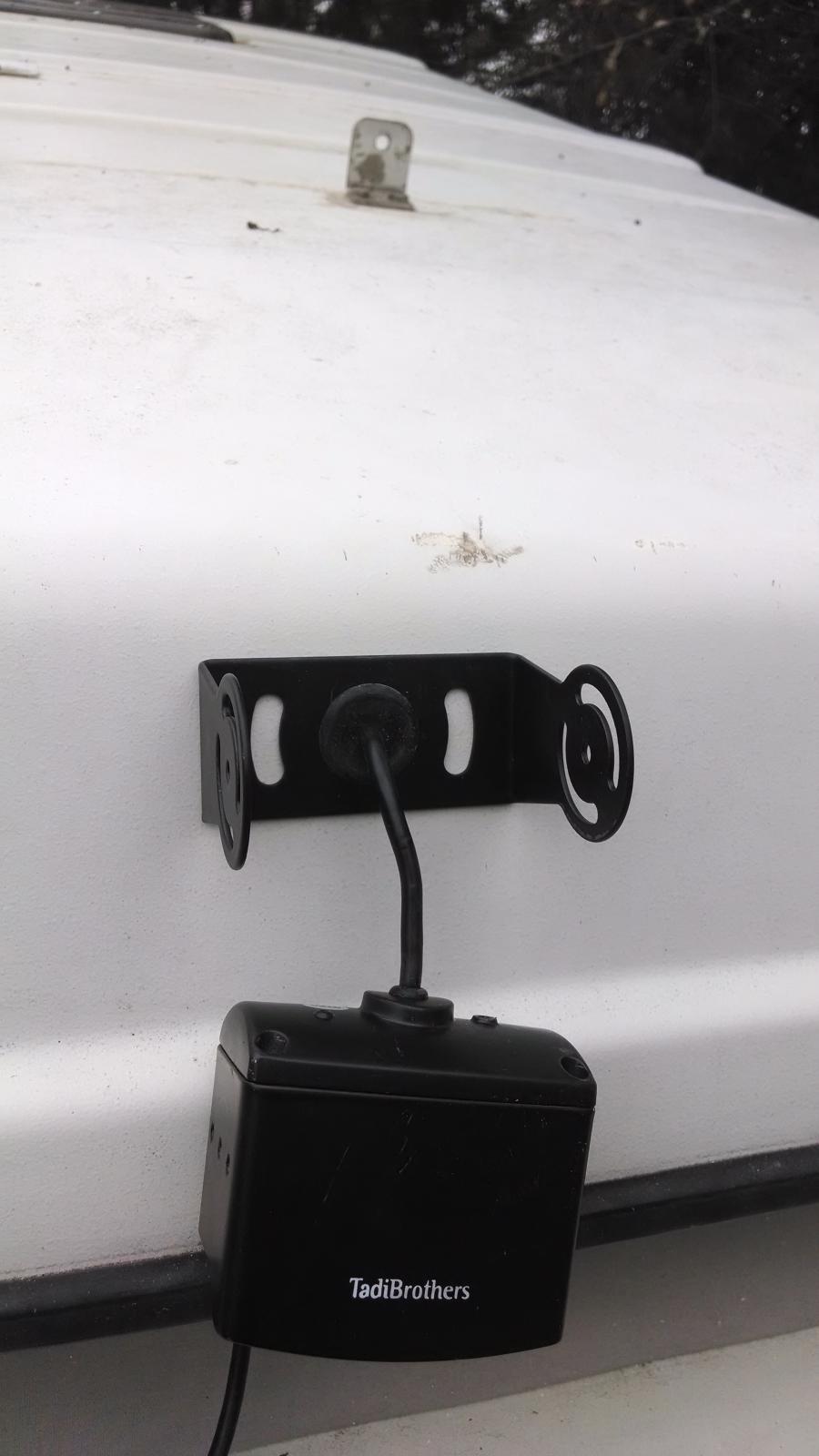

I started by mounting the camera housing to the middle(ish) of the pop top. I used a large wire grommett for the main wire off the camera, which terminated in a power pigtail and an AV out. That allowed all wires to breach the pop top, but remain outside of the tent.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I was able to run the power/AV cable into the van via the wire boot just inside the rear hatch lip, but outside of the hatch seal. I pulled it out of the large hole inside the van near the AC stuff.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


With the top down there is a small wire running down the top of the roof b/t the top and the hatch, but I am short and can't even see it.

Image may have been reduced in size. Click image to view fullscreen.


From there I took the path of least resistance, behind the spice rack and down the B pillar inside some cheap wire looming.

Image may have been reduced in size. Click image to view fullscreen.


I continued under the carpeting and behind the dash, where I was able to drop down the receiving ends of the pigtail from the monitor. I T tapped an 18Ga power line into the Ignition wire and a ran a ground to a spare spot on the ground tree. After finishing all of the connections with heat shrink, I am very pleased with the outcome. The camera is on when the ignition is on, which allows it to be used for reversing as well as rear view and checking on the load. When I don't want to see it, I just fold down the monitor, and I barely notice it. I attached the monitor with HD velcro so it can be removed easily to pull the dash cover.

I got all the stuff from TadiBrothers.com. I am in no way affiliated with this company, just enjoyed their options and pricing. They did have some issues shipping the correct products but happily fixed their error and included overnight shipping on the correct items.

Here's to seeing out the back!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tarandusVDub
Samba Member


Joined: August 27, 2010
Posts: 1580
Location: Between Here and There
tarandusVDub is offline

PostPosted: Fri Feb 07, 2014 3:41 pm    Post subject: Reply with quote

Hey that is a great mod! I am thinking of doing the same this summer or next. I like the fact that the monitor is pretty stealth...can you share the cost of the whole setup, including the options you mentioned?
_________________
1984 Westy, base model, 2WD. Plus some goodies.
________________________
Sold: 1972 Bay Campmobile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
furrylittleotter
Samba Member


Joined: May 19, 2008
Posts: 1506
Location: West Seattle
furrylittleotter is offline

PostPosted: Fri Feb 07, 2014 3:53 pm    Post subject: Reply with quote

Clean install. Nice writeup. Thanks!

Perfect for backing into a spot at Wilber's BBQ in Goldsboro!

Best in the world! Cool

Neil2
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15087
Location: New York
insyncro is offline

PostPosted: Fri Feb 07, 2014 4:37 pm    Post subject: Reply with quote

Nice job.

I have seen some really slick license plate frames with the camera built in.
Most a bluetooth though.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Steelhead
Samba Member


Joined: February 25, 2007
Posts: 1791
Location: Kentfield, CA
Steelhead is offline

PostPosted: Fri Feb 07, 2014 4:43 pm    Post subject: Reply with quote

how does that work at night?
_________________
'77 Bay Window / '89 Caratsburg (aka. the Stormtrooper)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
minsk
Samba Member


Joined: March 17, 2008
Posts: 896
Location: pittsburgh
minsk is offline

PostPosted: Fri Feb 07, 2014 4:58 pm    Post subject: Reply with quote

really nice work.
bluetooth ones?
that would be awesome
tell more insyncro.
_________________
1987 Sunroof Syncro
1988 Vanagon GL
2009 audi a3

www.sunroofsyncro.com
vanagonmechanic.com

http://facebook.com/pittsburghvanagonclub
https://www.youtube.com/minskmade


my super slow 1987 sunroof syncro rebuild
https://goo.gl/photos/7e9MZhHJxGvvv1Tm7

VANAGON STICKERS
https://www.etsy.com/shop/pigeonink
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Instagram Gallery Classifieds Feedback
ehoff
Samba Member


Joined: May 22, 2013
Posts: 65
Location: Raleigh, nc
ehoff is offline

PostPosted: Fri Feb 07, 2014 5:08 pm    Post subject: Reply with quote

It works well at night. Its equipped with "night vision" and in conjunction with an aux reverse light it is sufficient. They have Bluetooth options but they involve a large rcvr and transmitter that also need power. I looked into them but they seemed rather bulky and unreliable.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
singler3360
Samba Member


Joined: February 25, 2009
Posts: 1191
Location: Corvallis, Oregon
singler3360 is offline

PostPosted: Fri Feb 07, 2014 5:50 pm    Post subject: Reply with quote

Ehoff, excellent write up. Thanks for showing the details of the wire run. http://www.tadiBrothers.com has many good options. Has anyone tried their clip-on rearview mirror monitor? I'm also curious if anyone has tried their visor option in a Vanagon.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ehoff
Samba Member


Joined: May 22, 2013
Posts: 65
Location: Raleigh, nc
ehoff is offline

PostPosted: Fri Feb 07, 2014 6:14 pm    Post subject: Reply with quote

I really wanted to use the visor option. I think it looks very promising. The logistics of wiring it seemed to daunting to me andnsteered me towards a dash mount. I felt like getting wires up through the headliner and keeping them clean sounded like a headache I preferred to avoid.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Merian
Samba Member


Joined: January 04, 2014
Posts: 5195
Location: Orygun
Merian is offline

PostPosted: Fri Feb 07, 2014 7:19 pm    Post subject: Reply with quote

I'd like one that used wifi or bluetooth to send the image to an ipad
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ehoff
Samba Member


Joined: May 22, 2013
Posts: 65
Location: Raleigh, nc
ehoff is offline

PostPosted: Fri Feb 07, 2014 7:36 pm    Post subject: Reply with quote

They have ^ too.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
epaddler
Samba Member


Joined: July 18, 2010
Posts: 222
Location: Slippery Rock
epaddler is offline

PostPosted: Sat Feb 08, 2014 6:53 am    Post subject: Reply with quote

Nice install and writeup. Thanks.
_________________
1989 Syncro Westy
My build thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=450246
Back to top
View user's profile Send private message Gallery Classifieds Feedback
yycwesty
Samba Member


Joined: August 20, 2012
Posts: 403
Location: Calgary
yycwesty is offline

PostPosted: Sat Feb 08, 2014 8:45 am    Post subject: Reply with quote

This would be nice edition to the camera. Mirror and backup monitor in one. Only thoughts would be if it can dim at night

http://www.ebay.com/itm/Super-slim-Car-rear-view-M...25866437c0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
singler3360
Samba Member


Joined: February 25, 2009
Posts: 1191
Location: Corvallis, Oregon
singler3360 is offline

PostPosted: Sat Feb 08, 2014 9:58 am    Post subject: Reply with quote

I might like the moulded license plate camera in black mounted up high on the back of the poptop Question It mentions the camera angles up and down is adjustable, but is it adjustable enough for this mounting position?

Last edited by singler3360 on Sun Feb 09, 2014 8:53 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Crankey
Samba Member


Joined: July 11, 2004
Posts: 2188

Crankey is offline

PostPosted: Sat Feb 08, 2014 1:38 pm    Post subject: Reply with quote

cool project ! I would be afraid vandals would destroy that camera though.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
greenraVR6
Samba Member


Joined: January 19, 2011
Posts: 306
Location: Bellingham, WA
greenraVR6 is offline

PostPosted: Sat Feb 08, 2014 3:55 pm    Post subject: Reply with quote

Crankey wrote:
cool project ! I would be afraid vandals would destroy that camera though.


Indeed. Too bad the camera isn't a bit more discreet. Our '11 suburban has a factory backup cam mounted by the license plate and you can hardly tell it's there
_________________
'88 vanagon*****'91 gti 1.8t*****'04 r32*****'11 suburban z71
Back to top
View user's profile Send private message Classifieds Feedback
tam_shops
Samba Member


Joined: November 15, 2012
Posts: 1526
Location: Vancouver BC
tam_shops is offline

PostPosted: Sun Oct 02, 2016 5:22 pm    Post subject: Re: Reverse Camera Install - No more tree dents. Reply with quote

How do you like the Tadi one so far? What do you dislike about it? Anyone else try it, another? Why the RV one instead of the car one? I like how yours goes flat, the ones I'm looking at stay on your dash.

This us next on my list. I think it will pay for itself by saving me from hitting something! LOL I now have one in my car, and I keep looking at the dash when I'm backing up. Since I still have two car seats back there, and pack anything but light, there is virtually no back window to see from...

I just bought the Canadian Tire Yada one:
http://www.canadiantire.ca/en/pdp/yada-backup-camera-expandable-system-0350136p.html#srp

But found this was better reviewed than the CT one. It doesn't have a side camera, but I like the mounting for the backup camera better. The Yada one clips onto the LP, but this one screws in. http://www.toptenreviews.com/home/auto/best-rear-view-cameras/
_________________
1987 Vanagon Westfalia GL Automatic

Making it special:
http://www.thesamba.com/vw/forum/viewtopic.php?t=545885
Back to top
View user's profile Send private message Classifieds Feedback
ThankYouJerry
Samba Member


Joined: September 01, 2012
Posts: 2271
Location: Shakedown Street
ThankYouJerry is offline

PostPosted: Sun Oct 02, 2016 6:51 pm    Post subject: Re: Reverse Camera Install - No more tree dents. Reply with quote

http://www.thesamba.com/vw/forum/viewtopic.php?t=664311
_________________
1990 Multivan - "Ohana"
1.8T, Auto w/3.27 R&P + Peloquin TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6188
Location: Portland, Oregon
mightyart is offline

PostPosted: Sun Oct 02, 2016 8:58 pm    Post subject: Re: Reverse Camera Install - No more tree dents. Reply with quote

I mounted my camera on the inside on the back shelve, I didn't want to drill a hole in the fiberglass, and I didn't want it to be noticeable. Works fine, no glare from the rear glass.
Image may have been reduced in size. Click image to view fullscreen.

_________________
My Art:
http://www.instagram.com/flynn8552/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tam_shops
Samba Member


Joined: November 15, 2012
Posts: 1526
Location: Vancouver BC
tam_shops is offline

PostPosted: Sun Oct 02, 2016 10:03 pm    Post subject: Re: Reverse Camera Install - No more tree dents. Reply with quote

mightyart wrote:
I mounted my camera on the inside on the back shelve, I didn't want to drill a hole in the fiberglass, and I didn't want it to be noticeable. Works fine, no glare from the rear glass.
Image may have been reduced in size. Click image to view fullscreen.


^^i like that, keeps it safe and clean.

Love the Alpine set up Jerry, but have a new Sony stereo, that was a pain to install, nit redoing that right now, even though I don't care for that stereo. LOL love how the screen tucks away...

tam
_________________
1987 Vanagon Westfalia GL Automatic

Making it special:
http://www.thesamba.com/vw/forum/viewtopic.php?t=545885
