Powerflex suspension bushings
Page: Previous  1, 2, 3, 4, 5
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Pascal
Samba Member


Joined: January 13, 2006
Posts: 801
Location: Fredericton, NB, Canada
Pascal is offline

PostPosted: Mon Mar 13, 2017 4:32 pm    Post subject: Re: Powerflex suspension bushings Reply with quote

avernon82 wrote:
So I installed an all powerflex front end (except for the sway bar) about 4000 miles ago. I've developed a groan in the front right corner.

Thinking about taking off the wheel and unbolting the A-arm to test if that's the culprit.

If it's groaning over bumps, will it groan if I unbolt it and move it by hand? Just want to figure out exactly what's groaning. Would be great if it was the sway bar!


My upper control arm with redline cv grease developed a squeak after two summers. I had to change the upper ballpoint on one and I could get the upper control arm to squeak by hand. I keep them sprayed with fluid film which quiets them down. I'll regrease them when I need another front end alignment.
_________________
'84 Westy - 2.2wbx
'91 EA Cabby
Back to top
View user's profile Send private message Gallery Classifieds Feedback
xoo00oox
Samba Member


Joined: February 11, 2010
Posts: 2385
Location: East Nassau, NY
xoo00oox is offline

PostPosted: Thu Mar 23, 2017 6:35 am    Post subject: Re: Powerflex suspension bushings Reply with quote

Christopher Schimke wrote:
In an effort to provide the best quality, easiest to use/install parts that I know if, I have recently made the commitment to become a stocking dealer for Powerflex bushings. Since the upper control arm bushings are a very sour subject on the Vanagon, I concentrated my initial stocking order (expected to arrive any time now) on those and other various suspension bushings.

What I would like is to hear from you guys (and girls of course) at to what bushings you are most interested in. I can pretty well guess that the front upper control arm bushings will be at the top of people's lists, but include them anyway. I would like to get a good feel for what you want so that I can include them in my second stocking order so that they are readily available to you.




Christopher,

I'm always very happy to be working with your products, can I suggest you maybe consider also offering the hardware for the suspension parts as well as the bushings? Maybe even a complete hardware kit for the 2wd and the Syncro sub-frame parts?


Andrew-
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
uther
Samba Member


Joined: March 18, 2007
Posts: 128
Location: Knoxville, Tennessee, USA
uther is offline

PostPosted: Thu Mar 23, 2017 9:19 am    Post subject: Re: Powerflex suspension bushings Reply with quote

Christopher Schimke wrote:
In an effort to provide the best quality, easiest to use/install parts that I know if, I have recently made the commitment to become a stocking dealer for Powerflex bushings. Since the upper control arm bushings are a very sour subject on the Vanagon, I concentrated my initial stocking order (expected to arrive any time now) on those and other various suspension bushings.

What I would like is to hear from you guys (and girls of course) at to what bushings you are most interested in. I can pretty well guess that the front upper control arm bushings will be at the top of people's lists, but include them anyway. I would like to get a good feel for what you want so that I can include them in my second stocking order so that they are readily available to you.




Christopher,

I would really like a complete rebuild kit for a Syncro. Not just bushing but also hardware. Basically everything except springs and shocks.

r
_________________
Rowan

89 Syncro - Juniper Mackenzie

09 Honda Fit - Finnie
17 Ram ProMaster - John Hordle
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5171
Location: PNW
Christopher Schimke is offline

PostPosted: Thu Mar 23, 2017 11:17 am    Post subject: Re: Powerflex suspension bushings Reply with quote

uther wrote:
Christopher Schimke wrote:
In an effort to provide the best quality, easiest to use/install parts that I know if, I have recently made the commitment to become a stocking dealer for Powerflex bushings. Since the upper control arm bushings are a very sour subject on the Vanagon, I concentrated my initial stocking order (expected to arrive any time now) on those and other various suspension bushings.

What I would like is to hear from you guys (and girls of course) at to what bushings you are most interested in. I can pretty well guess that the front upper control arm bushings will be at the top of people's lists, but include them anyway. I would like to get a good feel for what you want so that I can include them in my second stocking order so that they are readily available to you.




Christopher,

I would really like a complete rebuild kit for a Syncro. Not just bushing but also hardware. Basically everything except springs and shocks.

r


I can definitely do that for you. Please shoot me an email about it.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5171
Location: PNW
Christopher Schimke is offline

PostPosted: Thu Mar 23, 2017 11:42 am    Post subject: Re: Powerflex suspension bushings Reply with quote

xoo00oox wrote:
Christopher Schimke wrote:
In an effort to provide the best quality, easiest to use/install parts that I know if, I have recently made the commitment to become a stocking dealer for Powerflex bushings. Since the upper control arm bushings are a very sour subject on the Vanagon, I concentrated my initial stocking order (expected to arrive any time now) on those and other various suspension bushings.

What I would like is to hear from you guys (and girls of course) at to what bushings you are most interested in. I can pretty well guess that the front upper control arm bushings will be at the top of people's lists, but include them anyway. I would like to get a good feel for what you want so that I can include them in my second stocking order so that they are readily available to you.




Christopher,

I'm always very happy to be working with your products, can I suggest you maybe consider also offering the hardware for the suspension parts as well as the bushings? Maybe even a complete hardware kit for the 2wd and the Syncro sub-frame parts?


Andrew-


Hi Andrew! Glad you like the parts. I do stock much of the associated mounting hardware that goes along with the bushings sets as well as Syncro subframe mounting hardware kits. They happen to be on a different page than the bushings (they are in the "Suspension Parts - Front Suspension Parts - Hardware section"), but I will add links in "Related Products" area below the product description to make it easier to find.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
xoo00oox
Samba Member


Joined: February 11, 2010
Posts: 2385
Location: East Nassau, NY
xoo00oox is offline

PostPosted: Thu Mar 23, 2017 7:22 pm    Post subject: Re: Powerflex suspension bushings Reply with quote

Christopher Schimke wrote:
xoo00oox wrote:
Christopher Schimke wrote:
In an effort to provide the best quality, easiest to use/install parts that I know if, I have recently made the commitment to become a stocking dealer for Powerflex bushings. Since the upper control arm bushings are a very sour subject on the Vanagon, I concentrated my initial stocking order (expected to arrive any time now) on those and other various suspension bushings.

What I would like is to hear from you guys (and girls of course) at to what bushings you are most interested in. I can pretty well guess that the front upper control arm bushings will be at the top of people's lists, but include them anyway. I would like to get a good feel for what you want so that I can include them in my second stocking order so that they are readily available to you.




Christopher,

I'm always very happy to be working with your products, can I suggest you maybe consider also offering the hardware for the suspension parts as well as the bushings? Maybe even a complete hardware kit for the 2wd and the Syncro sub-frame parts?


Andrew-


Hi Andrew! Glad you like the parts. I do stock much of the associated mounting hardware that goes along with the bushings sets as well as Syncro subframe mounting hardware kits. They happen to be on a different page than the bushings (they are in the "Suspension Parts - Front Suspension Parts - Hardware section"), but I will add links in "Related Products" area below the product description to make it easier to find.



I see the hardware for the suspension now, I'm still not seeing the subframe mounting hardware. Specifically, do you offer that caged nut piece that you insert into the frame for the rear mounting bolts for the front subframe?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
512dude
Samba Member


Joined: June 04, 2009
Posts: 51
Location: Seattle
512dude is offline

PostPosted: Sun Jun 25, 2017 4:59 pm    Post subject: Re: Powerflex suspension bushings Reply with quote

Just installed a set of front end Power Flex bushings from T3. The bushings went in easy and with the new grease you supplied I am expecting not to lubricate for 5-10 years.

I have a slightly different approach to placing the sway bar end bushings on using a floor jack and an upper hard stop that avoids the hammer and vice approach. I'll post something and link to it.

Thanks to Christopher at T3 for the great support, now to test drive!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
broncoisl
Samba Member


Joined: February 27, 2018
Posts: 24
Location: Iceland
broncoisl is offline

PostPosted: Fri Jan 03, 2020 6:05 pm    Post subject: Re: Powerflex suspension bushings Reply with quote

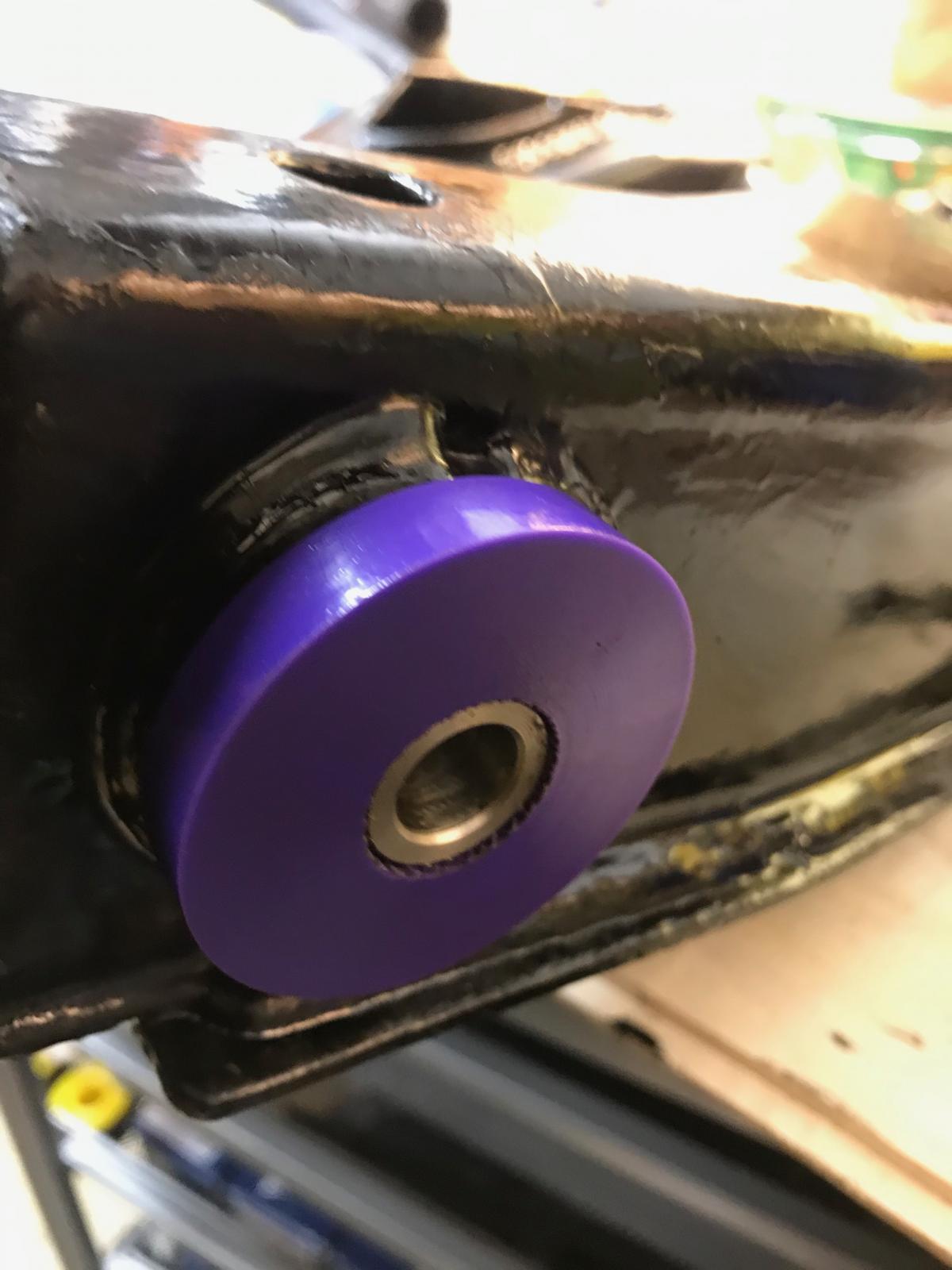

I'm installing powerflex bushings in the lower control arms on my westy. Can't find any instructions or technical data on how to assemble this.

I would have thought that the bushings should move freely with the arm in the body (shackle) and hinge on the tube clamped to the body (forming a bearing). But the tube is shorter than the bushings when installed in the arm see the photos. The bushings will obviously touch and rub with the body when I bolt this together.

Is this normal? Should I lubricate the end of the bushings?

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5171
Location: PNW
Christopher Schimke is offline

PostPosted: Sat Jan 04, 2020 9:27 am    Post subject: Re: Powerflex suspension bushings Reply with quote

Yes, that is 100% normal. And absolutely, yes, you definitely need to lube the ends of the bushings LIBERALLY as well as lube the bushing where is slides into to arm and lube the inner bore really well before sliding in the sleeve.

The number one mistake that people make when installing these bushings is lack of lubrication. When installing any urethane bushings, keep in mind that you need to liberally lube every single surface that touches anything at all. In other words, if it touches air, it's okay to leave dry. but if it touches metal, other urethane, plastic, etc., it needs to be lubed really well.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
gchristensen
Samba Member


Joined: October 09, 2012
Posts: 80
Location: Sacramento Ca.
gchristensen is offline

PostPosted: Sat Jan 04, 2020 10:02 pm    Post subject: Re: Powerflex suspension bushings Reply with quote

These vehicles are old. I did not want just some so I bought the whole kit. Most of us are running on original bushings and they are trashed not from use but lack there of.
_________________
1980 Vanagon Westy. A rolling restoration. Not so rolling right now. Joining now is our new 1982 diesel. Both projects under construction.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
VicVan
Samba Member


Joined: July 01, 2015
Posts: 1045
Location: Vancouver Island, BC
VicVan is offline

PostPosted: Thu Jun 04, 2020 3:21 pm    Post subject: Re: Powerflex suspension bushings Reply with quote

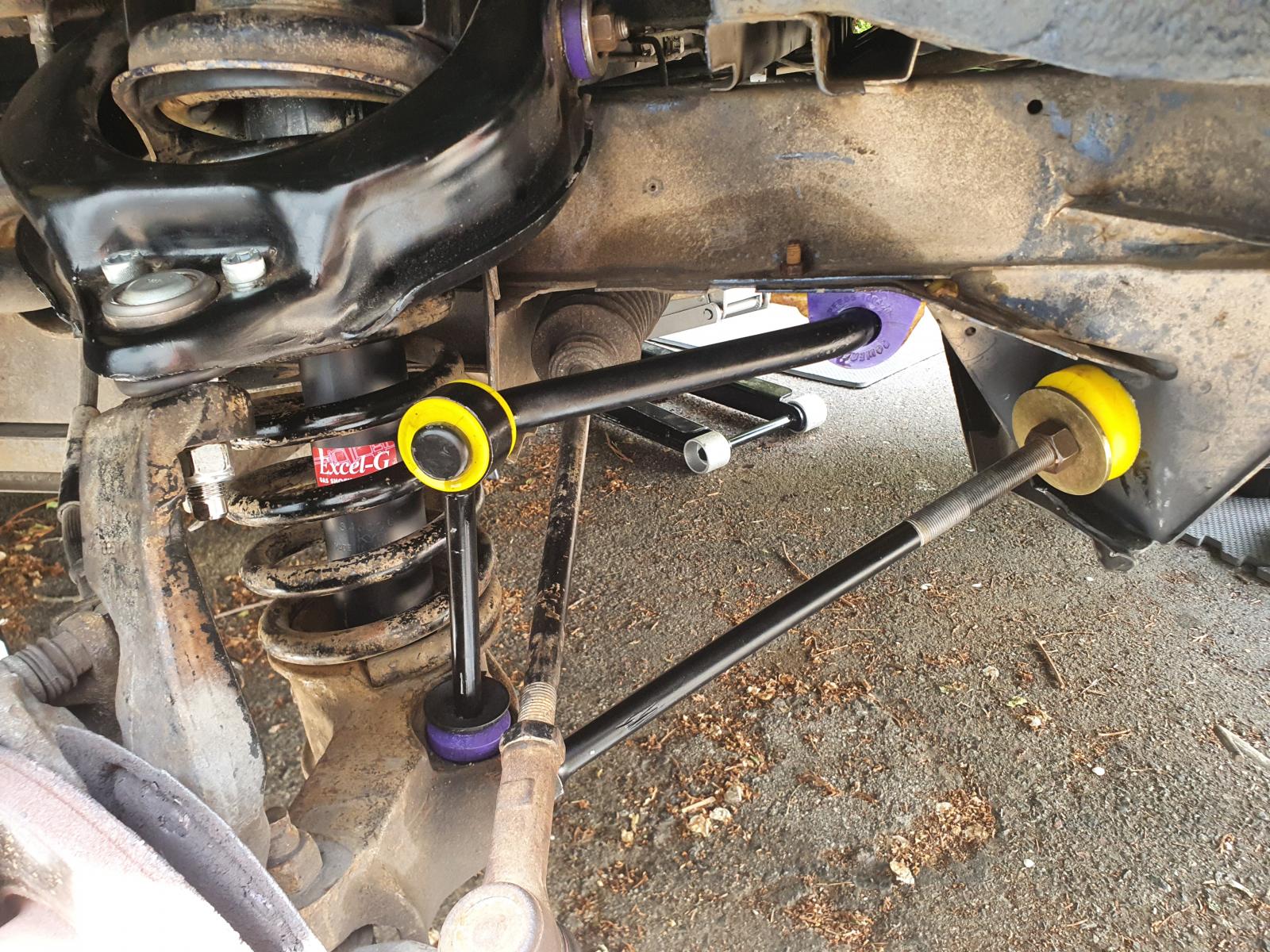

Finally got around installing Powerflex on the front end (2WD 1990), along with new Moog upper ball joints (Thanks Chris).

Image may have been reduced in size. Click image to view fullscreen.


A couple of tips/notes:

- Watch out when tightening the bolt on the drop-link, below the Lower Control Arm. The droplink rotated so much that the sway-bar to endling bushing popped out. Frustrating.

- I found that the amount of grease supplied was not enough. I'm sure it is when you know exactly how much to apply and you don't make mistakes. But for a DIY mechanic like me, you're not sure how much to put, and you end up repeting some tasks 2, 3, even 4 times (see above for an example). It's part of the learning curve, but every time I need to apply some more grease.

- The Youtube tutorial from James Akers really helped, as well as T3Technique's Youtube tutorial on the endlink to swaybar bushings. To install the new bushing halfway in the droplink, I cut the old bushing in half, like so:

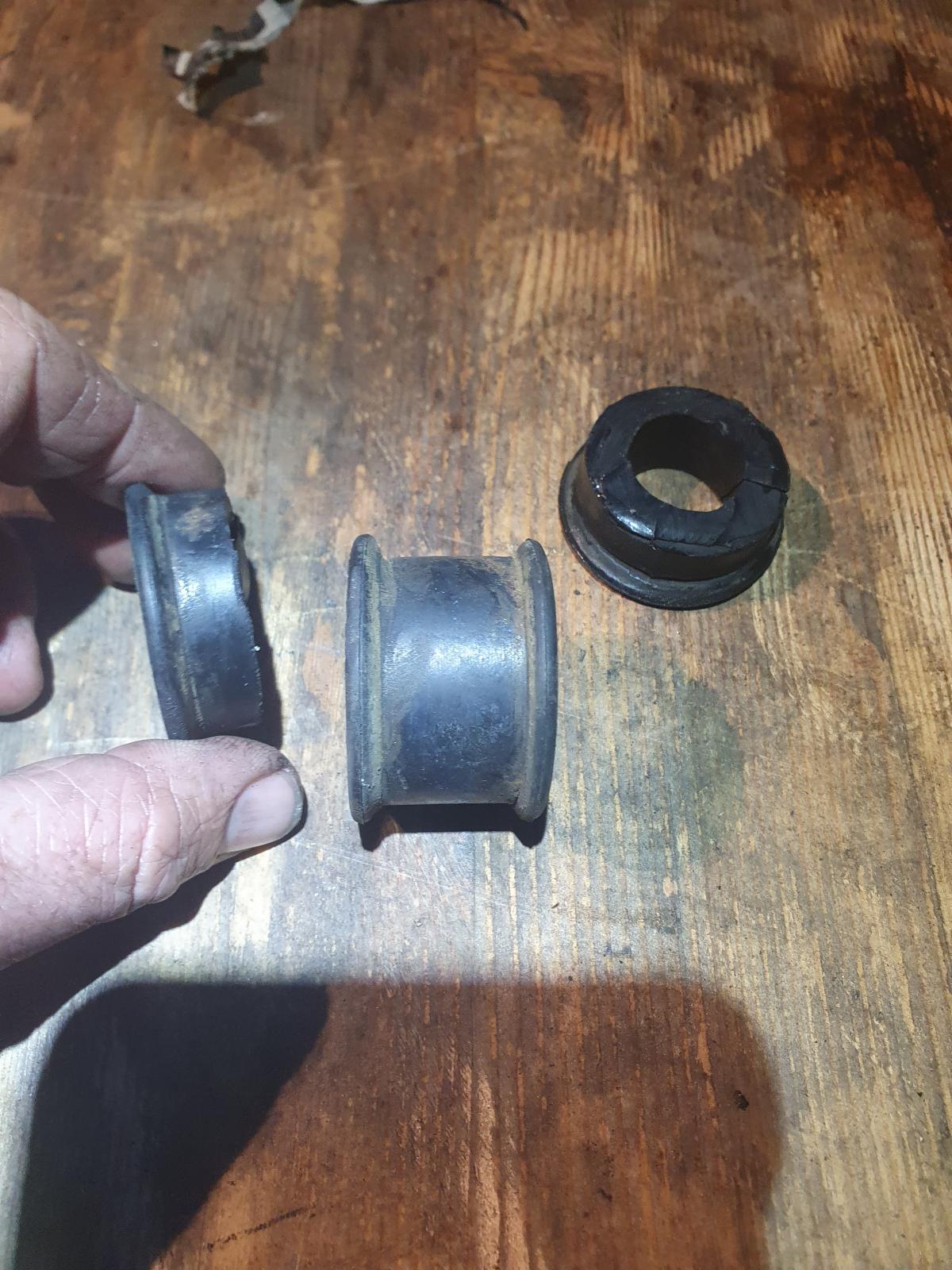

Image may have been reduced in size. Click image to view fullscreen.

You pop that in the droplink eye, and push the new bushing from the other side. No need for a vise, just stepping on it with your foot does it.

-Is there an orientation to the dropling to lower control arm bushings? It seems that one side is slightly taller than the other (left side on this photo):
Image may have been reduced in size. Click image to view fullscreen.

_________________
'90 Westiti, 2.1 auto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5171
Location: PNW
Christopher Schimke is offline

PostPosted: Thu Jun 04, 2020 5:06 pm    Post subject: Re: Powerflex suspension bushings Reply with quote

VicVan wrote:

-Is there an orientation to the dropling to lower control arm bushings? It seems that one side is slightly taller than the other (left side on this photo):


Nope! Either way will work fine.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
VicVan
Samba Member


Joined: July 01, 2015
Posts: 1045
Location: Vancouver Island, BC
VicVan is offline

PostPosted: Fri Jun 05, 2020 10:29 am    Post subject: Re: Powerflex suspension bushings Reply with quote

Thanks Chris.
_________________
'90 Westiti, 2.1 auto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wesitarz
Samba Member


Joined: August 20, 2012
Posts: 1087
Location: Victoria,B.C.Canada
wesitarz is offline

PostPosted: Sat Jun 06, 2020 7:28 am    Post subject: Re: Powerflex suspension bushings Reply with quote

How do Powerflex bushings affect 'ride' compared to 30 year old rubber bushings?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Cdub!
Samba Member


Joined: May 06, 2017
Posts: 36
Location: San Diego
Cdub! is offline

PostPosted: Sat Jun 06, 2020 8:06 am    Post subject: Re: Powerflex suspension bushings Reply with quote

Next to the EJ22 conversion, the powerflex suspension upgrade and T3 swaybar is the best upgrade to the van as it relates to drive ability and safety. Total game changer. Did springs and shocks to complement the powerflex.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5171
Location: PNW
Christopher Schimke is offline

PostPosted: Sat Jun 06, 2020 2:52 pm    Post subject: Re: Powerflex suspension bushings Reply with quote

wesitarz wrote:
How do Powerflex bushings affect 'ride' compared to 30 year old rubber bushings?


I should probably let others answer this, but most who know me know that I do try my best to give real world, honest advice.

Believe it or not, the Vanagon Powerflex bushings give a better ride quality than the stock replacement rubber bushings, better than other brands of urethane bushings, and much better than the suspension products that aren't using joints where the NVH (noise, harshness, vibration) is being dampened/controlled.
Keep in mind that polyurethane AND rubber can be formulated in all ranges of durometer (stiffness). This means that you can have rubber bushings that are stiffer than urethane bushings and you can have one urethane product being much softer than another. Powerflex has done a great job of finding that sweet spot of suspension location control and ride comfort.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
kguarnotta Premium Member
Samba Member


Joined: April 01, 2004
Posts: 793
Location: Woodstock, NH
kguarnotta is offline

PostPosted: Mon Aug 17, 2020 11:36 am    Post subject: Re: Powerflex suspension bushings Reply with quote

I've got an '86 syncro. a previous owner installed the poweflex bushings.

Everything seemed ok for a while (not sure how to compare handling, as this is my first vanagon). But the front end squeaks like crazy. I'm thinking that I may need to take things apart and re-lube them. I'm looking for tips on locating the squeak and lubing....

Not sure if this should be a new thread - but seems like it is related to this thread?
_________________
-Kevin
Woodstock, NH

'86 Triple Knob Syncro w/EJ22
'78 Westy
'69 Single Cab
'65 Kombi - EZ-Camper
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
