MUCH cheaper GoWesty solar option project
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Fogerty1970
Samba Member


Joined: August 02, 2012
Posts: 105
Location: The Great American Southwest
Fogerty1970 is offline

PostPosted: Sun May 28, 2017 2:43 pm    Post subject: MUCH cheaper GoWesty solar option project Reply with quote

I finally got some solar into my van, and as much as I liked GoWesty's folding 110W panel, I could not in good conscience pay almost $600 for their kit, so I made my own.

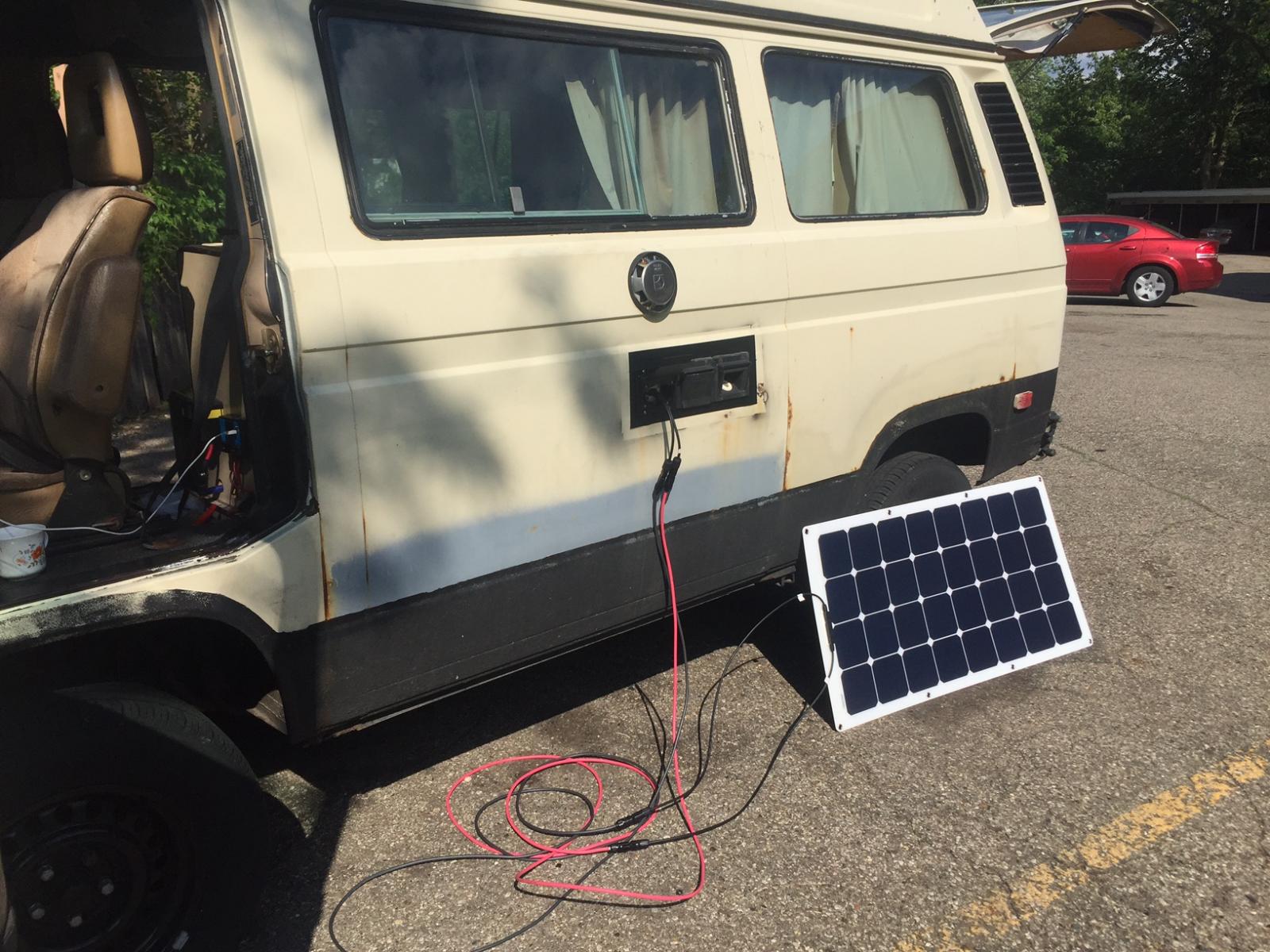

I did purchase their solar hookup box, doing away with the city water outlet which I never used. This enables me to connect the panel wires without having to crack a window.

An SAE (the GW connection style) to MC4 adapter is necessary to do this project.

The panel I got was a 100W Suaoki semi-flexible. Almost 6 amps in good sun, very sturdy unit. Cost me $180 on amazon.
Charge controller: 10 amp, $15 on amazon.
Wires: 15 feet of extension, so I can park in shade, panel in sun: $25 on amazon.
Adapter: $20 on eBay.

I have amazon prime, so free shipping. All told, about $240.

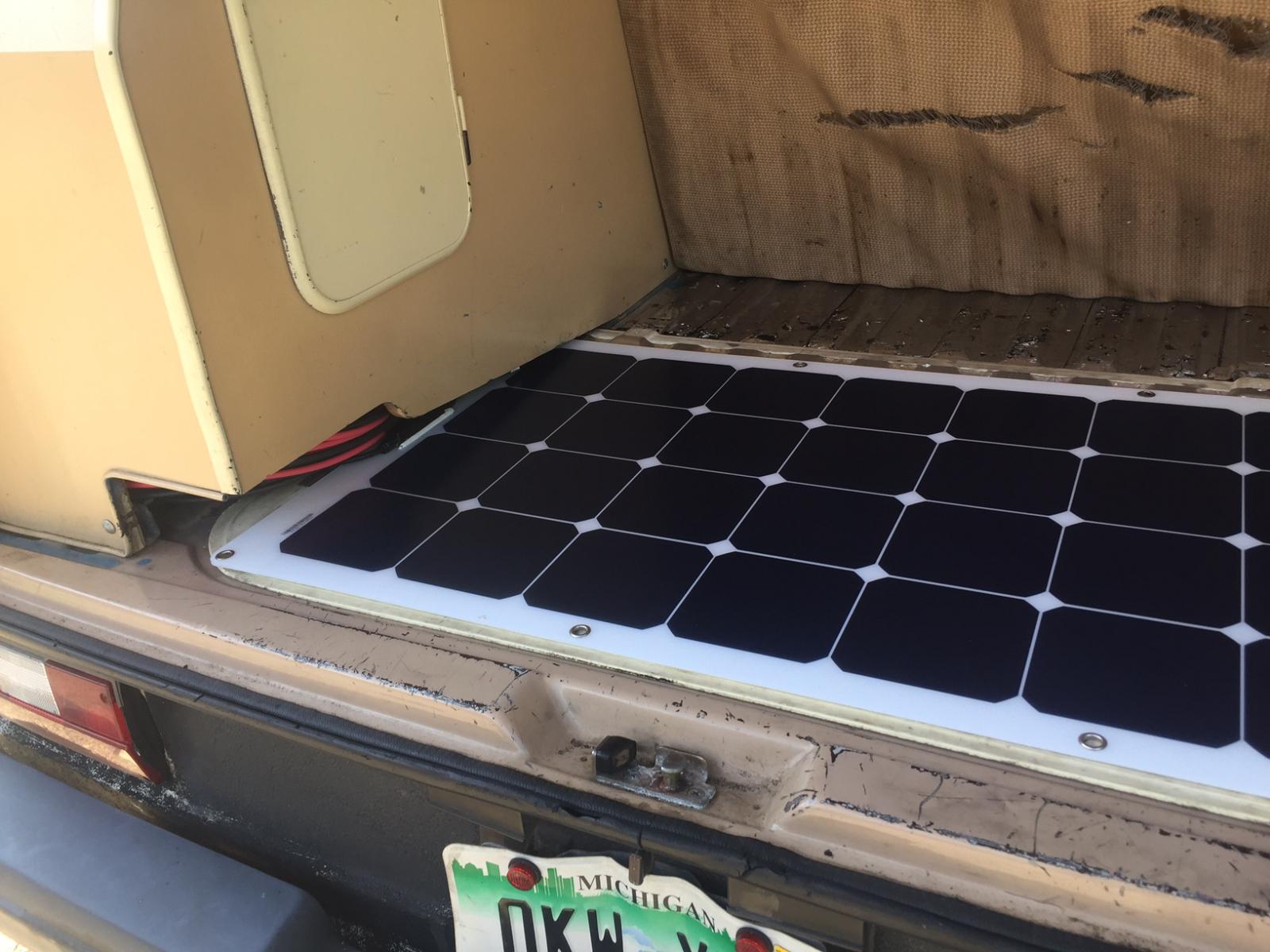

Pics below. The unit stows nicely under the rear bed cushion, with the wires neatly tucked beneath the rear cabinet.

I have the TF49 out for some maintenance, so the wiring was easy to do. The whole shebang takes one minute to set up.

Just an idea for those looking to add solar. Cheers all!
Chris



Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

_________________
1984 Wolfsburg Westy, EJ22.

"I'd rather have a bottle in front of me than a frontal lobotomy." -T. Waits.
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 7088
Location: NE MN (http://g.co/maps/zt72q)
dhaavers is offline

PostPosted: Sun May 28, 2017 3:24 pm    Post subject: Re: MUCH cheaper GoWesty solar option project Reply with quote

Slick! I always appreciate a nice, simple, affordable (cheap) DIY option!
I may be going this way in the next year or so - thanks for posting! Cool

- Dave

PS: Bonus points for putting the "under-rear-corner-cabinet" space to good use! Wink
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Halifaxwesty
Samba Member


Joined: October 21, 2012
Posts: 213
Location: Halifax, Nova Scotia, Canada
Halifaxwesty is offline

PostPosted: Sun May 28, 2017 4:18 pm    Post subject: Re: MUCH cheaper GoWesty solar option project Reply with quote

I tried a 10a controller for my 160w panel....

Lasted a day or two...my mistake....Im not sure if it is robust enough for a 100w panel...there is some maths I believe... Smile
_________________
84 Westfalia Vanagon
2.2 RMW Conversion
Work in Progress

My first car was a 1968 VW Bug
Back to top
View user's profile Send private message Send e-mail Twitter Instagram Gallery Classifieds Feedback
owokie
Samba Member


Joined: May 21, 2003
Posts: 489

owokie is offline

PostPosted: Sun May 28, 2017 6:35 pm    Post subject: Re: MUCH cheaper GoWesty solar option project Reply with quote

Halifaxwesty wrote:
I tried a 10a controller for my 160w panel....

Lasted a day or two...my mistake....Im not sure if it is robust enough for a 100w panel...there is some maths I believe... Smile


He's using a 100w panel, at ~6 amps max, he's all good with a 10a controller. I have the same setup (it's great). A 160w panel is a different beast entirely. Pushing 10a in full sun it isn't surprising that you smoked a 10a controller.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
pablum
Samba Member


Joined: December 17, 2015
Posts: 562

pablum is offline

PostPosted: Sun May 28, 2017 7:53 pm    Post subject: Re: MUCH cheaper GoWesty solar option project Reply with quote

owokie wrote:
Halifaxwesty wrote:
I tried a 10a controller for my 160w panel....

Lasted a day or two...my mistake....Im not sure if it is robust enough for a 100w panel...there is some maths I believe... Smile


He's using a 100w panel, at ~6 amps max, he's all good with a 10a controller. I have the same setup (it's great). A 160w panel is a different beast entirely. Pushing 10a in full sun it isn't surprising that you smoked a 10a controller.


Each panels spec sheet will have a rated closed circuit current (Ioc)that is the maximum current you can expect from it (barring acts of Zeus) and it will surely be less than that based on what your controller decides the voltage should be.
_________________
The wise man learns from history, the fool from experience.
-
I see [a cat] in the street and i aim for the pest with my car. -- Evil or Very Mad bluebus86
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Abscate Premium Member
Samba Member


Joined: October 05, 2014
Posts: 16144
Location: NYC/Upstate/ROW
Abscate is offline

PostPosted: Mon May 29, 2017 2:41 am    Post subject: Re: MUCH cheaper GoWesty solar option project Reply with quote

Nice strain relief and chafe protection.

There is a lot of cheap junk on the solar controller dump-place, did you find a well rated one?
_________________
.ssS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AZ Landshaper Premium Member
Samba Member


Joined: February 08, 2009
Posts: 1678
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Mon May 29, 2017 11:04 am    Post subject: Re: MUCH cheaper GoWesty solar option project Reply with quote

I know nothing about electricity. Well probably enough to be dangerous. What does this setup allow you to do that you could not w/o it?
I see a few for sale around my parts and have wondered what use they might provide. Could u run a small appliance in some manner with this or is this purely for recharging the stock battery under my ass?
_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
E1
Samba Member


Joined: January 21, 2013
Posts: 4994
Location: Westfalia, Earth
E1 is offline

PostPosted: Mon May 29, 2017 11:58 am    Post subject: Re: MUCH cheaper GoWesty solar option project Reply with quote

Looks great, well done!

My only advice would be to add a 25' separate extension cord. Almost as often as not, you'll want that flexibility -- especially on a hot summer day when camping in the woods.
_________________
1984 Westy-Ferrari firing at 33% capacity
I drive by the seat of my pants but then get behind on my steering
Thank You Bob Lazier, Forever Golden
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
climberjohn
Samba Member


Joined: January 11, 2005
Posts: 1840
Location: Portland Orygun
climberjohn is offline

PostPosted: Mon May 29, 2017 2:26 pm    Post subject: Re: MUCH cheaper GoWesty solar option project Reply with quote

This looks like a very nice set up, thanks for posting! I bought a large folding suitcase style 100 amp set up a few years ago, but I really like how much more compact yours is.

-CJ
_________________
'86 Westy, 2.5 Subaru power
Know your limits. Exceed them often.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TommyBoyGomes
Samba Member


Joined: May 28, 2005
Posts: 1522
Location: L.A./Dublin, Irl
TommyBoyGomes is offline

PostPosted: Mon May 29, 2017 5:48 pm    Post subject: Re: MUCH cheaper GoWesty solar option project Reply with quote

You may have already looked into this, but if not, I recommend looking into what voltage your charge controller can output and whether it matches the recommended charge voltage rating from the battery manufacturer.

Inexpensive charge controllers don't typically give you the ability to adjust the voltage output to the battery (since they don't want you to crank it up and toast the batteries if you don't know what you're doing), so they typically provide a fixed non-adjustable output voltage that's errs on the low side. This voltage is typically lower than most batteries need for an average daylight charge time. This often under-charges the battery and results in a quick death.

I recommend reading handy bob's solar website thoroughly and eventually getting a charge controller that has a programmable output voltage in your next system. Good luck!
_________________
1969 Squareback, 1776cc
1990 Vanagon Multivan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bokonon42
Samba Member


Joined: December 20, 2016
Posts: 104
Location: Bay Area, CA
bokonon42 is offline

PostPosted: Mon May 29, 2017 5:48 pm    Post subject: Re: MUCH cheaper GoWesty solar option project Reply with quote

i added a 100w solar to mine and am able to keep my fridge going without killing the battery. that was my main use for it. an iphone/ipad charger is like 2 amps if that helps imagine things...


AZ Landshaper wrote:
I know nothing about electricity. Well probably enough to be dangerous. What does this setup allow you to do that you could not w/o it?
I see a few for sale around my parts and have wondered what use they might provide. Could u run a small appliance in some manner with this or is this purely for recharging the stock battery under my ass?

_________________
Terry
88 Vanagon Wolfsburg Carat - https://www.thesamba.com/vw/forum/viewtopic.php?t=671319
97 Porsche 993
03 BMW M5
Back to top
View user's profile Send private message Gallery Classifieds Feedback
