Posted: Fri Aug 18, 2017 6:50 pm Post subject: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
Greetings,
I was inspired by recent threads on solar panel discussions and was determined to outfit myself with a setup in time for possibly the last camping trip of the summer (still hoping I get wife approval for DOB in October). While I admire all the unique rooftop mounts, I wasn’t ready to commit so I discovered from the previous thread the solar suitcase. That seemed to fit the bill so here’s what I opted to do. I liked the GoWesty SAE solar box and also thought the VanagonLife SAE plug in their rear vent was pretty cool. But, I wanted to keep City Water and I have a Truck Fridge so the flue is no longer in use.
I got the idea to follow others and put the PowerWerx PowerPole in flue with a small twist. For some reason I’m attached to that flue cage and don’t like the smooth look. Guess I’m nostalgic that way so I decided to make an “access hole” through the flue cage to access the PowerWerx mount in the block-off plate.

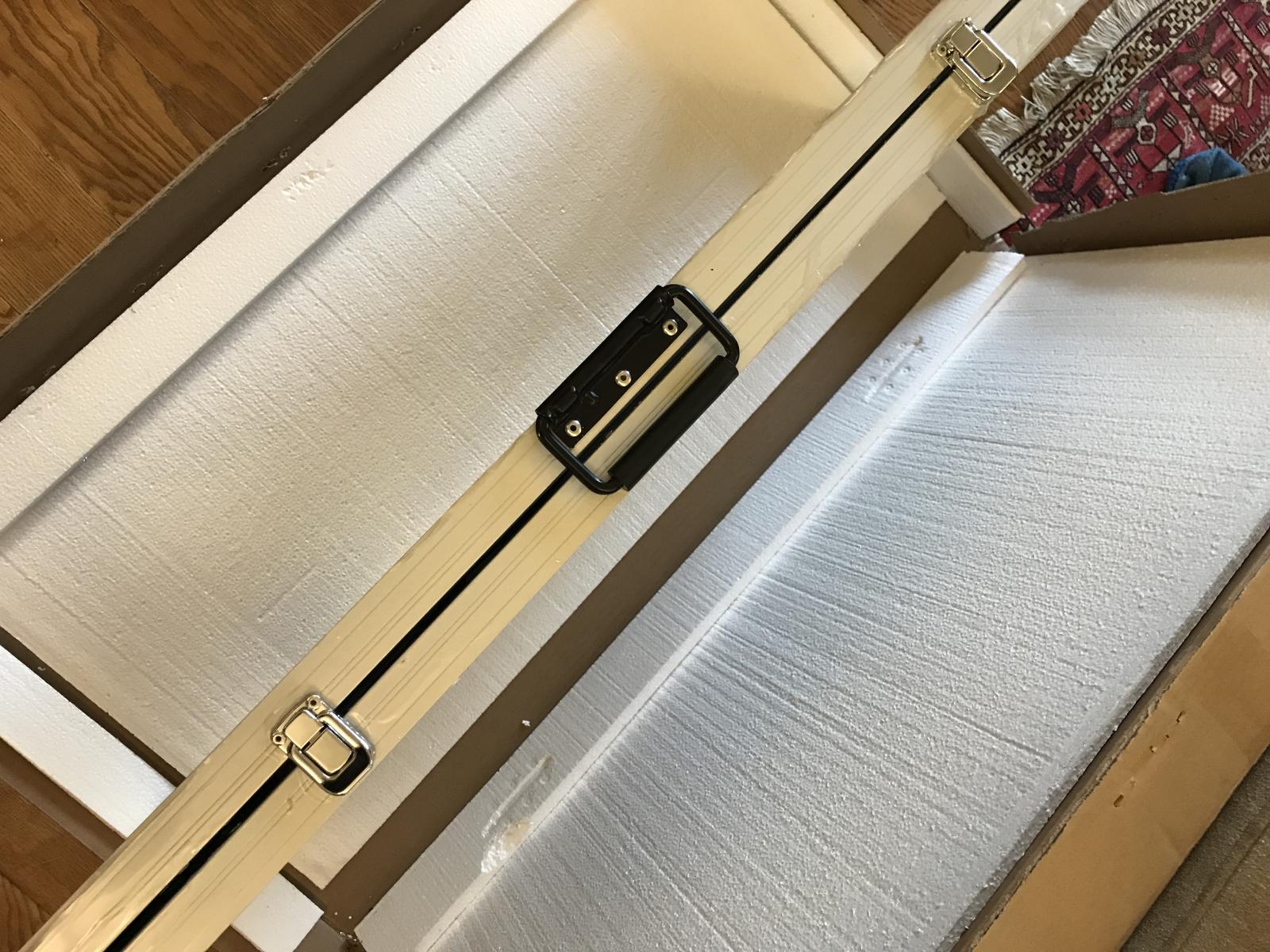

Here’s what I’m working with:
https://www.solarblvd.com/products/solar-cynergy-160-watt-foldable-12-volt-solar-panel-2/
Review: I’m a solar noob. I chose this purely based on watts and price. I’m at entry level so I greatly appreciated that it included a basic charge controller. Otherwise, the frame seems sturdy as do the latches. It was pre-wired with 14 AWG so I’m setting out to make a 10 AWG pigtail to connect into all 10 AWG wiring shown below. Anyway, Solar Boulevard was easy to work with. You have to call in your order which I did on a Monday morning and was told they assemble these to order and that it would ship by Friday. By Tuesday afternoon I had received a FedEx shipping notification and on Thursday afternoon I had received it. The only small glitch was it was missing the carrying “case” (bag) they charged me $25 for. No trouble. Another email and it’s on its way. I worked with Sergio. Very responsive and for $179+$25 bag +$35 shipping +tax, I was about $250 out the door for a setup. Because the suitcase just includes 14 AWG pigtail from the controller, I’m going to fab a 10 AWG harness with PowerPoles to connect to to my 20 foot extension I ordered. Here’s the unboxing:
As I mentioned, I liked the PowerWerx equipment and they are here in CA too so I called them up and got some tips on what I wanted. Decided to run all 10 AWG using 45 amp connectors. Placed an order online for the below components and received two days later.
Off-the-shelf 20’ cable:
https://powerwerx.com/powerpole-connector-extension-cable
PanelPole (note, it comes with smaller 30 amp connectors which I heard could be difficult to squeeze 10 AWG into so I ordered more 45s to replace the top set)
https://powerwerx.com/panelpole-panel-mount-powerpole-housing
PowerPole 45s:
https://powerwerx.com/anderson-powerpole-connectors-45amp-bonded
I discovered their website offers a neat design your own cable. Since I was going to need a cable to run from the panel down to aux batt., I took them up on this and ordered 8 feet (to be safe) with PowerPoles on one end and battery rings on the other, all in 10 AWG:
https://powerwerx.com/dual-conductor-custom-cable
Don’t forget your dust condom:
https://powerwerx.com/powerpole-weather-resistant-dust-cap-cover

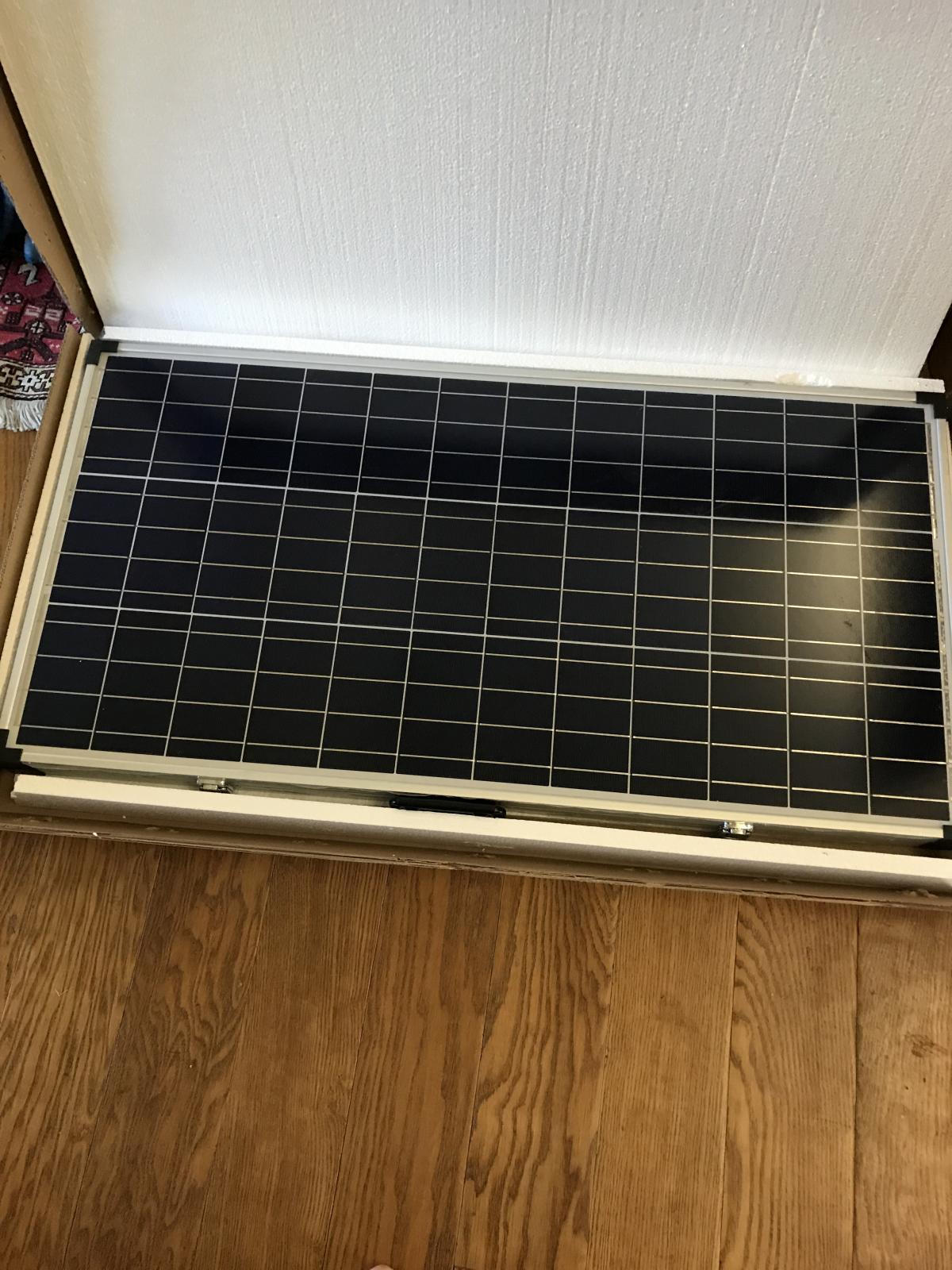

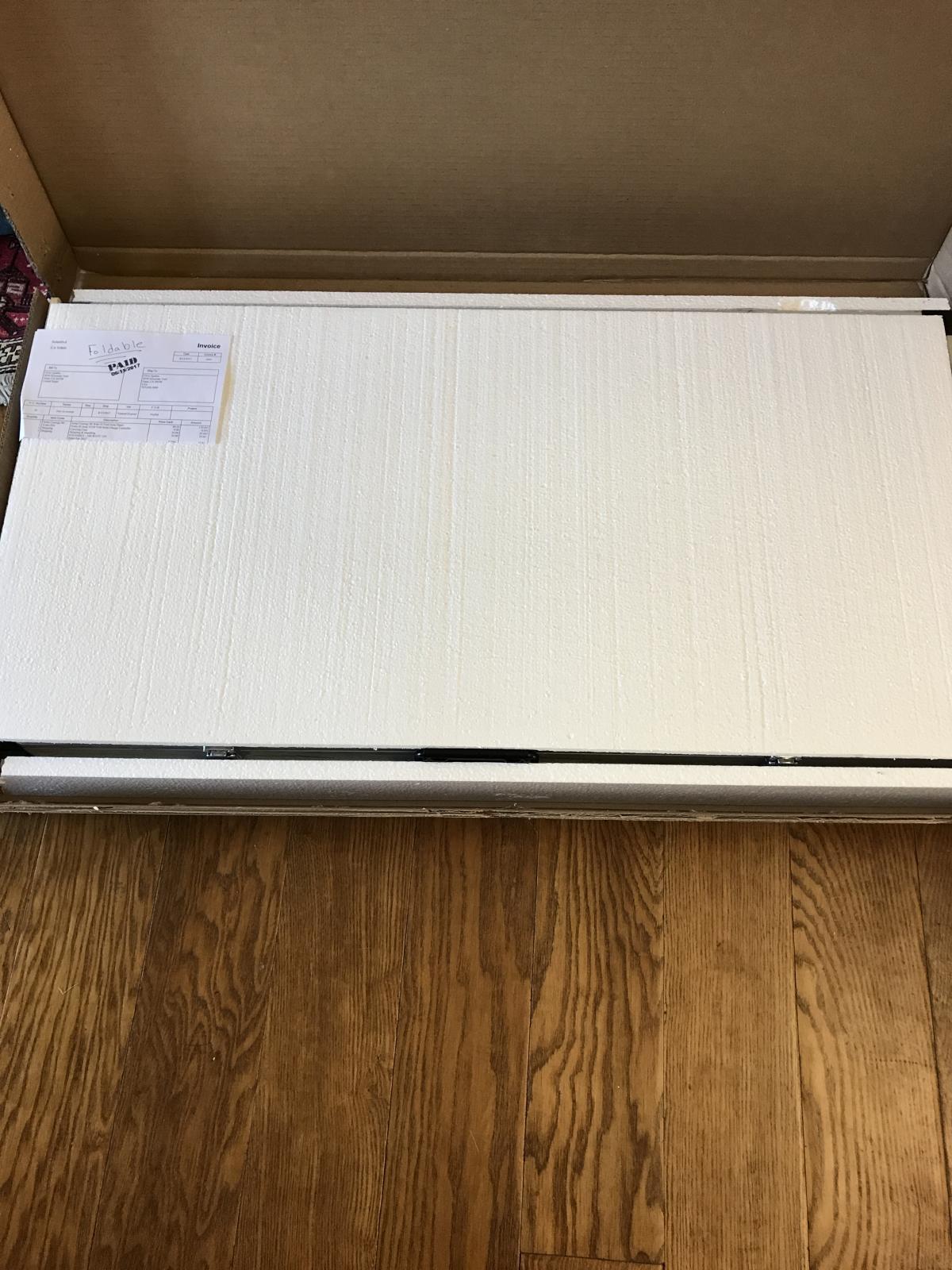

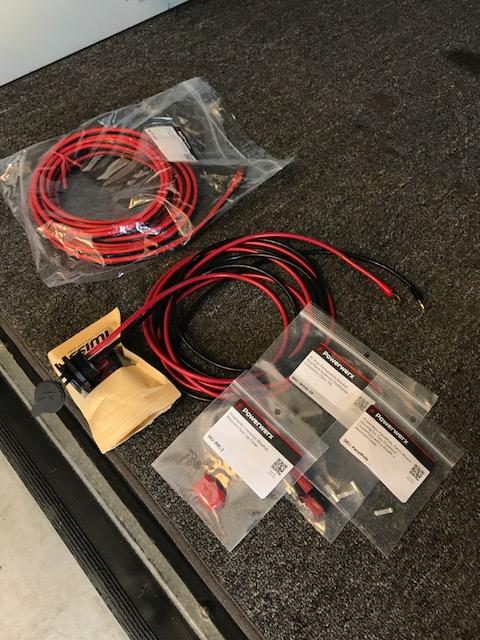

Here it all is in person:
On to wiring. Most of this is probably way basic for all you out there, but putting this thread together helped me walk through step by step and I figure it may help others who are newer to the scene. First, routing battery cable inside van.

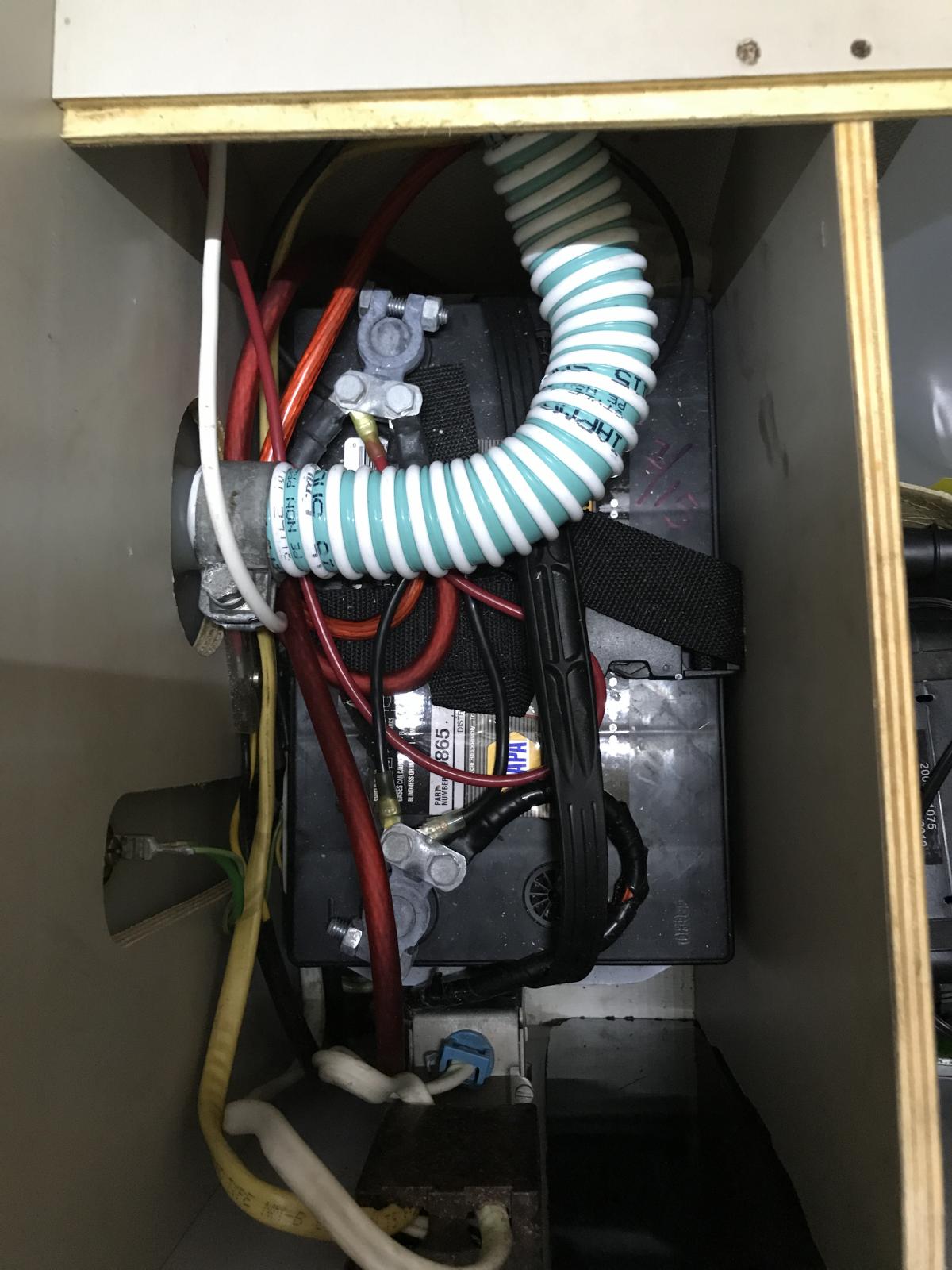

This is my existing setup:
1 of 2 aux batts installed in neat location by SAH, nice and close to the water hoses but also close to the hookups making for easy-ish wire-fishing.
First, I’m making the holes. I love the smell of drilled van parts in the morning:
Pilot hole through and through:

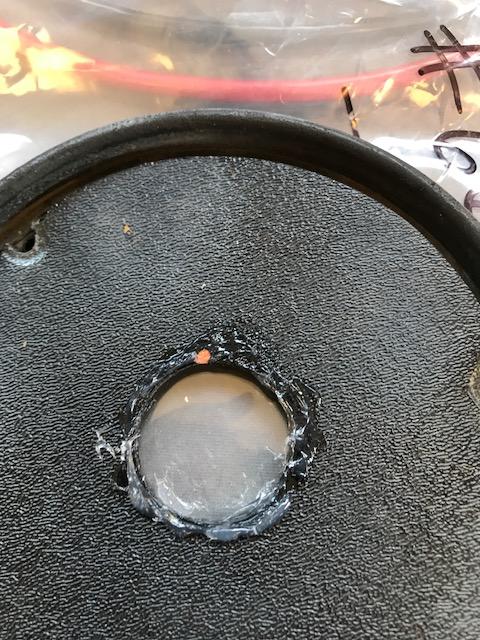

Larger hole in flue vent cage:
1 1/8 hole drilled for PanelPole:
And removed the whole assembly after holes in:

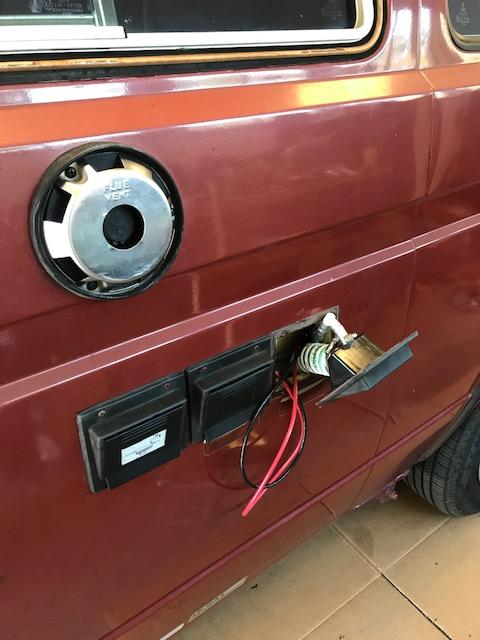

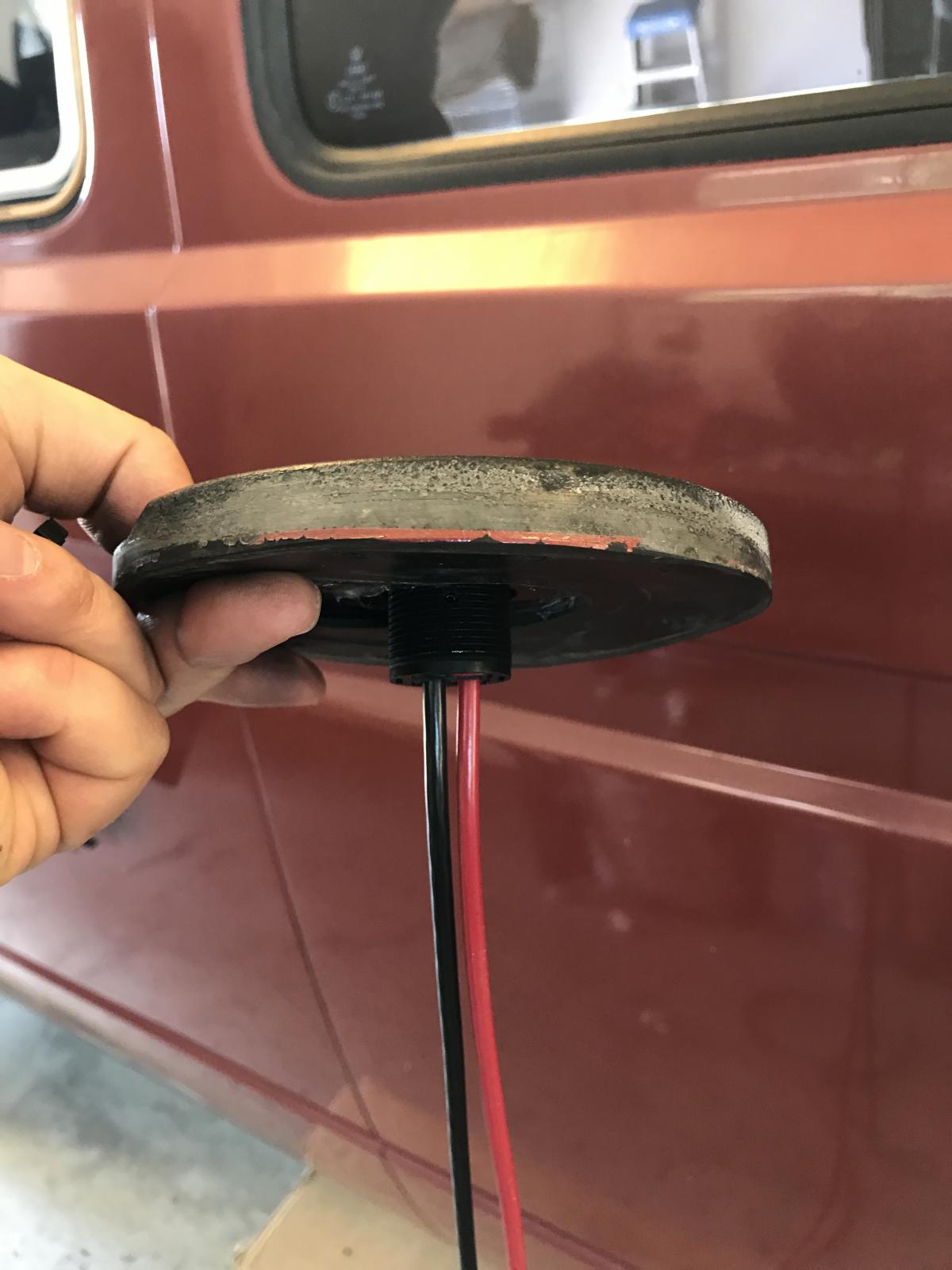

Seal it and mount it:

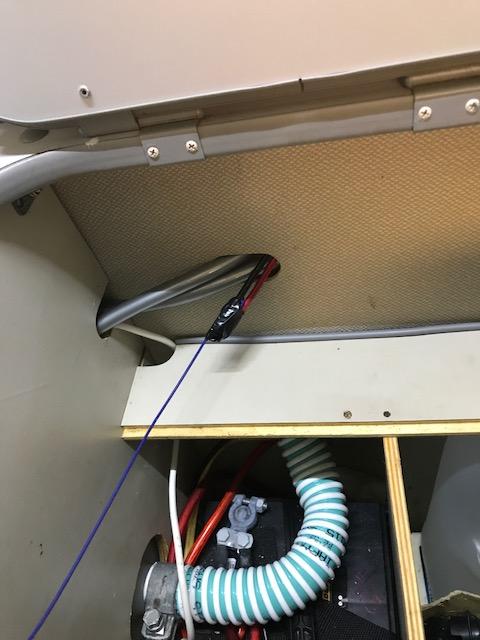

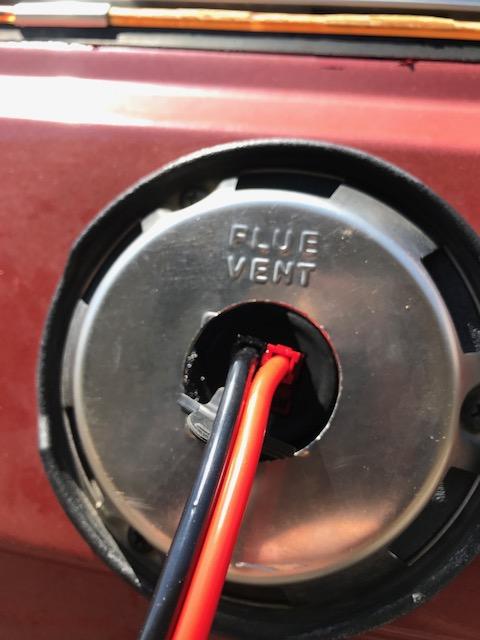

Fishing it through:
With the cabling in the aux batt area, button up the flue:
Now I had ordered an 8-footer so here I’m going to trim to fit. Yeah I wasted a few bucks on battery rings only to have to cut em and re-crimp. I hadn’t considered aspect when I did the custom cable but their website gives you the option of leaving the ends bare, which I should have done since I wanted to trim to fit with just enough slack to be able to service the panel and remove if necessary:
Done and hook up to batt:
Voila, van wiring in and done thanks to easy stuff from these guys.

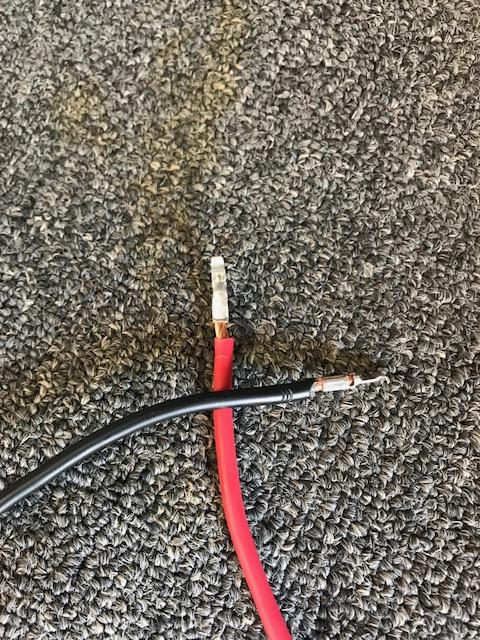

Make a new pigtail for the solar controller:

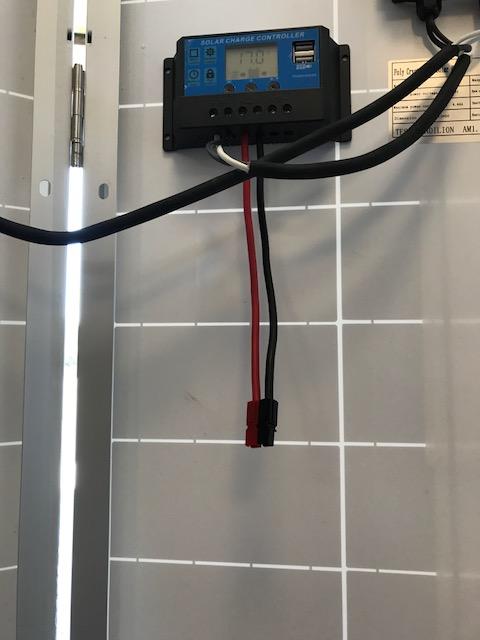

In, on, and connected!
I’m energized!
And a nice bonus, it DOES fit on top.
_________________ '87 Westy 1.8T Conversion, Orignal Owner, European Delivery @ Westfalia factory in Weidenbrueck.
The Story:
https://www.thesamba.com/vw/forum/viewtopic.php?t=713391&highlight=life
Last edited by Vnyd Dog on Sat Aug 19, 2017 12:03 pm; edited 1 time in total |
|
Back to top |
|
|
jimf909 Samba Member
Joined: April 03, 2014 Posts: 7473 Location: WA/ID
|
Posted: Fri Aug 18, 2017 10:14 pm Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
That's a helpful post! Well done and thank you. _________________ - Jim
Abscate wrote: |
Do not get killed, do not kill others.
|
Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, 280 ah LFP battery, 160 watts solar, Flash Silver, seam rust, bondo, etc., etc.
Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro). |
|
Back to top |
|
|
Bills85Westy Samba Member
Joined: August 01, 2009 Posts: 423 Location: Napa CA
|
Posted: Fri Aug 18, 2017 10:37 pm Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
Nice write up! I've never made a permanent external connection for my solar setup. (Mine is through the drivers window) so this has given me some good ideas! Thanks,
Bill _________________ 89 Tristar Syncro Doka - White
85 Westfalia Syncro (conversion)
SAH 1.8T Conversion - 2005 AWP
Engine Conversion Thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=612144&highlight=
85 Doka L345 Grey - 1.9L |
|
Back to top |
|
|
Vnyd Dog Samba Member
Joined: August 25, 2015 Posts: 384 Location: Napa
|
Posted: Sat Aug 19, 2017 12:04 pm Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
Added a pic I was able to confirm this am it does fit up top. _________________ '87 Westy 1.8T Conversion, Orignal Owner, European Delivery @ Westfalia factory in Weidenbrueck.
The Story:
https://www.thesamba.com/vw/forum/viewtopic.php?t=713391&highlight=life |
|
Back to top |
|
|
[email protected] Samba Member
Joined: April 29, 2015 Posts: 704 Location: Berkeley Ca
|
Posted: Sat Aug 19, 2017 12:16 pm Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
You might think about placing the charge controller in the van in case of inclement weather. Don't think it's water tight. |
|
Back to top |
|
|
Vnyd Dog Samba Member
Joined: August 25, 2015 Posts: 384 Location: Napa
|
Posted: Sat Aug 19, 2017 12:33 pm Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
[email protected] wrote: |
You might think about placing the charge controller in the van in case of inclement weather. Don't think it's water tight. |
Yes you're right! Good idea. More wiring... _________________ '87 Westy 1.8T Conversion, Orignal Owner, European Delivery @ Westfalia factory in Weidenbrueck.
The Story:
https://www.thesamba.com/vw/forum/viewtopic.php?t=713391&highlight=life |
|
Back to top |
|
|
shagginwagon83 Samba Member
Joined: February 07, 2016 Posts: 3803 Location: VA/TN
|
Posted: Sat Aug 19, 2017 4:43 pm Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
Oh man. I'm a little jealous. I just bought the 130w panel from Wise Food Storage. Mine comes with a sweet suitcase though. I'm glad it fits behind the bunk for you. _________________ Brandon
"Jo Ann" - '83.5 Westfalia EJ22e w/Peloquin
Instagram @joannthevan |
|
Back to top |
|
|
Deedee22 Samba Member
Joined: August 30, 2016 Posts: 35 Location: Seattle
|
Posted: Sun Aug 20, 2017 7:19 am Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
This is great! I love the modular setup as opposed to attaching to a roof, since I'd only really be using it if I'm parked for a couple of days. I was looking at a setup that has the battery abs controller and outlets built into the setup itself. Expensive but pretty streamlined. |
|
Back to top |
|
|
Vnyd Dog Samba Member
Joined: August 25, 2015 Posts: 384 Location: Napa
|
Posted: Sun Aug 20, 2017 9:26 am Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
Yeah I'm happy with how it came together. There are a lot of more sophisticated setups out there but my goal was a basic install plus I was fortunate enough to already have a solid aux foundation to build on. Test run next weekend camping in the Tahoe area. _________________ '87 Westy 1.8T Conversion, Orignal Owner, European Delivery @ Westfalia factory in Weidenbrueck.
The Story:
https://www.thesamba.com/vw/forum/viewtopic.php?t=713391&highlight=life |
|
Back to top |
|
|
baltik Samba Member
Joined: April 08, 2015 Posts: 440
|
Posted: Sun Aug 20, 2017 1:35 pm Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
Be careful about moisture, I used the same anderson powerwerx connector and water tested it prior to install, the rubber lid was not water tight at all...
I ended up installing mine in lieu of the city water hookup...
On a separate note - does the 160w fit in the luggage rack? |
|
Back to top |
|
|
Vnyd Dog Samba Member
Joined: August 25, 2015 Posts: 384 Location: Napa
|
Posted: Sun Aug 20, 2017 5:58 pm Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
baltik wrote: |
Be careful about moisture, I used the same anderson powerwerx connector and water tested it prior to install, the rubber lid was not water tight at all...
I ended up installing mine in lieu of the city water hookup...
On a separate note - does the 160w fit in the luggage rack? |
I'll watch for this. And yep, barley fits;
_________________ '87 Westy 1.8T Conversion, Orignal Owner, European Delivery @ Westfalia factory in Weidenbrueck.
The Story:
https://www.thesamba.com/vw/forum/viewtopic.php?t=713391&highlight=life |
|
Back to top |
|
|
TommyBoyGomes Samba Member
Joined: May 28, 2005 Posts: 1531 Location: L.A./Dublin, Irl
|
Posted: Mon Aug 21, 2017 11:34 am Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
I just got the same panel the other day and am still in the process of wiring everything in.
In your setup, I would move the charge controller into your van as close to your batteries as possible. Between your charge controller and batteries, use the thickest gauge cable that can fit in the terminals. Right now, I imagine there's a lot of voltage drop between CC and batteries which will undercharge your battery.
You may also want to consider a more functional charge controller like a Bogart or Morningstar that allows you to set charging voltage and profiles for your batteries. The one that comes from solar blvd is a little limited. Good luck! _________________ 1969 Squareback, 1776cc
1990 Vanagon Multivan |
|
Back to top |
|
|
ntaramorris Samba Member
Joined: July 03, 2013 Posts: 20 Location: East Tennessee
|
Posted: Wed Sep 27, 2017 1:02 pm Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
Awesome write up and associated pics!
Really curious about the performance of this panel (i.e. how many amps are you seeing it produce). You also answered the question "Will it fit in the top bunk"- thank you!
I have a 100 Watt panel on the rear of the pop top and a Windy Nation 30Amp PWM controller mounted behind the drivers seat in my '88 Westy. I am trying to figure out the best way to add this panel into my system (not the connector type but where in the system).
A.From Foldable panel controller direct to the Aux (House Battery)
or
B.Eliminate the foldable panel controller and wire into the existing controller.
Thanks,
Jeff
88 Westy 2.5 Subaru (Bruce Vanner aka. The Hulk) |
|
Back to top |
|
|
shagginwagon83 Samba Member
Joined: February 07, 2016 Posts: 3803 Location: VA/TN
|
Posted: Wed Sep 27, 2017 2:14 pm Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
ntaramorris wrote: |
Awesome write up and associated pics!
Really curious about the performance of this panel (i.e. how many amps are you seeing it produce). You also answered the question "Will it fit in the top bunk"- thank you!
I have a 100 Watt panel on the rear of the pop top and a Windy Nation 30Amp PWM controller mounted behind the drivers seat in my '88 Westy. I am trying to figure out the best way to add this panel into my system (not the connector type but where in the system).
A.From Foldable panel controller direct to the Aux (House Battery)
or
B.Eliminate the foldable panel controller and wire into the existing controller.
Thanks,
Jeff
88 Westy 2.5 Subaru (Bruce Vanner aka. The Hulk) |
I think a couple of people have said that this panel will fit in the top bunk. I bought my portable 130w panel from WiseFoodGroups and it fits in the top bunk. I would imagine if you added another panel you would need to upgrade to a MPPT controller.
This is my 130w panel sitting out for an afternoon. I think my battery was topped off already... But figure I'd post this to make you switch to the MPPT side
_________________ Brandon
"Jo Ann" - '83.5 Westfalia EJ22e w/Peloquin
Instagram @joannthevan |
|
Back to top |
|
|
izzydog Samba Member
Joined: April 28, 2005 Posts: 665
|
Posted: Wed Sep 27, 2017 4:43 pm Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
My second battery and associated terminals and solar hardware are under the rear seat. This allowed me to follow the battery cable into the engine compartment through the firewall and route the solar panel hookup (Andersen PPC) near the license plate opening. The hookup plug lives behind the license plate and is really easy to get to when I need to hook up the solar. No drilling in any external parts of the van - no leaks! |
|
Back to top |
|
|
Vnyd Dog Samba Member
Joined: August 25, 2015 Posts: 384 Location: Napa
|
Posted: Thu Sep 28, 2017 11:25 am Post subject: Re: Solar Blvd 160w suitcase and PowerWerx Install |
|
|
izzydog wrote: |
My second battery and associated terminals and solar hardware are under the rear seat. This allowed me to follow the battery cable into the engine compartment through the firewall and route the solar panel hookup (Andersen PPC) near the license plate opening. The hookup plug lives behind the license plate and is really easy to get to when I need to hook up the solar. No drilling in any external parts of the van - no leaks! |
That sounds like a cool option too! I've not had an opportunity to really test out my panel. I got it right before a short camping trip but was so busy in camp with kids I didn't fiddle with it. Come holiday season, the MPPT ShagginWagon has is on my list. _________________ '87 Westy 1.8T Conversion, Orignal Owner, European Delivery @ Westfalia factory in Weidenbrueck.
The Story:
