 Posted: Tue May 20, 2008 5:47 am Post subject: Baywindow light bulb chart? |
 |
|
Looked through my Bentley (1979 edit) last night but could not find a chart on light bulbs stating lamp numbers for specific locations. Ex- tail/brake=1157.
Is there such a guide or chart?
Specifically I need a license plate lamp # now.
Searched first using "lamp" and "bulb" in titles. Sorry if this is a repost.
Thanks,
Dim in St Louis.
_________________
1979 Type-2 Westfalia “Sandy”
1973 Type-181 Thing "Velma"
1956 Type-1 Beetle Patina Project “Rosie”
www.azbusclub.org |
|
| Back to top |
|
 |
VDubTech
Samba Member
Joined: December 29, 2002
Posts: 9155
Location: Syracuse, NY
|
| Posted: Tue May 20, 2008 5:51 am Post subject: |
|
|

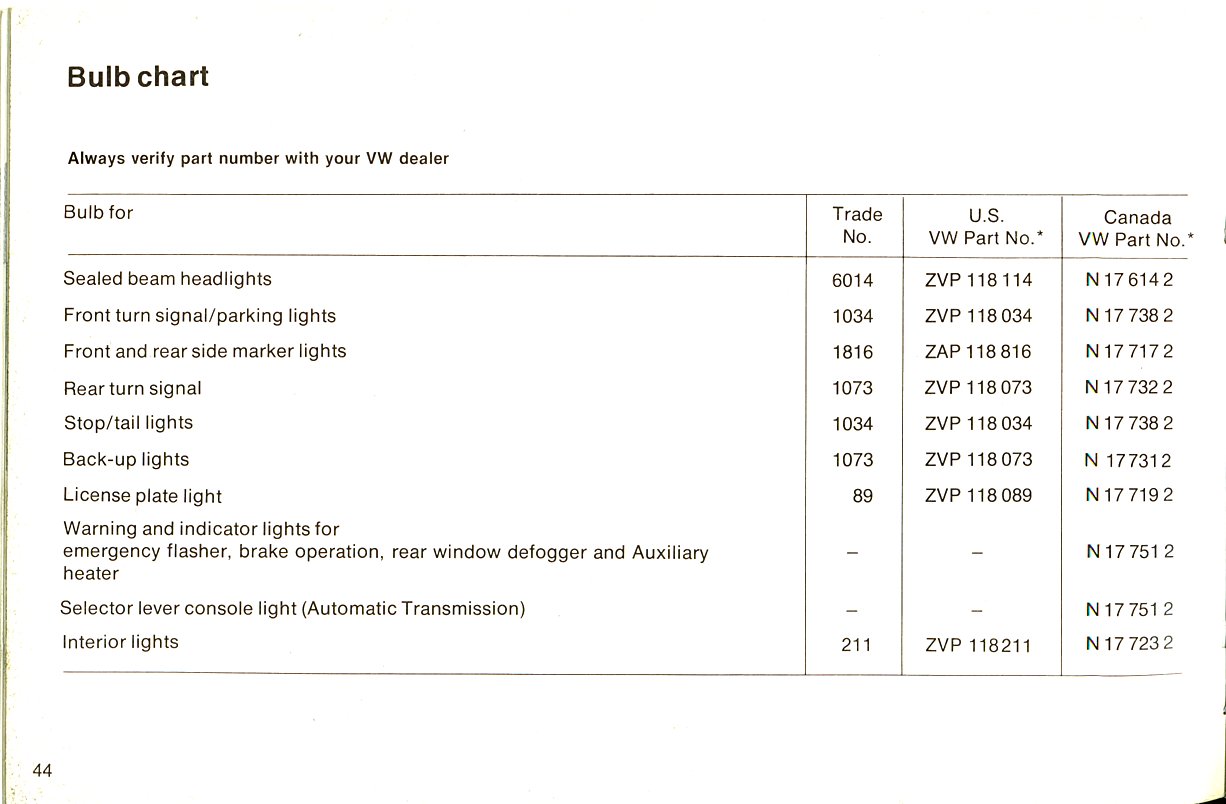

| Yes, there is a chart right in your owner's manual, many of which there are electronic copies of on this very site. |
|
| Back to top |
|
|
Althea78
Samba Member
Joined: October 10, 2007
Posts: 58
Location: Michigan
|
| Posted: Tue May 20, 2008 5:56 am Post subject: |
|
|
I took my old bulb to the auto parts store and looked in the light bulb section. They had 2 that looked like it. The difference was 5 watt or 10 watt. I went with the 10 watt. It works great.
_________________
'78 Westy |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10797
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Tue May 20, 2008 5:57 am Post subject: |
|
|
|
|
| Back to top |
|
|
rjonas
Samba Member
Joined: July 24, 2004
Posts: 644
Location: Chandler, AZ
|
| Posted: Tue May 20, 2008 6:22 am Post subject: |
|
|
Ah ha! The owners manual. I knew I had seen that chart before.
In my glovebox just under my nose while I was sitting in the passenger seat thumbing through the Bentley last night.
I am a dumbass.
At least I can buy the #89 license plate lamp on my way home from work now.
Thanks.
_________________
1979 Type-2 Westfalia “Sandy”
1973 Type-181 Thing "Velma"
1956 Type-1 Beetle Patina Project “Rosie”
www.azbusclub.org |
|
| Back to top |
|
|
NASkeet
Samba Member
Joined: April 29, 2006
Posts: 3186
Location: South Benfleet, Essex, UK
|
| Posted: Tue May 20, 2008 6:26 am Post subject: Baywindow light bulb chart? |
|
|
The official VW Owners' Handbook, for the British specification, 1973 VW 16/1700 Type 2, also specifies the bulb wattages, for each application; including those in North America.
_________________
Regards.
Nigel A. Skeet
Independent tutor (semi-retired) of mathematics, physics, technology & engineering for secondary, tertiary, further & higher education.
Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper
Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)
https://vwt2oc.co.uk |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Fri Aug 25, 2017 2:43 pm Post subject: Light Bulb Chart T2 |
|
|
To link to this thread copy and paste
| Code: |
| [url=https://www.thesamba.com/vw/forum/viewtopic.php?p=8539877#8539877]Light Bulb Chart T2[/url] |
LIGHT BULB CHARTS
- NOTE BULBS NOT LISTED
- N 17 751 2 = 2721 12v 1.2w Instrument/Warning light bulb
2723 12v 2.3w bulbs can be used for brighter Instrument illumination. (note: not to be used for warning idiot lights)
- N 17 723 2 = 6411 12v 10w Dome light Bulb.
LED lighting upgrades FAQ
1969
1970
1971
1972
1973
1974
1975
1976
1977
1978
1979
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Wed Sep 06, 2017 10:47 am Post subject: Philips Bulb Guide for: VOLKSWAGEN Transporter |
|
|
Philips Bulb Guide for: VOLKSWAGEN Transporter
High & low beam headlamp H6024
Parking light 1157
Front turn signal 1157
Rear turn signal 1156
Tail light 1157
Stop light 1157
License plate 89
Back up light 1156
Front side marker 1895
Rear side marker 1895
Instrument-general 12516 |
|
| Back to top |
|
|
Yoda78
Samba Member
Joined: May 20, 2023
Posts: 6
Location: Guelph, ON, Canada
|
| Posted: Sun Jul 02, 2023 1:31 pm Post subject: Re: Baywindow light bulb chart? |
|
|
I've been replacing bulbs with LED replacements, and I found 2 very small bulbs beside the front turn signal lamps - I can't read the markings - any Idea what they are?
Thanks for any advice, |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52730
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sun Jul 02, 2023 1:42 pm Post subject: Re: Baywindow light bulb chart? |
|
|
Welcome!
I'ts on the charts posted above, front and rear side marker lamps is what they are called.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
