PostPosted: Thu Mar 22, 2018 6:39 pm    Post subject: Koni Shocks Reply with quote

Any suggestions on where to find Koni Classic shocks?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ZENVWDRIVER
Samba Member


Joined: November 07, 2008
Posts: 2222
Location: N.E. Oklahoma
ZENVWDRIVER is offline

PostPosted: Fri Mar 23, 2018 1:49 am    Post subject: Re: Koni Shocks Reply with quote

i'd buy them directly from Koni
_________________
5/50, pastel green 11G - SOLD
8/50, gray 11A Beetle
1954 Porsche, pre A, with VW 36 horse- SOLD
1/54, black 11C Beetle - TRADED
2/55 Iceland green Beetle, on a 1965 pan
3/55 113 Beetle, stratos silver
1955 Messerschmitt KR175 - SOLD, sadly
1960 single cab
1962 SO33, with SO 42 interior
9/63 Pacific blue, Ghia
'87 Toyota MR2
'91 NSX- wishful thinking

German sausage are the wurst.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gimmesomeshelter
Samba Member


Joined: May 08, 2004
Posts: 1407
Location: San Carlos, CA
gimmesomeshelter is offline

PostPosted: Fri Mar 23, 2018 1:24 pm    Post subject: Re: Koni Shocks Reply with quote

I purchased Koni shocks for my VW, but ending up selling them - they were WAY too stiff. I ended up installing Koni shocks for a 356 in front, and had my rears custom valved like a 356. Here's an old thread:

https://www.thesamba.com/vw/forum/viewtopic.php?p=3617201&highlight=koni#3617201

If you're interested, I can go through all the things I did to improve the ride of my VW Wink

Cheers,

Paul
_________________
My dog's vet has all my car money (http://sagecenters.com/)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ted2
Samba Member


Joined: April 07, 2004
Posts: 132

Ted2 is offline

PostPosted: Fri Mar 23, 2018 4:19 pm    Post subject: Re: Koni Shocks Reply with quote

Thanks Paul,
I would be interested on how you improved the handling without killing the ride.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gimmesomeshelter
Samba Member


Joined: May 08, 2004
Posts: 1407
Location: San Carlos, CA
gimmesomeshelter is offline

PostPosted: Fri Mar 23, 2018 4:39 pm    Post subject: Re: Koni Shocks Reply with quote

The biggest/best change I made was installing pan siffeners from Eyeball Engineering. They stiffened my pan to the point that I had to replace all my shocks with softer ones!

Image may have been reduced in size. Click image to view fullscreen.


If you go to the trouble of purchasing/fabricating these, I would also install a truss bar (something I haven't done yet).

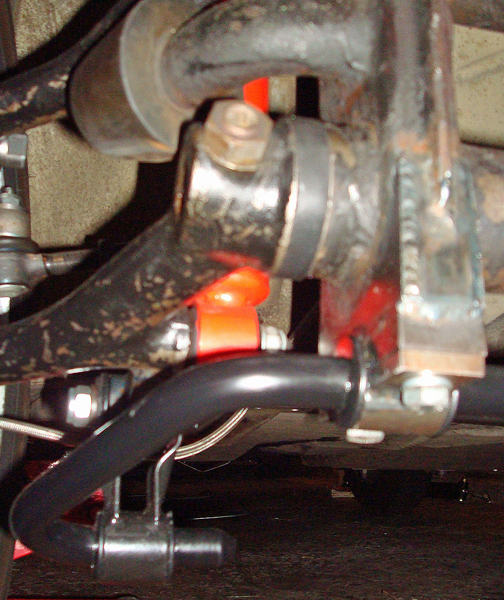

I had my machinist modify a later model link pin front end (with the mount for a steering dampener) so that 1) I could adjust the ride height and 2) I could use Porsche 356 sway bars.

Image may have been reduced in size. Click image to view fullscreen.


I tried four different sway bars. The standard VW bar was too soft and the adjustable Porsche bars were too stiff. The current one that I purchased from Willhoit is just right. If make my ride feel nice and flat but I don't get whiplash every time I drive into my driveway.

http://willhoit-auto-restoration.mybigcommerce.com/porsche-356-17-5mm-sport-sway-bar/

Regarding shocks, I've tried the following: stock (nice and soft), KYB ("too much coffee" harsh), Koni for a VW Bug (way, way too stiff), and modified Koni's configured like a 356. If I were do do it over again, I would first try stock VW shocks, then ones from Bilstein, and then maybe modifies Koni shocks.

BTW, here's some valving data comparing Koni shocks for a swing axled VW, and a Porsche 356.

356 Front: 80-1044SP20 = Reb - 1350, Compression - 200

356 Rear: 80-1191SP20 = Reb - 800, Compression - 200

VW LP front: 80-1349 = Reb - 900, Compression - 450

VW Swing Rear: 80-1350 = Reb - 1050, Compression - 650

At one point I replaced my rear torsion bars with stock size bars from SAW, but they were too stiff. I did a little research and ended up modifying the bars for a nicer ride.
https://www.thesamba.com/vw/forum/viewtopic.php?t=341313&start=0

The other thing I did was install a camber compensator for a 356. I've tried the standard ones meant for VW's, but they didn't seem to do a lot. I found one meant for 356's that can be adjusted for my ride height.

Image may have been reduced in size. Click image to view fullscreen.


It does stiffen my ride a bit, but it does a great job controlling those ^%$# swing axles.

Cheers,

Paul
_________________
My dog's vet has all my car money (http://sagecenters.com/)


Last edited by gimmesomeshelter on Mon Mar 26, 2018 9:11 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
esde
Samba Member


Joined: October 20, 2007
Posts: 4278
Location: central rust belt
esde is offline

PostPosted: Fri Mar 23, 2018 9:43 pm    Post subject: Re: Koni Shocks Reply with quote

gimmesomeshelter wrote:


Regarding shocks, I've tried the following: stock (nice and soft), KYB ("too much coffee" harsh), Koni for a VW Bug (way, way too stiff), and modified Koni's configured like a 356. If I were do do it over again, I would first try stock VW shocks, then ones from Bilstein, and then maybe modifies Koni shocks.

BTW, here's some valving data comparing Koni shocks for a swing axled VW, and a Porsche 356.

356 Front: 80-1044SP20 = Reb - 1350, Compression - 200

356 Rear: 80-1191SP20 = Reb - 800, Compression - 200

VW LP front: 80-1349 = Reb - 900, Compression - 450

VW Swing Rear: 80-1350 = Reb - 1050, Compression - 650


Were the Koni shocks you tried the adjustable ones? Because I've had great success with them, and on the softest setting they are not harsh at all.
I forget if it's 5 or 8 settings from softest to firmest, but they're almost "stock" soft on the lowest, and very stiff (but not bad like the KYB gas adjust) on the highest.
if you were using a fixed valve shock, the red adjustables might be worth a look.

And damned that front sway bar is low!

SD
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gimmesomeshelter
Samba Member


Joined: May 08, 2004
Posts: 1407
Location: San Carlos, CA
gimmesomeshelter is offline

PostPosted: Fri Mar 23, 2018 10:30 pm    Post subject: Re: Koni Shocks Reply with quote

Yes, they were adjustable.

My biggest complaint was with the ones in the rear.

Cheers,

Paul
_________________
My dog's vet has all my car money (http://sagecenters.com/)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ted2
Samba Member


Joined: April 07, 2004
Posts: 132

Ted2 is offline

PostPosted: Sat Mar 24, 2018 7:20 am    Post subject: Re: Koni Shocks Reply with quote

Thanks Paul,
I also understand the comment about the Vet. We have a Vizsla.
