 Posted: Sun Aug 04, 2019 1:16 pm Post subject: hand brake cable |
 |
|

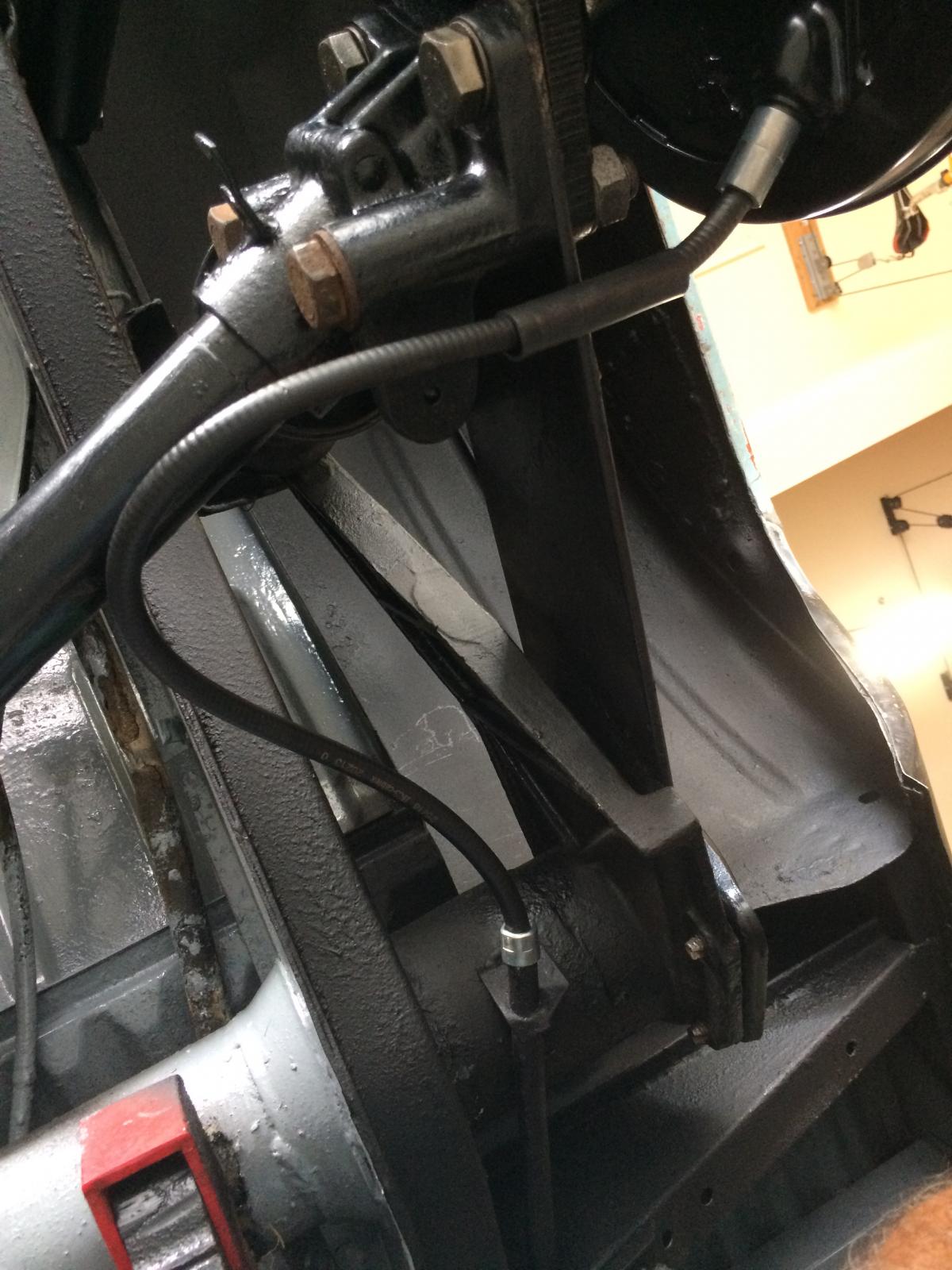

I am now done with the rear brakes.... However the hand brake cable does not seem right. The out sleeve that runs from the backing plate to the tube might be too long. It gives plenty of room for the wheel to move up and down I guess. But you guys tell me. Is this right? Gotta do some digging to find out where I bought them and double check the part numbers etc... but I don't remember seeing any others out there.
_________________
My Toys: '75 Porsche 914, '92 Ski Nautique and now a 1972 VW Transporter Deluxe (punch list fixing) |
|
| Back to top |
|
 |
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53103
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sun Aug 04, 2019 1:21 pm Post subject: Re: hand brake cable |
|
|
Yeah, that's a little too much, could be for a 68.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
kreemoweet
Samba Member
Joined: March 13, 2008
Posts: 4122
Location: Seattle, WA
|
| Posted: Sun Aug 04, 2019 2:19 pm Post subject: Re: hand brake cable |
|
|
My VW Bay bus parts book only shows hand brake cables starting from version "H". The "F" part you show
is probably for a split-window bus.
'72 bus probably used cable #211-609-701Q, 2960 mm long (measured from where to where I have no idea).
_________________
'67 bug: seized by the authorities
'68 bug: seized by the authorities
'71 kombi: not yet seized by the authorities
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53103
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sun Aug 04, 2019 3:36 pm Post subject: Re: hand brake cable |
|
|
| kreemoweet wrote: |
My VW Bay bus parts book only shows hand brake cables starting from version "H". The "F" part you show
is probably for a split-window bus.
'72 bus probably used cable #211-609-701Q, 2960 mm long (measured from where to where I have no idea). |
Compare the cable tube on a 68 (pic below) to Malcolm's pic, see where it ends on the next outrigger forward?, his tube goes all the way to the torsion tube. His cable may fit a splitty as well, never compared them.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
malcolm2
Samba Member
Joined: September 28, 2011
Posts: 1280
Location: Mount Juliet, TN
|
| Posted: Sun Aug 04, 2019 5:16 pm Post subject: Re: hand brake cable |
|
|
You may be right. It seems several sites say that part # 211609701F is for the later split window years. But I bought from FCPeuro.com and they say it will fit a 72. Well it fits, I am just worried that it will not work.
As it turns out FCPeuro says they will take them back.... even tho they are installed. And they have Part Number: 211609701T which is 2960 mm long and the wrong cable is 3460 mm long.
2 steps forward one step back.
Thanks.
Clark
_________________
My Toys: '75 Porsche 914, '92 Ski Nautique and now a 1972 VW Transporter Deluxe (punch list fixing) |
|
| Back to top |
|
|
malcolm2
Samba Member
Joined: September 28, 2011
Posts: 1280
Location: Mount Juliet, TN
|
| Posted: Mon Aug 05, 2019 4:51 pm Post subject: Re: hand brake cable |
|
|
picture of the 3460mm cables. does anyone have a picture of the connection to the lever. 500mm is 19-3/8 inches. What does the rigging look like from the lever to the cables.
_________________
My Toys: '75 Porsche 914, '92 Ski Nautique and now a 1972 VW Transporter Deluxe (punch list fixing) |
|
| Back to top |
|
|
kreemoweet
Samba Member
Joined: March 13, 2008
Posts: 4122
Location: Seattle, WA
|
|
| Back to top |
|
|
malcolm2
Samba Member
Joined: September 28, 2011
Posts: 1280
Location: Mount Juliet, TN
|
| Posted: Mon Aug 05, 2019 8:36 pm Post subject: Re: hand brake cable |
|
|
I think i have all the parts. Just gotta find ‘em. Guess I got some time. Need to send these back and get the right ones ordered. Thanks for the link.
_________________
My Toys: '75 Porsche 914, '92 Ski Nautique and now a 1972 VW Transporter Deluxe (punch list fixing)
Last edited by malcolm2 on Sat Aug 10, 2019 10:42 am; edited 1 time in total |
|
| Back to top |
|
|
malcolm2
Samba Member
Joined: September 28, 2011
Posts: 1280
Location: Mount Juliet, TN
|
| Posted: Sat Aug 10, 2019 10:40 am Post subject: Re: hand brake cable |
|
|
THis looks right to me.... the scalloped nuts look like they will rest in the depressions on the compensator, still allowing adjustment. 1/2 turn at a time.
Did I miss something? Not totally adjusted, but totally assembled at this point. Next will be the beam and the front suspension & brakes.
THis is the 19" shorter version of the cable.... fits nicely on this end and the back end too. The sleeve is only about 2" longer than the space it fits in, so I get just a bit of "S" from backing plate to the tube.
_________________
My Toys: '75 Porsche 914, '92 Ski Nautique and now a 1972 VW Transporter Deluxe (punch list fixing)
Last edited by malcolm2 on Sat Aug 10, 2019 10:45 am; edited 2 times in total |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53103
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sat Aug 10, 2019 10:45 am Post subject: Re: hand brake cable |
|
|
You are correct, the tension prevents them from unwinding and the rounded side allows for pulling from many angles.
