Type 1 intake manifold makeover
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Rome
Samba Member


Joined: June 02, 2004
Posts: 6127
Location: Pearl River, NY
Rome is offline

PostPosted: Sat May 11, 2019 1:52 pm    Post subject: Type 1 intake manifold makeover Reply with quote

A good VW friend gave me a mostly complete non-running dual-port engine several years ago. I tore it down and will use the engine case for a mild stroker build. The other parts are being redone as time and interest permits.

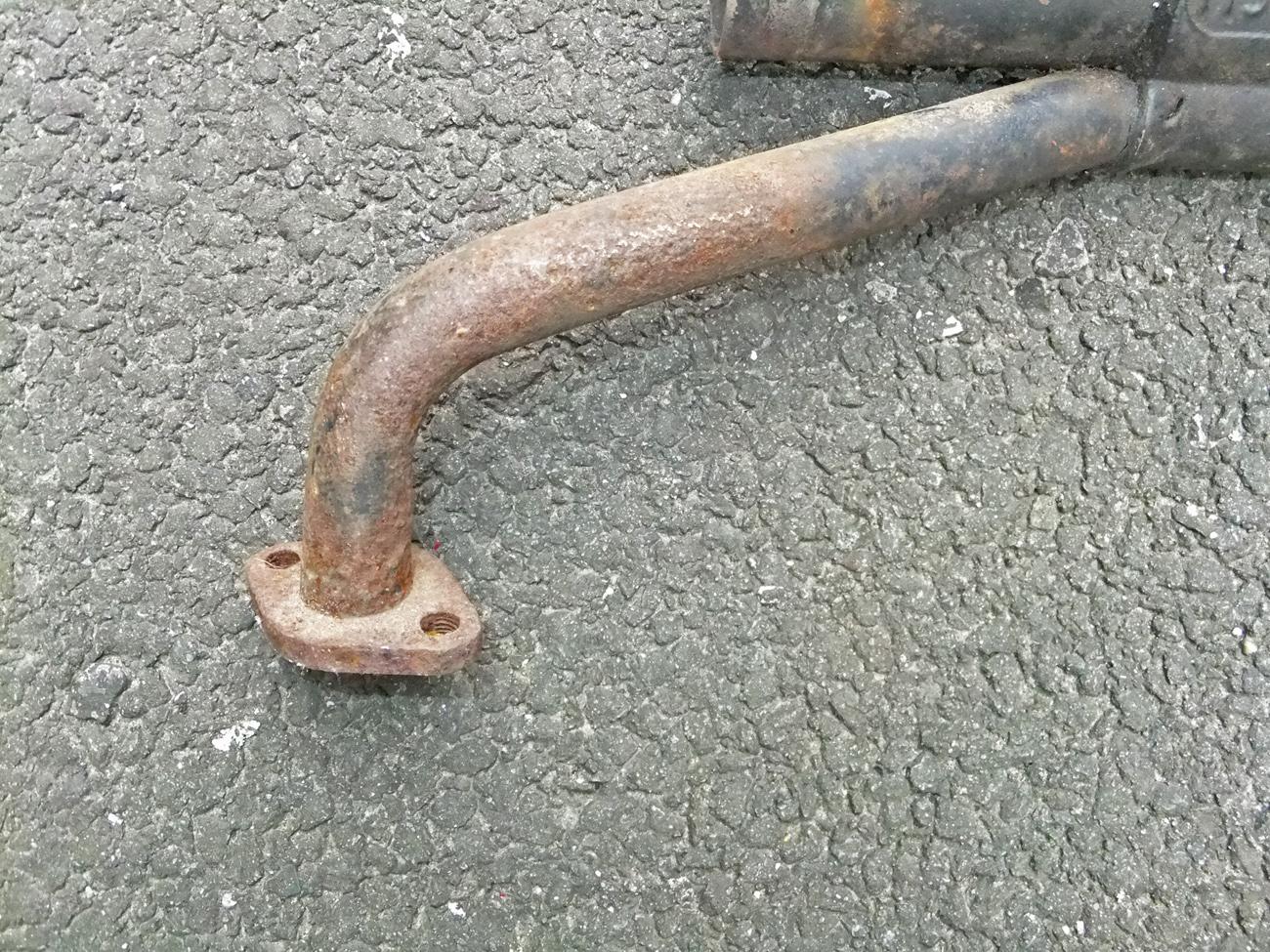

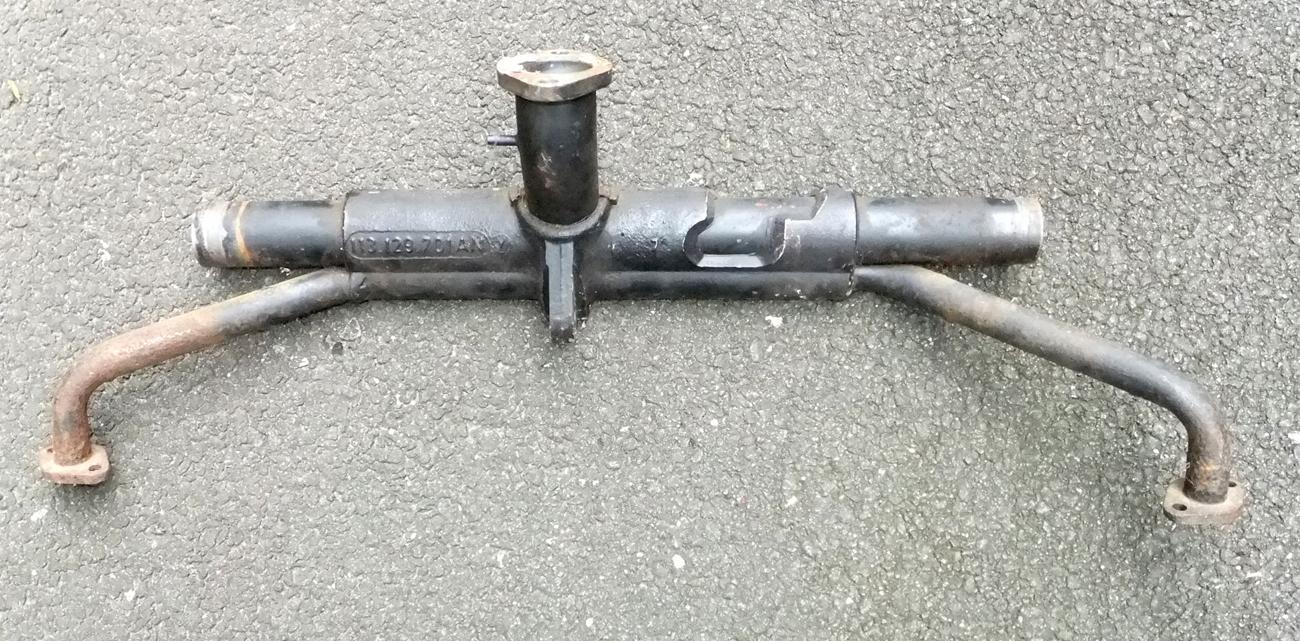

I started with the intake manifold. Degreased it, then cleared out the carbon-blocked preheat pipe with a section of handbrake cable in a variable-speed drill. After the degreasing, the rust on the preheat pipes are evident. Left pipe shown; right pipe was similar. I wanted to try to improve the appearance of the manifold and especially the preheat pipe with some basic home tools.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

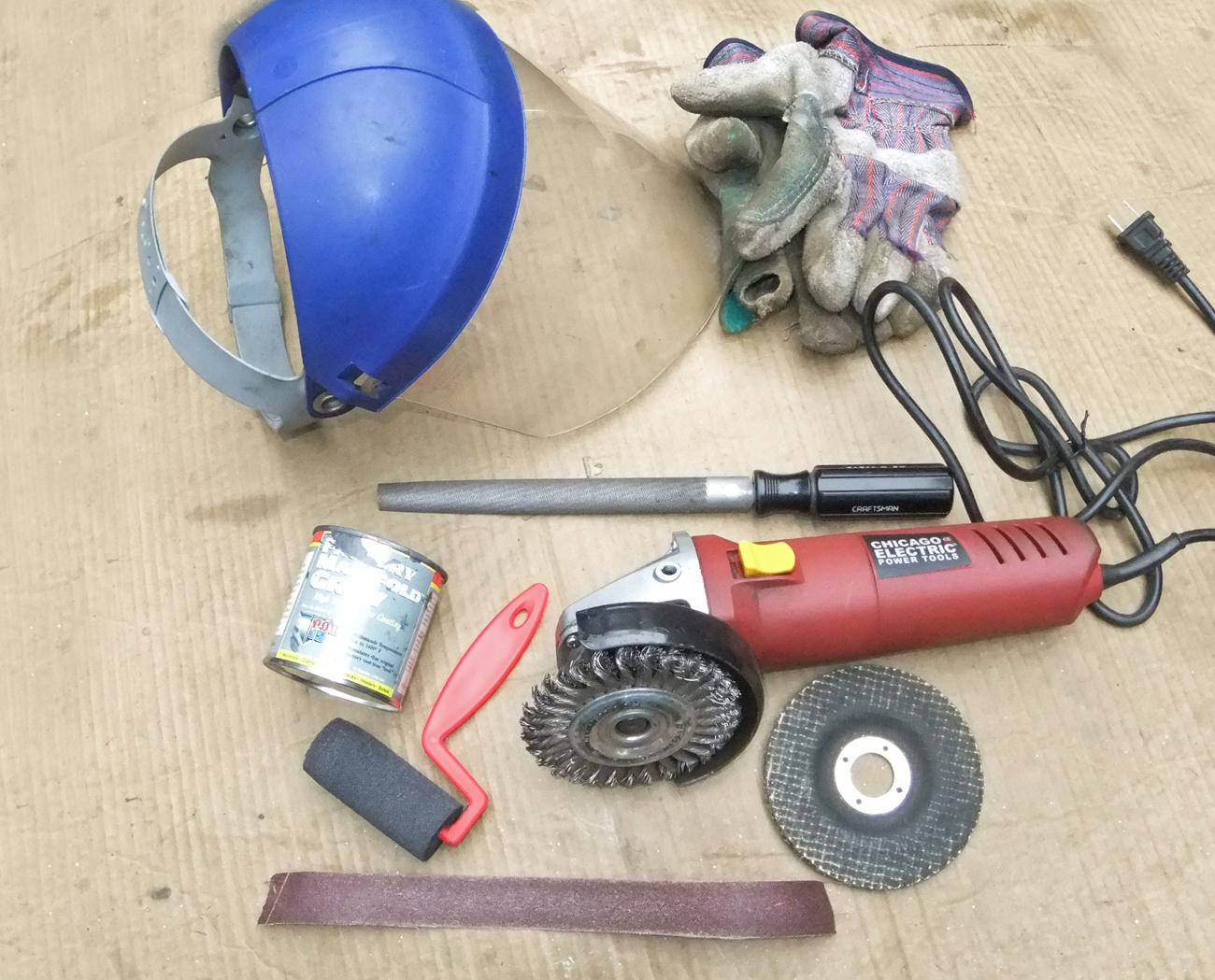

Here are all the tools I used. Resorted to the wire wheel on the angle grinder after the bead blaster cabinet at work was clogged and ineffective. I used the face shield, gloves; wore a long-sleeve sweatshirt and work jeans while cleaning the manifold, because the wire wheel can sometimes fling individual metal bristles off.
Image may have been reduced in size. Click image to view fullscreen.

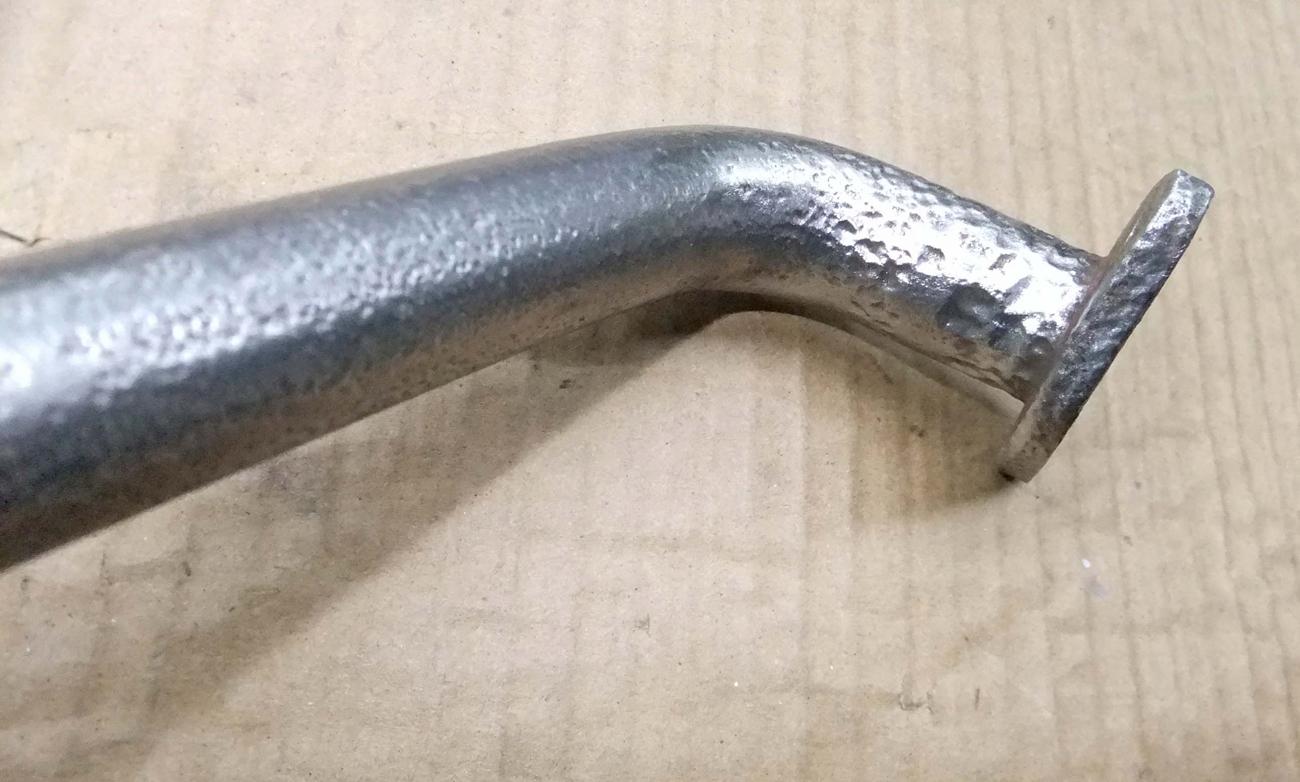

The wire wheel worked very well, revealing of alot of rust pitting on the preheat pipes.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

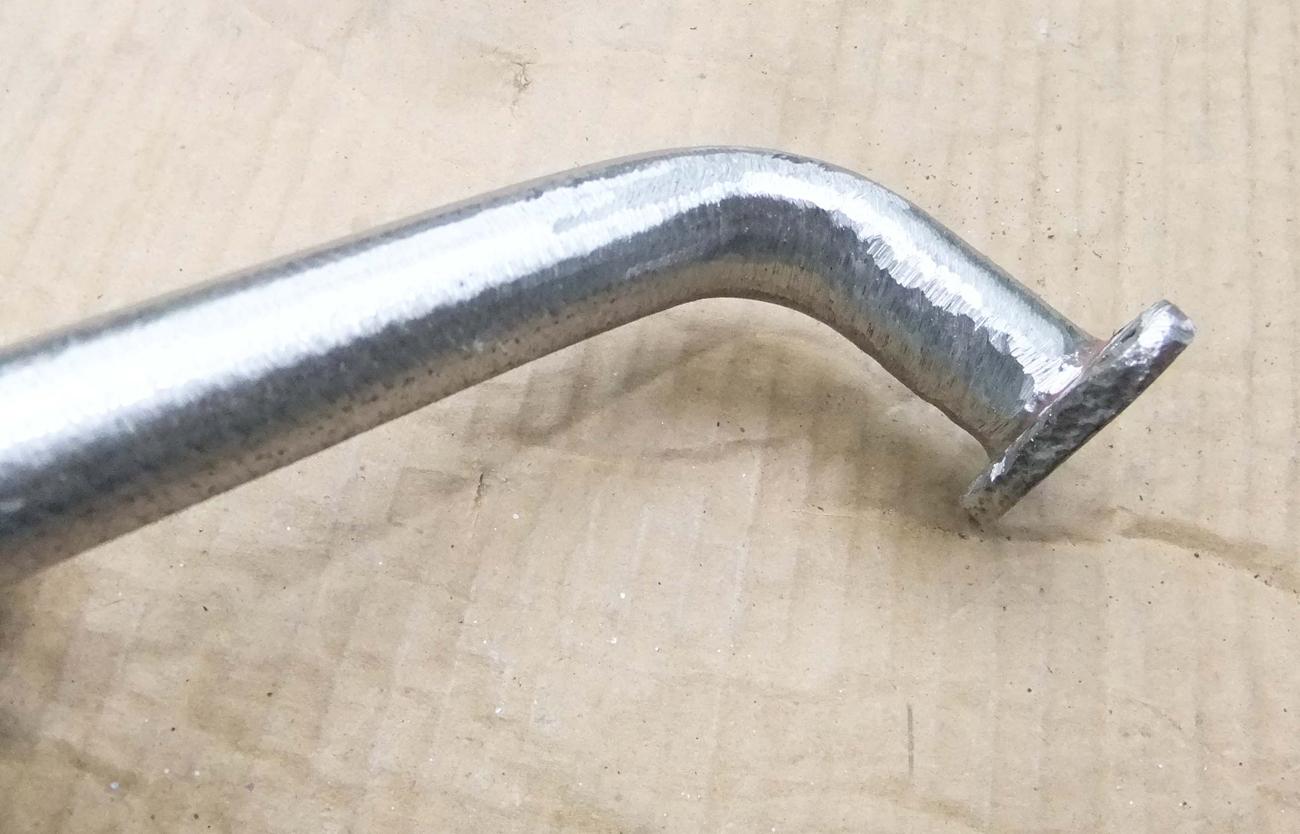

Using the grinding wheel on the angle grinder, I skimmed the preheat pipe surfaces to grind down the corrosion "craters" down level. I pulled the grinder towards me with the grinding disc at an upward angle to minimize the digging that the disc would do into the pipe surface. Efforts were on the top and rear-facing sides of the manifold which would be in direct view when installed on the engine. Back of the pipe (facing front of the car) and underside were also ground down but not as diligently. Toughest part was the tight underside corner of the pipe. Attachment flange was not important because it is hidden when the rear breast plate and the small pipe cover tins are in place.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

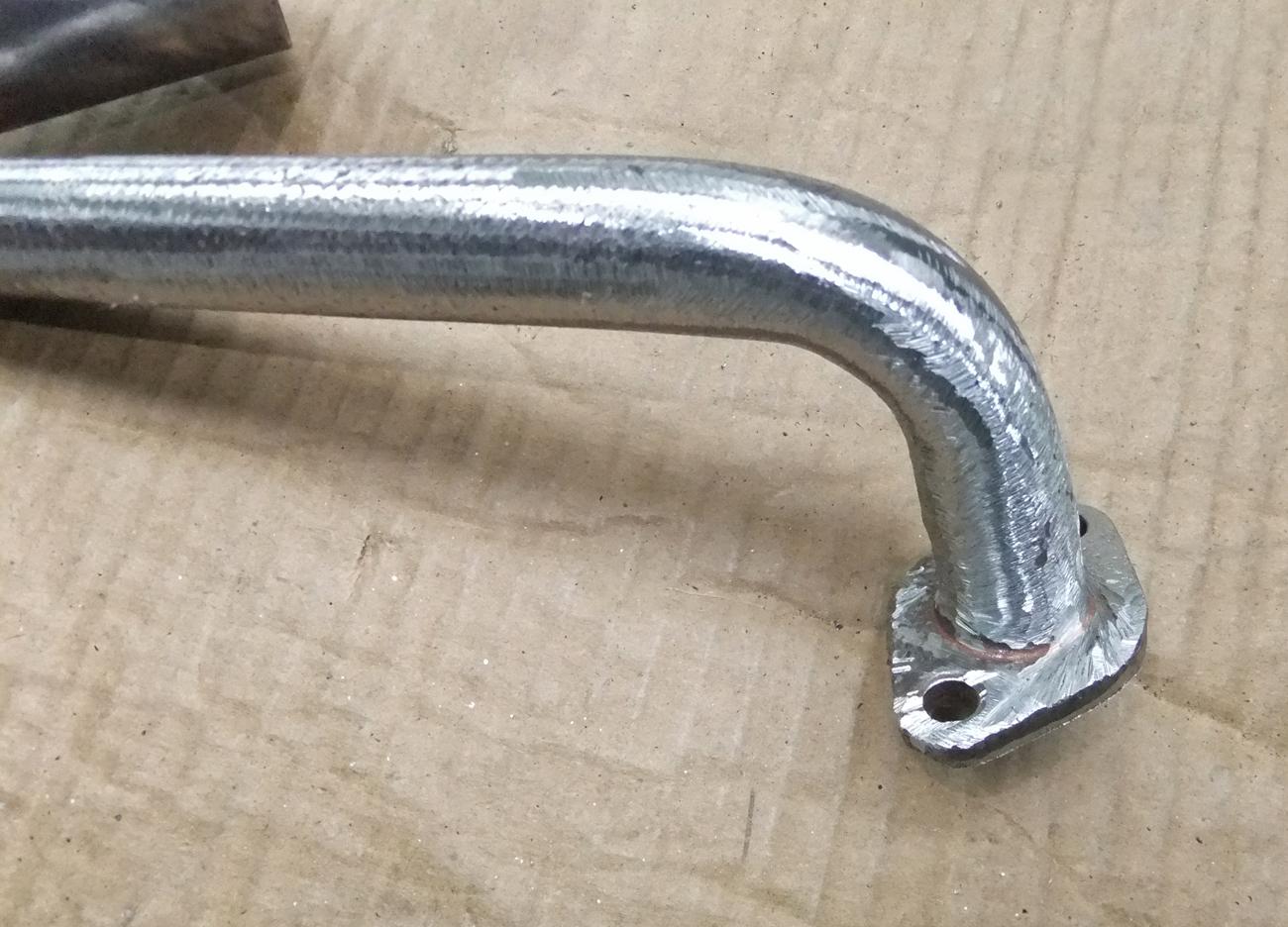

To smooth the grinding marks off I used the metal file. Worked it along the direction of the pipe to make the most use of the length of the file blade to achieve the best levelness. Used the half-round file surface on the underside tight curve of the pipes. Then used the 80 grit emery cloth strips to give final smoothing. Ran the cloth side to side over the pipe surface like shining shoes with a polishing cloth. Spent about 1/2 hour on each preheat pipe with this filing and sanding.

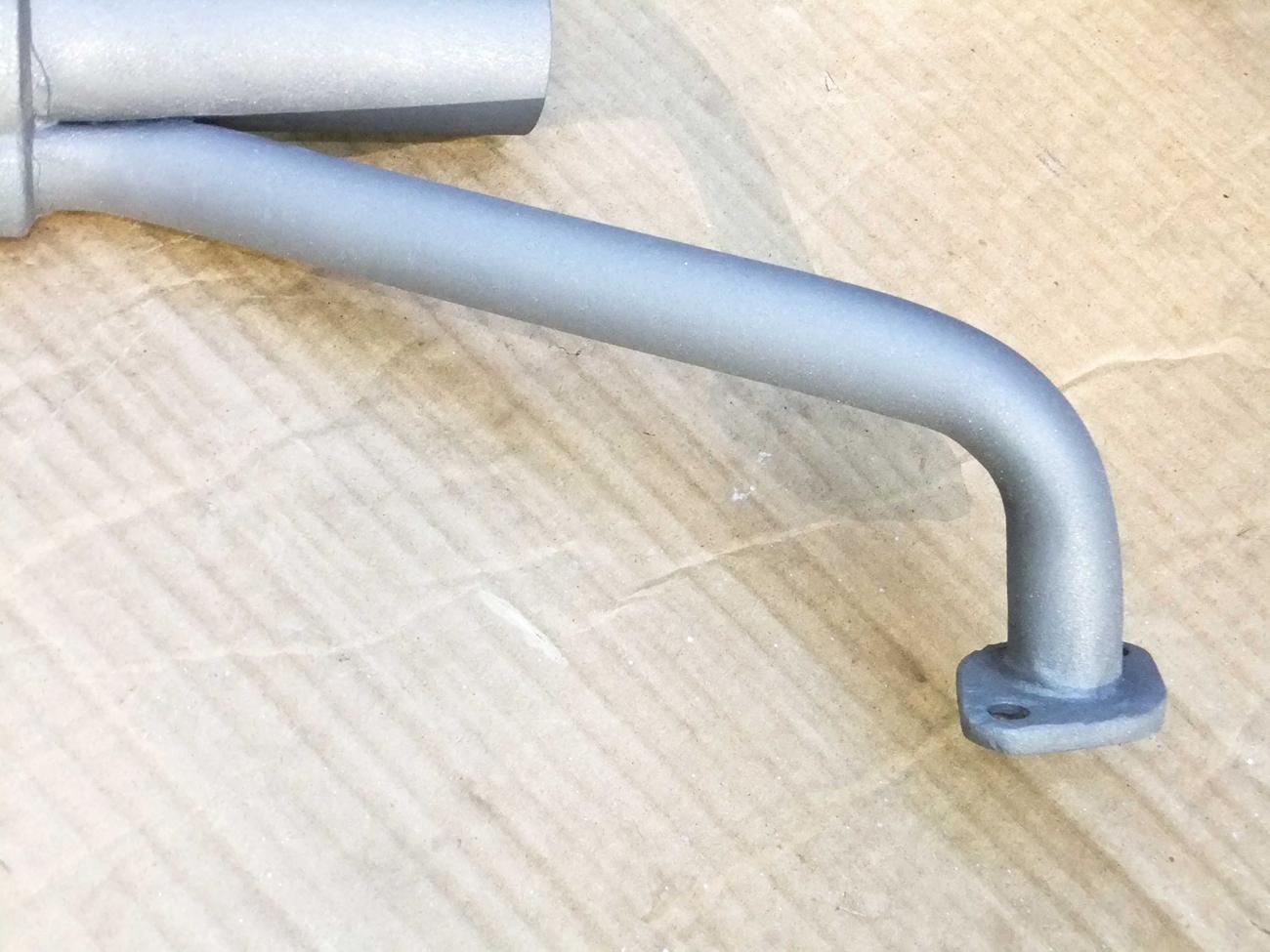

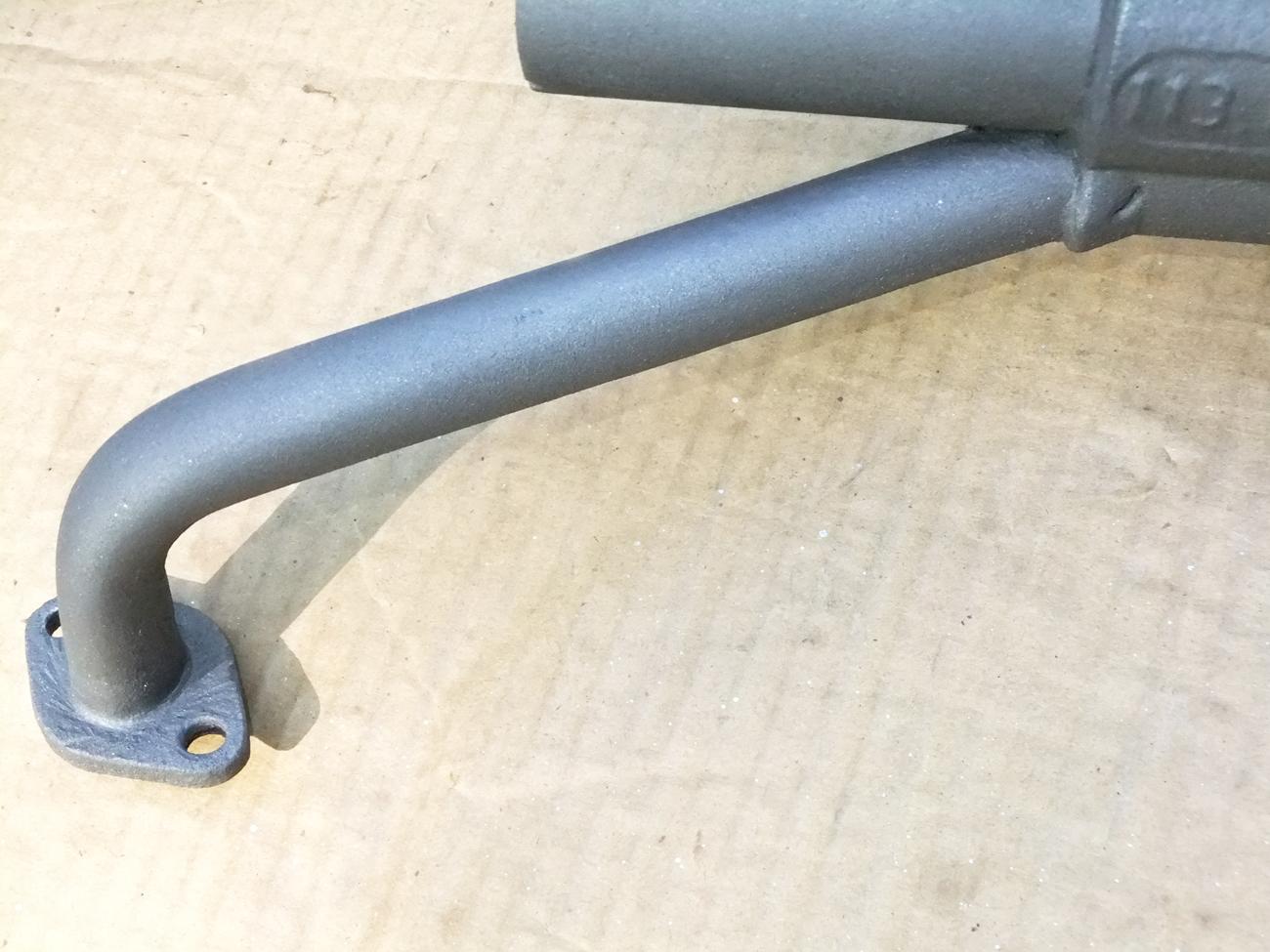

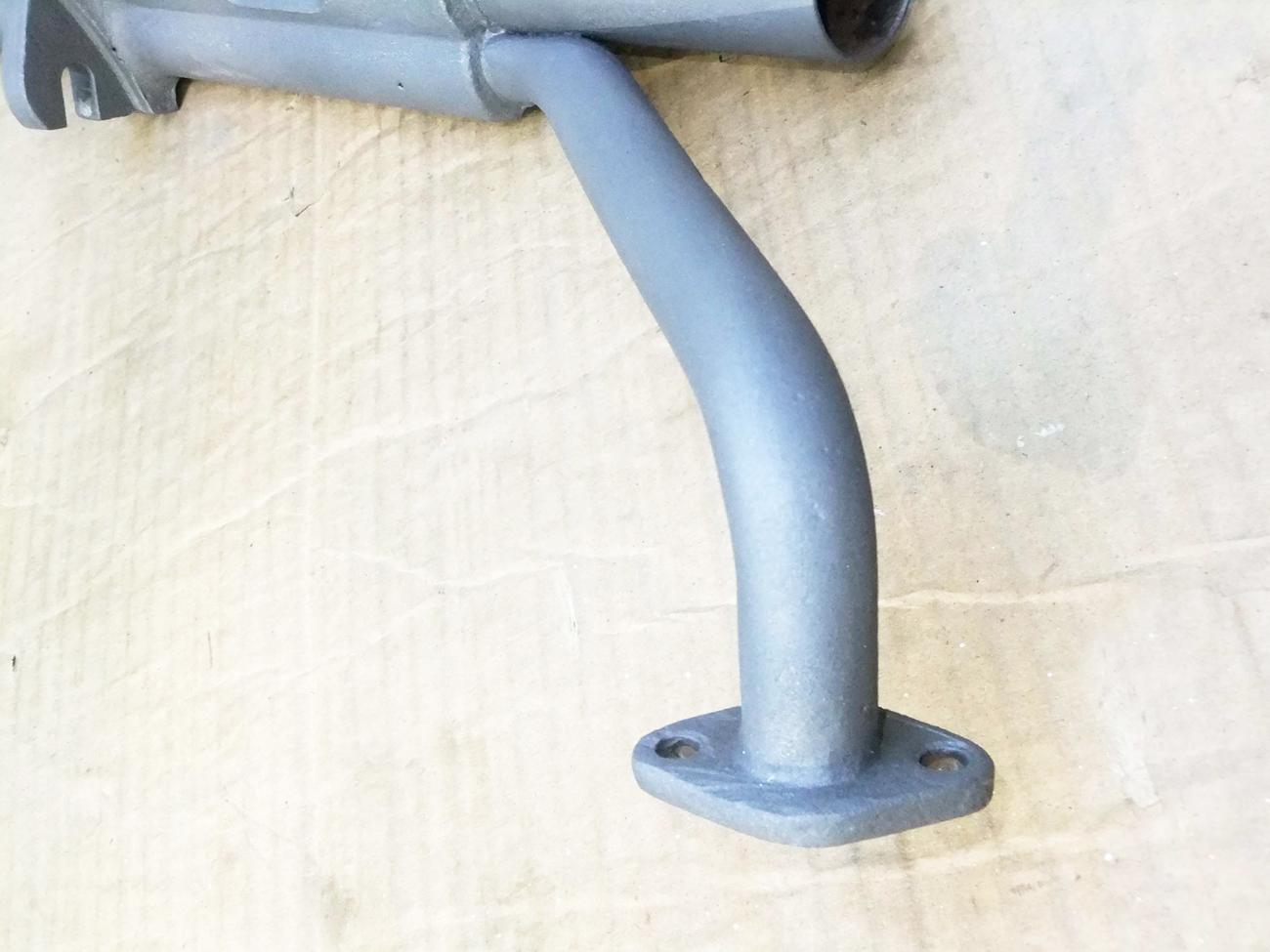

When I was satisfied with the evenness of the preheat pipe surfaces, I wiped the entire manifold with Prep-Sol cleaner, and applied 2 coats of POR-15 intake manifold high-heat grey paint using the dense foam roller. Waited until the first coat was dry overnight before applying the 2nd coat. The paint left a nice uniform surface finish. I got the idea for a foam roller instead of a simple foam pad or bristle brush from recent Samba responder carnut63 who was redoing his 36hp manifold. I'm very satisfied with the makeover results.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The back (frontward facing) side of the left preheat pipe shows the light pitting usually seen when other manifolds are sandblasted and ceramic coated. I did file the rust pits down somewhat, but did not bother to fully smooth the surface because it's out of sight when the manifold is in place.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bama Dave
Samba Member


Joined: April 19, 2015
Posts: 694
Location: Alabama
Bama Dave is offline

PostPosted: Sat May 11, 2019 5:54 pm    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Well done. It will look great installed.
_________________
David Richerson

1970 Beetle. Red.
1972 Beetle for Autocross
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Howard 111
Samba Member


Joined: July 09, 2005
Posts: 1767
Location: Virginia
Howard 111 is offline

PostPosted: Sat May 11, 2019 6:13 pm    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Nice job.
_________________
1973 Karmann Ghia
Turbocharged, Fuel Injected
http://www.thesamba.com/vw/forum/viewtopic.php?t=531270
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
67 Sunroof
Samba Member


Joined: February 22, 2014
Posts: 1280
Location: Salisbury, MD
67 Sunroof is offline

PostPosted: Sat May 11, 2019 7:42 pm    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Yeah looks good man. Quality work takes time and most people donít have the time.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
moogie32
Samba Member


Joined: April 06, 2005
Posts: 446
Location: Connecticut
moogie32 is offline

PostPosted: Sun May 12, 2019 4:55 am    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Beautifully done Rome!
_________________
RIP HBB (1984-2009)
Du liefst so gut
Du warst so schŲn
Doch leider musst du von uns gehn
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
anthracitedub
Samba Member


Joined: June 20, 2007
Posts: 2873
Location: Michigan
anthracitedub is offline

PostPosted: Sun May 12, 2019 5:59 am    Post subject: Re: Type 1 intake manifold makeover Reply with quote

The only down side to doing this kinda work on those heat pipes is now they are paper thin in many places... the internal corrosion plus external and all the clean up equals paper mache tubing. Been there, done that.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zundfolge1432 Premium Member
Samba Member


Joined: June 13, 2004
Posts: 9147
Location: other side of the tracks
Zundfolge1432 is offline

PostPosted: Sun May 12, 2019 6:21 am    Post subject: Re: Type 1 intake manifold makeover Reply with quote

In the big scheme of things it would probably last many more years before any thin area would present a problem, it sure looks nice good on you. Very Happy
_________________
People that criticize other people are unhappy about something in their lives and they take the most pathetic measures to make themselves feel better.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
anthracitedub
Samba Member


Joined: June 20, 2007
Posts: 2873
Location: Michigan
anthracitedub is offline

PostPosted: Sun May 12, 2019 7:22 am    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Oh , donít get me wrong... itís nice work and looks great... but in my experience (30+ years), theyíre already thin with corrosion from the inside, after you clean all the scale out and then grind the corrosion flat on the OD... theyíre very thin. Got a cleaned up one on my car right now thatís perforating.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
APPLEGREENVW
Samba Member


Joined: November 30, 2003
Posts: 1625
Location: Seekonk,Massachusetts USA
APPLEGREENVW is offline

PostPosted: Sun May 12, 2019 8:47 am    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Would getting the manifold powder coated help the pre-pipes last longer?
_________________
Parts for sale https://www.thesamba.com/vw/classifieds/search.php?username=APPLEGREENVW

76 Beetle sedan
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
anthracitedub
Samba Member


Joined: June 20, 2007
Posts: 2873
Location: Michigan
anthracitedub is offline

PostPosted: Sun May 12, 2019 9:58 am    Post subject: Re: Type 1 intake manifold makeover Reply with quote

I think a lot of the corrosion takes place on the inside. Iíve played with the idea of making new tubing for some of mine doesnít seem too hard. I typically deal with older intakes (40hp) so theyíre 10-15 years older and more abused than the OPís intake....I do apologize if Iíve taken away any steam from the original post. The intake does look really nice and Iím sure heíll get plenty of use out of it. Twice Iíve done the same work heís done and later noticed rust coming through the paint and then the intake starts failing in heat riser tubes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bama Dave
Samba Member


Joined: April 19, 2015
Posts: 694
Location: Alabama
Bama Dave is offline

PostPosted: Sun May 12, 2019 10:06 am    Post subject: Re: Type 1 intake manifold makeover Reply with quote

APPLEGREENVW wrote:
Would getting the manifold powder coated help the pre-pipes last longer?


No.
_________________
David Richerson

1970 Beetle. Red.
1972 Beetle for Autocross
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 6127
Location: Pearl River, NY
Rome is offline

PostPosted: Thu Aug 22, 2019 5:50 pm    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Finished the conversion from Kadrons to the stock single carb in my '77 Std. Beetle tonite, and started up the engine. This is the intake manifold per my thread here. I still need some minor tuning which I'll do in the coming days.
Image may have been reduced in size. Click image to view fullscreen.

I also redid the stock air cleaner I had since '92 that was from a '71 parts Beetle. Semi-gloss black Rust-O-Leum spray can, and clear-coated clips. Carb is a German Solex 34-PICT 3. Distributor is a DVDA with the retard circuit blocked, and paint detailed. Engine perimeter seal is the foam H profile from 70's Type 2 that is pressed into the gap. Crank degree pulley is the single-degree marked unit on which I painted the center using my paper dish mask technique. https://www.thesamba.com/vw/forum/album_search.php...t_dir=DESC
Back to top
View user's profile Send private message Gallery Classifieds Feedback
fl59bug
Samba Member


Joined: November 23, 2005
Posts: 837

fl59bug is offline

PostPosted: Thu Aug 22, 2019 6:50 pm    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Nice work, that's a good looking engine!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
APPLEGREENVW
Samba Member


Joined: November 30, 2003
Posts: 1625
Location: Seekonk,Massachusetts USA
APPLEGREENVW is offline

PostPosted: Thu Aug 22, 2019 7:59 pm    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Rome
Why did you go back to a stock carburetor? Is this just a spare engine?
_________________
Parts for sale https://www.thesamba.com/vw/classifieds/search.php?username=APPLEGREENVW

76 Beetle sedan
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 67466
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Thu Aug 22, 2019 8:02 pm    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Rome wrote:
Finished the conversion from Kadrons to the stock single carb in my '77 Std. Beetle tonite,

Stock 77 had Fuel injection.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 6127
Location: Pearl River, NY
Rome is offline

PostPosted: Fri Aug 23, 2019 3:44 am    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Glenn, when I bought the '77 in '92 (seen for sale at the Litchfield VW meet at Litchfield Inn, CT in '92) the PO had done much work to the car, and to the engine. It had a 2110 with dual Dell'Orto 45 DRLAs, Engle 125 cam, and large-valve heads. Over the years I tamed down this engine or replaced it due to various reasons. Last version was a stock 1600 dual-port with Kadrons, stock-valve semi-hemi'd fuel injected heads, and 1.4:1 rockers.

This stock single-carb configuration is only a temporary experiment. The long block remains as above.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
APPLEGREENVW
Samba Member


Joined: November 30, 2003
Posts: 1625
Location: Seekonk,Massachusetts USA
APPLEGREENVW is offline

PostPosted: Fri Aug 23, 2019 8:08 am    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Which exhaust system are you using ?
_________________
Parts for sale https://www.thesamba.com/vw/classifieds/search.php?username=APPLEGREENVW

76 Beetle sedan
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 6127
Location: Pearl River, NY
Rome is offline

PostPosted: Fri Aug 23, 2019 2:14 pm    Post subject: Re: Type 1 intake manifold makeover Reply with quote

Apple, I chose a EMPI single-tip GT, #3487, at bottom left here: http://vwcatalog.empius.com/vwcatalog/2018/209.html

First saw this muffler on a NJ friend's split window Beetle a few yrs ago, which had a 1600 engine. On that car the muffler single tip looked almost "proper". The original FI engine in a '77 also had a single tip exhaust that exited the body in the same general area, though with a bulged apron bottom.

I stripped off the black "shipping" paint using paint stripper, plastic scraper, and brass bristle brush. Once clean, wiped it with Prep-Sol and painted it with VHT cast iron grey. Took a full can to apply the 3 light coats. I wanted an exhaust that exited below my apron's bottom edge, because a PO had filled in the cutouts ('73 style apron retroftted). I had a 1 3/8" header with single quiet muffler which worked well and sound great, but again, I wanted something with slightly more stock-ish appearance. Left upper pipe comes back too straight. When I installed a German rear breast plate, there was not enough space to slip the fresh air hose past it and route it into the left heater box. Grrr. So I cut out an approx. 3/4" deep "crescent" from the left hole in the plate to move the entire hole rearward, riveted in a matching patch, and painted it all semi-gloss black. The hose still contacts the left upper muffler pipe, but needs only a slight bit of flattening the round profile.

This muffler was already pre-drilled for carb preheat, and I used a small-hole and large-hole gasket at the joints to induce a pressure difference and heat flow thru the intake manifold pipe.

I tried using a Tri-Mil hotdog dual-tip muffler which I had on my Ghia for a few years. The tops of the outlet pipes contacted the underside of the apron, so that was a no-go. The hotdog's upper left pipe bends outward more than on the EMPI so that the fresh air hose went on without needing to modify the breast plate. Too bad the EMPI's upper pipes don't curve out more; there's plenty of lateral room for that in the engine bay.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
APPLEGREENVW
Samba Member


Joined: November 30, 2003
Posts: 1625
Location: Seekonk,Massachusetts USA
APPLEGREENVW is offline

PostPosted: Fri Aug 23, 2019 2:33 pm    Post subject: Re: Type 1 intake manifold makeover Reply with quote

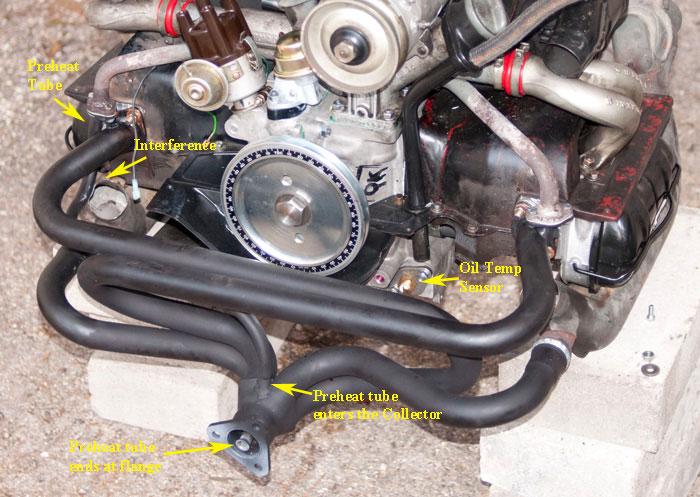

So using the large and small hole pre-heat gaskets on that muffler, helps keep enough heat moving in the pre-heat tube? From what I have read aftermarket headers/mufflers need to be modify to get the proper heat.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

https://www2.cip1.com/ProductDetails.asp?ProductCode=C13%2D3487
