| Author |
Message |
VW Addict
Samba Salesman
Joined: January 09, 2003
Posts: 3934
|
 Posted: Sat Oct 12, 2019 2:34 pm Post subject: Help w/ Engine Identification |
 |
|

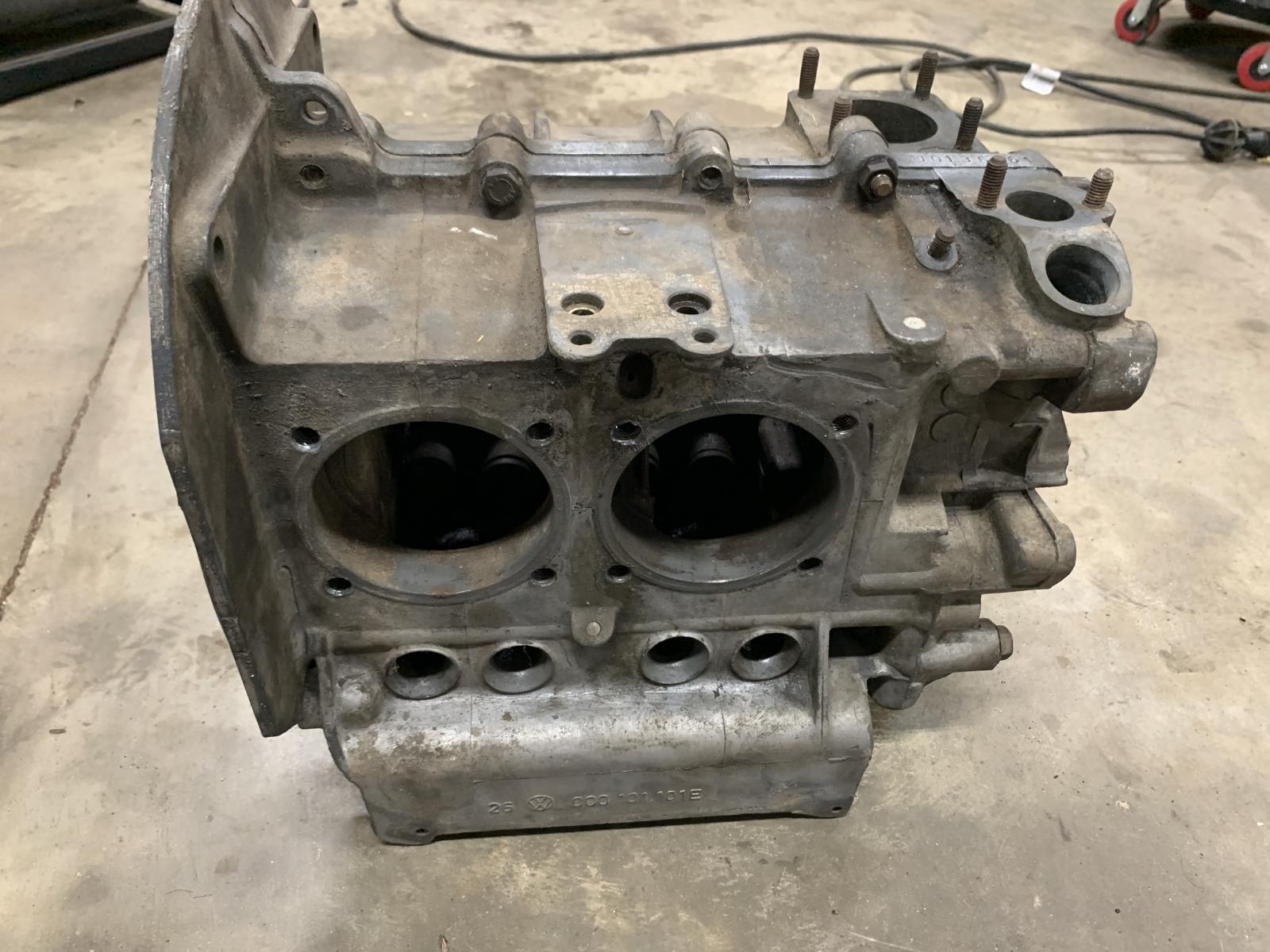

I bought this engine case in a parts lot.

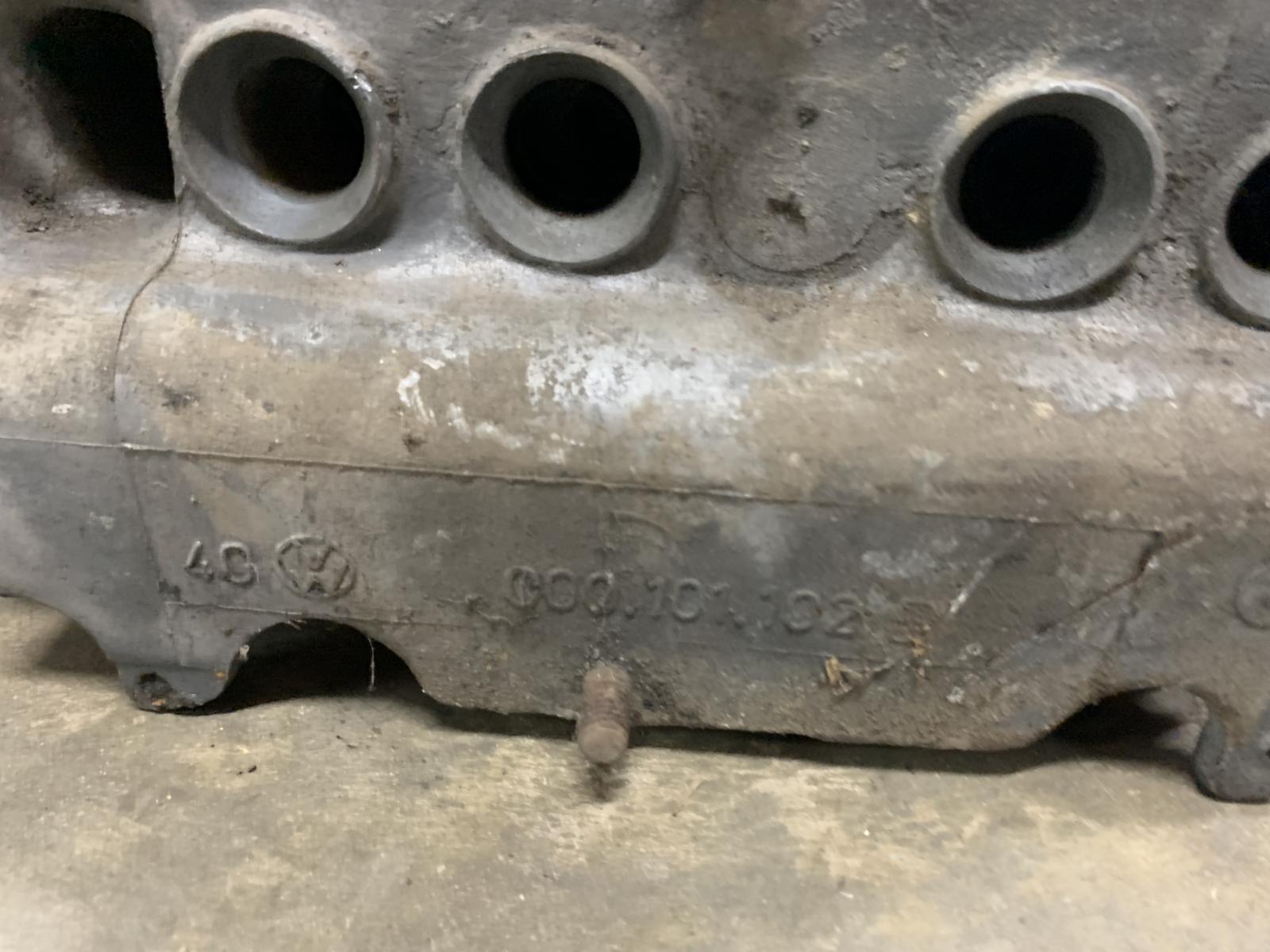

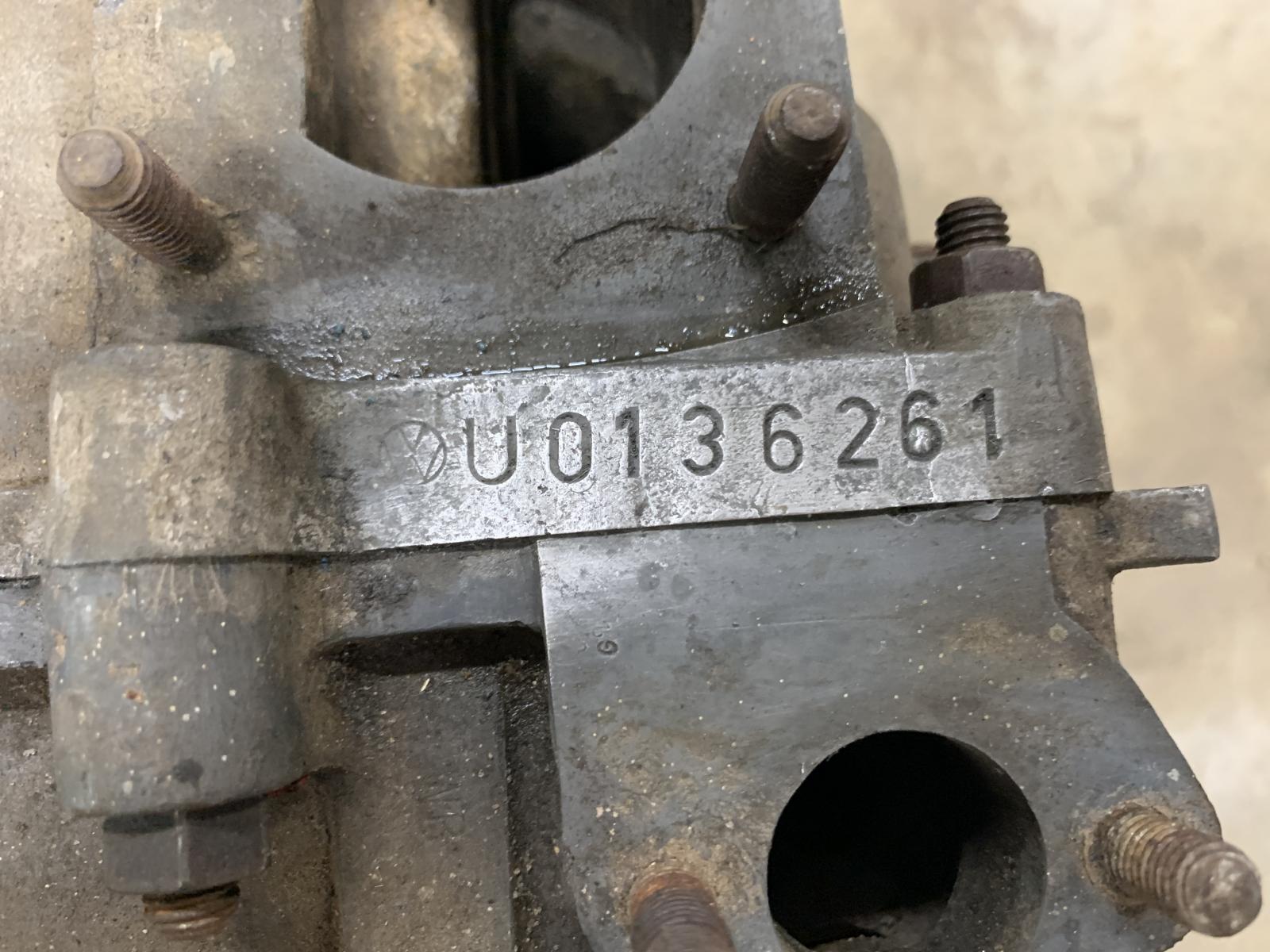

There is no Engine Serial number like where they are typically stamped, but instead on the middle of the case itself. Engine number: U0136261.
When I look this up in the technical VIN/Chassis numbers, it says it's coming back to a '69 Type 3 (Built in Nov 1968)
However, I thought 68-up had pancake style engines, not the uprights?
Any help appreciated. I am interested in learning a lesson! Thanks!!
|
|
| Back to top |
|
 |
Tram
Samba Socialist
Joined: May 02, 2003
Posts: 23022
Location: Northwest of Normal
|
| Posted: Sat Oct 12, 2019 2:44 pm Post subject: Re: Help w/ Engine Identification |
|
|
Right- it's a 1969 fuel injected Type 3 case. Type 3 was based on a Type 1, but had the oil fill hole at the bottom right rear of the case, no dipstick tube, and should have the 3 bosses drilled out and tapped at the rear of the case for the engine carrier bar.
What's the story on this case?
_________________
Немає виправдання для війни! Я з Україною.
| Bryan67 wrote: |
| Just my hands. And a little lube. No tools. |
Those who can- do.
Those who can't? Subaru. |
|
| Back to top |
|
|
VW Addict
Samba Salesman
Joined: January 09, 2003
Posts: 3934
|
| Posted: Sun Oct 13, 2019 6:48 am Post subject: Re: Help w/ Engine Identification |
|
|
| Tram wrote: |
Right- it's a 1969 fuel injected Type 3 case. Type 3 was based on a Type 1, but had the oil fill hole at the bottom right rear of the case, no dipstick tube, and should have the 3 bosses drilled out and tapped at the rear of the case for the engine carrier bar.
What's the story on this case? |
Excellent info. Thank you!
Not sure of the story. It's the only Type 3 item I got in the lot. I will be putting it for sale, eventually. Thanks! |
|
