Steering Coupling Disc 211415417 (coupler)
Page: Previous  1, 2, 3 ... 15, 16, 17, 18, 19, 20  Next
Jump to:
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 35391
Location: Retired so can be anywhere now - NorCal
SGKent is offline

PostPosted: Wed Apr 10, 2019 4:36 pm    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

from below. You have to remove all four bolts and the one that holds it to the steering gear. Then replace the puck and put everything back. The steering may be off by a tiny bit if you rotate the steering at all while that one bolt that holds the clamp to the steering gear.
_________________
American Standard Snorkeling Terrier

Preserve YOUR Freedom of Speech ~ as best you can, avoid Amazon, Facebook, Twitter, and Google. Support businesses near you, and buy local whenever you can.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ivwshane
Samba Member


Joined: May 19, 2011
Posts: 1869
Location: Sacramento ca
ivwshane is offline

PostPosted: Wed Apr 10, 2019 5:32 pm    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

Do I remove the one bolt first? How do I keep the column from moving while trying to remove the nuts?
_________________
77 westy 2.0 FI
69 ghia coup 1600dp
70 single cab
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 45398
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is online now

PostPosted: Wed Apr 10, 2019 6:14 pm    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

ivwshane wrote:
I was then going to try from above but the metal collar/cover isn't large enough to move up the steering column.

That's odd, you should be able to lift the cover with the column in place on a late bus. Try harder, once it's up you remove the 4 nuts and their bolts and slide the coupler out sideways, no need to remove the yoke from the shaft.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
airschooled Premium Member
Air-Schooled


Joined: April 04, 2012
Posts: 11368
Location: San Diego
airschooled is offline

PostPosted: Wed Apr 10, 2019 7:32 pm    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

ivwshane wrote:
Do I remove the one bolt first? How do I keep the column from moving while trying to remove the nuts?

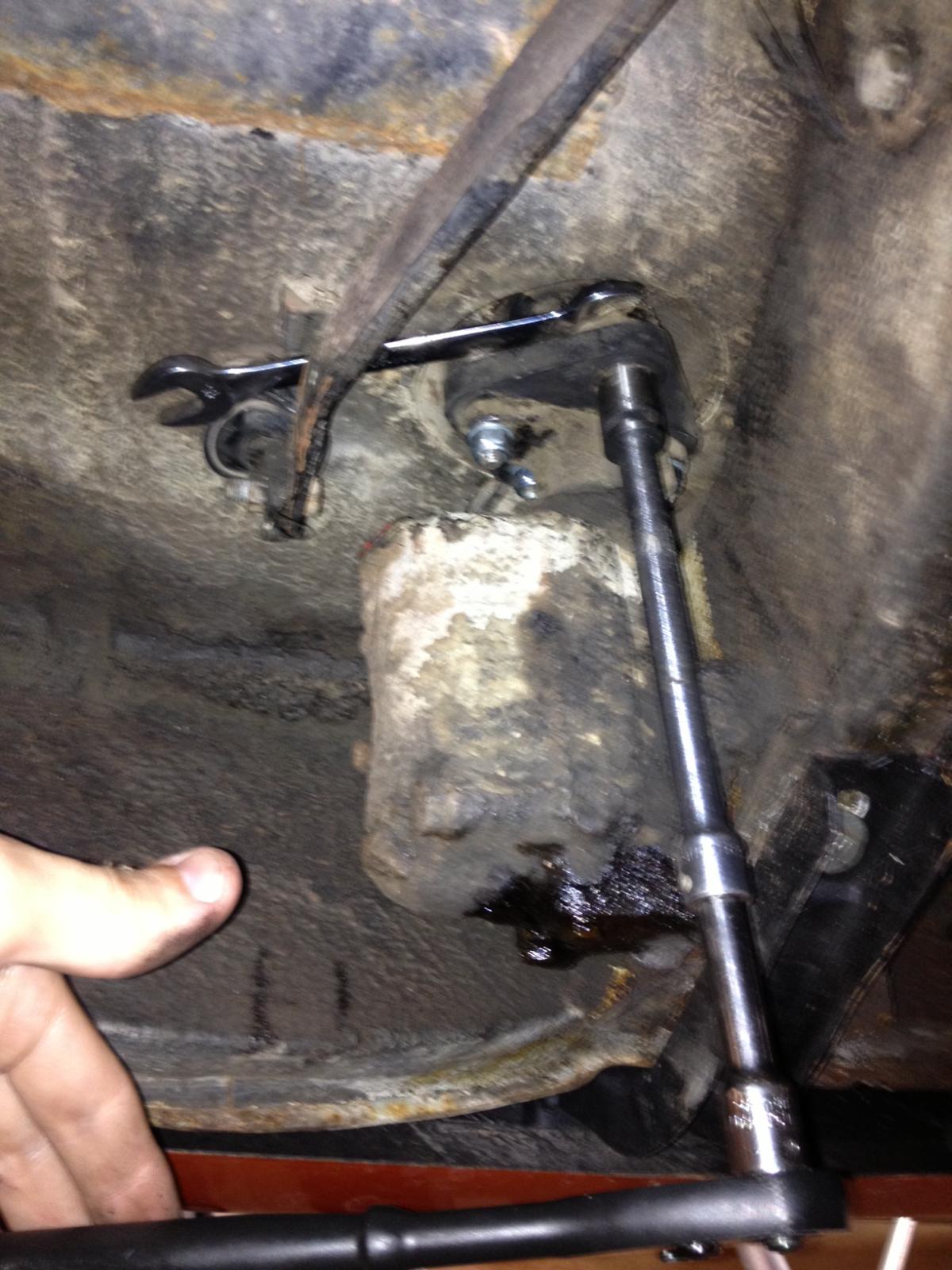

Let your backwrench contact the clutch pedal and prevent the shaft from turning.

Image may have been reduced in size. Click image to view fullscreen.



Never work against the steering lock. I haven't buggered one myself, but Bentley is pretty cautious about it.

Robbie
_________________
Learn to fix your vintage Volkswagen.
www.airschooled.com
Knowledge. Confidence. Reliability.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
alman72
Samba Member


Joined: October 09, 2014
Posts: 2273
Location: MICHIGAN
alman72 is offline

PostPosted: Tue Jun 18, 2019 3:48 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

http://www.kieftenklok.nl/shop/index.php/en/homepa...-79-detail
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Abscate Premium Member
Samba Member


Joined: October 05, 2014
Posts: 15605
Location: NYC/Upstate/ROW
Abscate is offline

PostPosted: Thu Jun 20, 2019 4:29 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

I observed while Emma and Sven did this job on Big Emma last night.

Late Bay

The steering column has about 3-5 cm if axial play in it. None of the bolts or washers were original. The premium Quality coupler was somewhat munched and one of the bushings had separated from the rubber

I think Big Emma is missing the bushing and ring which keeps the shaft axial
Play minimal. Without that bushing, each steering event flexes the coupling up and it fatigue fails.

Bentley shows that the nuts go on the rubber side, so bolts down from the top and up from the bottom. We used washers and Nylocks M8

Asiab informed me he has seen unmolested busses with all four bolts facing down.
_________________
.ssS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GoBigEmma
Samba Member


Joined: January 25, 2016
Posts: 209
Location: Currently scattered between Mexico and Illinois
GoBigEmma is offline

PostPosted: Sun Jun 23, 2019 7:58 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

Abscate wrote:
I observed while Emma and Sven did this job on Big Emma last night.

Late Bay

The steering column has about 3-5 cm if axial play in it. None of the bolts or washers were original. The premium Quality coupler was somewhat munched and one of the bushings had separated from the rubber

I think Big Emma is missing the bushing and ring which keeps the shaft axial
Play minimal. Without that bushing, each steering event flexes the coupling up and it fatigue fails.

Bentley shows that the nuts go on the rubber side, so bolts down from the top and up from the bottom. We used washers and Nylocks M8

Asiab informed me he has seen unmolested busses with all four bolts facing down.



Yes - before removing the old coupler, we did a bit of observation as Sven turned the wheels back and forth. Glad I'm not driving with that piece of rubber anymore.

For now, we replaced it with another low-quality spare we had lying around while we wait to get some good ones from Richard. We will switch it out again when that arrives.

Anyone happen to have a part number for the bushing and ring?

Also, the first time I did this, I definitely did not know you could go in from the top to reach those bolts, and did all of them from under the car. Glad to know this job is way easier than the first time around Razz
_________________
1975 Bus "Big Emma", 1.8 FI, Hydraulic lifters
Interrupting our Pan-American Roadtrip for post-flood repairs: http://www.thesamba.com/vw/forum/viewtopic.php?t=657738
Follow the trip on our blog: http://www.gobigemma.com
Back to top
View user's profile Send private message Facebook Instagram Gallery Classifieds Feedback
kreemoweet
Samba Member


Joined: March 13, 2008
Posts: 3070
Location: Seattle, WA
kreemoweet is online now

PostPosted: Sun Jun 23, 2019 1:08 pm    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

GoBigEmma wrote:
Anyone happen to have a part number for the bushing and ring?


I suppose by that you mean the bearing and thrust ring (as VW calls them)? Those are the only things
restraining the column movement radially. The bearing is VW #211-415-585B (mid '74 - up), don't know about
the thrust ring, or even if one is needed, for '68-mid '74 it was 113-415-589A.

As far as I can see, there's really nothing other than the stiffness of the rubber coupler and the spring under the steering wheel
preventing up-and-down (axial) movement of the steering column, aside from interference of attached parts.
_________________
'67 bug: seized by the authorities
'68 bug: seized by the authorities
'71 kombi: not yet seized by the authorities

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bvolks
Samba Member


Joined: April 26, 2004
Posts: 799
Location: New Brunswick, Canada
bvolks is offline

PostPosted: Wed Sep 11, 2019 7:13 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

Has anybody tried this one, made by Dansk?

https://store.concept1.ca/Steering-Coupler-Bus-68-79-211415417-JP
_________________
1985 Diesel Jetta Coupe (temporarily retired at
756,000 km)
1971 Doublecab project
1995 Golf CL
1974 Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
alman72
Samba Member


Joined: October 09, 2014
Posts: 2273
Location: MICHIGAN
alman72 is offline

PostPosted: Wed Sep 11, 2019 8:54 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

bvolks wrote:
Has anybody tried this one, made by Dansk?

https://store.concept1.ca/Steering-Coupler-Bus-68-79-211415417-JP


bad link
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bvolks
Samba Member


Joined: April 26, 2004
Posts: 799
Location: New Brunswick, Canada
bvolks is offline

PostPosted: Wed Sep 11, 2019 8:59 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

alman72 wrote:
bvolks wrote:
Has anybody tried this one, made by Dansk?

https://store.concept1.ca/Steering-Coupler-Bus-68-79-211415417-JP


bad link


Sorry about that. Try this.
https://store.concept1.ca/Steering-Coupler-Bus-68-79-211415417-JP/
_________________
1985 Diesel Jetta Coupe (temporarily retired at
756,000 km)
1971 Doublecab project
1995 Golf CL
1974 Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kreemoweet
Samba Member


Joined: March 13, 2008
Posts: 3070
Location: Seattle, WA
kreemoweet is online now

PostPosted: Wed Sep 11, 2019 10:29 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

bvolks wrote:
Try this. <some link>


I get Page Not Found, from Concept1. Its the same
link you posted before.
_________________
'67 bug: seized by the authorities
'68 bug: seized by the authorities
'71 kombi: not yet seized by the authorities

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bvolks
Samba Member


Joined: April 26, 2004
Posts: 799
Location: New Brunswick, Canada
bvolks is offline

PostPosted: Wed Sep 11, 2019 10:40 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

That's odd. I got my daughter to try it and it works for her.
Image may have been reduced in size. Click image to view fullscreen.

_________________
1985 Diesel Jetta Coupe (temporarily retired at
756,000 km)
1971 Doublecab project
1995 Golf CL
1974 Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tristessa
Samba Member


Joined: April 07, 2004
Posts: 3959
Location: Portland, OR
tristessa is offline

PostPosted: Wed Sep 11, 2019 11:13 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

I think their site automagically detects if you're coming from the US or Canada, which screws up the link. I also got a Page Not Found, then entered
the part number and it took me to a usstore.concept1.ca page.

Try: http://usstore.concept1.ca/Steering-Coupler-Bus-68-79-211415417-JP-64004/

That said, if it's anything like the JP Group sway bar clamps I tried working with a couple months ago I'd run far far away. Steering coupler is *far* more safety-critical than swap bar clamps...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vw nutter
Samba Member


Joined: April 21, 2016
Posts: 19
Location: Germany
vw nutter is offline

PostPosted: Thu Oct 31, 2019 8:40 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

I read this whole thread, great read.
Since i also needed this part, my hunt began to find the best solution!
With a lot of correct & incorrect info on this part i had to find out myself.

I have spent a few weeks searching and researching about the 211415417 T2 bus steering coupling.

I also tested almost every coupling type on the current market and came to the conclusions that ALL of them are JUNK.,
The following are just some i tried;
C&C/ OEM, Premium quality, Richard Davies type.
All of which were very soft and could easily be bent/ taco'd in half.

Unfortunately they are all produced now to a price and not quality.

My conclusion is;
There are NO good couplings on the market.

However, i did locate a manufacturer who was one of the original producers of the disc, they can reproduce the disc to original spec now but the cost is very high even for larger quantities due to each disc being handmade in a mould.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ivwshane
Samba Member


Joined: May 19, 2011
Posts: 1869
Location: Sacramento ca
ivwshane is offline

PostPosted: Thu Oct 31, 2019 10:12 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

vw nutter wrote:
I read this whole thread, great read.
Since i also needed this part, my hunt began to find the best solution!
With a lot of correct & incorrect info on this part i had to find out myself.

I have spent a few weeks searching and researching about the 211415417 T2 bus steering coupling.

I also tested almost every coupling type on the current market and came to the conclusions that ALL of them are JUNK.,
The following are just some i tried;
C&C/ OEM, Premium quality, Richard Davies type.
All of which were very soft and could easily be bent/ taco'd in half.

Unfortunately they are all produced now to a price and not quality.

My conclusion is;
There are NO good couplings on the market.

However, i did locate a manufacturer who was one of the original producers of the disc, they can reproduce the disc to original spec now but the cost is very high even for larger quantities due to each disc being handmade in a mould.


Did you actually try the one from Richard Davies?
_________________
77 westy 2.0 FI
69 ghia coup 1600dp
70 single cab
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wcfvw69 Premium Member
Samba Purist


Joined: June 10, 2004
Posts: 13022
Location: Arizona
wcfvw69 is offline

PostPosted: Thu Oct 31, 2019 3:40 pm    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

vw nutter wrote:
I read this whole thread, great read.
Since i also needed this part, my hunt began to find the best solution!
With a lot of correct & incorrect info on this part i had to find out myself.

I have spent a few weeks searching and researching about the 211415417 T2 bus steering coupling.

I also tested almost every coupling type on the current market and came to the conclusions that ALL of them are JUNK.,
The following are just some i tried;
C&C/ OEM, Premium quality, Richard Davies type.
All of which were very soft and could easily be bent/ taco'd in half.

Unfortunately they are all produced now to a price and not quality.

My conclusion is;
There are NO good couplings on the market.

However, i did locate a manufacturer who was one of the original producers of the disc, they can reproduce the disc to original spec now but the cost is very high even for larger quantities due to each disc being handmade in a mould.


The NOS couplers are still out there. I stumbled across (4) at a VW swap a couple of years ago.
_________________
[email protected]
Decades of VW and VW parts restoration experience.
The Samba member since 2004.


**Restored German Bosch distributors for sale or I can restore yours**

**Restored German Pierburg fuel pumps for sale or I can restore yours**



1970 Westfalia Bus
1969 Convertible Bug
1967 Standard Bug
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
KentABQ Premium Member
Samba Member


Joined: September 11, 2016
Posts: 2195
Location: Albuquerque NM
KentABQ is offline

PostPosted: Thu Oct 31, 2019 4:05 pm    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

wcfvw69 wrote:
The NOS couplers are still out there. I stumbled across (4) at a VW swap a couple of years ago.

Same here. I found one at the Pomona Swap Meet a year ago and bought one... even though I don't need one yet.
Keep looking, and you'll find them.
_________________
-Kent-
1976 Riviera, 1.8l FI chrome yellow VAN - "Chloe"

"I must say, how can you be in a bad mood driving this vehicle full of vibrant color.
Cars of today are so bland in comparison. It's like driving a celebration!"
---WildIdea

Bus ownership via emoticons:
Very Happy Shocked Mad Sad Embarassed d'oh! Pray Brick wall Pray Dancing Dancing Dancing ---williamM
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
vw nutter
Samba Member


Joined: April 21, 2016
Posts: 19
Location: Germany
vw nutter is offline

PostPosted: Sat Nov 02, 2019 3:16 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

Did you actually try the one from Richard Davies?[/quote]

YES i bought 50 pieces off him, They were ALL JUNK. I returned them all back to him.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vw nutter
Samba Member


Joined: April 21, 2016
Posts: 19
Location: Germany
vw nutter is offline

PostPosted: Sat Nov 02, 2019 3:26 am    Post subject: Re: Steering Coupling Disc 211415417 (coupler) Reply with quote

[quote="wcfvw69".[/quote]

The NOS couplers are still out there. I stumbled across (4) at a VW swap a couple of years ago.[/quote]

YES but VERY hard to find,
I struck it lucky this week and found 9 original VW ones and some beetle original VW ones from an old VW dealer who had old stock left, they were stored cool and in the dark. The quality is night and day compared to all the repro junk on the current market.

. im happy now! Cool



Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... 15, 16, 17, 18, 19, 20  Next
Jump to:
Page 16 of 20


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
