I just bought a Westy Single Cab! (1.6TD JX)
Page: Previous  1, 2, 3, 4, 5 ... 10, 11, 12  Next
Jump to:
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
old_man
Samba Member


Joined: June 19, 2018
Posts: 1170
Location: Newfoundland
old_man is offline

PostPosted: Sun Dec 15, 2019 1:53 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

WestyBob wrote:


I guess it depends on how you intend to use -- work truck or drive to visit the Queen in your silk tux when she visits or somewhere in between ?


Somewhere in between. I don't fit in my silk tux anymore.......must have shrunk.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
WestyBob
Samba Member


Joined: June 11, 2004
Posts: 2346
Location: Portland, Oregon
WestyBob is offline

PostPosted: Sun Dec 15, 2019 2:01 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

old_man wrote:
WestyBob wrote:


I guess it depends on how you intend to use -- work truck or drive to visit the Queen in your silk tux when she visits or somewhere in between ?


Somewhere in between. I don't fit in my silk tux anymore.......must have shrunk.


I kinda like the look of the 'industrial' box but can agree I'd prefer without than with (mine in my avatar) unless I was using exclusively on a farm. Maybe remove and sell which seems to be what you are thinking. I never had a silk tux but am sure I wouldn't fit in it anyway Smile

I see sinka side/tail gates show up on the Samba classifieds periodically, especially from out west here, more specifically from Cali. Shipping costs may be murder. Maybe Plompen has a nice set around.
Back to top
View user's profile Send private message Classifieds Feedback
old_man
Samba Member


Joined: June 19, 2018
Posts: 1170
Location: Newfoundland
old_man is offline

PostPosted: Sun Dec 15, 2019 2:08 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

WestyBob wrote:


I kinda like the look of the 'industrial' box but can agree I'd prefer without than with (mine in my avatar) unless I was using exclusively on a farm. Maybe remove and sell which seems to be what you are thinking. I never had a silk tux but am sure I wouldn't fit in it anyway Smile

I see sinka side/tail gates show up on the Samba classifieds periodically, especially from out west here, more specifically from Cali. Shipping costs may be murder. Maybe Plompen has a nice set around.


I probably should have asked Mike if he could find a set to through in the back. Oh well. Who knows, might start growing on me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
SteveMc
Samba Member


Joined: December 19, 2013
Posts: 200
Location: Alberta, Canada
SteveMc is offline

PostPosted: Sun Dec 15, 2019 3:58 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

old_man wrote:

Speaking of which, anyone know where I can find a used set of sinka drop sides/tail gate? Should I not change my mind about it's ugliness.


You can get NOS from Volkswagen Classic but they are pricey. Also, there is an NOS tailgate in the Samba ads. And nice looking truck you have there!
https://www.volkswagen-classic-parts.de/en/ersatzt...appen.html
_________________
1986 Transporter Single Cab Syncro
Back to top
View user's profile Send private message Gallery Classifieds Feedback
old_man
Samba Member


Joined: June 19, 2018
Posts: 1170
Location: Newfoundland
old_man is offline

PostPosted: Sun Dec 15, 2019 5:26 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

SteveMc wrote:


You can get NOS from Volkswagen Classic but they are pricey. Also, there is an NOS tailgate in the Samba ads. And nice looking truck you have there!
https://www.volkswagen-classic-parts.de/en/ersatzt...appen.html


A little rich for my blood. I can't even fathom what shipping would cost.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
old_man
Samba Member


Joined: June 19, 2018
Posts: 1170
Location: Newfoundland
old_man is offline

PostPosted: Sun Dec 15, 2019 5:47 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

?Waldo? wrote:


EDIT: Here is my guess, turbo is overpressurizing due to a stuck wastegate causing the BOV to actuate. The BOV doesn't close/reset until 6psi. Possible? I'm new to turbos.



Out of curiosity what would happen if I just block off my BOV and run with the waste gate stuck? Too much boost? I know I would need an EGT gauge but could the mighty JX take it?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 8806
Location: Where?
?Waldo? is offline

PostPosted: Sun Dec 15, 2019 9:07 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

old_man wrote:
?Waldo? wrote:


EDIT: Here is my guess, turbo is overpressurizing due to a stuck wastegate causing the BOV to actuate. The BOV doesn't close/reset until 6psi. Possible? I'm new to turbos.



Out of curiosity what would happen if I just block off my BOV and run with the waste gate stuck? Too much boost? I know I would need an EGT gauge but could the mighty JX take it?


If you block the BOV and your wastegate doesn't work then boost will spike quite high if you keep on the accelerator pedal at higher rpms. It would probably not cause any significant issues but could cause the head gasket to fail. Also, when you boost unintercooled above ~15 psi, it becomes somewhat counterproductive.

I took a look at the spare k14 wastegate I have here and it is in somewhat poor condition. The casting is fairly eroded. I'd send it for the cost of shipping with no guarantee that it works properly.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Odd_Dutch
Samba Member


Joined: March 20, 2011
Posts: 81
Location: The Hague, Netherlands
Odd_Dutch is offline

PostPosted: Sun Dec 15, 2019 11:36 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

Nice pick-up! For a trailer hitch you can have a look here:
https://www.aanhangwagendirect.nl/koppelingen/ongeremde-koppelingen/
_________________
1980 2.0L Tintop - Subaru EJ-20 conversion
Back to top
View user's profile Send private message Gallery Classifieds Feedback
old_man
Samba Member


Joined: June 19, 2018
Posts: 1170
Location: Newfoundland
old_man is offline

PostPosted: Mon Dec 16, 2019 5:50 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

Work work work. No time to play with truck but tons of time to waste on the internet......
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
owokie
Samba Member


Joined: May 21, 2003
Posts: 490

owokie is offline

PostPosted: Mon Dec 16, 2019 6:32 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

Sweet whip. If you really wanna waste internet time, start looking at LTs too:


Image may have been reduced in size. Click image to view fullscreen.



WRT the hitch, I'd leave it off. We put a 2" receiver in place of the euro-weiner. Much more functional.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
old_man
Samba Member


Joined: June 19, 2018
Posts: 1170
Location: Newfoundland
old_man is offline

PostPosted: Wed Dec 18, 2019 3:18 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

So today was a busy day full of highs and low.

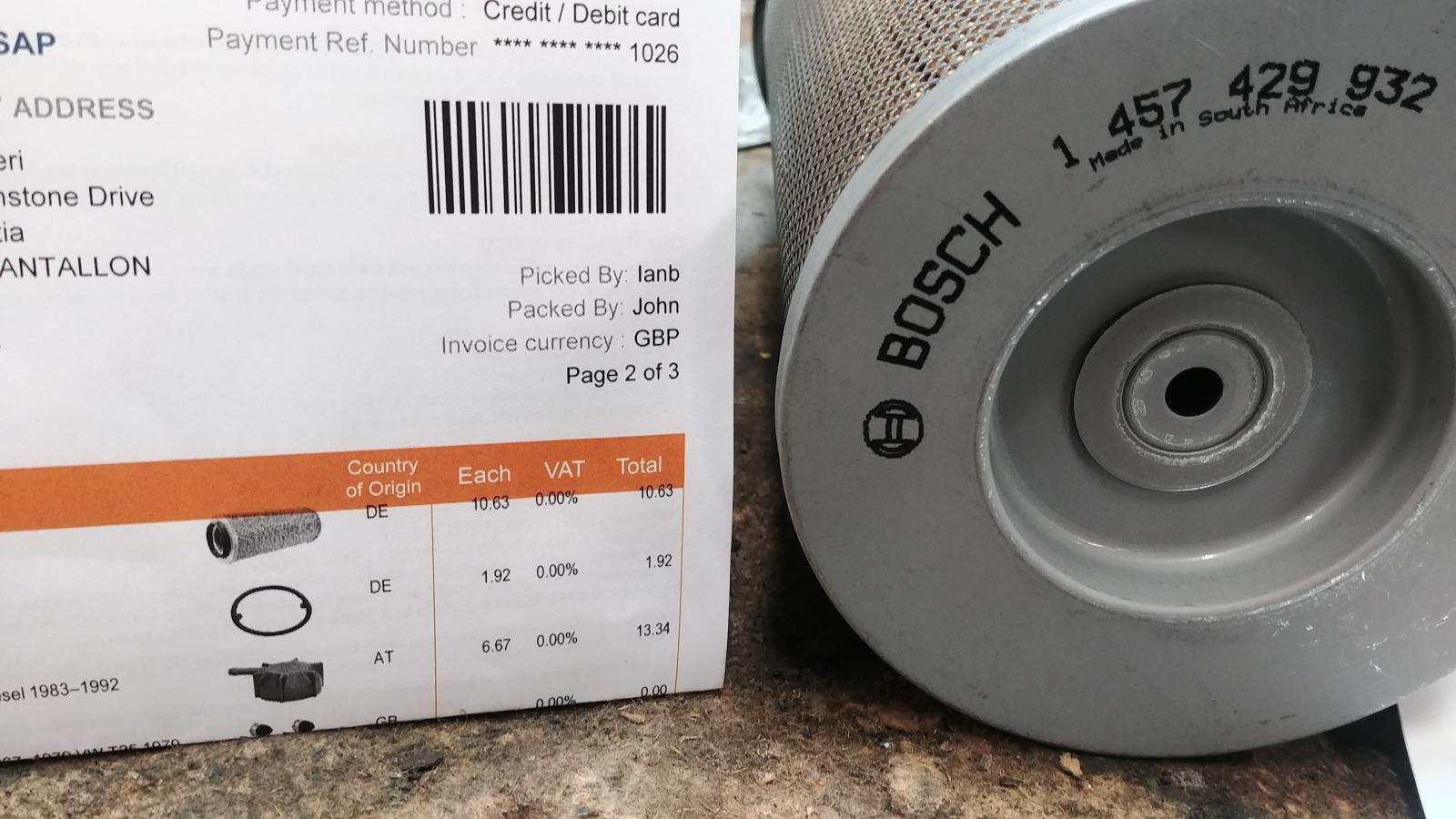

It started off with UPS emailing me they were charging me $80 in brokerage fees. I thought they was going to be no brokerage fees because I had selected UPS express but there was. Turns out if there is more than 5 items in the box they charge an additional $4.50 per item. I really hate this company. I told them I wanted to self clear the package and they would email the paper work for me to do so. Never recieved it. I really really hate this company. I may have to bend over and give them my money.

The goal here was to get the wastegate working. Tried penetrant and compressed air but as I expected...no dice. So I had to remove the turbo. This was a bit of a challenge. I eventually got it out.
Image may have been reduced in size. Click image to view fullscreen.

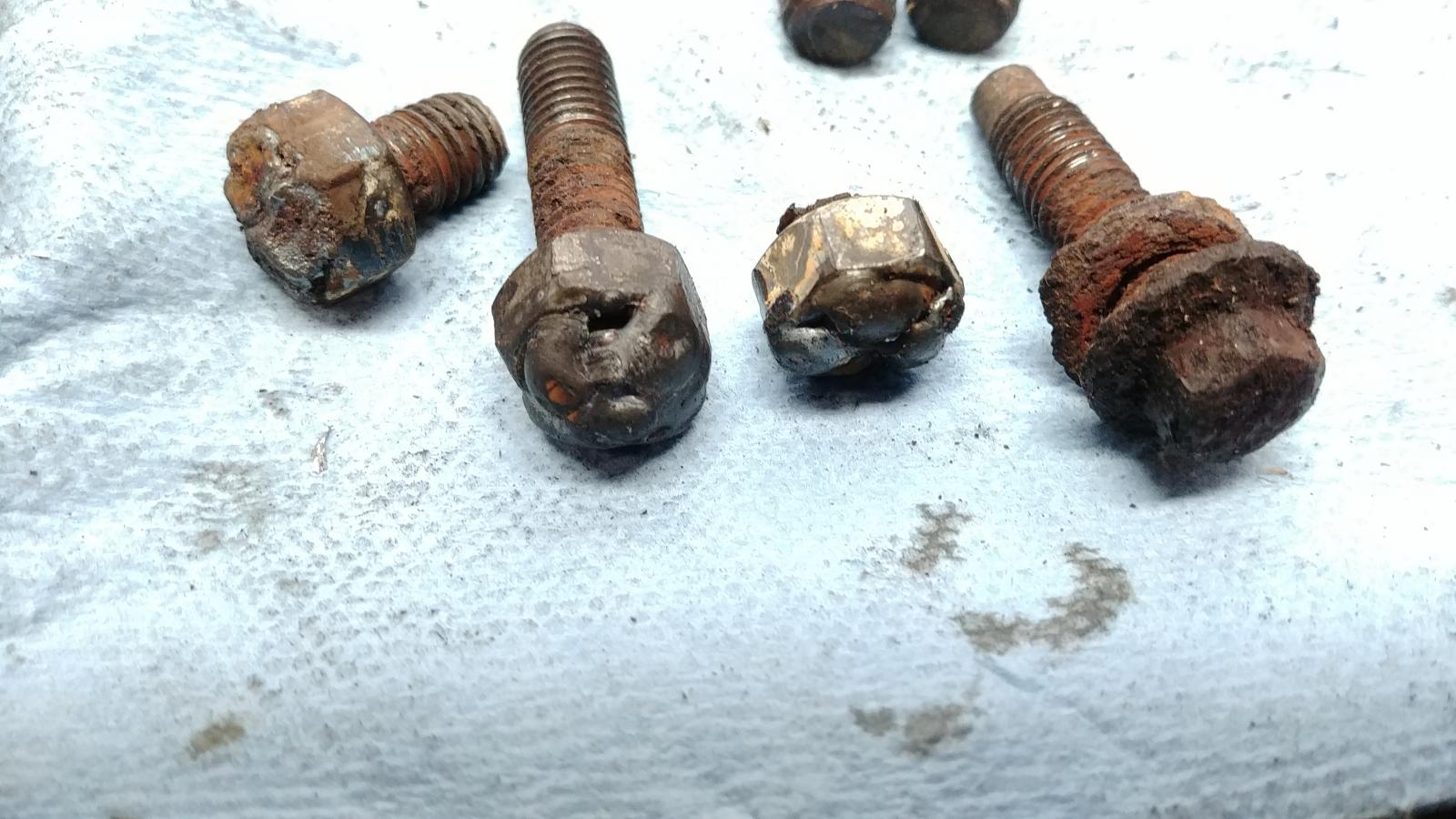

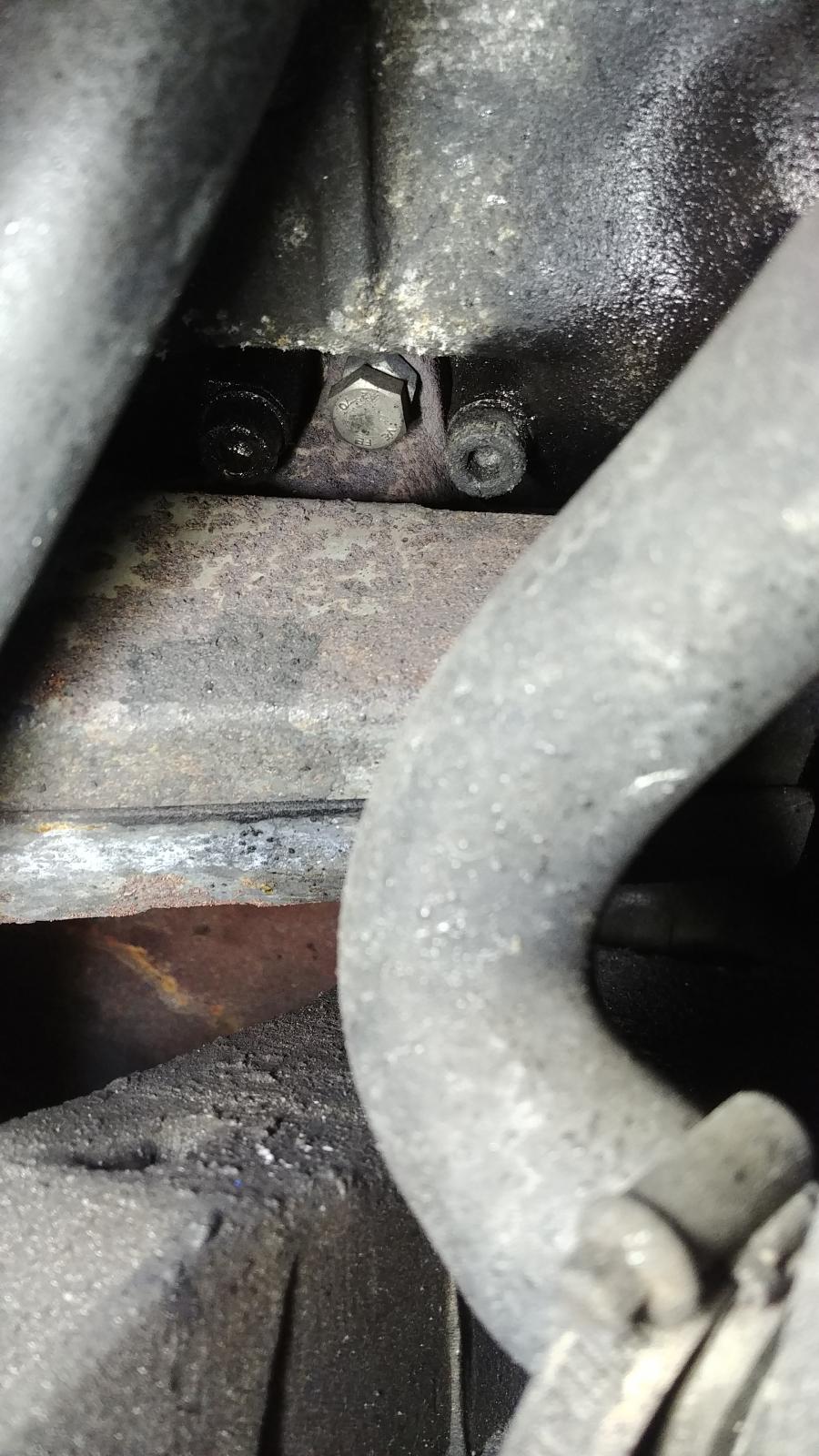

Unfortunately some PO used cheap bolts on the exhaust bracket instead of the required studs the bolts snapped. I managed to get 3 out of 4 out but the last one I had to drill. It was not a fun experience and took a long time.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


On the bright side the I got the 4 big bolts out that hold the turbo to the manifold. I was very happy about this.
Image may have been reduced in size. Click image to view fullscreen.

It was hard to do and required a lot of heat. I am convinced spraying penetrant a day or two before hand does nothing. Exhaust needs heat. You can see the threads aren't good anymore. Good thing I had already ordered replacements. These are very expensive bolts.

This I don't understand. Stainless steel hose clamp but a regular steel crew drive. Had to be cut off.
Image may have been reduced in size. Click image to view fullscreen.



Exhaust came out. I just cut it off to give me room to work. It's getting replaced anyways. Several welded patches already and someone welded the muffler on.
Image may have been reduced in size. Click image to view fullscreen.


When it came time to get the wastegate off that also fought me the whole way. Getting those allen heads out is painful. Not a good design. Naturally, one didn't cooperate. Had to be drilled and that didn't go too straight. Still managed to get it to work. Hopefully it lasts. I bent the valve getting the wastegate out. Apparently that is common.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Here is where I stand now. Might as well rebuilt the turbo seeing as I am this deep.
Image may have been reduced in size. Click image to view fullscreen.



I've been thinking. What if I drill a mid sized hole opposite the wastegate valve. Tap it and then but a short bolt in it. That way if the wastegate if ever stuck again (common on K14s apparently) I can take the bolt out, spray some carbon dissolver, insert a punch, and then pop it loose. Good idea or bad idea? I would rather not have to go through this again.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 8806
Location: Where?
?Waldo? is offline

PostPosted: Wed Dec 18, 2019 9:00 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

I totally understand the pain. I've disassembled several like that. In that situation I would either send it off to someone to have it rebuilt (it should be balanced anyway) or purchase a used turbo.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 9996
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Thu Dec 19, 2019 11:00 am    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

owokie wrote:

Image may have been reduced in size. Click image to view fullscreen.



Want!
_________________
See innovative Vanagon accessories at the Vanistan shop:
https://intrepidoverland.com/vanistan/

Please don't PM here, I will not reply.

Hmmm, provincial much?:
Quote:
"I wouldn't go much on whats written on the samba, they love a "theory" and rarely ask any Europeans what is actually correct."
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
old_man
Samba Member


Joined: June 19, 2018
Posts: 1170
Location: Newfoundland
old_man is offline

PostPosted: Thu Dec 19, 2019 11:42 am    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

Another day, another problem. Decided to take apart the centre section. Ya, that worked out well.
Image may have been reduced in size. Click image to view fullscreen.


Tried to reassemble it and then realized that the main spool wobbled because the shaft is bent. I think I dropped it a couple days ago.

....New CHRA ordered. The downside is that is that just before this I had paid UPS additional money to expedite another order. I won't be able to use that order until my new turbo is in so that was money wasted. The disappointment is that it will probably be January before this stupid thing is working again.

If I could do it all over again I think I would have just bought a complete replacement K14 from China on AliExpress. Then I would have rebuilt mine over time.

Stupid wastegate. I think my drilling a hole idea to free it has some merit.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
foodeater
Samba Member


Joined: July 13, 2007
Posts: 1307
Location: Newburgh, NY
foodeater is offline

PostPosted: Thu Dec 19, 2019 1:54 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

tencentlife wrote:
owokie wrote:

Image may have been reduced in size. Click image to view fullscreen.



Want!


me too!

Looks like its getting shipped to the US, it has Baltimore written on the windshield.
_________________
89 Bluestar-2.5 Subaru Powered-RIP
'84 Westy Tiico-daily driver-sold
'82 Caddy diesel-sold
'87 Vanagon Syncro-RIP
'81 diesel rabbit-sold
'82 Vanagon auto-RIP
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Alaskaberrys Premium Member
Samba Member


Joined: June 19, 2016
Posts: 833
Location: SE Alaska
Alaskaberrys is offline

PostPosted: Thu Dec 19, 2019 2:05 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

old_man wrote:
Another day, another problem. Decided to take apart the centre section. Ya, that worked out well.
Image may have been reduced in size. Click image to view fullscreen.


Tried to reassemble it and then realized that the main spool wobbled because the shaft is bent. I think I dropped it a couple days ago.

....New CHRA ordered. The downside is that is that just before this I had paid UPS additional money to expedite another order. I won't be able to use that order until my new turbo is in so that was money wasted. The disappointment is that it will probably be January before this stupid thing is working again.

If I could do it all over again I think I would have just bought a complete replacement K14 from China on AliExpress. Then I would have rebuilt mine over time.

Stupid wastegate. I think my drilling a hole idea to free it has some merit.


Dang. As they say no good deed goes unpunished. Very Happy

Thanks for posting your turbo saga - I know this is my future, and with zero experience with turbos will be relying heavily on your thread here. Wish I could offer something other than encouragement. I’m rooting for your success!
_________________
'91 Westfalia, Bordeaux Red Pearl 2.1L 2wd Auto
'91 T3 Syncro Doka, Escorial Green 1.9L TD AAZ “Gremian” (to provoke, irritate, exasperate, vex...)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
old_man
Samba Member


Joined: June 19, 2018
Posts: 1170
Location: Newfoundland
old_man is offline

PostPosted: Thu Dec 19, 2019 3:12 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

Alaskaberrys wrote:


Dang. As they say no good deed goes unpunished. Very Happy

Thanks for posting your turbo saga - I know this is my future, and with zero experience with turbos will be relying heavily on your thread here. Wish I could offer something other than encouragement. I’m rooting for your success!


That's the funny part. The turbo was function fine, I could have left it alone. If you are reading then I will try to take more pictures and document better. I, too, have zero experience with turbos.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 8806
Location: Where?
?Waldo? is offline

PostPosted: Thu Dec 19, 2019 4:44 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

I noticed this the other day: https://www.ebay.com/itm/VW-1994-Canadian-Golf-K14...SwVYNdrjcE

You might have better luck North of the border, though. You might try contacting BurnYourMoney on vwdiesel.net and see if he has one or post a wanted ad on TDI club.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
old_man
Samba Member


Joined: June 19, 2018
Posts: 1170
Location: Newfoundland
old_man is offline

PostPosted: Thu Dec 19, 2019 6:30 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

So parts box show up.

But first, I was sizing up how much effort it would be to take off the exhaust manifold so I could drill and tap for an EGT probe and I spotted this.
Image may have been reduced in size. Click image to view fullscreen.


Someone has been there before. Not sure what kind of work would necessitate an exhaust removal but it's probably interesting. Judging by their solution to what I assume was a broken exhaust stud I don't have high hope for the quality of their work. I think I will just let the manifold be and drill/tap in situ.

So I ordered everything from JustKampers in the UK. It was a toss up between them and Brickworks but JK had the exhaust I wanted. Everything, except the exhaust, showed a European country of origin with the majority of it being either the UK or Germany. However, as you will see, it was not entirely accurate. I have ordered a few times from JK and it has always been a pleasant experience. Unfortunately for larger orders they ship UPS. I, and just about every other Canadian, hates UPS with a passion.

Speaking of exhaust, I spoiled myself and went stainless. It wasn't that much more. This was manufactured by the hard working and industrious people of China.
Image may have been reduced in size. Click image to view fullscreen.


Turbo installation kit. Here you can see the correct studs and copper nuts. It even came with a little syringe to pour oil into the turbo.
Image may have been reduced in size. Click image to view fullscreen.


Is this better one that I should get?
Image may have been reduced in size. Click image to view fullscreen.


They were fairly cheap so I got new metal work for the lower windshield in case I need them. It would cost far more to order it later due to shipping.
Image may have been reduced in size. Click image to view fullscreen.


New boots. Hopefully they last, I have read that some don't.
Image may have been reduced in size. Click image to view fullscreen.


Here you can see of the manifest that the country of origin is "DE". It is not.
Image may have been reduced in size. Click image to view fullscreen.


The only thing that didn't work out so far is the fuel filter I got is a simple nipple in and nipple out. I think they one I have on my truck is banjo fittings. Chucks but out of everything else that has gone sideways this is just a drop in the bucket.

So I think I figured out where I want to put the EGT probe but where should I put the boost gauge sensor? T off the LDA line? T off the waste gate line? Drill tape the manifold? or drill/tap somewhere on aluminium turbo housing?


Last edited by old_man on Thu Dec 19, 2019 6:33 pm; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
erste
Samba Member


Joined: March 29, 2013
Posts: 1024
Location: San Francisco
erste is offline

PostPosted: Thu Dec 19, 2019 6:31 pm    Post subject: Re: I just bought a Westy Single Cab! Reply with quote

old_man wrote:

Image may have been reduced in size. Click image to view fullscreen.

The mirrors are one of the first things I noticed and it's interesting that this truck has the same mirrors as yours. I figured they were adapted from a different vehicle but it seems like they were fitted by Westfalia to see around the rear box?
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5 ... 10, 11, 12  Next
Jump to:
Page 4 of 12


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
