PostPosted: Mon Aug 10, 2020 1:02 pm    Post subject: Re: 77 Cape Cod Sage Reply with quote

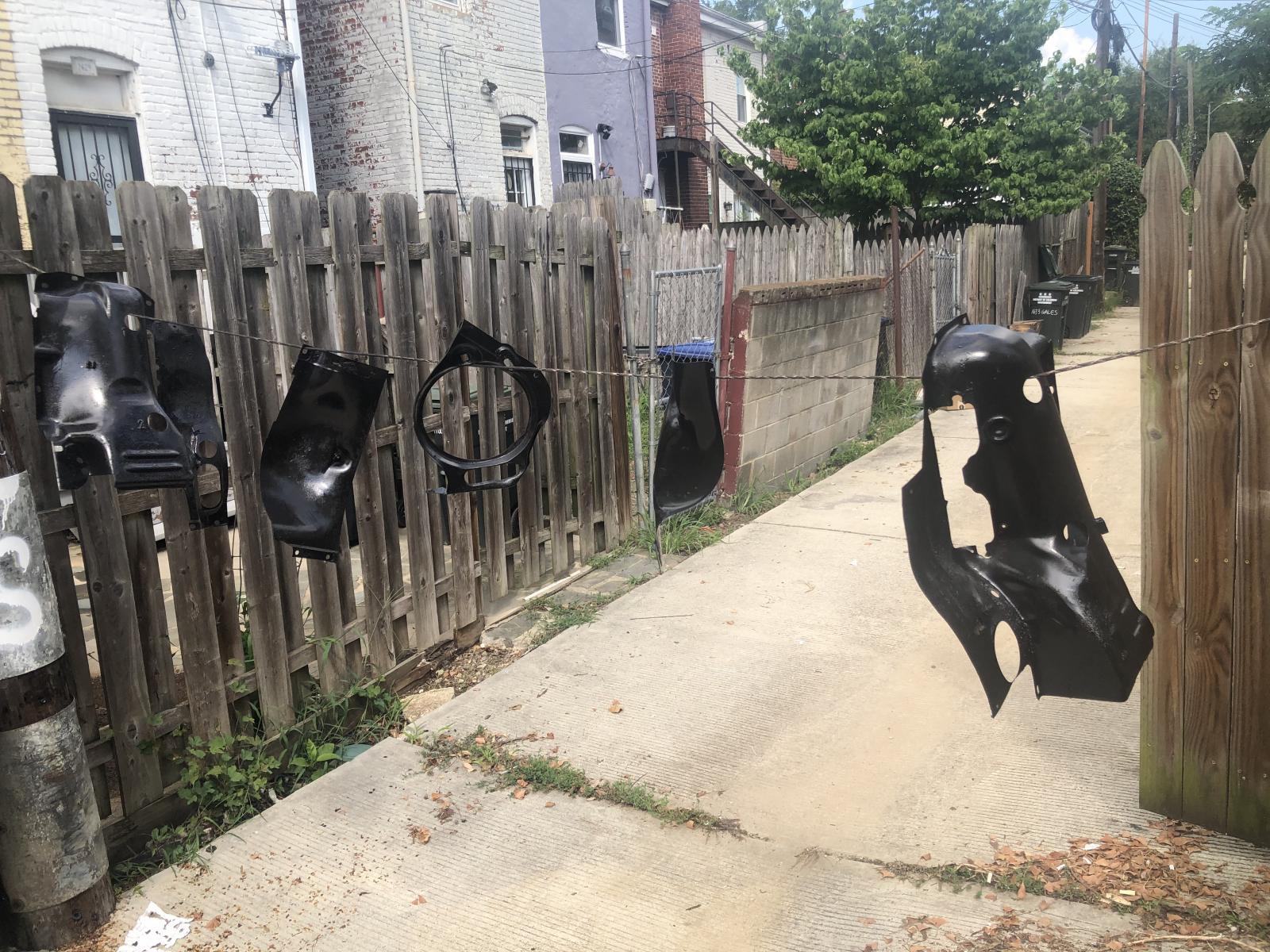

In case yíall are wondering... this is how we paint engine tin in the city. Back alley paint shop in full swing
Image may have been reduced in size. Click image to view fullscreen.

_________________
77 Westy - Cape Cod Sage
14 Dieselgate Jetta Wagon
LLAP
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
Abscate Premium Member
Samba Member


Joined: October 05, 2014
Posts: 16740
Location: NYC/Upstate/ROW
Abscate is offline

PostPosted: Mon Aug 10, 2020 1:04 pm    Post subject: Re: 77 Cape Cod Sage Reply with quote

You just put it outside and it turns black?

Laughing
_________________
.ssS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
orangebug60guy
Twin #1


Joined: June 28, 2003
Posts: 1516
Location: South Hadley Mass
orangebug60guy is offline

PostPosted: Mon Aug 10, 2020 2:17 pm    Post subject: Re: 77 Cape Cod Sage Reply with quote

Abscate wrote:
You just put it outside and it turns black?

Laughing


That's what city air does to your lungs. Laughing Looking good Dan.
_________________
Arachibutyrophobia- Fear of peanut butter sticking to the roof of the mouth.
Coprastasophobia- Fear of constipation.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
HoboBus
Samba Member


Joined: December 29, 2016
Posts: 297
Location: Massachusetts
HoboBus is offline

PostPosted: Mon Aug 10, 2020 2:27 pm    Post subject: Re: 77 Cape Cod Sage Reply with quote

orangebug60guy wrote:
Abscate wrote:
You just put it outside and it turns black?

Laughing


That's what city air does to your lungs. Laughing Looking good Dan.



Something about the Cape Cod parts not fully agreeing with Washington DC I think. You gotta get that thing back up here.... Laughing

Looks great man. Keep going.
_________________
Salt air it ain't thin, it'll stick right to your skin,
it'll make you feel fine. Makes you feel fine.
And I wanna be there. -- Jimmy Buffett

Just a beach-oriented camping Hobo with a bus.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
60vwnewengland
Twin #2


Joined: June 25, 2003
Posts: 1733
Location: District of Columbia & Cape Cod
60vwnewengland is offline

PostPosted: Sat Aug 22, 2020 2:13 pm    Post subject: Re: 77 Cape Cod Sage Reply with quote

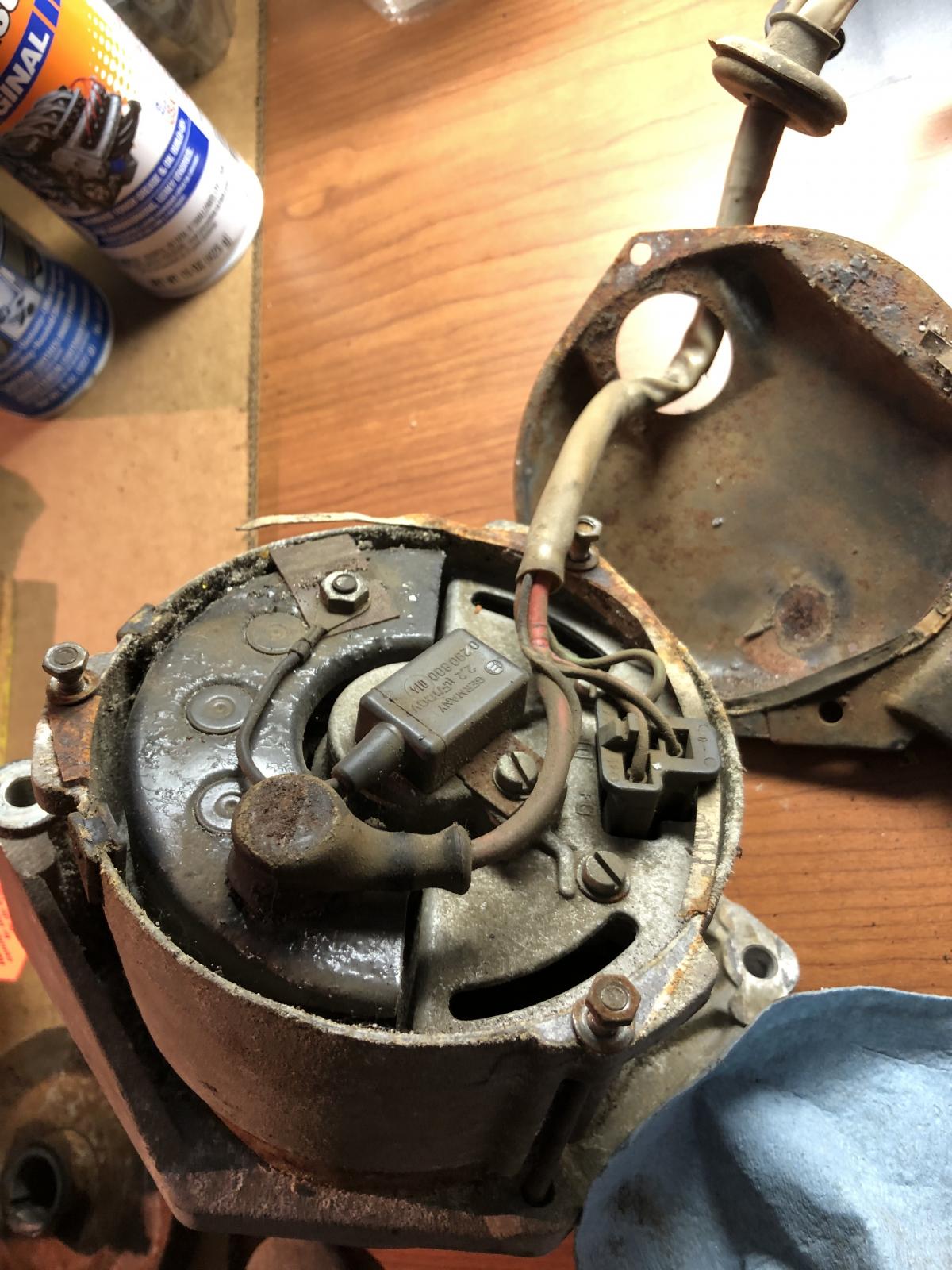

The alternator harness on this bus was fried. I was expecting a mess behind the alternator cooling tin. But it was actually in good shape.

Image may have been reduced in size. Click image to view fullscreen.


Got a rebuilt Bosch alternator from Autoparts International. $120.

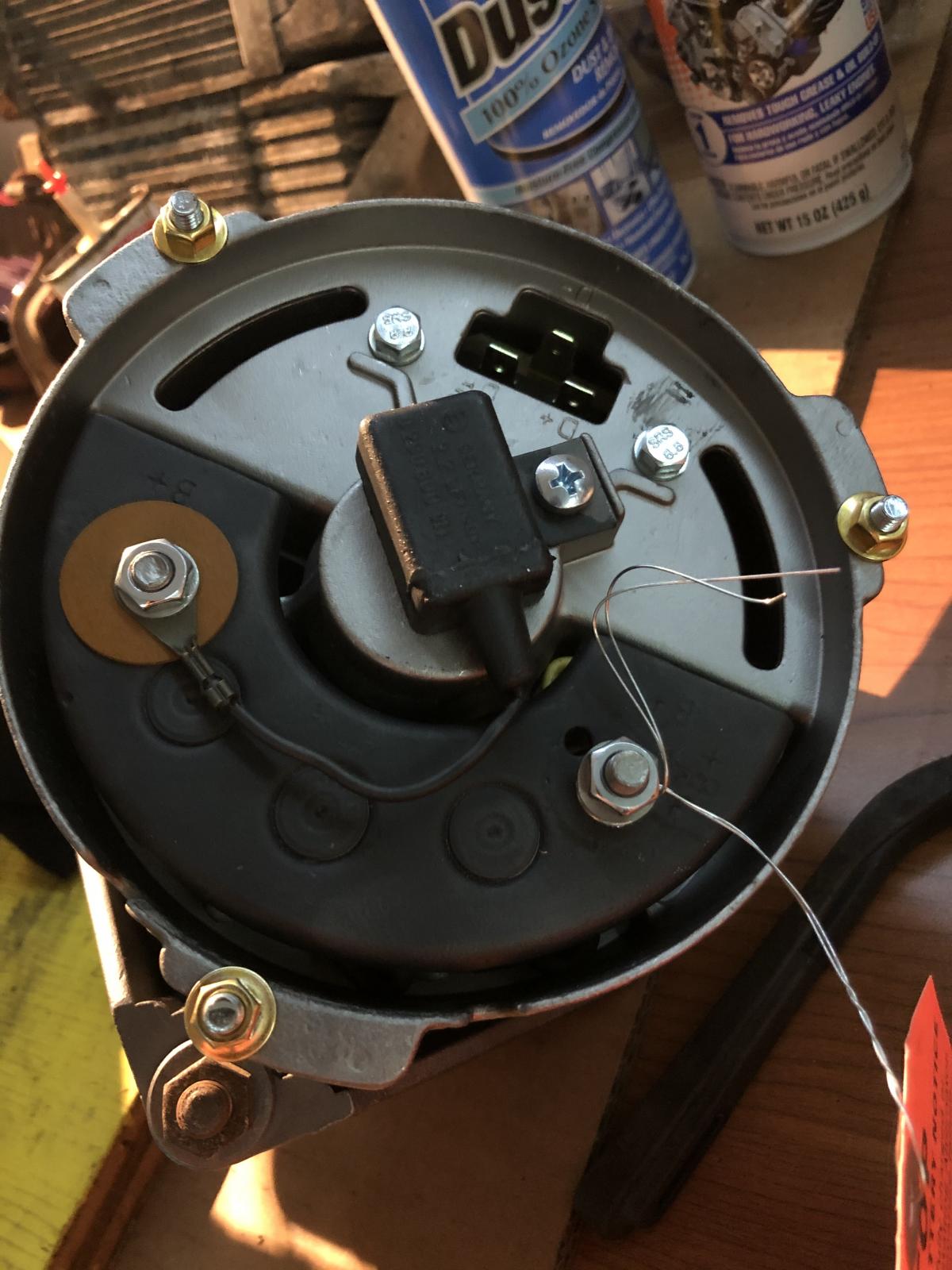

It looks like they have included a round ďgarroliteĒ washer on the B+ terminal.

Image may have been reduced in size. Click image to view fullscreen.


Anyone else seen these recently? Or is the standard practice to continue swapping over the garrolite square from the old alternator?

Also, my old alternator has rubber bumpers, should I swap those over too.

Has anyone used cork as the gasket between the alternator and the cooling tin?
_________________
77 Westy - Cape Cod Sage
14 Dieselgate Jetta Wagon
LLAP
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
60vwnewengland
Twin #2


Joined: June 25, 2003
Posts: 1733
Location: District of Columbia & Cape Cod
60vwnewengland is offline

PostPosted: Sun Aug 23, 2020 9:11 am    Post subject: Re: 77 Cape Cod Sage Reply with quote

Finished up the alternator modifications.

Mocked up the cork gasket. Pro tip here: go to autozone and ask for the shortest coil-distributor wire they got and use the rubber boots for B+ terminal you need to grind down. Only cost $1.

Image may have been reduced in size. Click image to view fullscreen.


Taped w/blue tape while I shortened the post.

Image may have been reduced in size. Click image to view fullscreen.


Put it all together and used a zip tie to hopefully keep things from moving.

Image may have been reduced in size. Click image to view fullscreen.


Looking down the inside and things are looking good!

Image may have been reduced in size. Click image to view fullscreen.

_________________
77 Westy - Cape Cod Sage
14 Dieselgate Jetta Wagon
LLAP
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
60vwnewengland
Twin #2


Joined: June 25, 2003
Posts: 1733
Location: District of Columbia & Cape Cod
60vwnewengland is offline

PostPosted: Sun Aug 23, 2020 1:46 pm    Post subject: Re: 77 Cape Cod Sage Reply with quote

I'm still waiting for my heads to get rebuilt, so while I wait it seems like a good time to clean and get the injectors ready.

Looking down the air intake rails, they're filled with dirt that caked onto the side. I was trying to figure out how to clean these without making a trip to the hardware store.

Image may have been reduced in size. Click image to view fullscreen.


I was thinking about what I have around the house. After some thinking, I have a bottle cleaning brush as part of my home brew stuff. So I took my beer bottle cleaning brush and used that to get the rails a little nicer.

Image may have been reduced in size. Click image to view fullscreen.


It seemed to work ok. Better than nothing and running dirty rails. I'm pleased with the results.

Image may have been reduced in size. Click image to view fullscreen.

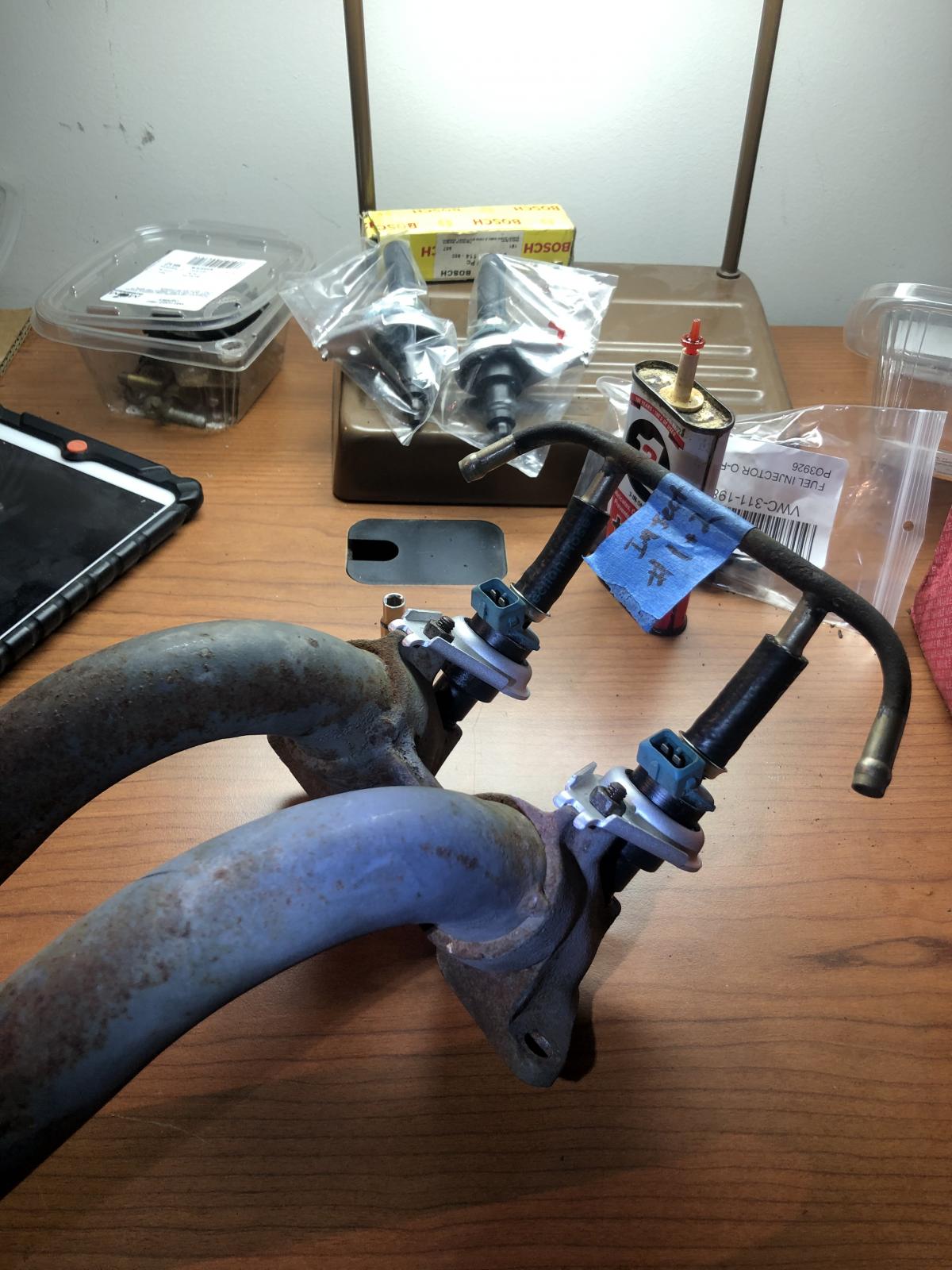

Randy in Maine hooked me up with some rebuilt bosch injectors! they're mocked up until I can get some decent hose clamps.

Image may have been reduced in size. Click image to view fullscreen.


Once the heads get here, I'm pretty much ready to go!
_________________
77 Westy - Cape Cod Sage
14 Dieselgate Jetta Wagon
LLAP
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
Abscate Premium Member
Samba Member


Joined: October 05, 2014
Posts: 16740
Location: NYC/Upstate/ROW
Abscate is offline

PostPosted: Sun Aug 23, 2020 4:04 pm    Post subject: Re: 77 Cape Cod Sage Reply with quote

Check out the OD of the fuel Lines and see if a bag of shark plumbing connectors will fit snugly. Really cheap oetiker solution in 19mm size available at any hardware store
_________________
.ssS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bluebird77
Samba Member


Joined: September 11, 2019
Posts: 23
Location: Ontario Canada
Bluebird77 is offline

PostPosted: Mon Aug 24, 2020 2:22 am    Post subject: Re: 77 Cape Cod Sage Reply with quote

Wow great score that's a real beauty ! Can't wait to see the progress.
Good luck!
_________________
1977 Sage Green Westfalia
"Bluebird"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
THall
Samba Member


Joined: August 25, 2010
Posts: 316
Location: Verona, WI
THall is offline

PostPosted: Mon Aug 24, 2020 4:48 am    Post subject: Re: 77 Cape Cod Sage Reply with quote

60vwnewengland wrote:

Has anyone used cork as the gasket between the alternator and the cooling tin?


Yep, that's exactly what I did when I replaced my alternator two years ago. No issues.
_________________
'78 Westy - 2.0 FI
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thewalrus
Big Jack


Joined: March 27, 2006
Posts: 3013
Location: South Hadley, MA
thewalrus is offline

PostPosted: Mon Aug 24, 2020 5:21 am    Post subject: Re: 77 Cape Cod Sage Reply with quote

I know you're not a fan of Bus Depot but... Make sure you use these style clamps for the gas lines rather than the worm clamps that'll pinch the rubber

https://www.busdepot.com/311133515
_________________
'73 Transporter 1.7L Dual Carb
notchboy wrote:
You ran over some #Vanlife'ers hopes and dreams?
60vwnewengland wrote:
Looking forward to next weekend, weed, krunk juice, hookers, blow, hanging with bums, philly, ...the awards!
Back to top
View user's profile Send private message Facebook Instagram Gallery Classifieds Feedback
60vwnewengland
Twin #2


Joined: June 25, 2003
Posts: 1733
Location: District of Columbia & Cape Cod
60vwnewengland is offline

PostPosted: Mon Aug 24, 2020 6:37 am    Post subject: Re: 77 Cape Cod Sage Reply with quote

thewalrus wrote:
I know you're not a fan of Bus Depot but... Make sure you use these style clamps for the gas lines rather than the worm clamps that'll pinch the rubber

https://www.busdepot.com/311133515


Thanks Big Jack, got it covered. You know me, Iíll go outta my way to use anyone but BusDepot. Got them here: https://www.bughaus.com/clamp_-_N90619501.htm
_________________
77 Westy - Cape Cod Sage
14 Dieselgate Jetta Wagon
LLAP
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
thewalrus
Big Jack


Joined: March 27, 2006
Posts: 3013
Location: South Hadley, MA
thewalrus is offline

PostPosted: Mon Aug 24, 2020 7:08 am    Post subject: Re: 77 Cape Cod Sage Reply with quote

I figured you were good... I just wasn't awake enough to remember where else to get them besides BD
_________________
'73 Transporter 1.7L Dual Carb
notchboy wrote:
You ran over some #Vanlife'ers hopes and dreams?
60vwnewengland wrote:
Looking forward to next weekend, weed, krunk juice, hookers, blow, hanging with bums, philly, ...the awards!
Back to top
View user's profile Send private message Facebook Instagram Gallery Classifieds Feedback
60vwnewengland
Twin #2


Joined: June 25, 2003
Posts: 1733
Location: District of Columbia & Cape Cod
60vwnewengland is offline

PostPosted: Tue Sep 01, 2020 5:55 pm    Post subject: Re: 77 Cape Cod Sage Reply with quote

Deck height question.

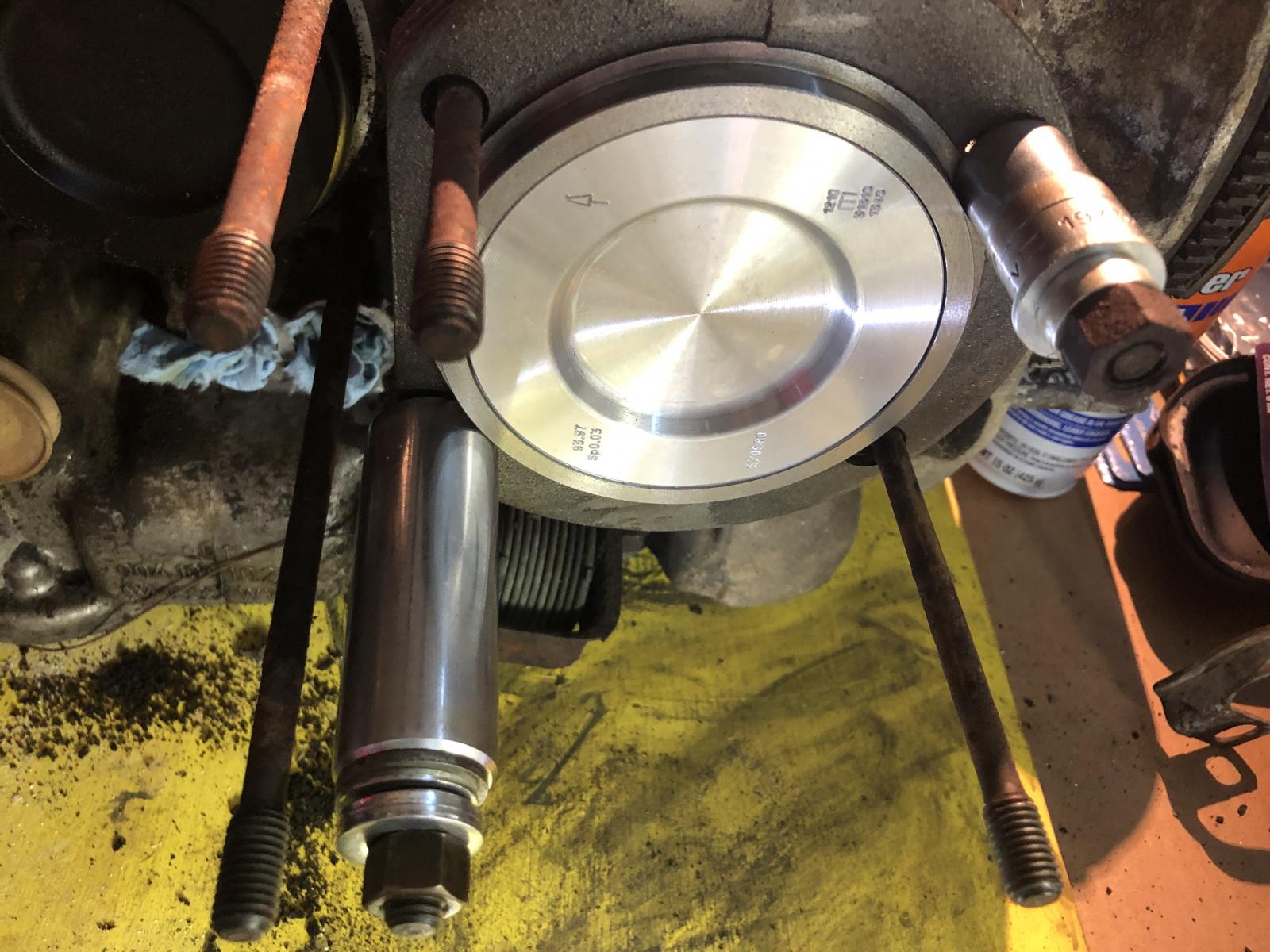

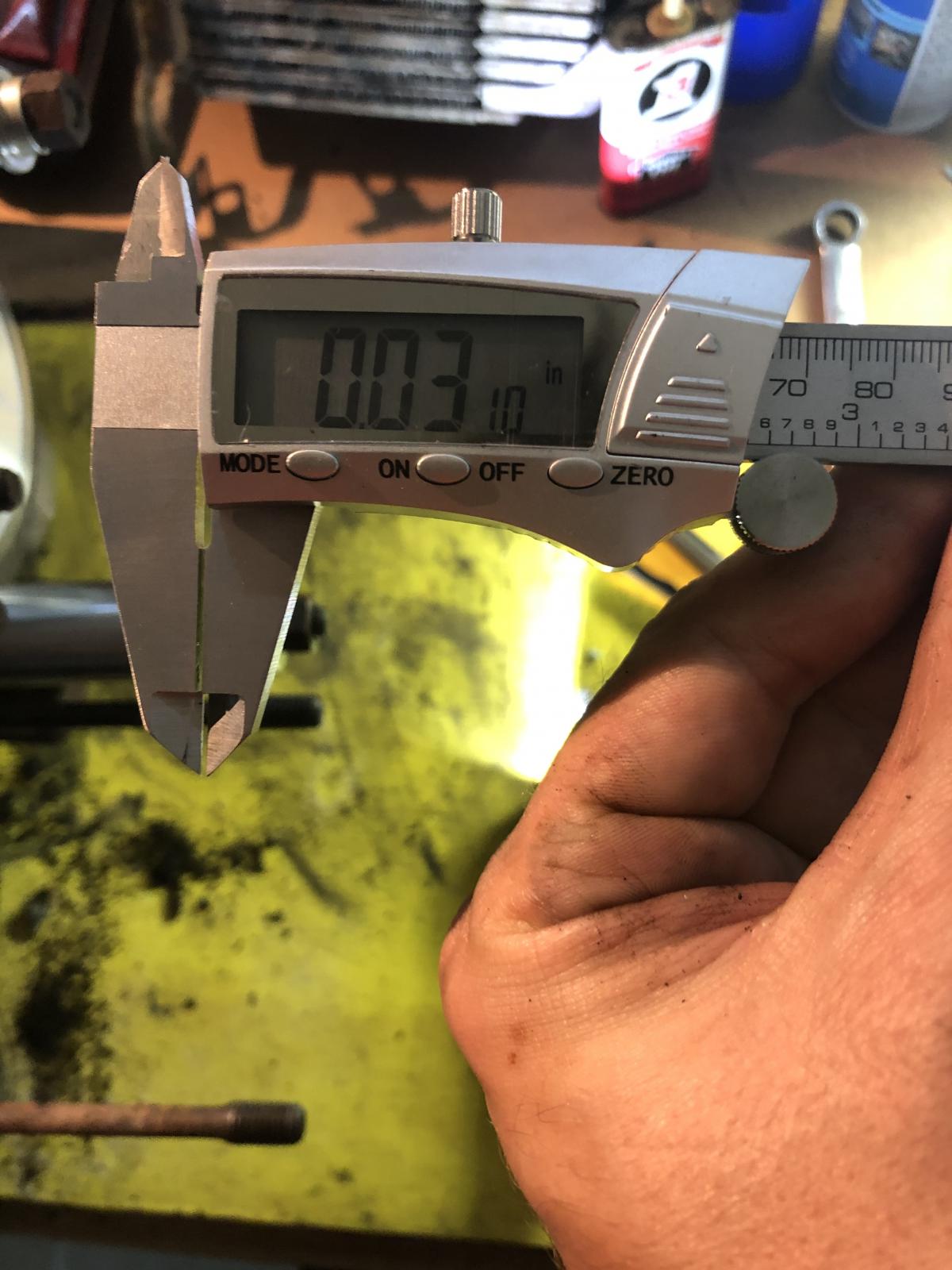

This is a GD motor, stock crank etc. Iím fitting the new Brazilian Mahle Pistons and Cylinders. I measured the deck height w/o shims and Iím getting about 030Ē.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


What size shim am I looking for here? .040Ē for a total deck height of about .070Ē?

Or do I want .060 shims for total deck height of about .090?

Thanks.
_________________
77 Westy - Cape Cod Sage
14 Dieselgate Jetta Wagon
LLAP
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
60vwnewengland
Twin #2


Joined: June 25, 2003
Posts: 1733
Location: District of Columbia & Cape Cod
60vwnewengland is offline

PostPosted: Mon Sep 21, 2020 1:22 pm    Post subject: Re: 77 Cape Cod Sage Reply with quote

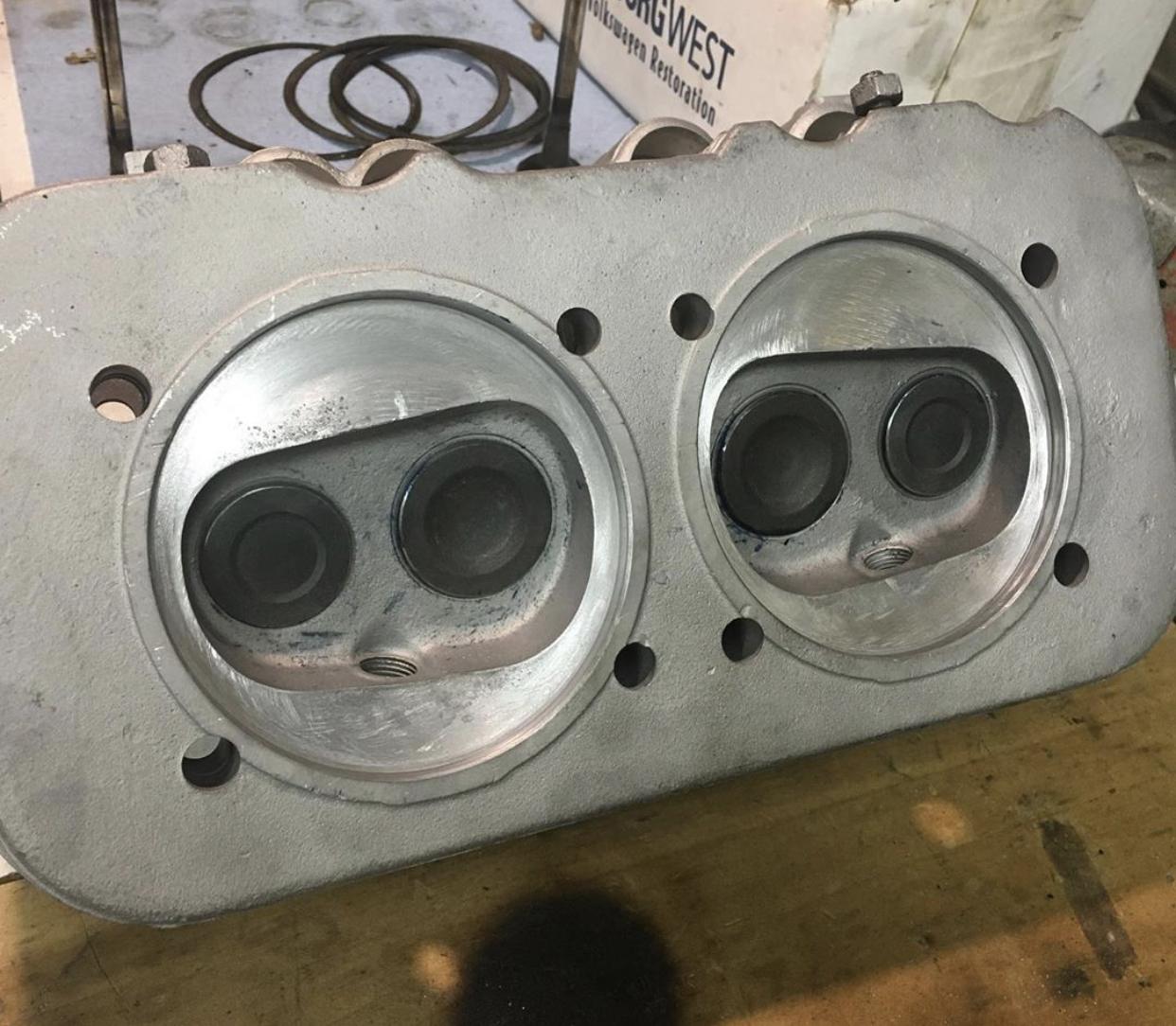

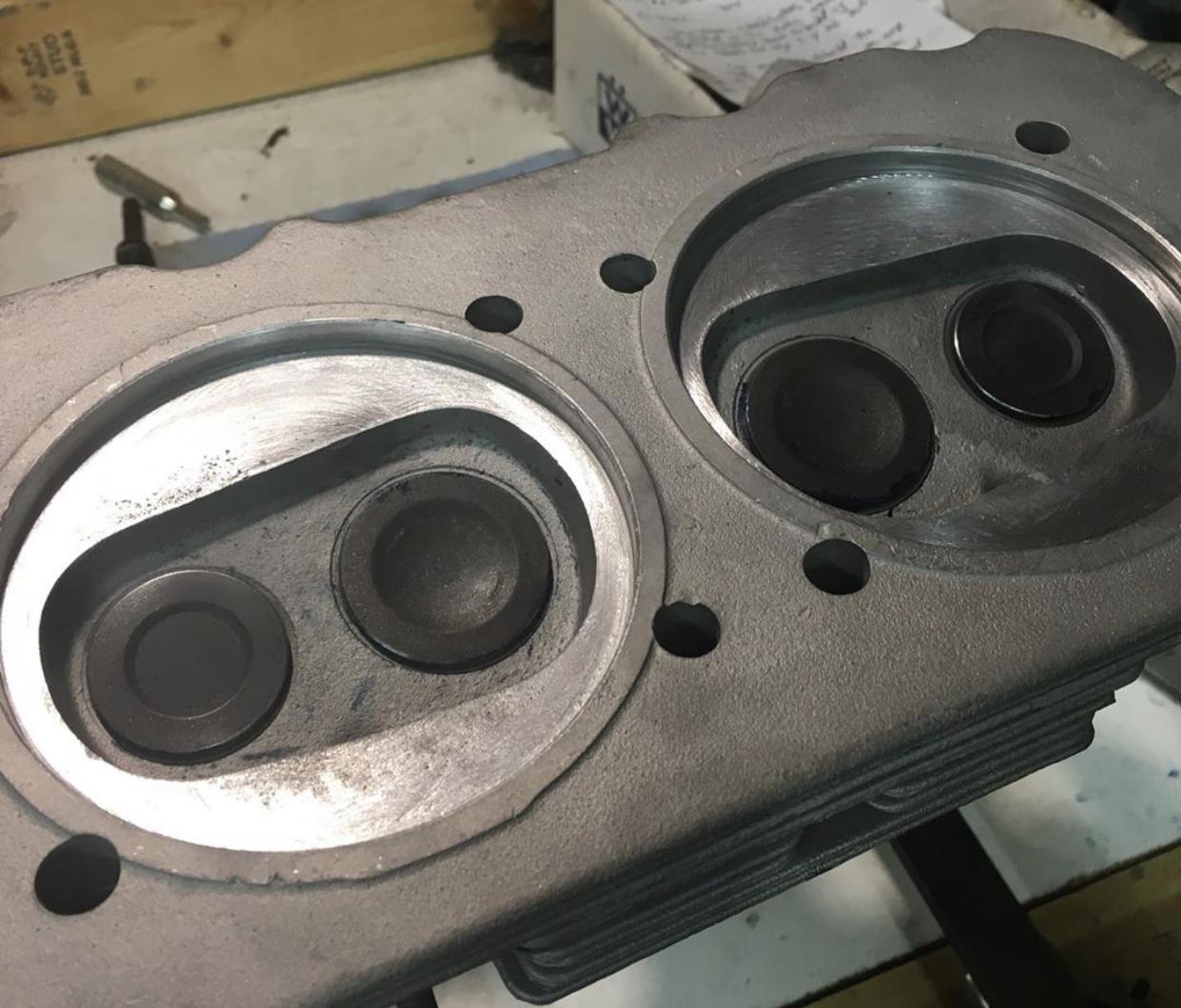

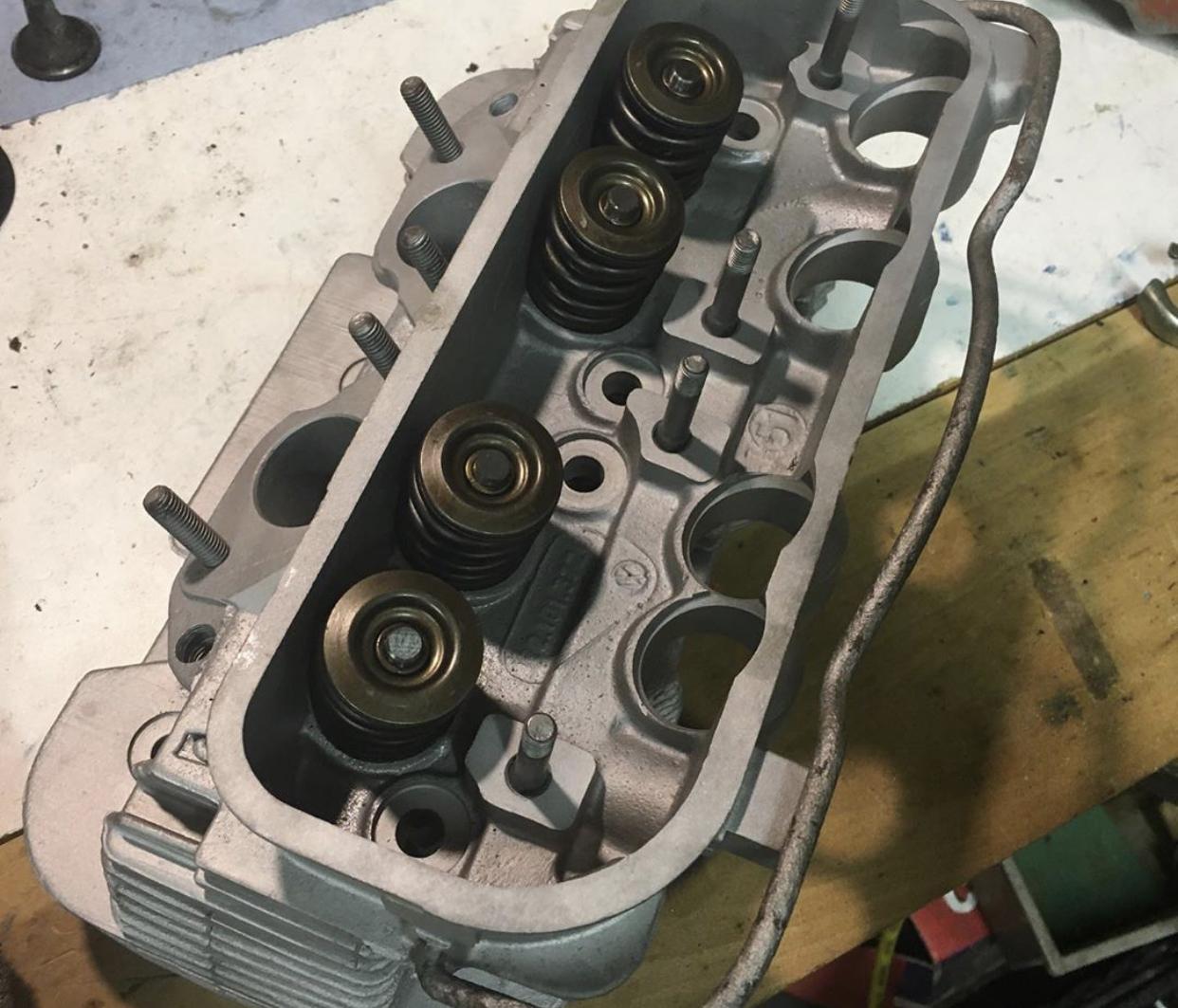

Been working on the motor for a little bit and I was able to install the pistons and cylinders this weekend. they are all mocked up and now Iím just ready to clean the heads and install those next. A little progress... getting there.

Pistons and cylinders are a stock Mahle set. Followed the 1980s or 90s whatever tech bulletin for the head gaskets. They say to remove head gaskets and replace with a .062 shim. I Put a .060 steel shim at the base of the cylinder and gives me a total DH of about .080. Iím happy with that.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
77 Westy - Cape Cod Sage
14 Dieselgate Jetta Wagon
LLAP
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
ToolBox
Samba Member


Joined: January 27, 2004
Posts: 2994
Location: Detroit, where they don't jack parts off my ride in the parking lot of the 7-11
ToolBox is offline

PostPosted: Wed Sep 23, 2020 10:20 am    Post subject: Re: 77 Cape Cod Sage Reply with quote

thewalrus wrote:
I figured you were good... I just wasn't awake enough to remember where else to get them besides BD



Bel-Metric has tons of things you will need and not get dicked around waiting for a drop shipped order to come super late...

https://www.belmetric.com/
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
RalphWiggam
Samba Member


Joined: February 02, 2018
Posts: 754
Location: SouthEast
RalphWiggam is offline

PostPosted: Wed Sep 23, 2020 11:02 am    Post subject: Re: 77 Cape Cod Sage Reply with quote

I dont know if it is going to apply to your situation since you cant properly balance the crank and flywheel without fully stripping it down, but my 94mm Mahles were as much as 4g difference in weight.

Thats a lot of aluminum to try and take out of a piston, so I took it out of the wrist pins with a cone shaped carbide bit.

Might want to check yours. Even if you cant balance the rotating assembly or rods, it would probably still be a good idea to get your pistons as close as you can.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
60vwnewengland
Twin #2


Joined: June 25, 2003
Posts: 1733
Location: District of Columbia & Cape Cod
60vwnewengland is offline

PostPosted: Wed Sep 23, 2020 1:04 pm    Post subject: Re: 77 Cape Cod Sage Reply with quote

RalphWiggam wrote:
I dont know if it is going to apply to your situation since you cant properly balance the crank and flywheel without fully stripping it down, but my 94mm Mahles were as much as 4g difference in weight.

Thats a lot of aluminum to try and take out of a piston, so I took it out of the wrist pins with a cone shaped carbide bit.

Might want to check yours. Even if you cant balance the rotating assembly or rods, it would probably still be a good idea to get your pistons as close as you can.


Thanks for the heads up. Itís all put together now and I donít want to take it apart Iím just gunna roll with them. This isnít a daily driver or anything heavy duty. Iíd rather this than cheap-o AA Chinese pistons and cylinders.
_________________
77 Westy - Cape Cod Sage
14 Dieselgate Jetta Wagon
LLAP
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
fez68
Samba Member


Joined: December 12, 2015
Posts: 167
Location: massachusetts
fez68 is offline

PostPosted: Sat Sep 26, 2020 6:02 am    Post subject: Re: 77 Cape Cod Sage Reply with quote

nice score man!! my friend lives in brewster ,right down the road from where you picked that up. I have a 68 westy up in ipswich. building a 1776 right now for it. looking forward to seeing you get this on the road.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
60vwnewengland
Twin #2


Joined: June 25, 2003
Posts: 1733
Location: District of Columbia & Cape Cod
60vwnewengland is offline

PostPosted: Sat Sep 26, 2020 7:26 pm    Post subject: Re: 77 Cape Cod Sage Reply with quote

Busy working full time and busy taking two classes for my masters. Spent a lot of time researching data analytics and predictive policing for my data science class.... but I did have time to clean the heads one last time and install those on the motor before making dinner.

I just got the heads rebuilt with new valves and cleaning. Nothing crazy. They were in great shape so I figured Iíd keep them in service. Were rebuilt by Monkey Nut in NC. They did a good job. Sent back with the rusty exhaust studs... which I thought would have been replaced during rebuild. Anyways, I got my hands on some studs, double nutted them and a little heat and replaced them and was good to go.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Heads installed:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Tomorrow ill try to get the deflector tin on during a break from my research paper.
_________________
77 Westy - Cape Cod Sage
14 Dieselgate Jetta Wagon
LLAP
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5  Next
Page 3 of 5


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
