| Author |
Message |
King_vw61
Samba Member
Joined: February 03, 2018
Posts: 1386
Location: Southern California
|
 Posted: Sun Nov 29, 2020 9:19 pm Post subject: Re: 1/4 Mile Results with Mild Stroker |
 |
|

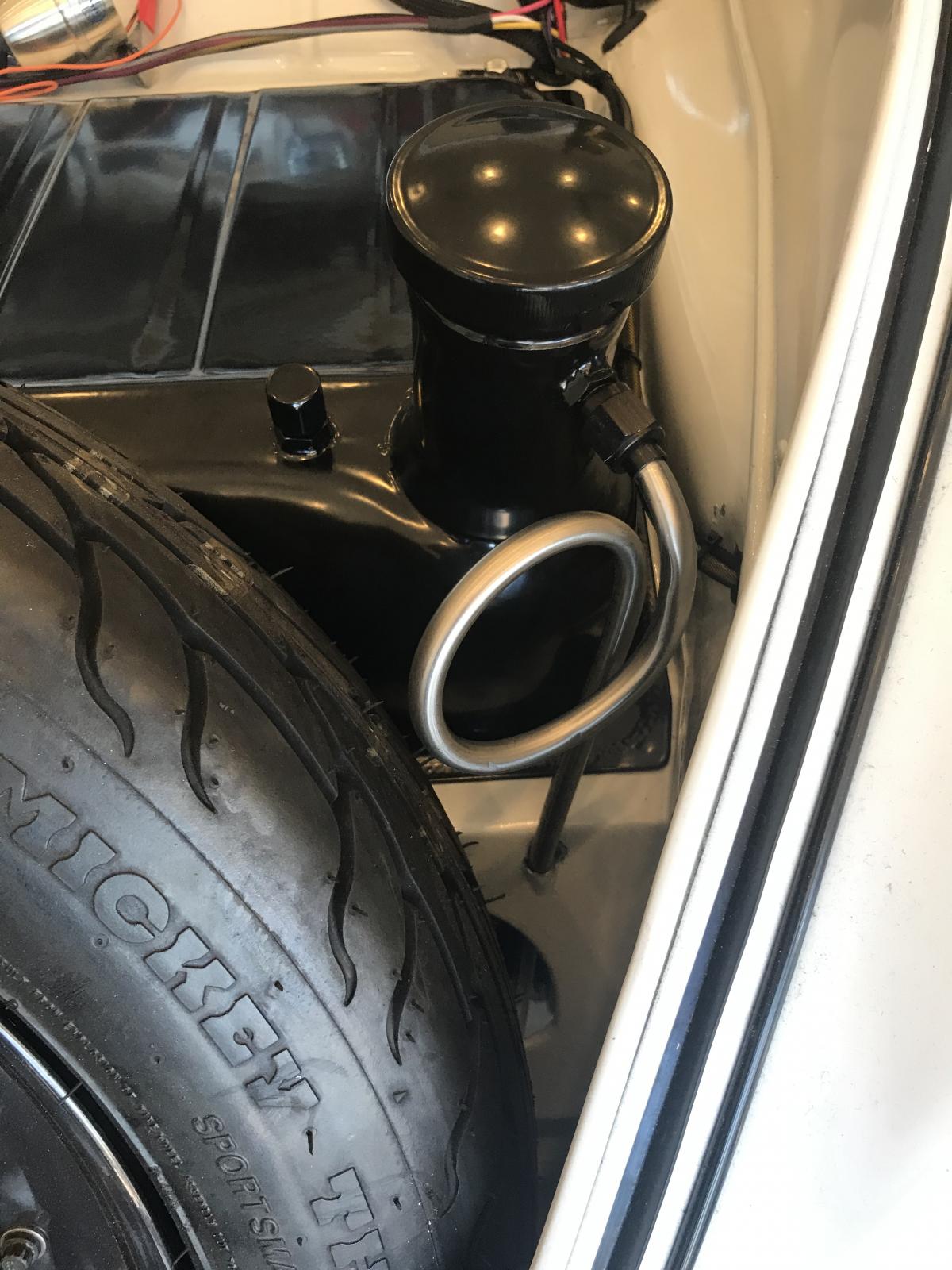

My 61 tank had the vent on the filler neck. We made it a -6 when the tank was new. I did a stainless pig tail and vented it down to the ground
_________________
1961 Ragtop, Autocraft 2783cc for street/strip 10k miles and counting...230.84 HP to the wheels thru Muffler 13.4 to 1 on E85
https://www.instagram.com/king_vw61/?hl=en |
|
| Back to top |
|
 |
RickS
Samba Member
Joined: May 05, 2005
Posts: 603
Location: Speonk, NY
|
| Posted: Mon Nov 30, 2020 5:10 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
| If any fuel sloshes into that vent it will get trapped at the bottom of the pigtail. It will not take much to block off the air from passing, just like a plumbing p-trap. |
|
| Back to top |
|
|
GARRICK.CLARK
Samba Member
Joined: June 30, 2012
Posts: 1268
Location: Lancashire UK
|
| Posted: Mon Nov 30, 2020 6:19 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
When I fit a tank, I don't fit those in tank screens on the end of the pipe. Let a good filter do the job.
I fitted a CB return to tank fitting as an outlet. Granted, mine is a return to tank system but you could block one of the ports and just use it as an out let. It enables me to use a 13mm barb fitting and 13mm pipe to feed the pump. There is a filter before the pump so very little restriction before the pump takes over. Fuel cap is vented 13mm too.
Last edited by GARRICK.CLARK on Mon Nov 30, 2020 10:10 am; edited 1 time in total |
|
| Back to top |
|
|
HotStreetVw
Samba Member
Joined: October 03, 2004
Posts: 871
Location: Wild West
|
| Posted: Mon Nov 30, 2020 10:08 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
I welded a -8 fitting to the filler neck similar to King, but used a Jaz roll over valve.
https://www.jegs.com/i/JAZ-Products/547/834-208-06/10002/-1
Jeff, what size vents are you running?
_________________
4inBhore
50 Split - 2724cc NA. Haltech injected
62 Notchback - 2542cc Turbo WIP |
|
| Back to top |
|
|
jpaull
Samba Member
Joined: February 22, 2005
Posts: 3648
Location: Paradise, Ca
|
| Posted: Mon Nov 30, 2020 9:19 pm Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
| GARRICK.CLARK wrote: |
| Hey Jp what's the fuel ratio with WOT at the end of the track. Running out of fuel at the end will show it go super lean on the gauge. |
I made a mistake when I only answered your question with just the 1 answer. I should have also mentioned that its not just at the end of the track in 4th gear, its in every other gear also starting at 4k like clockwork as its a carb tuning issue, not fuel supply to carbs or venting. But it was cool never the less to get some ideas from you, ivkings and Hotstreet
Every gear goes like this:
idles 13:1 to 2500rpms then 11-12:1 mains(170 with F2) to 4k and airs 13.8-14:1(1.7) from 4k and up.
My 4k up is lean, but it started at 15.8 when I first put the wideband on and I worked the airs down from 2.0 to 1.7 |
|
| Back to top |
|
|
vwracerdave
Samba Member
Joined: November 11, 2004
Posts: 15601
Location: Deep in the 405
|
| Posted: Mon Nov 30, 2020 9:37 pm Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
try some F-11 tubes.
_________________
2017 Street Comp Champion - Thunder Valley Raceway Park - Noble, OK
2010 Sportsman ET Champion - Mid-America Dragway - Arkansas City, KS
1997 Sportsman ET Champion - Thunder Valley Raceway Park - Noble ,OK |
|
| Back to top |
|
|
jpaull
Samba Member
Joined: February 22, 2005
Posts: 3648
Location: Paradise, Ca
|
| Posted: Mon Nov 30, 2020 10:03 pm Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
Thanks David, I will give those F11s a try.
Hotstreet, I had 36 vents in before, and went to 38s and it really liked those. Has the same bottom end as the 36s but pulls even harder above 4500 with the 38s. I have notwanted to try 40s unless i get more cam, and something larger then my current 1 5/8 exhaust. Worried I might lose some streetability. what say you? |
|
| Back to top |
|
|
jpaull
Samba Member
Joined: February 22, 2005
Posts: 3648
Location: Paradise, Ca
|
| Posted: Mon Nov 30, 2020 10:10 pm Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
| Had our #3 Child just a few hours ago. Esther Paull is healthy and doing well. When we found out she was gonna be a girl, we thought of one of the most inspiring books in the bible for women(while also hoping she will someday inspire others), and also thought maybe, just maybe, she might join the ranks of wonderful women that have contributed to High Performance VWs in some capacity. |
|
| Back to top |
|
|
fl59bug
Samba Member
Joined: November 23, 2005
Posts: 2072
Location: North Carolina
|
| Posted: Mon Nov 30, 2020 10:13 pm Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
| Congratulations to you, your wife and new daughter Jeff. All the best to you all! |
|
| Back to top |
|
|
Wreck
Samba Member
Joined: July 19, 2014
Posts: 1315
Location: Brisbane
|
| Posted: Mon Nov 30, 2020 10:31 pm Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
| Congratulations , happy to hear all went well and Mum and daughter are healthy and well . |
|
| Back to top |
|
|
57BLITZ
Samba Member
Joined: June 12, 2012
Posts: 2392
Location: DEEK - U.S.A.
|
| Posted: Tue Dec 01, 2020 12:28 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
Congratulations to one cool daddy!!!
_________________
Jesucristo es mi Señor y Salvador! |
|
| Back to top |
|
|
calvinater
Samba Member
Joined: September 06, 2014
Posts: 3588
Location: 802 The Pointless Forrest
|
| Posted: Tue Dec 01, 2020 4:33 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
Let us know when you get Esther on the dyno.
Congrats, three kids are the best.
"Will you stop touching me!"
_________________
"Albatross"! |
|
| Back to top |
|
|
madmike
Samba Member
Joined: July 11, 2005
Posts: 5300
Location: Atlanta,Michigan
|
| Posted: Tue Dec 01, 2020 5:02 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
Congrates , I have a 1 3/4 header collecting dust
_________________
'Black Ice'Drag Buggy 'Turbo'
Rail Buggy 1915 turbo
76 Drag/Street bug 2180cc 'Turbo' 11:85 @113 mph"If I go any faster I'll burn up the Hamster" ,gets 28 mpg. also 10/09/22 11.90 @115 mph
"If I'm ever on Life Support,UNPLUG Me, Then Plug me back In see if that Works" |
|
| Back to top |
|
|
jpaull
Samba Member
Joined: February 22, 2005
Posts: 3648
Location: Paradise, Ca
|
| Posted: Tue Dec 01, 2020 5:08 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
Thank you Mark, Calvinator, fl59, Wreck, and MadMike I will PM you on that header   |
|
| Back to top |
|
|
Bigjacksauto
Samba Member
Joined: June 18, 2018
Posts: 225
Location: Syracuse NY
|
| Posted: Tue Dec 01, 2020 5:42 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
Congratulations Jeff!
_________________
https://www.facebook.com/groups/2778888602388847/?ref=share
1968 Beetle "Herbie" replica Father Son Project
1960 Beetle deluxe / Flint/Pebble Grey og 1200cc 36hp
1975 Westfalia bus sold
1967 SO 42 Westfalia Bus
(o\_!_/o) |
|
| Back to top |
|
|
GARRICK.CLARK
Samba Member
Joined: June 30, 2012
Posts: 1268
Location: Lancashire UK
|
| Posted: Tue Dec 01, 2020 6:12 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
| Congrats Jeff and family |
|
| Back to top |
|
|
[email protected]
Samba Member
Joined: May 17, 2003
Posts: 4876
Location: Harmony, PA
|
| Posted: Tue Dec 01, 2020 6:56 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
| jpaull wrote: |
| GARRICK.CLARK wrote: |
| Hey Jp what's the fuel ratio with WOT at the end of the track. Running out of fuel at the end will show it go super lean on the gauge. |
I made a mistake when I only answered your question with just the 1 answer. I should have also mentioned that its not just at the end of the track in 4th gear, its in every other gear also starting at 4k like clockwork as its a carb tuning issue, not fuel supply to carbs or venting. But it was cool never the less to get some ideas from you, ivkings and Hotstreet
Every gear goes like this:
idles 13:1 to 2500rpms then 11-12:1 mains(170 with F2) to 4k and airs 13.8-14:1(1.7) from 4k and up.
My 4k up is lean, but it started at 15.8 when I first put the wideband on and I worked the airs down from 2.0 to 1.7 |
This is where a lot fall short of not using any type of a/f gauge. If you don’t know, you don’t know. You can’t tune what you don’t know.
Glad all is well with the baby. Congratulations! |
|
| Back to top |
|
|
Lingwendil
Samba Member
Joined: February 25, 2009
Posts: 3999
Location: Antioch, California, a block from the hood
|
|
| Back to top |
|
|
Chickensoup
Samba Member
Joined: January 06, 2018
Posts: 5395
Location: Good Hope, GA
|
| Posted: Tue Dec 01, 2020 7:23 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
congrajimitations sir!
_________________
-'85 c10 5.3 LS, cam, heads, long tubes, x pipe, 3 inch spin tech's
-'01 e46 325ci *tree modded
-'05 B5.5 TDI Wagon 17in sport rims ;EGR + BSM + ASV Delete, Stage-2 Tune, straight pipe
'65 Tourist Delivery Build
'66 RIP
Last edited by Chickensoup on Tue Dec 01, 2020 8:14 am; edited 1 time in total |
|
| Back to top |
|
|
c77owen
Samba Member
Joined: July 07, 2017
Posts: 455
Location: Kansas City, MO
|
| Posted: Tue Dec 01, 2020 8:12 am Post subject: Re: 1/4 Mile Results with Mild Stroker |
|
|
| Congrats Jeff! Great choice in name and I love the reasoning! |
|
| Back to top |
|
|
|
