PostPosted: Fri Jul 08, 2016 8:59 pm    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

damn that is so tempting. I love the idea of stock reliability but added fun. Is 1800 the price for me to take my stock 1500sp, and slap the kit on and drive?
_________________
its not about what you say you will do oneday, its what you do today that actualy means something.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Joel Mohr
Samba Member


Joined: March 07, 2002
Posts: 266
Location: High Desert SoCal
Joel Mohr is offline

PostPosted: Thu Jul 14, 2016 10:48 am    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

Pretty much! The kit doesn't come with a locked out 009, but other than that, It doesn't require any other parts. The turbos went up though, and the kit is now 1900....throttle cable for a bug, header, rebuilt Kadron pre-jetted, intake, boots, clamps...as you see in the pics...
_________________
SEE YOU AT THE RACES!!!!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Joel Mohr
Samba Member


Joined: March 07, 2002
Posts: 266
Location: High Desert SoCal
Joel Mohr is offline

PostPosted: Tue Jul 19, 2016 9:24 am    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

Just finished dyno tuning a 1915 with our kit, 200 HP 220 TQ...small cam and some head work...
_________________
SEE YOU AT THE RACES!!!!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Striker27
Samba Member


Joined: September 29, 2016
Posts: 22
Location: Windsor
Striker27 is offline

PostPosted: Thu Sep 29, 2016 9:15 pm    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

Where can you get one of these kits? How much are they?
Back to top
View user's profile Send private message Classifieds Feedback
Jjackson27
Samba Member


Joined: October 29, 2016
Posts: 78
Location: Sacramento
Jjackson27 is offline

PostPosted: Fri Nov 04, 2016 7:26 pm    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

Okay so this is my first post here, i have a vanagon and a bug. The buggy is in need of more power and turbo is the route im taking. I saw the list of items needed for the turbo set up and was wondering if anyone could give me a full rundown on where to get the items, how to install, etc.

Thanks alot
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Joel Mohr
Samba Member


Joined: March 07, 2002
Posts: 266
Location: High Desert SoCal
Joel Mohr is offline

PostPosted: Fri Nov 11, 2016 8:52 am    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

I'm sold out on the kits, but with enough interest, I'll make more...BTW, just built a 1672 (65 x 90.5) for my Puma, 211 TQ, 185 HP...11 PSI, pump gas...
_________________
SEE YOU AT THE RACES!!!!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
56vvdubb
Samba Member


Joined: November 08, 2009
Posts: 1

56vvdubb is offline

PostPosted: Thu Aug 09, 2018 12:43 am    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

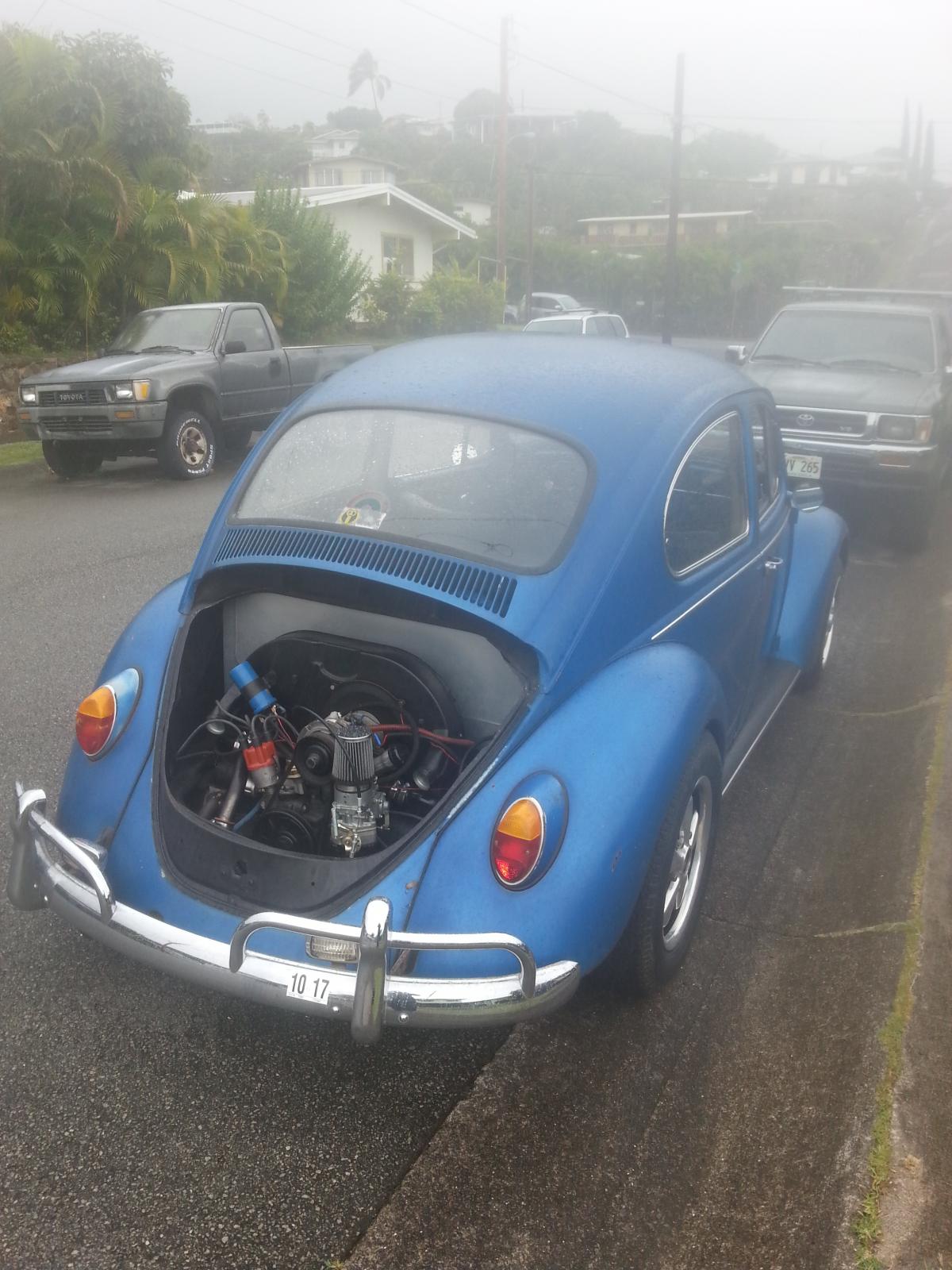

Aloha guys, here is an update to this thread. Here is a Joel Mohr turbo set up on a Stock 1600SP engine built by Billy Manely (here on the Samba). Street driven on 9lbs. of boost. Not sure about the HP, did not dyno the car. I have driven the car roughly 1000 miles and no issues with oiling that I know of, I have the top of the decklid popped for additional cooling while driving. I will be putting on a CHT gauge and Oil temp dipstick to monitor. I really just drive regularly and cruise hardly on boost. It is only when you need or want boost that is comes on. At 4000 rpm in 3rd gear pushing 9lbs. of boost is great fun. MPG's right now hover around 17mpg with the current jetting. I am sure that is because of my heavy foot and an increase in HP. I ordered the kit straight from Mohr performance and added the 09 distributor locked out. The kit has everything to "Bolt on". I will be ordering another kit for my bus when it is ready.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
madmike
Samba Member


Joined: July 11, 2005
Posts: 3819
Location: Atlanta,Michigan
madmike is offline

PostPosted: Thu Aug 09, 2018 3:47 am    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

Cool Cool
_________________
65 Baja (sold)
68 VolksRod Coupe(sold)
Porsche/Laser 917(sold)
'Black Ice'Drag Buggy 1915 'Turbo'
Mid-Engine Dragster 2332 w/IDA's(gone)
'White Out' 76 Drag/Street bug 2276 'Turbo' 11:85 @113 MPH
70 MicroBus 2110 w/40 IDF's
I build my own Motor's & transmission's
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bj
Samba Member


Joined: April 09, 2003
Posts: 111

bj is offline

PostPosted: Thu Aug 09, 2018 8:40 am    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

56vvdubb wrote:
Aloha guys, here is an update to this thread. Here is a Joel Mohr turbo set up on a Stock 1600SP engine built by Billy Manely (here on the Samba). Street driven on 9lbs. of boost. Not sure about the HP, did not dyno the car. I have driven the car roughly 1000 miles and no issues with oiling that I know of, I have the top of the decklid popped for additional cooling while driving. I will be putting on a CHT gauge and Oil temp dipstick to monitor. I really just drive regularly and cruise hardly on boost. It is only when you need or want boost that is comes on. At 4000 rpm in 3rd gear pushing 9lbs. of boost is great fun. MPG's right now hover around 17mpg with the current jetting. I am sure that is because of my heavy foot and an increase in HP. I ordered the kit straight from Mohr performance and added the 09 distributor locked out. The kit has everything to "Bolt on". I will be ordering another kit for my bus when it is ready.


can't wait to drive it!! Very Happy
Back to top
View user's profile Send private message Classifieds Feedback
Dr OnHolliday
Samba Member


Joined: May 11, 2012
Posts: 1215
Location: was Escondido now San Berdoo
Dr OnHolliday is offline

PostPosted: Thu Aug 09, 2018 11:23 am    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

Kool stuff. I wouldn't run a turbo without a welded and balanced fan, tho.
_________________
1965 Type 1 sunroof Baja / about 70k miles on self-rebuilt '74 1600 and counting / SP heads and aftermarket valve keepers / non-doghouse shroud with external cooler and filter / 1.5 qt extended sump / Weber 32/36 DFAV progressive carb / 009 dist with Pertronix / 1.25 ratio rockers and ball adjusters / 1.5" stainless steel J-pipes and carbon steel baja exhaust
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TheViking
Samba Member


Joined: March 04, 2016
Posts: 278
Location: Norway
TheViking is offline

PostPosted: Thu Aug 09, 2018 4:28 pm    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

Dr OnHolliday wrote:
Kool stuff. I wouldn't run a turbo without a welded and balanced fan, tho.

Why is that? Stock pulley setup slips at 4500 rpm?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Dauz
Samba Member


Joined: January 05, 2010
Posts: 1419
Location: San Marcos
Dauz is offline

PostPosted: Thu Aug 09, 2018 4:33 pm    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

Welded and balanced fans are a necessity based off revolutions per minute. Not forced induction (or lack therof).
Back to top
View user's profile Send private message Gallery Classifieds Feedback
clonebug
Samba Member


Joined: January 29, 2005
Posts: 3454
Location: NW Washington
clonebug is offline

PostPosted: Sun Aug 12, 2018 8:06 am    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

With a turbo you don't need to rev a stock engine past 5000-5500 rpm....if the turbo is sized correctly.

Your mileage is probably due to a rich jetting rather than a heavy foot.
With a draw through you use fuel to keep your intake temps in check to combat detonation.

Get a decent AFR meter and you can tune that engine better.

I recommend the PLX gauge.....no calibrating and very reasonably priced. The gauge will display volts so if you have a voltmeter you can just install it in place of that gauge.
_________________
vwracerdave wrote:

Take a good long look in the mirror and report back on what you see.


Paul.H wrote:
That one line on that chart is probably better info than you can get from this place in a month



My Megasquirt Fuel Injection Turbo Buggy Build
(Now with Water/Alcohol Injection)
Upgraded to MS-2 Extra direct fire wasted spark

http://www.shoptalkforums.com/viewtopic.php?f=3&t=127936
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Joel Mohr
Samba Member


Joined: March 07, 2002
Posts: 266
Location: High Desert SoCal
Joel Mohr is offline

PostPosted: Tue Sep 18, 2018 8:24 am    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

Looks good! Thanks!
_________________
SEE YOU AT THE RACES!!!!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dillon schuh
Samba Member


Joined: July 21, 2003
Posts: 343
Location: Sacramento
dillon schuh is offline

PostPosted: Wed Dec 02, 2020 5:58 pm    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

56vvdubb wrote:
Aloha guys, here is an update to this thread. Here is a Joel Mohr turbo set up on a Stock 1600SP engine built by Billy Manely (here on the Samba). Street driven on 9lbs. of boost. Not sure about the HP, did not dyno the car. I have driven the car roughly 1000 miles and no issues with oiling that I know of, I have the top of the decklid popped for additional cooling while driving. I will be putting on a CHT gauge and Oil temp dipstick to monitor. I really just drive regularly and cruise hardly on boost. It is only when you need or want boost that is comes on. At 4000 rpm in 3rd gear pushing 9lbs. of boost is great fun. MPG's right now hover around 17mpg with the current jetting. I am sure that is because of my heavy foot and an increase in HP. I ordered the kit straight from Mohr performance and added the 09 distributor locked out. The kit has everything to "Bolt on". I will be ordering another kit for my bus when it is ready.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.




is this Kit still available ?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
oprn
Samba Member


Joined: November 13, 2016
Posts: 6705
Location: Canada
oprn is offline

PostPosted: Thu Dec 03, 2020 3:08 pm    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

I love the simplicity of your kits Joel Mohr! And the fact that it all fits under the stock engine cover. By limiting these systems to 10 or 11 psi they are so much more user friendly and yes there is a market out there for less than monster performance. A budget turbo kit is the perfect answer.

I have just finished building a nice 1641 SP with the intent to keep it N/A but you are making it very difficult to keep my resolve!! The only thing I would change is to dump the locked 009 and go with a junkyard crank trigger conversion.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dillon schuh
Samba Member


Joined: July 21, 2003
Posts: 343
Location: Sacramento
dillon schuh is offline

PostPosted: Thu Dec 03, 2020 5:51 pm    Post subject: Re: Homemade Turbo 1600 Single Port recipe, DYNO'ED, NOW T3/T4!! Reply with quote

I have a 1641 DP with a 34 pic
its super reliable but its a dog on the hills
Budget turbo kit needed
