PostPosted: Tue Jan 12, 2021 12:53 pm    Post subject: 1974 Safare Camper Reply with quote

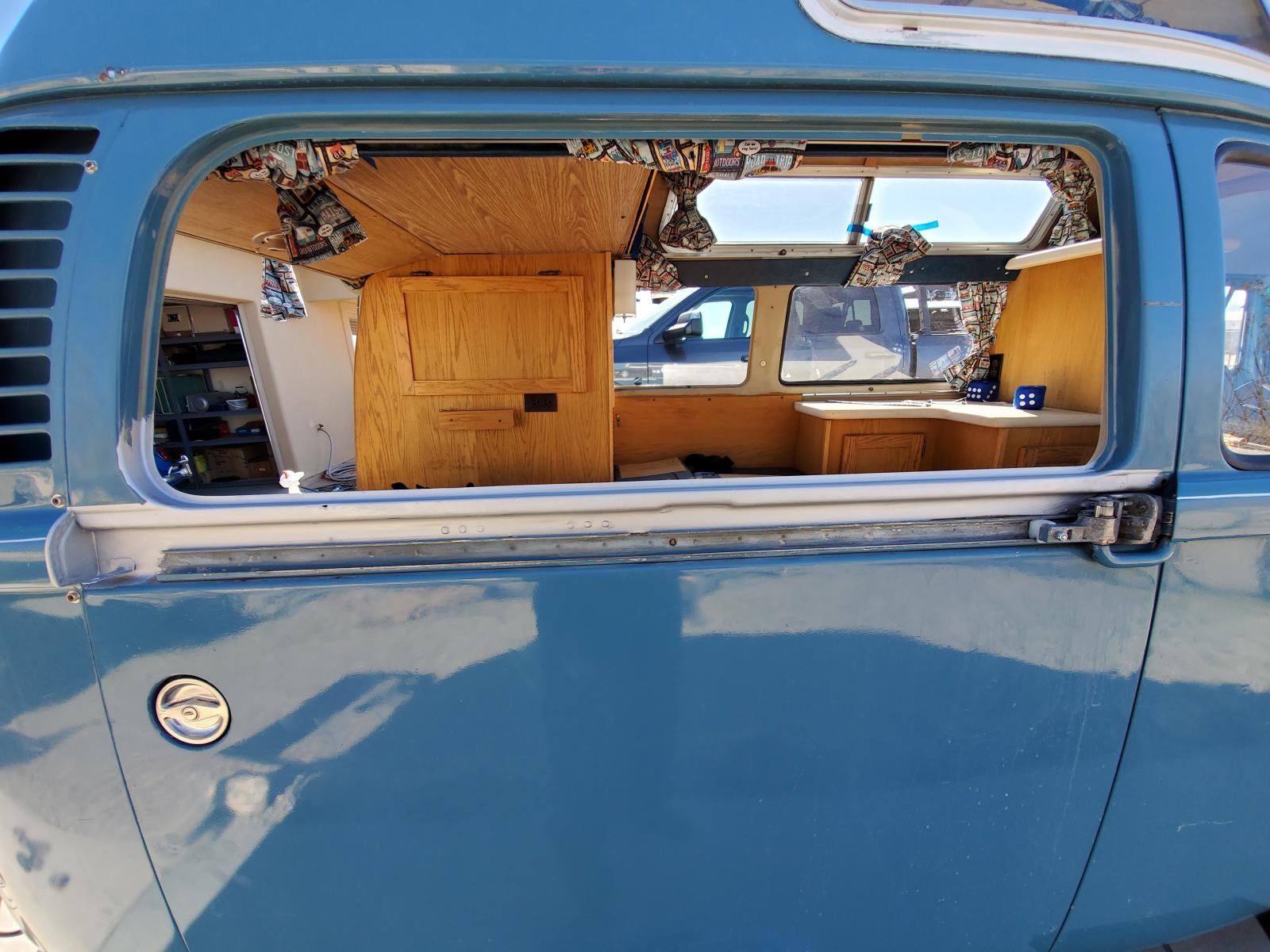

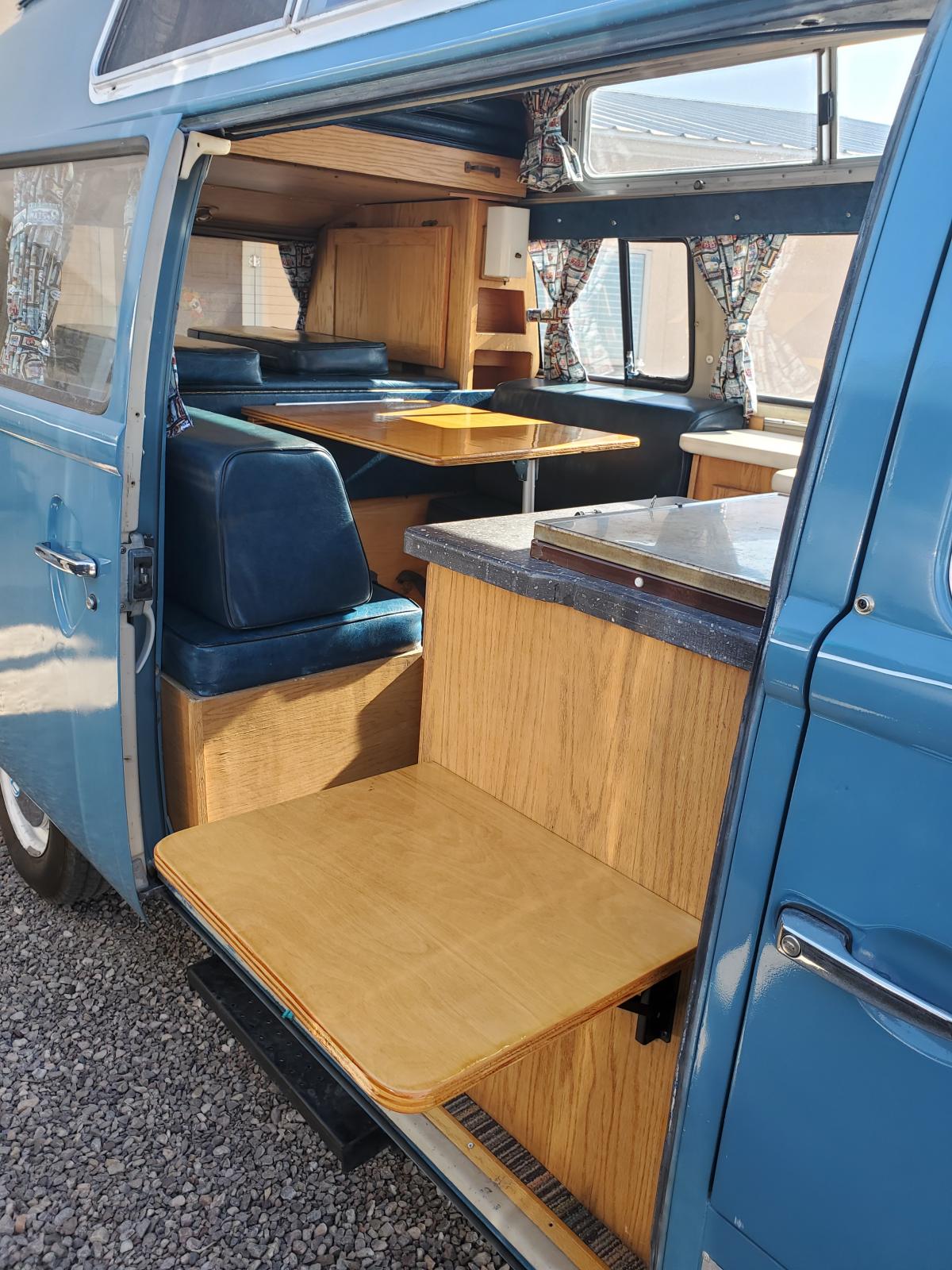

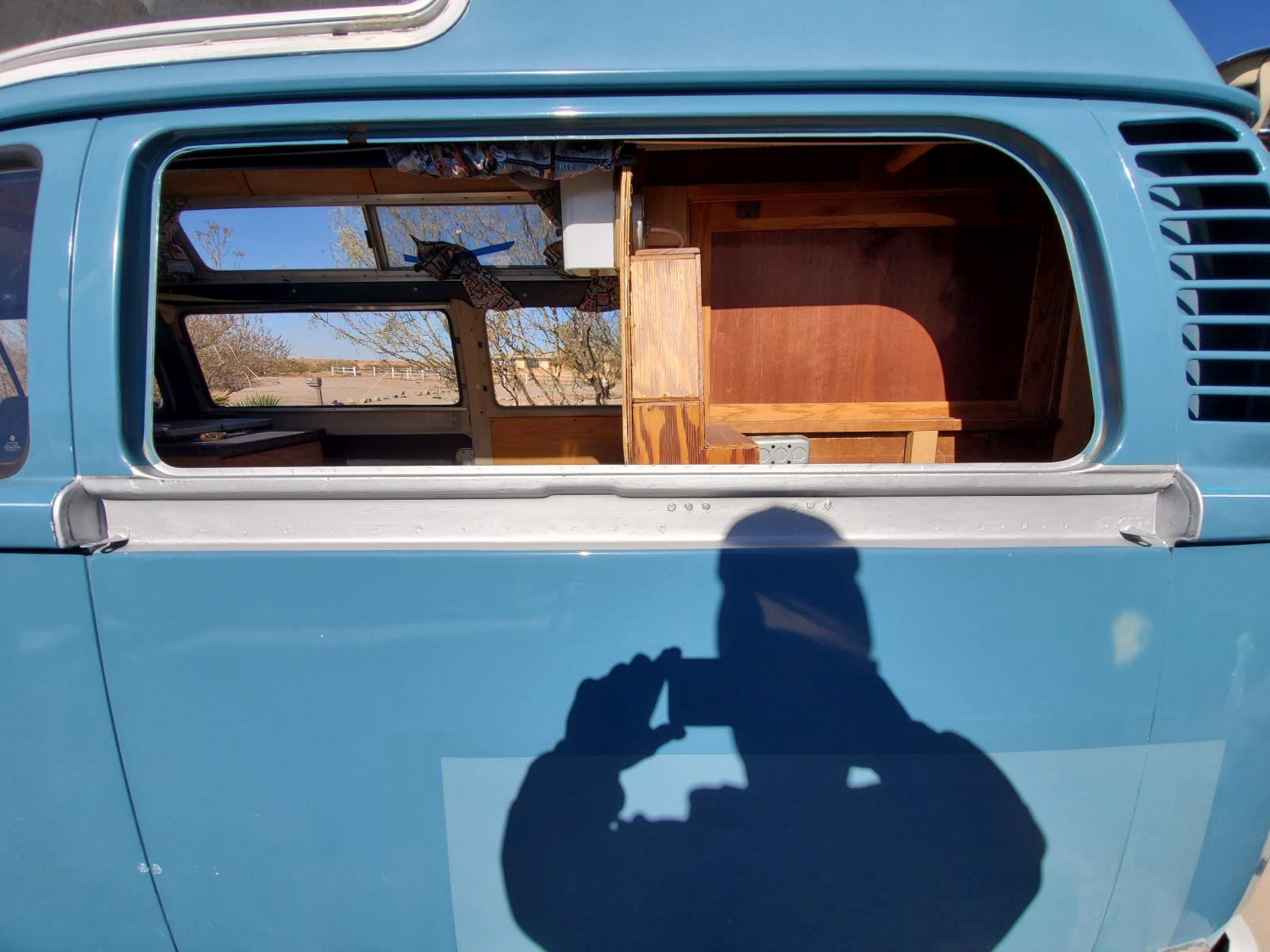

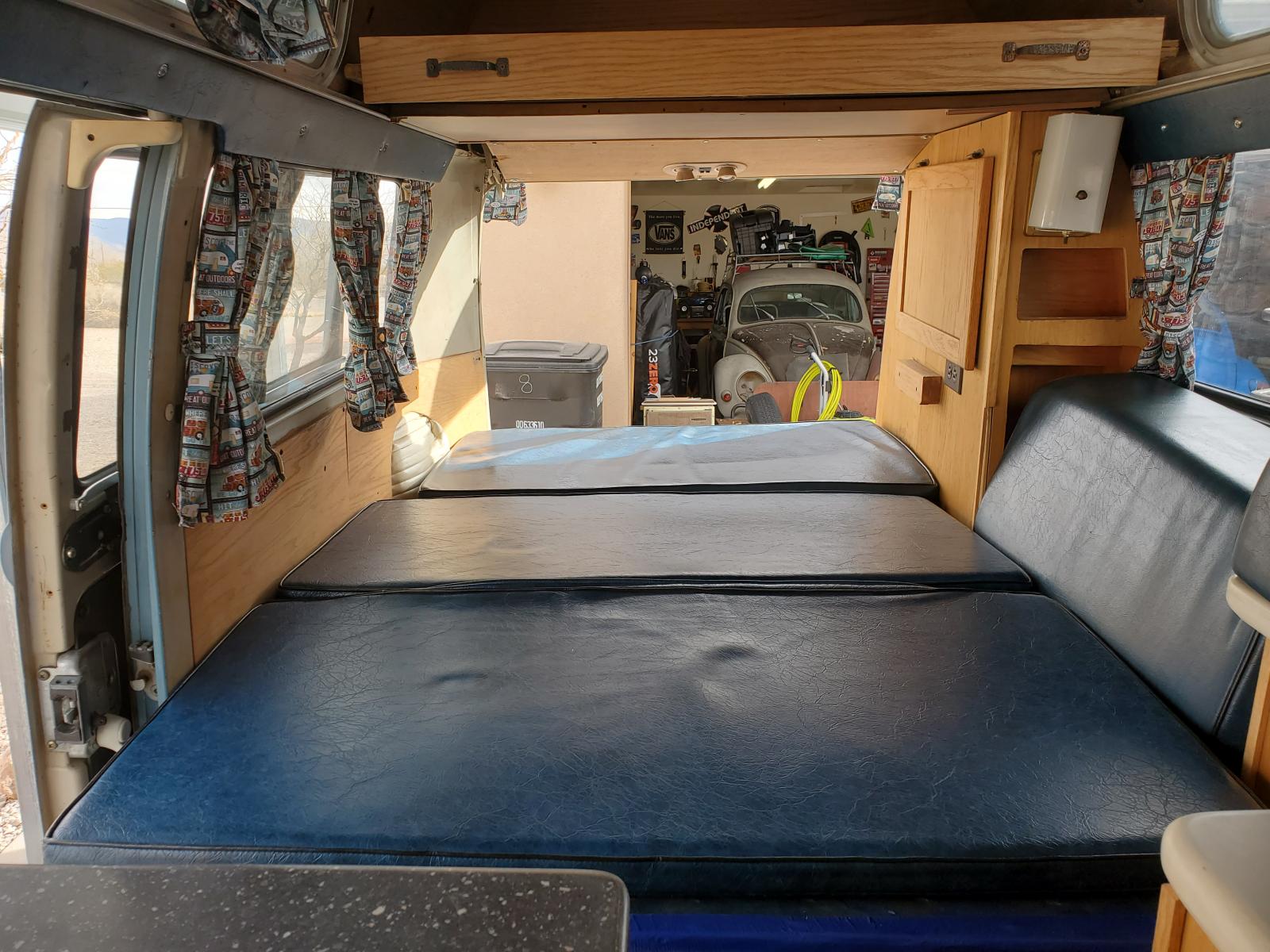

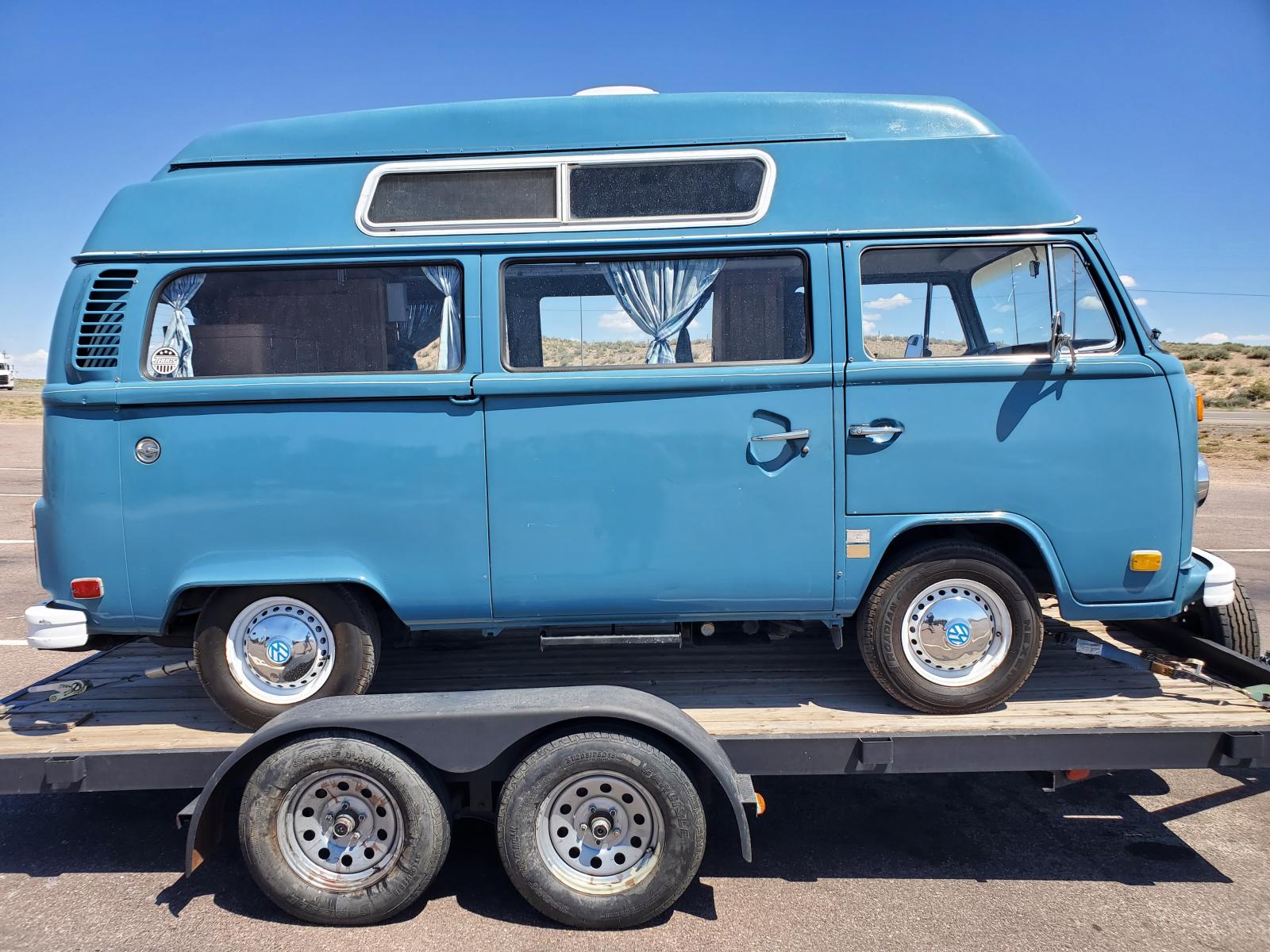

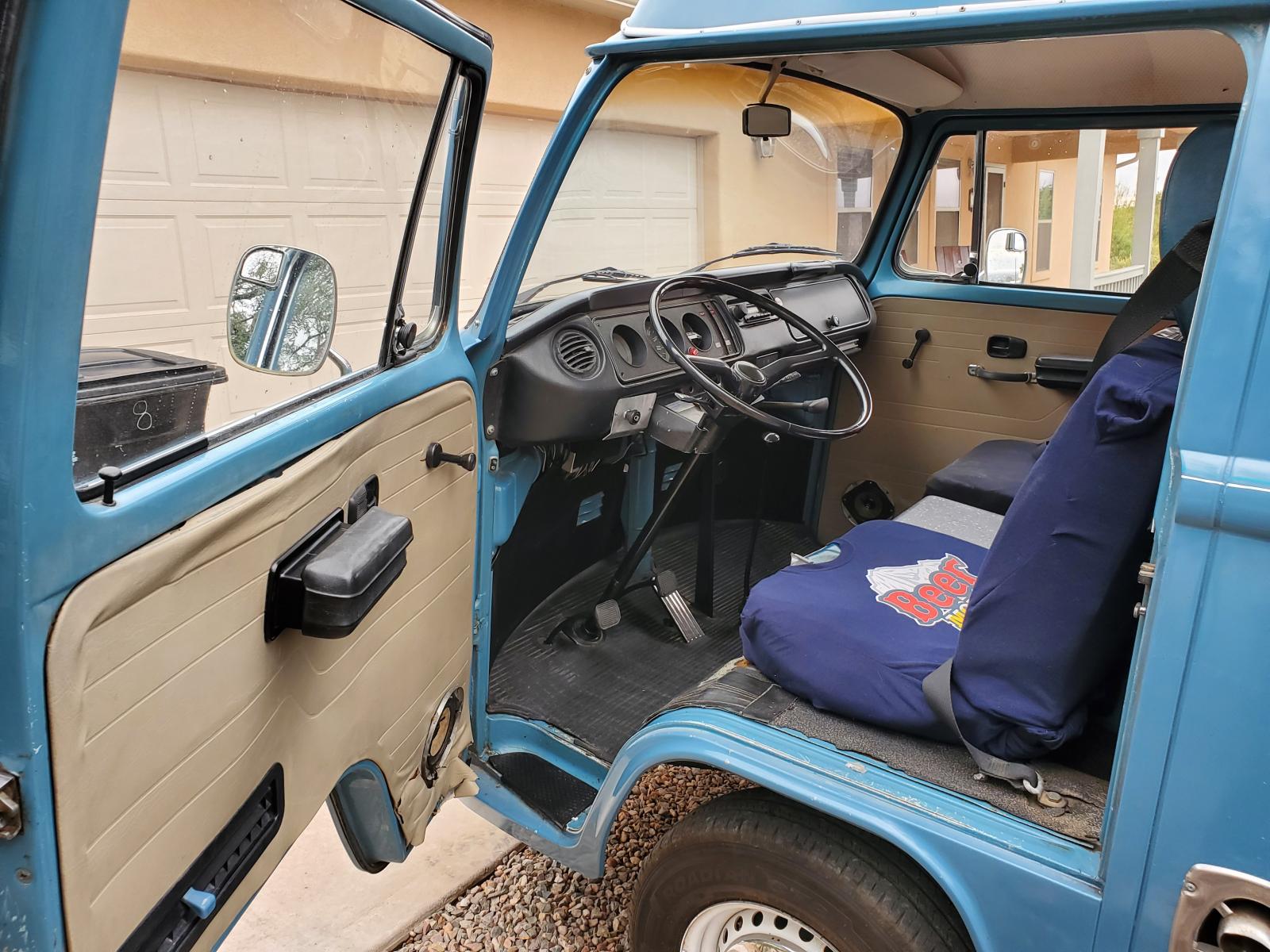

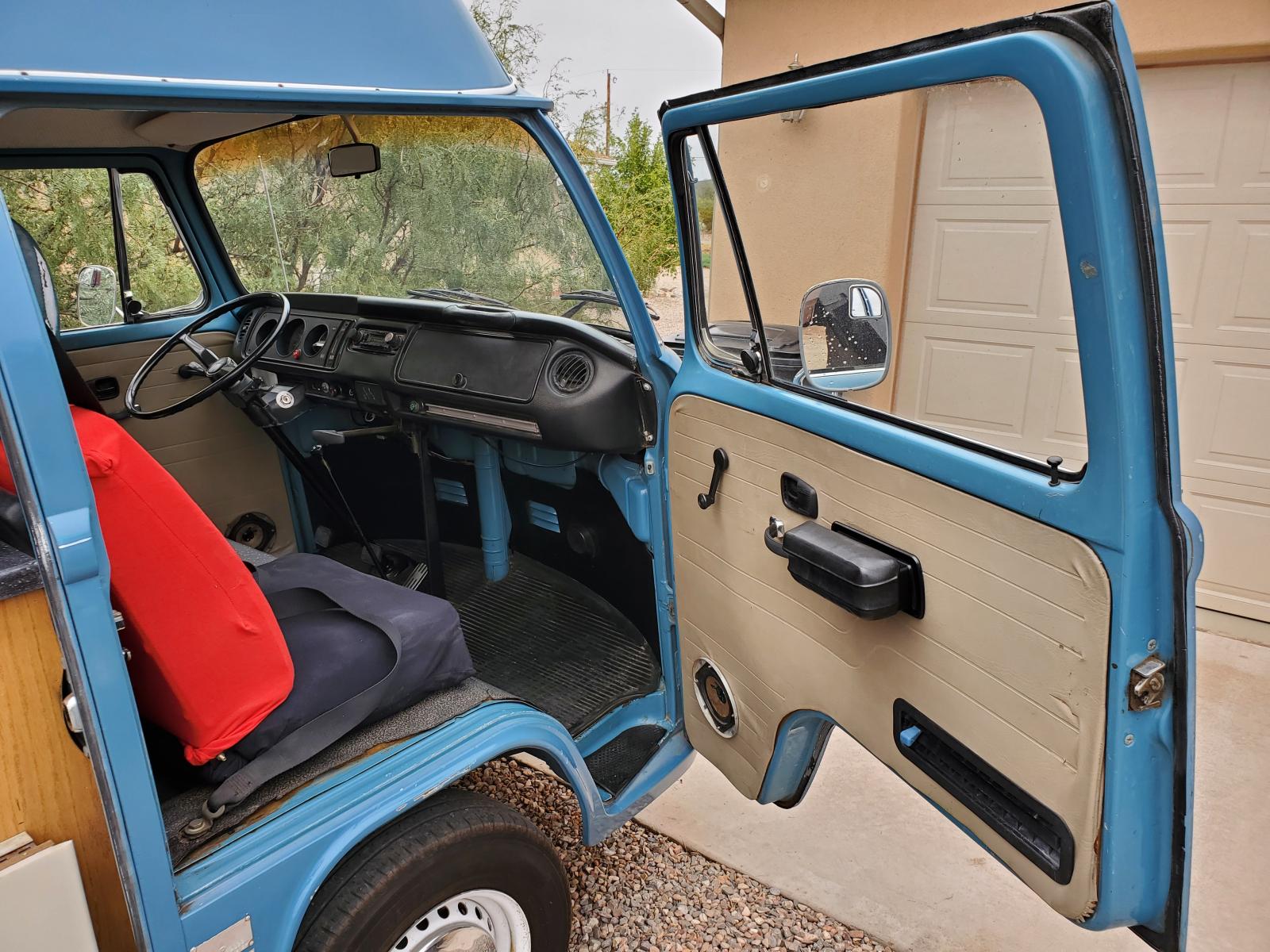

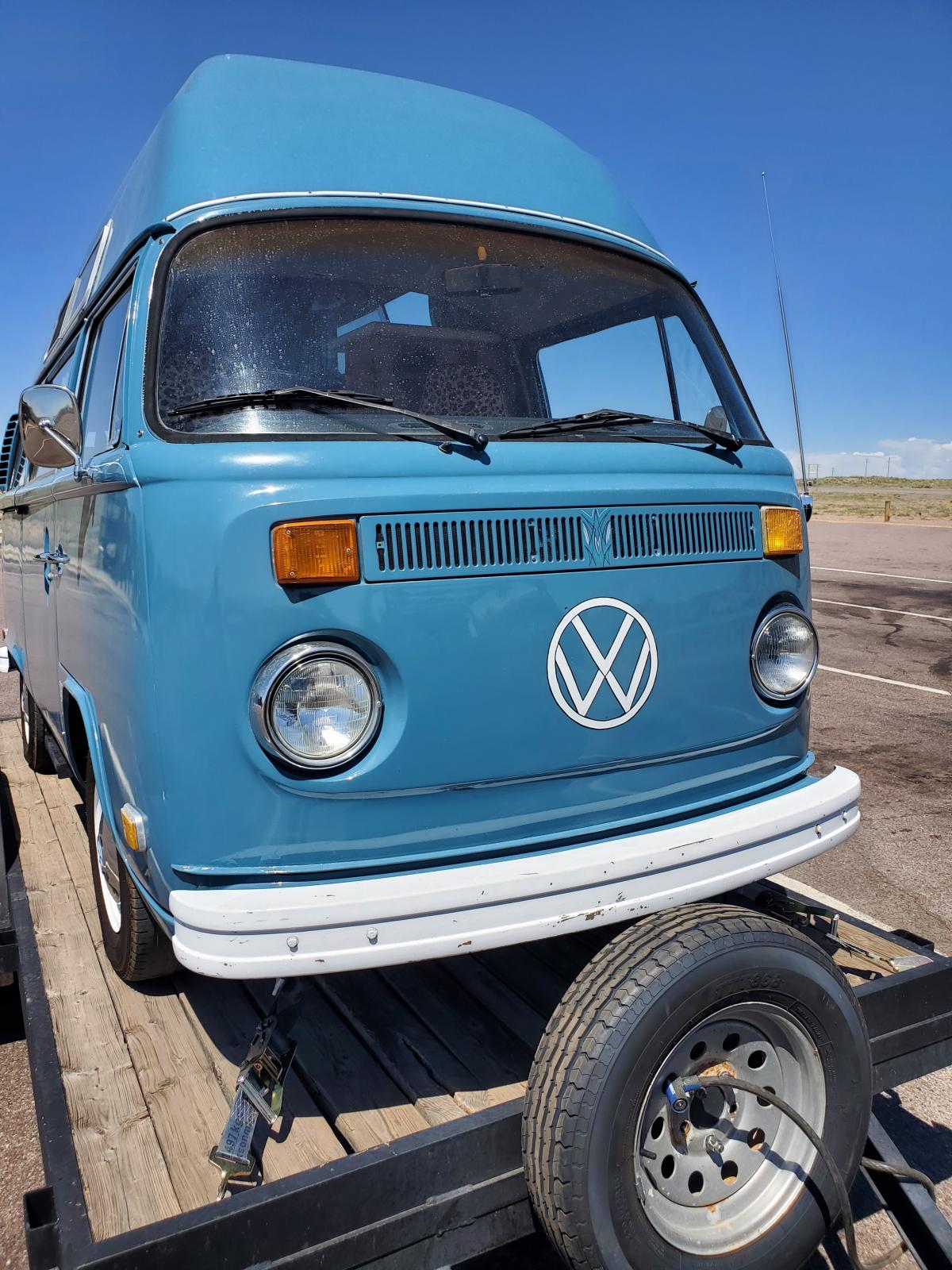

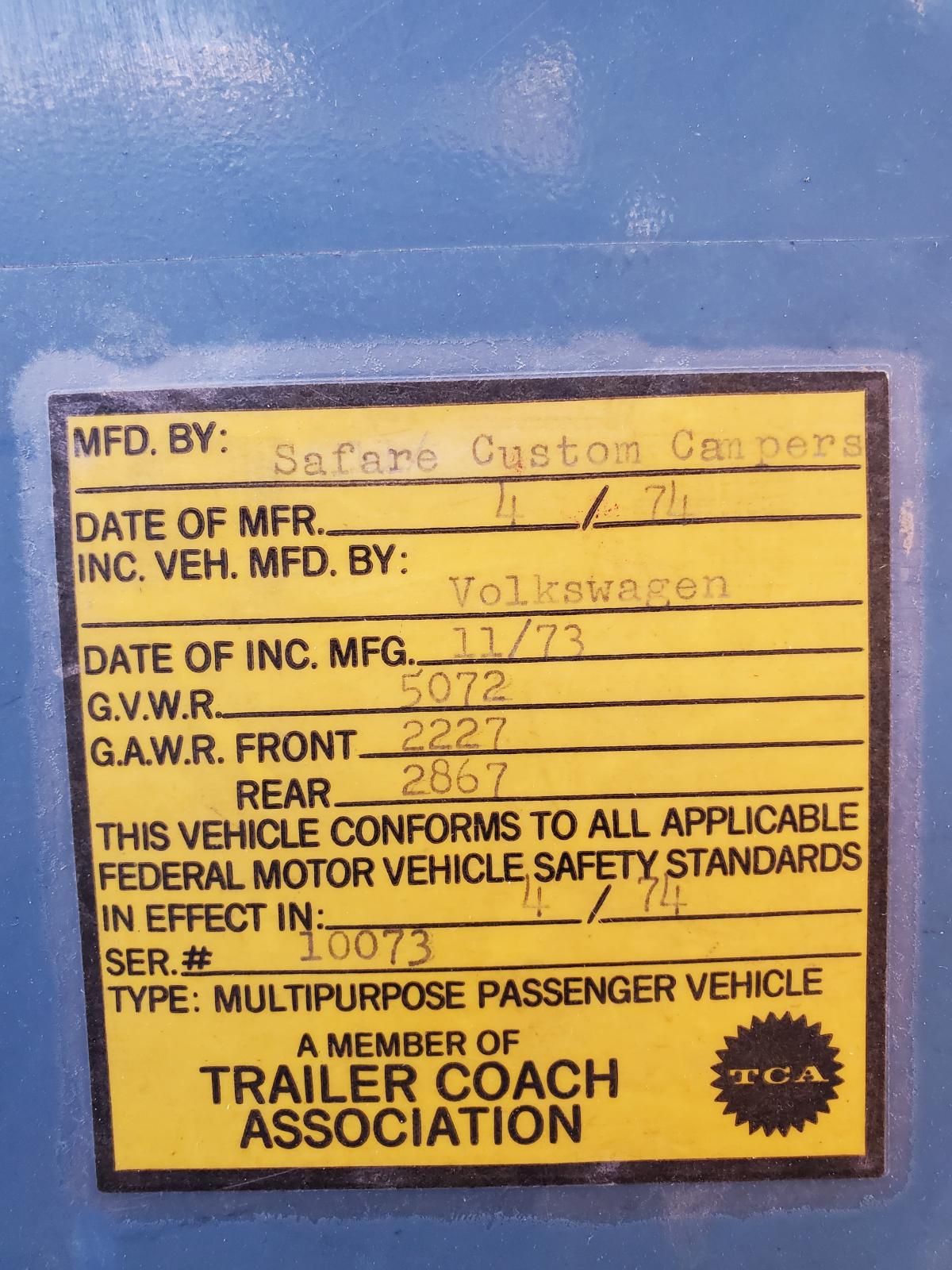

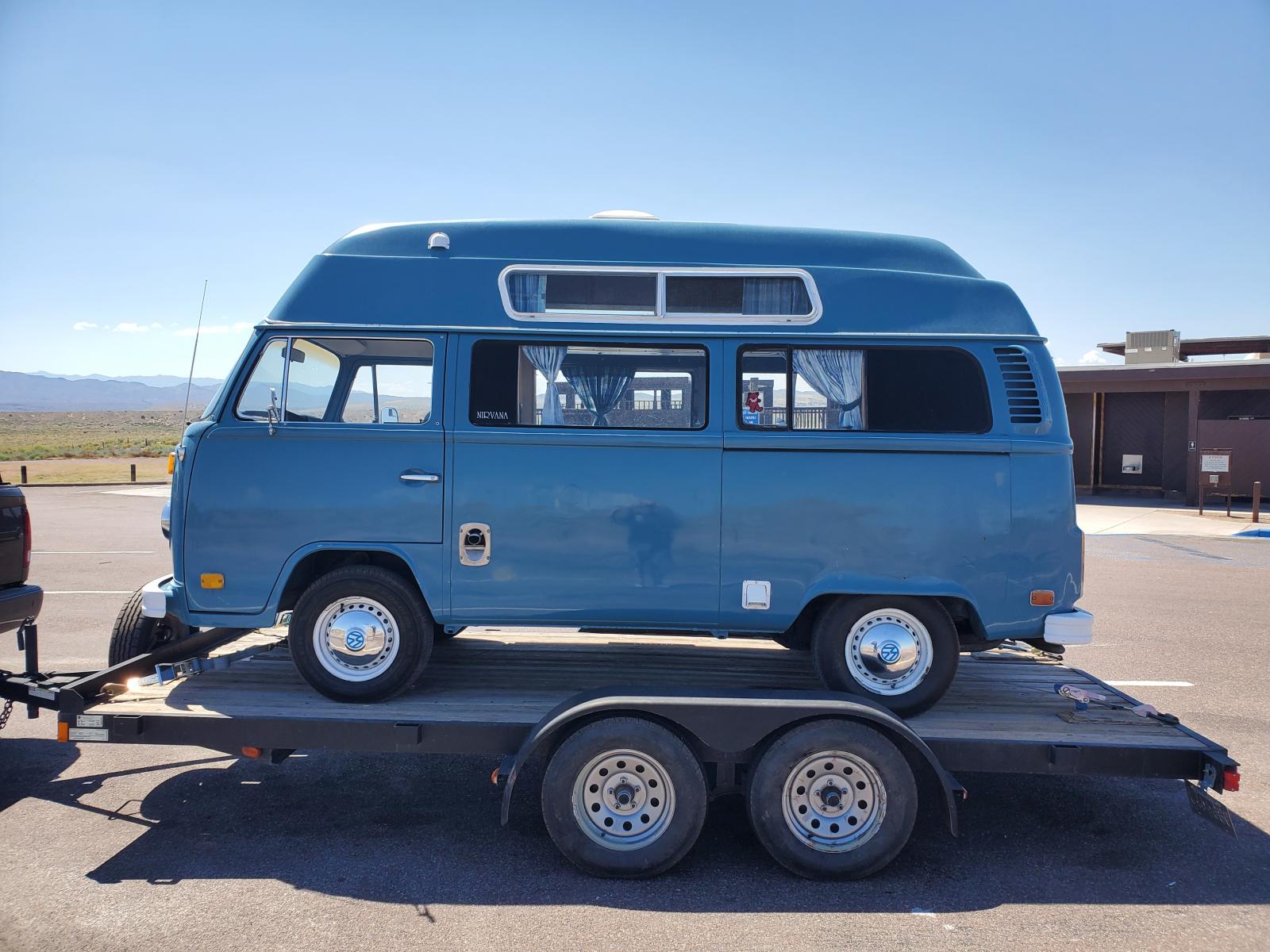

Here is my 1974 Safare Camper I purchased on Ebay back in September of 2020. I have always loved Hightop's, so when this one came up for sale I jumped on it as it seemed really solid. Needless to say there were a some hidden issues I found upon inspection after winning the bid and going to get it. While loading it on the trailer it barely wanted to drive onto the trailer and seemed to be lacking in power. Almost all of the window seals were dry rotted, the light lenses were deteriorating, and once I got it home I found a lot more. Nothing was too bad, I just wished the seller had been more forthcoming. Regardless I am trying to make my way through correcting them all and getting the Bus to where I want it.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Last edited by Doodoob on Tue Jan 12, 2021 1:24 pm; edited 1 time in total
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
Doodoob
Samba Member


Joined: April 22, 2009
Posts: 193
Location: La Luz, NM
Doodoob is offline

PostPosted: Tue Jan 12, 2021 1:01 pm    Post subject: Re: 1974 Safare Camper Reply with quote

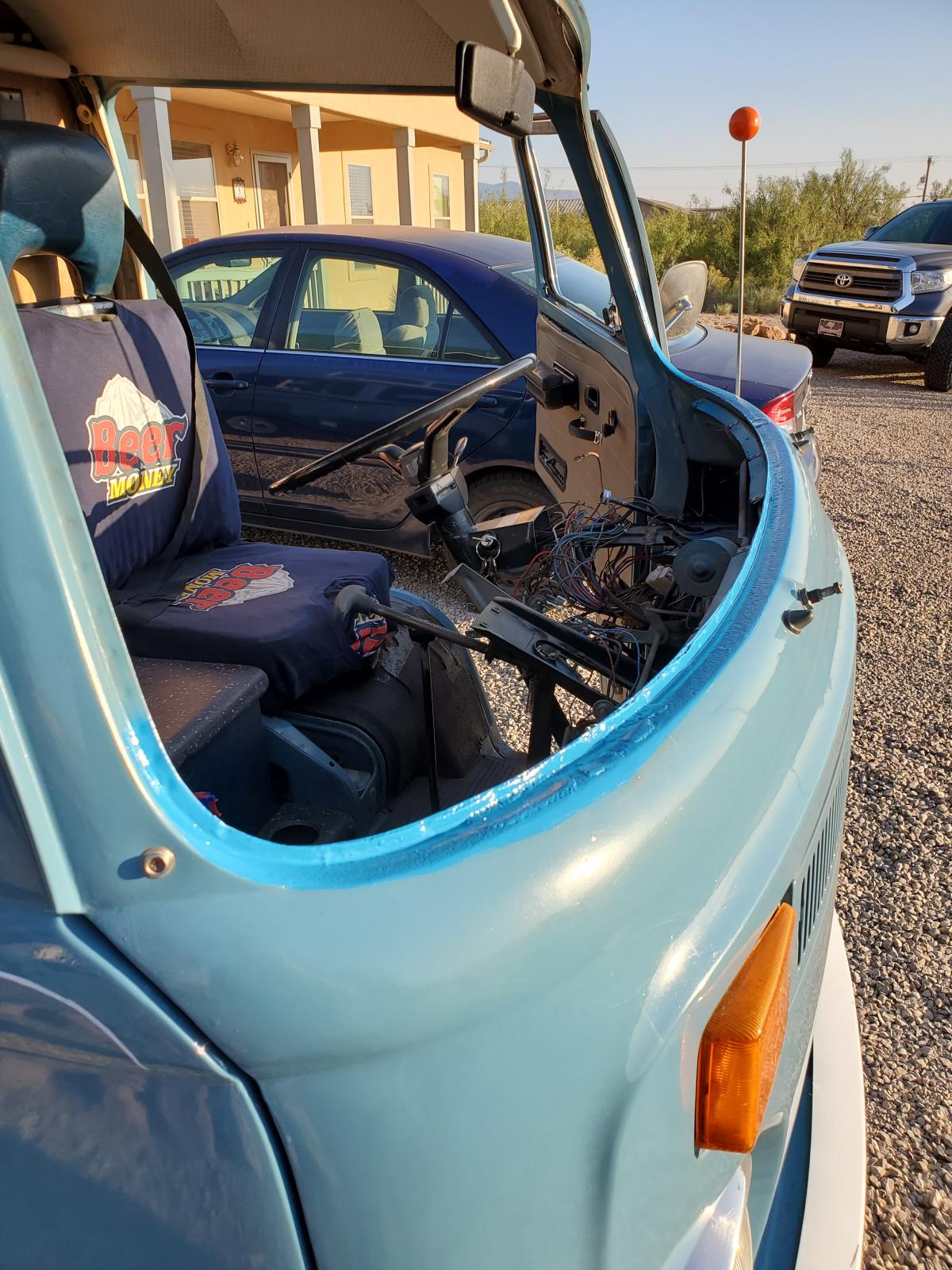

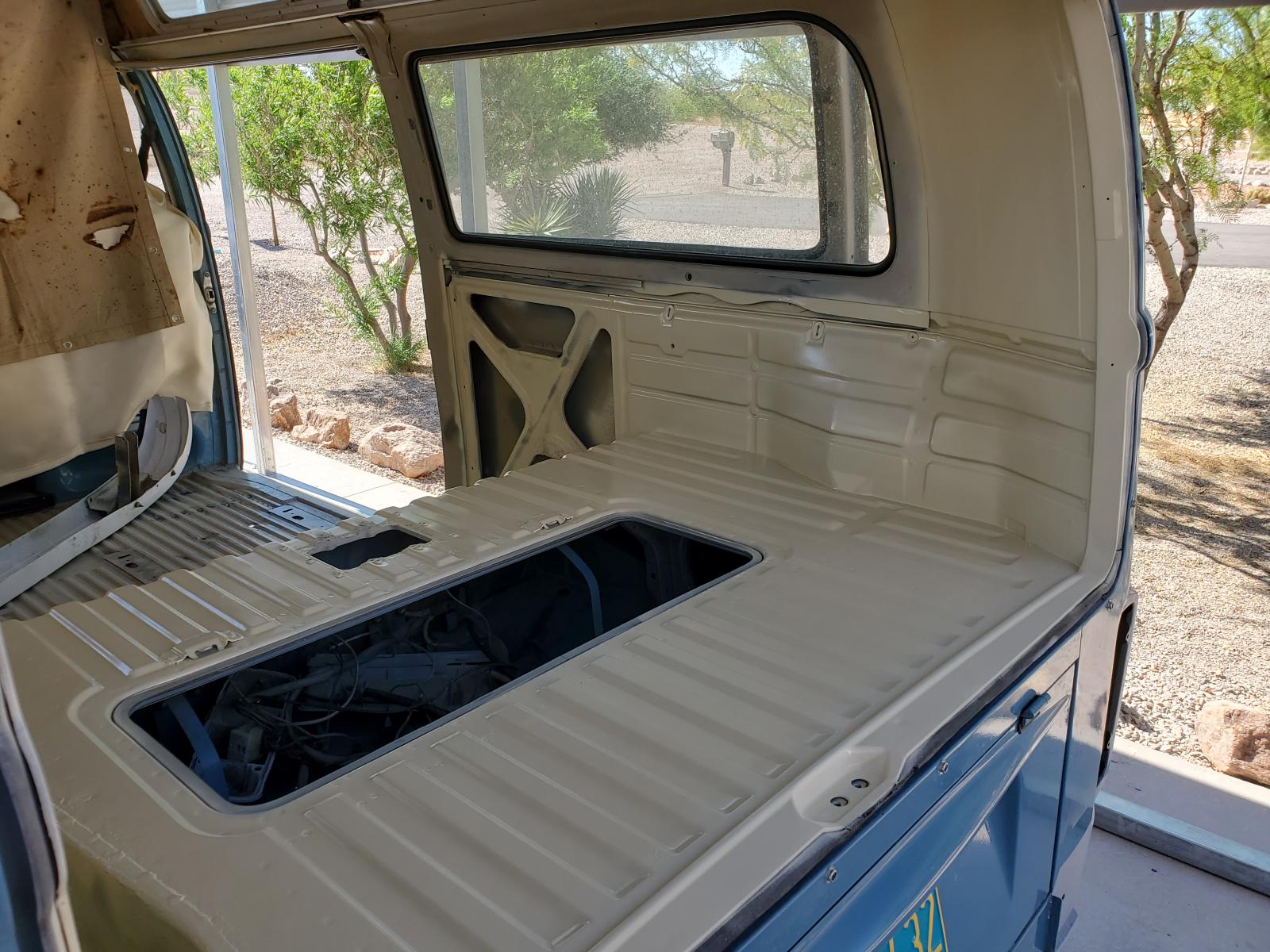

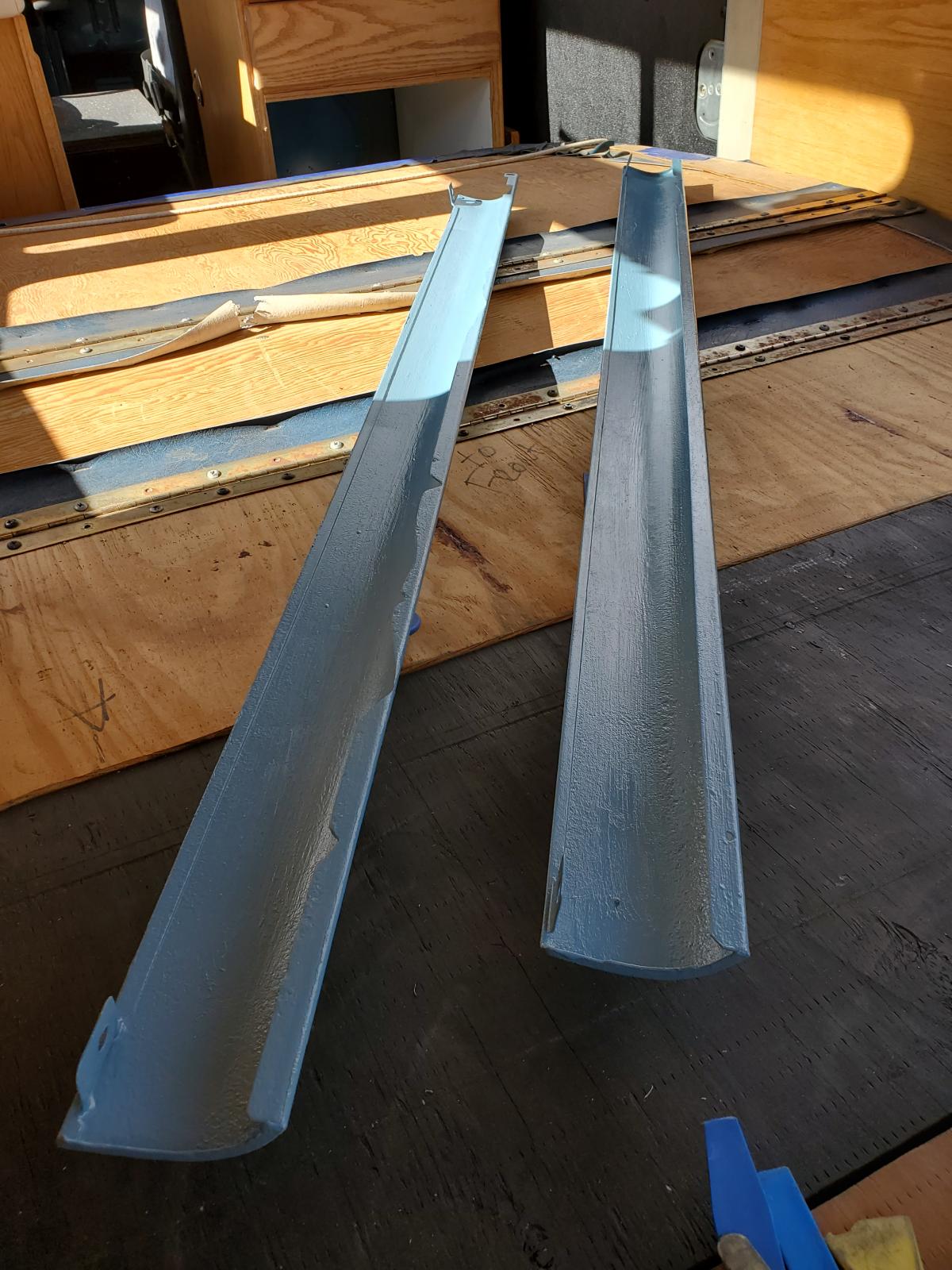

Once I got it home and unloaded I went to work. Cleaned it up, threw some T-shirts on the seats and started dreaming...........then I did a basic tune up. Oil, plugs, wires, shifter bushings. The carb linkage was trashed, shifter coupler was trashed, shifter plate was cracked apart, distributor was trashed, coil was dented in, giant hole cut out behind the passenger seat. So I went to work and started repairing and or replacing all the bad parts.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
airschooled Premium Member
Air-Schooled


Joined: April 04, 2012
Posts: 11357
Location: San Diego
airschooled is offline

PostPosted: Tue Jan 12, 2021 1:15 pm    Post subject: Re: 1974 Safare Camper Reply with quote

Nice high top! Is the camper interior original? 😍

Still rocking the factory dual carbs? Most 72-74 high-tops I work with seem to have them, in various state of (sometimes dis)function.
_________________
Learn to fix your vintage Volkswagen.
www.airschooled.com
Knowledge. Confidence. Reliability.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
Doodoob
Samba Member


Joined: April 22, 2009
Posts: 193
Location: La Luz, NM
Doodoob is offline

PostPosted: Tue Jan 12, 2021 1:17 pm    Post subject: Re: 1974 Safare Camper Reply with quote

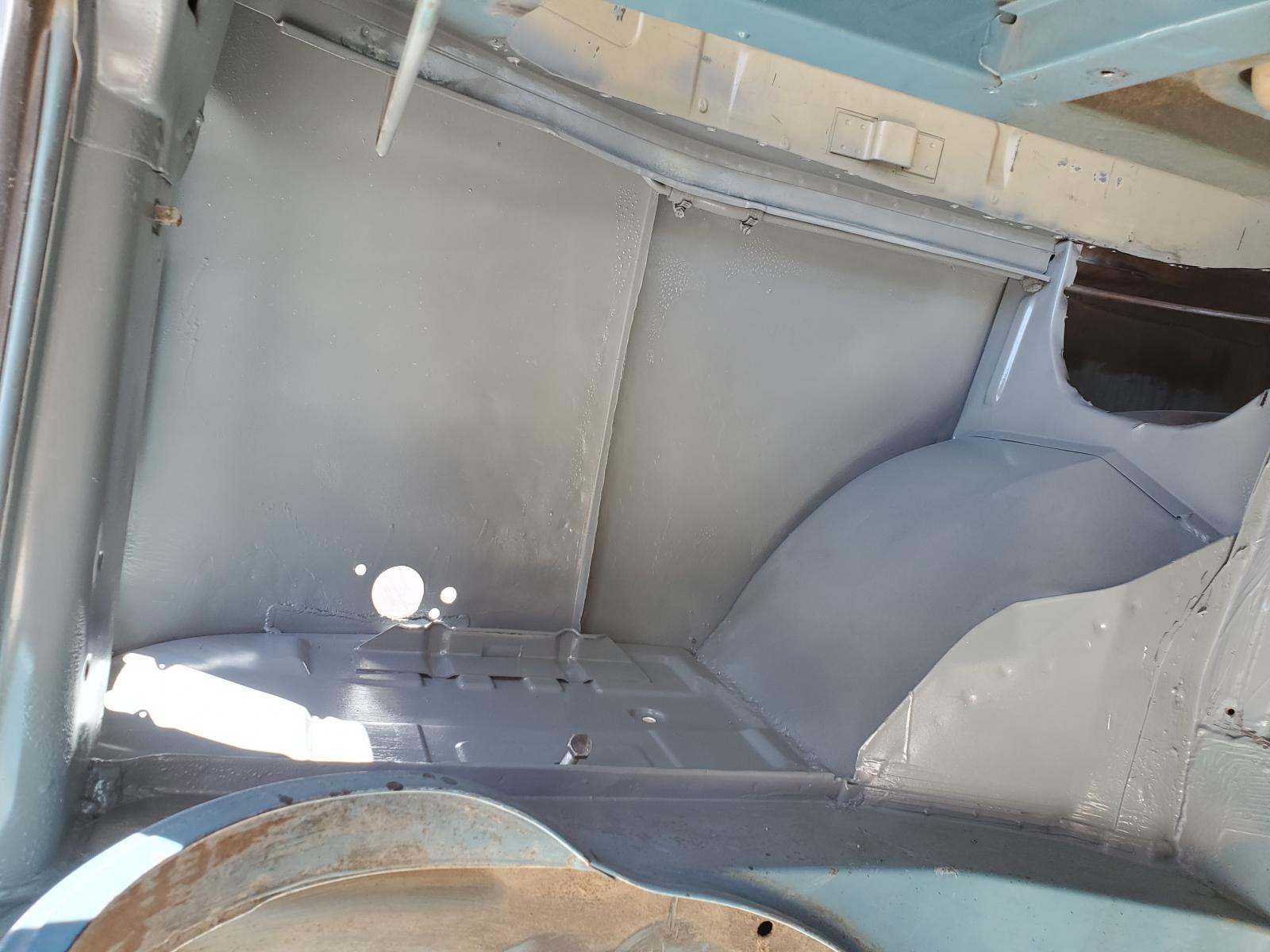

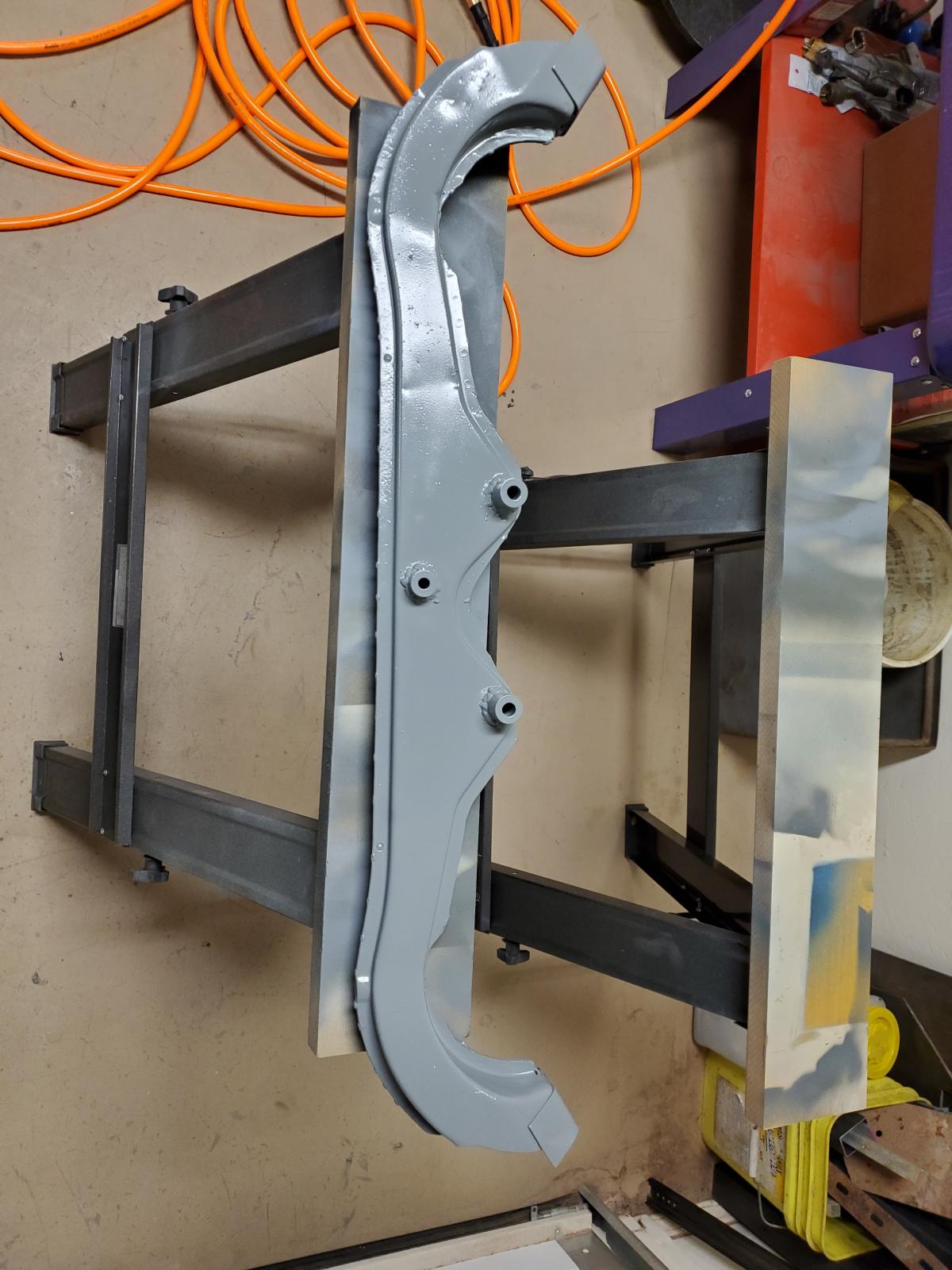

I ended up fighting with the progressive carb and could not get it to run well, so I ended up getting a set of Dual 44 IDF's from a friend and installing them along with a 009. We got it to run decent and I felt as if I was making headway. I ordered some window seals and swapped them out, removed the bondo from the left rear quarter and rattle canned it, put a few patches in the windshield frame, coated the windshield frame with master series silver(it will have to be replaced eventually), cleaned and painted the track covers, swapped in a solid left rear glass(smokers window was rusted out), made some curtains, made some new tables, bought some new panels from Werksburg and installed them, installed a new wiper switch, installed the correct ignition switch, fixed all the wiring behind the dash, painted the upper dash, got rid of a lot of the ghetto fixes that had previously been done, fixed the speedometer, replaced the brake warning light, got the shore power panel and outlets working, and made some new seat covers.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Last edited by Doodoob on Tue Jan 12, 2021 1:54 pm; edited 1 time in total
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
Doodoob
Samba Member


Joined: April 22, 2009
Posts: 193
Location: La Luz, NM
Doodoob is offline

PostPosted: Tue Jan 12, 2021 1:47 pm    Post subject: Re: 1974 Safare Camper Reply with quote

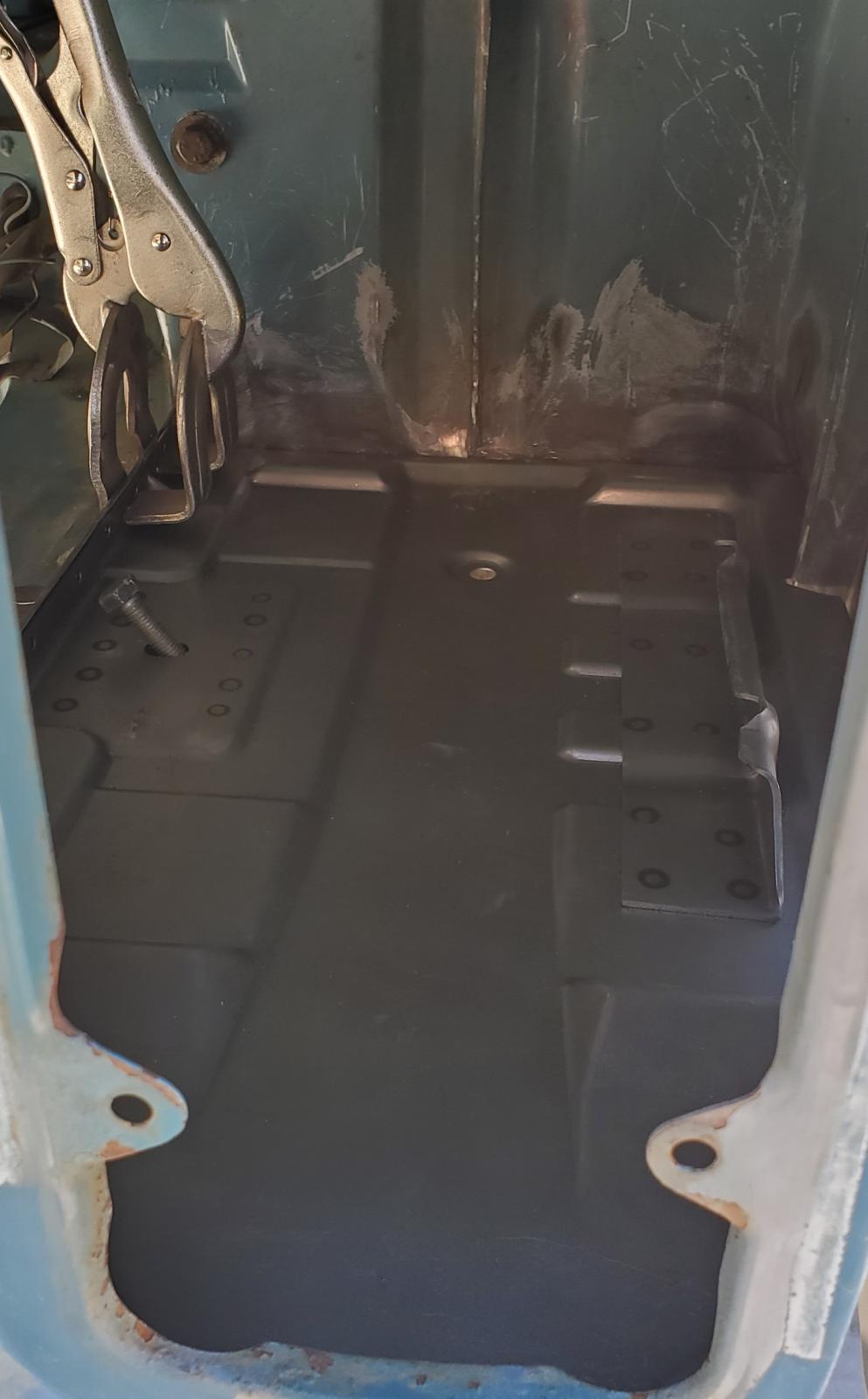

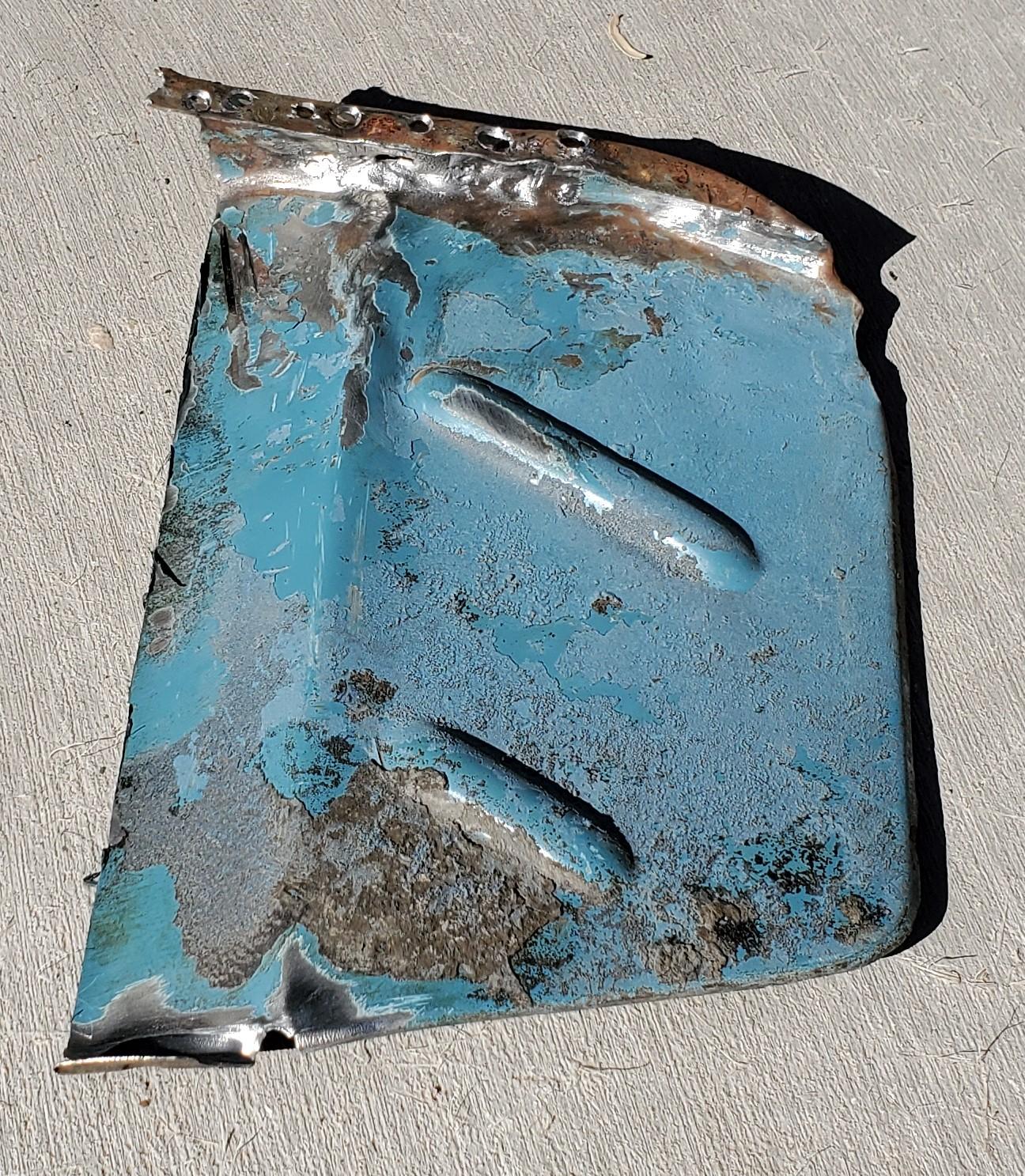

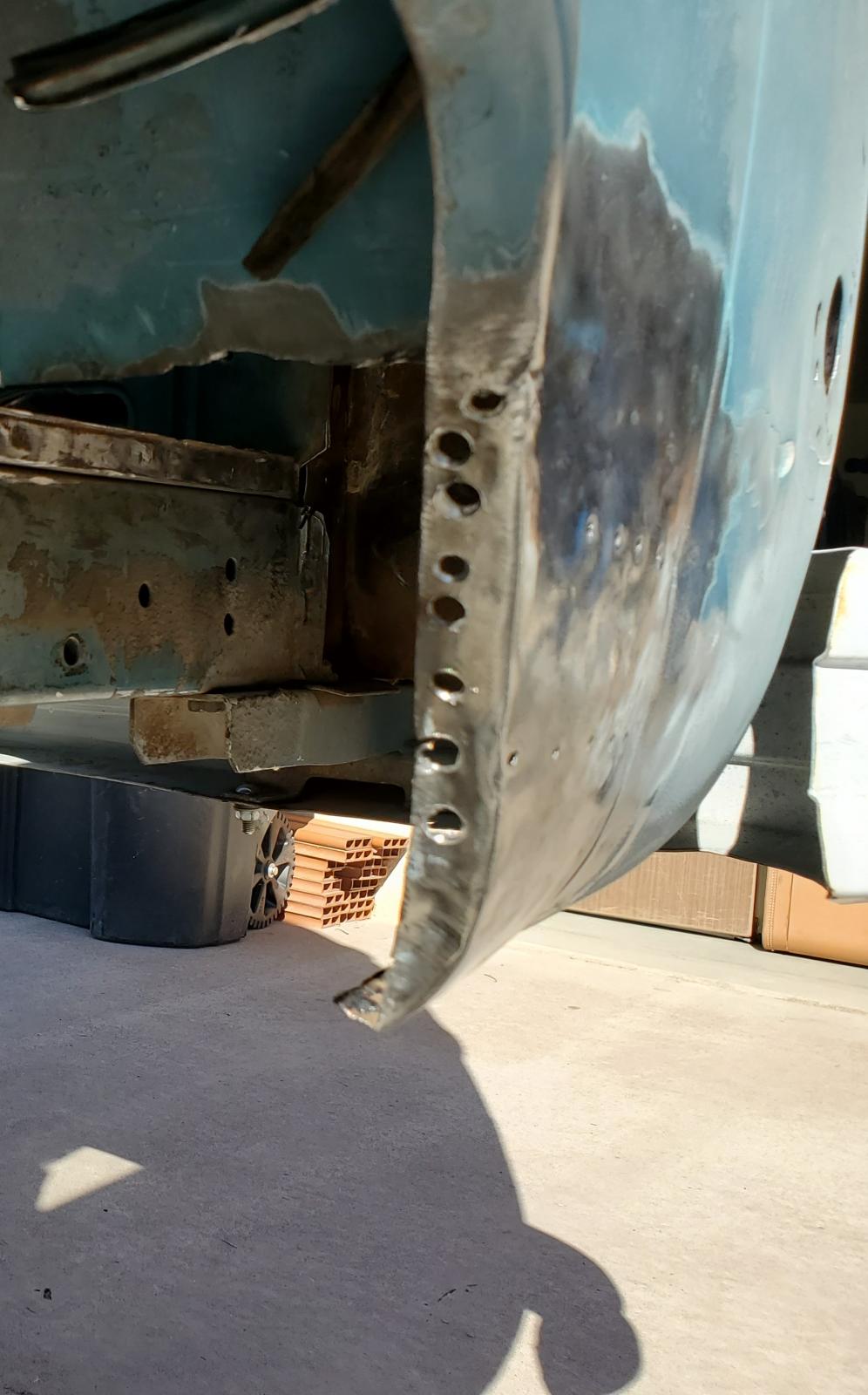

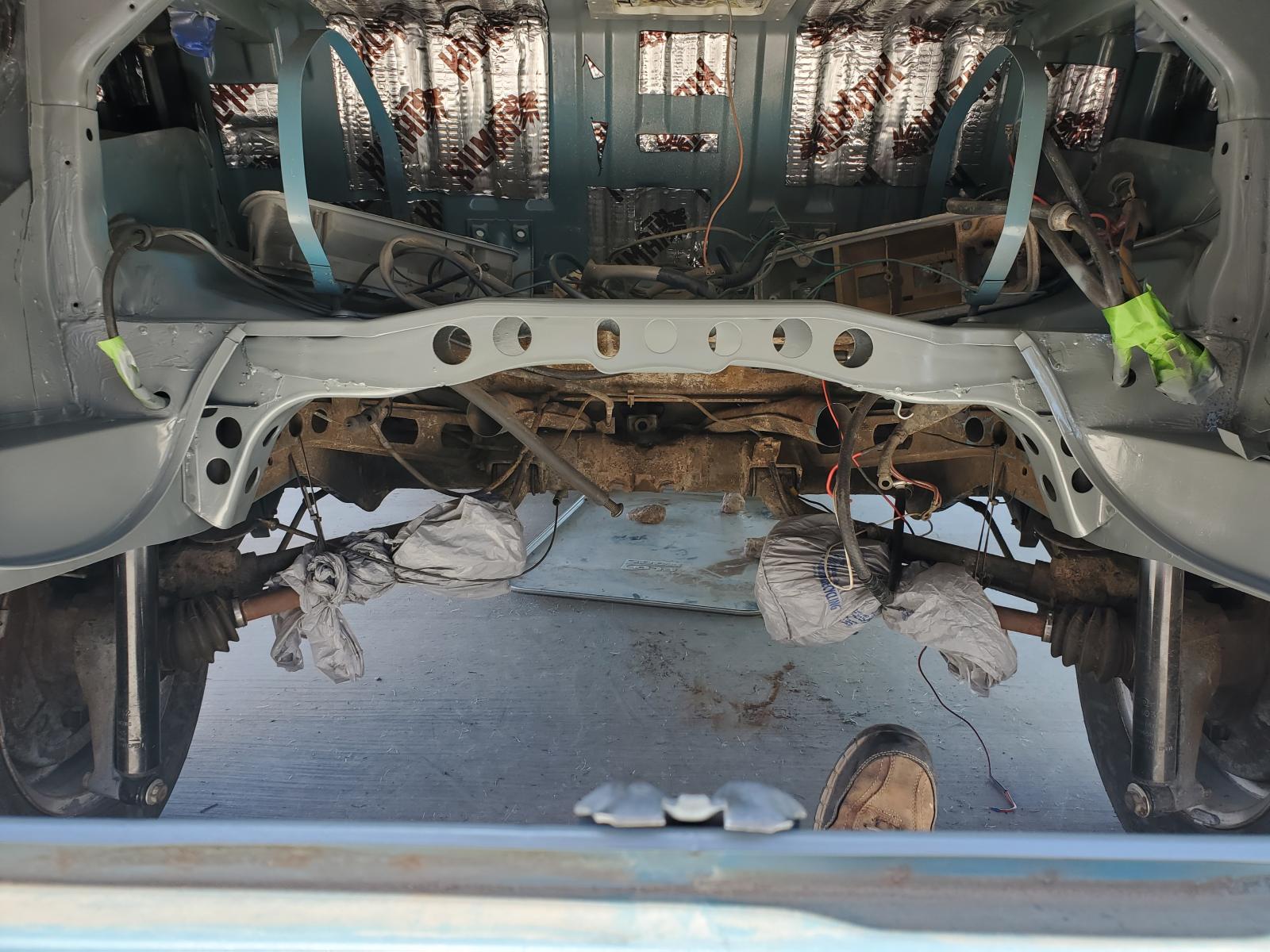

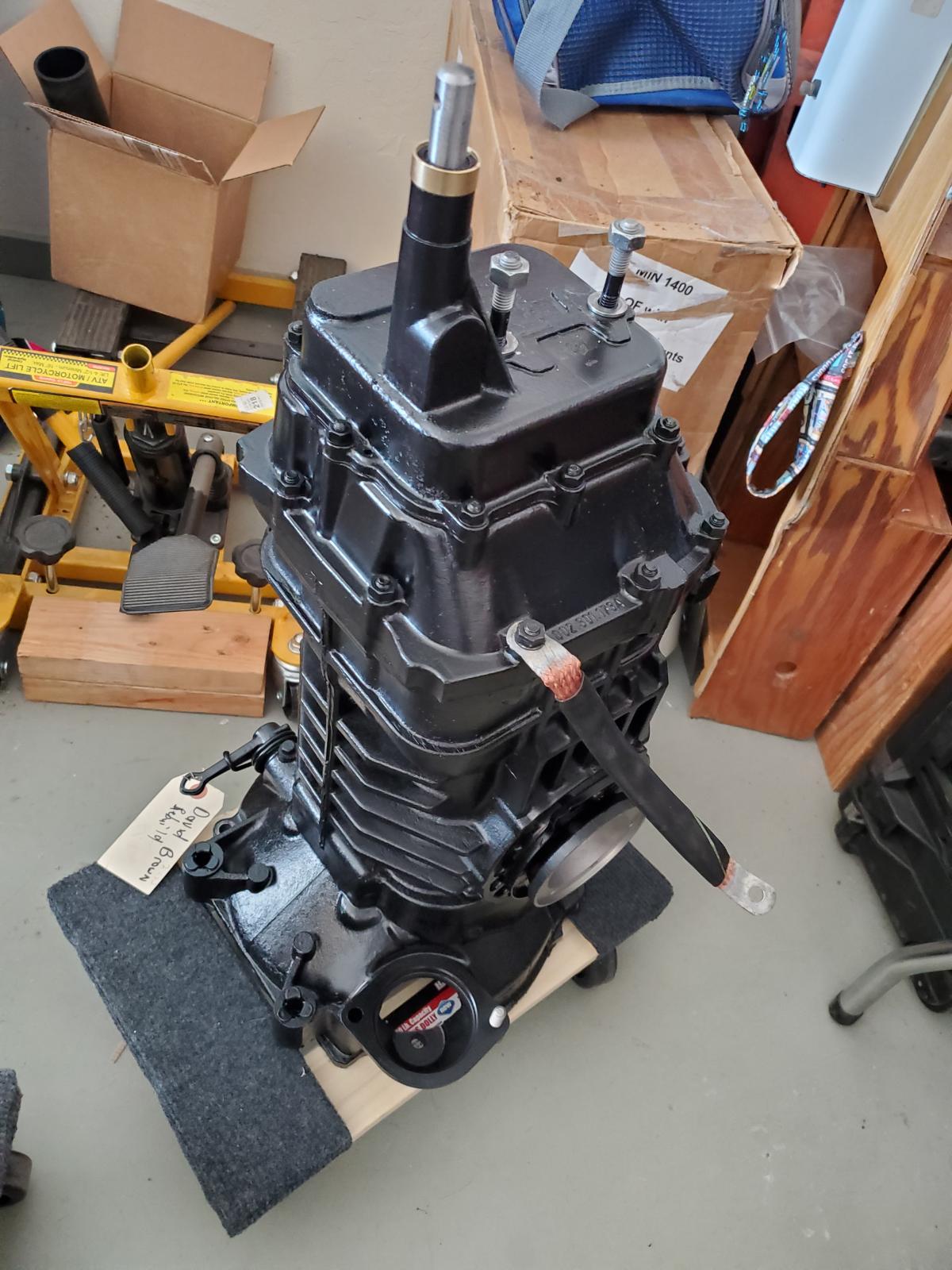

Well.........the motor decided to start making one heck of a racket. Quick test by pulling plug wires isolated the noise down to the 2-4 side. Compression test was ok while the leak down test results showed all were cylinders leaking by the rings. So while my son was home on Christmas break from college we pulled the motor. It appears that someone left part of the flap system installed and therefor not allowing enough air to flow across the oil cooler. I am not a Type 4 guy so I could be wrong. Needless to say I had to park the bus for now, the engine is on the stand, and I am still trying to finish my Son's 62 Bug. I believe I am gonna convert it to run a 2180 Type 1 this spring.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
Doodoob
Samba Member


Joined: April 22, 2009
Posts: 193
Location: La Luz, NM
Doodoob is offline

PostPosted: Tue Jan 12, 2021 1:52 pm    Post subject: Re: 1974 Safare Camper Reply with quote

airschooled wrote:
Nice high top! Is the camper interior original? 😍

Still rocking the factory dual carbs? Most 72-74 high-tops I work with seem to have them, in various state of (sometimes dis)function.

Thanks! As far as interior I believe part of it is original.........but who really knows. A previous owner at some point removed the sink and water tank and installed 1" plastic counter tops. Motor is toast so I am probably gonna do a 2180 Type 1 conversion.
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
crownline
Samba Member


Joined: September 10, 2010
Posts: 380
Location: Upstate NY which means north of Albany
crownline is offline

PostPosted: Tue Jan 12, 2021 2:30 pm    Post subject: Re: 1974 Safare Camper Reply with quote

Those flaps are in The correct default position for having no or faulty thermostat. The spring keeps them open even though to you it looks closed on the oil cooler side. That is how it's supposed to be for oil cooling.
_________________
1972 Bus 1700 cc Single Carb. But not a progressive.
Barelymuvin
Wish I still had the ones I got rid of.

"It"s got some dings and dents and neither of us is going to SEMA."(Update, I went to SEMA in 2019 but the Bus stayed home)
[url=http://www.vw-mplate.com/mplate-8446.png]Click to view image[/URL]
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
crownline
Samba Member


Joined: September 10, 2010
Posts: 380
Location: Upstate NY which means north of Albany
crownline is offline

PostPosted: Tue Jan 12, 2021 2:33 pm    Post subject: Re: 1974 Safare Camper Reply with quote

Sorry just noticed no linkage for flaps but the flap that is there would give you oil cooling
_________________
1972 Bus 1700 cc Single Carb. But not a progressive.
Barelymuvin
Wish I still had the ones I got rid of.

"It"s got some dings and dents and neither of us is going to SEMA."(Update, I went to SEMA in 2019 but the Bus stayed home)
[url=http://www.vw-mplate.com/mplate-8446.png]Click to view image[/URL]
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Doodoob
Samba Member


Joined: April 22, 2009
Posts: 193
Location: La Luz, NM
Doodoob is offline

PostPosted: Tue Jan 12, 2021 2:39 pm    Post subject: Re: 1974 Safare Camper Reply with quote

crownline wrote:
Sorry just noticed no linkage for flaps but the flap that is there would give you oil cooling

Gotcha, just seemed odd to leave one flap in with no other parts.
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
jmstu76
Samba Member


Joined: March 01, 2004
Posts: 1159
Location: Edmond Oklahoma
jmstu76 is offline

PostPosted: Tue Jan 12, 2021 9:39 pm    Post subject: Re: 1974 Safare Camper Reply with quote

Doodoob wrote:
crownline wrote:
Sorry just noticed no linkage for flaps but the flap that is there would give you oil cooling

Gotcha, just seemed odd to leave one flap in with no other parts.


The flap you have is supposed to scoop air and force it through the cooler. Without the other pieces of the flap system (the rod and the 1-2) flap, the oil cooler flap will probably just flail about in the air stream. The system isn't that hard to set up but you need all the parts. Even if you don't have a working thermostat is worth sourcing the other flap/bar.
_________________
James

'76 Deluxe Sage Green Westy
2258 cc GD case 78mm CW crank, 2.0 H-beam rods 5,325” 22mm pin, JE forged pistons with 15cc dish, JE rings, type 11 clearanced oil pump, CB Eagle 2205 Type-2 “Torque Special” hydraulic cam with matched lifters fed by CB Dual Weber 40 IDF MX with 6” foam air filters, currently 55 idle, 130 main, 200 air correction. 27in General Grabber AT2 All Terrains, Berg Shifter, stock '76 exhaust HPC Ceramic Coated. 11/18/2020
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger MSN Messenger Instagram Gallery Classifieds Feedback
TheMonk
Samba Member


Joined: June 03, 2013
Posts: 79
Location: Sydney Australia
TheMonk is offline

PostPosted: Wed Jan 13, 2021 8:36 pm    Post subject: Re: 1974 Safare Camper Reply with quote

Nice machine, I love the Safare camper design, to me it's like the perfect use of available space, especially the booth style seating. Any chance of seeing beds set up?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Doodoob
Samba Member


Joined: April 22, 2009
Posts: 193
Location: La Luz, NM
Doodoob is offline

PostPosted: Wed Jan 13, 2021 8:49 pm    Post subject: Re: 1974 Safare Camper Reply with quote

TheMonk wrote:
Nice machine, I love the Safare camper design, to me it's like the perfect use of available space, especially the booth style seating. Any chance of seeing beds set up?


I will try and snap a few pics this weekend.
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
Doodoob
Samba Member


Joined: April 22, 2009
Posts: 193
Location: La Luz, NM
Doodoob is offline

PostPosted: Sat Jan 16, 2021 4:11 pm    Post subject: Re: 1974 Safare Camper Reply with quote

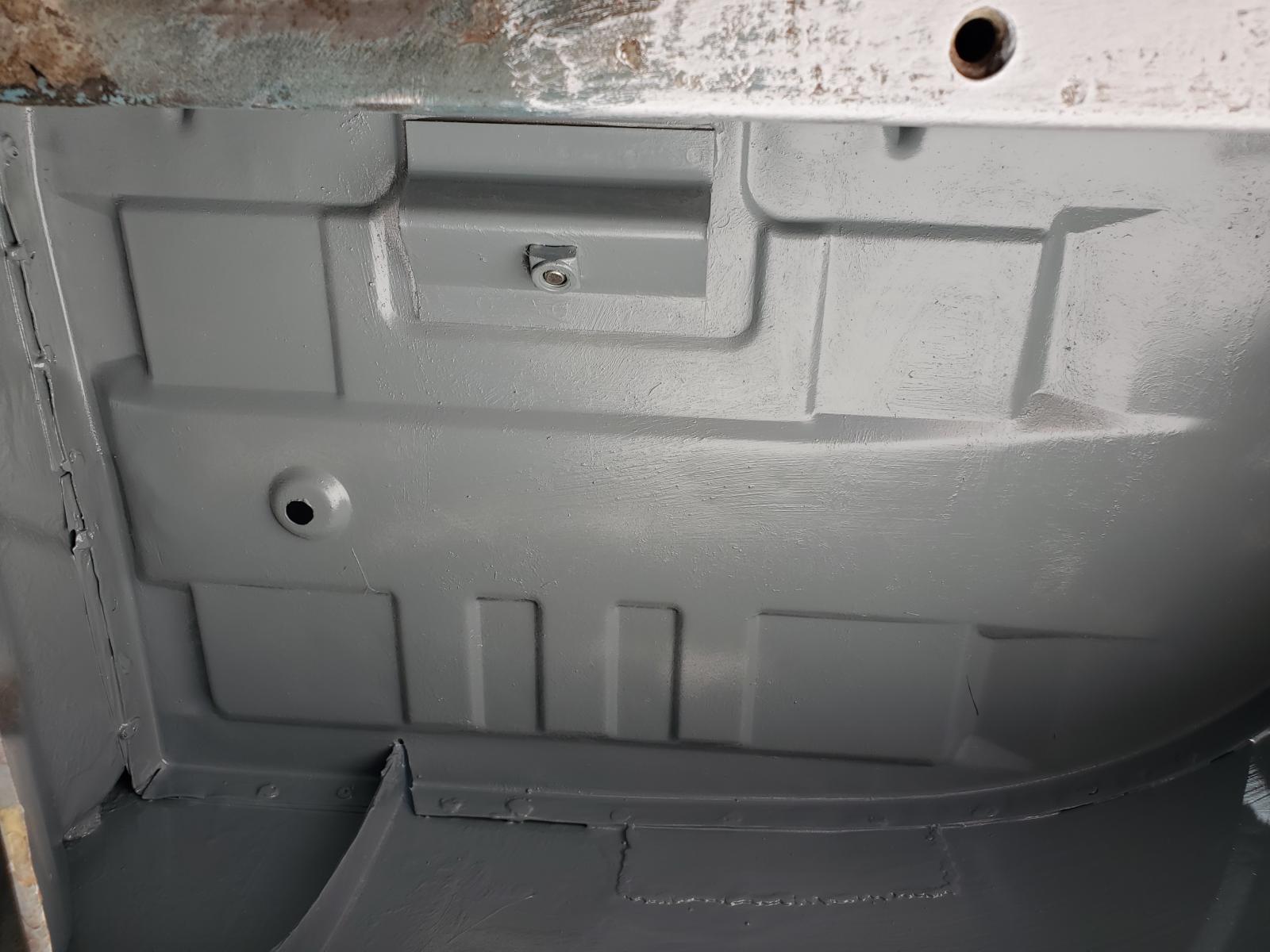

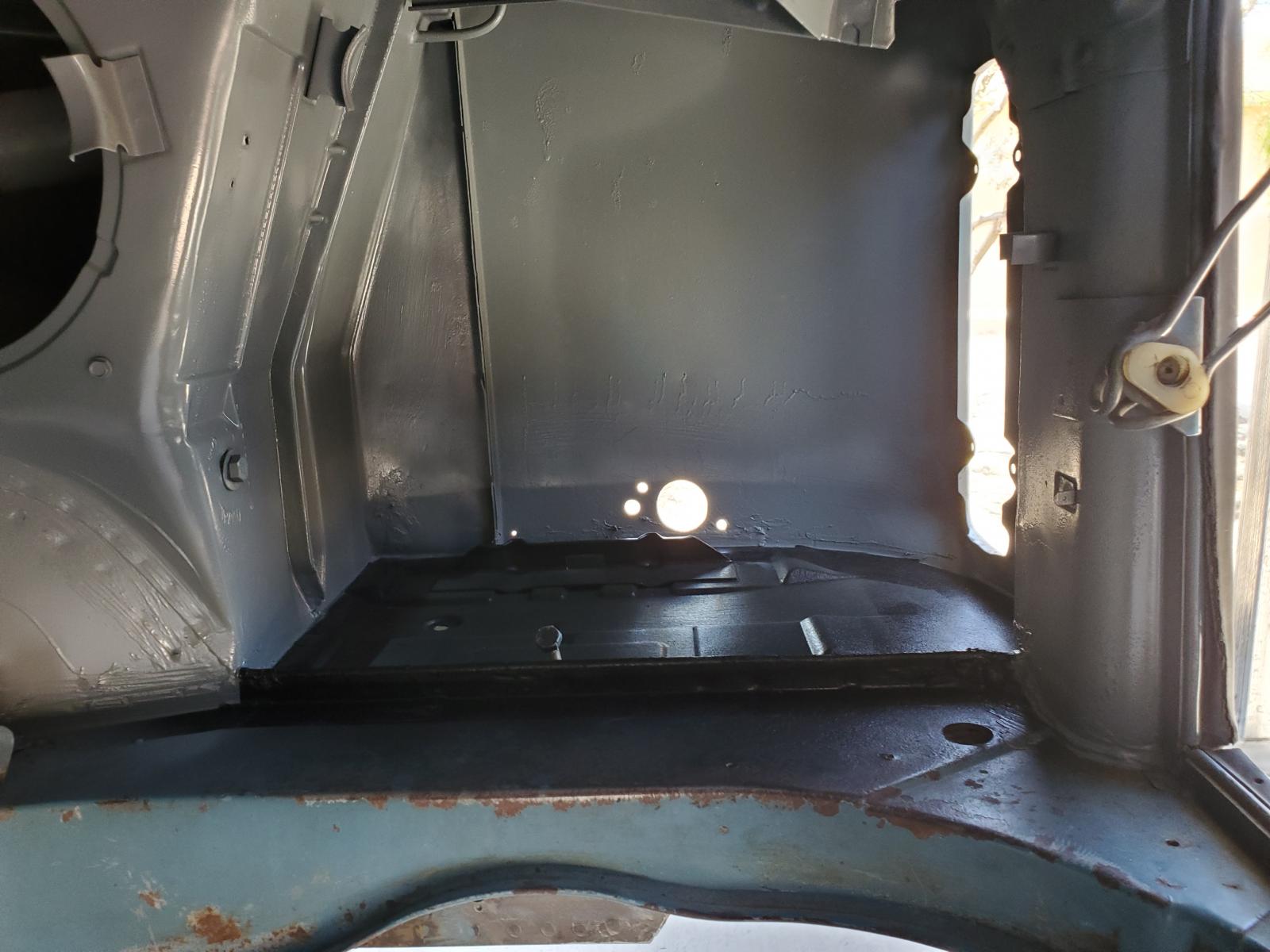

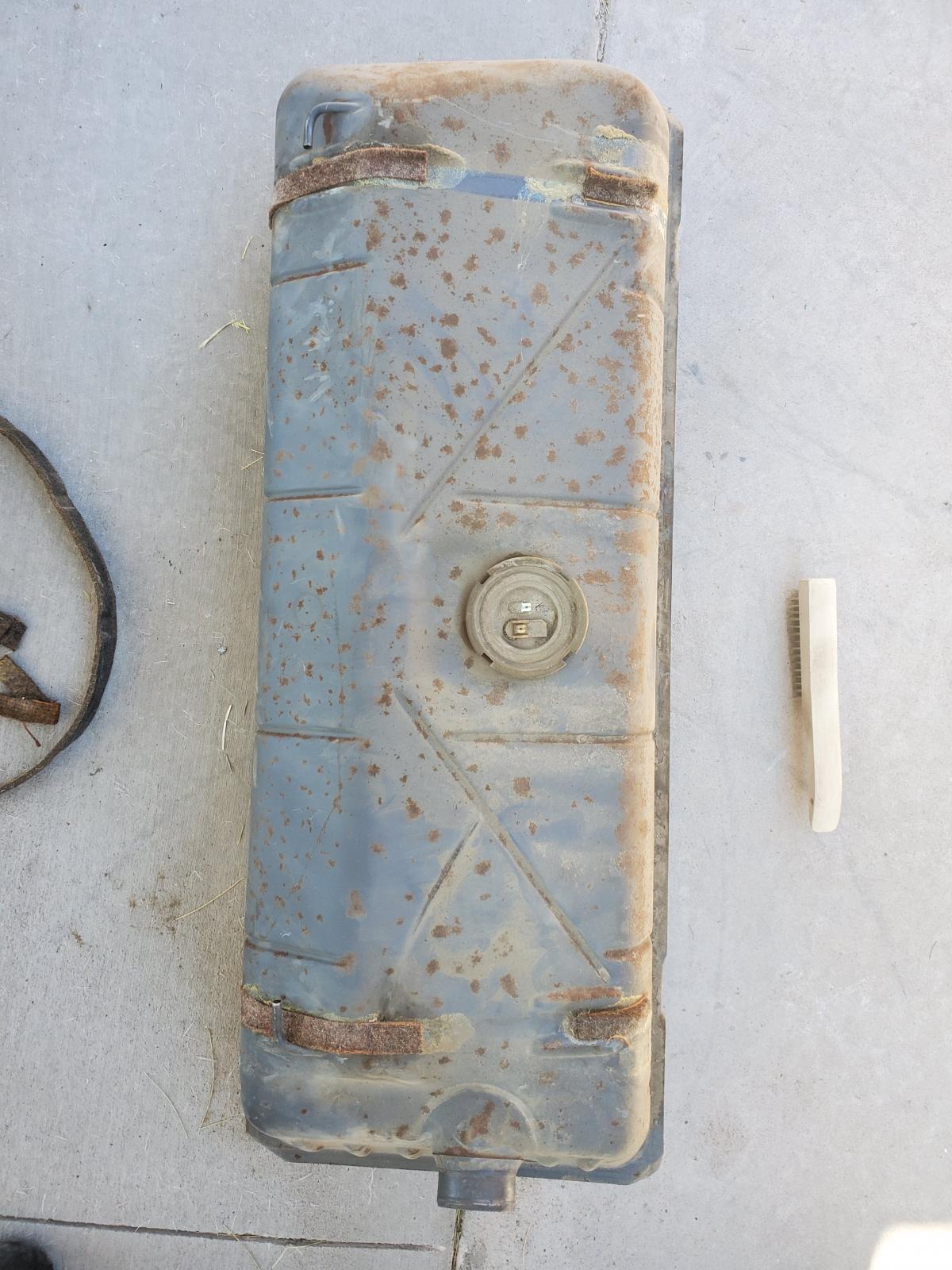

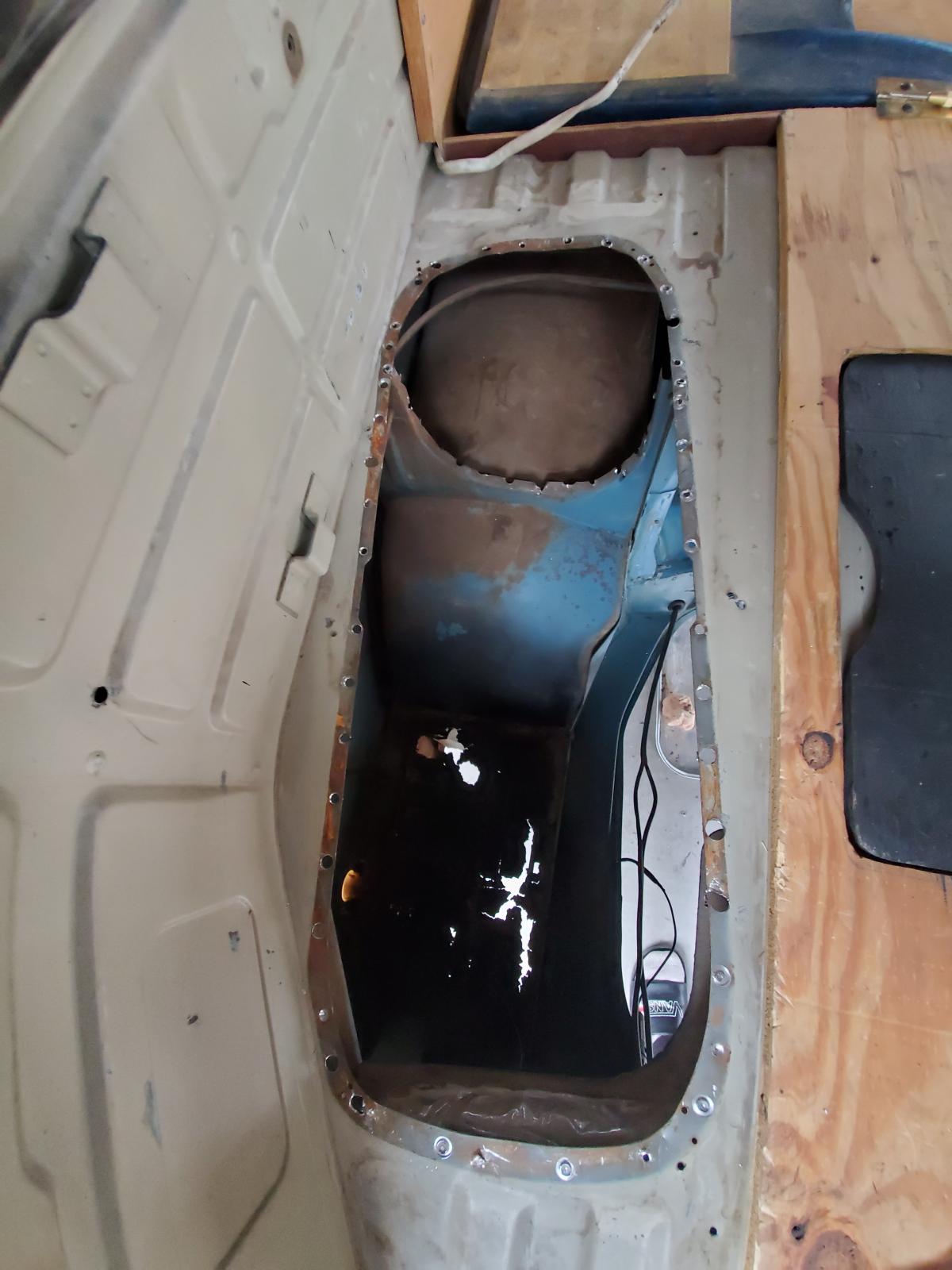

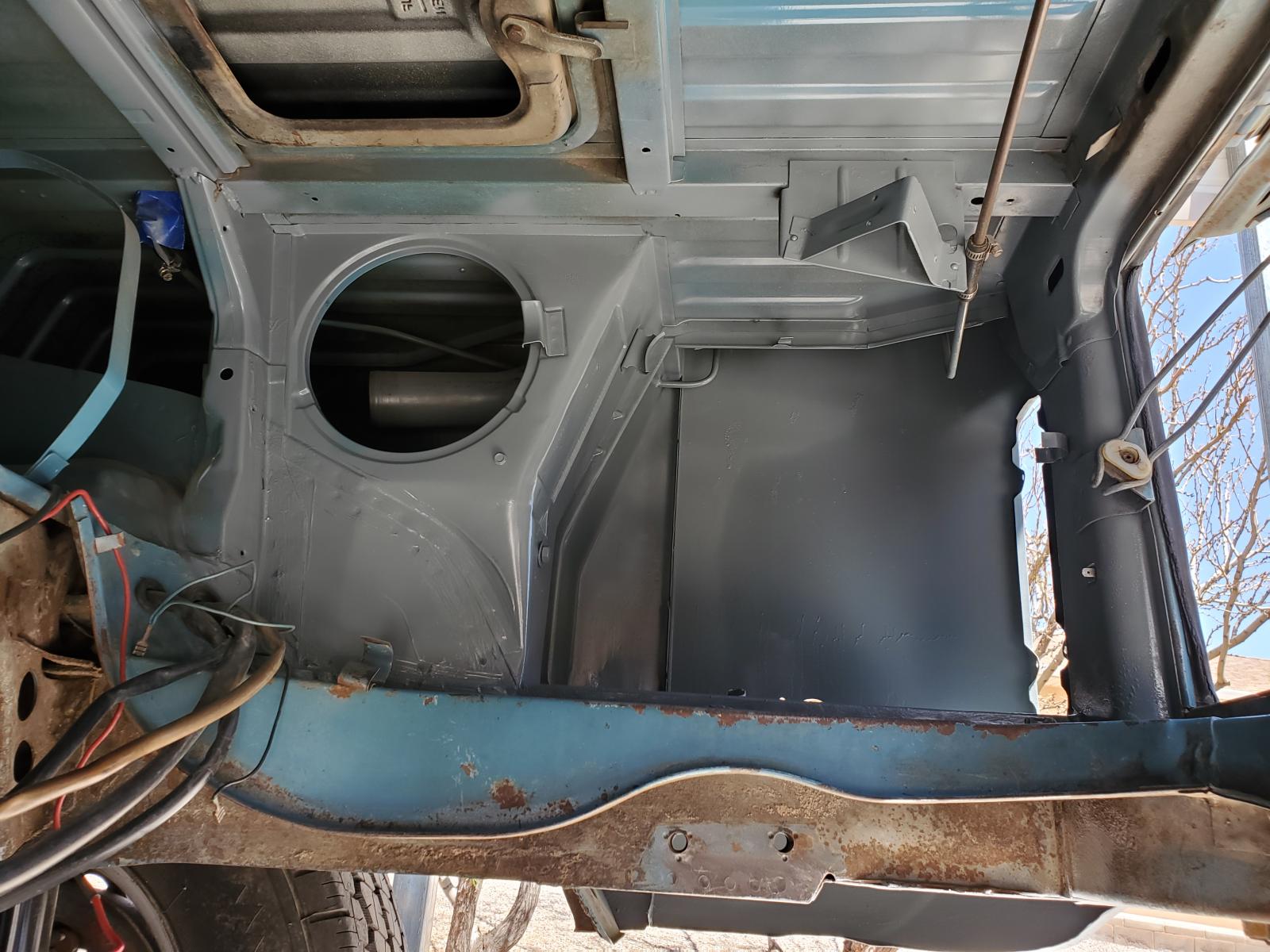

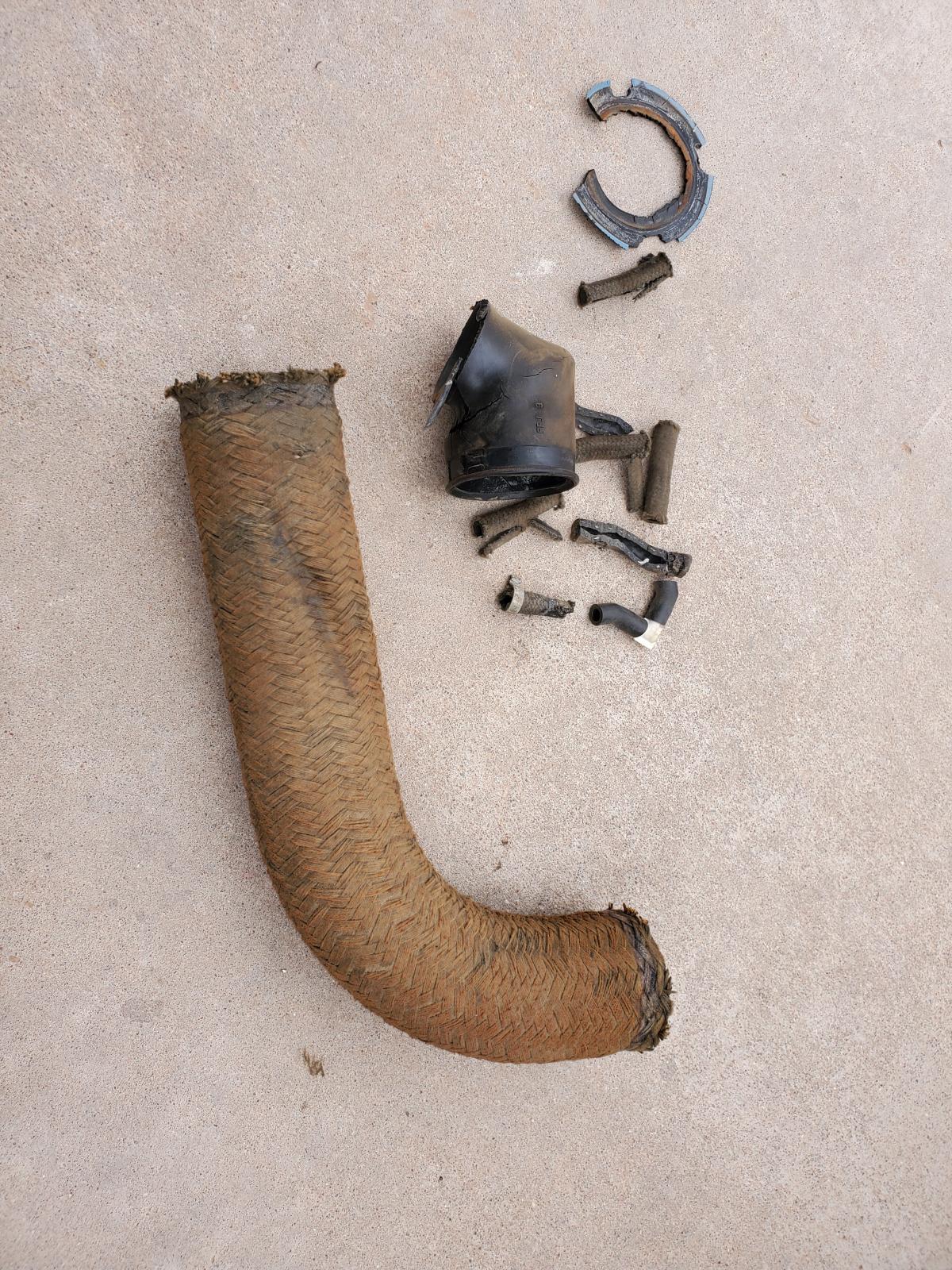

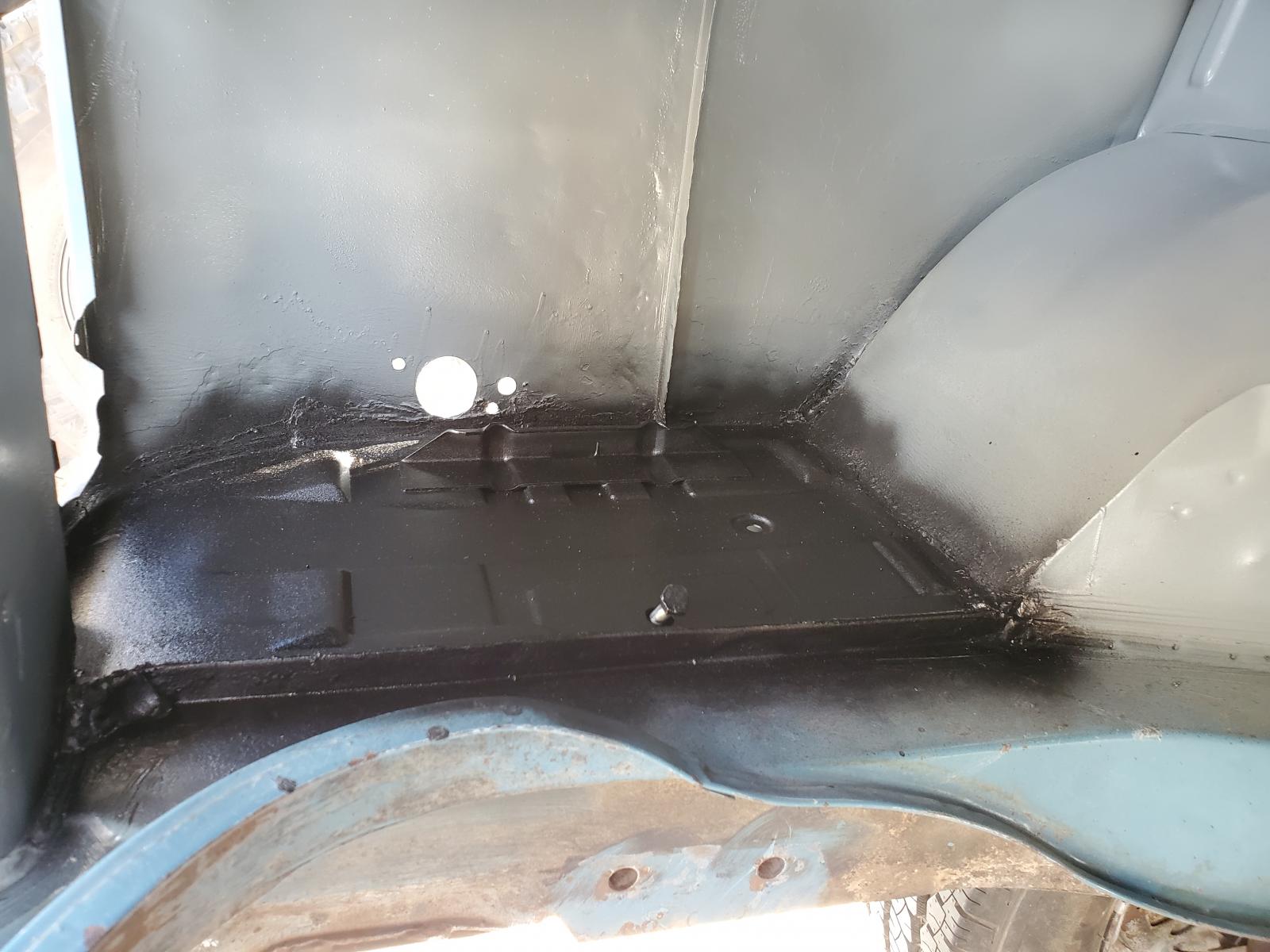

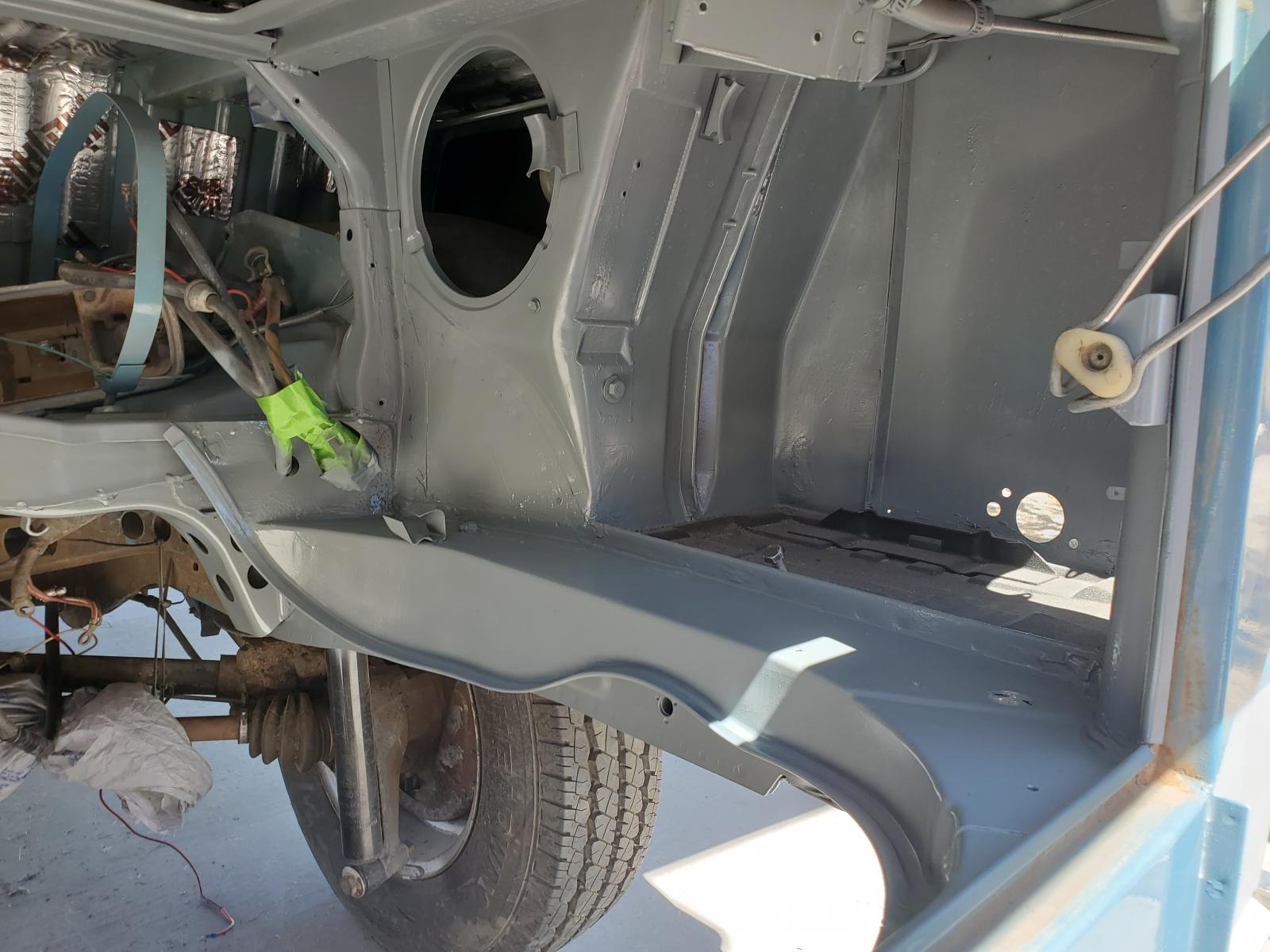

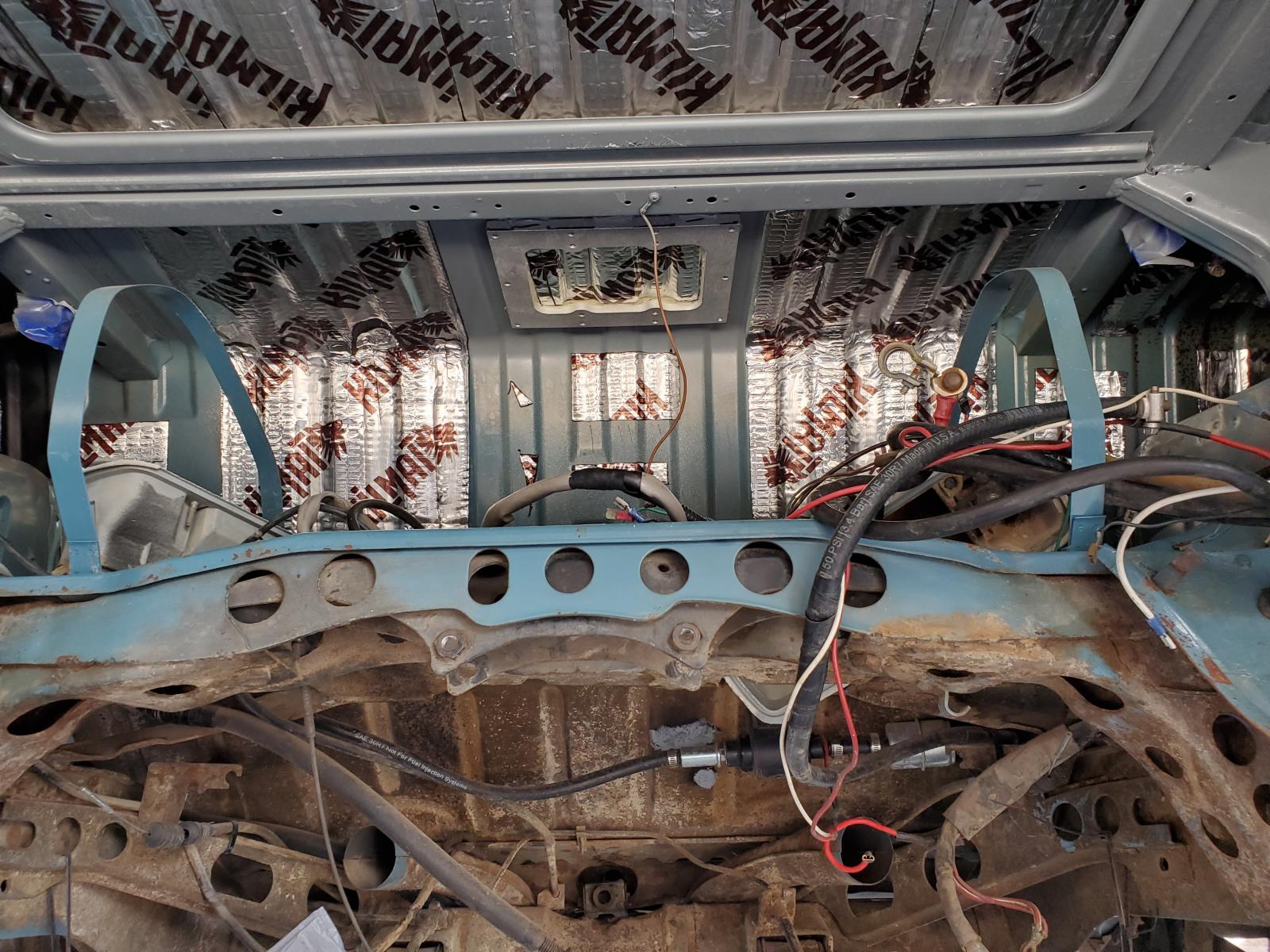

What a pain....... replaced all the fuel hoses for the gas tank and vent system on the Bus. Then I took some pics of the beds as requested.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
Doodoob
Samba Member


Joined: April 22, 2009
Posts: 193
Location: La Luz, NM
Doodoob is offline

PostPosted: Mon Jan 25, 2021 3:17 pm    Post subject: Re: 1974 Safare Camper Reply with quote

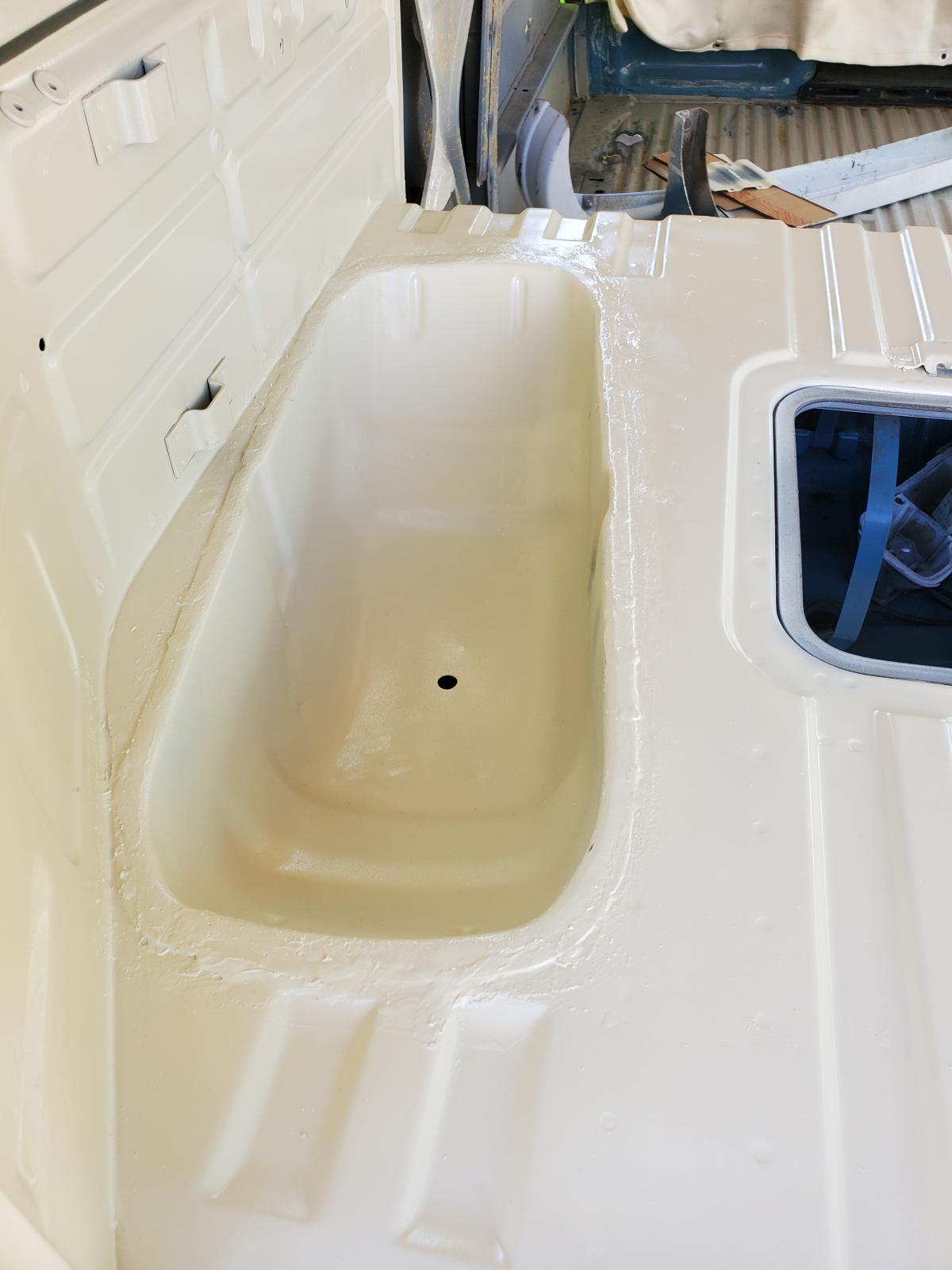

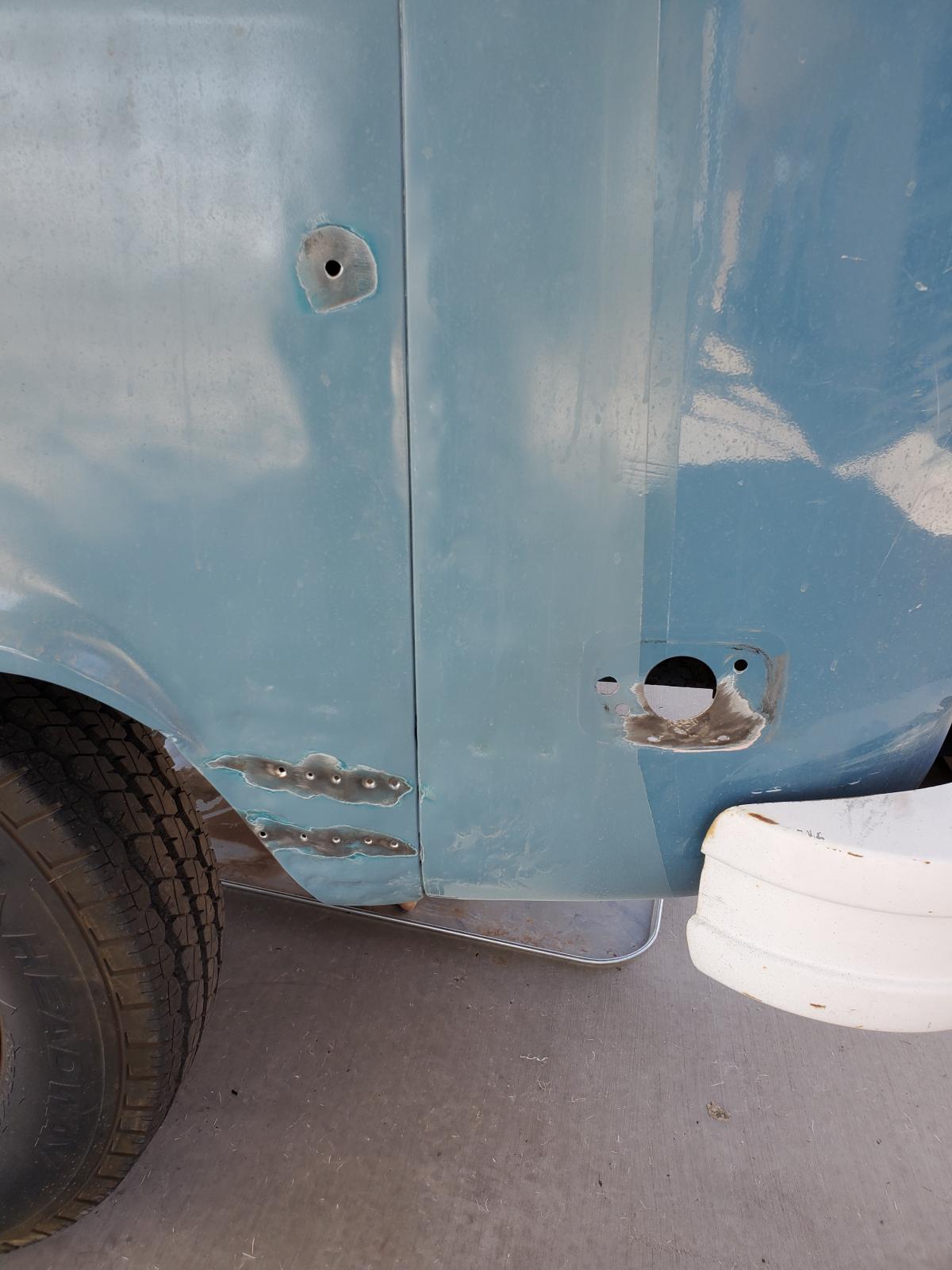

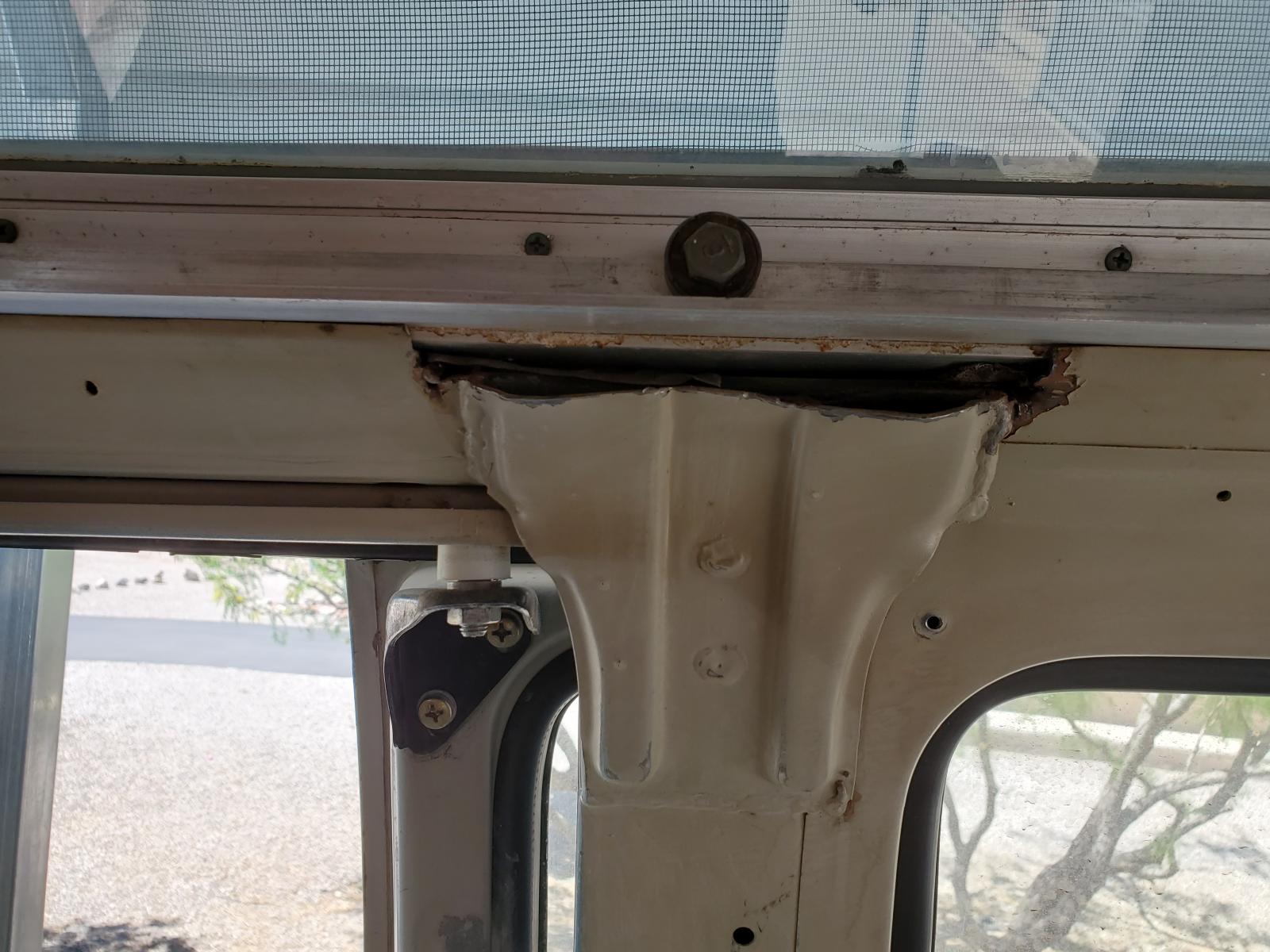

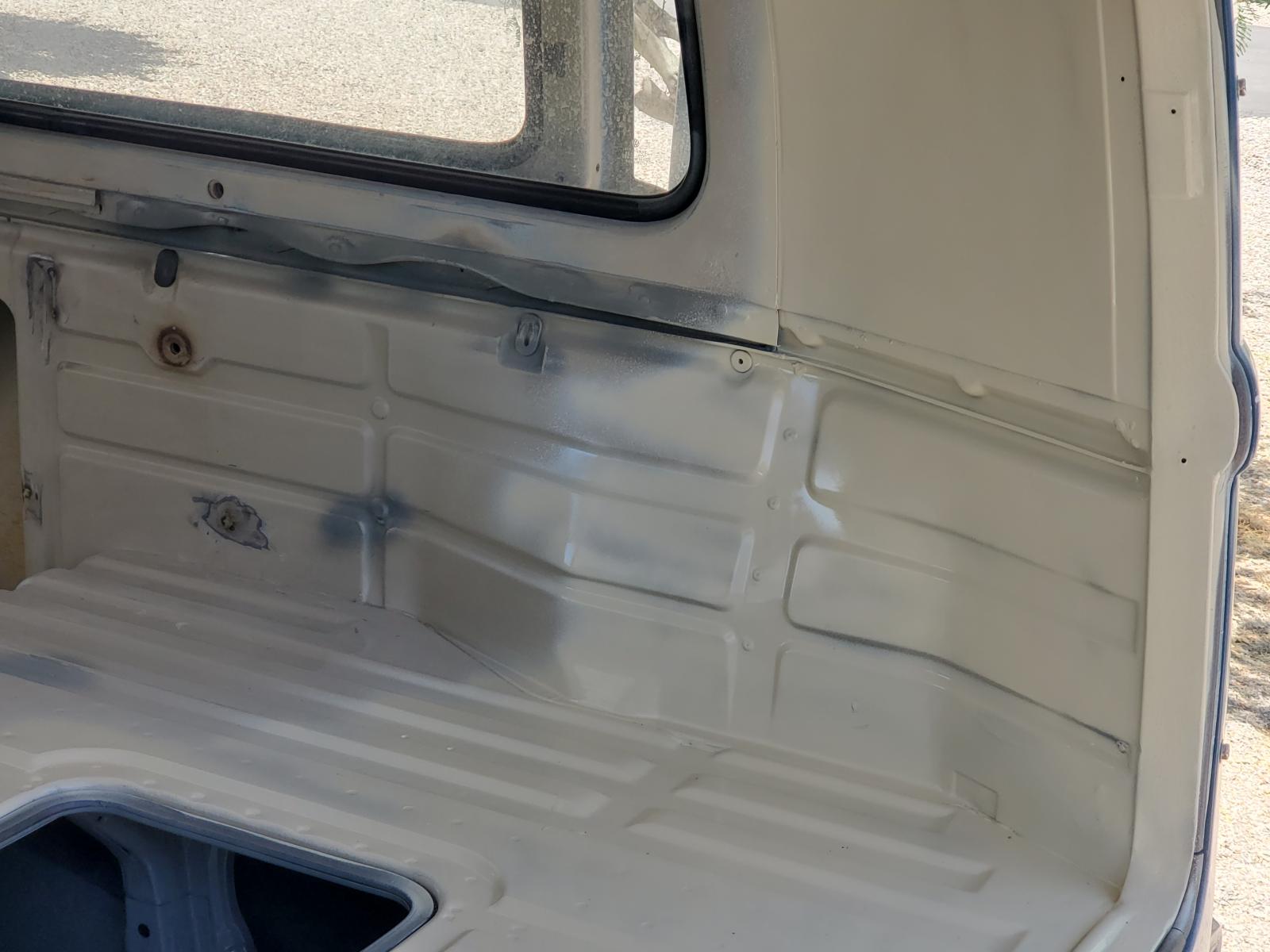

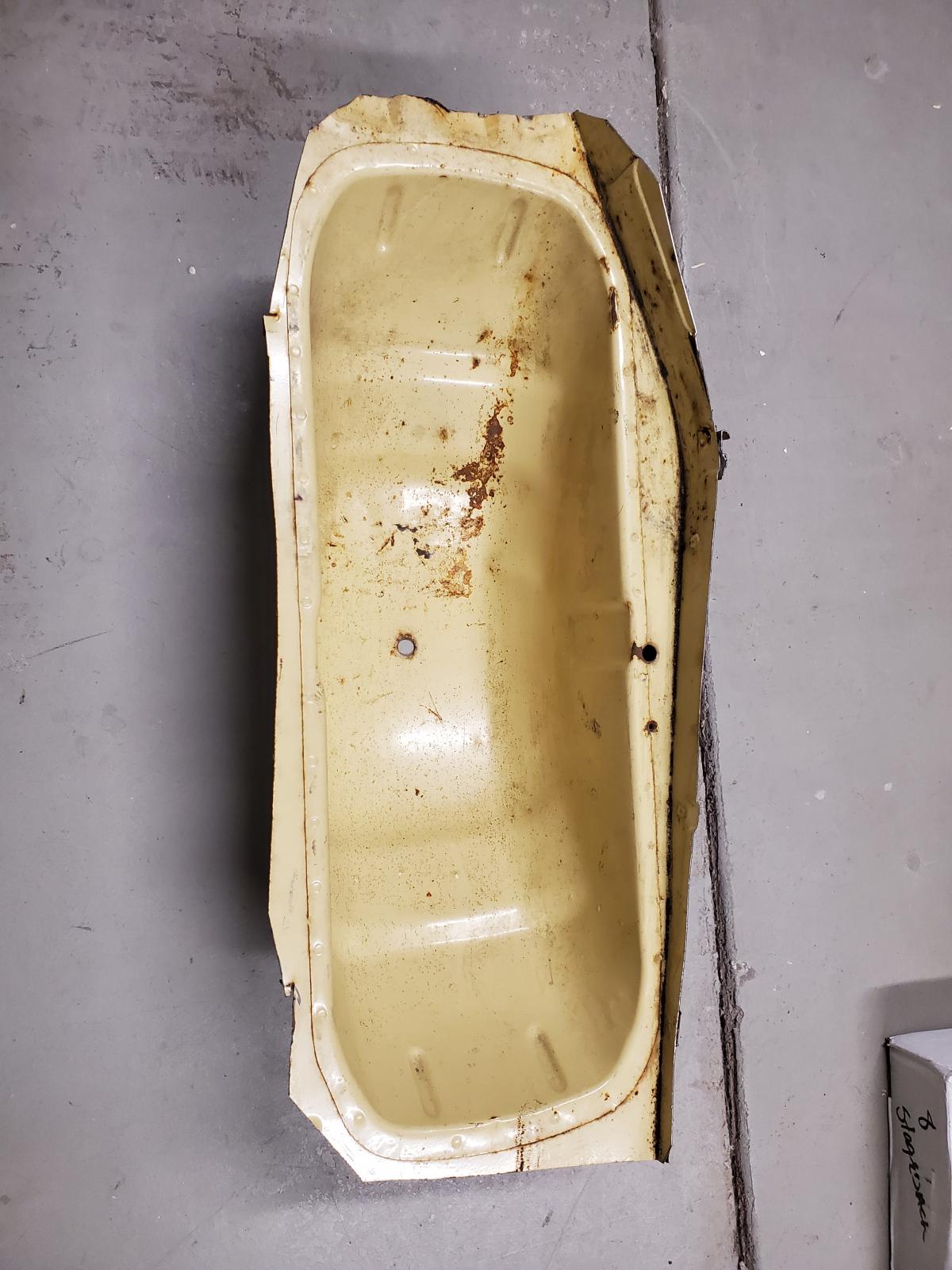

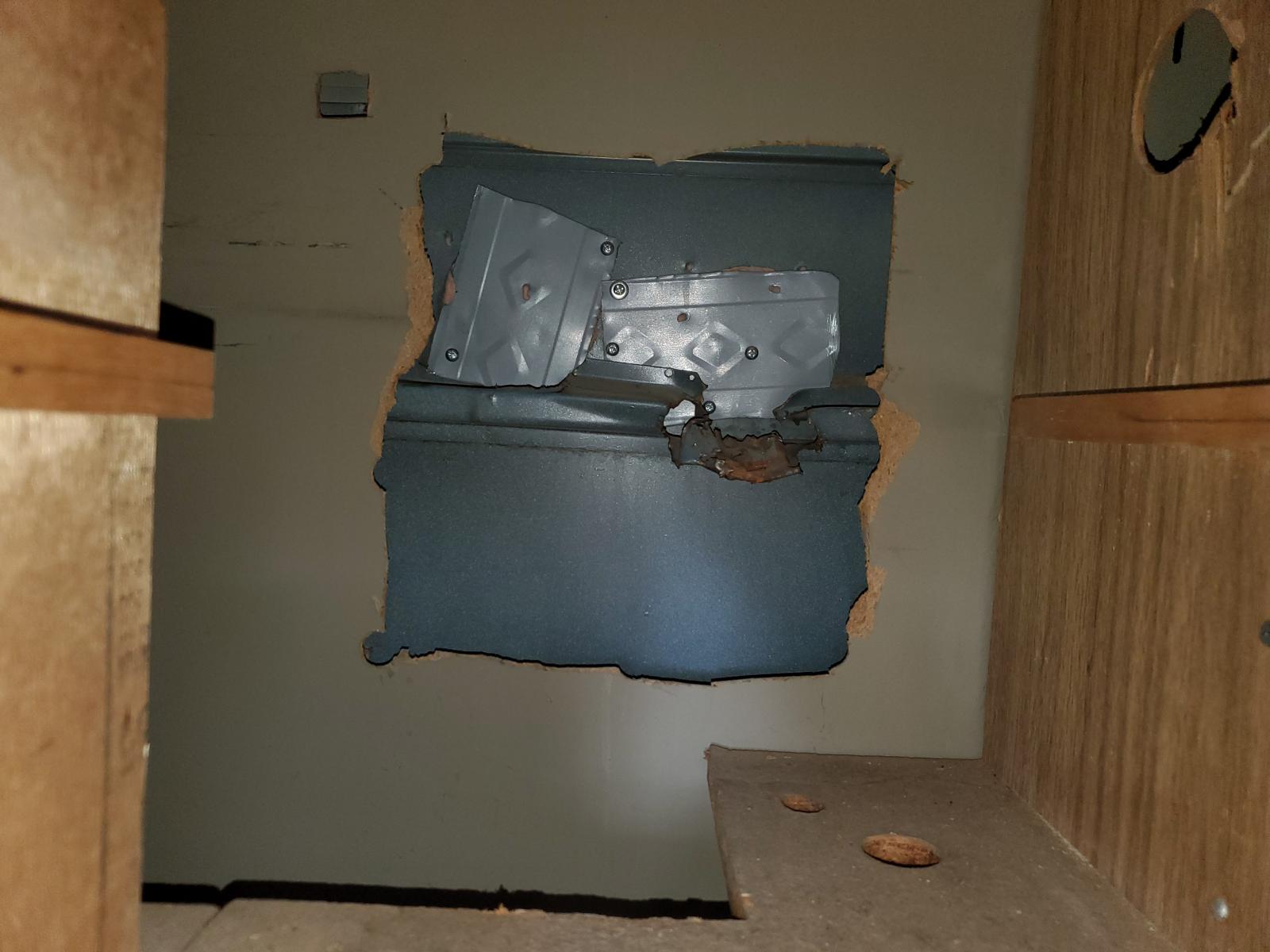

Here is two more hack jobs a previous owner did when they removed part of the spare tire well and the sink.
Not much else going on at the moment other than collecting parts for some s/m repairs. I picked up a used 68-71 mustache bar and frame brackets, a spare tire well, Creative Car Craft fiberglass Type 1 conversion tin, and both battery trays.The bar needs a bushing replaced and straightened. Its a little twisted.........nothing a little heat and a press can't fix. Just got to find a press and a bushing that is the correct size.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
