PostPosted: Thu May 13, 2021 3:59 pm    Post subject: Emblem tab sealing? Reply with quote

I've seen pictures of what looks like clear putty or wax over the emblem tabs under the bonnet/hood. What years would have had that, and what would it have looked like?
_________________
-Harry
--------------------------
1967 Ruby Red Convertible Beetle ("Becky")
ISO Albuquerque "Imported Motors" dealership paraphernalia
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
my59
Samba Member


Joined: August 13, 2003
Posts: 3407
Location: connecting the dots
my59 is offline

PostPosted: Thu May 13, 2021 5:25 pm    Post subject: Re: Emblem tab sealing? Reply with quote

I heard the seals called witches hats. The replacement seals in my bug are some kind of squoze on putty
_________________
my59: Well son, my grandfather died before I got to drive it, so does that answer your question?
our79: sunroof bus w/camper interior and 2.0 FI
Other:'12 Jetta, '95 Benz E300D, 77 Benz 300D, '02 Jetta TDI with a 3" lift.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
harrymarlin Premium Member
Samba Member


Joined: June 07, 2018
Posts: 434
Location: Washington, DC
harrymarlin is offline

PostPosted: Fri May 14, 2021 6:36 am    Post subject: Re: Emblem tab sealing? Reply with quote

my59 wrote:
I heard the seals called witches hats. The replacement seals in my bug are some kind of squoze on putty


Ah - so you are suggesting the putty is for replacement seals?
_________________
-Harry
--------------------------
1967 Ruby Red Convertible Beetle ("Becky")
ISO Albuquerque "Imported Motors" dealership paraphernalia
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 29345
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Fri May 14, 2021 9:00 am    Post subject: Re: Emblem tab sealing? Reply with quote

Does your emblem have pins or tabs?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
harrymarlin Premium Member
Samba Member


Joined: June 07, 2018
Posts: 434
Location: Washington, DC
harrymarlin is offline

PostPosted: Fri May 14, 2021 9:16 am    Post subject: Re: Emblem tab sealing? Reply with quote

KTPhil wrote:
Does your emblem have pins or tabs?


Pins. Was the putty used for tabs?

Thanks!
_________________
-Harry
--------------------------
1967 Ruby Red Convertible Beetle ("Becky")
ISO Albuquerque "Imported Motors" dealership paraphernalia
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 29345
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Fri May 14, 2021 9:27 am    Post subject: Re: Emblem tab sealing? Reply with quote

The later models with pins used these, pressed into the hood first, followed by the emblem:
Image may have been reduced in size. Click image to view fullscreen.

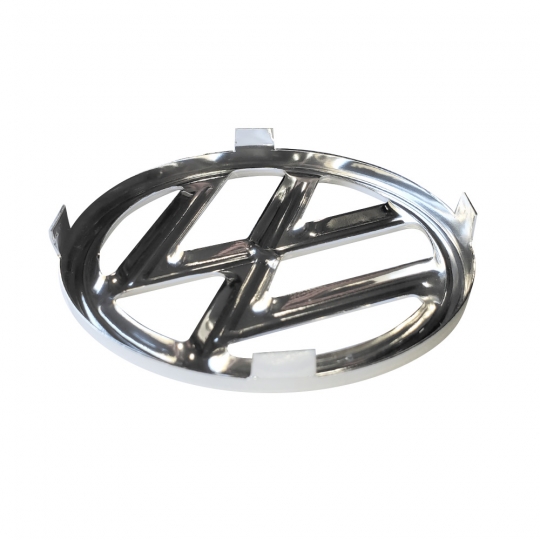

Earlier models used tabs, which I think were sealed with a putty similar to that used to seal the tab gaps on the back (front) of the dash.
Image may have been reduced in size. Click image to view fullscreen.

But those with early models can confirm or correct.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 29345
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Fri May 14, 2021 3:43 pm    Post subject: Re: Emblem tab sealing? Reply with quote

Crests use these rubber seals, which look to has a slit. I can't tell he scale, though, and they are listed for the crest, not the VW emblem.
https://www.wagen-werks.com/hood-crest-gasket-bug-to-1962/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 22930
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline

PostPosted: Fri May 14, 2021 7:19 pm    Post subject: Re: Emblem tab sealing? Reply with quote

Seen some original 1950s beetles that used butyl rubber AKA Dum Dum sealant. That type of sealant comes in a lot of forms from somewhat liquid in a can, to caulking gun tube, to ribbon tape. The last is probably the best for your use if that is your situation.
