Coil mounted:

Image may have been reduced in size. Click image to view fullscreen.

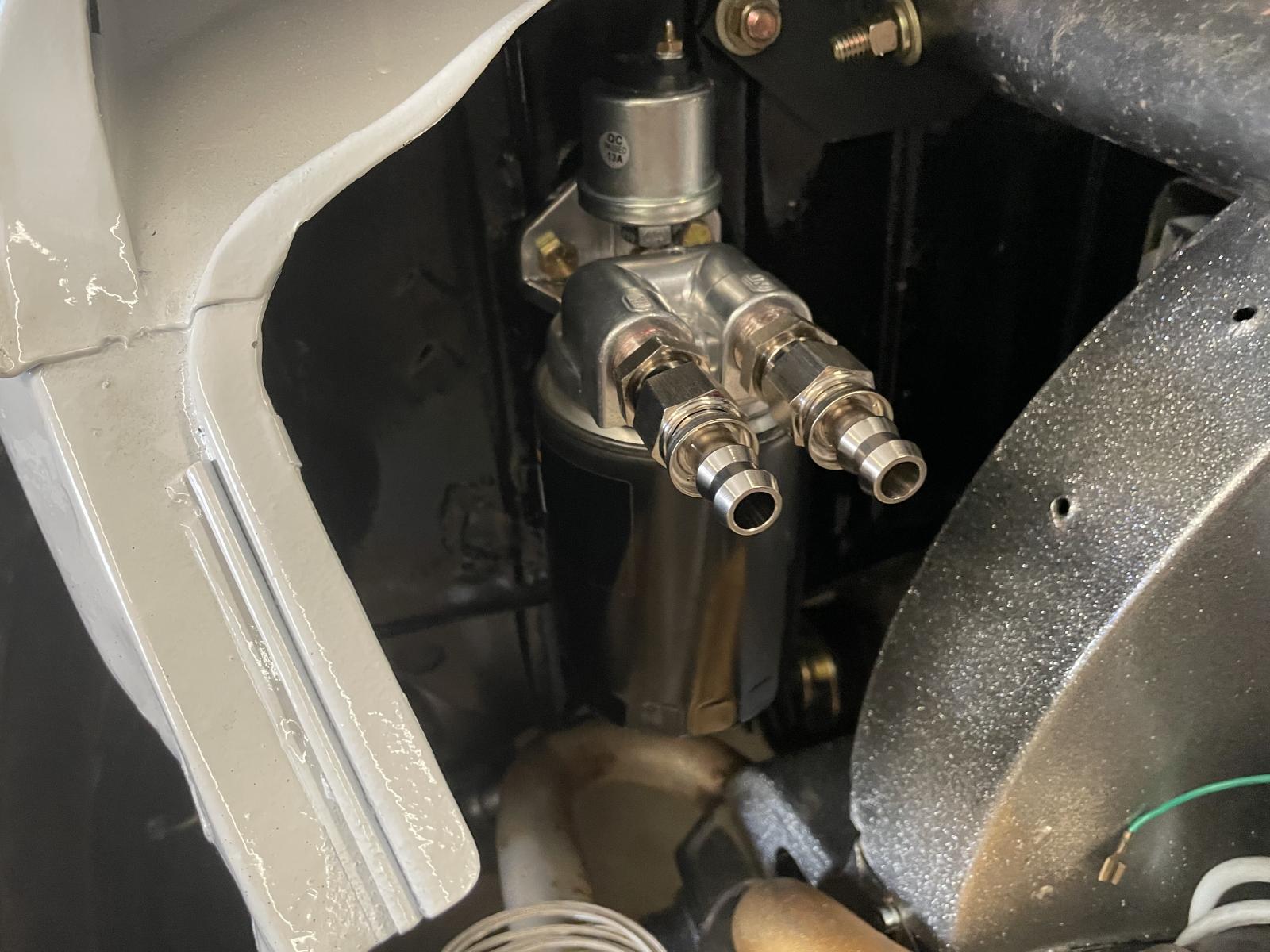

Oil filter mounted and sender installed:

Image may have been reduced in size. Click image to view fullscreen.

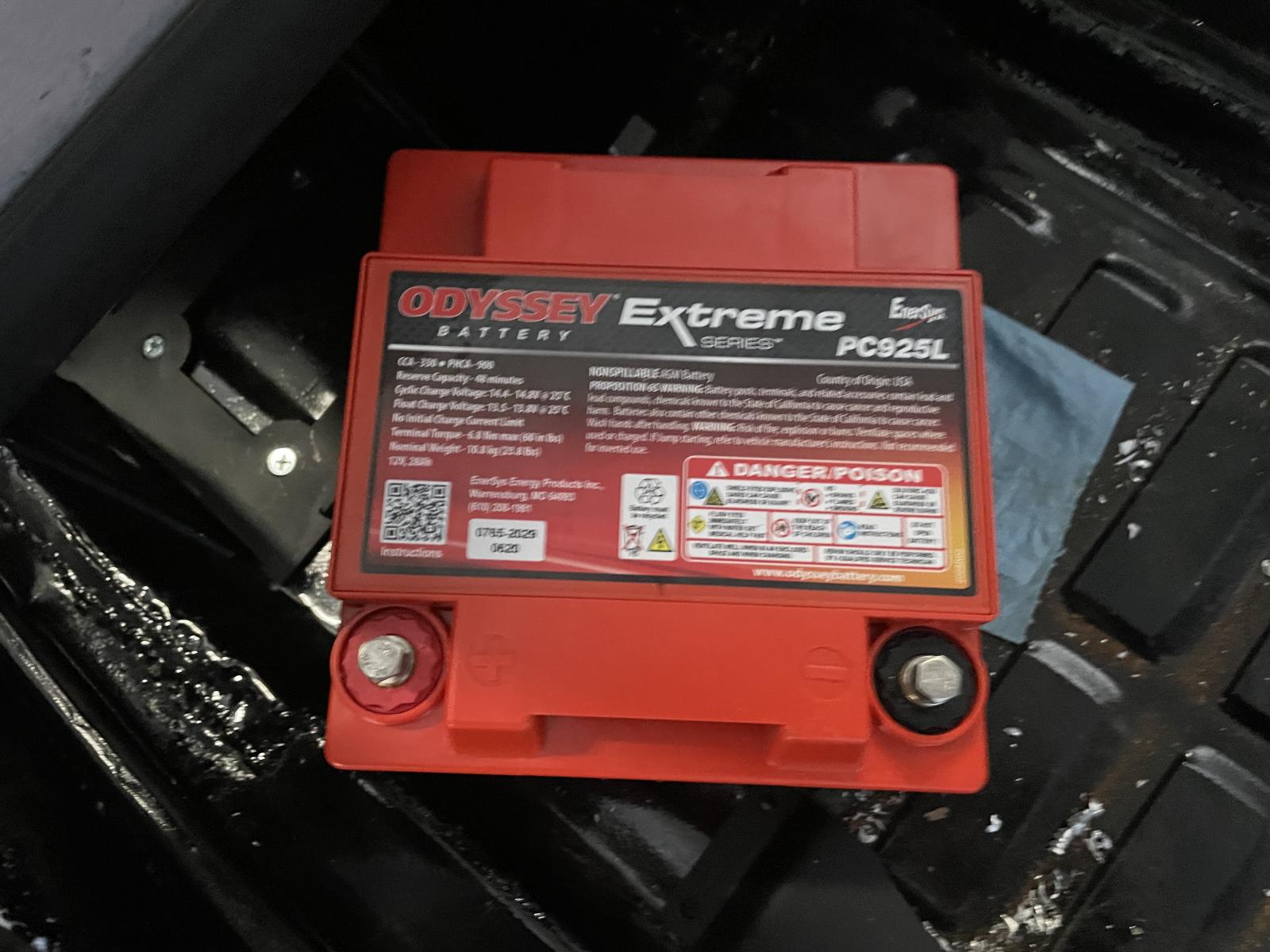

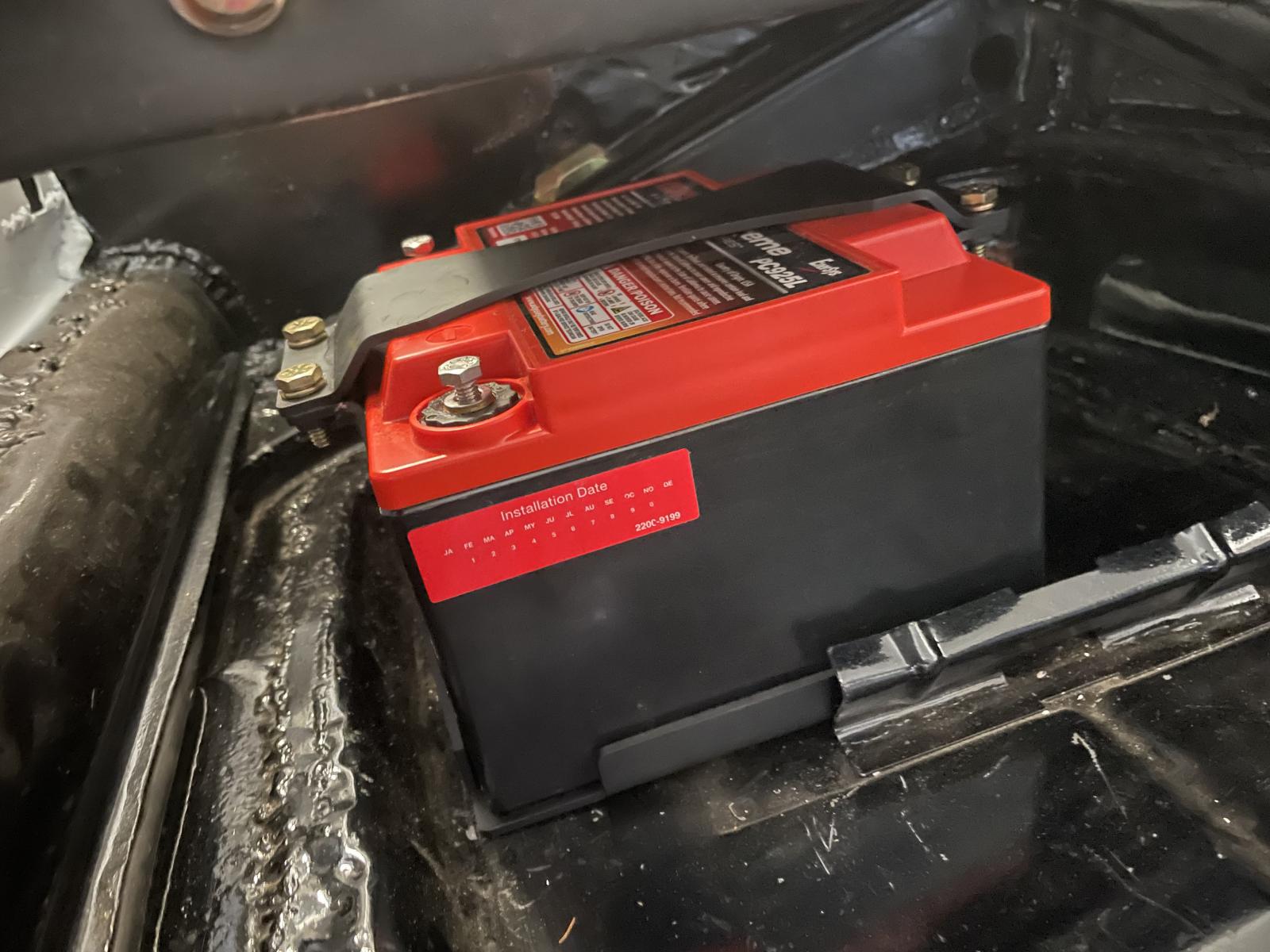

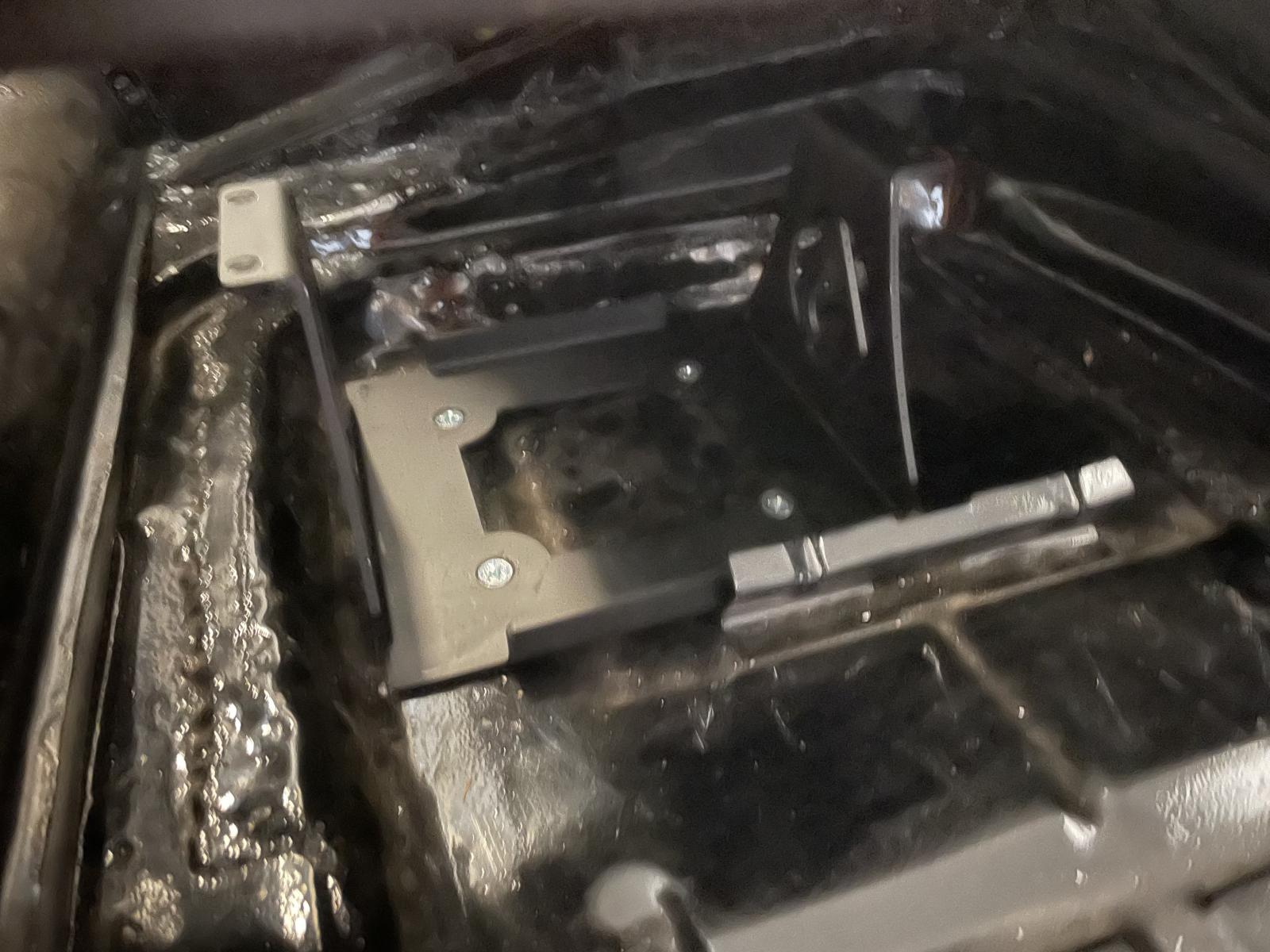

Battery mount installed:


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


Terminal access from above:

Image may have been reduced in size. Click image to view fullscreen.


Bumper on, all new 3/8Ē and 1/2Ē G8 hardware, a 2.5Ē full width angle for the inside backing plate, oil lines installed, time to start wiring.

Image may have been reduced in size. Click image to view fullscreen.

_________________
it's more fun loud and dirty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sailtexas186548
Samba Member


Joined: December 01, 2014
Posts: 420
Location: Kemah, Tx
sailtexas186548 is offline

PostPosted: Sun Sep 25, 2022 8:43 pm    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

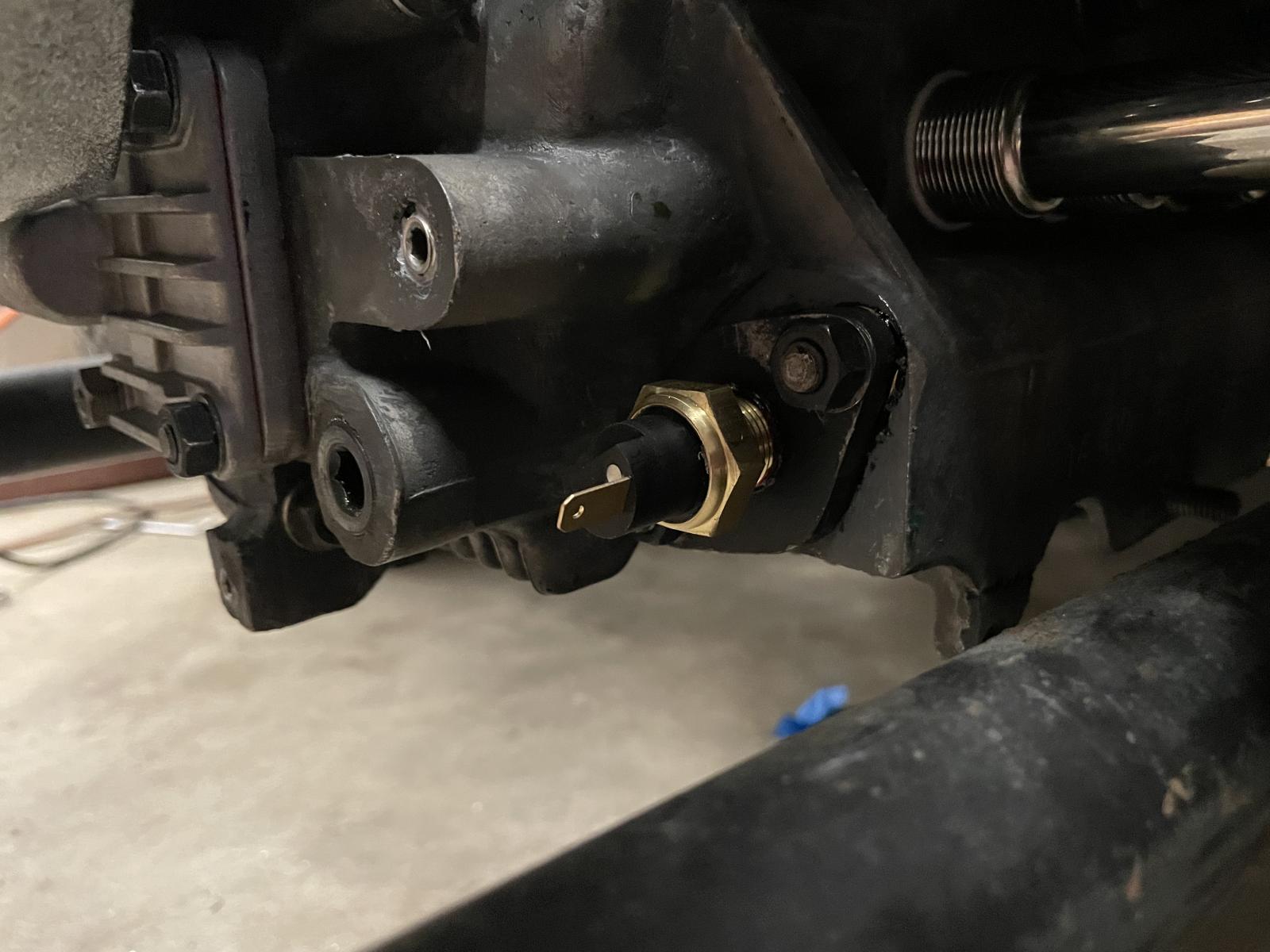

Added an oil temp switch for the warning light, 235*F is when it comes on.

Image may have been reduced in size. Click image to view fullscreen.

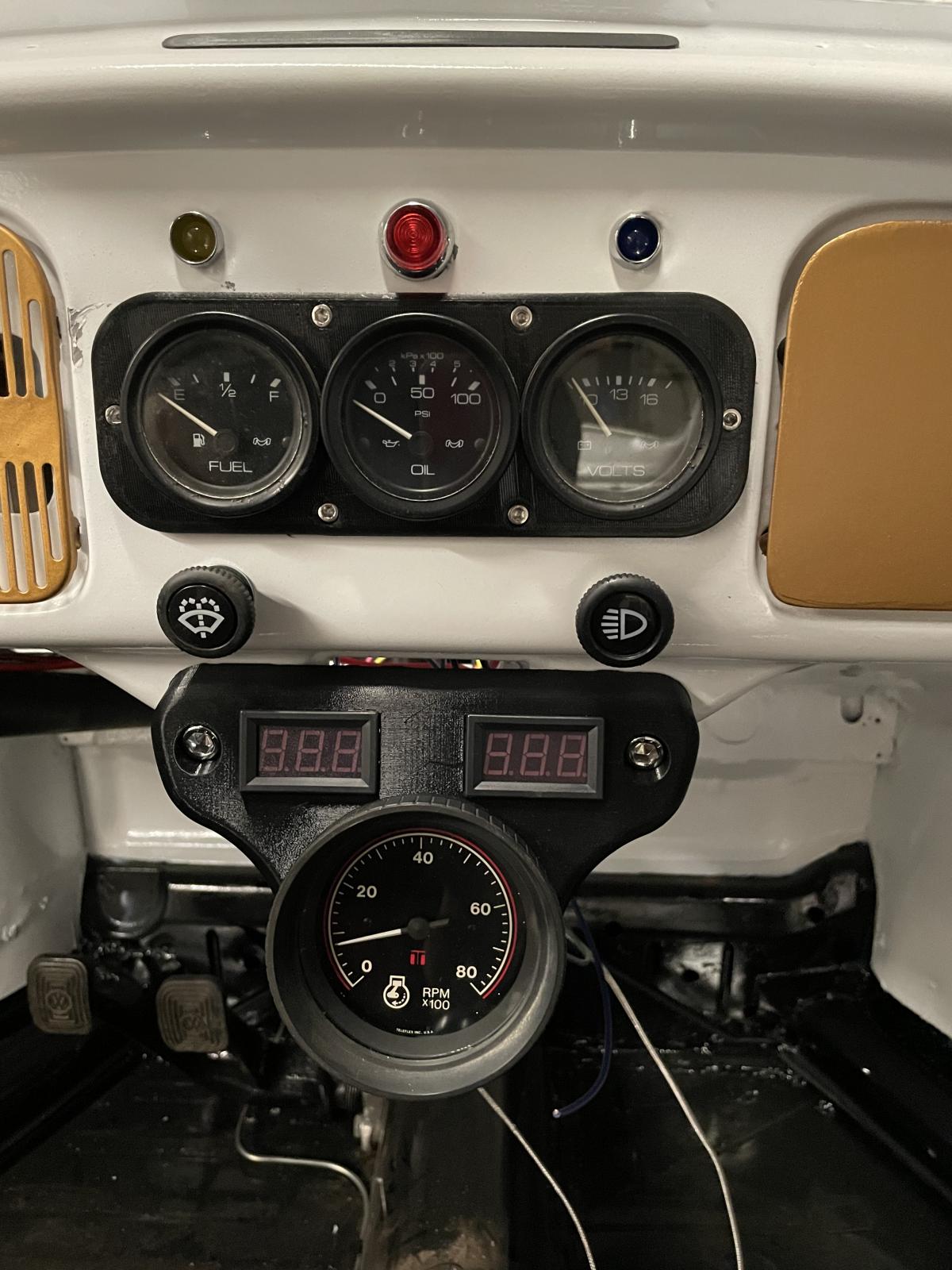

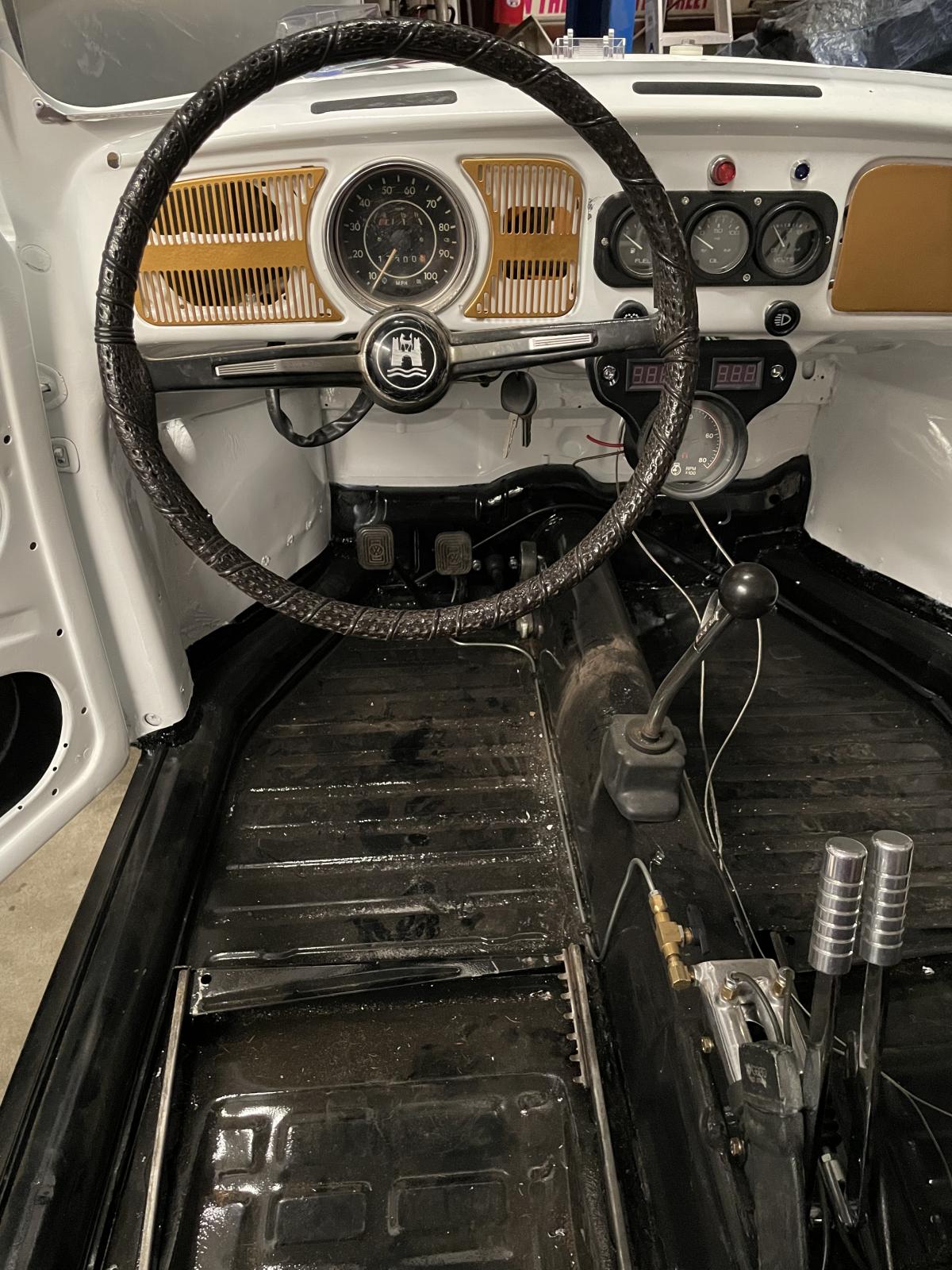

Cylinder Head temp guages in finally, I think the dash came out pretty cool!

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


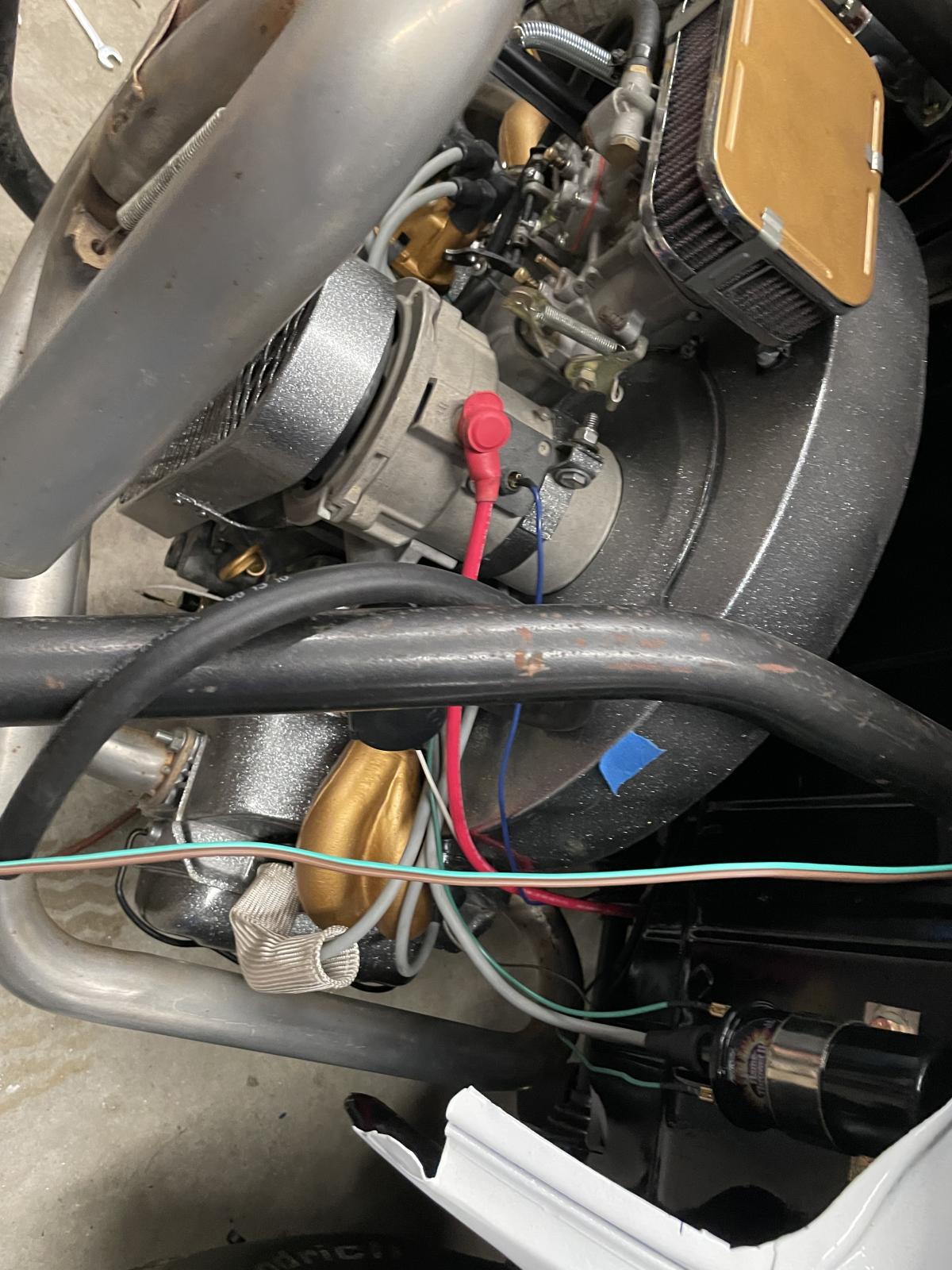

All of the battery cables, wires, grounds, etc are done and just need to be terminated at the dash. I build boats also, so I always end up using left over marine grade wires/cables/etc, this build is no different. I had enough wire colors to actually make a proper color coded harness which is cool, basically following the Chevy colors. Here are some assorted progress pics, I will loom it all up once it tests out


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
it's more fun loud and dirty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sailtexas186548
Samba Member


Joined: December 01, 2014
Posts: 420
Location: Kemah, Tx
sailtexas186548 is offline

PostPosted: Tue Sep 27, 2022 9:03 pm    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

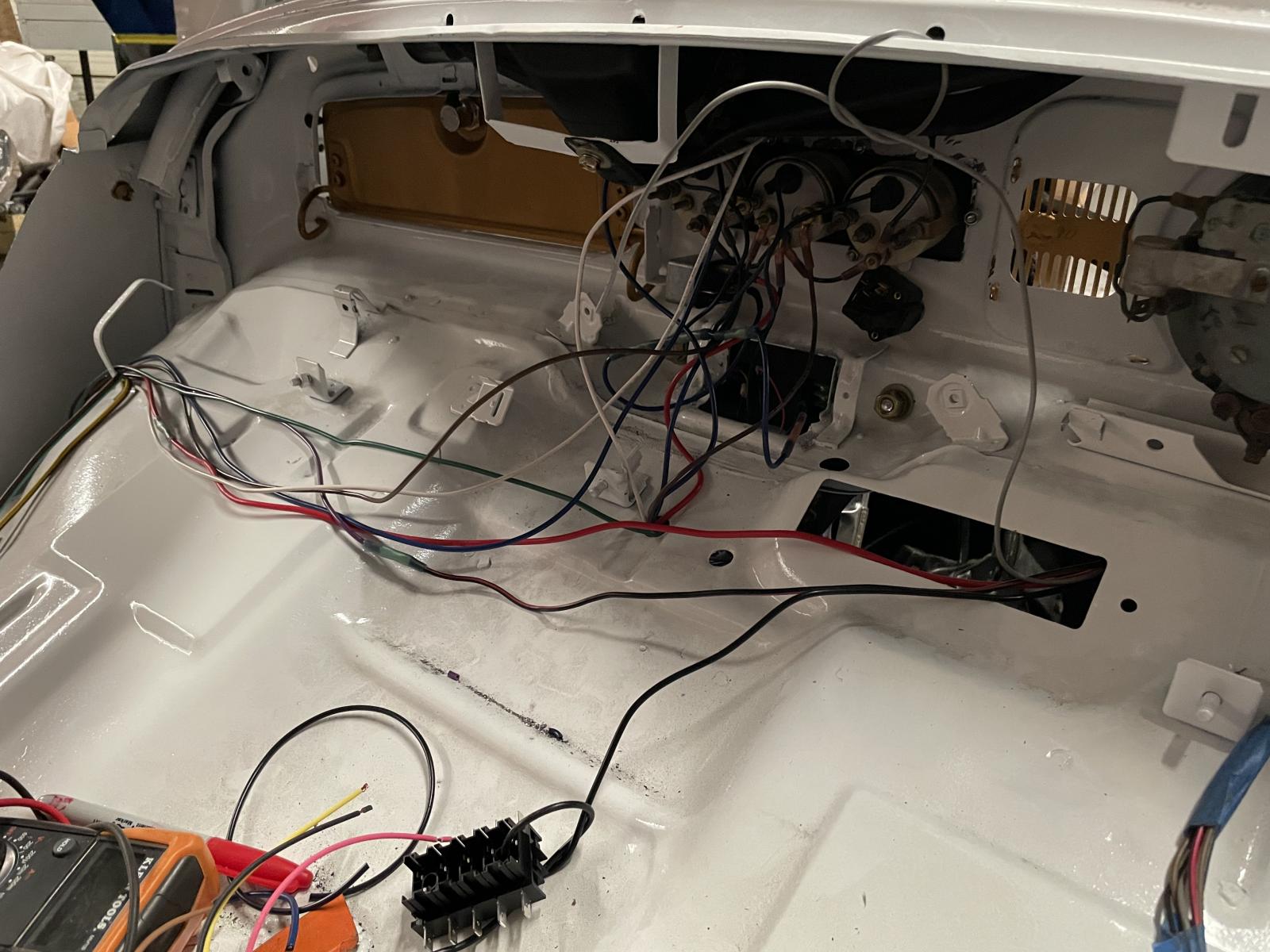

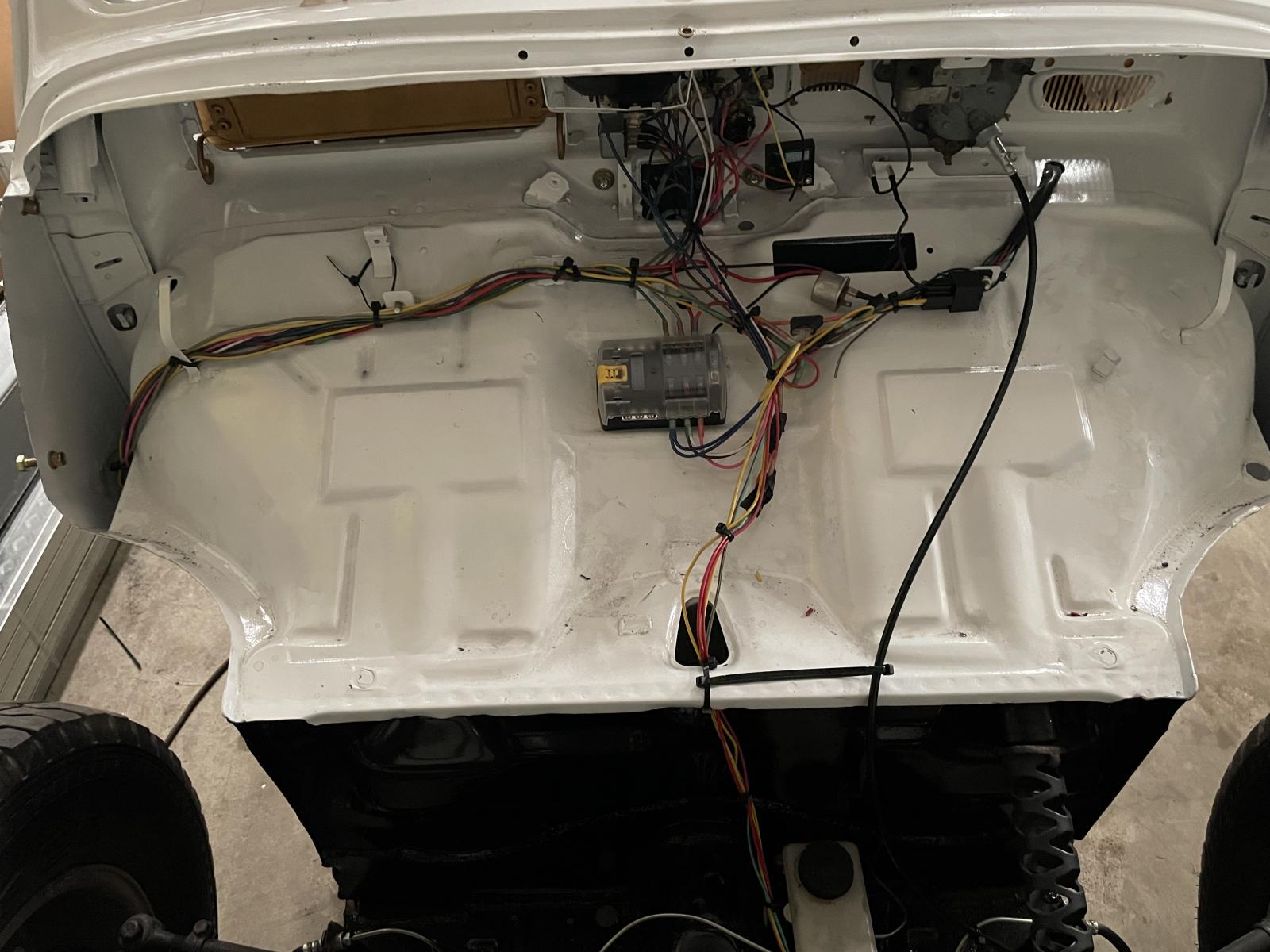

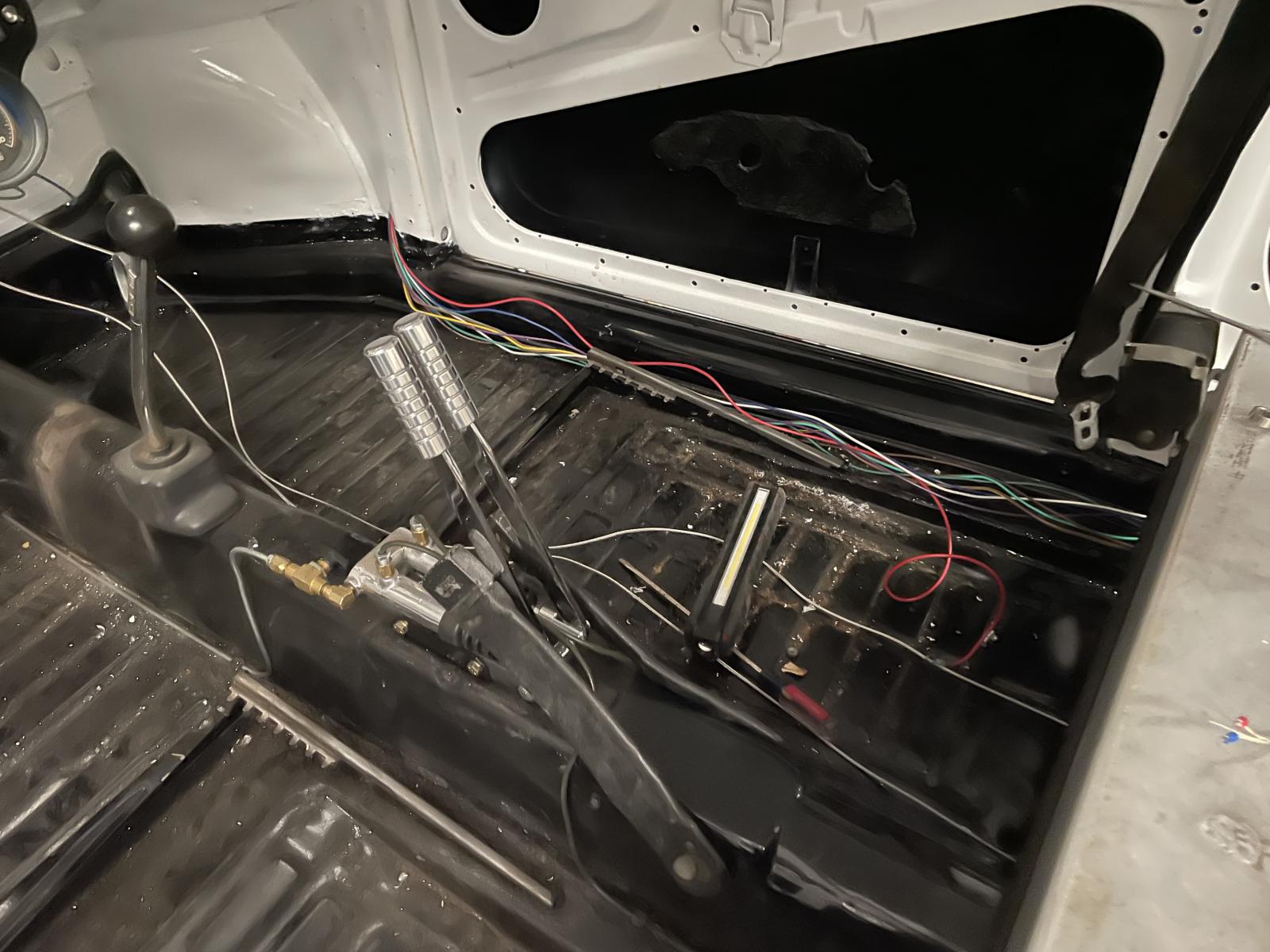

Finished the wiring, tested everything and have three issues to work though.

1.) The new turn signal switch I installed is shorting to ground when switched ďonĒ for both the right and left sidesÖ I was just going to use it as a switch for turn signals to give +12v to the circuitÖ not looking forward to pulling the column apart againÖ maybe I can make it work with a three prong flasher relay controlled with the ground? Iím not really sure how those work but Iím guessing this is just wishful thinkingÖ

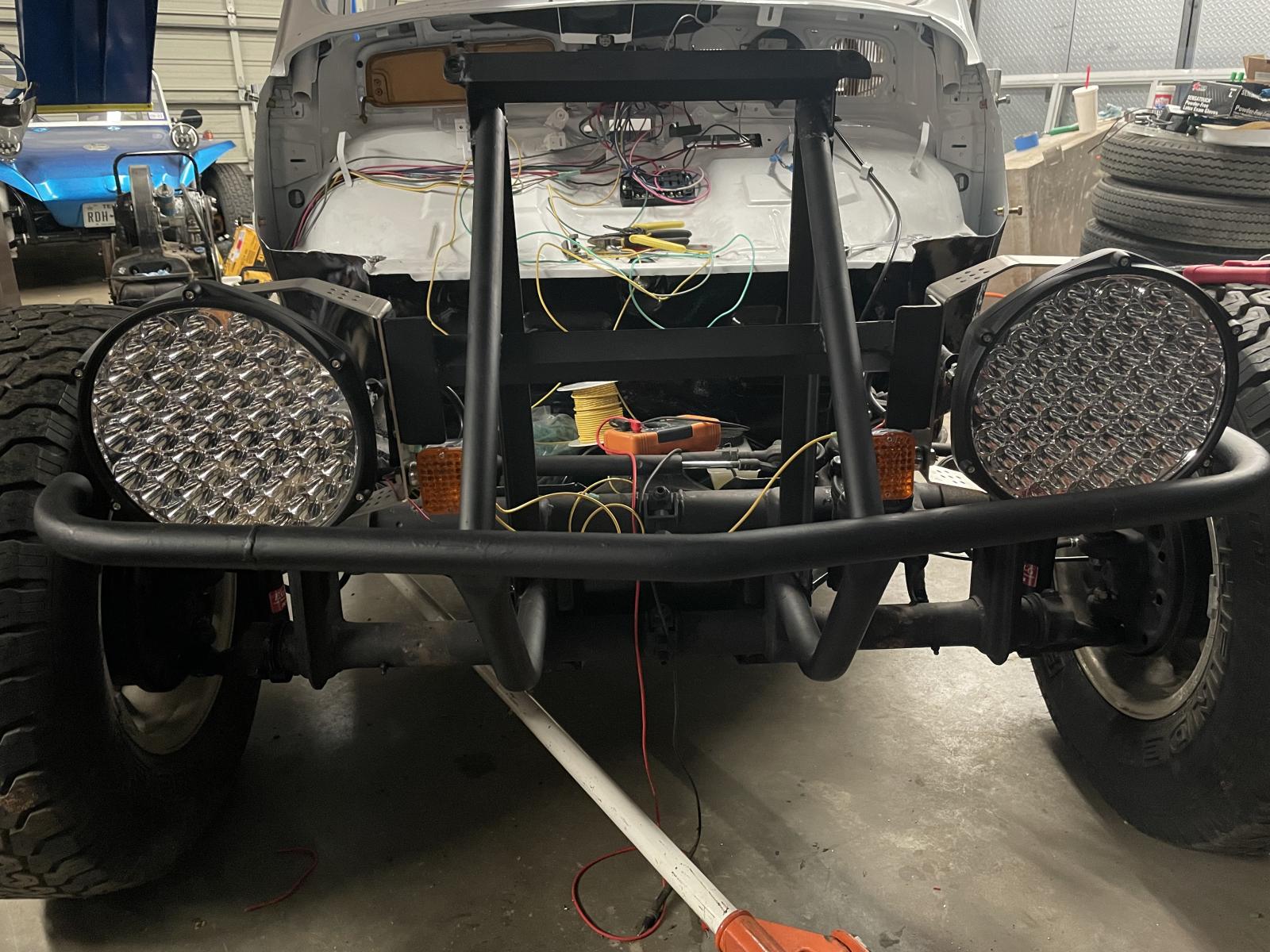

2.) The headlights Iím using are drawing 21-22 amps, so I need to run a dedicated wire from the battery and a relay, thatís a lot to put though the switch lol it was gettting hot fast

3.) The low fuel light module isnt working, I think I have it on the wrong ohm range I will have to check what sender I put in :p

Alternator ďnot chargingĒ light works! The first sign of life!

Image may have been reduced in size. Click image to view fullscreen.


Cylinder head temps:

Image may have been reduced in size. Click image to view fullscreen.

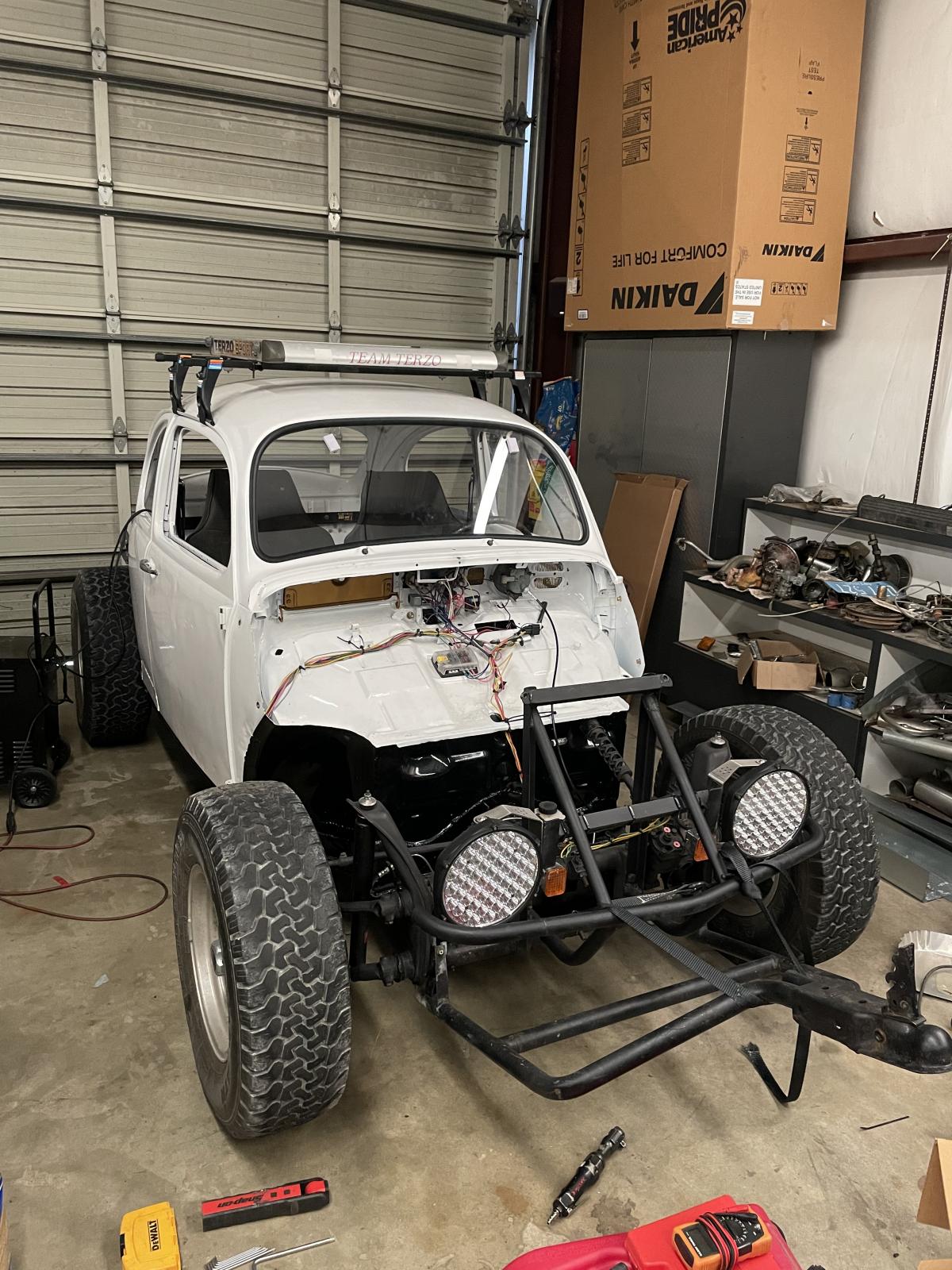

Turn signals installed:

Image may have been reduced in size. Click image to view fullscreen.

_________________
it's more fun loud and dirty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ORANGECRUSHer
Samba Member


Joined: June 09, 2006
Posts: 2524
Location: West Coast (Michigan's)
ORANGECRUSHer is offline

PostPosted: Wed Sep 28, 2022 4:56 am    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

Im not sure those headlights are big enough. Lol i kid because im a light guy. Never have too much.

As for the turn relay, are you using OE or aftermarket? Ive tried to stay with the vw stuff before but that's really kinda silly. I used an electronic two prong flasher on my woodsbuggy last winter using a stock switch on the steering column. I always use relays for actual power going to a load, even the turn signals. But i couldn't tell you right off hand how i wired it without my notebook. It's just too easy to look that stuff up on goggle to commit to memory.
_________________
Brian H.
I may not know everything,but I will try to help if I can
OrangeCrushER
Berrien Warrior 2.4L Quad4
LAZY MARY 1970 Baja 1835cc
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ORANGECRUSHer
Samba Member


Joined: June 09, 2006
Posts: 2524
Location: West Coast (Michigan's)
ORANGECRUSHer is offline

PostPosted: Wed Sep 28, 2022 4:58 am    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

Keep up the good work. Your motivating me to get started on my baja restoration. I hope it looks as good.
_________________
Brian H.
I may not know everything,but I will try to help if I can
OrangeCrushER
Berrien Warrior 2.4L Quad4
LAZY MARY 1970 Baja 1835cc
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sailtexas186548
Samba Member


Joined: December 01, 2014
Posts: 420
Location: Kemah, Tx
sailtexas186548 is offline

PostPosted: Wed Sep 28, 2022 10:40 am    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

They are pretty bright! They are pre-production versions from my friends lighting company so the price was right, i would have preferred 7" but they have grown on me.

I have a two pin aftermarket flasher unit, and a turn signal switch from Jbugs. i think the turn signal switch is the issue, grounding out in the column because they aren't the best quality and i may have left out some insulators or something . I will open it up and modify as required!

I only use relays when I have to, for big loads like fans and pumps. Definitely going to use one for these headlights at 21A draw
_________________
it's more fun loud and dirty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sailtexas186548
Samba Member


Joined: December 01, 2014
Posts: 420
Location: Kemah, Tx
sailtexas186548 is offline

PostPosted: Wed Sep 28, 2022 10:55 pm    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

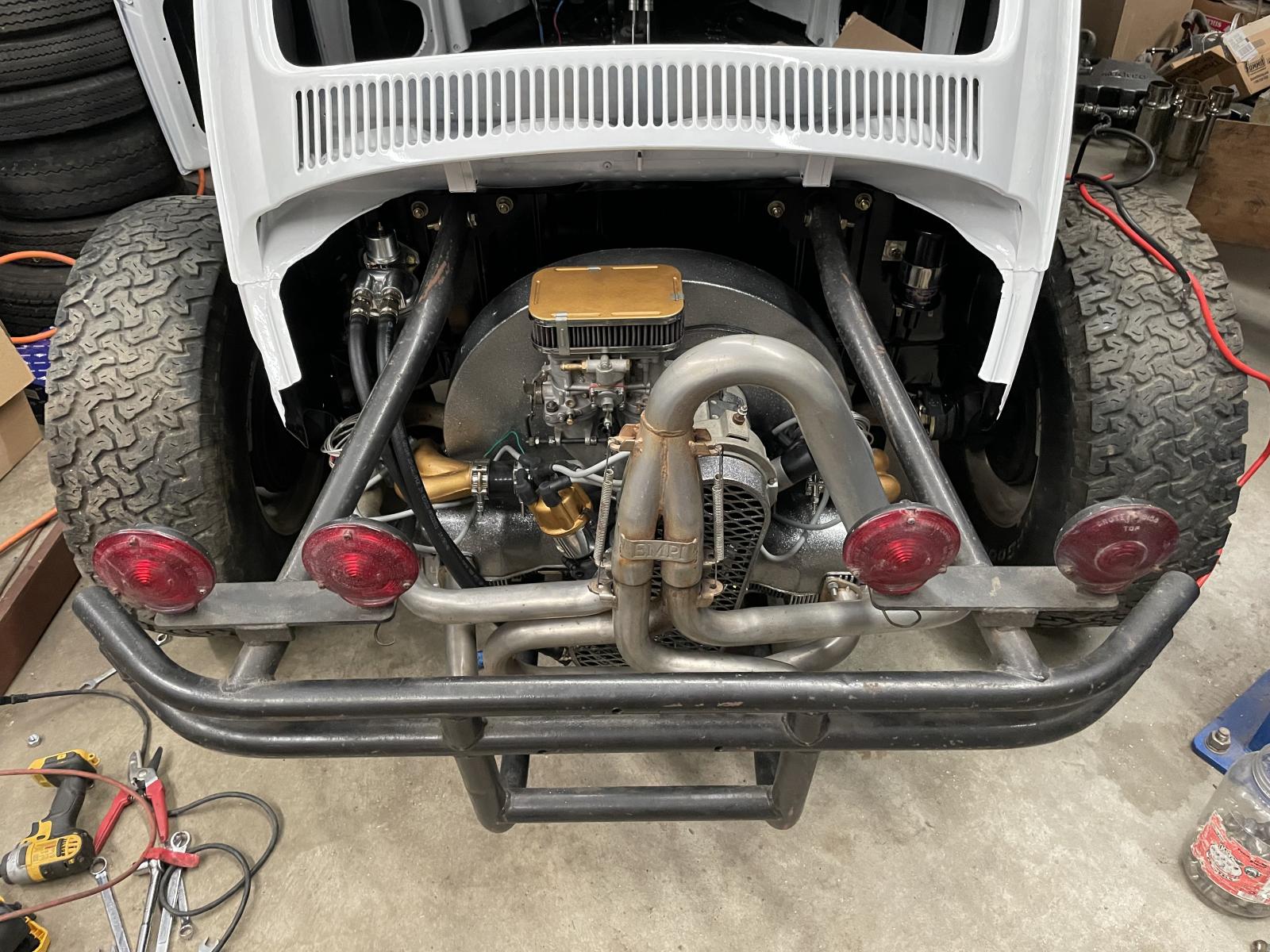

Fuel!

Image may have been reduced in size. Click image to view fullscreen.

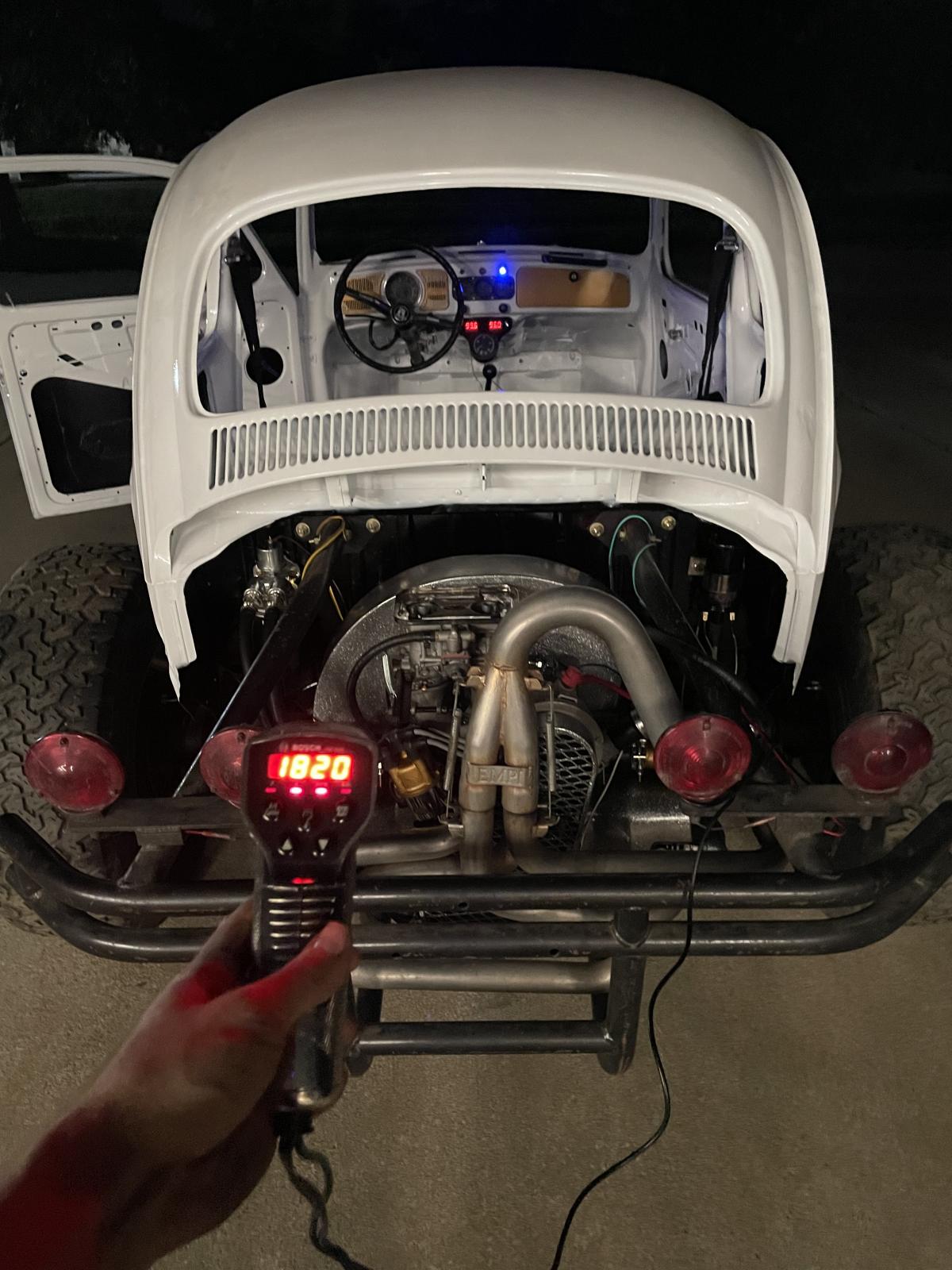

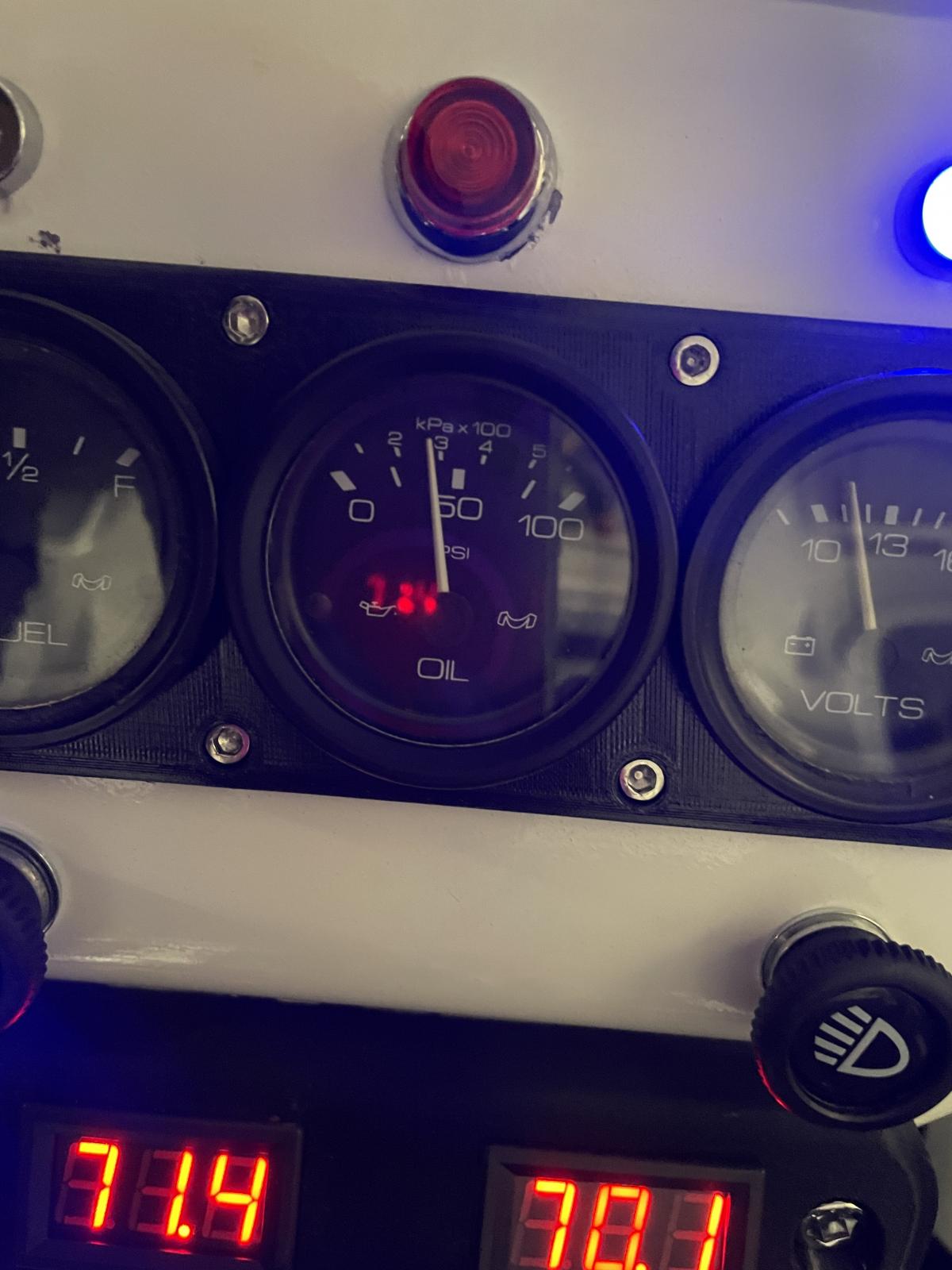

Cranking oil pressure of 35+ lbs

Image may have been reduced in size. Click image to view fullscreen.


Cam break in done, 1700-2100 rpm for 20 minutes.

Image may have been reduced in size. Click image to view fullscreen.


Had a valve cover leak, and one oil pump stud is weeping, otherwise no leaks! The jetting is bad, way way way rich and Iím not certain but it seems like my timing/spark is a bit erratic. Need to check out the distributor, condenser, and maybe fouled plug from being so rich. Coil got pretty hot so I need to Chase that down also

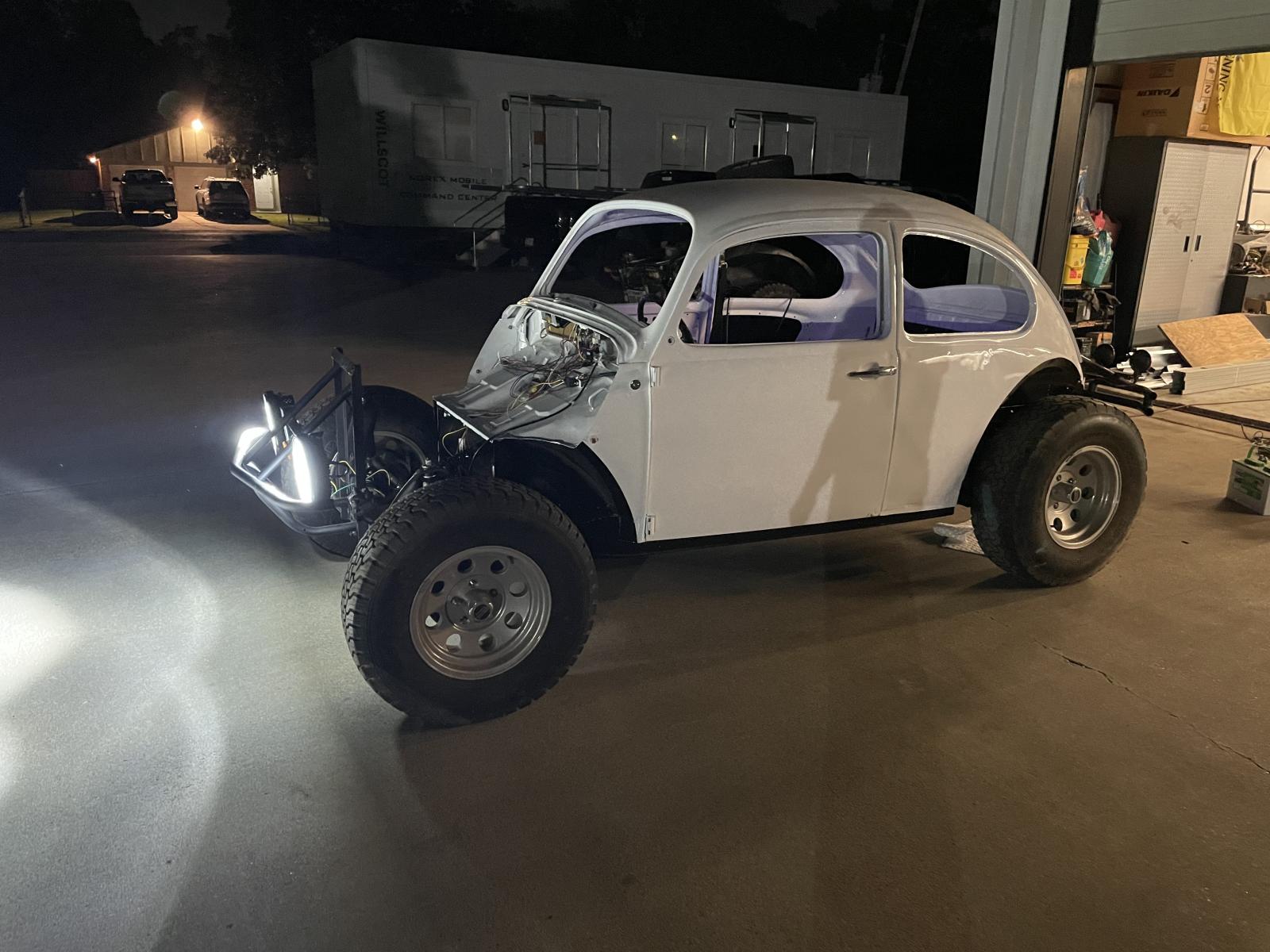

Lights!


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
it's more fun loud and dirty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ORANGECRUSHer
Samba Member


Joined: June 09, 2006
Posts: 2524
Location: West Coast (Michigan's)
ORANGECRUSHer is offline

PostPosted: Thu Sep 29, 2022 4:49 am    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

What tire size are you running in front? Sorry if u already mentioned it but I run a narrower slightly smaller all season in front and 29" wrangler in back but i like your stance. I'm wondering how much more steering effort comes with those larger fronts. One of the reasons i contemplated a lift was going to a full size steering wheel.
_________________
Brian H.
I may not know everything,but I will try to help if I can
OrangeCrushER
Berrien Warrior 2.4L Quad4
LAZY MARY 1970 Baja 1835cc
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sailtexas186548
Samba Member


Joined: December 01, 2014
Posts: 420
Location: Kemah, Tx
sailtexas186548 is offline

PostPosted: Tue Oct 04, 2022 5:20 am    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

Iíll have to look at the tire size, I robbed them off another Baja I bought six months ago for parts.

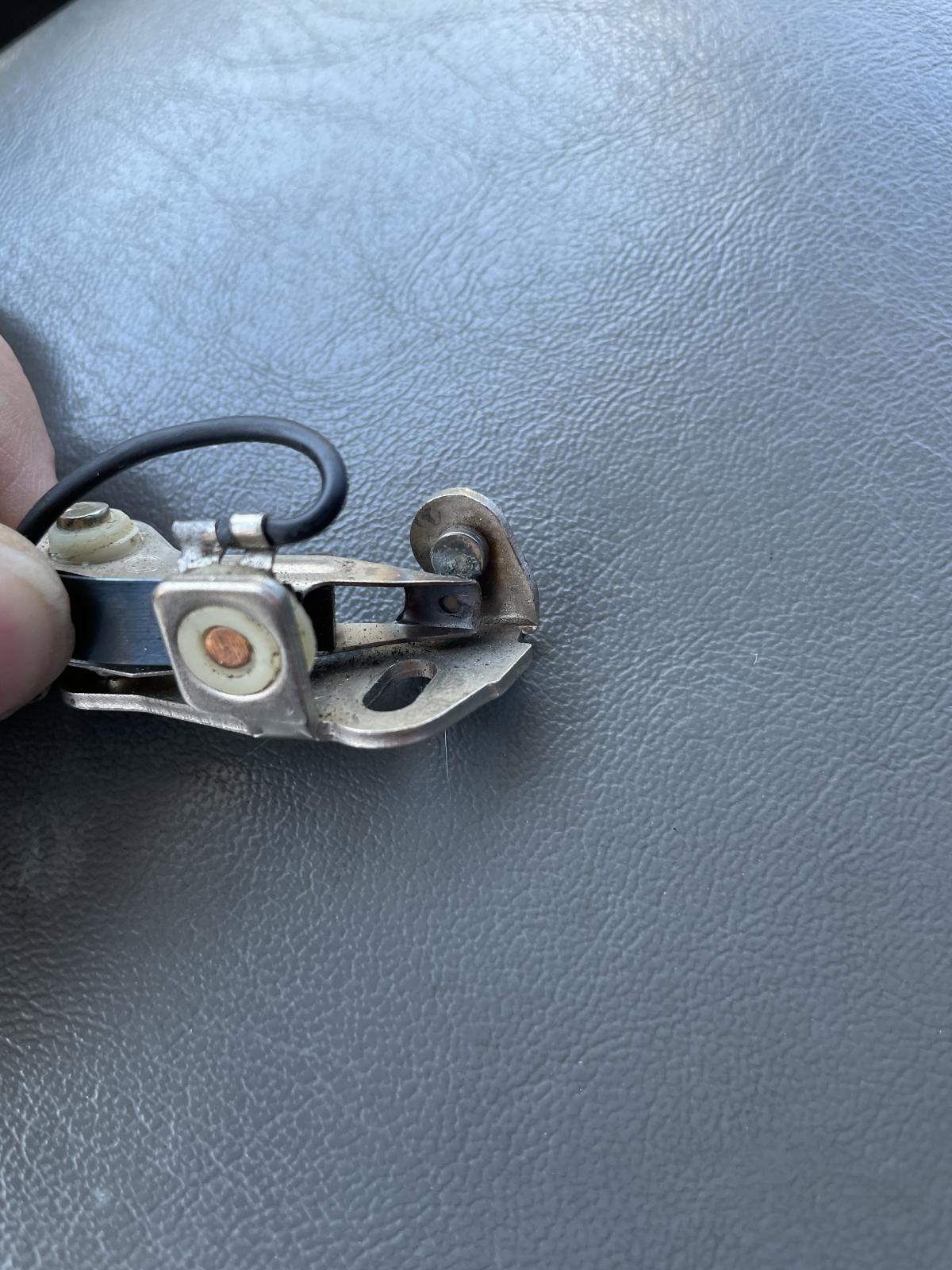

The points in the distributor were trashed, got a new set installed

Image may have been reduced in size. Click image to view fullscreen.

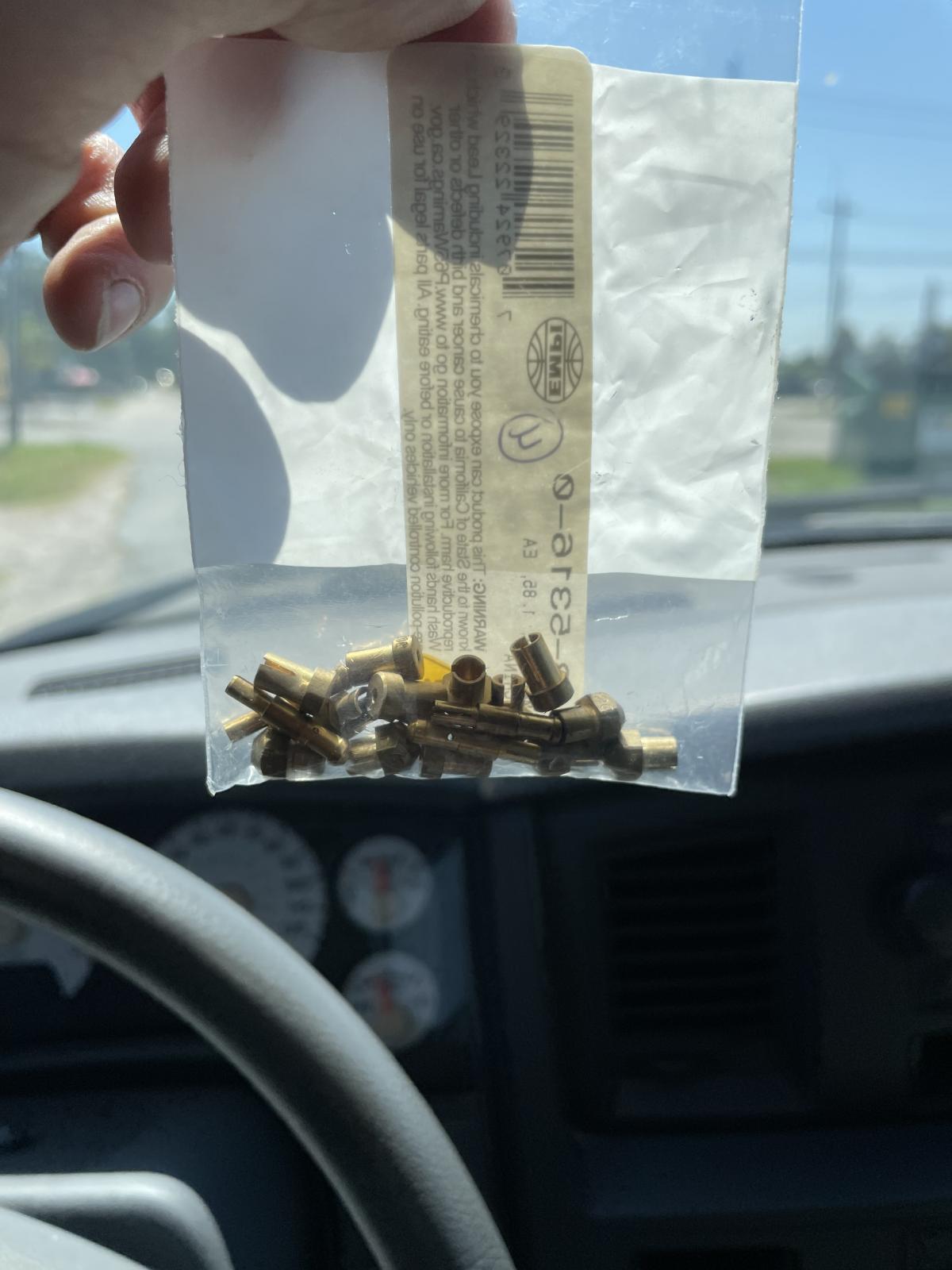

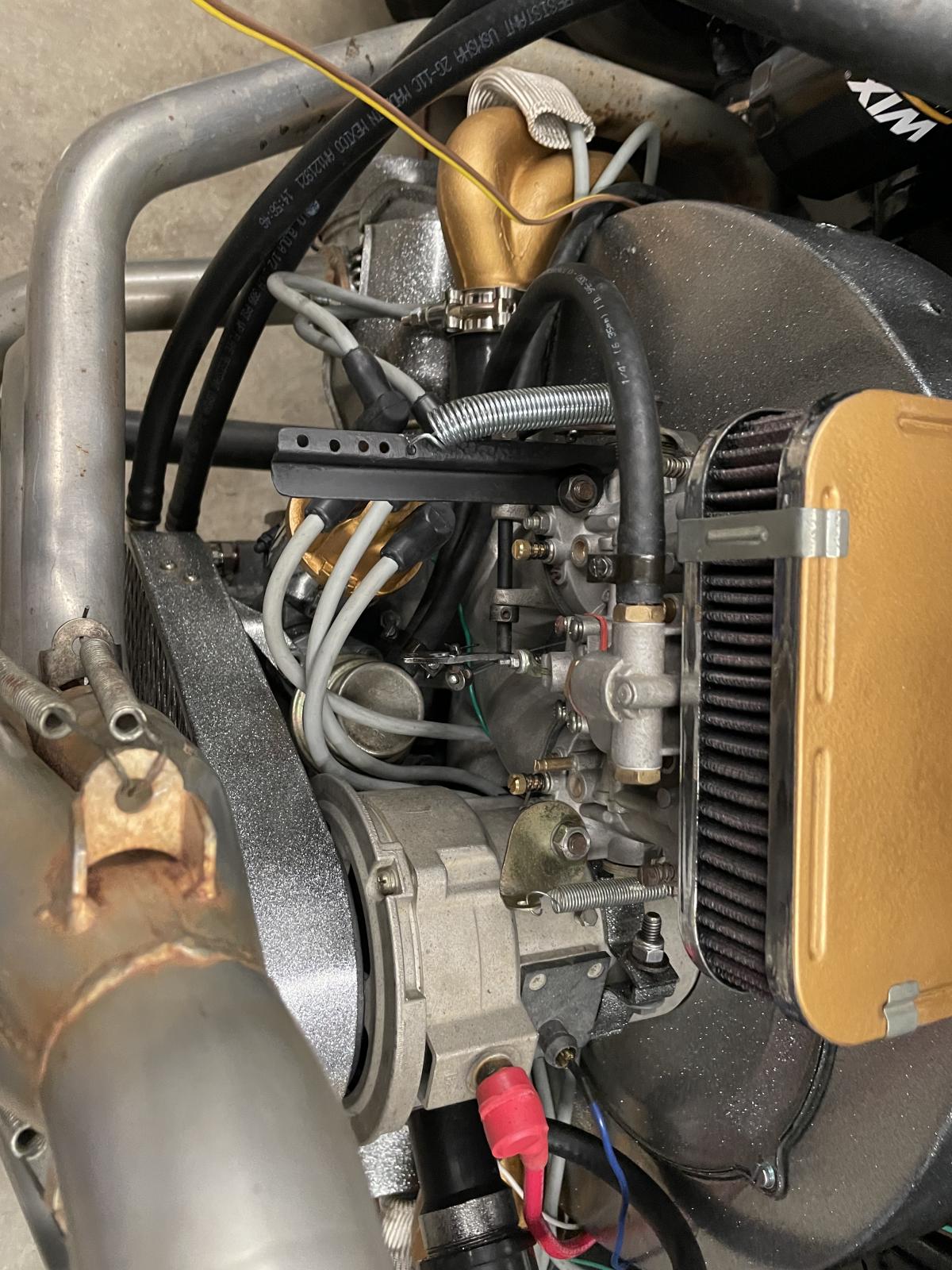

Also picked up Some jets, changed to 50 idles, 200 air, 115 mains and it is better, need to get a wideband on it and really dial it in

Image may have been reduced in size. Click image to view fullscreen.


I thrashed on this thing all last week to make ďBug off 2022Ē so these pics are from last Thursday night. I zip Tied the wires up for now, I will loom them once itís all working right for a while

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

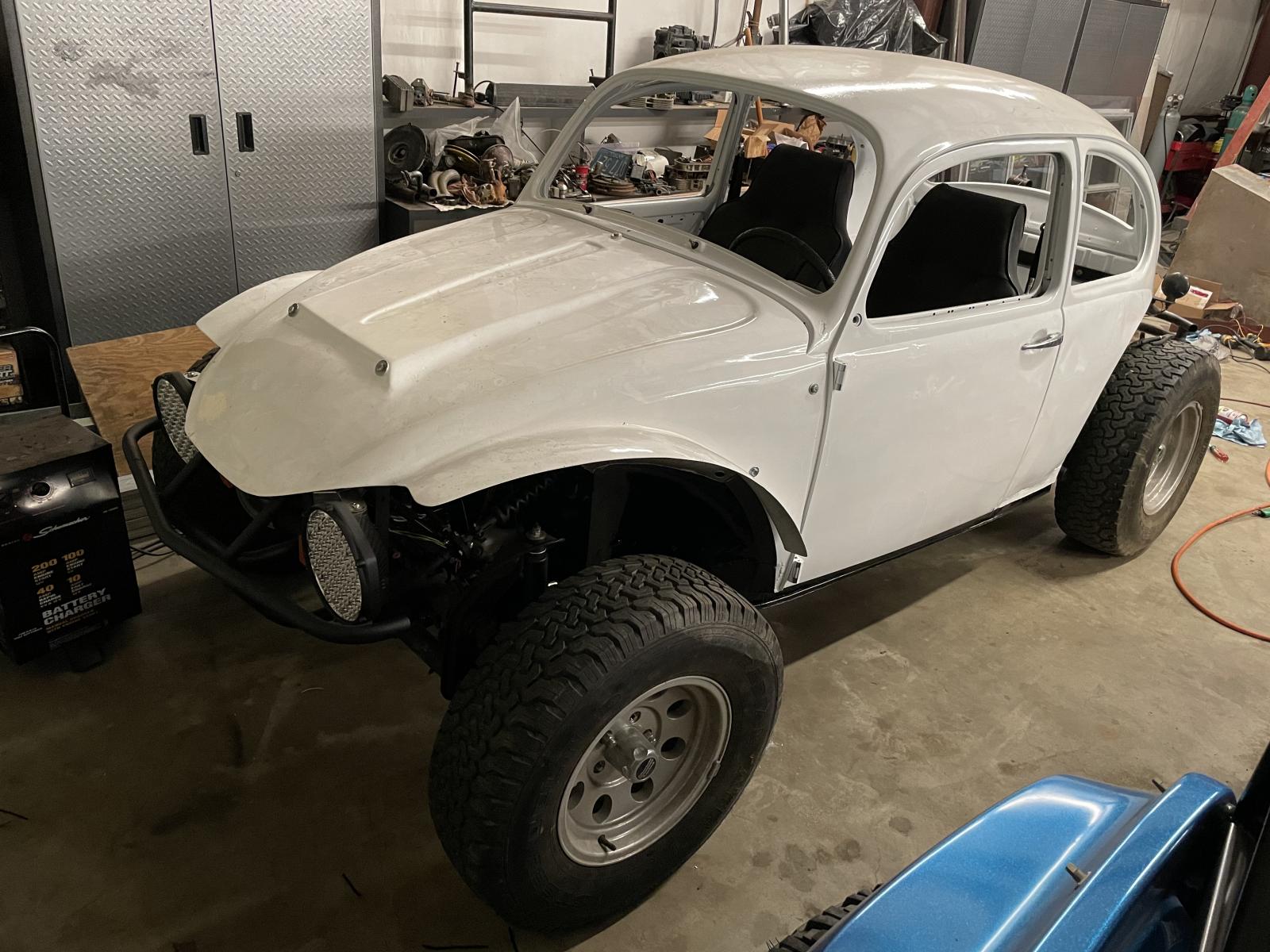

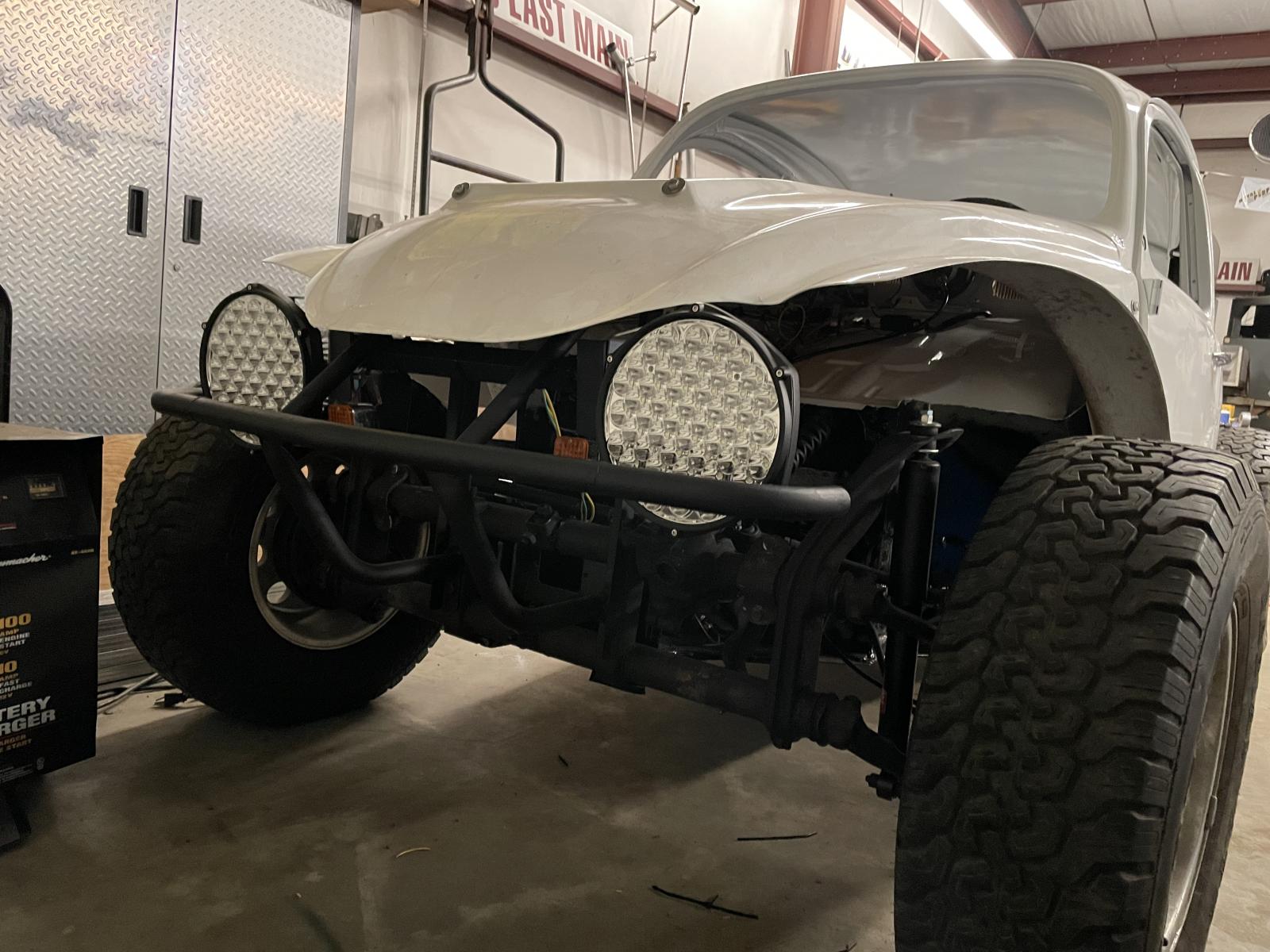

Hood on:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

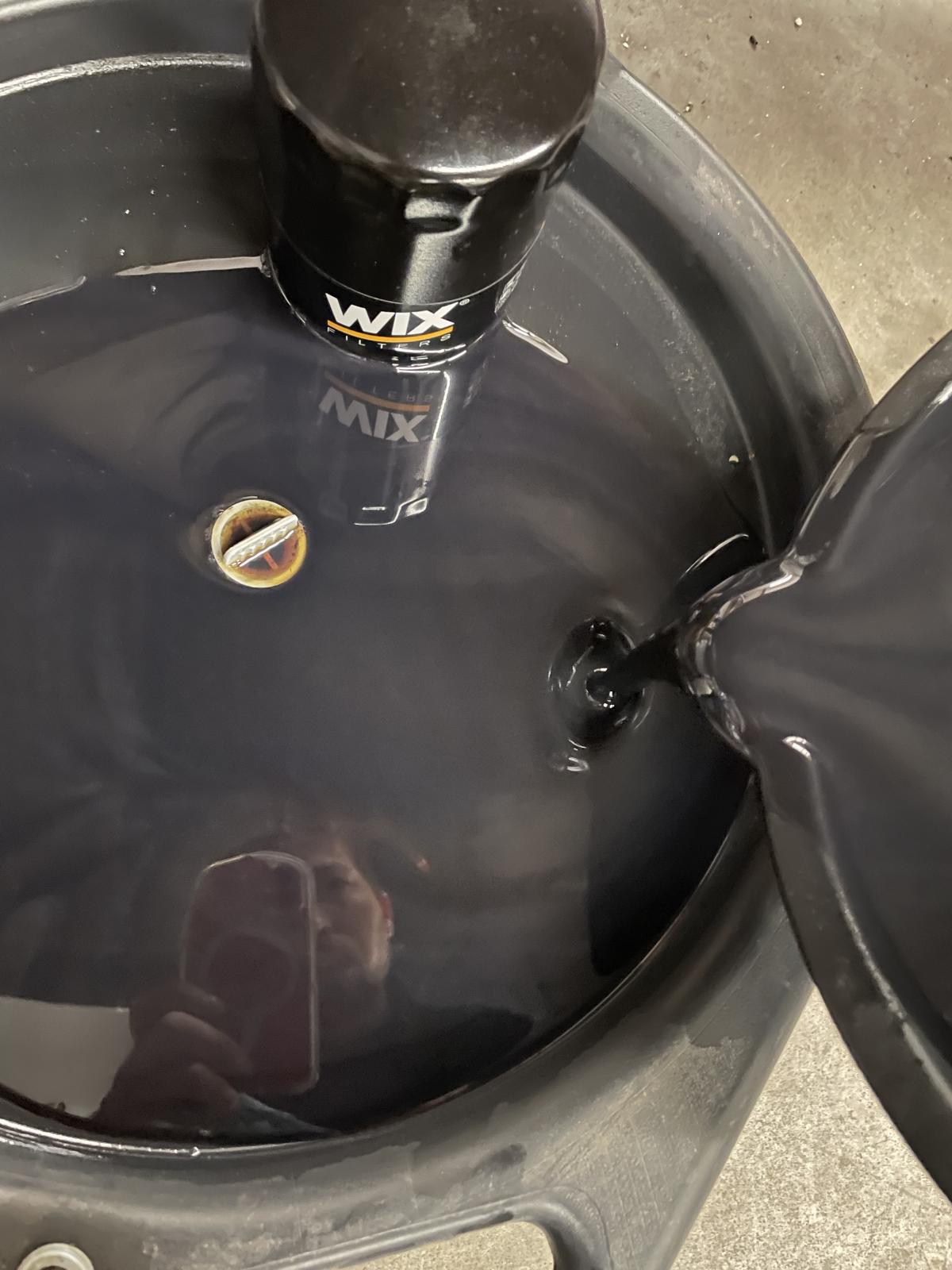

Oil change from breakin to vr1, 10w-30. I have 45+psi oil pressure at cold idle, 22 psi at hot idle, and about 35-45psi any time itís much above idle. No shavings or glitter, just some moly lube and fines from the cylinders and rings wearing in.

Image may have been reduced in size. Click image to view fullscreen.

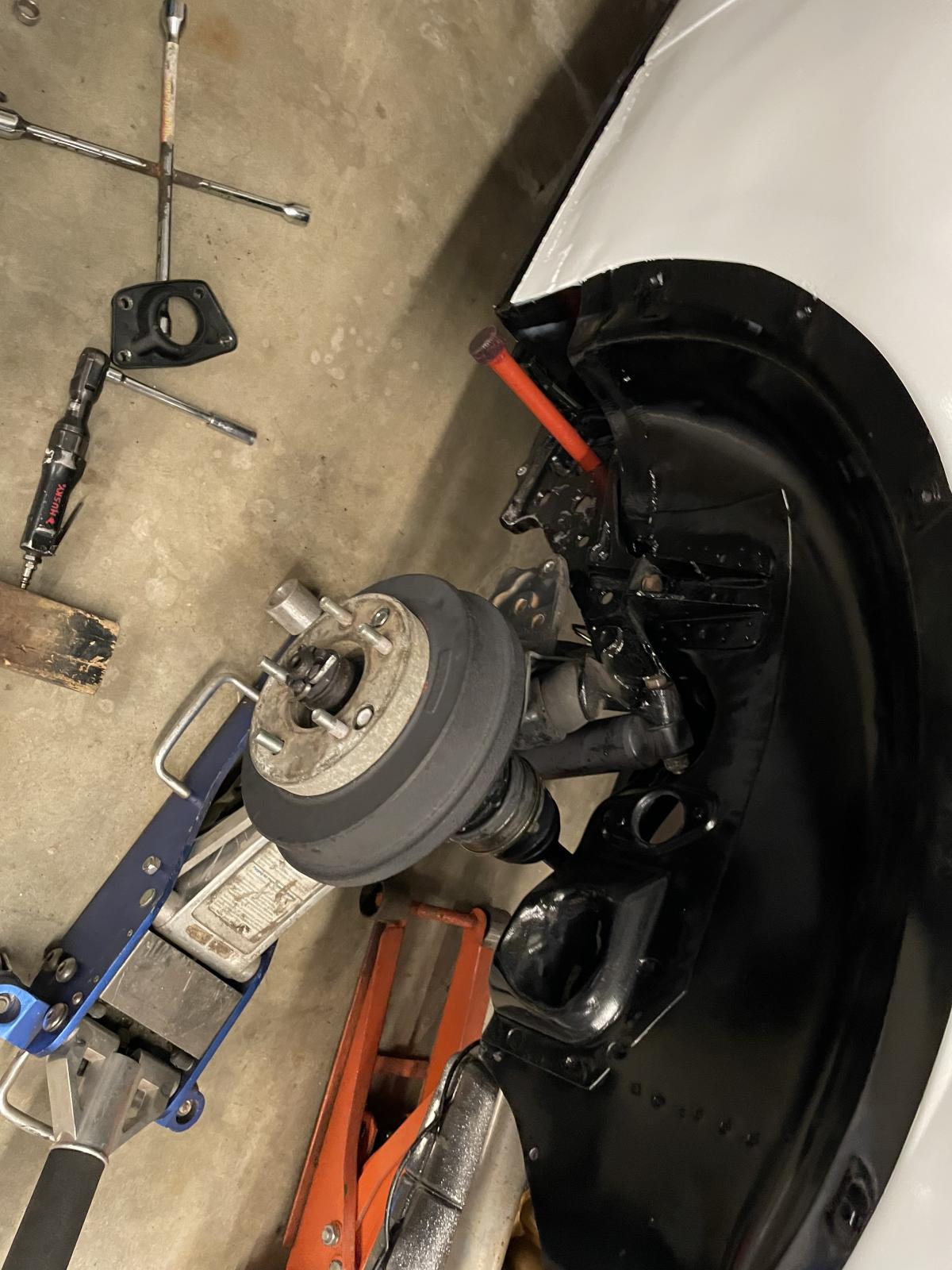

I learned that you still have to index the rear torsion bars close to how you want final ride height, and tweak the height with the adjuster, there isnít much adjustment Itís more of a fine tuning tool.

Image may have been reduced in size. Click image to view fullscreen.


Also set the front steering stops, I had to weld a nut to one because it was too short to keep the wheel out of the fender.

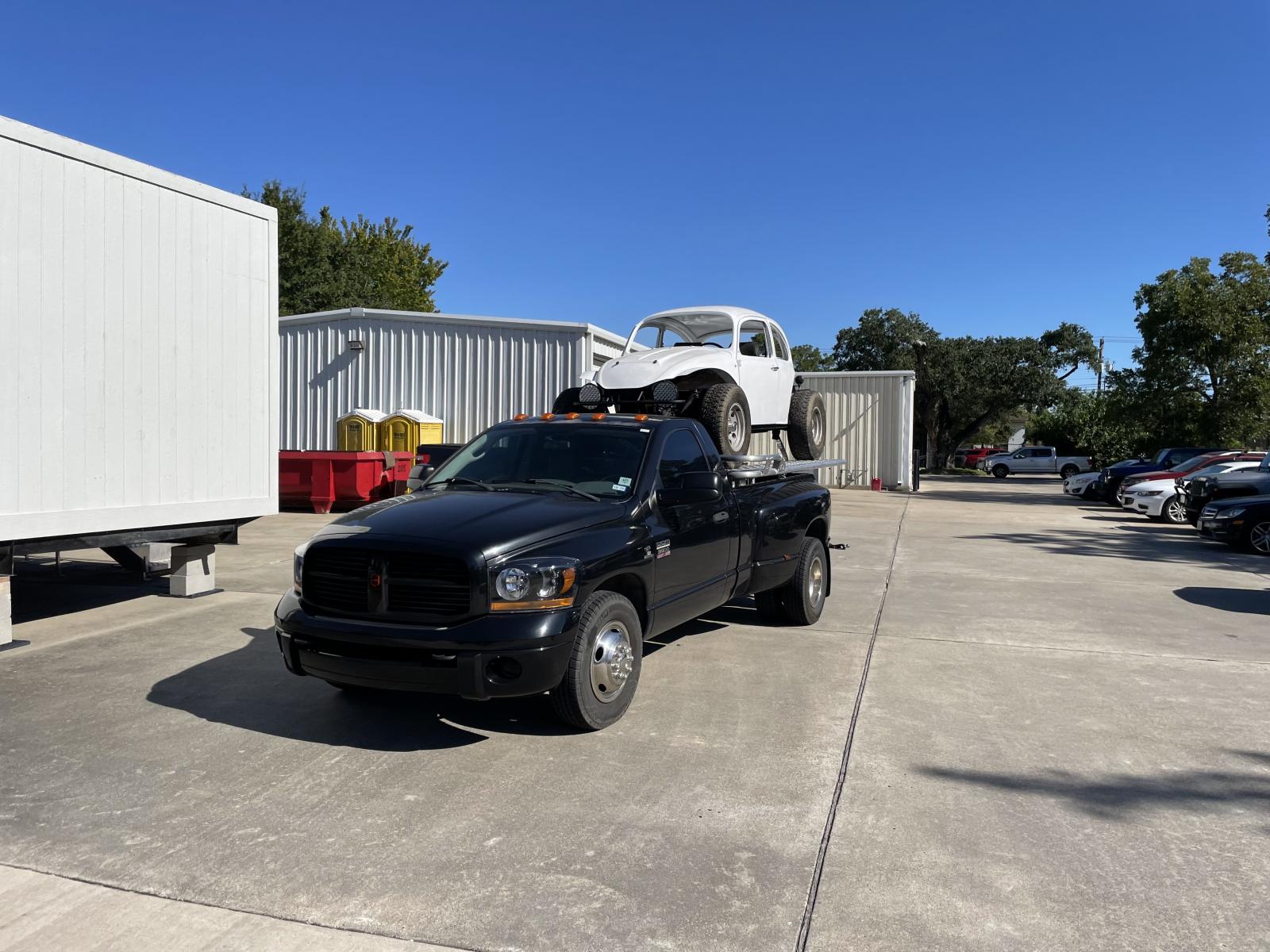

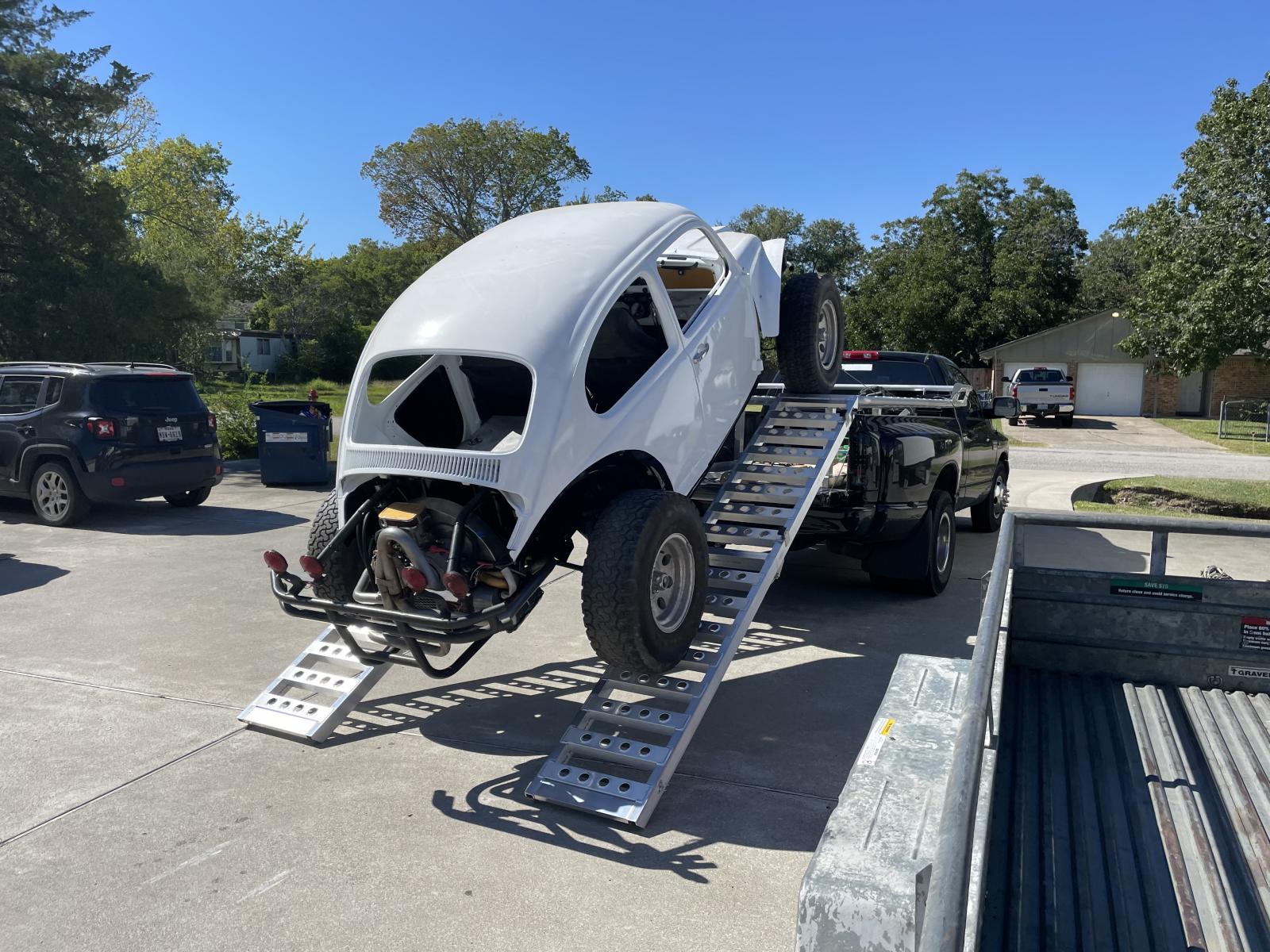

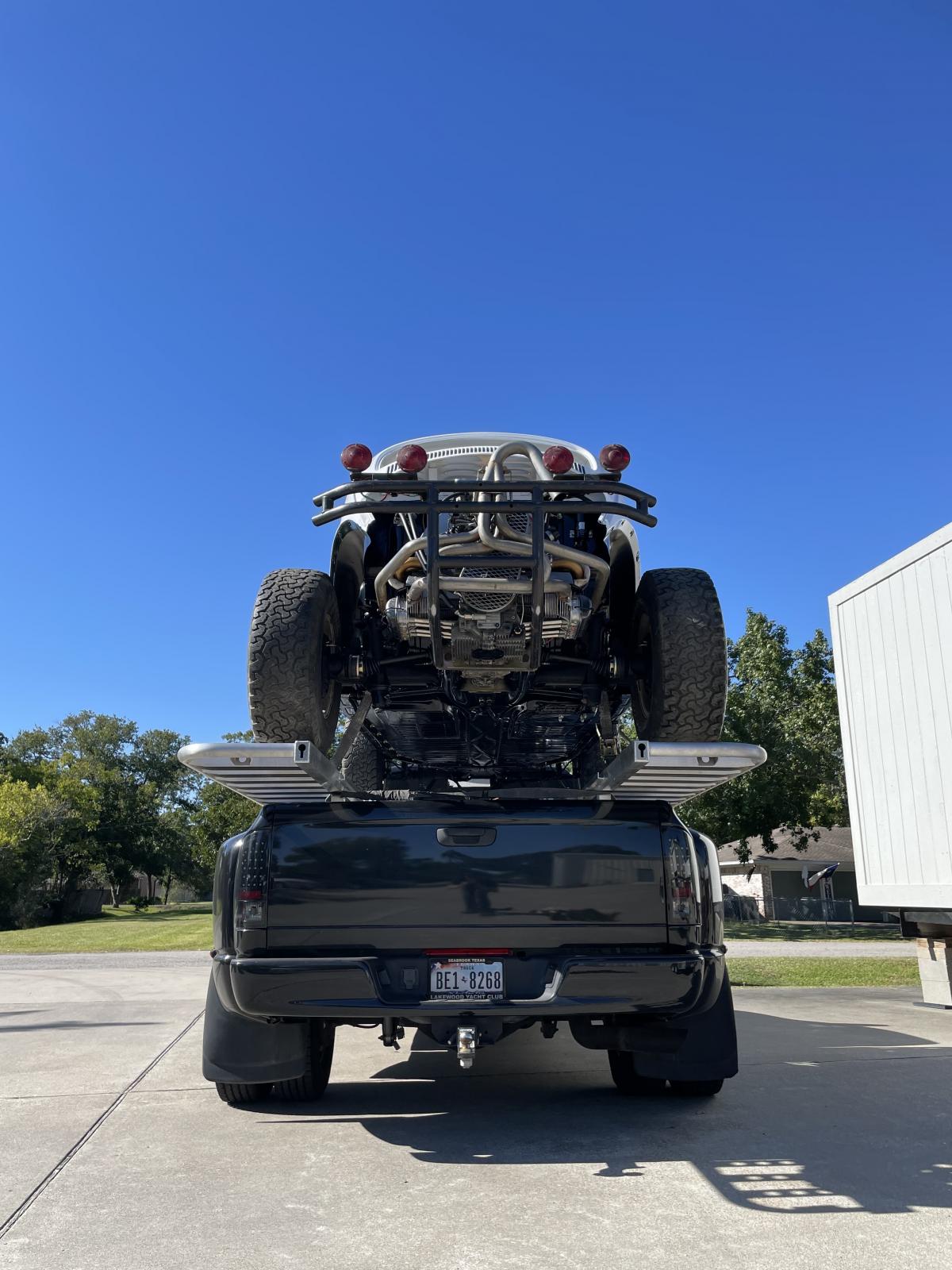

Loading up on a utv rack I bought from alpine designs. I had to winch it up, driving it was not really possible to do safely with the gearing and tire size I have. Also the pan just barely scrapes (like a high centering) when loading so if if you look into a rack like this your car better be all the way up on the limiters. My Manx canít make up the ramps.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Made it to the ďbug offĒ and had a great time running the off-road course. I had some fun sorting out the ignition (I had a 0.6 ohm coil on there, which meltedÖ I ordered a 3.0 ohm but didnít check it in my rush to get this thing done lol), my digital timing light was being erratic - only increasing my confusion!, and then I discovered this fuel tank has some varnish in it that was slowly dissolving in the new gas and clogging the fuel filter, so it would idle fine but under higher fuel demand it was breaking up. Once that was sorted it ran pretty dang good and I was able to make a few runs at the off-road course. I didnít win but I posted a respectable time and the car performed well.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


It still needs a few things sorted out, some suspension tuning, windshield, etc. but itís running and driving almost 8 years later!!! It had been a lot of work but it was certainly worth it
_________________
it's more fun loud and dirty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ORANGECRUSHer
Samba Member


Joined: June 09, 2006
Posts: 2524
Location: West Coast (Michigan's)
ORANGECRUSHer is offline

PostPosted: Fri Oct 07, 2022 9:35 am    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

That one pic makes your engine look like it went subterranean!

I'm curious how well the head temp gages worked. Was that useful information to have?
_________________
Brian H.
I may not know everything,but I will try to help if I can
OrangeCrushER
Berrien Warrior 2.4L Quad4
LAZY MARY 1970 Baja 1835cc
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sailtexas186548
Samba Member


Joined: December 01, 2014
Posts: 420
Location: Kemah, Tx
sailtexas186548 is offline

PostPosted: Sat Oct 08, 2022 4:08 am    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

Ha yeah so it turns out black spray paint makes old shocks look good, but it doesnít make them perform well! Overall it is way too soft to send it in the bumps. The old bump stops also disintegrated after taking a few big hits so that made the suspension travel even higher

The head temps are nice to have. I have oil temp warning light (235F), oil pressure gauge, and head temps. The heads stayed under 200F whenever I looked, their real Purpose is to show when they are getting really hot or when one is hotter than the other. They seem to work really well and are easy to see
_________________
it's more fun loud and dirty


Last edited by sailtexas186548 on Wed Nov 30, 2022 8:26 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
The Phil
Samba Member


Joined: March 05, 2011
Posts: 1371
Location: Tucson
The Phil is offline

PostPosted: Sun Oct 23, 2022 6:48 pm    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

What are you using for headlights? Are they DOT approved?
I'm after something like those to replace my stocks and mount to bumper as well.
Where can I find them?
_________________
"In case I don't see you, good afternoon , good evening, and goodnight."

My '66 Baja Build Page http://www.thesamba.com/vw/forum/viewtopic.php?t=456365

Free from the evils of facebook Dec 2012. No other Social Media.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sailtexas186548
Samba Member


Joined: December 01, 2014
Posts: 420
Location: Kemah, Tx
sailtexas186548 is offline

PostPosted: Sun Oct 23, 2022 6:55 pm    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

The Phil wrote:
What are you using for headlights? Are they DOT approved?
I'm after something like those to replace my stocks and mount to bumper as well.
Where can I find them?


I am running a pre-production version of these lights:

https://plashlights.com/products/pearl-9-round-search-light?_pos=1&_sid=dc73ff7c8&_ss=r

I would get a proper headlight with a light cut off if you intend to run on the street.

I have taken a few weeks off of this project, but got a new coil and itís running good, I need to order some F7 emulsion tubes and spend a little time on the 1800-2300rpm range. I want to try the F7 before I go to a larger idle jet. Also need to get the timing to come in a bit quicker, adding some weight to the centrifugal advance should get that done.

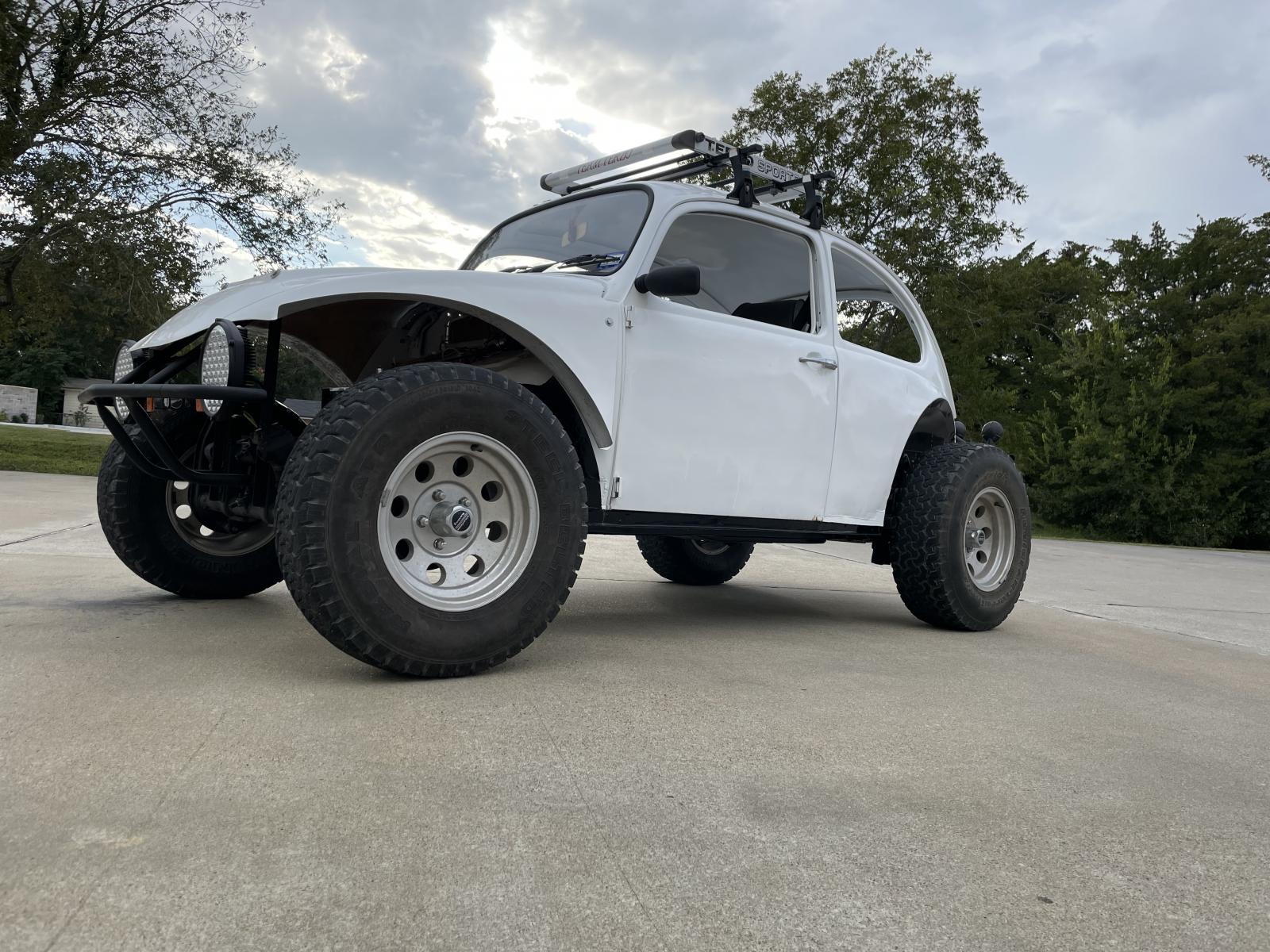

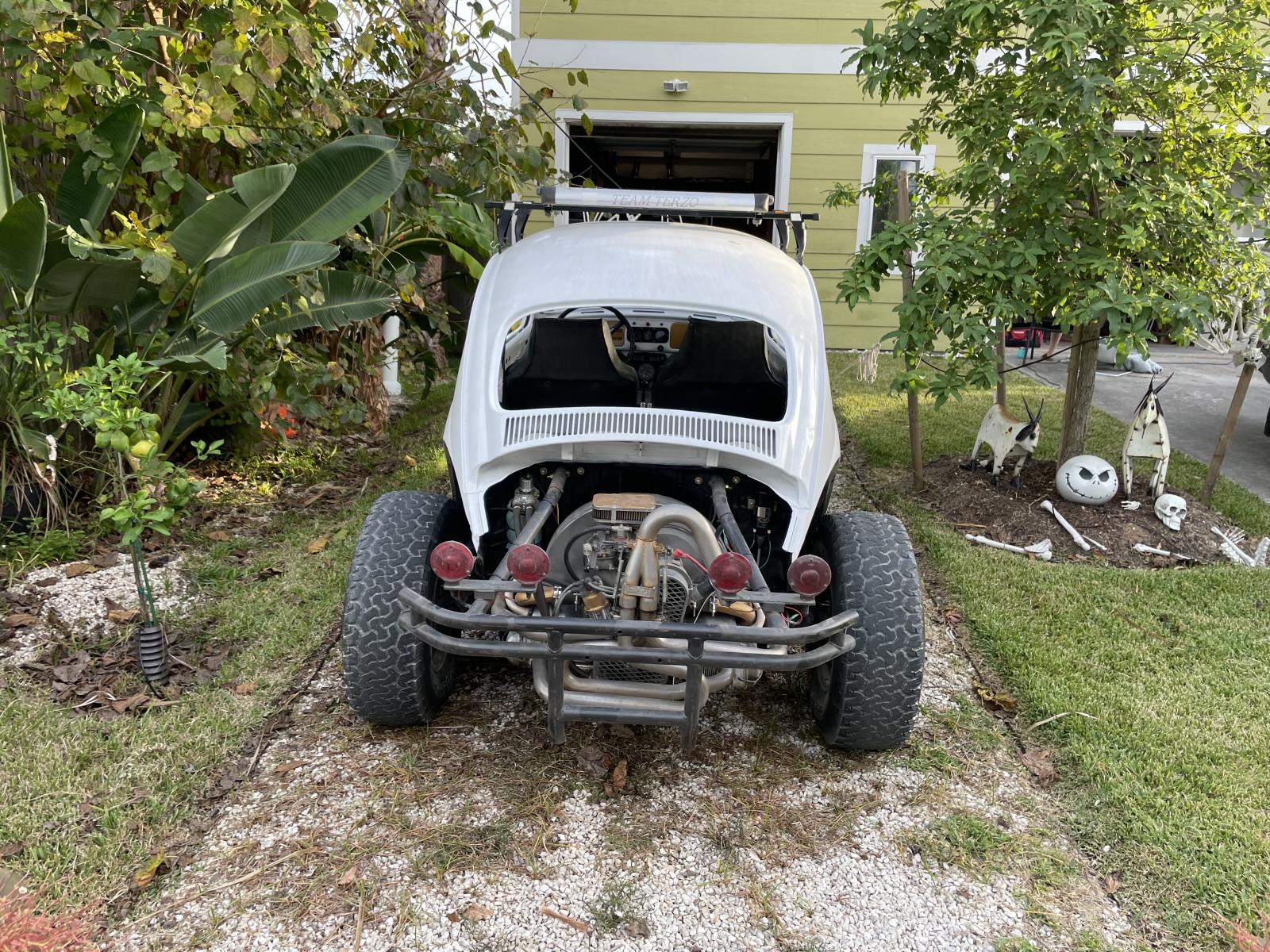

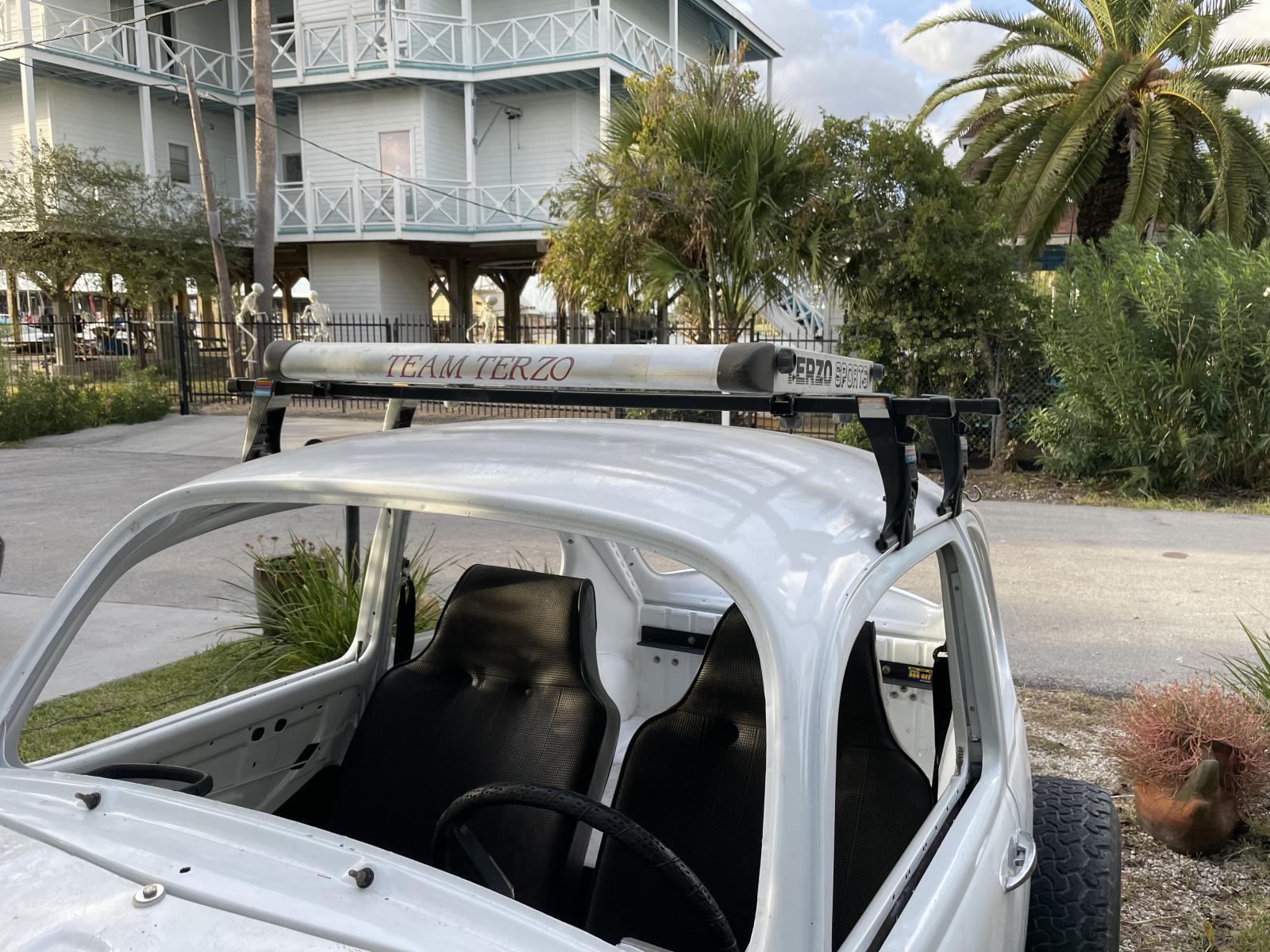

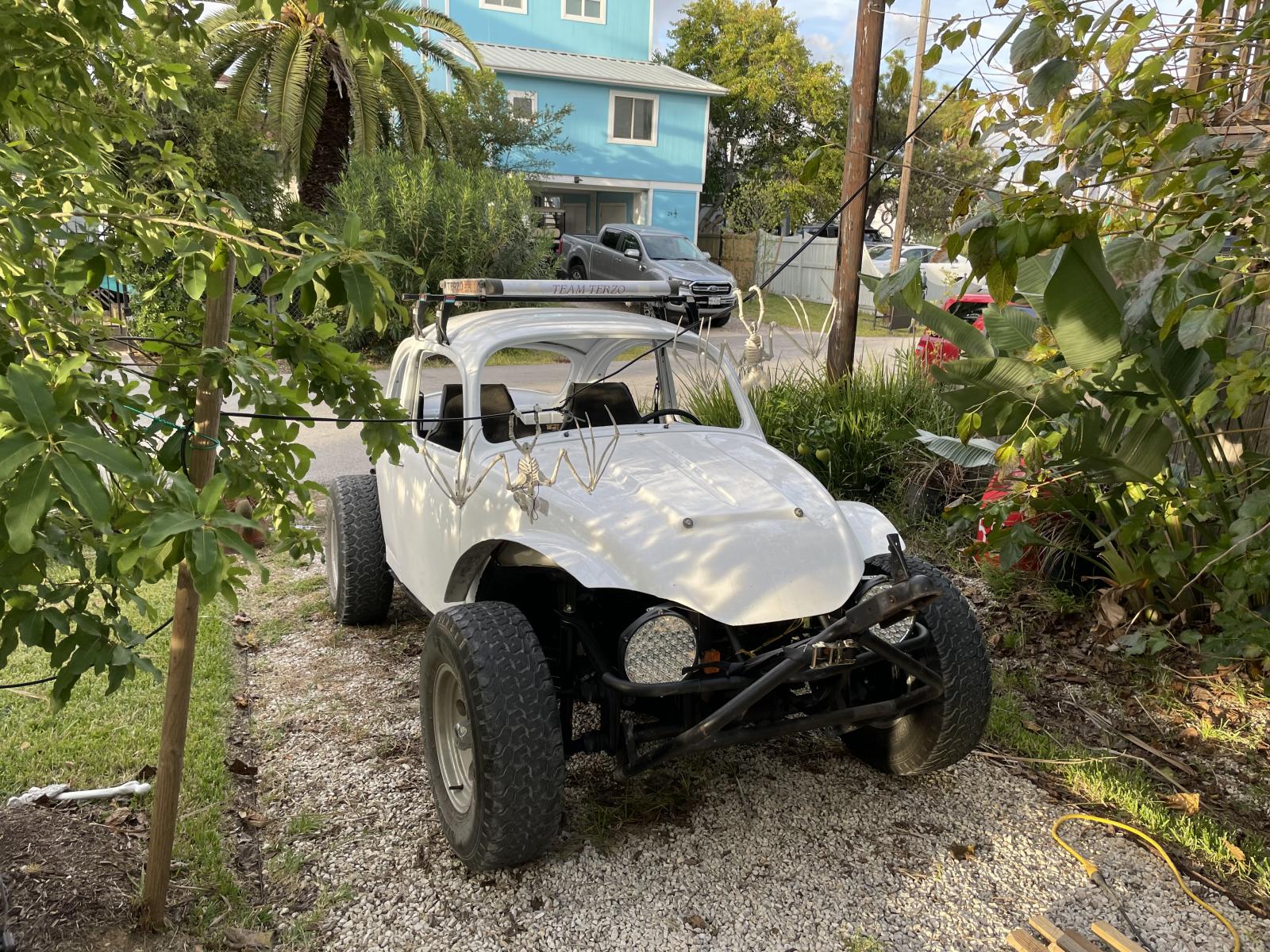

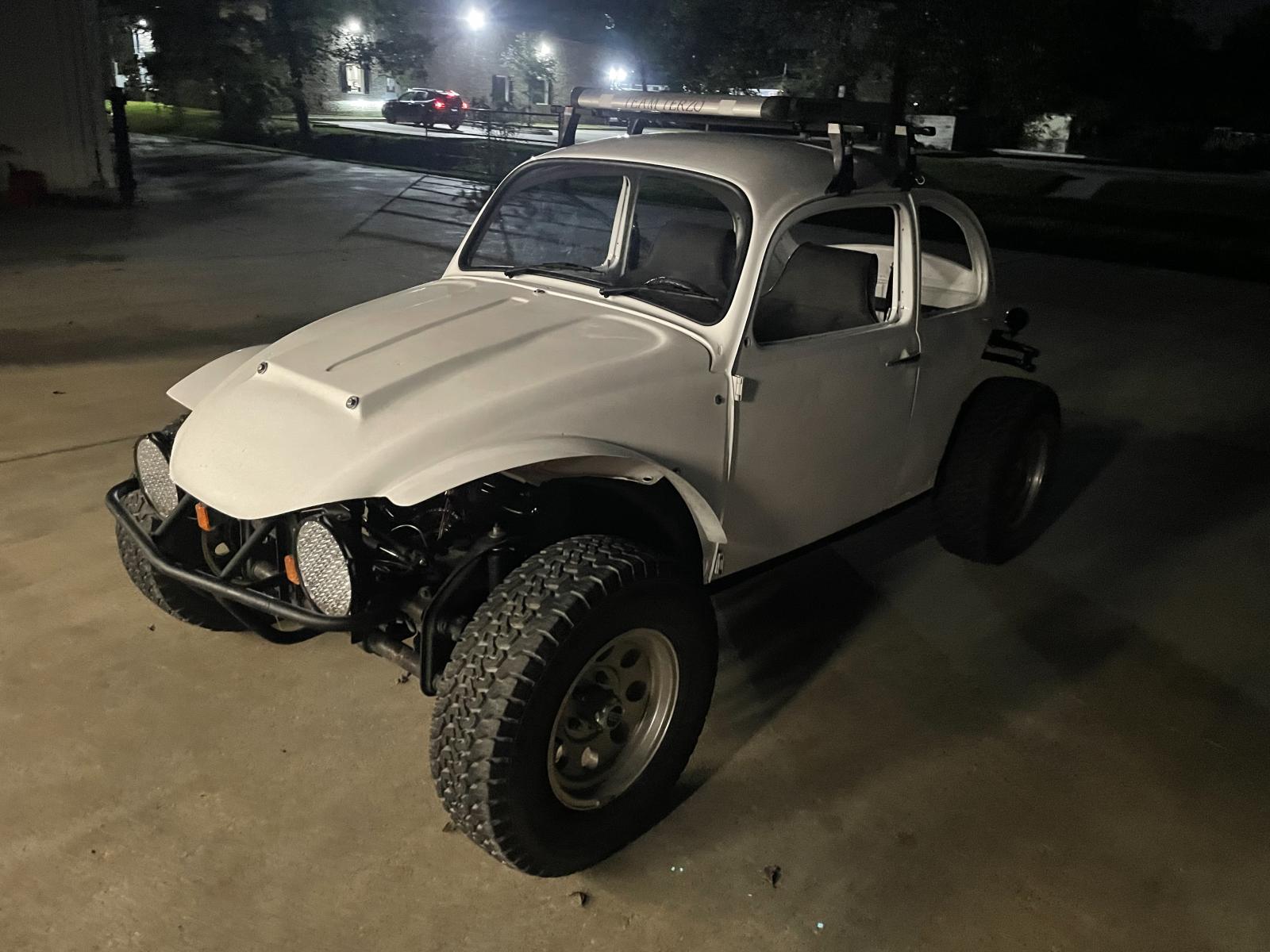

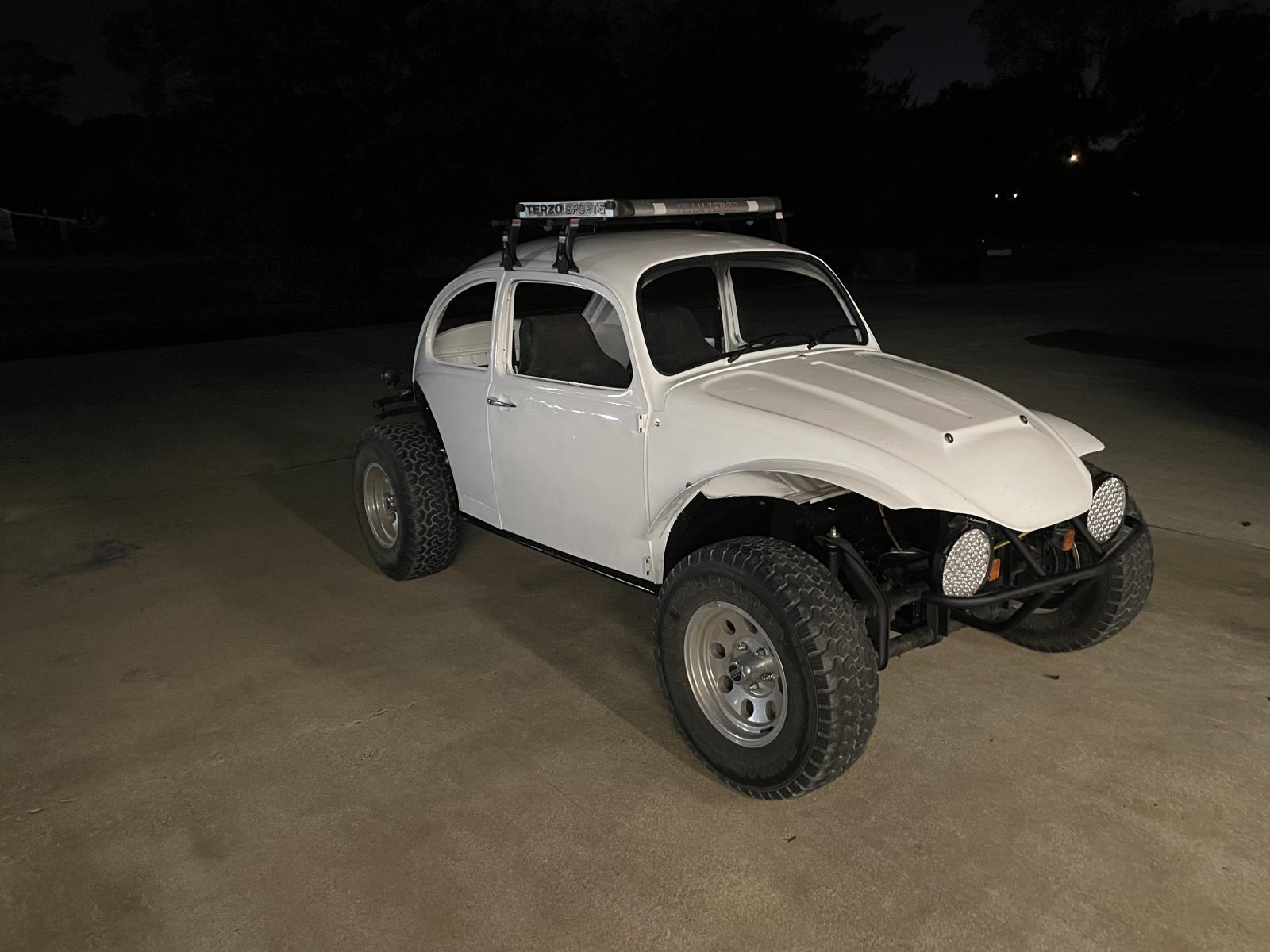

I did add this roof rack, a ďTerzoĒ brand that I have had on the shelf for 4 years. Itís a cool older piece, and adds some storage space and light mounting spots
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
it's more fun loud and dirty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
The Phil
Samba Member


Joined: March 05, 2011
Posts: 1371
Location: Tucson
The Phil is offline

PostPosted: Sun Oct 23, 2022 7:41 pm    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

[quote="sailtexas186548"]
The Phil wrote:
What are you using for headlights? Are they DOT approved?
I'm after something like those to replace my stocks and mount to bumper as well.
Where can I find them?


I am running a pre-production version of these lights:

https://plashlights.com/products/pearl-9-round-search-light?_pos=1&_sid=dc73ff7c8&_ss=r

I would get a proper headlight with a light cut off if you intend to run on the street.

Ah. Yes. If I had those as AUX lights, no issues.
But I am looking for DOT lights I can more or less easily mount to the bumper. My glass fenders will be trimmed and deleting the stock mount.
But I will keep that link bookmarked for other lights. Thanks much.
_________________
"In case I don't see you, good afternoon , good evening, and goodnight."

My '66 Baja Build Page http://www.thesamba.com/vw/forum/viewtopic.php?t=456365

Free from the evils of facebook Dec 2012. No other Social Media.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ORANGECRUSHer
Samba Member


Joined: June 09, 2006
Posts: 2524
Location: West Coast (Michigan's)
ORANGECRUSHer is offline

PostPosted: Mon Oct 24, 2022 3:55 am    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

I'm not sure if you've noticed, but there's a lot of decaying corpses in your neighborhood. Perhaps it is time to relocate?
_________________
Brian H.
I may not know everything,but I will try to help if I can
OrangeCrushER
Berrien Warrior 2.4L Quad4
LAZY MARY 1970 Baja 1835cc
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sailtexas186548
Samba Member


Joined: December 01, 2014
Posts: 420
Location: Kemah, Tx
sailtexas186548 is offline

PostPosted: Wed Nov 09, 2022 7:21 pm    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

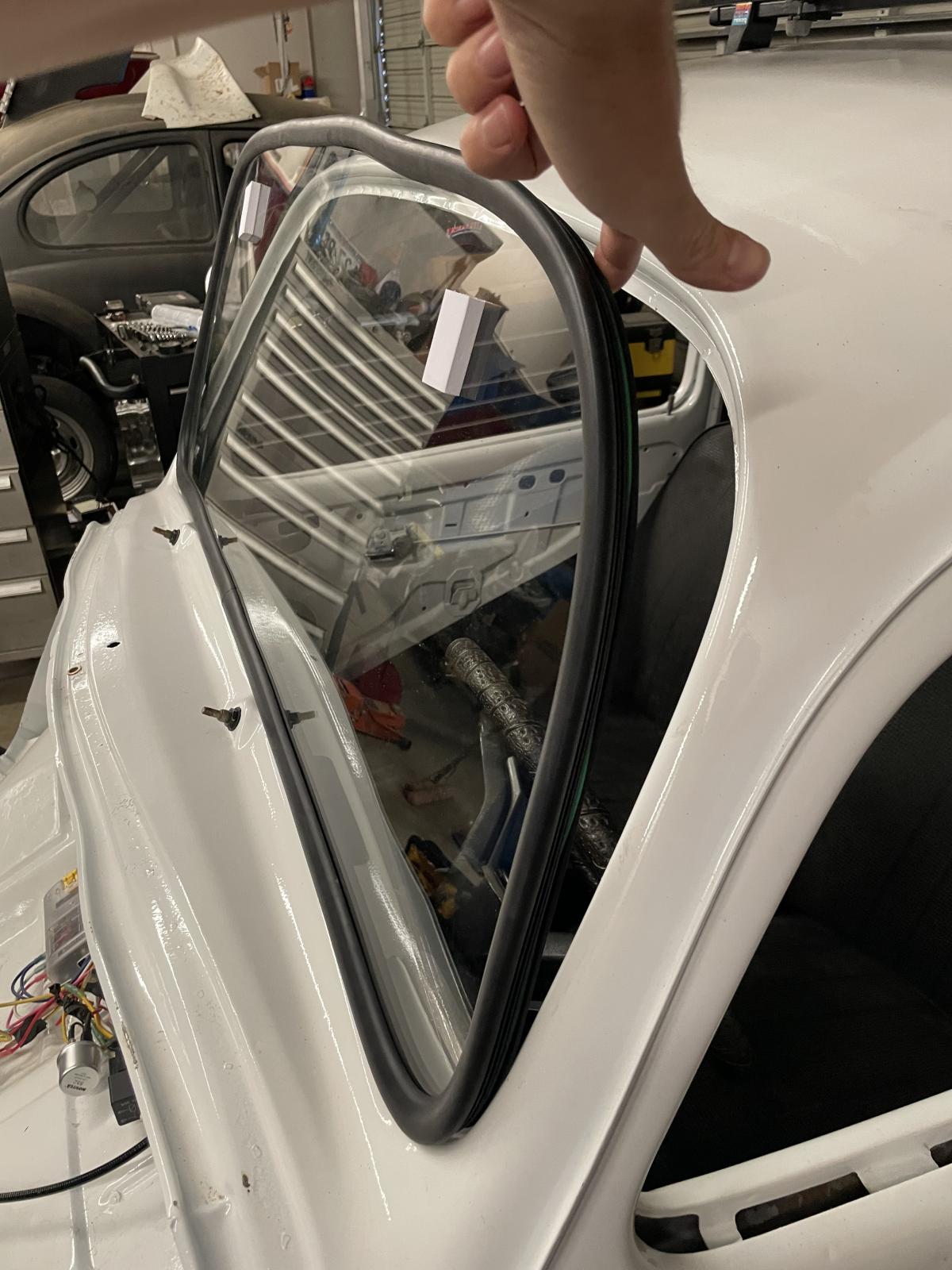

Finally fixed the turn signals, popped the windshield in and wired up the wipers. I am just a reverse light and license plate light away from passing my safety inspection so I can get plates.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
it's more fun loud and dirty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ORANGECRUSHer
Samba Member


Joined: June 09, 2006
Posts: 2524
Location: West Coast (Michigan's)
ORANGECRUSHer is offline

PostPosted: Thu Nov 10, 2022 5:57 am    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

I was just noticing your gas tank location. How does the front end feel being so light?
_________________
Brian H.
I may not know everything,but I will try to help if I can
OrangeCrushER
Berrien Warrior 2.4L Quad4
LAZY MARY 1970 Baja 1835cc
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sailtexas186548
Samba Member


Joined: December 01, 2014
Posts: 420
Location: Kemah, Tx
sailtexas186548 is offline

PostPosted: Thu Nov 10, 2022 7:15 am    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

feels normal to me, but my other VW is an Ecotec Manx with front mounted fuel tank, so in comparison this is slightly heavier up front.

I dont have issues with understeer unless I'm in the dirt and going fast, but the cutting brakes more than compensate for that
_________________
it's more fun loud and dirty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sailtexas186548
Samba Member


Joined: December 01, 2014
Posts: 420
Location: Kemah, Tx
sailtexas186548 is offline

PostPosted: Sun Nov 13, 2022 8:52 pm    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

Messed with the jetting some today, moved up from 50 to 55 idles and from 115 mains to 135, kept the 200 airs, and turned the accel pump way up so it squirts instantly when the throttle moves. Drives almost perfect, still a couple weird moments but overall itís pretty good. I may try some smaller mains again since i went up 20 in one step.
_________________
it's more fun loud and dirty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sailtexas186548
Samba Member


Joined: December 01, 2014
Posts: 420
Location: Kemah, Tx
sailtexas186548 is offline

PostPosted: Mon Nov 21, 2022 7:33 pm    Post subject: Re: 1969 Baja Bug - TX Build Reply with quote

Inspected/plated, it doesnít need anything else so itís ďdoneĒ Laughing but Iím sure Iíll throw a few more things on like an interior light, a small radio, and a skid plate. I have an 002 and an 091 transaxle that might make their way into this thing, depends on how the type one holds up.

There is still some funky old varnish in this tank so Iím clogging the fuel filter filter pretty regularly, once I burn this tank of fuel Iíll be able to really clean it and get the jetting right, itís hard to make intelligent changes when the fuel supply is inconsistent.

Now some pictures!

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
it's more fun loud and dirty
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> HBB Off-Road All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... , 10, 11, 12  Next
Jump to:
Page 11 of 12


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
