Jack Stand Points
Forum Index -> Water-cooled VW Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
elieth792
Samba Member


Joined: August 13, 2008
Posts: 4
Location: MIA
elieth792 is offline

PostPosted: Wed Nov 23, 2022 5:22 pm    Post subject: Jack Stand Points Reply with quote

Hey all. Been looking for some info on where to place my hydraulic jack under my 1990 Golf and where exactly to put 4 jack stands. This is just for the winter so my tires don't go flat on one side - not working on/under the car.

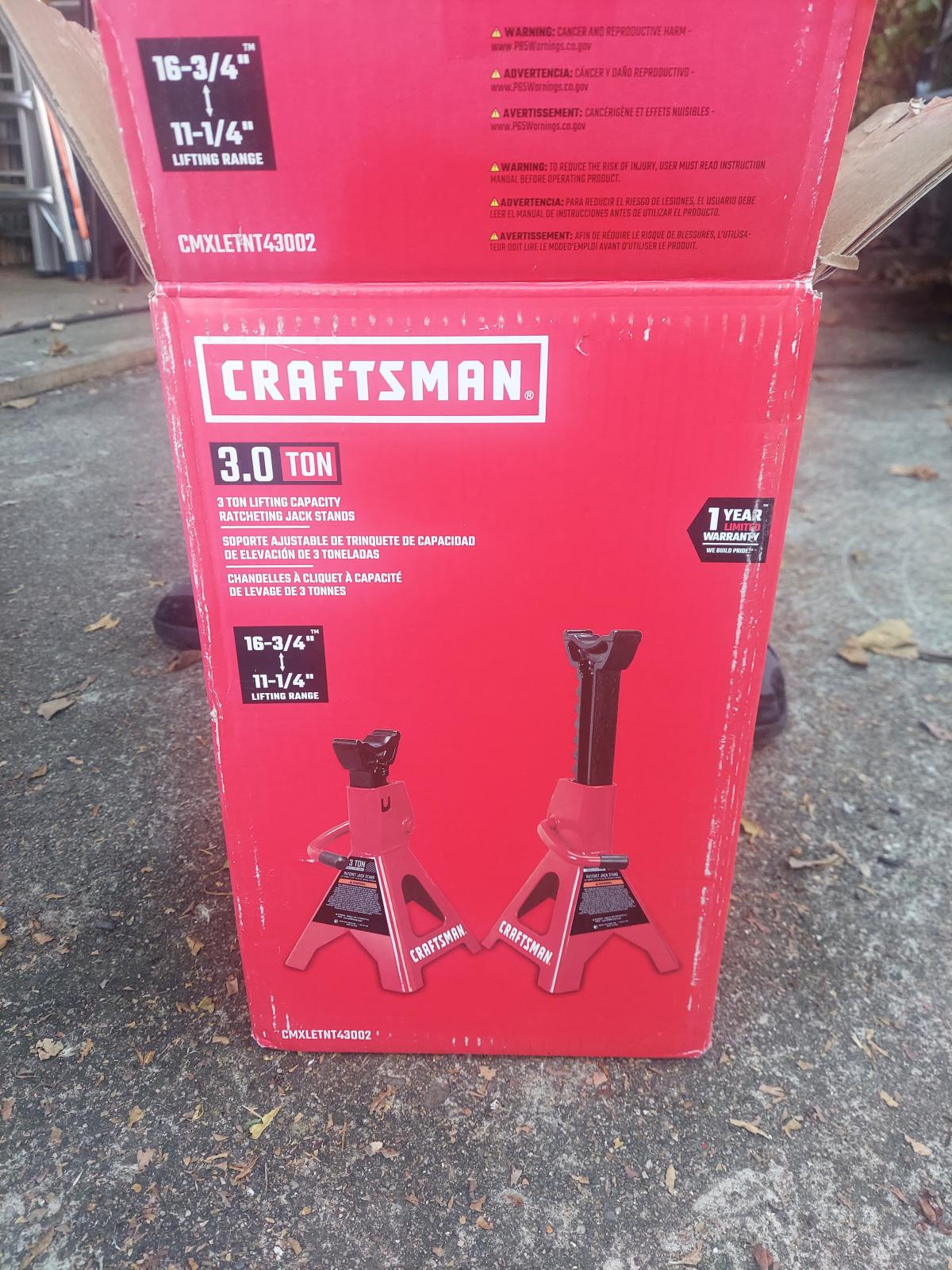

I am attaching a photo of the jacks I have - should I put a block on top between the jack stand top and the underside of the car at these points? Also attaching the pages from the manual that say not to jack up the car under the front or rear which would have been the easiest thing to do but not if it's gonna wreak havoc on the car. I'm guessing the photo with the round section is what the manual is suggesting as a jack point other than the ridge that runs along the edges of the car. Have a hydraulic rolling jack from Harbor Freight if that's helpful.

Thanks for any help!


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 74276
Location: Sneaking up behind you
Glenn is offline

PostPosted: Wed Nov 23, 2022 5:27 pm    Post subject: Re: Jack Stand Points Reply with quote

Over inflate the tires by 15psi and leave it on the ground.

Been doing that for years and never had a problem
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
TDCTDI
Samba Advocatus Diaboli


Joined: August 31, 2013
Posts: 12210
Location: North Carolina
TDCTDI is offline

PostPosted: Thu Nov 24, 2022 11:59 am    Post subject: Re: Jack Stand Points Reply with quote

The factory jack points tend to bend unless using a factory jack, or some sort of adapter that simulates the head of the factory jack.


Just use the subframe in the front, & the outer ends of the beam in the rear.
_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.


GOFUNDYOURSELF, quit asking everyone to do it for you!


An air cooled VW will make you a hoarder.


Do something, anything, to your project every day, and you will eventually complete it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TornadoRed06
Samba Member


Joined: August 30, 2020
Posts: 157
Location: Porto - Portugal
TornadoRed06 is offline

PostPosted: Fri Nov 25, 2022 2:21 pm    Post subject: Re: Jack Stand Points Reply with quote

I'm sorry but I do not like those stands you have, the heads in specific.
They are good to go on curved surfaces but in this case you don't have that many, I do not advise you to lift your car and have these stands under the ridges running along the car on both sides. I never used the onboard factory jack and at home only use an overkill 5 Ton hidraulic jack to lift these cars.

At the front, you can use the round section and like previously mentioned, at the rear use the outer ends of the axle.
Also, I always use a small timber pad or when possible a small sturdy steel pad that I know will not make any damages to the body.

For the job you have in mind, timber blocks are one of your best friends!
