Zwitter (standard) with ragtop sunroof, project by coincidence
Page: 1, 2  Next
Forum Index -> Beetle - Split-Window/1938-53 VWs Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
the dominator
Samba Member


Joined: March 18, 2016
Posts: 93
Location: The Netherlands
the dominator is offline

PostPosted: Wed Nov 23, 2016 2:51 am    Post subject: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

Recently I was asked if I still was interested in a new project. Since I am curious by nature of-course my answer was: yes but if it is a beetle then at least same age or older as my 54 oval. The answer was: I think is a 53..... but this car has been purchased by the current owner in 1968 and has been driving it until 1986 and then after starting the renovation of the car his wife got ill and it sits since then in a garage (20km's from my home)

So the appoint has been made and the garage finally was opened after the car has been sitting there for nearly 30 years, covered with antiques, hundreds/thousands of empty wine-bottles and whatever more.

Only thing I could see was a split window and a convertible engine-cover. So after some digging I was able to squeeze myself in the passenger rear window in order to take a picture of the chassis-number...

Anyway, when taking the picture I turned towards the front of the car and noticed an oval dash and a ragtop roof Twisted Evil Twisted Evil Twisted Evil

While I was doing this the owner mentioned: why all that trouble I have the paperwork with me (even 30 sheets, one for every year that he signed out the car from Dutch car-taxes) Very Happy Very Happy so when holding my breath and keeping my poker-face I looked at the paperwork (mentioning Oct 1952) and said to the owner: okay I will help you clean out the garage and take this beetle wannabee convertible burden off your shoulders Laughing Laughing Laughing


So after finalizing the paperwork and the payment we agreed that I would come back to him in the evening, help clear out the rubbish and then start to transport the car and parts.

So after bringing a trailer full of bottles to the glass-container we finally could walk around the car and see all the incorrect and missing parts but on the other hand found a lot of parts which could generate enough budget for the missing bits and pieces....... Laughing Laughing When looking at the body we noticed that some serious cutting and welding has been done. Owner mentioned to me that the body was in such a bad shape that they looked for a replacement, they found a 1953 body and placed the top of the zwitter on the donor-body. Unluckily the also replaced the heattubes to available seventies tubes, so we still have some cutting and welding to do but at least there is no rust/rotten parts anymore, we can start with a clean sheet.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


the car in better times in 1976, for safety reasons they had placed bigger taillights Embarassed Embarassed
Image may have been reduced in size. Click image to view fullscreen.


the car in 1986 just before the renovation and after some welding 30 years sleep started.
Image may have been reduced in size. Click image to view fullscreen.


the hunt for correct parts has already started Twisted Evil

last week the birth certificate arrived mentioning we have a type 11E, VW sedan (standard) with ragtop sunroof. me happy Applause Applause Applause

The car has been factory equipped with 3.0D 16" wheels, most probably since it started it's life to be the car for the local customs at the German-dutch border near Aachen.
_________________
54 iceland green oval, done!
52 Zwitter standard ragtop, parts hunting
67 T2A candywaxred en chestnutbrown
1988 T3 doka synco 2.1WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
empiracer
Samba Member


Joined: December 17, 2002
Posts: 1083
Location: Issaquah / Seattle, Wa.
empiracer is offline

PostPosted: Thu Nov 24, 2016 7:42 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

Wow, Such a cool find !
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the dominator
Samba Member


Joined: March 18, 2016
Posts: 93
Location: The Netherlands
the dominator is offline

PostPosted: Thu Nov 24, 2016 11:30 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

last sunday I had not to much to so, so sneaked into the workshop when the misses was still asleep Laughing Laughing

Since they have started in 1986 it was basically an empty shell bolted together, all parts were already in boxes.

Demolition day was over before breakfast, still some small parts to be removed from the body and the we are ready for paint stripping.

After paint stripping we have a bare metal basis......

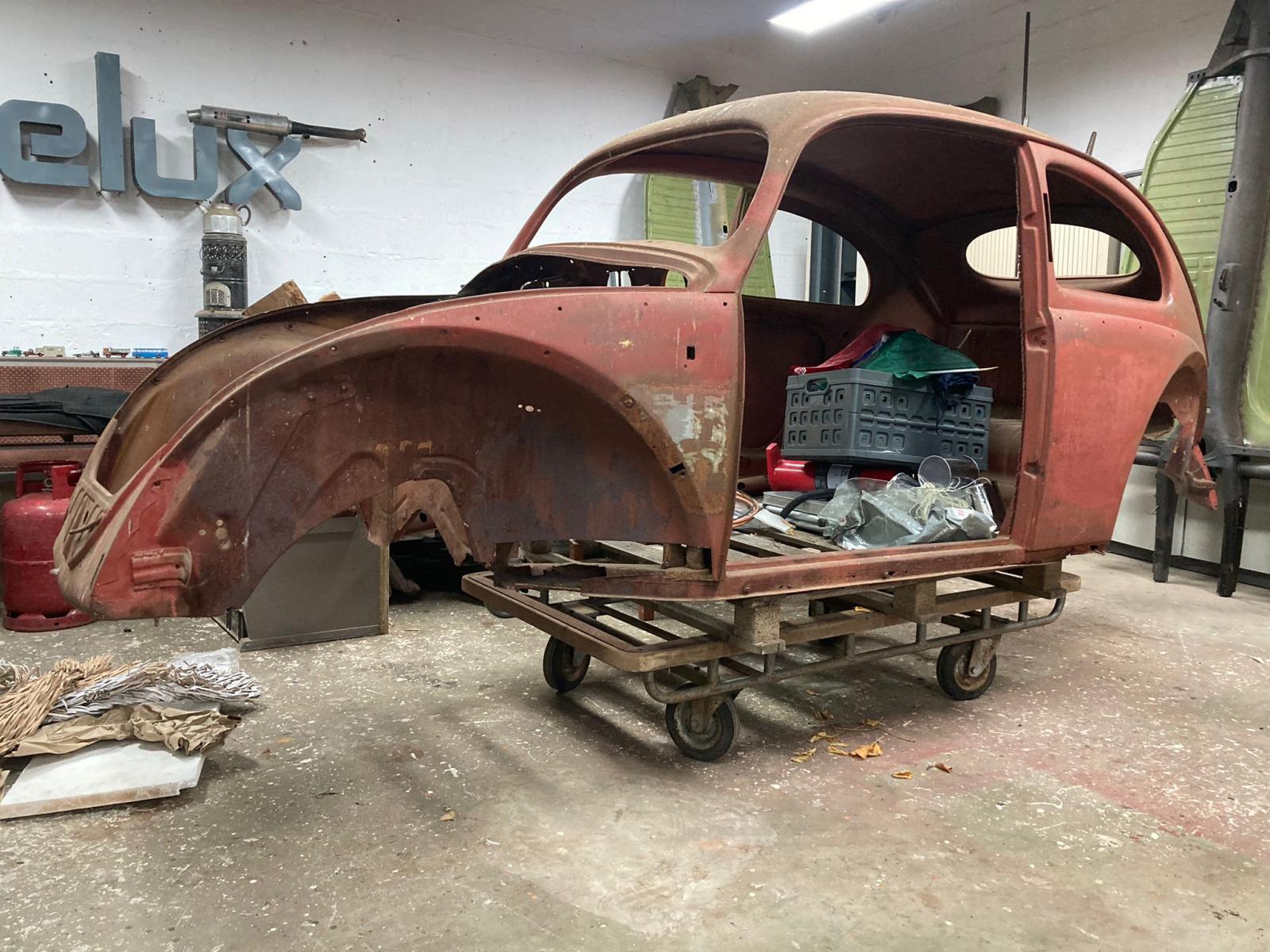

empty shell
Image may have been reduced in size. Click image to view fullscreen.

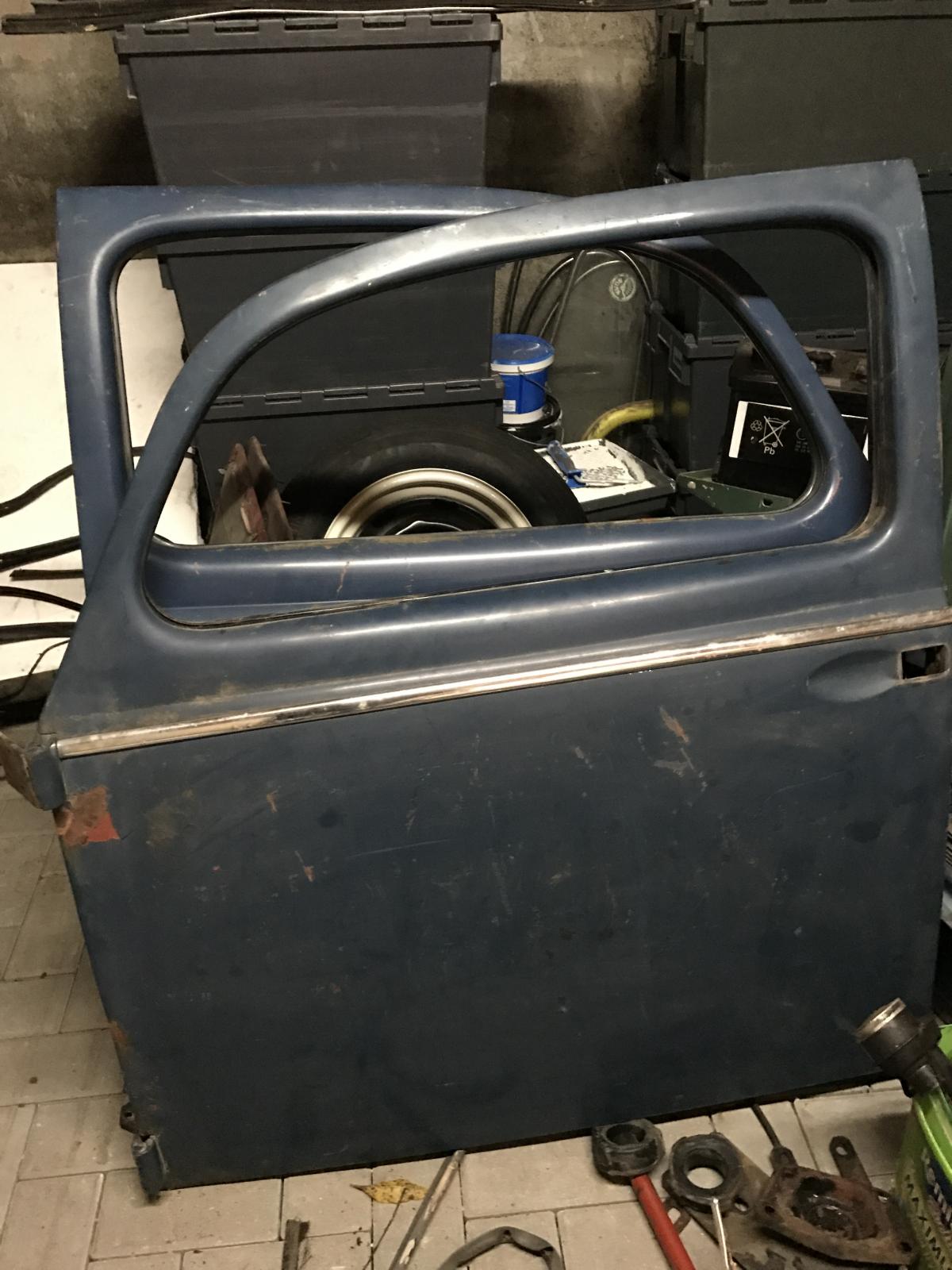

the correct doors
Image may have been reduced in size. Click image to view fullscreen.


periodic correct fenders, but need to sort out the holes in the front fenders.
Image may have been reduced in size. Click image to view fullscreen.

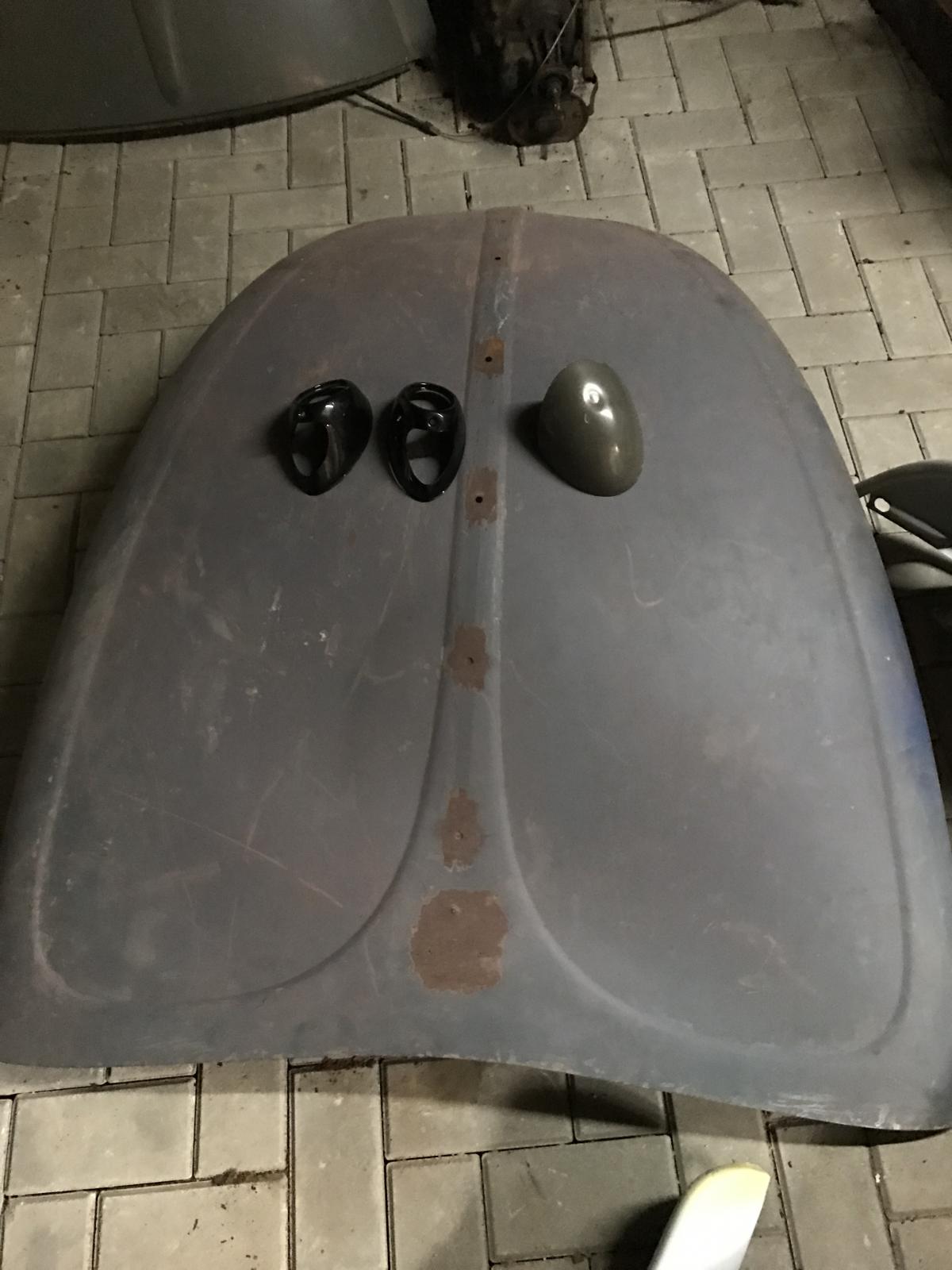

zwitter/split hood, taillights and number-plate light.
Image may have been reduced in size. Click image to view fullscreen.


enginecover
Image may have been reduced in size. Click image to view fullscreen.

_________________
54 iceland green oval, done!
52 Zwitter standard ragtop, parts hunting
67 T2A candywaxred en chestnutbrown
1988 T3 doka synco 2.1WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the dominator
Samba Member


Joined: March 18, 2016
Posts: 93
Location: The Netherlands
the dominator is offline

PostPosted: Fri Nov 25, 2016 1:37 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

received some pictures from the previous owner.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
54 iceland green oval, done!
52 Zwitter standard ragtop, parts hunting
67 T2A candywaxred en chestnutbrown
1988 T3 doka synco 2.1WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the dominator
Samba Member


Joined: March 18, 2016
Posts: 93
Location: The Netherlands
the dominator is offline

PostPosted: Mon Nov 28, 2016 11:51 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

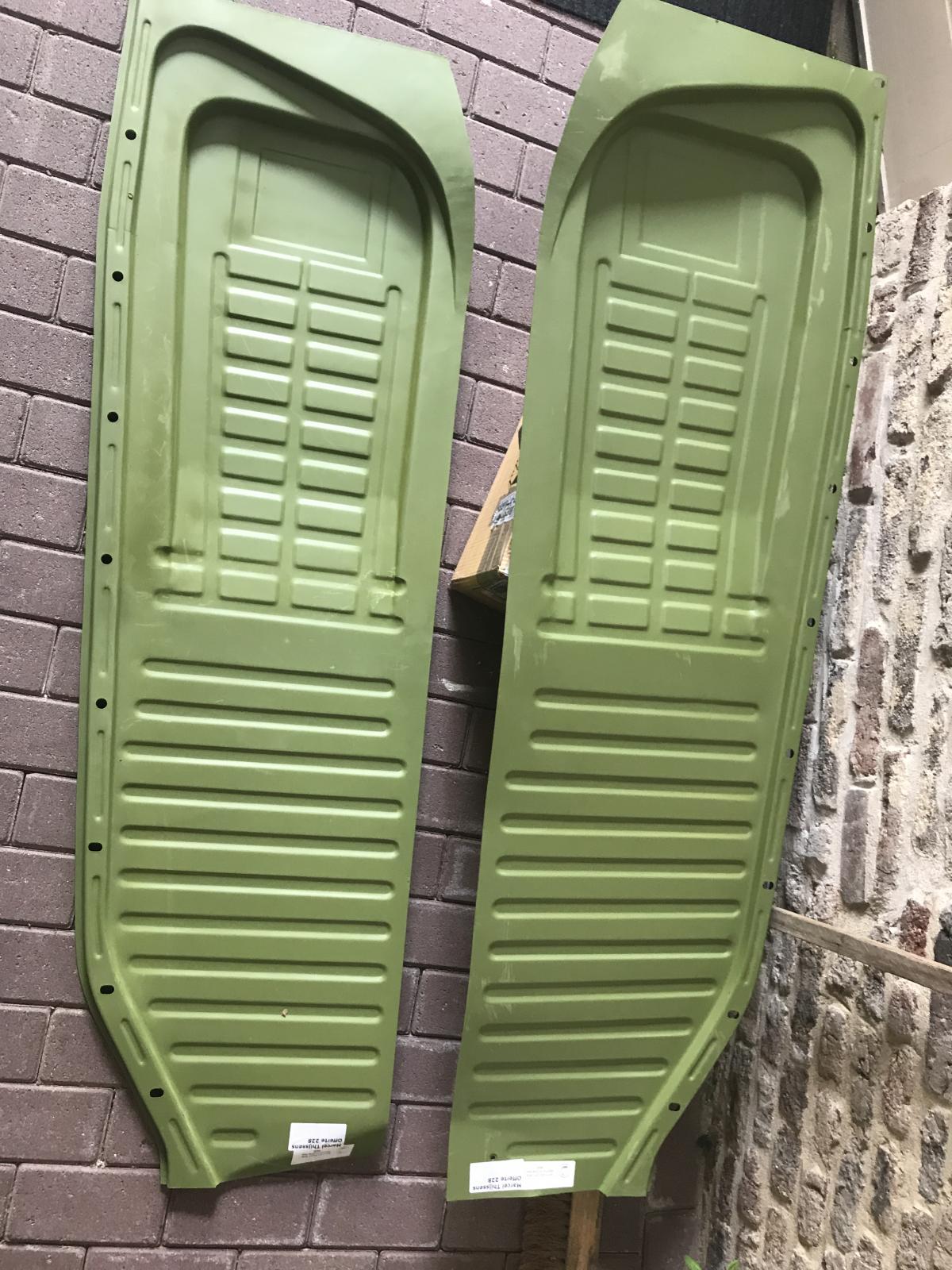

Funky green heater channels have arrived Laughing
After the body returns from paint stripping the cutting and welding can start.

Image may have been reduced in size. Click image to view fullscreen.

_________________
54 iceland green oval, done!
52 Zwitter standard ragtop, parts hunting
67 T2A candywaxred en chestnutbrown
1988 T3 doka synco 2.1WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zvonimir1985
Samba Member


Joined: August 19, 2015
Posts: 135
Location: Zagreb, Croatia
Zvonimir1985 is offline

PostPosted: Mon Nov 28, 2016 3:43 pm    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

Wow! Bingo!
_________________
Proud to be Croat!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
oldbusboy
Samba Member


Joined: June 25, 2006
Posts: 601
Location: Bowen Island, BC Canada
oldbusboy is offline

PostPosted: Mon Jul 03, 2017 9:02 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

Anything new here?

Trevor
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the dominator
Samba Member


Joined: March 18, 2016
Posts: 93
Location: The Netherlands
the dominator is offline

PostPosted: Mon Jul 03, 2017 9:38 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

oldbusboy wrote:
Anything new here?

Trevor


Nothing really new here, besides that I just bought my next door neighbours house, so am pretty occupied with that one Embarassed

Might somebody have a spare domelight for zwitter and/or ashtray-coverplate. I am looking for it Cool Cool

Finally after 7 months my green panels arrived last week

floor
Image may have been reduced in size. Click image to view fullscreen.


A-column repair
Image may have been reduced in size. Click image to view fullscreen.


B-column repair
Image may have been reduced in size. Click image to view fullscreen.

_________________
54 iceland green oval, done!
52 Zwitter standard ragtop, parts hunting
67 T2A candywaxred en chestnutbrown
1988 T3 doka synco 2.1WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zvonimir1985
Samba Member


Joined: August 19, 2015
Posts: 135
Location: Zagreb, Croatia
Zvonimir1985 is offline

PostPosted: Mon Jul 03, 2017 1:28 pm    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

Why not virtanen or wolfsburg west?
_________________
Proud to be Croat!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Martin Southwell
Samba Member


Joined: November 24, 2010
Posts: 849
Location: Bath, England
Martin Southwell is offline

PostPosted: Mon Jul 03, 2017 1:48 pm    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

I would have asked the same question, having bought the green heater channels for my 47, and after some time, coming to realise that all is not what it seemed. Instead, I have bought some superior Virtanen channels at Hessisch Oldendorf. Anybody want to buy a pair of green heater channels?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
the dominator
Samba Member


Joined: March 18, 2016
Posts: 93
Location: The Netherlands
the dominator is offline

PostPosted: Mon Jul 03, 2017 9:23 pm    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

Zvonimir1985 wrote:
Why not virtanen or wolfsburg west?


From what I understood Virtanen does not have the complete floorpanels? Heater channels were already purchased last year, if I remember right Virtanen started sales of the heater channels later.....

My experience with the green panels so far is pretty good, for the rest of the metal-parts which I need, I will contact Virtanen (as I have done for my 54 oval) Cool
_________________
54 iceland green oval, done!
52 Zwitter standard ragtop, parts hunting
67 T2A candywaxred en chestnutbrown
1988 T3 doka synco 2.1WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the dominator
Samba Member


Joined: March 18, 2016
Posts: 93
Location: The Netherlands
the dominator is offline

PostPosted: Wed Jun 24, 2020 6:41 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

Time flies when you have fun, zwitter project is still on hold but there was still a wishlist of parts I was looking for in the background. recently a good friend forwarded me an add and asked if I was still looking for a dash-section for a zwitter (since I mentioned to him that my ashtray mounting hole was hacked to host an oval ashtray in earlier days Embarassed Embarassed )

Anwyway to make a long story short: I now have a zwitter frontclip. But came with some more parts.....

picture from the add
Image may have been reduced in size. Click image to view fullscreen.

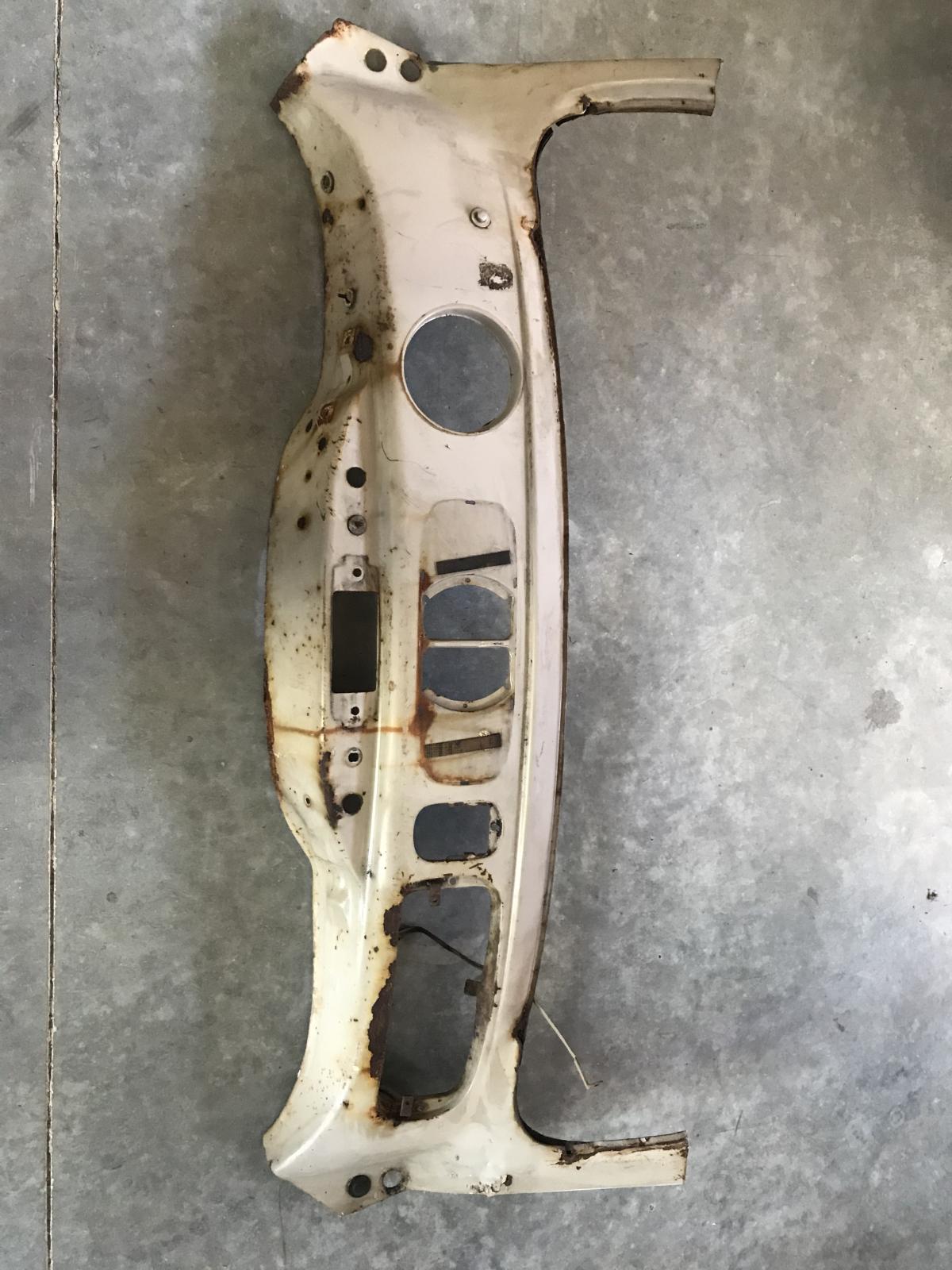

The long searched for ashtray section
Image may have been reduced in size. Click image to view fullscreen.

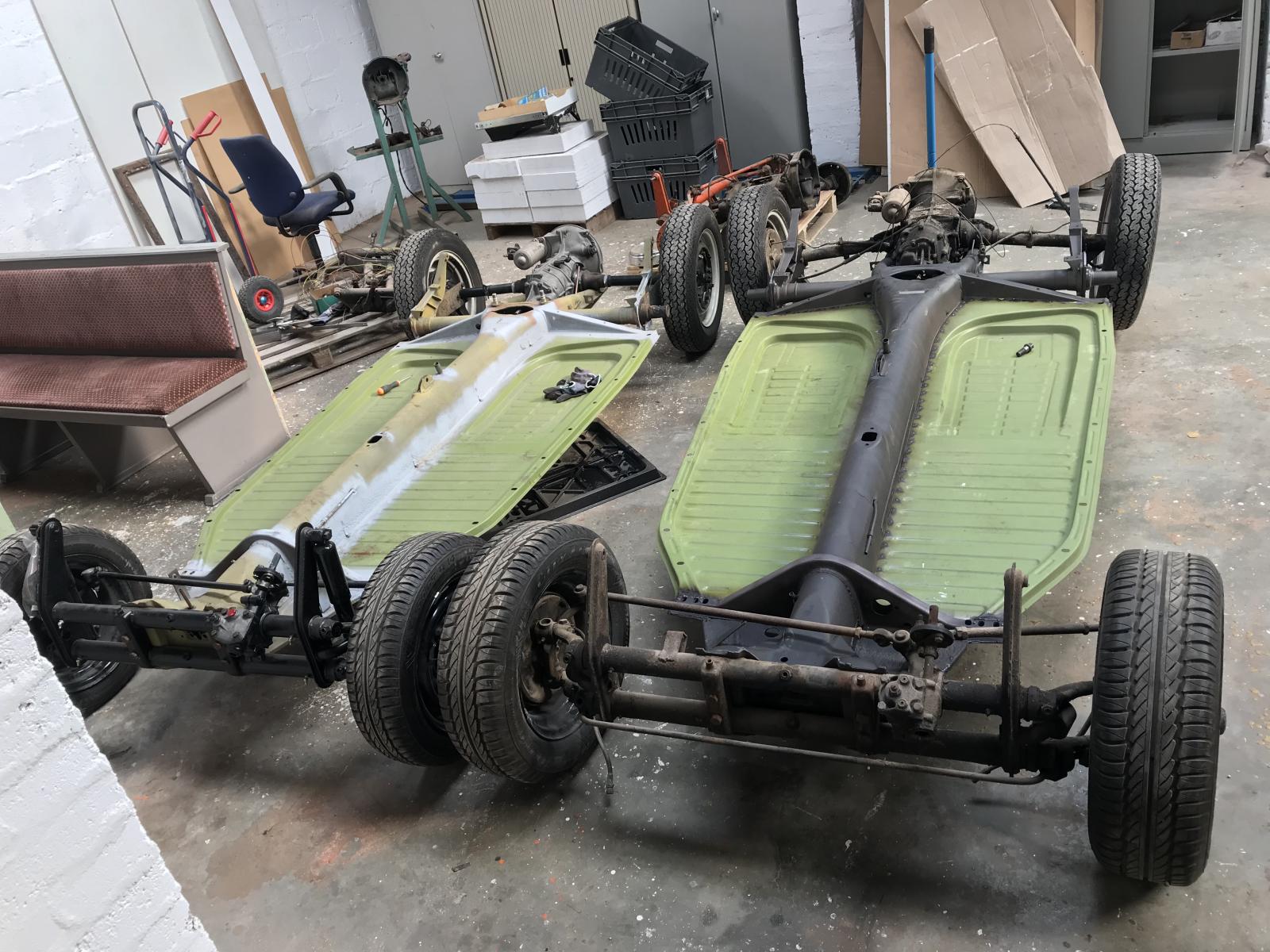

The frontclip came with complete overhauled chassis with matching gearbox and front axle. And last not least: the original belgian paperwork for a december 52 deluxe zwitter. So my zwitter standard ragtop gets a younger deluxe sister!
Image may have been reduced in size. Click image to view fullscreen.


I have talked a lot with Sam last year amongst other also about zwitter dashsection (more precise ashtray) he had more requests but never got his hands on a complete dash for tooling, to reproduce the part.

So let me donate something to the community: I have cut and will ship my dash to Spain so he can create tooling and reproduce the part for everybody in need of the same in the future. I will get my dashsection in return together with the repro-parts!
Image may have been reduced in size. Click image to view fullscreen.


Can't wait to see the first details of the tooling for this part Cool Cool
_________________
54 iceland green oval, done!
52 Zwitter standard ragtop, parts hunting
67 T2A candywaxred en chestnutbrown
1988 T3 doka synco 2.1WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tisius
Samba Member


Joined: July 11, 2011
Posts: 1570
Location: Rotterdam,NL (+Chicago,IL)
tisius is offline

PostPosted: Thu Jun 25, 2020 6:05 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

sweet !! Cool
_________________
drive it like you just robbed the bank
you don't have to be crazy to be into VW's, but it sure helps!!
.... if it ain't dutch, it ain't much!
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger Gallery Classifieds Feedback
Wolfgang1
Samba Member


Joined: February 12, 2004
Posts: 139
Location: Germany
Wolfgang1 is offline

PostPosted: Tue Jul 14, 2020 2:36 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

Interesting project.

For your information, the donor body is past 8/55, see the luggage floor, inner side panels and b-post.

empty shell
Image may have been reduced in size. Click image to view fullscreen.


Regards,
Wolfgang
_________________
Understeer is when you hit the wall with the front of the car. Oversteer is when you hit the wall with the rear of the car. Horsepower is how fast you hit the wall. Torque is how far you take the wall with you.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
the dominator
Samba Member


Joined: March 18, 2016
Posts: 93
Location: The Netherlands
the dominator is offline

PostPosted: Tue Jul 14, 2020 2:55 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

Wolfgang1 wrote:
Interesting project.

For your information, the donor body is past 8/55, see the luggage floor, inner side panels and b-post.

Regards,
Wolfgang


Thanks for your comment, in fact only the roof was original to the car.
Will surely need a lot of dedication to get everything right but I like a challenge. Cool
_________________
54 iceland green oval, done!
52 Zwitter standard ragtop, parts hunting
67 T2A candywaxred en chestnutbrown
1988 T3 doka synco 2.1WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 8866
Location: Pearl River, NY
Rome is offline

PostPosted: Thu Jul 23, 2020 7:52 pm    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

Will you be fitting the Porsche 356B brakes to your Zwitter?
Image may have been reduced in size. Click image to view fullscreen.

Will you maintain the "wide track" 1967-style rear axle for your restoration?

When Germany outlawed semaphore turn signals as of July 1960, I think there was also a mandate soon afterwards that the "snowflake" and "heart" taillamps had to be converted to the 2-chamber 1962-style. This is why you see so many oval and split-window Beetles with the 1962-style taillamps that are positioned so low. Owners used most of the pre-drilled original taillamp holes in the fenders instead of drilling new ones higher up, to fit the '62 taillamps. The taillamps from those early photos are at the normal height for a '62. I'm fairly certain that this taillamp regulation also applied to other European countries, which would explain them on your Zwitter. The car would fail inspection if the taillamps did not comply.

Was there a stronger engine fitted so that the Cabrio louvered engine lid was installed?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the dominator
Samba Member


Joined: March 18, 2016
Posts: 93
Location: The Netherlands
the dominator is offline

PostPosted: Thu Jul 23, 2020 11:10 pm    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

Rome wrote:
Will you be fitting the Porsche 356B brakes to your Zwitter?

hahaha no picture was taken at sellers location, my budget would not stretch enough to obtain those......

Rome wrote:

Will you maintain the "wide track" 1967-style rear axle for your restoration?

nope, am going back to "stock"

Rome wrote:

Was there a stronger engine fitted so that the Cabrio louvered engine lid was installed?

there was, but sadly that engine was removed and long time sold before I got my hands on the rest of the car Embarassed
_________________
54 iceland green oval, done!
52 Zwitter standard ragtop, parts hunting
67 T2A candywaxred en chestnutbrown
1988 T3 doka synco 2.1WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sinclair
Samba Member


Joined: July 01, 2004
Posts: 327
Location: New Forest UK
sinclair is offline

PostPosted: Sat Jul 25, 2020 12:29 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

I'm avidly following this, it really takes me back. is there any evidence of additional accessories? Horns, lights, etc? My old 49 was a border patrol car and had relays in the wheel well, lamps on the A pillars and a hella socket under the dash.
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
the dominator
Samba Member


Joined: March 18, 2016
Posts: 93
Location: The Netherlands
the dominator is offline

PostPosted: Fri Dec 09, 2022 3:34 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

time flies, already 2 years passed by since my last post..

In order to jumpstart this project and to make sure the body is going to be as correct is possible I found and bought an early oval body.

This is going to be the basis for the resto.

Image may have been reduced in size. Click image to view fullscreen.


to be continued.
_________________
54 iceland green oval, done!
52 Zwitter standard ragtop, parts hunting
67 T2A candywaxred en chestnutbrown
1988 T3 doka synco 2.1WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the dominator
Samba Member


Joined: March 18, 2016
Posts: 93
Location: The Netherlands
the dominator is offline

PostPosted: Wed Jan 25, 2023 7:17 am    Post subject: Re: Zwitter (standard) with ragtop sunroof, project by coincidence Reply with quote

So, Christmas is early this year Laughing Laughing Laughing

Image may have been reduced in size. Click image to view fullscreen.


The body has moved to the body-shop, hope to get updates soon.


(I am looking to get some experience in welding but guess this is the wrong car for experiments)
_________________
54 iceland green oval, done!
52 Zwitter standard ragtop, parts hunting
67 T2A candywaxred en chestnutbrown
1988 T3 doka synco 2.1WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Split-Window/1938-53 VWs All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
