PostPosted: Thu Dec 08, 2022 1:33 pm    Post subject: Wiring for rear window defroster Reply with quote

I have a 08/69 beetle sedan. I'm trying to connect electrical wiring for thr rear window defroster , I can not locate the regulater? The previous owner may not have reinstalled it during their complete rewire. Hoping for help where the regulater should have been placed?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Cusser
Samba Member


Joined: October 02, 2006
Posts: 29537
Location: Hot Arizona
Cusser is offline

PostPosted: Thu Dec 08, 2022 1:41 pm    Post subject: Re: Wiring for rear window defroster Reply with quote

The switch for the defogger was under the dash near the driver. The relay was under the rear seat, driver side. For USA VWs with driver on the left....
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2011 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vamram Premium Member
Samba Member


Joined: March 08, 2012
Posts: 6673
Location: NOVA
vamram is offline

PostPosted: Thu Dec 08, 2022 2:24 pm    Post subject: Re: Wiring for rear window defroster Reply with quote

You need a 30A general purpose relay; it gets its power from fuse #10,at least on a '73 Super. Check the Samba technical section for the wiring diagram for your year.

Come to think of it...did '69 even have a defroster?? Think
_________________
Better living through facts.

'74 Super 9/16 - present, in refurb process.
'73 Super - 6/18 - Present - Daily Driver!
'75 Super Le Grande...waiting it's turn in line behind '74.
Click to view image
Save the Supers!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Cusser
Samba Member


Joined: October 02, 2006
Posts: 29537
Location: Hot Arizona
Cusser is offline

PostPosted: Thu Dec 08, 2022 3:14 pm    Post subject: Re: Wiring for rear window defroster Reply with quote

I think 1969 was first year of rear window defroster.

I got my 1970 sedan in 1972, and I must say that this didn't seem to work very well on mine, maybe because most trips in winter were under 30 minutes.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2011 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Newbie69
Samba Member


Joined: December 08, 2022
Posts: 2

Newbie69 is offline

PostPosted: Thu Dec 08, 2022 5:05 pm    Post subject: Re: Wiring for rear window defroster Reply with quote

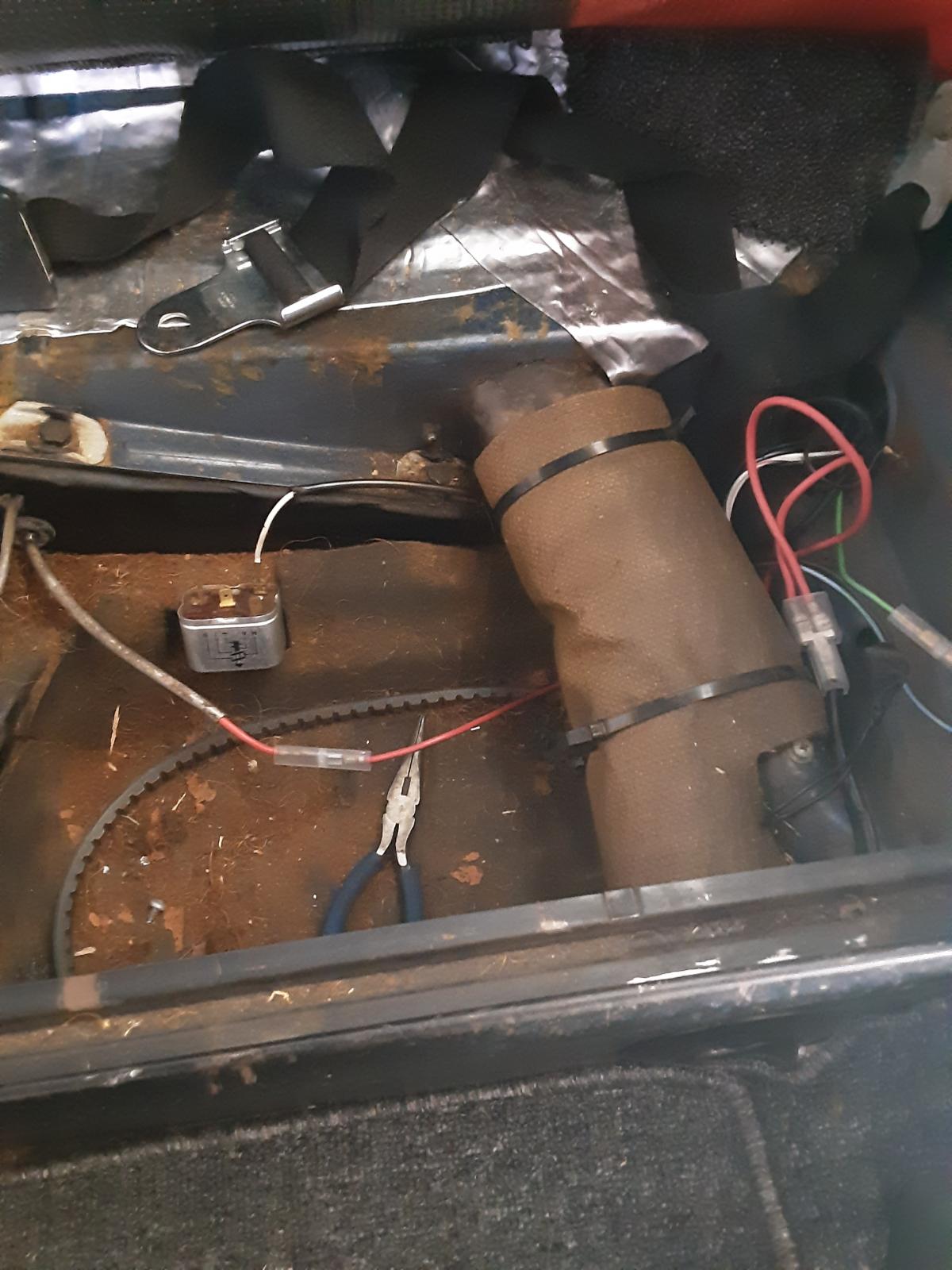

From the wiring diagram which I viewed for 08/69 .there is a regulater C1 that appears to be between the generator and (relay that is under back seat). Most likely not the right way, wondering if I could just run a hot straight from the B+ generator to the relay with an inline fuse? Or tap into the starter wire that is next to the relay.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


All other wires that are needed for relay and defroster switch are there.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jimbug57 Premium Member
Samba Member


Joined: October 08, 2002
Posts: 813
Location: Mid Michigan
Jimbug57 is offline

PostPosted: Fri Dec 09, 2022 5:41 am    Post subject: Re: Wiring for rear window defroster Reply with quote

I would tap into the starter wire with #10 AWG and a 30 amp inline fuse. I never connect anything direct to the gen/alt.
_________________
Repeat after me "I am smarter than metal!"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sb001
Samba Member


Joined: May 19, 2011
Posts: 9871
Location: NW Arkansas
sb001 is offline

PostPosted: Fri Dec 09, 2022 7:22 am    Post subject: Re: Wiring for rear window defroster Reply with quote

Newbie69 wrote:
From the wiring diagram which I viewed for 08/69 .there is a regulater C1 that appears to be between the generator and (relay that is under back seat).


The voltage regulator under the rear seat has nothing to do with the rear defrost system. VW just used the B+ terminal on it as a convenient location to branch off the hot lead from the battery over to the rear defrost relay, since they are both under the back seat.
Since you have switched to an internally regulated alternator and are now missing that voltage regulator, I would just simply run a wire with an inline fuse directly from the battery + terminal over to terminal 30 on the rear defrost relay.
_________________
I'm the humblest guy on this board.

1969 autostick sedan, family owned since new
1600 SP engine
Solex 30 PICT 3 carburetor
Bosch 113905205AE autostick distributor
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sb001
Samba Member


Joined: May 19, 2011
Posts: 9871
Location: NW Arkansas
sb001 is offline

PostPosted: Fri Dec 09, 2022 7:35 am    Post subject: Re: Wiring for rear window defroster Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Actually you should just be able to splice in to this wire since it comes over from the battery, and run a FUSED lead over to terminal 30 on the rear defrost relay. This would basically be the same thing VW did.
_________________
I'm the humblest guy on this board.

1969 autostick sedan, family owned since new
1600 SP engine
Solex 30 PICT 3 carburetor
Bosch 113905205AE autostick distributor
Back to top
View user's profile Send private message Gallery Classifieds Feedback
cletus_zuber
Samba Member


Joined: January 08, 2010
Posts: 2348
Location: Gladstone, Ore
cletus_zuber is offline

PostPosted: Sat Dec 10, 2022 7:14 pm    Post subject: Re: Wiring for rear window defroster Reply with quote

Read this before getting too far into it, your grid is most likely long dead.

http://www.vw-resource.com/defogger.html
_________________
1972 1302
HPMX 40's & 019
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vwracerdave
Samba Member


Joined: November 11, 2004
Posts: 14791
Location: Deep in the 405
vwracerdave is offline

PostPosted: Sat Dec 10, 2022 7:21 pm    Post subject: Re: Wiring for rear window defroster Reply with quote

Show of hands.

Lets see how many people have a working rear window defroster.


I have never talked to anybody that does.
_________________
2017 Street Comp Champion - Thunder Valley Raceway Park - Noble, OK
2010 Sportsman ET Champion - Mid-America Dragway - Arkansas City, KS
1997 Sportsman ET Champion - Thunder Valley Raceway Park - Noble ,OK
Featured in Dec. 2001 HOT VW's Magazine page 63

Watch my racing video's http://www.youtube.com/user/okvwracer/videos
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vamram Premium Member
Samba Member


Joined: March 08, 2012
Posts: 6673
Location: NOVA
vamram is offline

PostPosted: Sat Dec 10, 2022 8:06 pm    Post subject: Re: Wiring for rear window defroster Reply with quote

vwracerdave wrote:
Show of hands.

Lets see how many people have a working rear window defroster.


I have never talked to anybody that does.


My '73 Super has a working rear defrost....an aftermarket window. I have an original rear window from a '71 that has good continuity across all the lines. Never had a car for it though, bought it before I learned '72 rear windows were slightly bigger.
_________________
Better living through facts.

'74 Super 9/16 - present, in refurb process.
'73 Super - 6/18 - Present - Daily Driver!
'75 Super Le Grande...waiting it's turn in line behind '74.
Click to view image
Save the Supers!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Cusser
Samba Member


Joined: October 02, 2006
Posts: 29537
Location: Hot Arizona
Cusser is offline

PostPosted: Sun Dec 11, 2022 8:32 am    Post subject: Re: Wiring for rear window defroster Reply with quote

vwracerdave wrote:
Show of hands. Lets see how many people have a working rear window defroster. I have never talked to anybody that does.


Mine worked on my 1970, purchased in 1972. At least it did work somewhat, and that was in the 1970s. I'm in Arizona desert, so there really wasn't much reason to even try to use it.

When I resurrected that VW in 2016-2017 after its retirement in 1993 I did check for continuity on its rear window grid when I had the rear window out to replace the rubber seal, and I had no continuity by then. So I just ignored that, and re-installed it with the new seal.

I wonder if there are small-enough stick-on rear window defroster grids available......they exist for larger windows....
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2011 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Multi69s
Samba Member


Joined: January 24, 2006
Posts: 5287
Location: Lefty, CA
Multi69s is offline

PostPosted: Mon Dec 12, 2022 5:25 pm    Post subject: Re: Wiring for rear window defroster Reply with quote

vwracerdave wrote:
Show of hands.

Lets see how many people have a working rear window defroster.


I have never talked to anybody that does.



I've had 7 different VWs, and none of the rear defrosters worked.
_________________
69 road Bug 2110
73 Squareback - 2L, T4, Automatic W/ AC
Gone, but many fond memories 69 Baja Bug 2010 - 5 Rib Bus Transaxle
Gone but not forgotten 72 Baja Bug 2010
My builds
T4 into Squareback http://www.thesamba.com/vw/forum/viewtopic.php?t=458944&highlight=
Auto Trans Rebuild http://www.thesamba.com/vw/forum/viewtopic.php?t=516066&highlight=
AC in Squareback https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 31945
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Mon Dec 12, 2022 5:33 pm    Post subject: Re: Wiring for rear window defroster Reply with quote

Mine worked when new (1971), but not well since about the late 1980s.

What you see are the primer paint lines, not the actual conductive/resistive material, which likely has long since evaporated.

They were always treated gently, it was just a poor electrical/mechanical design that can't last. You'd be far better off with a small forced air heater aimed for best effect, using the same wiring and relay.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vamram Premium Member
Samba Member


Joined: March 08, 2012
Posts: 6673
Location: NOVA
vamram is offline

PostPosted: Mon Dec 12, 2022 6:37 pm    Post subject: Re: Wiring for rear window defroster Reply with quote

KTPhil wrote:
You'd be far better off with a small forced air heater aimed for best effect, using the same wiring and relay.


That sounds like a really good idea...any particular heater/fan in mind?
_________________
Better living through facts.

'74 Super 9/16 - present, in refurb process.
'73 Super - 6/18 - Present - Daily Driver!
'75 Super Le Grande...waiting it's turn in line behind '74.
Click to view image
Save the Supers!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
madmike
Samba Member


Joined: July 11, 2005
Posts: 4926
Location: Atlanta,Michigan
madmike is offline

PostPosted: Mon Dec 12, 2022 7:23 pm    Post subject: Re: Wiring for rear window defroster Reply with quote

Good luck with that,Most all of them suck up to many Amps Crying or Very sad
_________________
'Black Ice'Drag Buggy 'Turbo'
Rail Buggy 1915 turbo
76 Drag/Street bug 2180cc 'Turbo' 11:85 @113 mph"If I go any faster I'll burn up the Hamster" ,gets 28 mpg. also 10/09/22 11.90 @115 mph
"If I'm ever on Life Support,UNPLUG Me, Then Plug me back In see if that Works"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 31945
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Tue Dec 13, 2022 11:22 am    Post subject: Re: Wiring for rear window defroster Reply with quote

I don't have a particular suggestion, and they are not super hot/super flow, or they take too much current. But a well-aimed air pusher, plus a little heat, might go a long way.

Maybe check the Bus forums for heater/blower suggestions, since they have well-known heater issues!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sb001
Samba Member


Joined: May 19, 2011
Posts: 9871
Location: NW Arkansas
sb001 is offline

PostPosted: Tue Dec 13, 2022 11:33 am    Post subject: Re: Wiring for rear window defroster Reply with quote

KTPhil wrote:

They were always treated gently, it was just a poor electrical/mechanical design that can't last. .


What part about the original system was the main design flaw- did the system send too much current through it, did they use bad adhesive to stick the grid to the window, etc? I've always wondered if buying one of the new windows with a new defrost grid would yield better, same, or worse results

https://www2.cip1.com/vwc-111-845-501-k/
_________________
I'm the humblest guy on this board.

1969 autostick sedan, family owned since new
1600 SP engine
Solex 30 PICT 3 carburetor
Bosch 113905205AE autostick distributor
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 31945
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Tue Dec 13, 2022 11:37 am    Post subject: Re: Wiring for rear window defroster Reply with quote

The resistive material degraded over time, even if on the shelf, I have read.

In aerospace, we do "high temperature accelerated aging tests" to predict life expectancy. Maybe VW (or their suppliers, Sekurit, Siglia?) didn't do this back then?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Late Model/Super - 1968-up All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
