| Author |
Message |
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15382
Location: Casa de Oro, California
|
 Posted: Sat Oct 18, 2025 6:17 pm Post subject: Re: Parcel shelf / tray covering? |
 |
|
| Looks absolutely stock. |
|
| Back to top |
|
 |
Troytempest69
Samba Member
Joined: April 12, 2017
Posts: 100
Location: Wales
|
| Posted: Sat Oct 18, 2025 3:16 pm Post subject: Re: Parcel shelf / tray covering? |
|
|

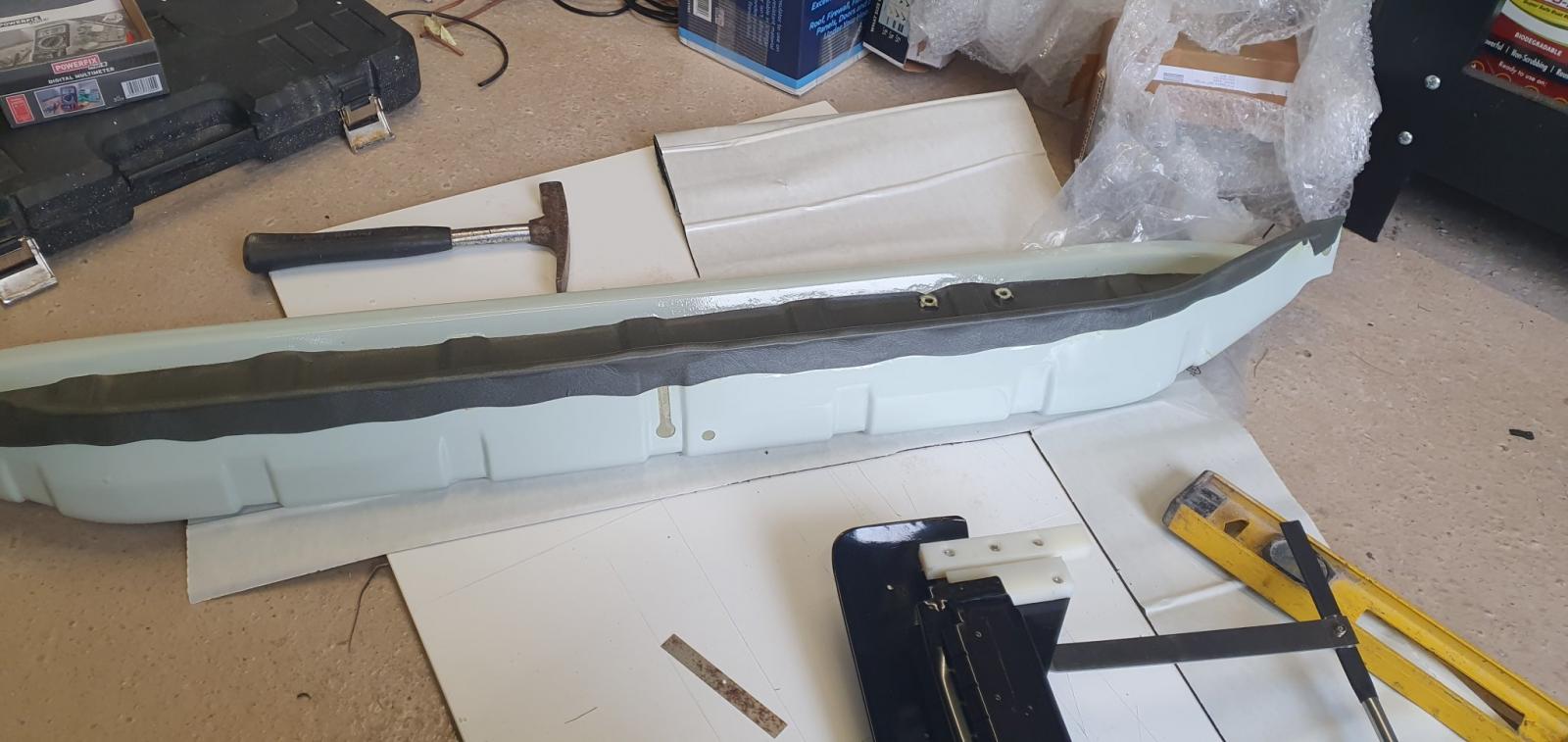

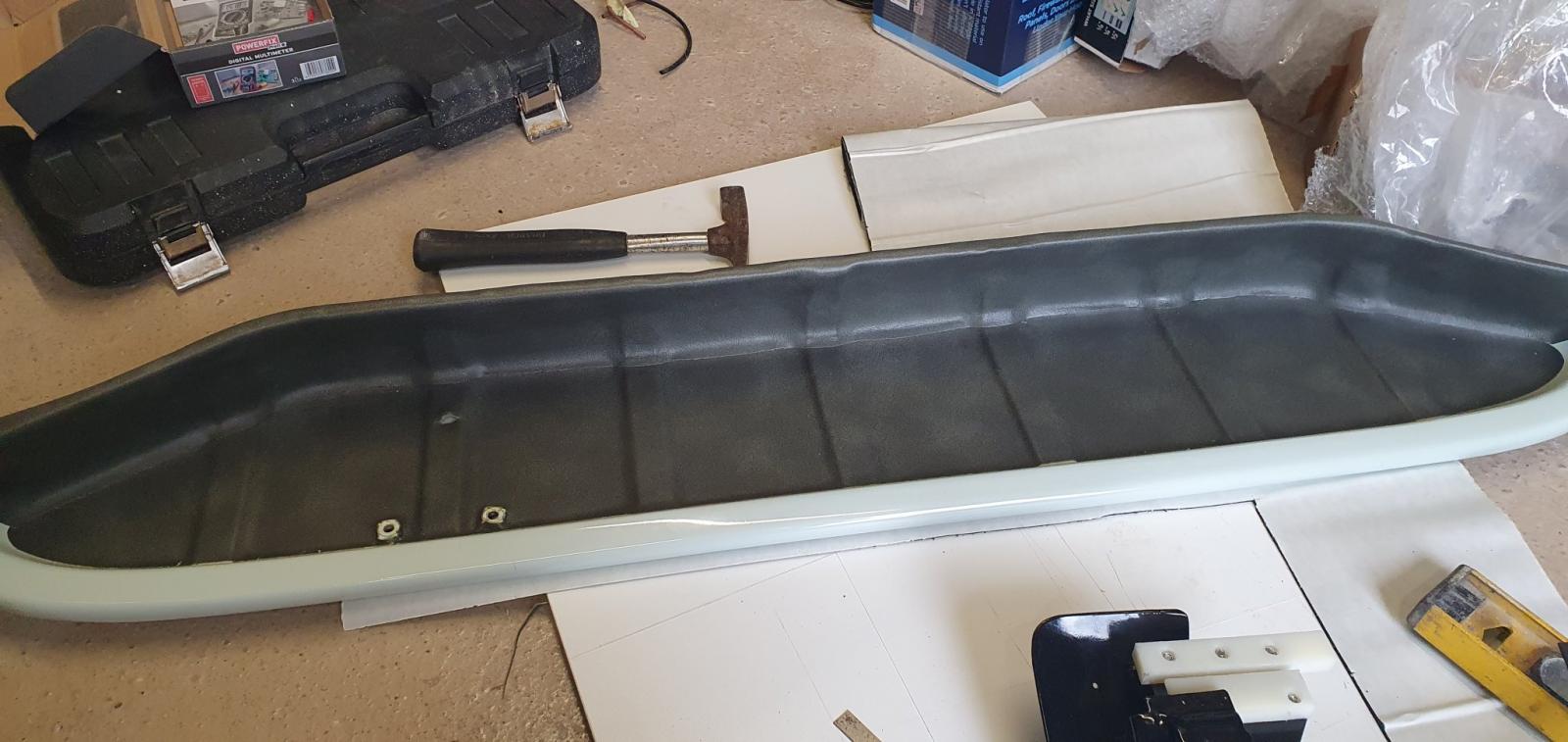

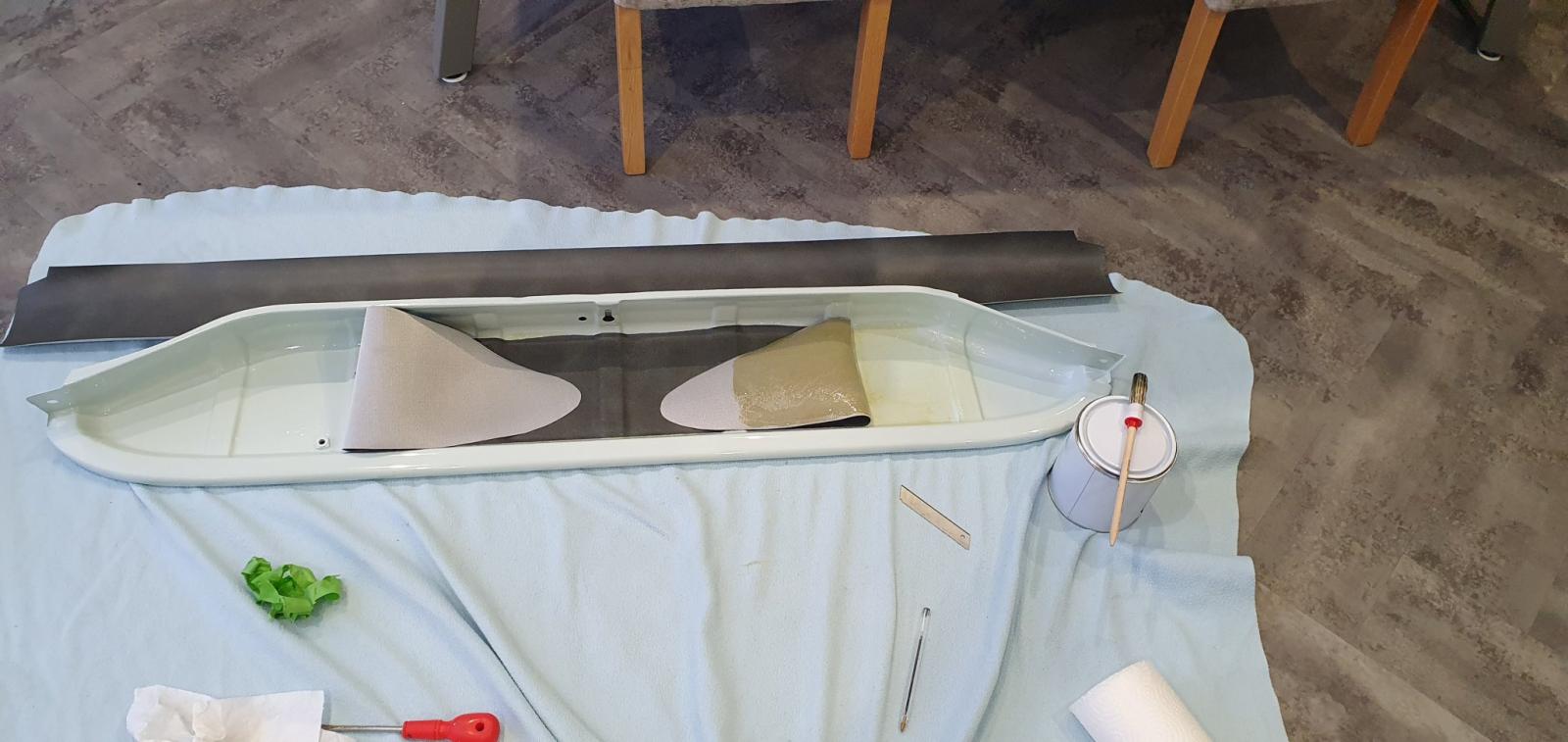

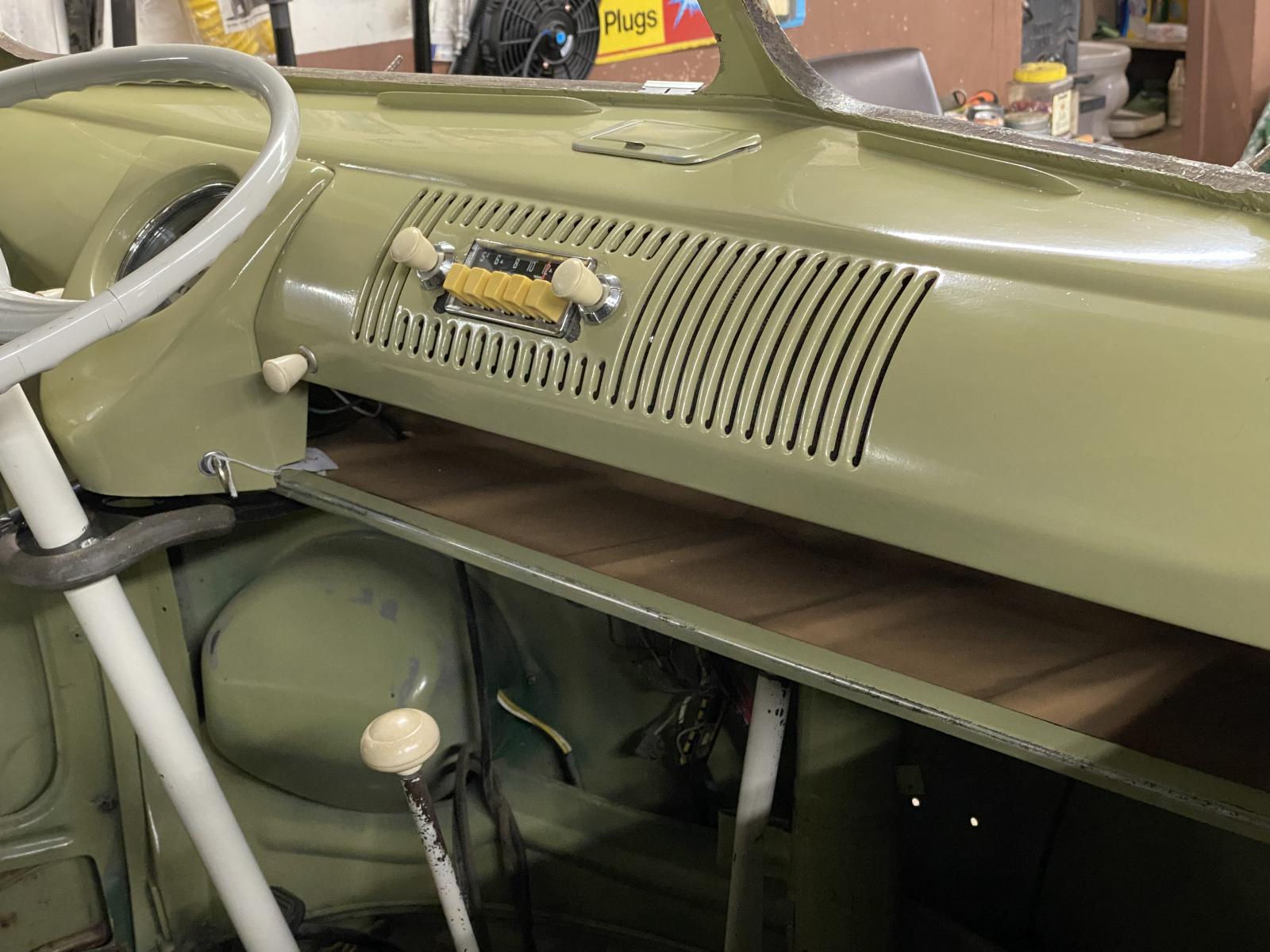

This is a great thread. Here’s my parcel tray after I recovered it…not perfect but I like it.
|
|
| Back to top |
|
|
House
Minutia Militia
Joined: June 13, 2001
Posts: 1935
|
| Posted: Mon Dec 04, 2023 10:10 pm Post subject: Re: Parcel shelf / tray covering? |
|
|
| Those pics and the pics from your 64 were very helpful installing mine correctly, thanks. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71753
Location: Phoenix 602
|
|
| Back to top |
|
|
D-train
Samba Member
Joined: January 08, 2007
Posts: 1484
|
| Posted: Mon Dec 04, 2023 9:37 pm Post subject: Re: Parcel shelf / tray covering? |
|
|
| EverettB wrote: |

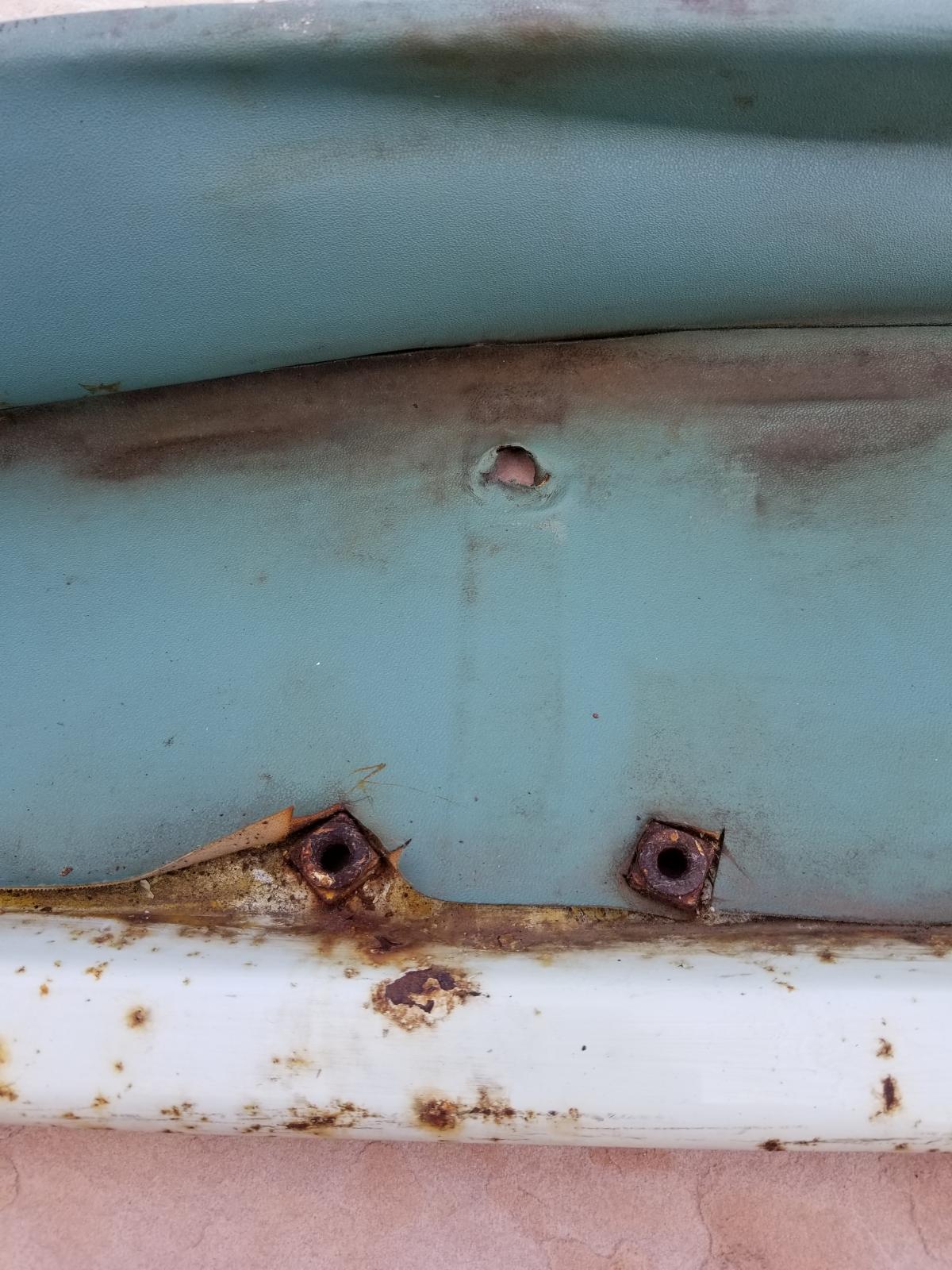

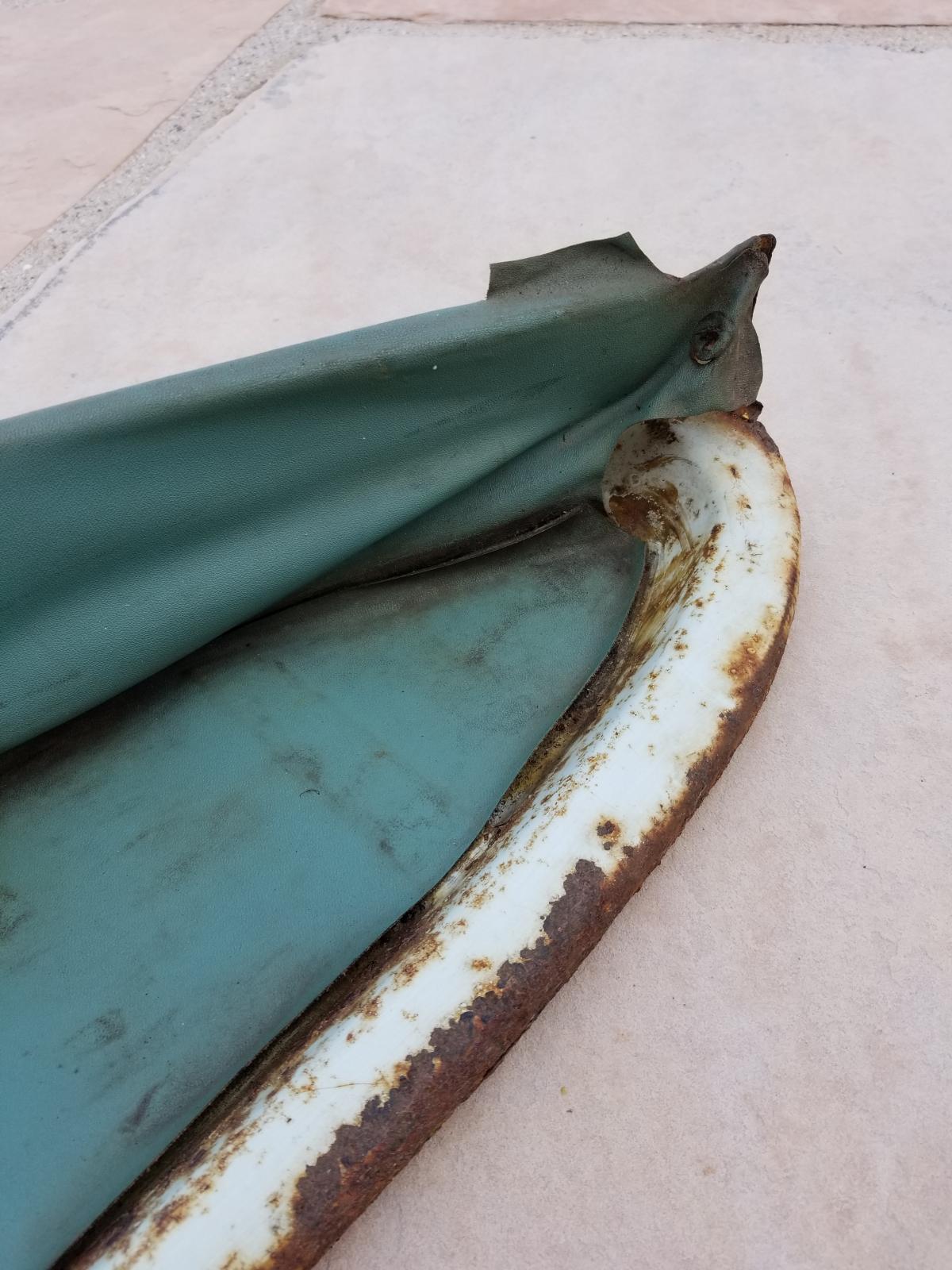

Here's a Como Green tray with the original covering
|
Does this have stitching like zimblewinders one?
_________________
shiny paint doesnt make it worth any more |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15382
Location: Casa de Oro, California
|
| Posted: Mon Dec 04, 2023 7:00 pm Post subject: Re: Parcel shelf / tray covering? |
|
|
The ends of the front vertical piece are folded back too.
|
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71753
Location: Phoenix 602
|
|
| Back to top |
|
|
55bundt
Samba Member
Joined: December 15, 2002
Posts: 174
|
| Posted: Sun Dec 03, 2023 9:58 pm Post subject: Re: Parcel shelf / tray covering? |
|
|
| My July 59 deluxe was 2 peices although the bottom peice was shredded up so I carefully removed what was left of it and used it as a template. I then used the front bottom portion of my og front bench seat material which was a perfect match and brushed contact cement on the tray and material. It's been on there for over 5 years now no shrinkage although the material used is 64 years old. |
|
| Back to top |
|
|
House
Minutia Militia
Joined: June 13, 2001
Posts: 1935
|
| Posted: Sun Dec 03, 2023 9:03 pm Post subject: Re: Parcel shelf / tray covering? |
|
|
I tried to replicate the original the best I could and used contact adhesive in a can with a brush. I think a spray would have been much easier though.
As you can see from the original one above it was glued clear across. Over the years the vinyl shrinks and usually pulls the sharp bottom corners up only staying stuck to the flat top surface. I traced an original onto paper then the paper onto the fresh vinyl. A few adjustments still had to be made to fit properly. It depends on the heat of your vinyl, tray, glue, etc.
I did the front (back of the parcel tray) first and did the bottom the next day. The whole process took me weeks which is ludicrous since they probably did it start to finish in three minutes at the factory…
Last edited by House on Sun Dec 03, 2023 10:01 pm; edited 2 times in total |
|
| Back to top |
|
|
nlorntson
Crazy VW Lady
Joined: March 13, 2004
Posts: 3860
Location: Twin Cities, MN
|
| Posted: Sun Dec 03, 2023 7:23 pm Post subject: Re: Parcel shelf / tray covering? |
|
|
I'm preparing to tackle this covering on a 67 package shelf.
I'm wondering what others have used for adhesive? It seems too big an area for using something out of a tube.
Also wondering if others have made a pattern first out of paper or something else?
On the flat shelf portion does the vinyl follow the contours of the ribs on the shelf or does it lay across the tops of each rib?
It appears the plan of attack should be to do the front edge first let everything dry, and then do the flat tray surface.
Sound right? |
|
| Back to top |
|
|
ChiapC
Samba Member
Joined: January 04, 2017
Posts: 66
Location: San Diego
|
| Posted: Sat Sep 16, 2023 3:33 pm Post subject: Re: Parcel shelf / tray covering? |
|
|
| bdelage wrote: |
| ChiapC wrote: |
Just as I was about to toss away my OG vinyl that was warped, I luckily started researching getting new vinyl only to find it’s not reproduced. Looks like I’ll be ordering a yard or so and try to re-do this…. Accounting for shrinkage obviously. We’ll see how it comes out!
|
Where did you end up ordering the vinyl from for this? |
I haven’t yet. But will ask Sewfine, who’s making everything else to send me a yard or so. It should be the same material the door cards/panels are made from. So they’ll obviously have it in stock. |
|
| Back to top |
|
|
bdelage
Samba Member
Joined: August 16, 2023
Posts: 6
Location: SC
|
| Posted: Sat Sep 16, 2023 2:45 pm Post subject: Re: Parcel shelf / tray covering? |
|
|
| ChiapC wrote: |
Just as I was about to toss away my OG vinyl that was warped, I luckily started researching getting new vinyl only to find it’s not reproduced. Looks like I’ll be ordering a yard or so and try to re-do this…. Accounting for shrinkage obviously. We’ll see how it comes out!
|
Where did you end up ordering the vinyl from for this? |
|
| Back to top |
|
|
ChiapC
Samba Member
Joined: January 04, 2017
Posts: 66
Location: San Diego
|
| Posted: Mon Sep 04, 2023 10:46 am Post subject: Re: Parcel shelf / tray covering? |
|
|

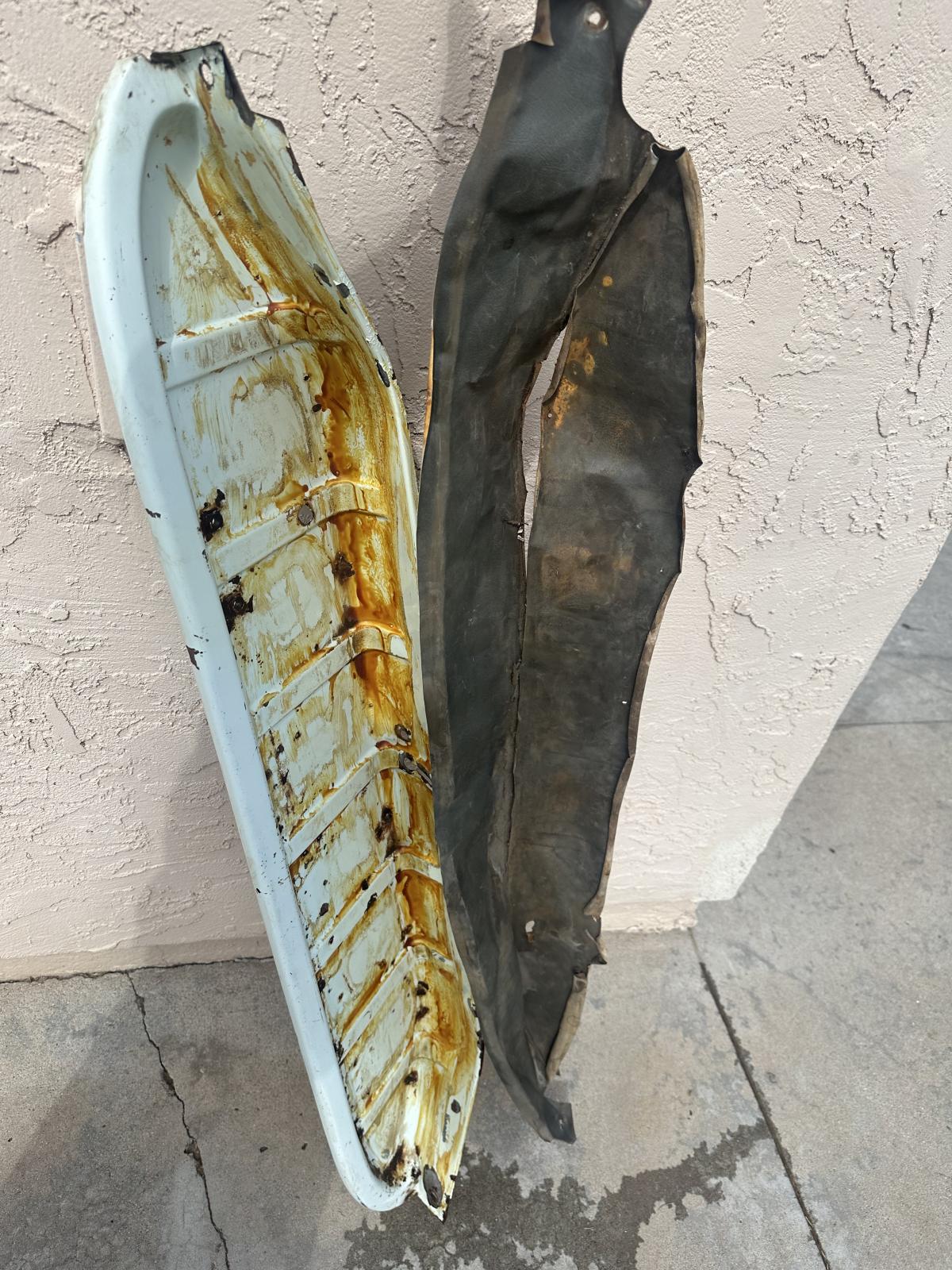

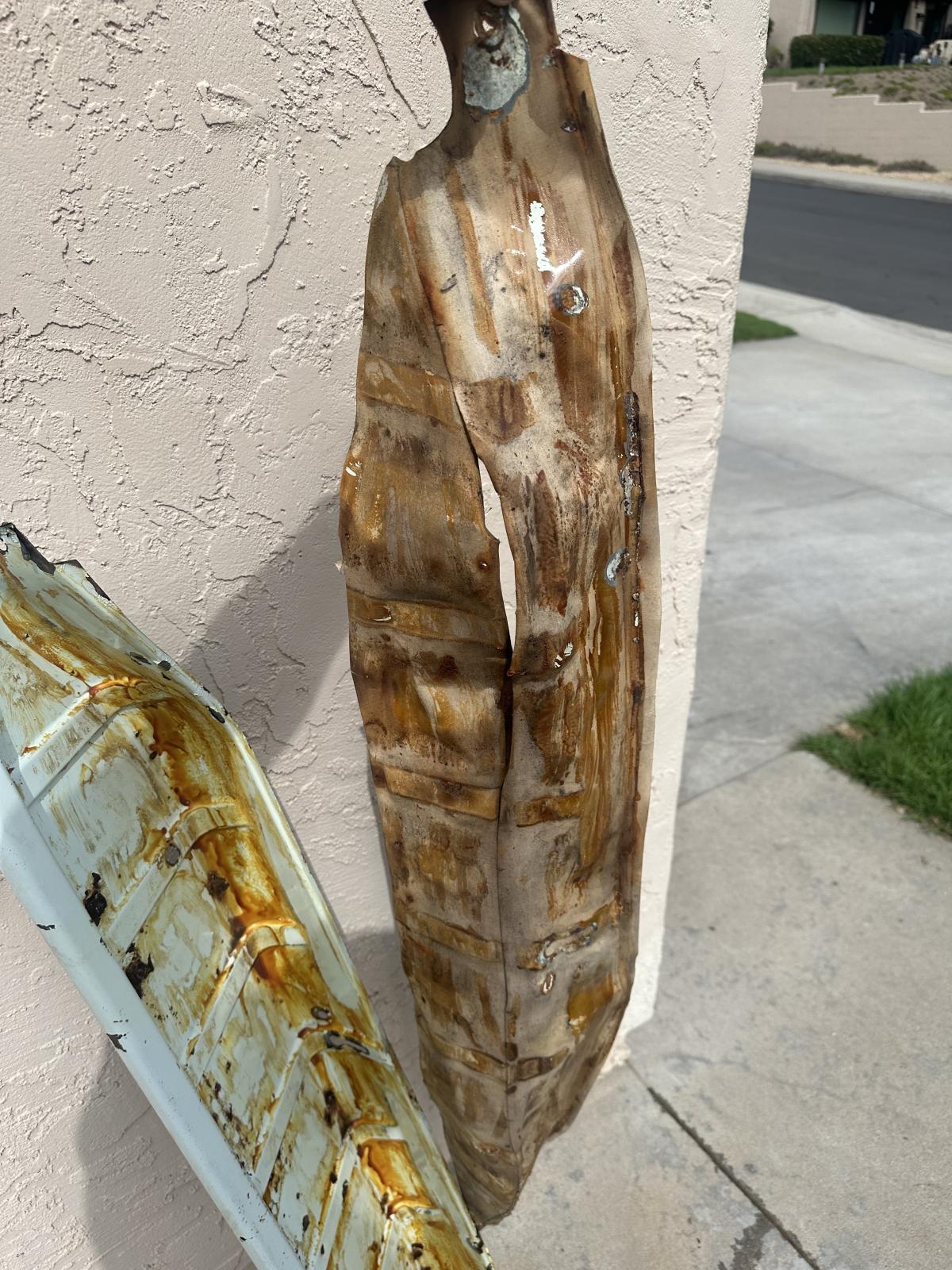

Just as I was about to toss away my OG vinyl that was warped, I luckily started researching getting new vinyl only to find it’s not reproduced. Looks like I’ll be ordering a yard or so and try to re-do this…. Accounting for shrinkage obviously. We’ll see how it comes out!
|
|
| Back to top |
|
|
teahead
Samba Member
Joined: October 30, 2019
Posts: 326
Location: Seattle
|
| Posted: Wed Mar 18, 2020 2:19 pm Post subject: Re: Parcel shelf / tray covering? |
|
|
Anyone repro's new ones?
_________________
'63 German Walk-Thru Deluxe 15-window - SOLD |
|
| Back to top |
|
|
BulliBill
Samba Member
Joined: July 09, 2004
Posts: 4790
Location: St Charles, MO
|
| Posted: Wed Dec 17, 2014 11:45 pm Post subject: |
|
|

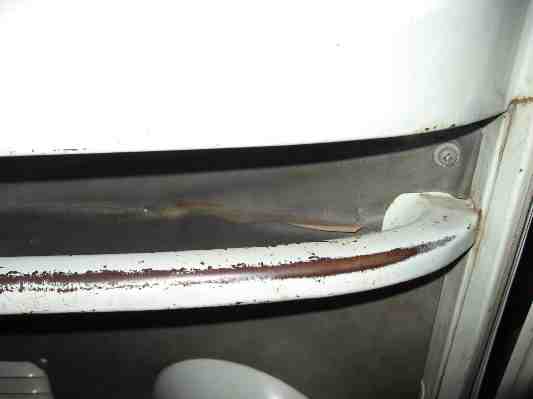

Here is the original liner on my under-dash tray...
Bill Bowman
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton
Thanks for any help! |
|
| Back to top |
|
|
zimblewinder
Samba Member
Joined: January 22, 2004
Posts: 900
Location: Australia
|
| Posted: Thu Jan 23, 2014 6:39 pm Post subject: |
|
|

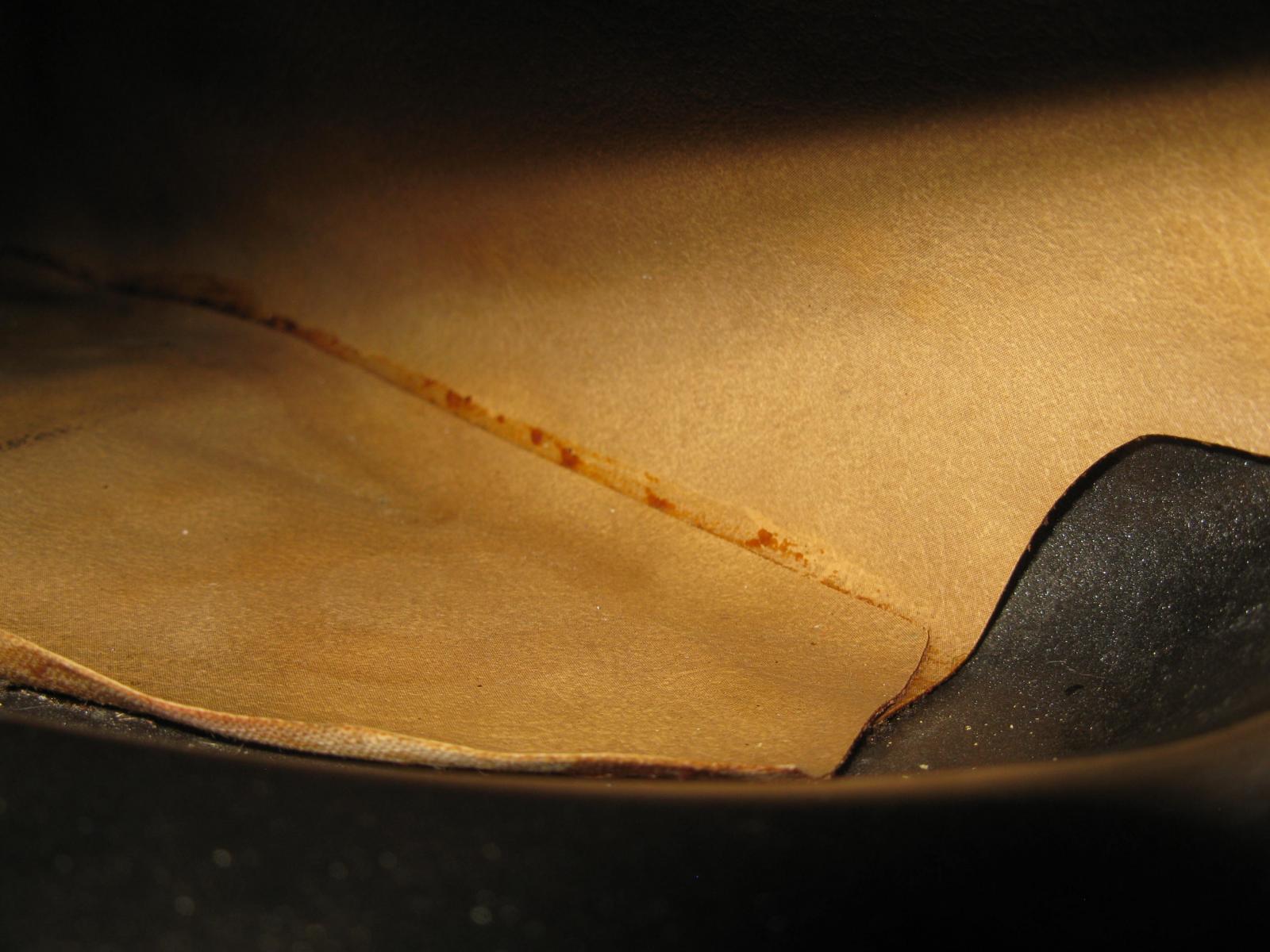

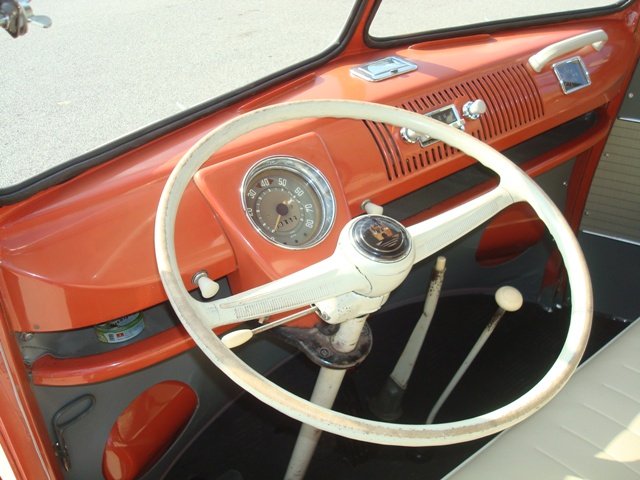

from the gallery this looks like a one piece liner here too. Zoom in on the stitching in the left of the tray
_________________
58Euro 23 343208 The Ultimate Zimblewinder Machine.
59 mango standard
Wanted- splash pan supports, og pressed bumper coach bolts, ivory blaupunkt knobs (early), armrest alloy strips, NOS door mechanism |
|
| Back to top |
|
|
zimblewinder
Samba Member
Joined: January 22, 2004
Posts: 900
Location: Australia
|
| Posted: Mon Dec 30, 2013 2:31 am Post subject: |
|
|
maybe its an early delux thing (one piece) though I can hardly imagine why. Unfortunately another thing I didn't ask Mr Mayer (original owner) about before he passed.
_________________
58Euro 23 343208 The Ultimate Zimblewinder Machine.
59 mango standard
Wanted- splash pan supports, og pressed bumper coach bolts, ivory blaupunkt knobs (early), armrest alloy strips, NOS door mechanism |
|
| Back to top |
|
|
Stocknazi
Samba Member
Joined: June 18, 2004
Posts: 5530
|
| Posted: Sun Dec 29, 2013 5:22 pm Post subject: |
|
|
| zimblewinder wrote: |
My 23 is 4/58 so I don't know what this means for early/late comparison. Definitely OG though. Its a Euro model though I can't imagine that makes any difference. What model is yours?
Cheers
Dale |
it's a euro as well; sk699, so painted at vw
someone had removed the 2 pieces and stored them under the seat, so they are really nice; parcel tray still has the og glue they used
eric, that's wierd your blue 58 didn't have the covers, but then again it is a dove blue bus, so what color cover would they have used?
would a westfalia painted bus not have been delivered in primer? interesting
_________________
WANTED:
58 Westfalia cabinet knobs (3 needed), roof rack, and (7) privy tent poles (silver painted).
"When the people are afraid of the government, that's tyranny. But when the government is afraid of the people, that's liberty."
"The tree of liberty must be refreshed from time to time with the blood of patriots and tyrants."
Thomas Jefferson |
|
| Back to top |
|
|
sub-hatchtim
Samba Member
Joined: September 19, 2006
Posts: 2685
Location: Phoenix AZ
|
| Posted: Sun Dec 29, 2013 10:01 am Post subject: |
|
|
My 58 pg/sg westy only had material on the back of the tray
_________________
58' pg/sg silo fridge westy
58 Dove blue singlecab
76 911S |
|
| Back to top |
|
|
Stanagon
Samba Member
Joined: July 11, 2003
Posts: 4196
Location: Boston, MA
|
|
| Back to top |
|
|
|
