PostPosted: Thu Aug 02, 2007 6:27 pm    Post subject: Reply with quote

Ah, FRONTS, I see now. I am nowhere near as smart as I look. I thought he did both. Nice graphs BTW loogy, I like the multi colors. Pretty!
_________________
10'0" Lance Carson
6'3" Hamisch Fish
Schwinn Beach Cruiser
Sold the westy, never even drove it
Back to top
View user's profile Send private message MSN Messenger Gallery Classifieds Feedback
snoop
Samba Member


Joined: June 22, 2007
Posts: 373
Location: SW Oregon
snoop is offline

PostPosted: Sun Jul 29, 2007 10:33 pm    Post subject: Reply with quote

Thanks for the additional photos of the spacer Herman.
_________________
87 Westy Camper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
itzdshtz
Samba Member


Joined: December 24, 2006
Posts: 117
Location: Revelstoke
itzdshtz is offline

PostPosted: Tue Jul 24, 2007 6:02 pm    Post subject: Vanagon ball joint spacer Reply with quote

Hi Riley, the spacer is made out of 1 1/2" thick mild steel, I cut it out on a band saw and then machined it on the lathe.
Just re-measured it, since I took it out again to make some more pictures, it tapers from 1.135" down to 0.635", I left some pictures of how I made it here, just scroll down :

http://picasaweb.google.com/itzdshtz/VanagonSyncroProject02
_________________
1989 Westy
1987 Westy Syncro 2.5 M- TDI
1991 Syncro, future 1.9 M- TDI
2005 Audi allroad 4.2
2005 S4
http://vanagonsyncroproject-herman.blogspot.com/
http://picasaweb.google.com/itzdshtz/VanagonSyncroProject02
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
rileyh
Samba Member


Joined: July 24, 2007
Posts: 1
Location: Seattle
rileyh is offline

PostPosted: Tue Jul 24, 2007 2:29 am    Post subject: Spacer material Reply with quote

The spacer between the ball joint and the upper a-arm looks good. What material did you use? I cannot tell from the pictures. Aluminum would be the easiest to machine but I would be worried about it being strong enough, especially over a long period of time with fatigue. Thanks.
Back to top
View user's profile Send private message Classifieds Feedback
itzdshtz
Samba Member


Joined: December 24, 2006
Posts: 117
Location: Revelstoke
itzdshtz is offline

PostPosted: Mon Jul 16, 2007 9:53 pm    Post subject: Reply with quote

Thanks guys, I hope it was helpful.
My spacer is 1" thick and tapers down to 0.600", it brings the ball joint angle down to what it was before I installed the extended shock absorbers, so it should be OK when the suspension is fully compressed.

westysapien, your van looks great, 1" would probably do it for you too.

Loogy, you made some very interesting calculations and a nice chart!

Herman
_________________
1989 Westy
1987 Westy Syncro 2.5 M- TDI
1991 Syncro, future 1.9 M- TDI
2005 Audi allroad 4.2
2005 S4
http://vanagonsyncroproject-herman.blogspot.com/
http://picasaweb.google.com/itzdshtz/VanagonSyncroProject02
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
snoop
Samba Member


Joined: June 22, 2007
Posts: 373
Location: SW Oregon
snoop is offline

PostPosted: Mon Jul 16, 2007 9:15 pm    Post subject: Reply with quote

Wow. Awesome Chris. Thank you. Based on your information I'm inclined to build 1.75" spacers, install 'em and see what kind of camber sitch I get. Trimming 'em down would be a cinch if that's what's indicated.

The 1000+ mile trip to eastern Oregon was a hoot. I'll be posting a thread about it to relate all of the van parts that rattled loose/off as a result of the washboards roads that I was able to drive so much darn faster on with the new suspension!

I should point out that post-trip, the front has settled in to 18.5"...I REALLY don't expect any further settlement...I'm talkin' REALLY fast on REALLY washboarded roads for LOTS of miles. No movement of the shims. Rears still at 18.75"...I may drop 'em a 1/4" someday in order to satisfy my Libra nature. Lotta other westy work higher up the que though...more on that in that coming thread.

Here's a teaser though...a shot of the camel totin' our tubes on the trip:

Image may have been reduced in size. Click image to view fullscreen.


Thanks again Chris...it'll be some time before I get the spacers made, and based on the handling, I can't justify doing it...it handles AWESOME! But, intellectually, I know you're right...it can be even better! Which is even MORE AWESOME! I'll post about the job when I do. And thanks for your contribution itzdshtz...very impressive! And inspirational!

Peace,

Mike
_________________
87 Westy Camper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tikibus
Samba Member


Joined: July 07, 2006
Posts: 834
Location: Rochester, NY
tikibus is offline

PostPosted: Sun Jul 15, 2007 10:15 am    Post subject: Reply with quote

Wow!

Okay, I take back my smartass comment and sit humbly.

Nice work.
_________________
Happy Trails!
Mark
______________
Founding member of the Empire State VW Camping Club.
http://www.empirevwcamping.org/
1984 Westy - Tiki
1997 Honda Civic -The Green Hornet
1971 Volvo P-1800E- needs TLC
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5526
Location: PNW
Christopher Schimke is offline

PostPosted: Sun Jul 15, 2007 9:16 am    Post subject: Reply with quote

69doublecab wrote:
What wouuld be the effect of body roll during these cornering calculations? It seems like it could affect it.
Al


Yes, the body roll definately affects the suspension geometry. The body roll will exagerate the calculations. For example (just a rough example to make it easy to understand), let's say you combine 1º of camber gain as the suspension compresses along with 1º of body roll. It's easy to see how the camber gain (or lack of it in some cases) will be greater with the added body roll. Therefore, it is important to do what we can to make the supension geometry as "right" as possible in order to have a good handling vehicle.

It is possible to plot out all of the changes but it involves figuring the roll center, instantaneous centers, center of gravity, roll angle, etc.

Here's a quote from Allan Staniforth, suspension authority:

Quote:
The trouble with all theoretical suspension concepts is that they alter once real life cornering and other forces come into play, because static data on which they are based alters. The Dynamic Roll Centre (as opposed to the static one) can and does move up, down and sidways. How far and which way are two of the several questions not easy to answer.

Roll being itself a function of another equally invisible point, the Centre of Gravity (which though fixed can appear to exert itself dynamically as if it had moved), it can be seen how the variations and uncertainties are rapidly multiplying. Leverages alter, the car's attitude alters, weight transfer from inner to outer wheels alters, and the end of the line, the tyre contact patches start distorting under a complex and varying series of loads.


It should be easy to see just how complicated this can get. I have always wanted to plot out the complete geometry of a lowered bus but have never taken the time.

Itzdshtz, Very nice work on those spacers as well as the rest of your Syncro project.

Did you happen to observe the upper ball joint angle with the suspension fully compressed with your angled spacers installed? Just curious because I would be worried that the joints might run out of angular movement before the suspension does. I'm not sayingthat this is the case, it's just something that I would want to know.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Alan Brase
Samba Member


Joined: March 28, 2004
Posts: 4570
Location: Cedar Falls, Iowa
Alan Brase is offline

PostPosted: Sat Jul 14, 2007 5:42 pm    Post subject: Re: Upper ball joint spacer Reply with quote

itzdshtz wrote:
After I installed my extended front shocks, (I have 23" between the center of the hub and the fender bottom) I ended up making a spacer that fits between the ball joint and the A-arm.
The problem I had was that the rubber boot kept popping off the ball joint when the vehicle was jacked up, the angle was too steep.
It also looked like I had too much negative Camber, the spacer is angled and just bolts in between. You will have to drill out the threads of your ball joint, there are two socket type bolts on the top and 2 on the bottom.
This will also work for a regular Vanagon.
Some pictures:


http://picasaweb.google.com/itzdshtz/VanagonSyncroProject02

http://vanagonsyncroproject-herman.blogspot.com/

Wow. Nice! This guy is from a different planet. and my favorite engine, too!
Didn't the Eurovan diesel ever get turboed?
Al
_________________
Al Brase
Projects: 67 sunroof bug, 67 Porsche 912 Targa, 70 Westy
Dec 1955 Single Cab pickup WANT 15" BUS RIMS dated 8/55, thru 12/55
To New owners: 1969 doublecab, 1971 Dormobile
Vanagons:
80 P27 Westy JUL 1979, 3rd oldest known US
83 1.6TD Vanagon, 87 Wolfie Westy daily driver, swap meet home
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
itzdshtz
Samba Member


Joined: December 24, 2006
Posts: 117
Location: Revelstoke
itzdshtz is offline

PostPosted: Sat Jul 14, 2007 3:17 pm    Post subject: Upper ball joint spacer Reply with quote

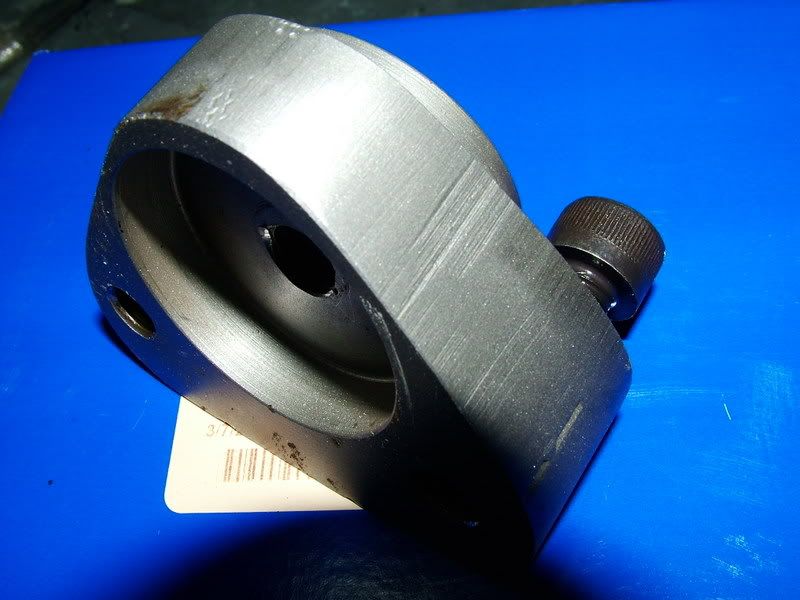

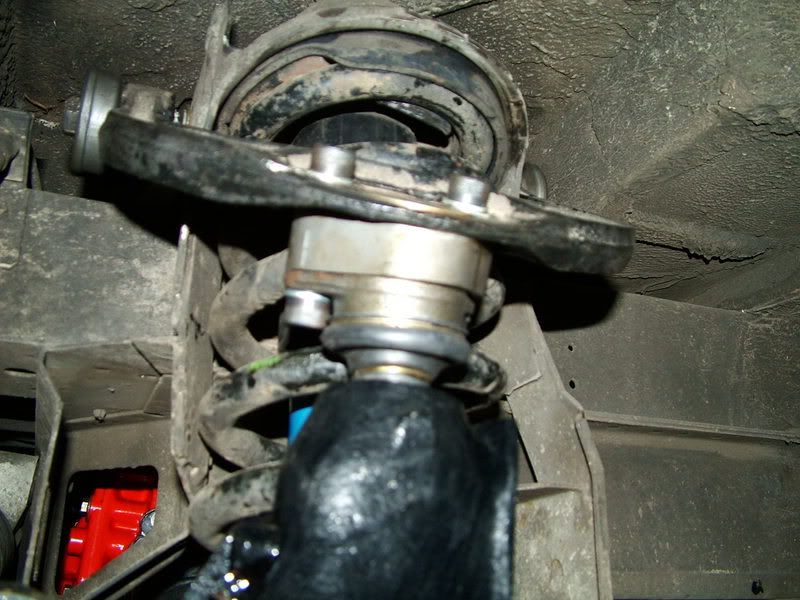

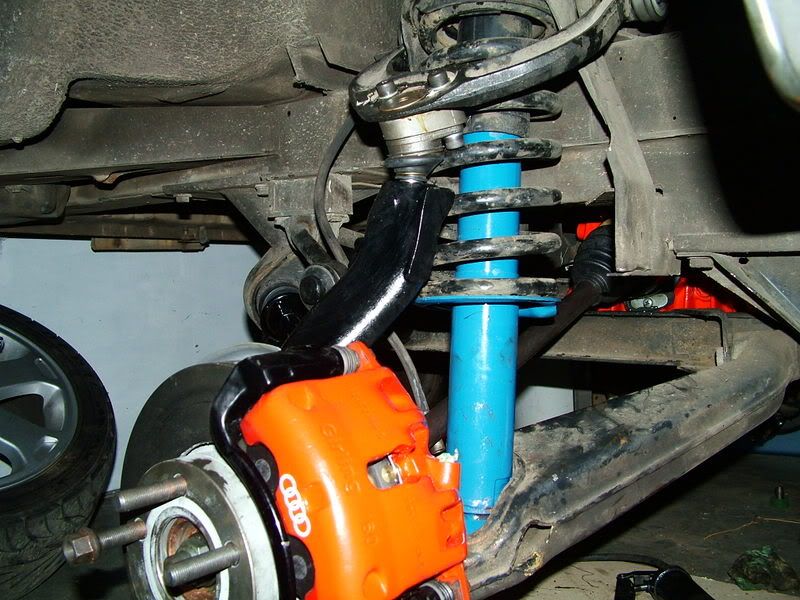

After I installed my extended front shocks, (I have 23" between the center of the hub and the fender bottom) I ended up making a spacer that fits between the ball joint and the A-arm.
The problem I had was that the rubber boot kept popping off the ball joint when the vehicle was jacked up, the angle was too steep.
It also looked like I had too much negative Camber, the spacer is angled and just bolts in between. You will have to drill out the threads of your ball joint, there are two socket type bolts on the top and 2 on the bottom.
This will also work for a regular Vanagon.
Some pictures:

http://i112.photobucket.com/albums/n200/itzdshtz/DSCF3259.jpg

http://i112.photobucket.com/albums/n200/itzdshtz/DSCF3256.jpg

http://i112.photobucket.com/albums/n200/itzdshtz/DSCF3138.jpg

http://picasaweb.google.com/itzdshtz/VanagonSyncroProject02

http://vanagonsyncroproject-herman.blogspot.com/
_________________
1989 Westy
1987 Westy Syncro 2.5 M- TDI
1991 Syncro, future 1.9 M- TDI
2005 Audi allroad 4.2
2005 S4
http://vanagonsyncroproject-herman.blogspot.com/
http://picasaweb.google.com/itzdshtz/VanagonSyncroProject02
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
Alan Brase
Samba Member


Joined: March 28, 2004
Posts: 4570
Location: Cedar Falls, Iowa
Alan Brase is offline

PostPosted: Fri Jul 13, 2007 9:00 am    Post subject: Reply with quote

Chris:
Nice work. What wouuld be the effect of body roll during these cornering calculations? It seems like it could affect it.
I agree, the extension for the ball joint would be simplest. Though , cutting and welding the upper arm would not be too difficult, either.
It seems like machining a spacer trom aluminum and using linger bolts wold be simple.
Al
_________________
Al Brase
Projects: 67 sunroof bug, 67 Porsche 912 Targa, 70 Westy
Dec 1955 Single Cab pickup WANT 15" BUS RIMS dated 8/55, thru 12/55
To New owners: 1969 doublecab, 1971 Dormobile
Vanagons:
80 P27 Westy JUL 1979, 3rd oldest known US
83 1.6TD Vanagon, 87 Wolfie Westy daily driver, swap meet home
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5526
Location: PNW
Christopher Schimke is offline

PostPosted: Thu Jul 12, 2007 2:57 pm    Post subject: Reply with quote

Alright, I was able to plot the geometry of the 2wd T3 front suspension. I found some interesting things. Keep in mind if you are new to suspension geometry that positive camber means the top of the tire tips outward. Negative camber means the top of the tire tips inward.

First off, take a look at this chart.

Image may have been reduced in size. Click image to view fullscreen.


    Stock Geometry - 0º Camber at rest

    1" of wheel travel = +0.25º
    2" of wheel travel = 0º
    3" of wheel travel = -0.50º
    4" of wheel travel = -1.00º
    5" of wheel travel = -2.00º
    6" of wheel travel = -3.50º



The geometry was based on a stock '85 GL. The blue line represents the point in which the front suspension actually starts to gain camber. Gaining some amount of negative camber is important to good handling especially during quick evasive maneuvers when the suspension goes through massive geometry changes. Note that the camber actually goes +.25º during 1" of wheel travel in the stock height geometry. Definately not a huge amount but the front outer tire in a corner should never go positive.

Now think about this. During a corner, let's say the inner suspension compresses 1". This means that the inner suspension will droop roughly 1" as well. Look at what happens to the camber gain when the suspension droops 1". It goes -.75º. This means that during this corner, the top of your outer tire is tipping outward and the top of the inner tire is pointing inward. Not a very good scenerio for good handling. And again, this is on a completely stock suspension.

Now let's look at westysapien's 2" lifted suspension as it sits today.

    Lifted 2" - 1º Camber at rest

    1" of wheel travel = 0º
    2" of wheel travel = +1.50º
    3" of wheel travel = +2.25º
    4" of wheel travel = +2.00º
    5" of wheel travel = +1.50º
    6" of wheel travel = +0.50º
    7" of wheel travel = -0.50º


It takes nearly 7" of travel before ANY negative camber is gained at the outside front wheel. The inside front wheel is gaining negative camber at an even higher rate as the inside suspension lifts.

If the camber was corrected to 0º but no spacers added, the profile is similar to the above example (-1º camber at rest) except that you gain full positive camber at 4" of wheel travel as opposed to 3" of wheel travel.

So here's the camber profiles if a 1", 1.5" or 2" spacer is added between the upper ball joint and the upper control arm. This profile is assuming an at rest camber of 0º. I only plotted the first 3" of wheel travel for these simply because I only wanted to see where the negative gain started. The reason for the 4" wheel travel profile in the list for the 2" wheel spacer is to show how rapidly camber is gained with that much spacer added.

    1" Spacer - 0º Camber at rest

    1" of wheel travel = +0.25º
    2" of wheel travel = +0.25º
    3" of wheel travel = -0.75º



    1.5" Spacer - 0º Camber at rest

    1" of wheel travel = 0º
    2" of wheel travel = -0.50º
    3" of wheel travel = -0.75º



    2" Spacer - 0º Camber at rest

    1" of wheel travel = -0.25º
    2" of wheel travel = -1.25º
    3" of wheel travel = -2.00º
    4" of wheel travel = -3.00º



My recommendation would be to build a spacer somewhere between 1.5" and 1.75". Even a 1" spacer would help a lot. With a 1" spacer, you would start gaining negative camber roughly 2.5" of wheel travel whereas now you don't start gaining until roughly 6.5" of wheel travel. Quite a difference for such a small spacer. A 2" spacer gains negative camber too quickly.

It's amazing the difference between a 1.5" spacer and a 2" spacer. The 2" spacer gains camber so much more rapidly than the 1.5". I did not profile a 1.75" spacer but I would venture to guess that it would be a fairly decent looking profile with maybe ever so slightly too much camber gain near the 4-5" wheel travel mark.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
snoop
Samba Member


Joined: June 22, 2007
Posts: 373
Location: SW Oregon
snoop is offline

PostPosted: Tue Jul 03, 2007 6:44 am    Post subject: Reply with quote

r39o wrote:
Question is: Where did you get those spacer rings, or did I miss that in some place in this thread?????

That's affirmative Walt. In post #9. Here you go:
westysapien wrote:

The rear spring caps are California Bearing Ratio testing surcharge weights such as these: http://www.humboldtmfg.com/c-10-p-179-id-10-next-2.html
They can be had from testing labs that go out of business cheap. OD is 6", ID is 2"...works perfectly

The front caps are custom built from these:
http://soiltest.com/pdf/Concrete/samplepreparation.pdf See page 6 for the pads. The 6 inch diameter ones need only a little trimming to work...5.625" OD and 3.375" ID fits perfectly.

For fine tuning of lift height I made shims out of Mack Truck mud flaps. Then I glued them all together with Gorilla Glue. I've done some serious off-roading with these caps...nothing has moved. They have settled some.

A note on the alignment. While I do believe everything that Chris has said regarding the dynamics involved with my lifted rig with it's (slightly) negative camber, I think it's worth noting that from an observational standpoint, I can't recognize anything in the handling that would indicate a problem. Simply put, the handling is excellent, and clearly an improvement relative to the way it was pre-spring pad lift...with correct camber. I attribute the improvement to an increased (stiffer) spring rate. Nonetheless, I'm sure that Chris is right when he states that handling can be improved through a return to correct camber. Look forward to that!

I've got to get packing now...there're some eastern Oregon trouties that're waitin' for me to go dancin' with 'em!

Back atcha all on the other side. I'll take lotsa pictures!

Mike
_________________
87 Westy Camper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
snoop
Samba Member


Joined: June 22, 2007
Posts: 373
Location: SW Oregon
snoop is offline

PostPosted: Tue Jul 03, 2007 6:22 am    Post subject: Reply with quote

usedcarr wrote:
FWIW Seth at Mastercraft sells an extended control arm. The are on the vanperformance website, they look trick.

Very trick indeed...except they're for the rear. My alignment is slightly out in the front. My idea of cutting and welding the front upper control arm was probably subconsciously inspired by my awareness of those Mastercraft rear arms Very Happy.
_________________
87 Westy Camper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Mon Jul 02, 2007 11:41 pm    Post subject: Reply with quote

OK, OK, my 85 Westy sits on syncro.org springs. Best I can get it to sit is at 18.25. To combat Westy lean I have a thick metal spacer I made for the left rear. It sits level with not alignment issues. An extra half an inch would make me more happy.

Question is: Where did you get those spacer rings, or did I miss that in some place in this thread?????
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
usedcarr
Samba Member


Joined: May 04, 2006
Posts: 67
Location: Calabasas CA
usedcarr is offline

PostPosted: Mon Jul 02, 2007 10:00 pm    Post subject: Reply with quote

FWIW Seth at Mastercraft sells an extended control arm. The are on the vanperformance website, they look trick.
_________________
10'0" Lance Carson
6'3" Hamisch Fish
Schwinn Beach Cruiser
Sold the westy, never even drove it
Back to top
View user's profile Send private message MSN Messenger Gallery Classifieds Feedback
snoop
Samba Member


Joined: June 22, 2007
Posts: 373
Location: SW Oregon
snoop is offline

PostPosted: Mon Jul 02, 2007 5:12 pm    Post subject: Reply with quote

For those interested in this thread the word from loogy is that he'll be out of town this week, info on UC spacer to come next week. I'm off to explore eastern Oregon in and around the westy!

Back on the 15th...will check in then.
_________________
87 Westy Camper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
snoop
Samba Member


Joined: June 22, 2007
Posts: 373
Location: SW Oregon
snoop is offline

PostPosted: Sun Jul 01, 2007 9:06 am    Post subject: Reply with quote

OK, Chris, got the control arm angles measured this morning. They are (relative to horizontal): lower (measured at the most outboard position, adjacent to the lower BJ): - 3 degrees; upper (measured on the top surface of the arm at the middle position): -27 degrees. Please let me know if other measurement locations would be more useful...top of upper BJ?

Much obliged for any help you can provide with sizing a spacer. Great idea, BTW. Thanks!

Mike
_________________
87 Westy Camper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Herr Motorspiele
Samba Member


Joined: June 11, 2007
Posts: 453

Herr Motorspiele is offline

PostPosted: Thu Jun 28, 2007 10:51 pm    Post subject: Reply with quote

That thing is awesome! Nice job! Very Happy
Now where can I get some of those spacers for cheap over here on the right coast?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
snoop
Samba Member


Joined: June 22, 2007
Posts: 373
Location: SW Oregon
snoop is offline

PostPosted: Thu Jun 28, 2007 8:49 pm    Post subject: Reply with quote

ThanksTSR53.
Westy w/stock springs, GW 15" wheels and Michelin 215/65 tires.
Image may have been reduced in size. Click image to view fullscreen.

Westy w/syncro.org springs, GW 16" wheels and BFG 215/70 tires.
Image may have been reduced in size. Click image to view fullscreen.

Spring caps: rear and front.
Image may have been reduced in size. Click image to view fullscreen.

Compressing the right front syncro.org spring.
Image may have been reduced in size. Click image to view fullscreen.

Westy w/spring caps, syncro.org springs, GW 16" wheels and BFG 215/70 tires.
Image may have been reduced in size. Click image to view fullscreen.

_________________
87 Westy Camper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
