| Generally you heat it up to about 400 degrees then weld it. However it will still lose the heat treatment in the area surrounding the weld. This might be a good thing in that location because it makes the material in that area more ductile. |
|
| Back to top |
|
 |
joescoolcustoms
Samba Member
Joined: August 08, 2006
Posts: 9054
Location: West By God Virginia
|
| Posted: Tue Jan 08, 2008 7:22 am Post subject: |
|
|
My machinist heats up the case for about 6 hours in an oven (? Temp), welds the plate in behind # 3, puts the case back into the oven, turns the oven off and lets cool overnight slowly.
He has done 4 cases for me and I cannot measure any heat damage to the main bearing adjacent to the patch. I am measuring to 0.0005 inch.
I have measured the thickness of the step cut of a 94 mm hole to the #3 area and I remember it only being 0.090 to 0.095 inch thick. No wonder it could crack, exspecially if you have not balanced the engine and the high RPM vibrations can cause a crack.
_________________
Bad News Racing 2018 NORRA 1000 3rd in Class
Best Day Ever Racing 2022 NORRA 1000 2nd in Class and first All Female team to complete the race
Everyone is gifted. Some just do not open the package.
Looks like it was painted with a live chicken,polished with a brick and buffed with a pine cone |
|
| Back to top |
|
|
stealth67vw
Samba Member
Joined: January 22, 2004
Posts: 1872
Location: Grass Pants, Orygun
|
|
| Back to top |
|
|
Terry Cloyd
Banned
Joined: March 23, 2004
Posts: 2218
Location: Valley Center "SO CAL"
|
| Posted: Mon Jan 07, 2008 9:59 pm Post subject: |
|
|
| stealth67vw wrote: |
| German Fuelie case. The golden child. Yes I know. |
So big guy.........Answer the  weld or not |
|
| Back to top |
|
|
stealth67vw
Samba Member
Joined: January 22, 2004
Posts: 1872
Location: Grass Pants, Orygun
|
|
| Back to top |
|
|
Terry Cloyd
Banned
Joined: March 23, 2004
Posts: 2218
Location: Valley Center "SO CAL"
|
| Posted: Mon Jan 07, 2008 9:49 pm Post subject: |
|
|
Did you know that they made a case that filled the deep set # 3 stud  Yes no welding |
|
| Back to top |
|
|
stealth67vw
Samba Member
Joined: January 22, 2004
Posts: 1872
Location: Grass Pants, Orygun
|
|
| Back to top |
|
|
Terry Cloyd
Banned
Joined: March 23, 2004
Posts: 2218
Location: Valley Center "SO CAL"
|
| Posted: Mon Jan 07, 2008 8:58 pm Post subject: |
|
|
| You need to weld it |
|
| Back to top |
|
|
Jimmy111
Samba Member
Joined: October 05, 2006
Posts: 2643
Location: Wyoming
|
| Posted: Mon Jan 07, 2008 8:39 pm Post subject: |
|
|
The place that you call a defect is normal. That is where the sprue or heat riser was attached when they poured the casting to prevent shrinkage at that spot due th the excessive amount of aluminum there. The oxides and other impuritiew will float and settle in the highest and hottest part of the casting. This case was probably poured a little cold but no structural defect.
| fitnessforyoutoo wrote: |
| fitnessforyoutoo wrote: |
| ashman40 wrote: |

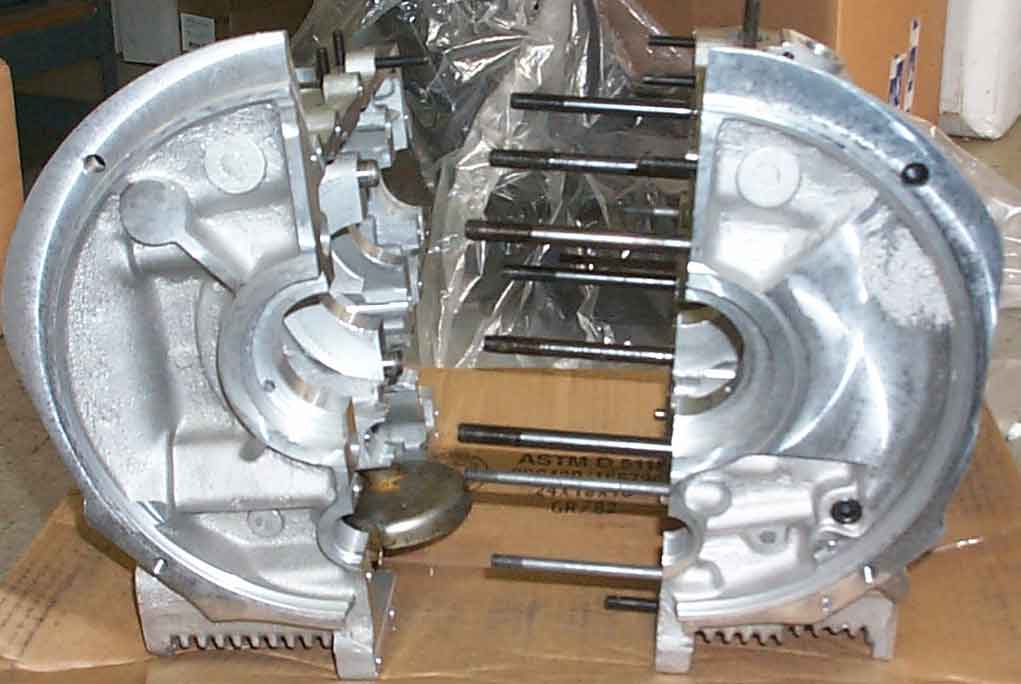

Here's a pic I found in the gallery that might make it easier for those that have never seen it.
