| Author |
Message |
Jeckler
Samba Member
Joined: September 27, 2005
Posts: 2718
Location: Mesa, AZ
|
 Posted: Sat Oct 04, 2008 9:30 pm Post subject: |
 |
|
Yes, same hose.
And for those that want to convert to electric pumps, but want to use the stock button, there is a way. I went searching for this as I remember seeing it before, and I'm the one that posted it in another thread back in '06.
http://www.clubvw.org.au/how_to_modify_those_windscreen_w.htm
_________________
Andy
'63 Bug rebuild here.
Did you know that sellers can't charge a fee to accept PayPal?
| bill may wrote: |
| I am the crabby old guy. |
Knowledge is knowing that a tomato is a fruit.
Wisdom is knowing not to put it in fruit salad. |
|
| Back to top |
|
 |
johnanddes
Satellite Wrangler
Joined: October 17, 2004
Posts: 692
Location: Orcutt CA
|
| Posted: Sat Oct 04, 2008 9:16 pm Post subject: |
|
|
Im going to re-vitalize this post with another question, can I replace that rubber hose that goes from the cap to the switch? Any help is appriciated
_________________
John
1969 documented numbers matching bug
1968 F250
Keepin the ISS from colliding with space junk |
|
| Back to top |
|
|
b4tdi
Samba Member
Joined: July 22, 2005
Posts: 10
Location: Massachusetts
|
| Posted: Wed Oct 10, 2007 12:55 pm Post subject: |
|
|
Yikes - I don't like Dangermouse's or SNJ's stories of spraying the interior and the wiring.
I also have a similar problem on my '65 where the contents of the tank sprays without pressing the button (fortunately the outside of the windshield).
Has anyone ever tried to take the switch/button apart to see what's holding the path open? |
|
| Back to top |
|
|
okar
Samba Member
Joined: October 21, 2005
Posts: 29
Location: Seattle Washington
|
| Posted: Wed Oct 10, 2007 10:16 am Post subject: squirter info |
|
|
thanks SNJ! I really wasnt asking for a modified reservoir or one off some other car, i have one i just want it to work, kind of frustrating how a question can veer off into another direction.
So, if i want a resoirvoir off a rabbit, i know what to do now,
But, what i really wanted was the inormation SNJ and the person with the accessory foto delivered.. THanks! |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26538
Location: Douglas, WY
|
| Posted: Tue Oct 09, 2007 3:07 am Post subject: |
|
|
yeah, same thing happened to me too, as I said earlier in this thread....
| Quote: |
| (I remember the old switch, when it failed on me as I pressurized the tank, and it blowing its button out the dashboard and water jetting out of the hole) |
At least with me I caught it right away and depressurized the tank before I got a flood of blue water all over the inside of the car.
That was when I tried to buy a new switch, and the only one I could find at that time was the 1967-style. That's when I figured out how to use that new switch with an older wiper motor and eventually hooked it up with two resistors to make it two speeds, as I laid out in the diagram I drew up and posted in the Gallery:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=350768 |
|
| Back to top |
|
|
snj
Samba Member
Joined: October 18, 2006
Posts: 489
Location: Seattle, WA
|
| Posted: Mon Oct 08, 2007 9:10 pm Post subject: |
|
|
| Dangermouse wrote: |
| Or as happened to me the last time I pressurised the damn thing, high pressure in reservoir + low pressure inside car = button flies out of the centre of the switch and entire contents of reservoir shoots out of the dash into your lap and all over your already rusty floorpans 'cos you had the floormats out to clean them up. Note: not possible to stem the flow by trying to jam finger into switch. |
Hah, thanks for that story. It makes me feel better about the time I pressurized the system (below the max pressure rating, mind you) only to have washer fluid sprayed all over my wiring. |
|
| Back to top |
|
|
Dangermouse
Samba Member
Joined: November 23, 2005
Posts: 1321
Location: Beautiful New Zealand
|
| Posted: Mon Oct 08, 2007 7:54 pm Post subject: |
|
|
| Quote: |
| When you push the plunger in, the path is opened. High pressure in reservoir + low pressure outside = fluid shoots at your window. |
Or as happened to me the last time I pressurised the damn thing, high pressure in reservoir + low pressure inside car = button flies out of the centre of the switch and entire contents of reservoir shoots out of the dash into your lap and all over your already rusty floorpans 'cos you had the floormats out to clean them up. Note: not possible to stem the flow by trying to jam finger into switch. |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26538
Location: Douglas, WY
|
| Posted: Mon Oct 08, 2007 7:43 pm Post subject: |
|
|
| Like I said before, I ran mine without the accessory hose for several years and it was fine. I just happened to stumble across one of the accessory hoses, cheap, so I scored it. |
|
| Back to top |
|
|
snj
Samba Member
Joined: October 18, 2006
Posts: 489
Location: Seattle, WA
|
| Posted: Mon Oct 08, 2007 7:36 pm Post subject: Re: squirter set up |
|
|
| okar wrote: |
| Ok, so now i know what it looks like.. where do i get one? and how does it hook up to the little push knob inside the wiper switch? |
Be aware that you don't necessarily need the accessory hose. It might earn you some style points, but you can get along just fine without one.
But whether or not you have the stock setup or the accessory hose, the reservoir is pressurized and hose runs from the reservoir to the wiper switch. From the wiper switch, another hose runs to your washer jet. With the plunger in its outward resting position, the path between the two hoses is blocked. When you push the plunger in, the path is opened. High pressure in reservoir + low pressure outside = fluid shoots at your window. |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26538
Location: Douglas, WY
|
| Posted: Mon Oct 08, 2007 7:35 pm Post subject: |
|
|
EDIT - Arrgh, sorry I'm getting confused as to who is asking what here.
I know for sure I cut the mount out of the back of a Rabbit, but I'm not totally certain the reservoir came from there.
Last edited by glutamodo on Mon Oct 08, 2007 7:44 pm; edited 2 times in total |
|
| Back to top |
|
|
snj
Samba Member
Joined: October 18, 2006
Posts: 489
Location: Seattle, WA
|
| Posted: Mon Oct 08, 2007 7:29 pm Post subject: Re: schrader valve. squirter |
|
|
| glutamodo wrote: |

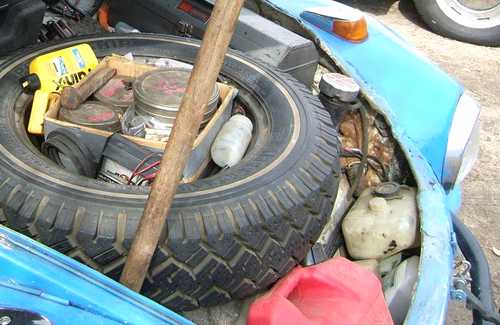

I think it's a REAR Rabbit reservoir. As this is in my baja and I don't have a spare in the normal location, I took the cover plate for the steering box adjustment, drilled out the welds for the Rabbit reservoir's slide-in body mount, then put some holes in the that steering box cover plate and bolted that mount up there. So it sits at a slight angle, but it still works good. And access is pretty easy.
|

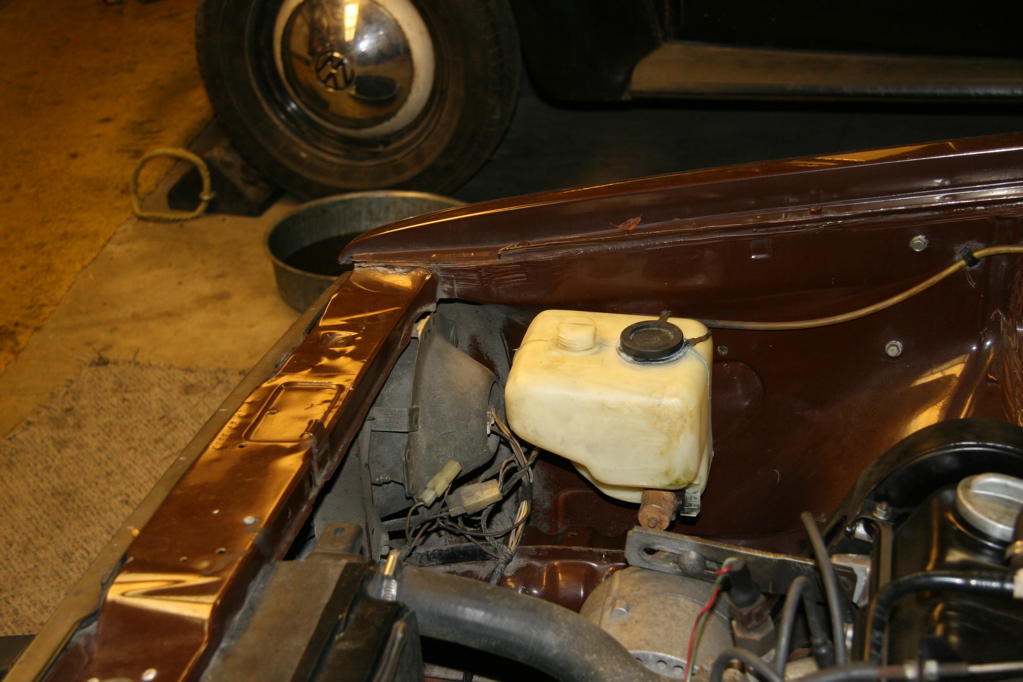

Looks like the same one to me.
(Not connected because it doesn't hold fluid.)

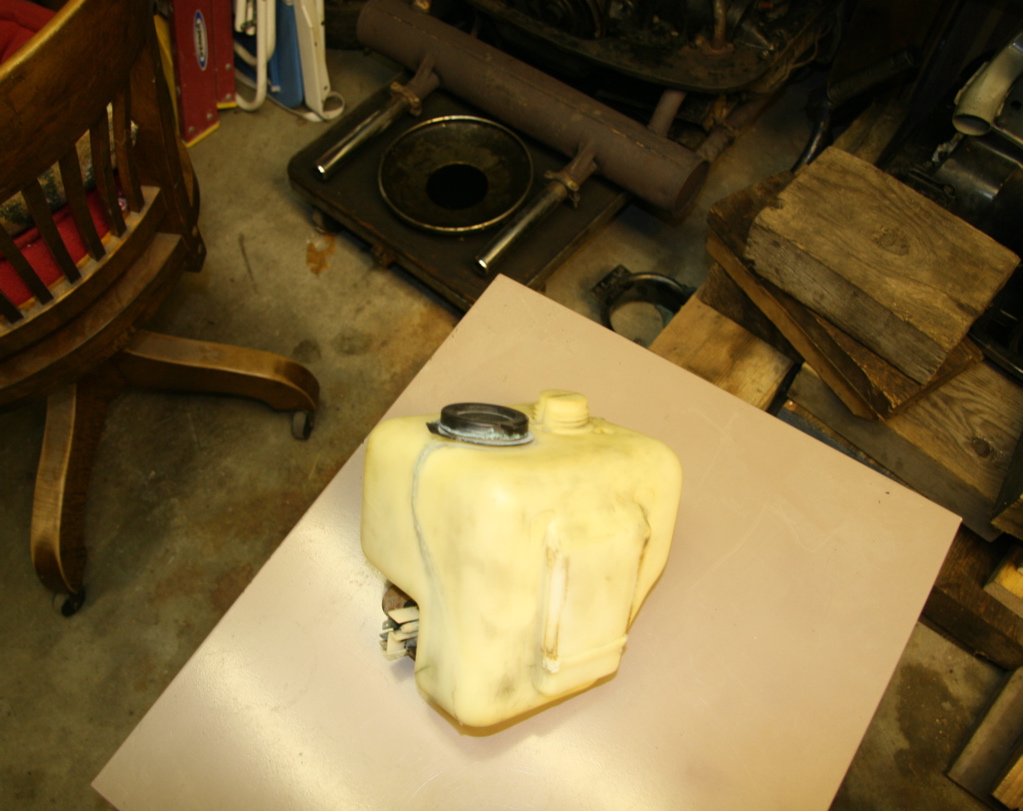

For those curious about the slide-in body mount, here's a more illuminating picture (I didn't think to take a picture of the metal mount on the body, though):
|
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26538
Location: Douglas, WY
|
| Posted: Mon Oct 08, 2007 3:00 pm Post subject: |
|
|
| Those accessory hoses haven't been sold in decades, so your best bet is to look at swap meets, eBay and the Classified ads here on TheSamba. |
|
| Back to top |
|
|
okar
Samba Member
Joined: October 21, 2005
Posts: 29
Location: Seattle Washington
|
| Posted: Mon Oct 08, 2007 10:18 am Post subject: squirter set up |
|
|
Ok, so now i know what it looks like.. where do i get one? and how does it hook up to the little push knob inside the wiper switch?
thanks everyone for the info.
as far as shifter, i guess i go berg. save up !!! |
|
| Back to top |
|
|
drscope
Samba Member
Joined: February 19, 2007
Posts: 15273
Location: Baltimore, Maryland USA
|
| Posted: Mon Oct 08, 2007 8:59 am Post subject: Re: Not Original |
|
|
| dantrefethen wrote: |
| drscope wrote: |
If you really want it to work, you could always install a modern bottle with the built in electric pump.
but that wouldn't be original. |
Mine has one of these and works real well.
http://www.mamotorworks.com/acvw?frame=2.4525
Dan |
You could probably buy that same set up for about $12 if it wasn't for a corvette!
_________________
Mother Nature is a Mean Evil Bitch! |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26538
Location: Douglas, WY
|
| Posted: Mon Oct 08, 2007 3:16 am Post subject: Re: schrader valve. squirter |
|
|
| snj wrote: |
The Rabbit reservoir (at least the one on a '79) has a rather strange shape. How did you mount it?
). |
Very good question. I didn't state everything - I think it's a REAR Rabbit reservoir. As this is in my baja and I don't have a spare in the normal location, I took the cover plate for the steering box adjustment, drilled out the welds for the Rabbit reservoir's slide-in body mount, then put some holes in the that steering box cover plate and bolted that mount up there. So it sits at a slight angle, but it still works good. And access is pretty easy.
|
|
| Back to top |
|
|
snj
Samba Member
Joined: October 18, 2006
Posts: 489
Location: Seattle, WA
|
| Posted: Sun Oct 07, 2007 10:42 pm Post subject: Re: schrader valve. squirter |
|
|
| glutamodo wrote: |
| In my baja I've got a washer bottle from a Rabbit with the electric pump, with a switch under the dash for it. Works pretty good, but I have thought about putting it back stock sometime. |
The Rabbit reservoir (at least the one on a '79) has a rather strange shape. How did you mount it?
For 6V types, cip1 has this: http://www2.cip1.com/ProductDetails.asp?ProductCode=VWC%2D111%2D989%2D453
I'm sure they work well, but I don't want an extra switch in my cabin. I may have to take my chances on an NOS switch (or convince Wolfsbürg West to make some repros). |
|
| Back to top |
|
|
dantrefethen
Samba Member
Joined: April 28, 2004
Posts: 729
Location: Boise Idaho
|
| Posted: Sun Oct 07, 2007 7:46 pm Post subject: Not Original |
|
|
| drscope wrote: |
If you really want it to work, you could always install a modern bottle with the built in electric pump.
but that wouldn't be original. |
Mine has one of these and works real well.
http://www.mamotorworks.com/acvw?frame=2.4525
Dan |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26538
Location: Douglas, WY
|
| Posted: Sun Oct 07, 2007 7:45 pm Post subject: Re: schrader valve. squirter |
|
|
| snj wrote: |
| You pump air into the tank and it depletes over time. Later on ('68, I think?) , though, the reservoir got its pressure from the spare tire. I believe this was offered as an option or accessory at some earlier point. |
Yeah, it was. I think it was an option starting soon after they introduced the air-pressure system.
In my baja I've got a washer bottle from a Rabbit with the electric pump, with a switch under the dash for it. Works pretty good, but I have thought about putting it back stock sometime. I've seldom had any issues with my other bug, a stock 1962 - that is, AFTER I put in a new wiper switch. (I remember the old switch, when it failed on me as I pressurized the tank, and it blowing its button out the dashboard and water jetting out of the hole) The first few years after I put in the new switch, I just filled the tire with a tire pump. Later on though, I scored one of those aforementioned accessory tire connection hoses, and have used it ever since. Mine differs a little bit from the one described in the Bentley VW 1200 Workshop manual in that it just has a pressure valve in it to keep the spare from going flat, no fill or cutoff valve.
|
|
| Back to top |
|
|
snj
Samba Member
Joined: October 18, 2006
Posts: 489
Location: Seattle, WA
|
| Posted: Sun Oct 07, 2007 5:41 pm Post subject: |
|
|
OK, I admit I've never used one, but it seems more satisfying than just holding down a button.
At this point, it sounds more appealing than that I've got, which is no squirter at all. I've got two original switches, and neither holds any pressure. I know the 2 speed switches can be retrofitted, but I want to stay with an original switch. It's getting rainy in Seattle, and I'm thoroughly enjoying my correct switch (the car had a 2 speed with non-functional squirter when I got it) even though the squirter doesn't work. |
|
| Back to top |
|
|
Dangermouse
Samba Member
Joined: November 23, 2005
Posts: 1321
Location: Beautiful New Zealand
|
| Posted: Sun Oct 07, 2007 4:25 pm Post subject: |
|
|
| Quote: |
| I'd much rather have a 1961-style setup and pump it myself instead |
No, really, you wouldn't.
- DM |
|
